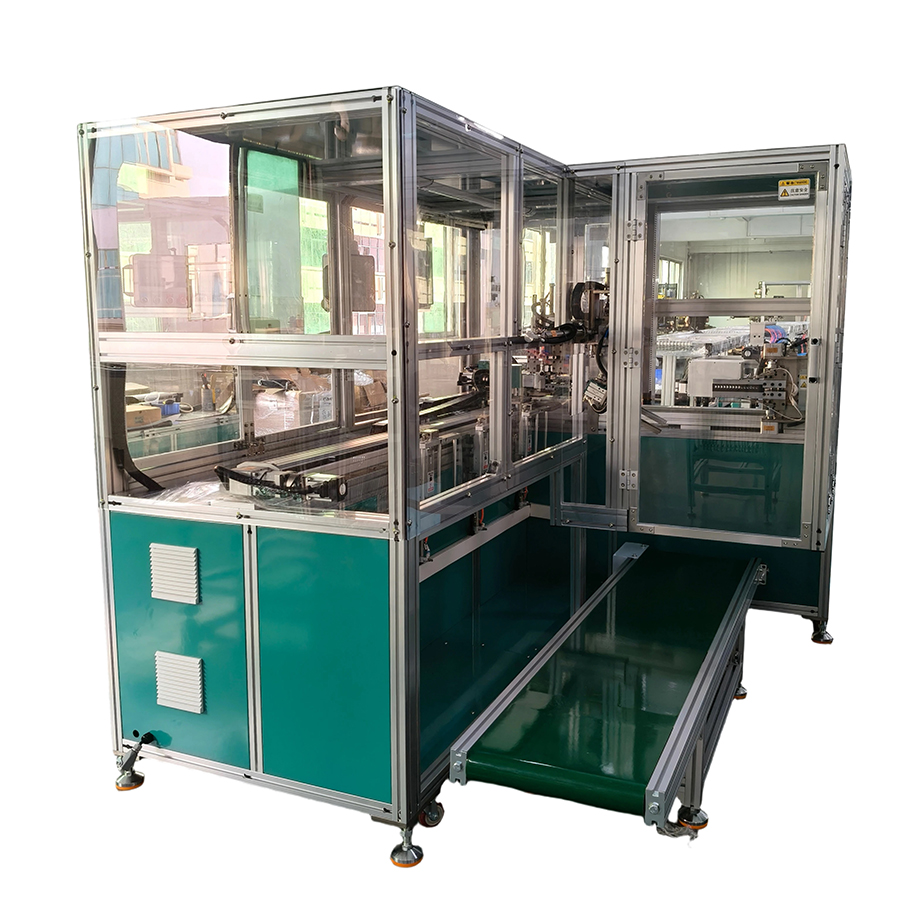

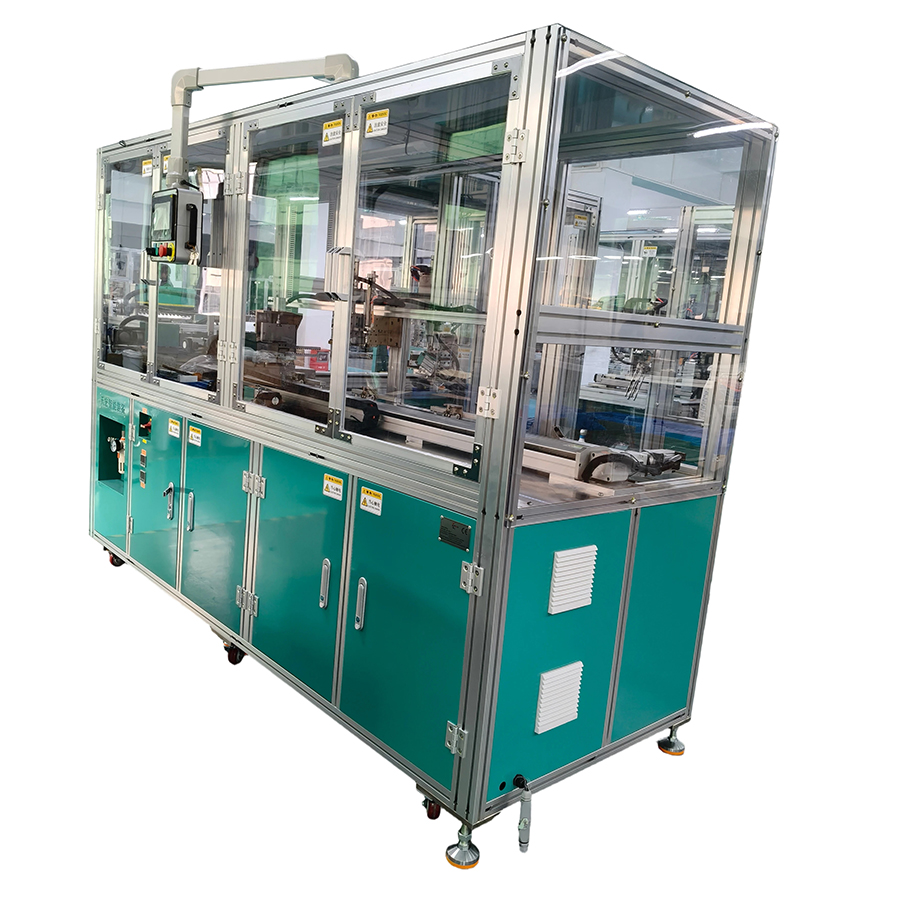

Rubber tube O Ring full automatic cutting and splicing machine ES-060-1 (Feeding in roll form)

Rubber tube O Ring full automatic cutting and splicing machine ES-060-1 (Feeding in roll form)

The ES-060-1 Fully Automatic Rubber O-Ring Cutting and Bonding Machine is designed for processing ready  winded rubber gaskets rolls into o ring gaskets in one machine . It supports cutting lengths from 230 mm to 2000 mm and features a simple, user-friendly touch-screen interface with full Chinese and English display, parameter recording, real-time monitoring, and alarms. The machine can process a wide range of materials, including silicone, foam, and various extruded gasket profiles such as round, square, rectangular, and customized special shapes through interchangeable molds.

A single unit can replace the workload of 4 to 6 operators, thanks to its fully automated system that handles  feeding, cutting, gluing, putting in molds for bonding, and unloading of completed O-rings. The customized automatic feeding system allows rubber gasket rolls to be fed directly into the machine, with operators only responsible for load on with roll form materials and ensure glue tank had glue. .

Youtube video

The machine processes 15 pieces per production cycle, with a cycle time of 15–45 seconds, depending on product length. This allows an output capacity of 1200 to 3000 pieces per hour. The upper and lower fixture molds include a silicone-oil coating to ensure accurate, non-dislocated joints while preventing glue from sticking.

To enhance safety, the machine is equipped with a fully enclosed transparent safety door that immediately stops operation when opened. The upgraded control program supports storage of 100 product formulas, enabling one-key retrieval of previous settings—including cutting length, glue dipping position and times, and glue flow-down time. Automatic length-compensation ensures the actual cutting length always matches the set value.

With simultaneous processing of 15 pieces, the machine achieves daily productivity of 20,000–36,000 O-rings in a 10-hour shift, ensuring precise cutting lengths, strong bonding strength, and consistently high product quality..

【Technical Data】

1. Product name: The rubber o ring fully automatic cutting and bonding machine

2. Equipment model: ES-060-1

3. Cutting length range: the length is between 230mm and 2000mm,

4. The system operation is simple and convenient: touch screen display operation, full Chinese&english interface, various parameter

recording, display, alarm

5. Application : All kinds of extruded gaskets, silicone, foam series O-rings can be widely processed, including round, square, rectangular,

special-shaped and other shapes (molds need to be replaced and customised)

6. Efficiency :One set machine can replace the production capacity of 4-6 people

7. Operation : The machine is easy to operate: it can adapt to products of different specifications within a certain range,

8. Feeding system :The machine has customised automatic feeding system for roll form rubber gaskets material, and the machine automatically feed material and adhesive [the operator is only

responsible for placing materials and glue, and the rest is completed by the equipment]

9. The system is set to operate simultaneously, and there are 15 pcs to be produced in one production cycle

10. Cycle time : The system has an operation cycle of 15~45S/less (excluding the normal operator’s time to place materials, the speed of the

cycle processing speed varies according to the length of the product) The output is between 1200 and 3000 per hour.

11. Fixture molds :The upper&down fixture mold enables good joint of orings without dislocation ,fixture mold with silicone oil coating which avoids sticking with instant glue

12. Automation : Automatic loading, feeding, cutting, gluing, placing gaskets in the mold,  unloading fiinshed bonded orings in one machine

13. Equipment dimensions: length x width x height = 14x1.8x2 (meters)

14.Air pressure＞0.5Mpa;

15:Weight: 1300KG;

16.Rated power: 380V 50/60Hz 10KW

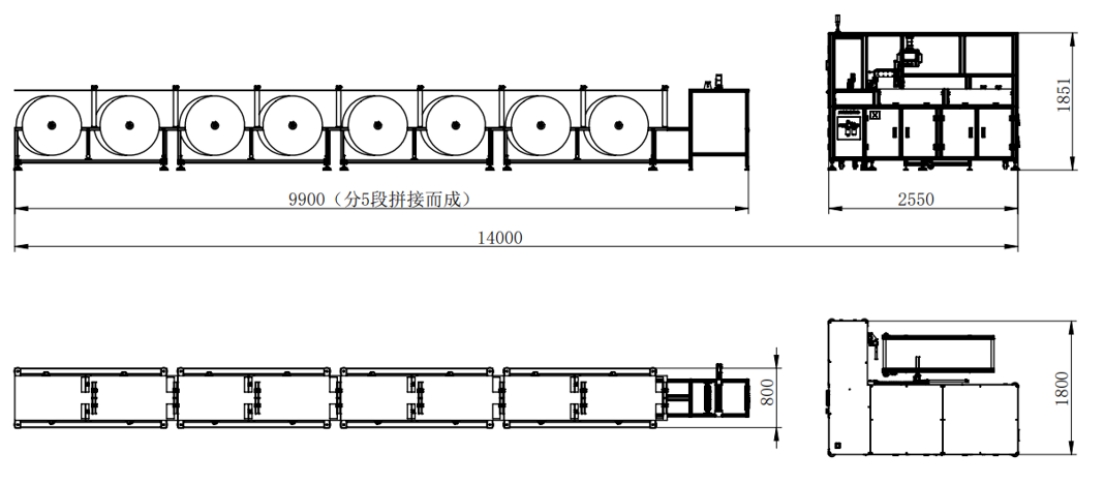

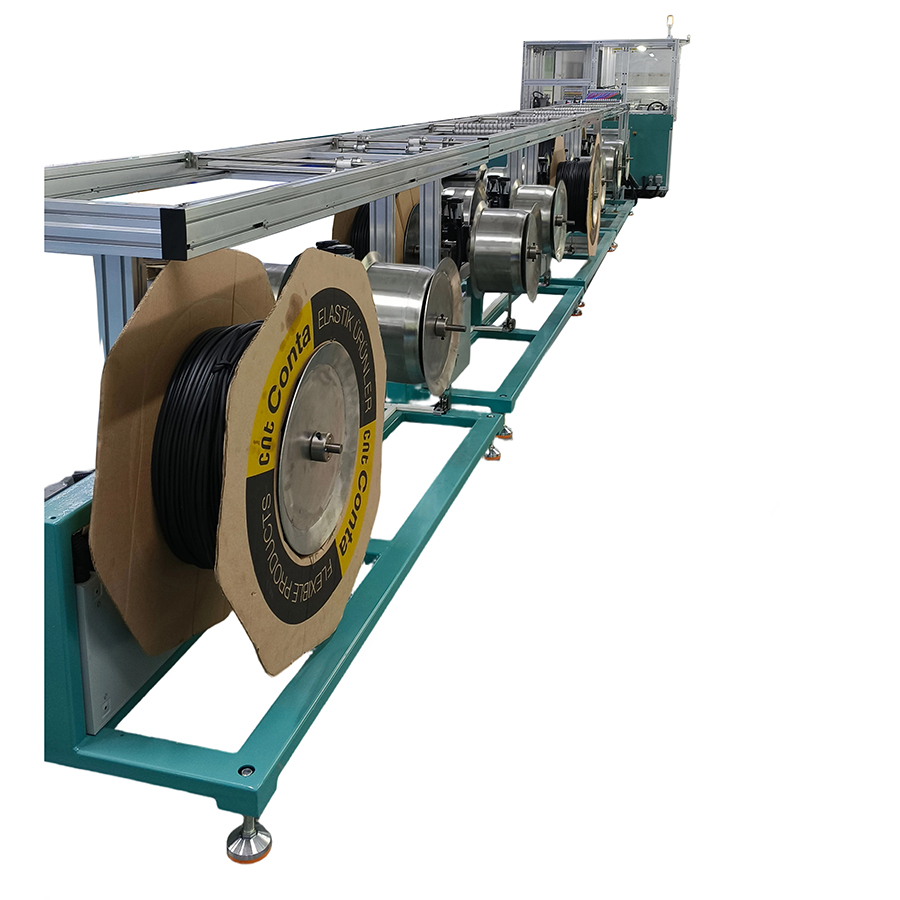

17.Layout of the whole machine in workshop

【Product Advantage】

1,  Advanced feeding system to allow ready winded rubber gaskets roll to be fed and processed into o ring gaskets direclty on this rubber hose cutting and bonding machine

2,  Fixture mold with silicone oil coating  to allow perfect joint o ring gaskets in the fixture molds and avoids instant glue sticking to the fixture mold  after glue cured , so workers don't have to clean glue on the fixture mold  . With the fixture molds to hold gaskets well for good joint , it is better  compared to bond just by two clip hands which had slight joint dislocation

3,  Safety concern with fullly enclosed transparent safety door ,so workers can not reach inside the machine easily during working process , the machine will stop working immediately if workers opens the safety door during machine working process

4,  Upgraded programm with 100 product formulas to be stored and with one key retrieval& length compensation value auto calculation  , customer can store previous type gaskets data like cutting length , dipping glue position ,dipping glue times and glue flow down time etc in one package formula and can retrive with one key download which is very conveinent for workers , so they don't have to set up all parameters all over again for previous type produced pvc gaskets  ,with length compensation value auto calculatin , the actual cutting length will be same as setting length by auto calculation length compensation value

5, High productivty   with 15pcs to be processed  at the same time  achieving  productivity of  20000-36000pcs /10hour a day  and good quality o rings of precise cutting length &good joint o rings and good joint strength .

【Product Details】

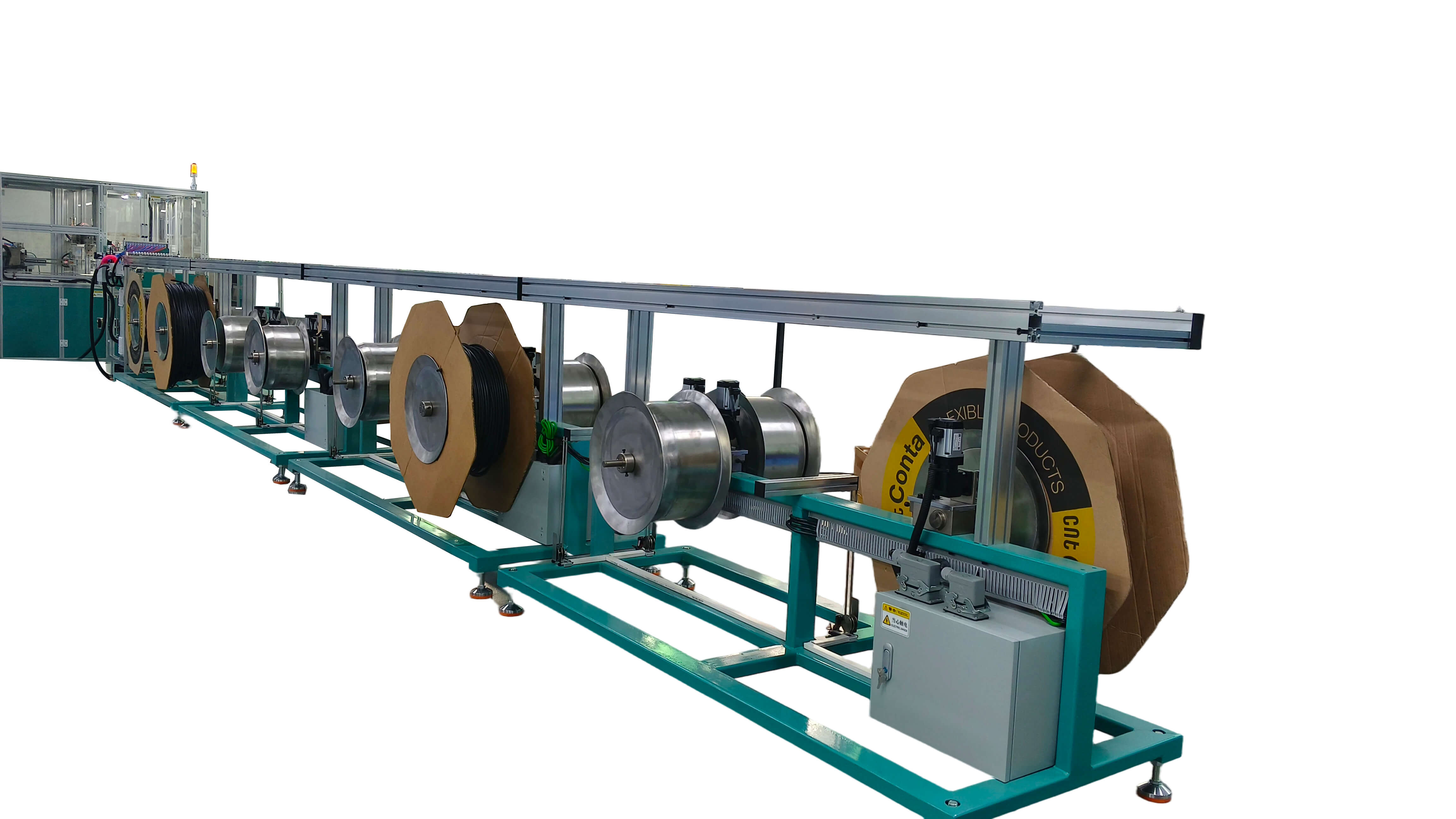

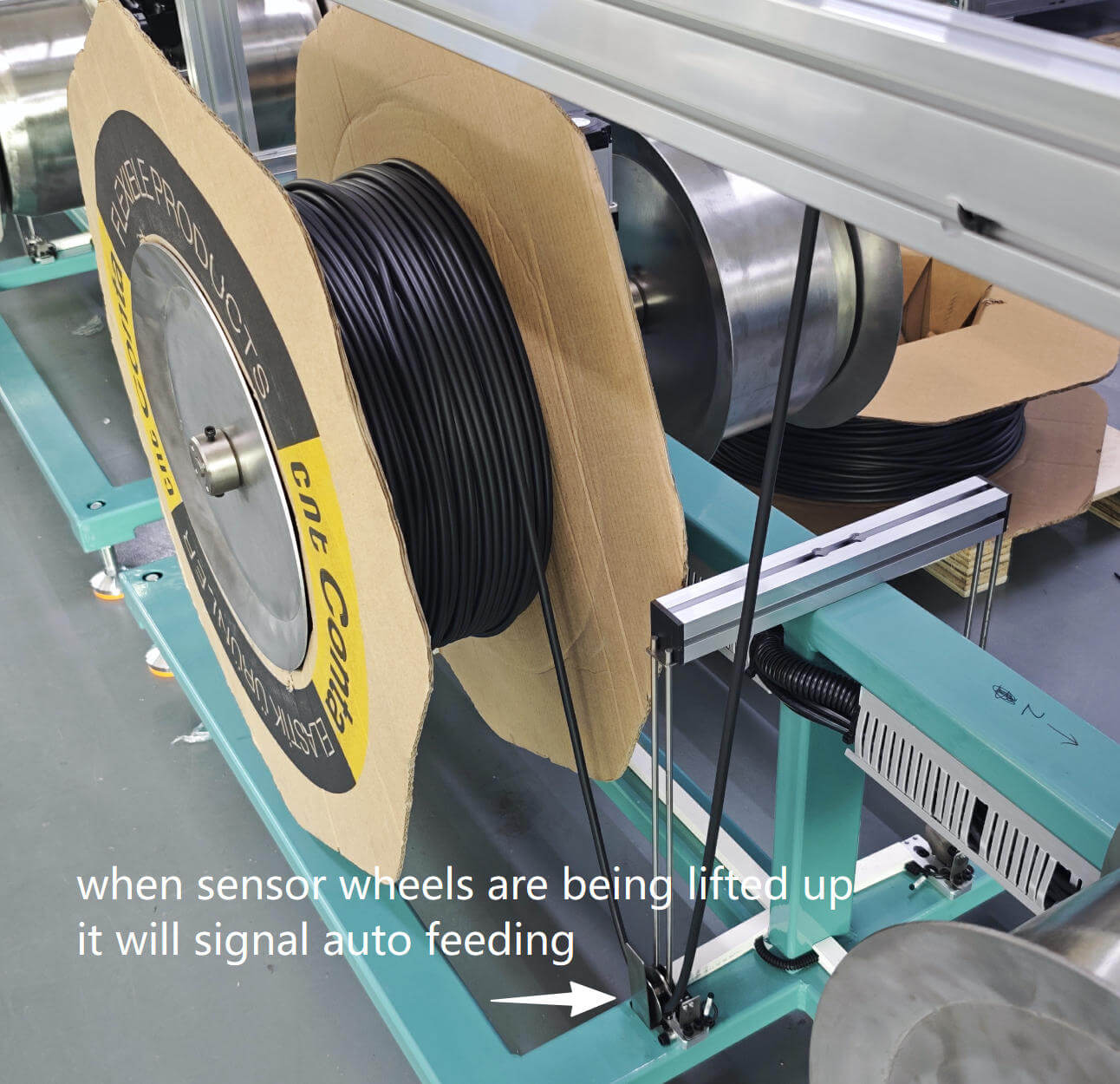

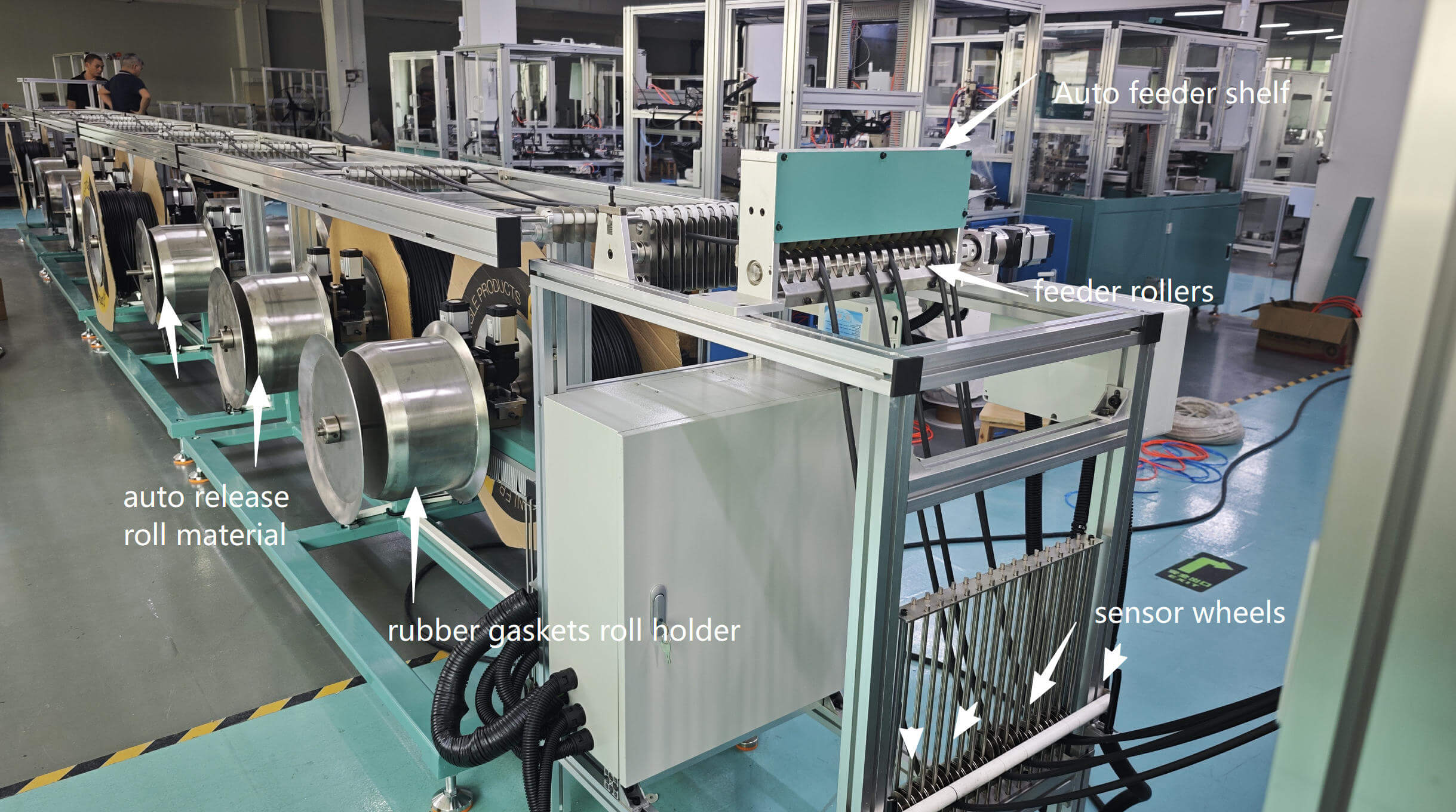

 1,Feeding Rubber  tubes in ready roll forms with customise feeder system

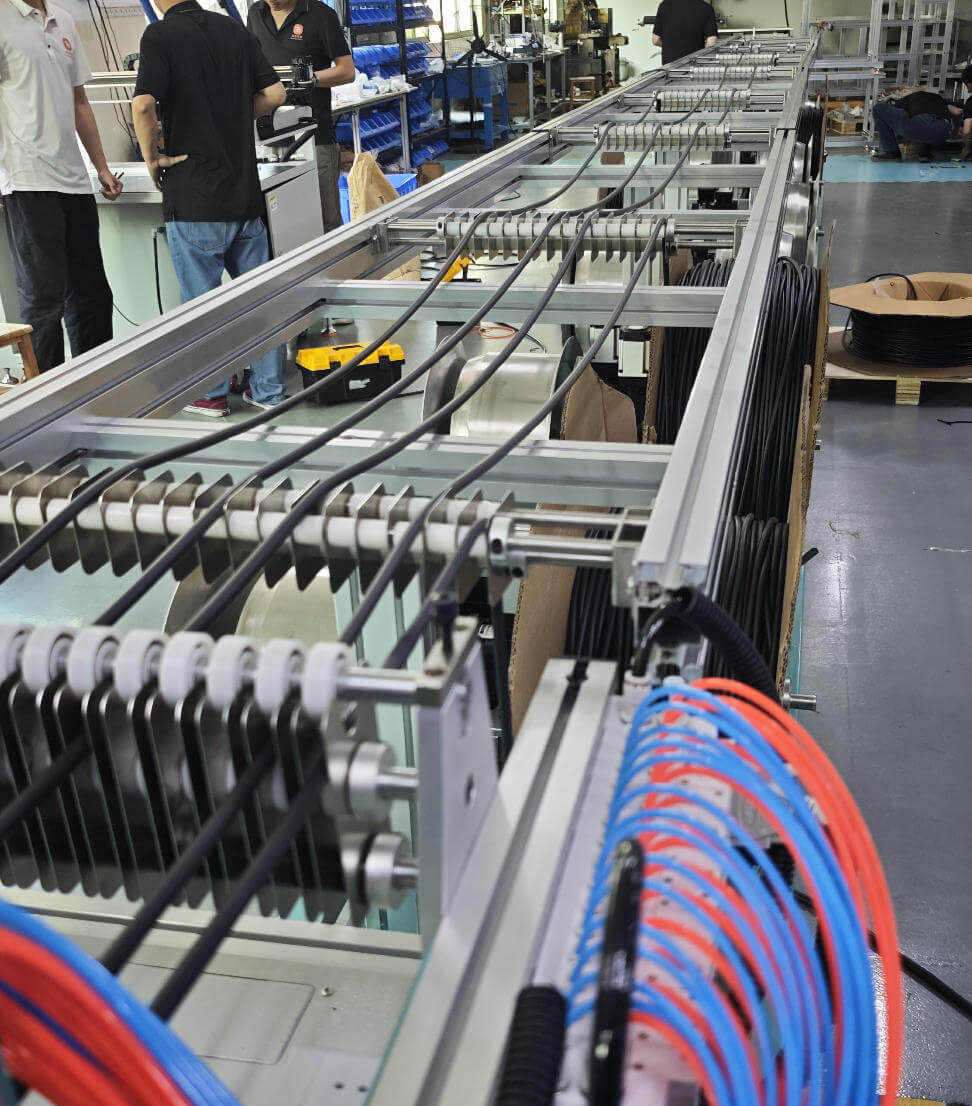

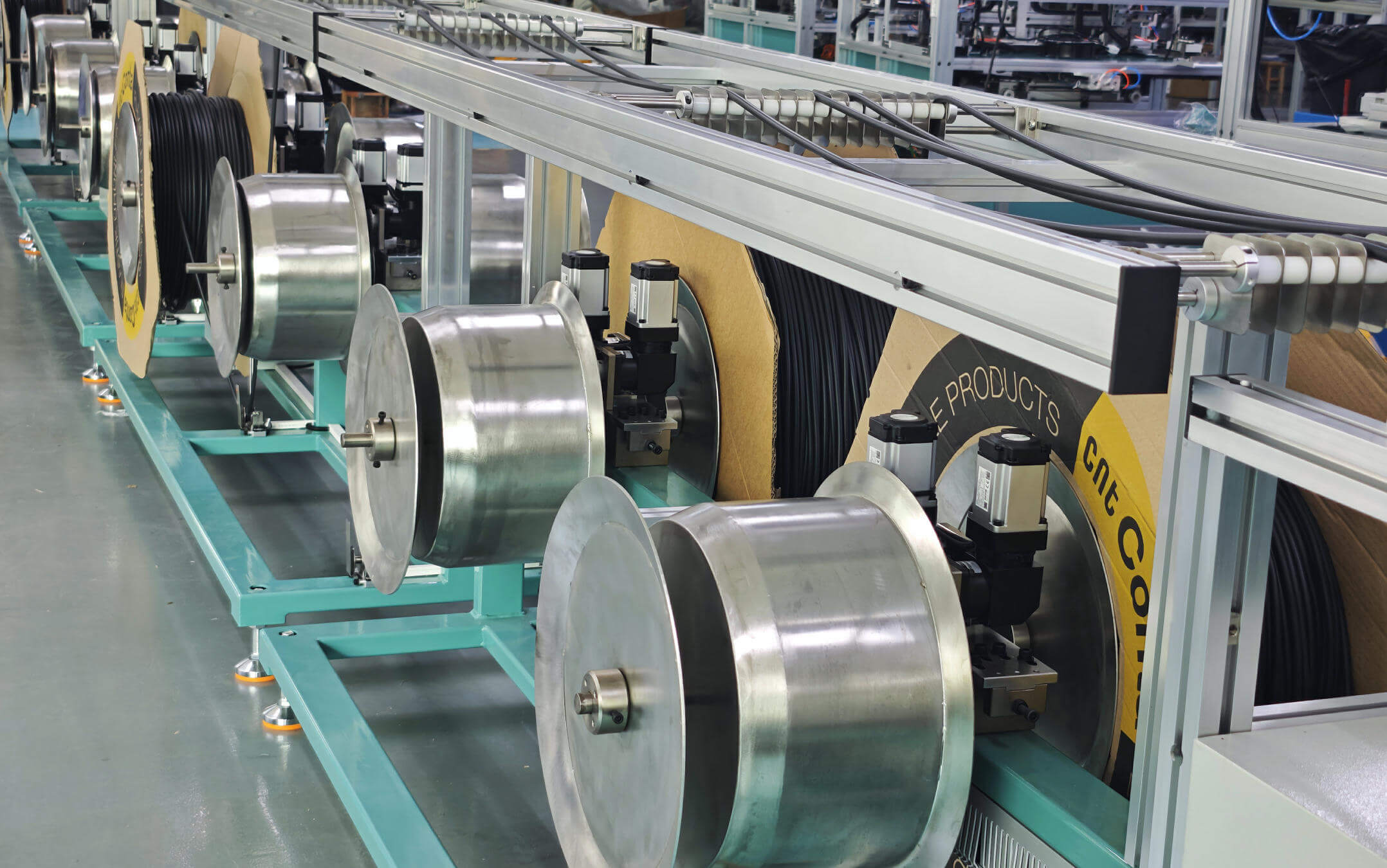

The feeder shelf is 9.9 meter length long which is spliced together by four feeding units ,each feeding unit is roughly 2meter length

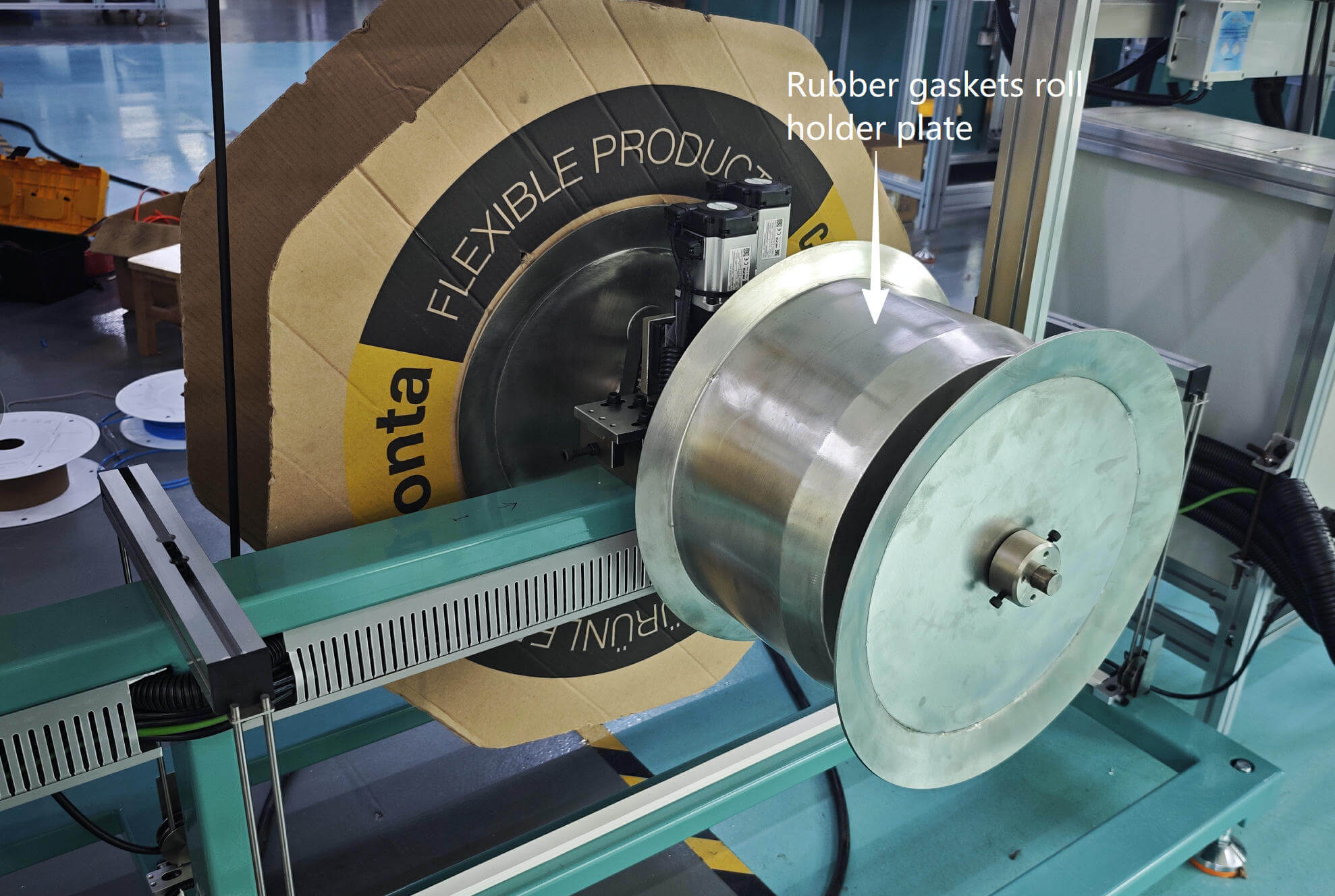

Customised holder plate which is made based on the winded gaskets rolls diameter sizes .

15pcs rubber gaskets are fed at the same time with individual fixture to keep gaskets feeding in one alignment .

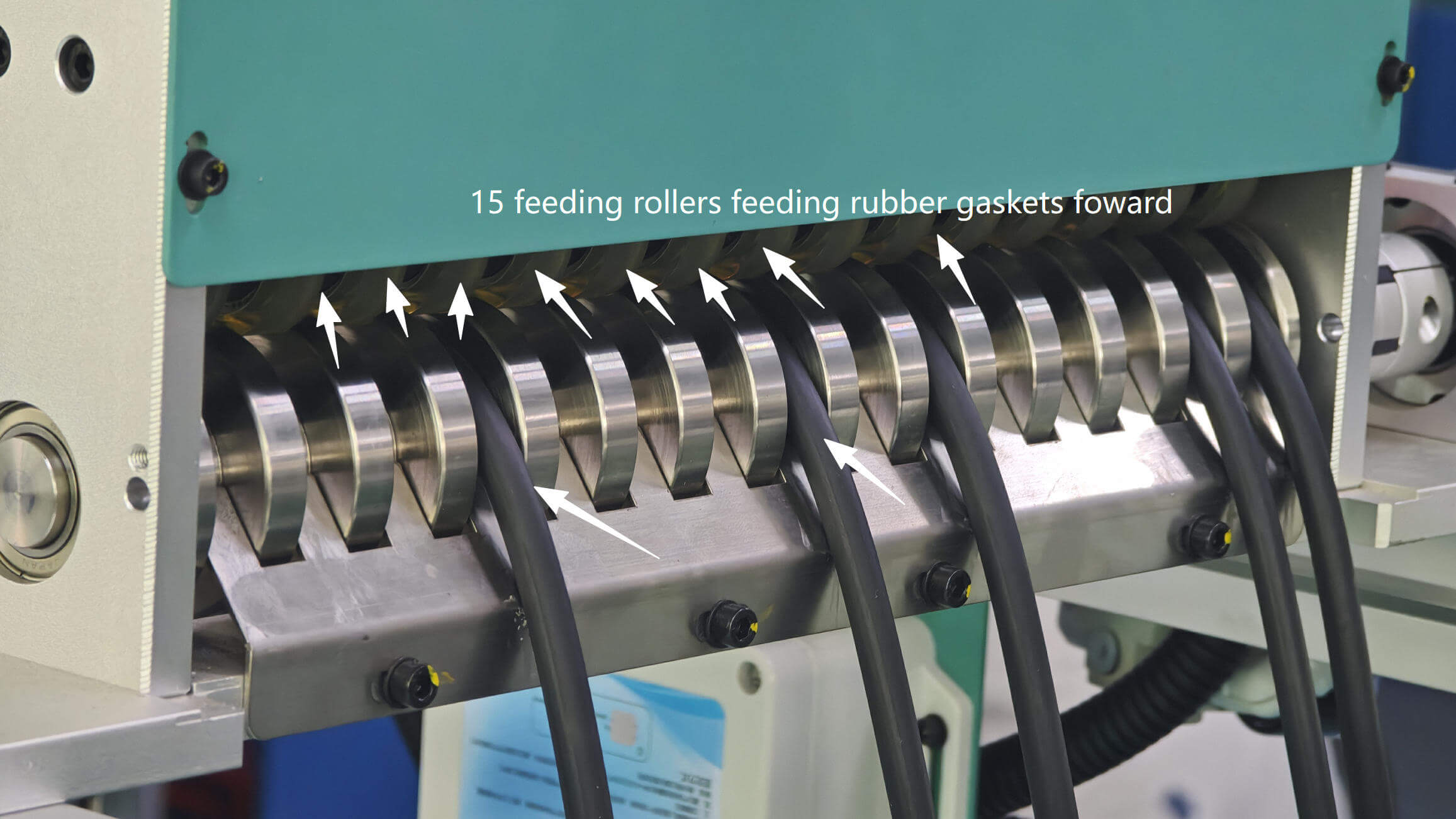

Every pc rubber tube gaskets are fed by one invdidual feeding rollers inside in the feeding system

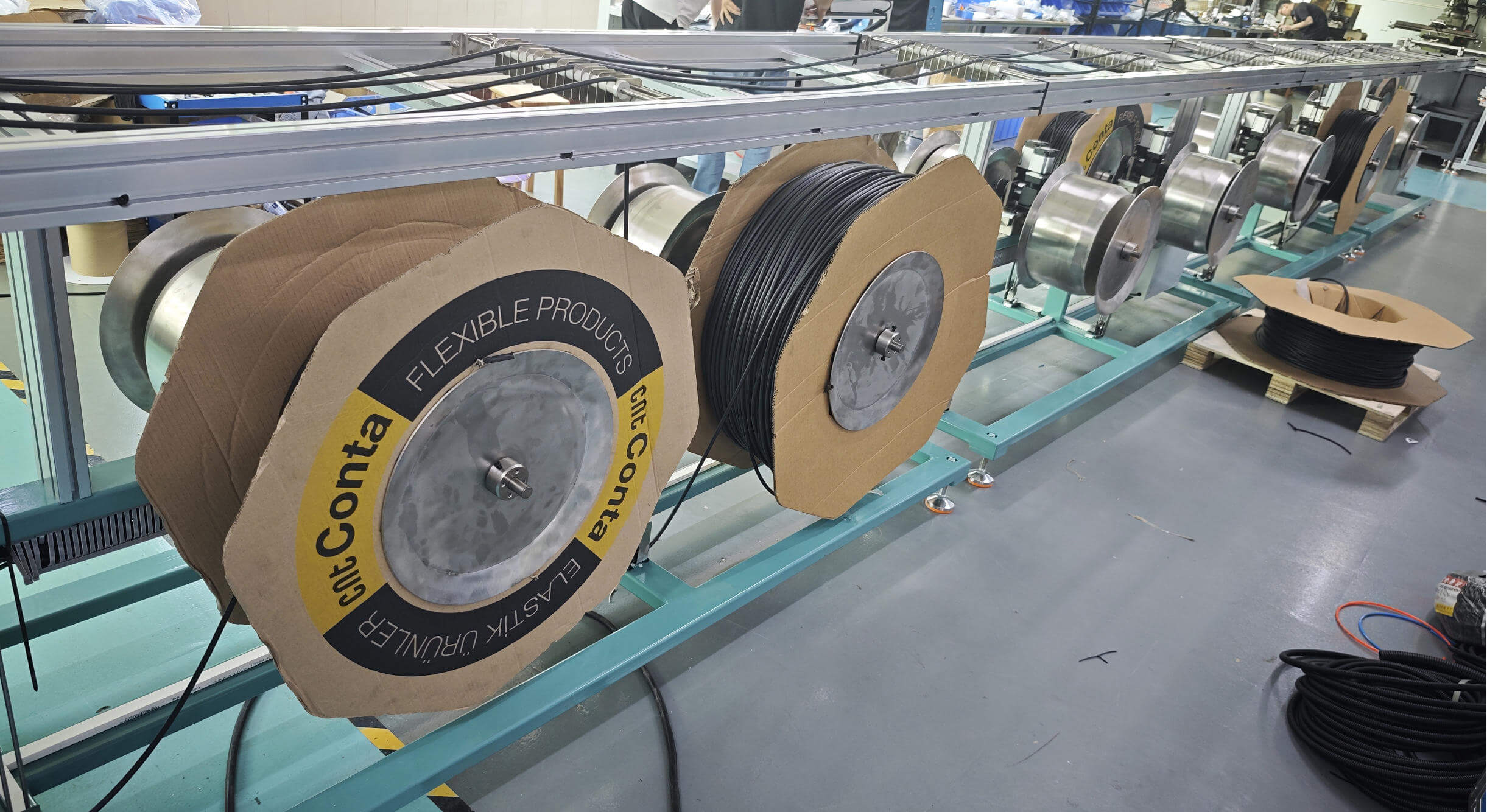

15pcs rubber gaskets roll are loaded and fixed on the feeding unit .

Since the rubber gaskets roll are heavy weight , when rubber gaskets are fed foward , The roll holder plate will release rubber gaskets roll itself  to avoid pulling tension and ensures smooth feeding process and maintains cutting length precision .

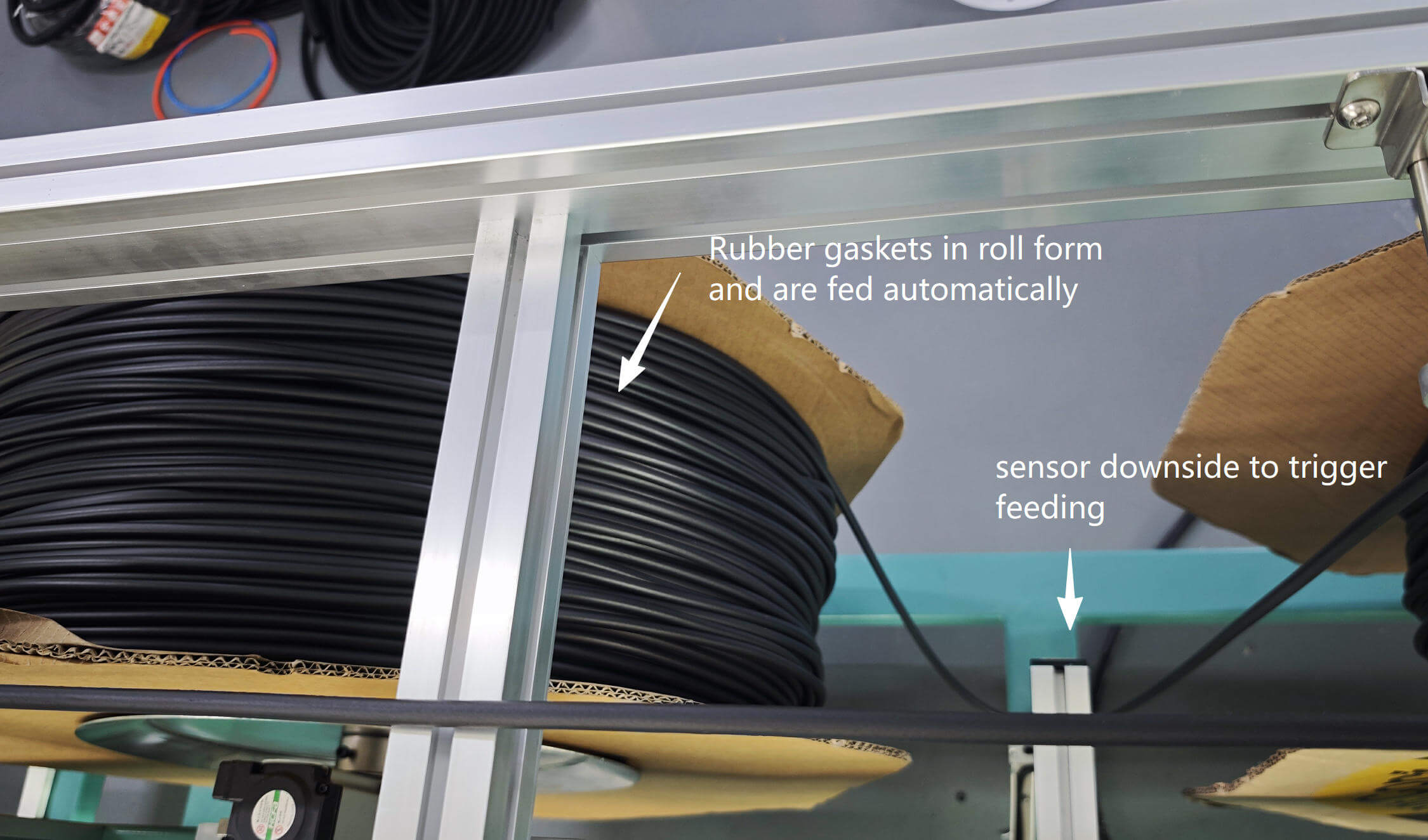

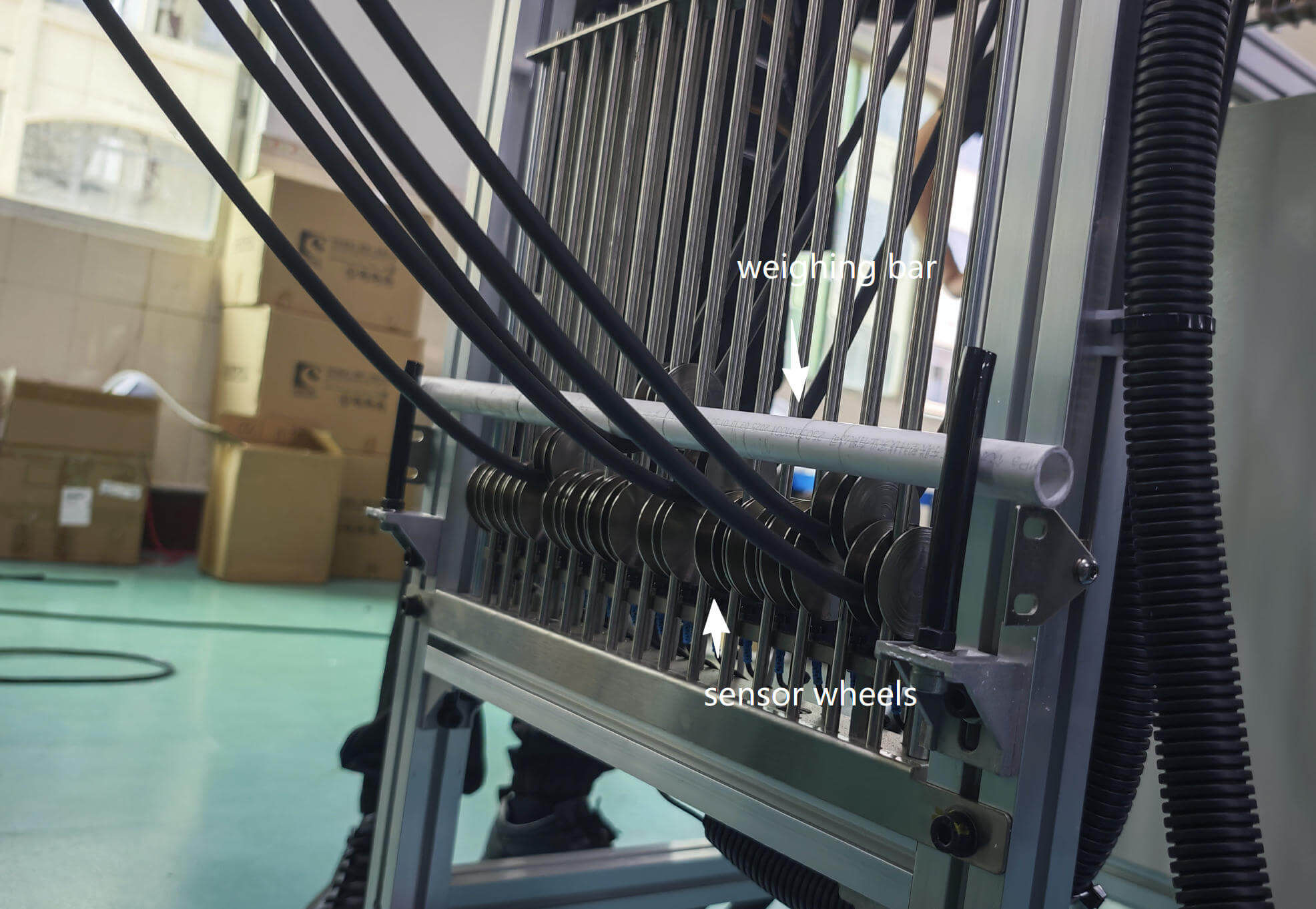

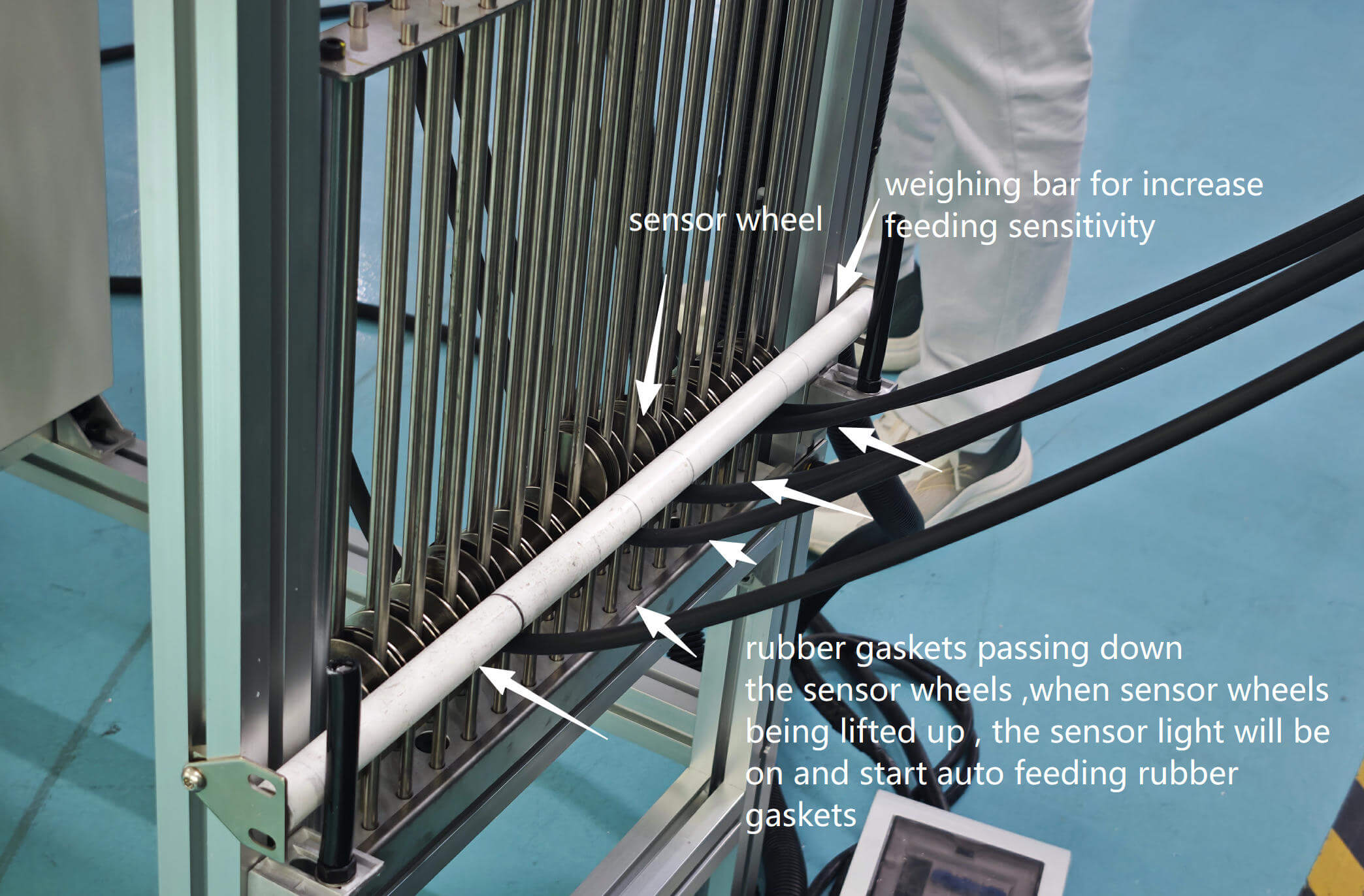

when sensor wheels are being lifted up , it will sinal auto feeding process by the roller plater holder

rubber gaskets passing under the sensor wheels

to increase sentivity for larger rubber gaskets , we can add a weigning bar to increasing feeding sensitivity .

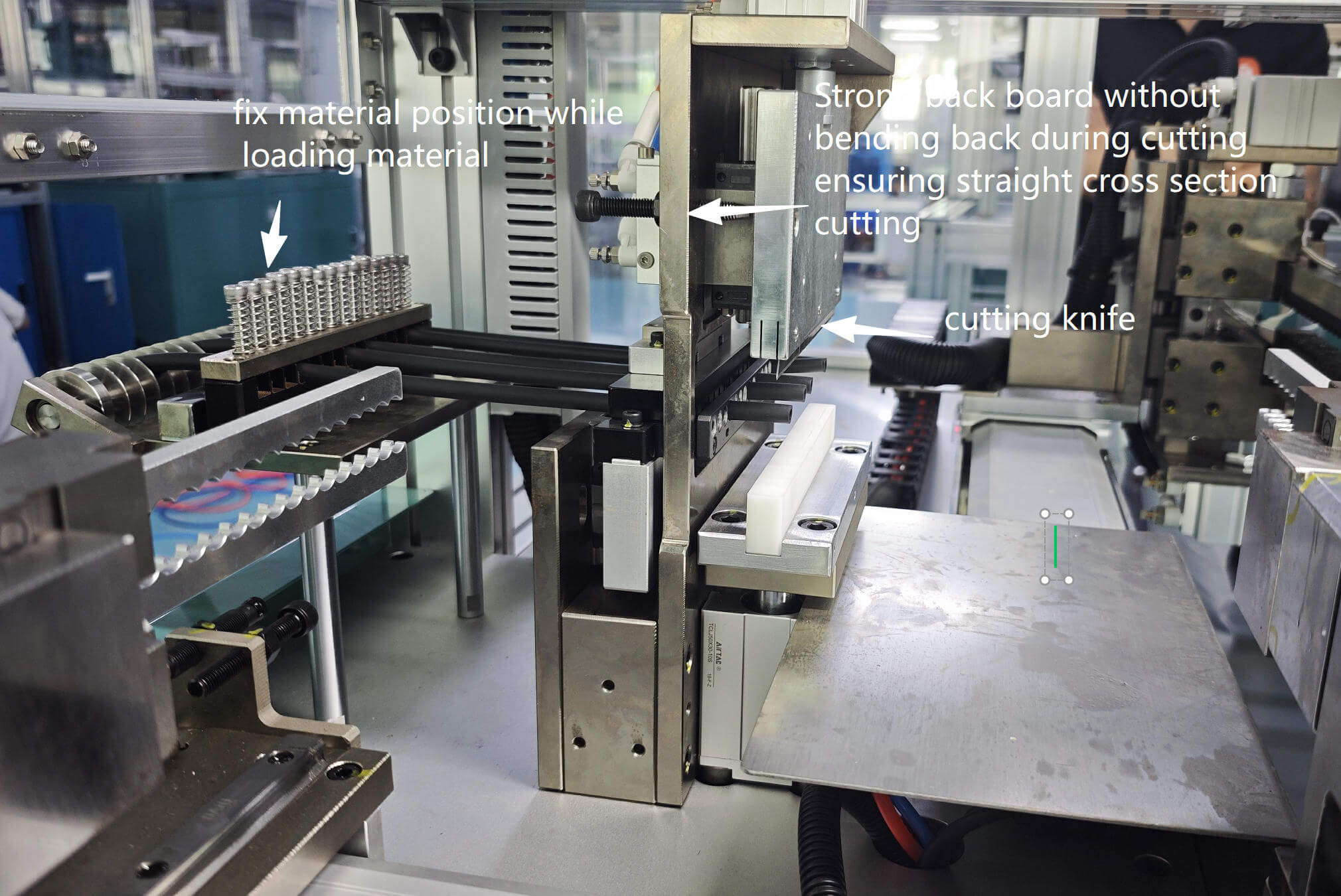

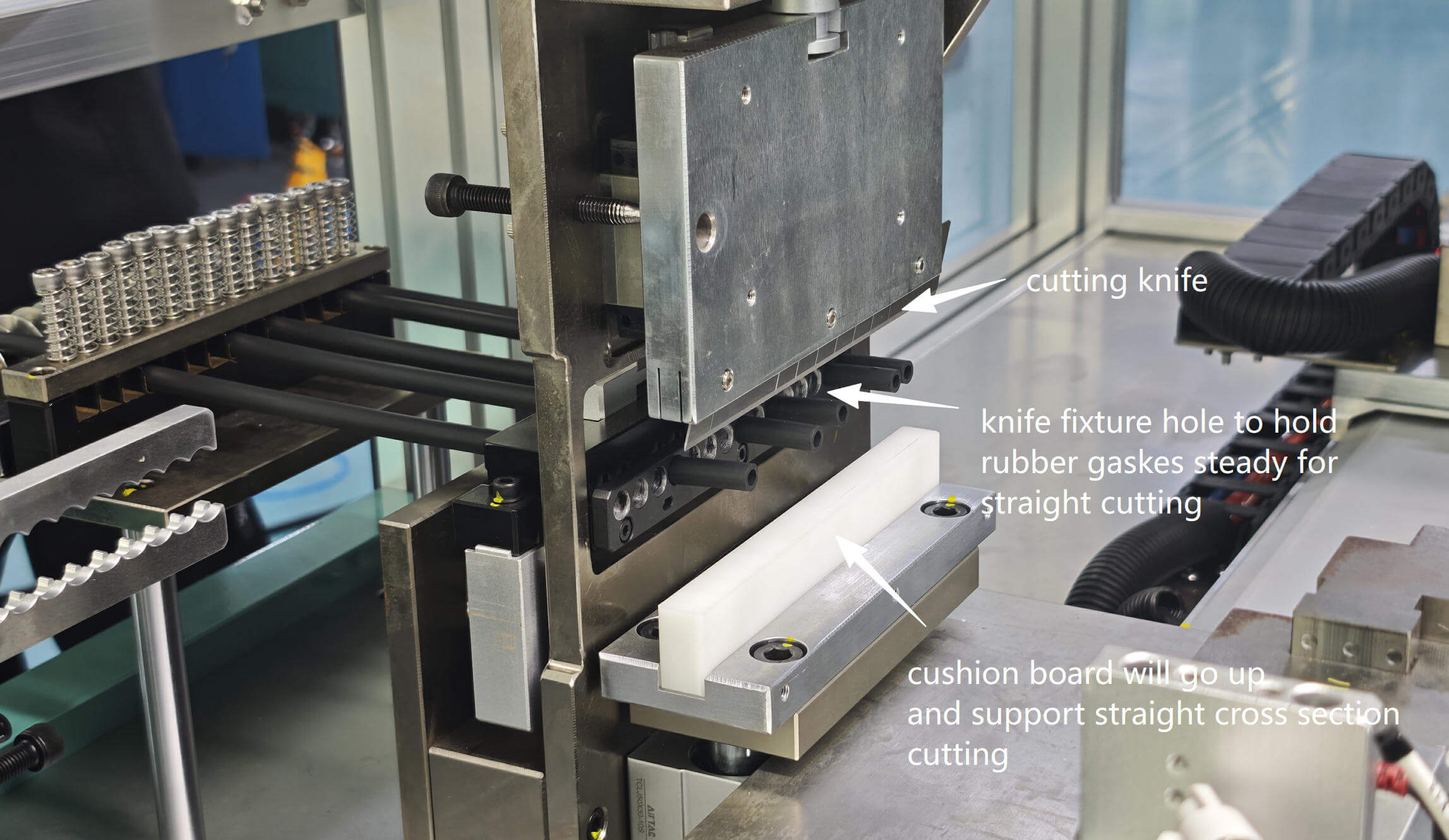

 2, Cutting knife enabling straight cutting cross section of rubber gaskets

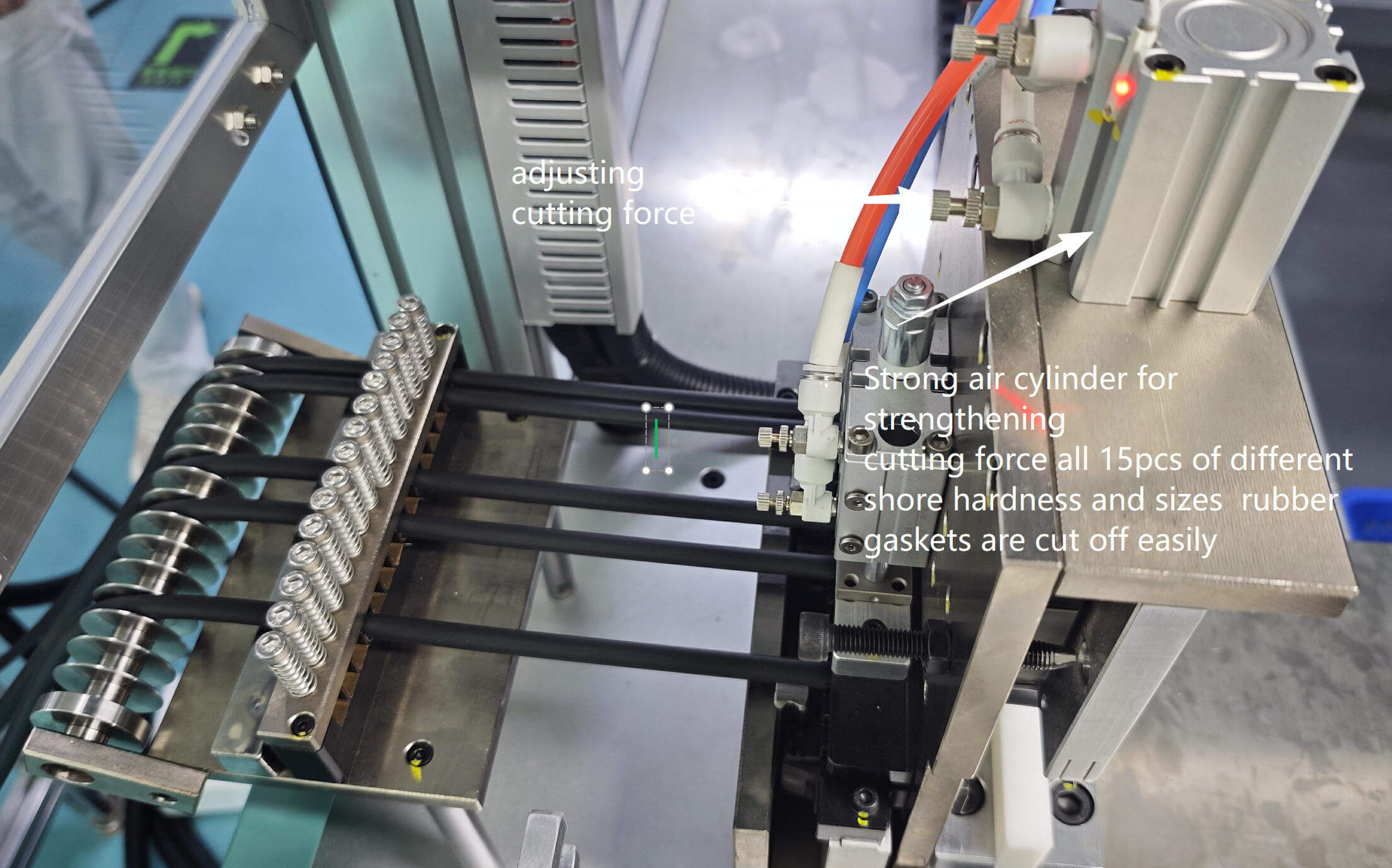

The strong air air cylinder on top enabling all 15 pcs of rubber gaskets of different shore hardness and sizes are cut off easily

This cutting system enables the cuting cross section for all 15pcs gaskets are straight which secures  good joint quality without dislocation .

3, Dipping glue system

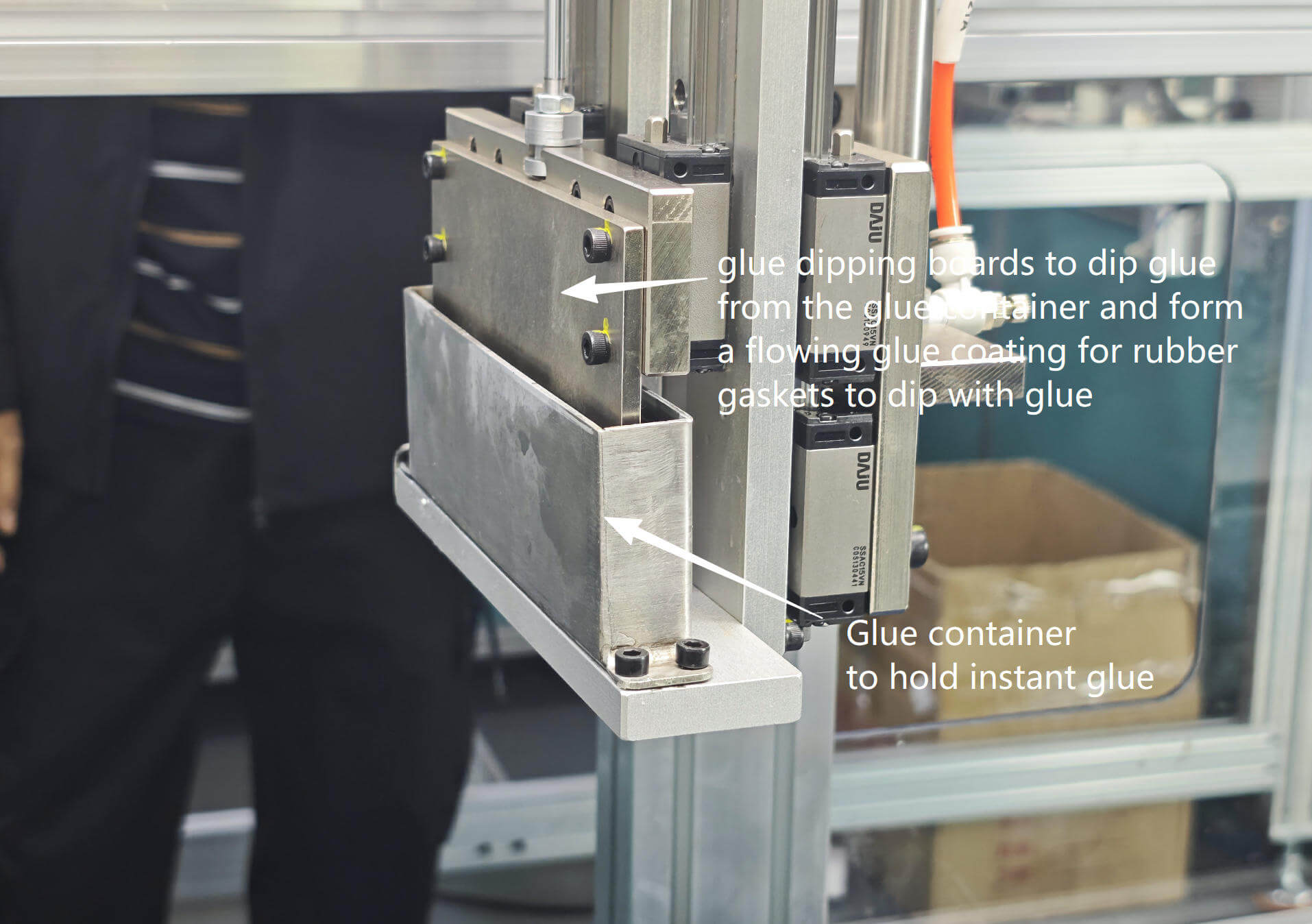

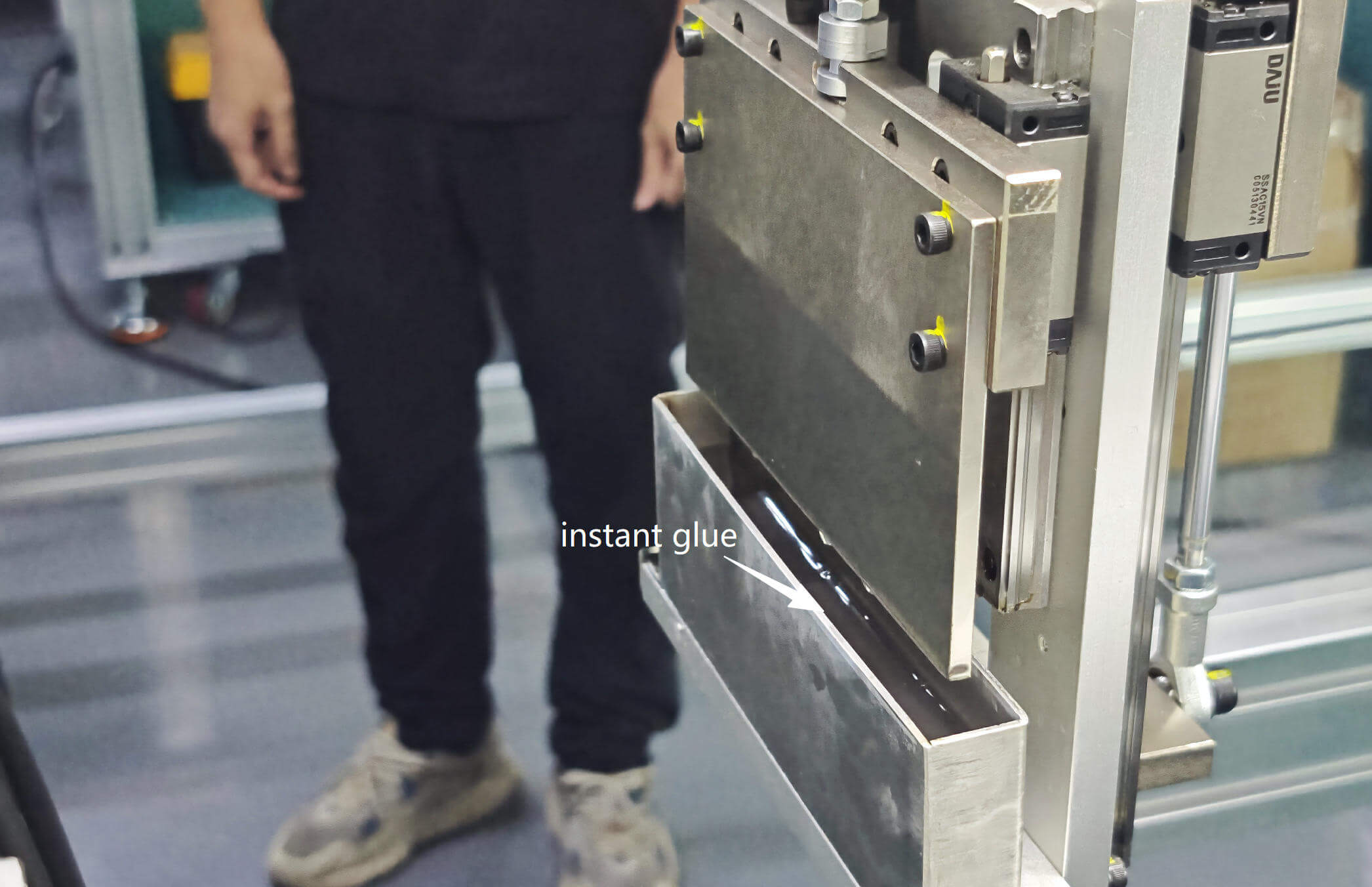

The instant glue was held in the glue container , the glue dipping boards will dip in with instant glue and leave glue to flow down on the diping boards to form a thin glue coating for rubber gaskets to dip with instant glue and controls glue dipping amounts for good joint o rings without much adhesive residues .

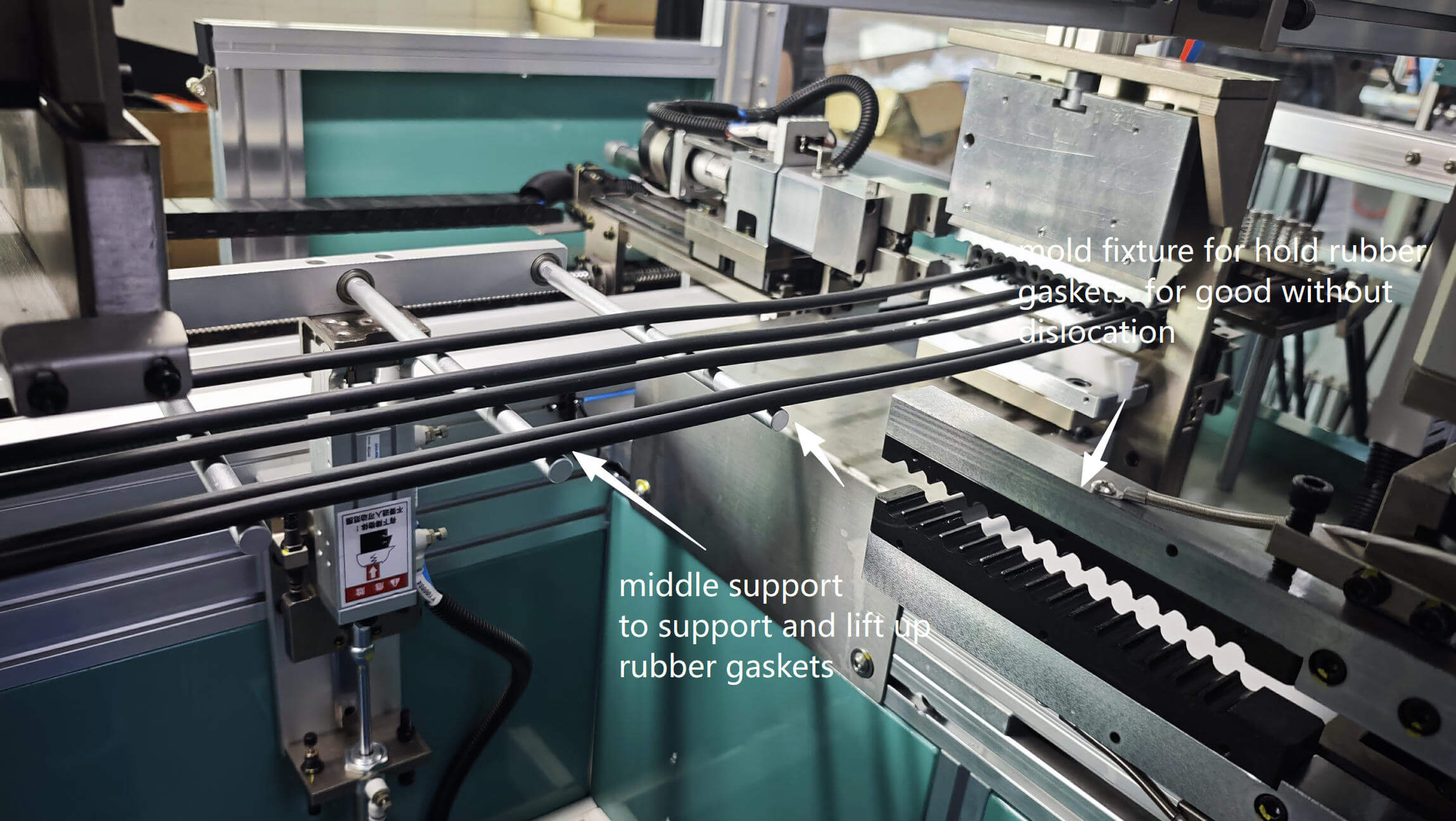

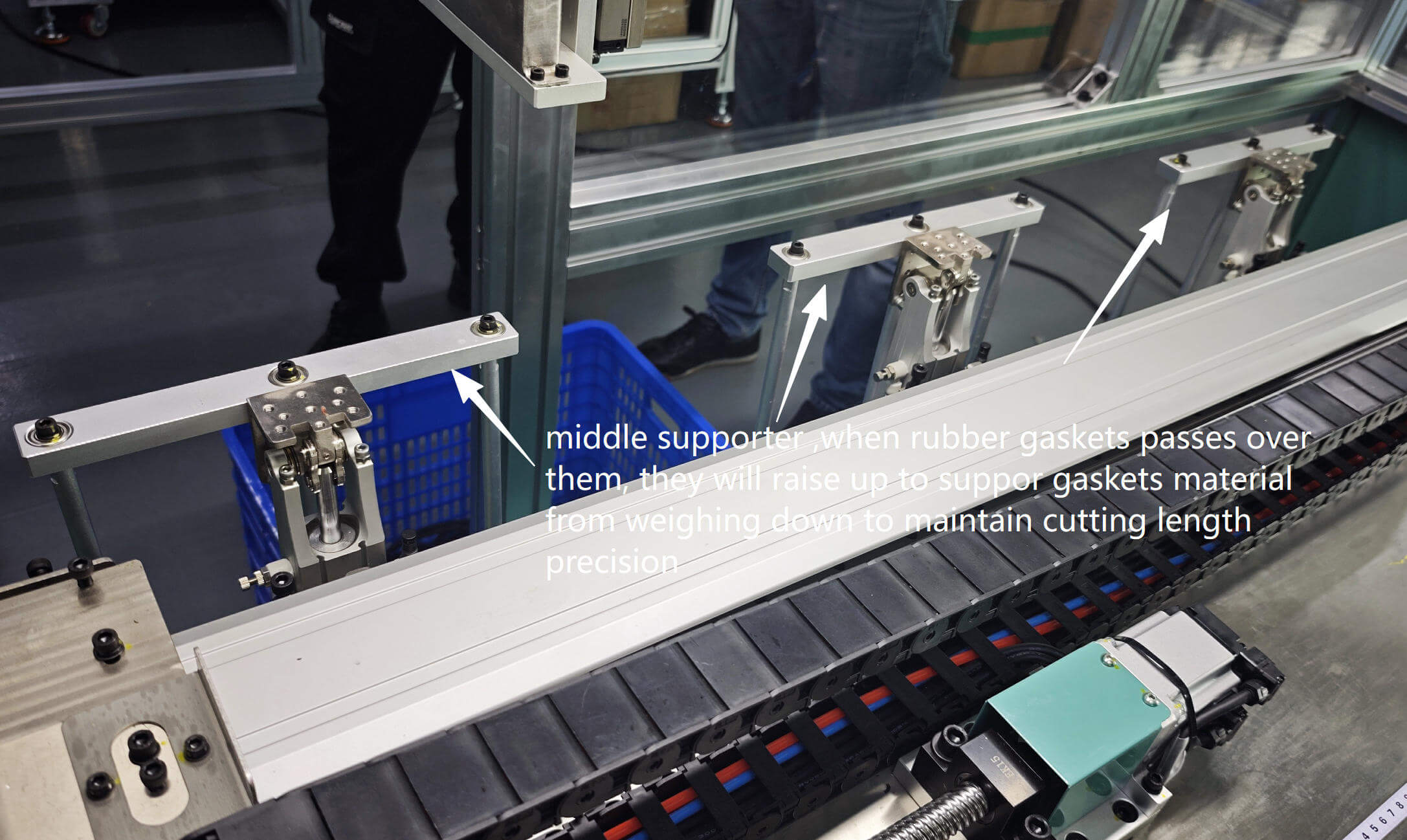

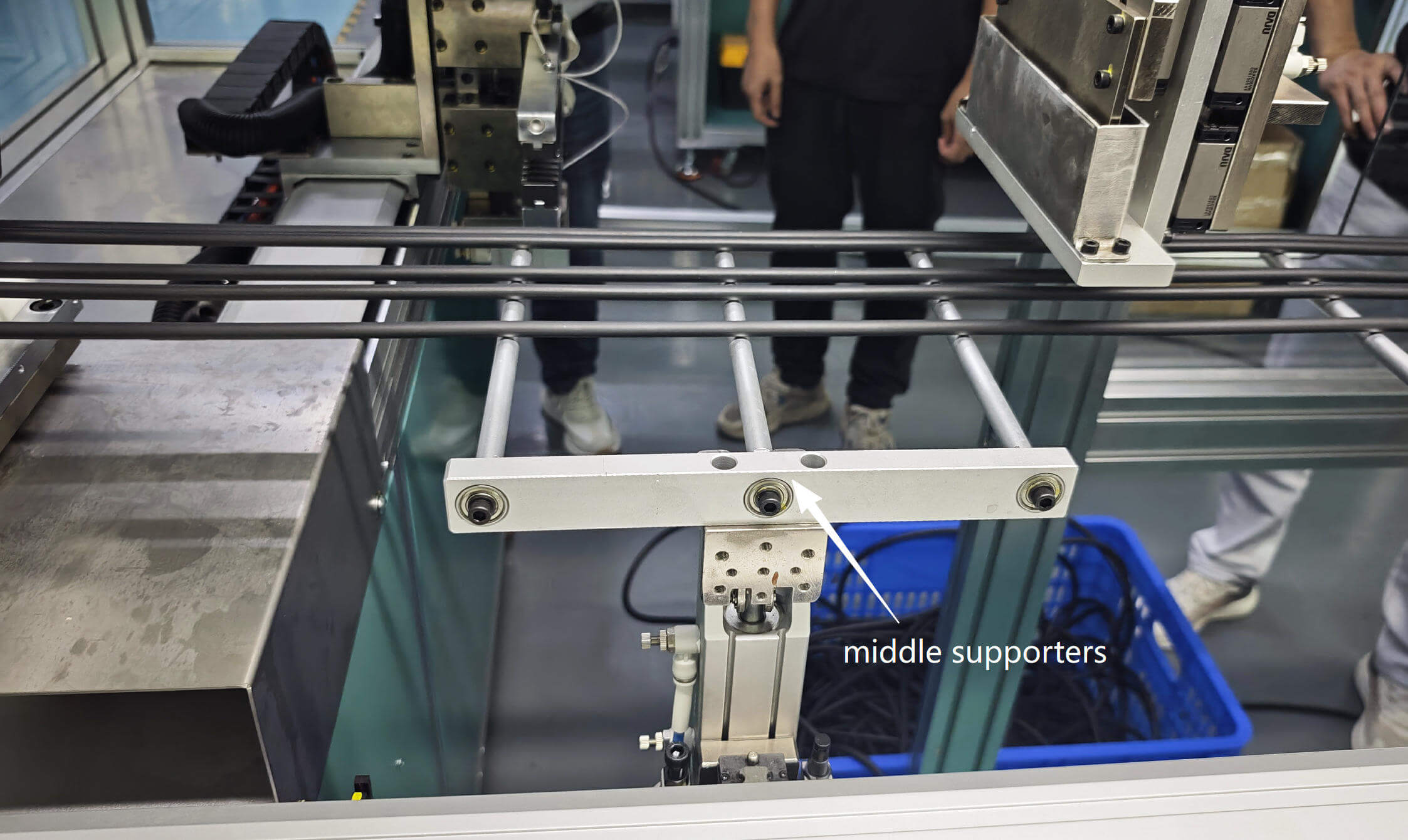

4, Middle supporter , The middle supporter will  lift up to support the weight of rubber gaskets when rubber gaskets length are drew over them by the right clip hands .

this supporting avoid rubber gaskets from weighing down and maintains cutting length precision

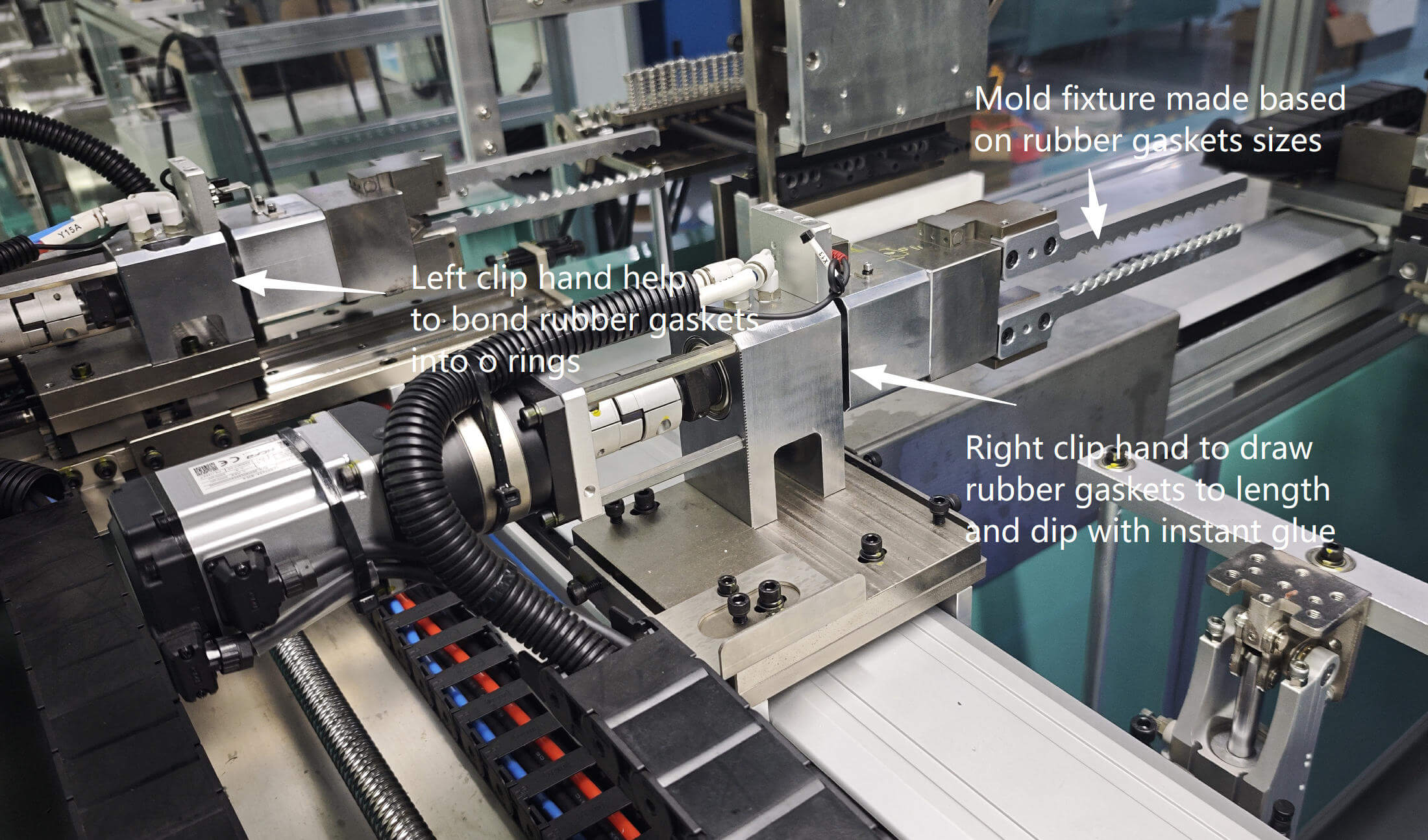

5, Left and right clip hand are driven by high quality HFCA servo motor ensuring stable and precision movement are executed

The right clip hand will draw rubber gaskets to fixed cutting length and dipping with instant glue , the left clip hand will take the cut to length gaskets and help bond rubber  gaskets into o ring gaskets .after they finish one cycle movement and keep with the movement cycle to ensures precision bonding and quality uniformity.

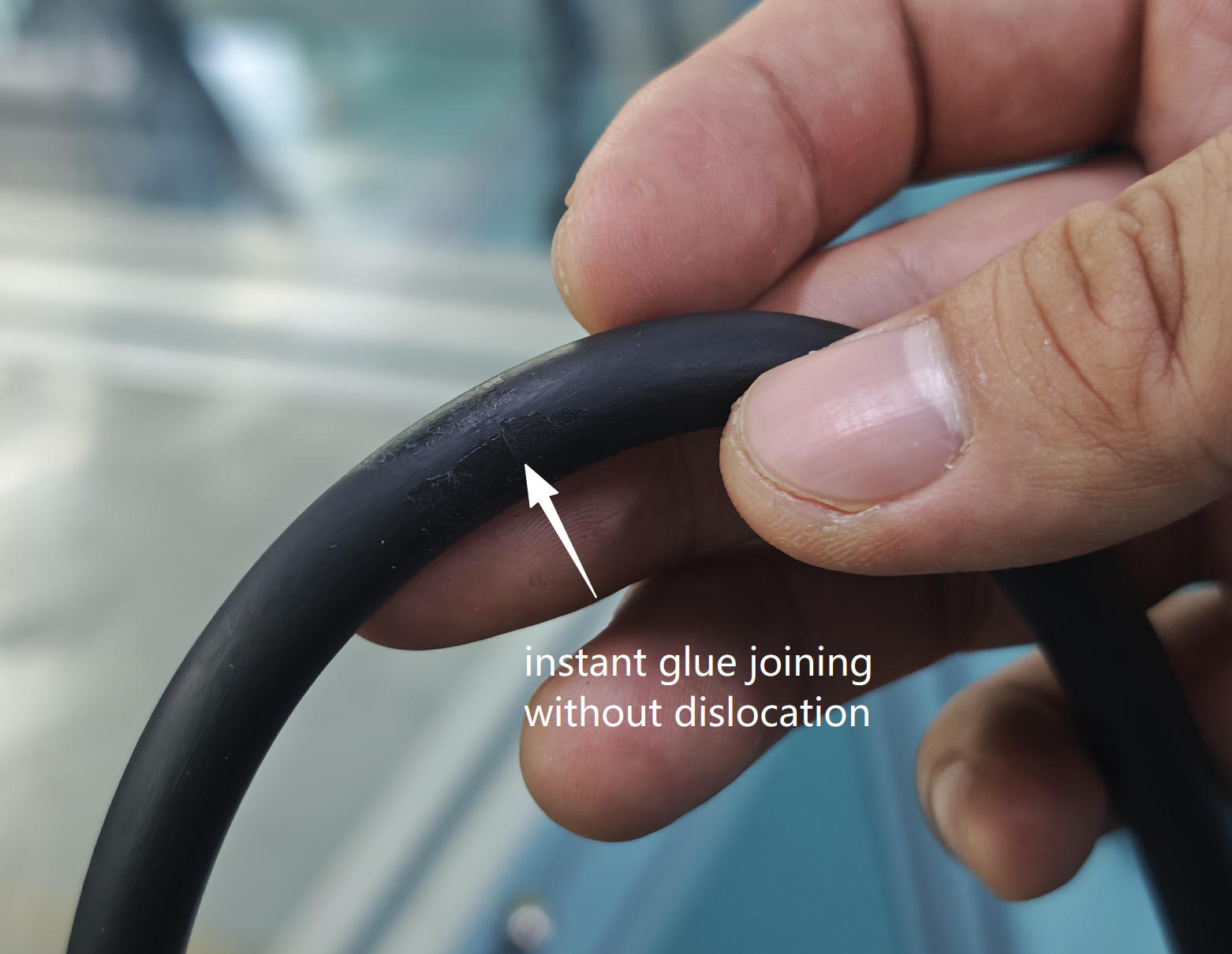

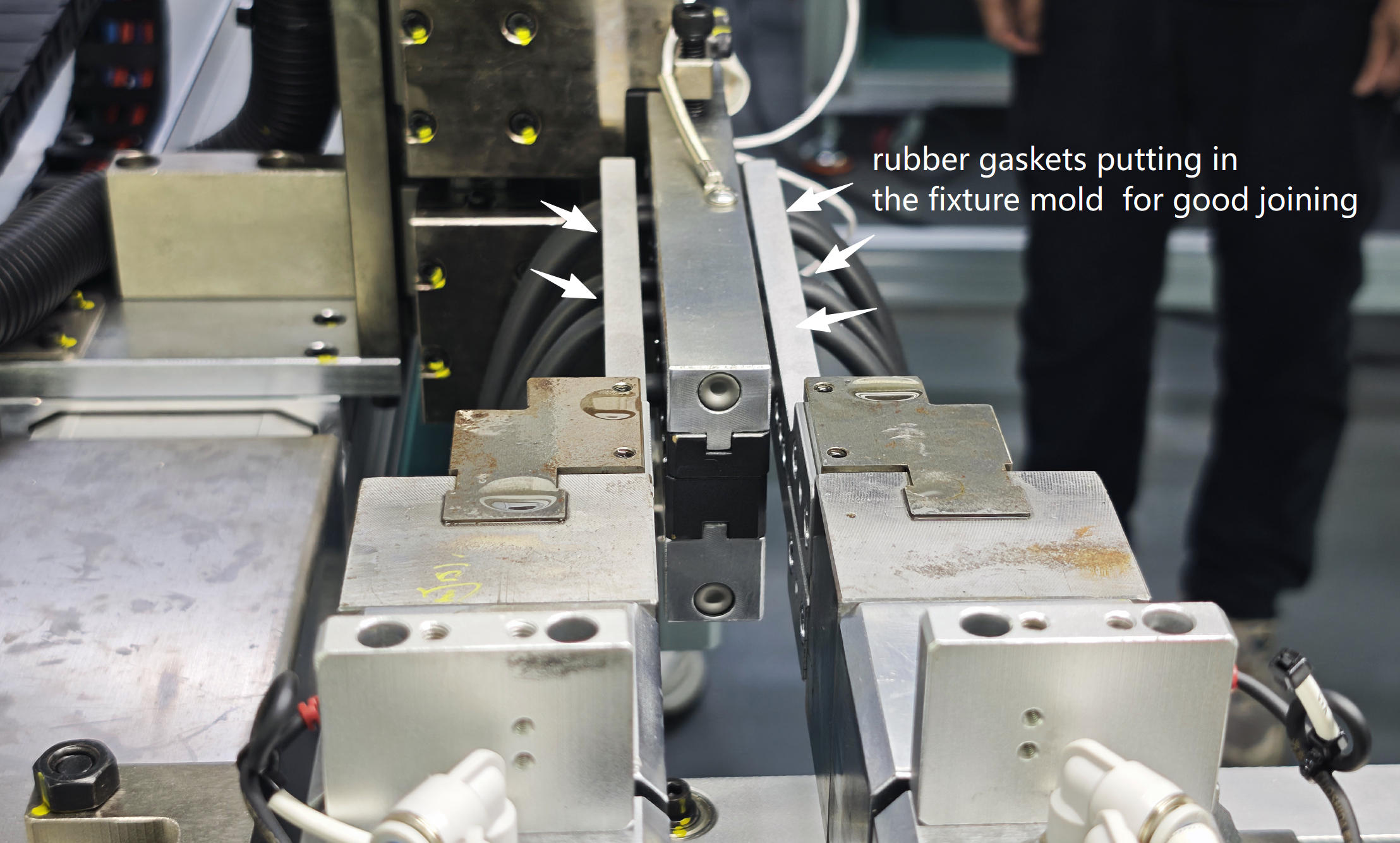

6, Fixture mold  to hold rubber gaskets well for joining in good quality without dislocation afer  instant glue gets cured  and with special silicone oil coating ,the instant glue will not stick with the silicone oil-coated fixture molds

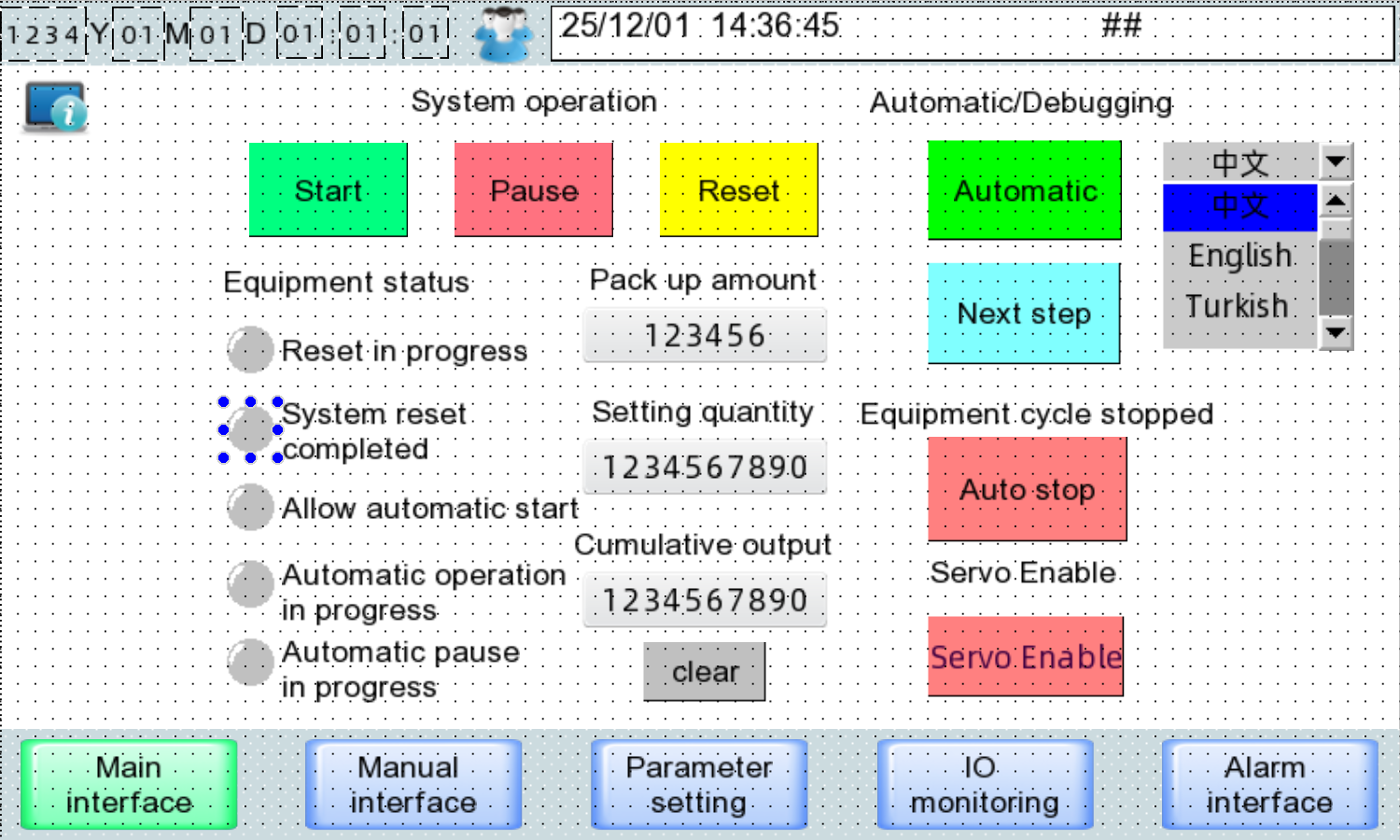

7, Touch screen is easys to opeation ,we will support with Chinese & English and a third local language for customer use

With latest upgraded soft program of length compensation auto calculation & 100 product receipes storage of one key retrival previous product parameters & Packing amount &interval time setting for packing up the goods

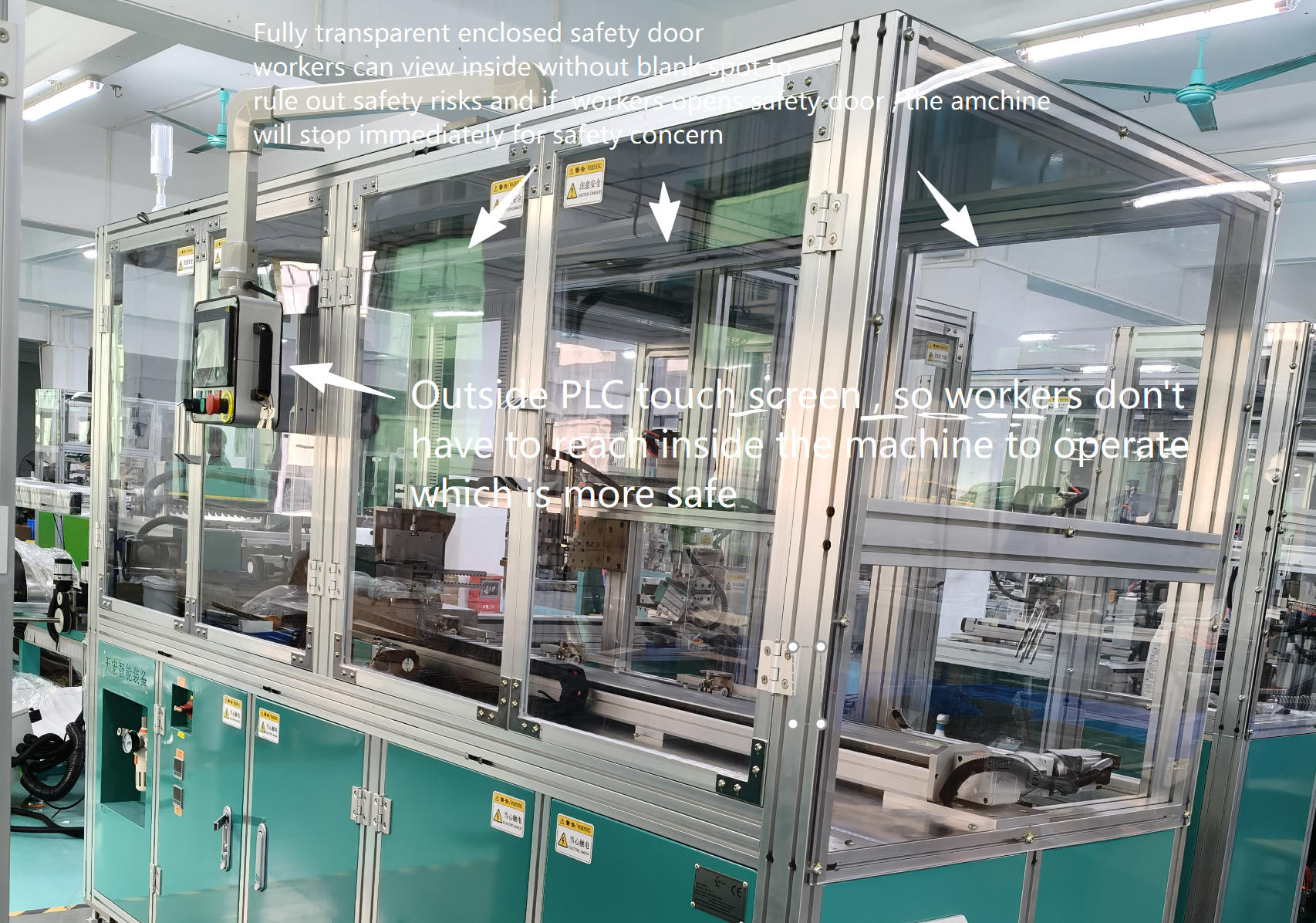

8, Full transparetn enclosed safety door & outside PLC touch screen & Raise alarm when safety door opens accidently by workers during machine working process .

The safety door are made transparent PC material which workers can observe clearly what happens inside the machine and rule out potential production problem  besides ,the outside PLC touch screen was outside the machine , so workers don't have to reach inside the macine for operation which is more safe to workers and more convinent to use  when safety door opens  by workers during machine operation ,the machine will stop immediately for safety concern.

Front View

Side View

Side View

Back View

【Warranty 】

 As a Rubber tube O Ring full automatic cutting and splicing machine ES-060-1 (Feeding in roll form)  supplier , all the spare parts of the  ES-060-1  machine will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping ,G.W after packing wooden case is 1T, Wooden case dimension is (L2850+W2150+H2150MM)
