Big epdm rubber cords fully automatic cutting and bonding machine ES-060-2

Big epdm rubber cords fully automatic cutting and bonding machine   ES-060-2 (20mm diameter rubber cords)

(With Joint quality inspection shelf )

The big epdm rubber cords fully automatic cutting and bonding machine is designed for  automatic cuttng and bonding big epdm or other rubber cords gaskets  of up to 20mm diameters  with good bonding and strength and small cutting length tolerance .  it heat bonds rubber adhesive to cure for good and elastic bond of ruber cords into O Rings .

This big epdm rubber cords fully automatic cutting and bonding machine  had applied with joint quality inspection shelf for good manual inspection of bonded O Rings  which makes sure all bonded O Rings are good quality before packing , it applies with four sets rotation hot molds for heating bonding rubber cords gaskes into O Rings at the same time which is high productivity .    with big air cylinder to support with strong cutting force and customised fixtures , the cutting of 5-6 big rubber cords of 20mm diameter is easy and with straight cutting cross section which make the bonding joint look very nice .

The minimum cutting length is 300mm and maximum cutting length is 2000mm , the machine is suitable to process rubber cords gaskets of 10-22mm  , it can process 5-6 pieces of rubber gaskets at the same time .  the cuting length tolerance ranges 500mm±2, length 1000mm±3

Youtube video

The general power of this  large rubber sealing cord fully automatic bonding machine is 13KW  , The air cylinder applies with Taiwan Yadac cylinder an for servo mtor, the brand is  Hechuan and for  PLC , it is  Xinjie PLC.

The  best advantage of this large rubber cord O Ring full automatic cutting and splicing machine is that  it is specialized for cutting big rubber cords of up to 20mm diameters with straight cutting cross section and good joint and high productivity .

【Technical Data】

Product name:Big epdm rubber cords fully automatic cutting and bonding machine

Model: ES-060-2 (2m cutting length type)

Machine automation : cutting and bonding machine + material picking gripper + joint quality inspection shelf

Function: automatic cutting length + automatic dispensing + four industrial heating rubber strips + bonding into O-rings + collecting O-rings to material inspection device

Advantages: Specially designed for cutting and bonding large-size rubber tubes up to 20mm diameters, four rotation heating molds, enhanced work efficiency and material inspection device for easy material inspection.

Voltage: 380V/480V

Power: 13kw

Work efficiency: 5-6 pieces can be processed at the same time

Cutting length tolerance: length within 500mm±2, length 1000mm±3

Gasket diameter range: 2-22mm

Main components: Taiwan Yadac cylinder, Hechuan servo motor, Xinjie PLC

Cutter cylinder type power: 300w

Hot mold heating power: 6.5kw

Applicable gasket profile: Round, square and other shapes of silicone profiles, special molds need to be made

Automation supporting: servo motor, high-precision linear guide and screw.

Air source: 0.6-0.8MP

Control system: Fanyi touch screen

Cutting length range: 300mm-2000mm

Productivity: 20,000-36,000 pieces per day (depending on the cutting length and rubber strip size, 10 hours per day).

Net weight: 1800 kg

Dimensions: Length*Width*Height: 7000(8800)X1800X2000mm

【Product Advantage】

1, Straight cutting cross section  with high power cutting air cylinder and  custom fixtues   , the cutting edge of big rubber cords up to 20mm diameters will be straight cutting cross section  for good joint  with big air cylinder to support with strong cutting force and customised fixtures to hold big rubber cords for clean and straight cutting .

2,   High productivity with Four rotation hot mold  , the machine applies with four rotation hot mold to work at the same time to heat bond rubber O Rings , if any  O Rings finished bonding , the hot mold will soon go to take another batch   cut-to -length rubber gaskets for heat bonding , the four sets rotation hot molds will be fully loaded for processing which raise production efficiency .

3, Good joint O Rings with inpsection shelf  for easy manual inspection of bonded  O Rings  , the bonded O Rings will be taken from the hot mold by the collection hand and fowarded to the inspection shelf , the bonded O Rings  are hang onto the inspection bars for easy manual inspection by the quality -inspection workers .

【Product Details】

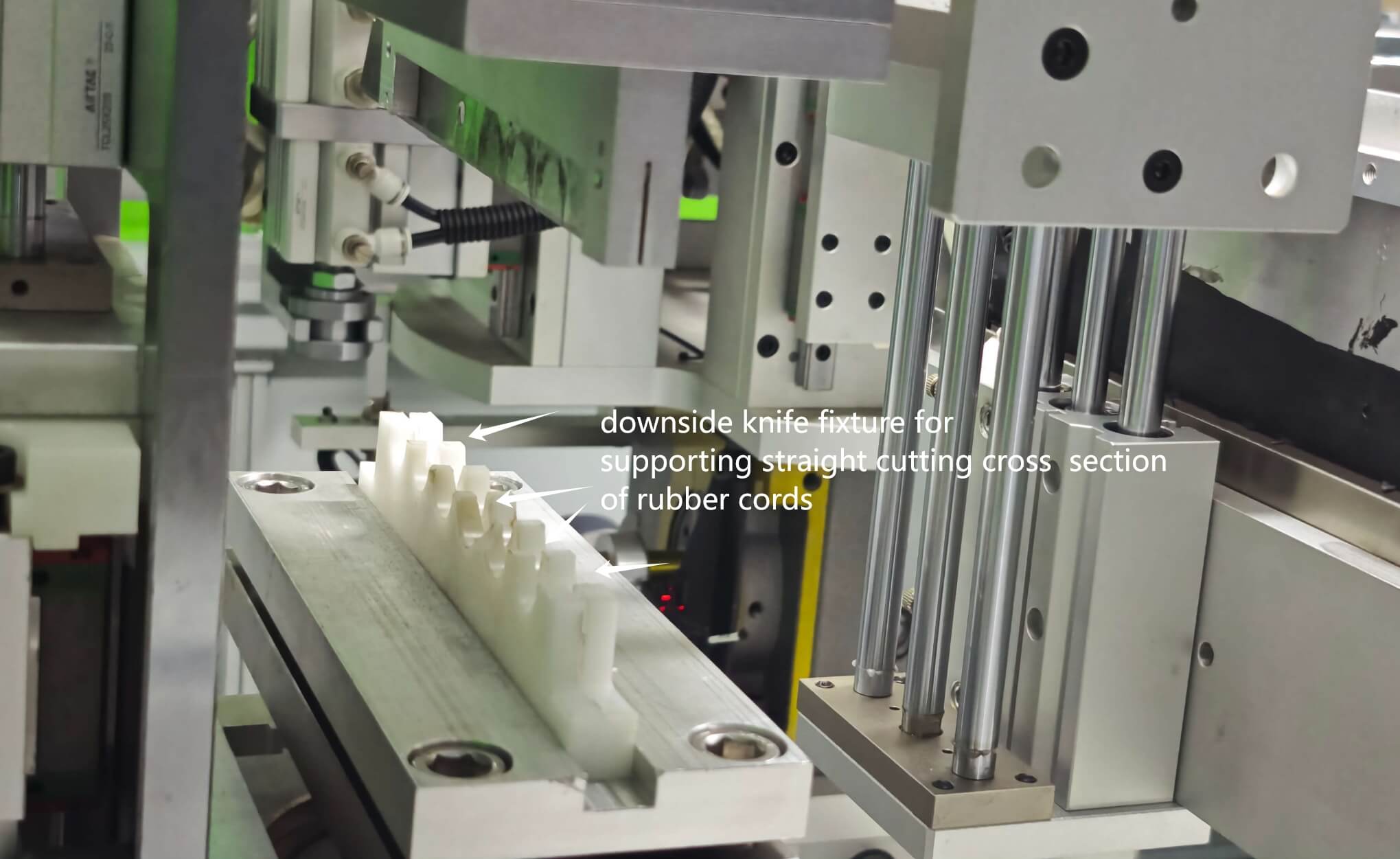

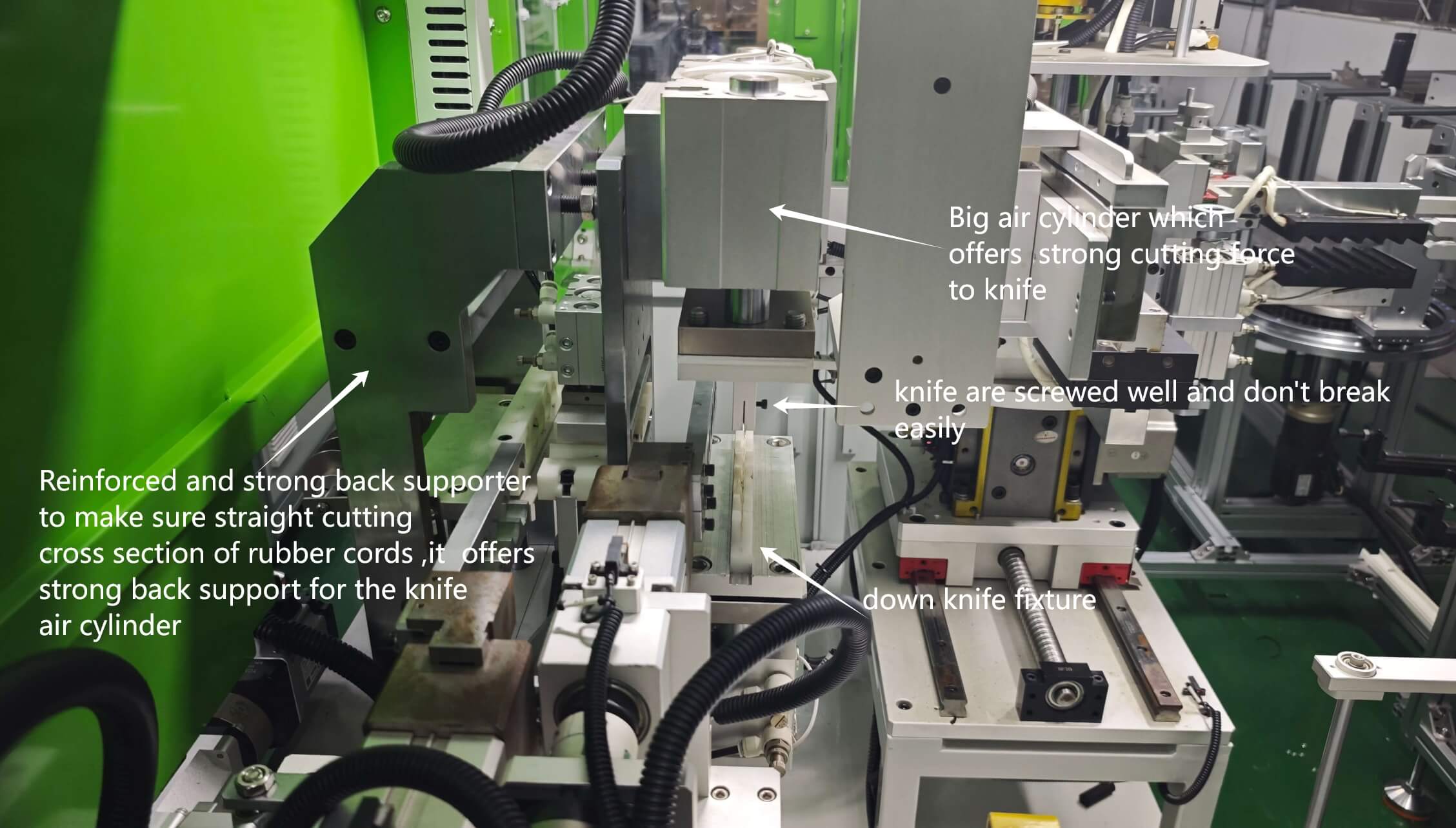

1, Knife cutting and fixtures , To cut the big rubber cords of 20mm diameters easily with straigh cutting cross section for a good bond ,we applies with reinforced and strong back supporters behind the knife to give best support when it cuts down , the supporter board won't bend back and make sure a clean cutting off rubber cords without any  small joints .  the cutting knife was powered by heavy force  big air cylinder on top  which ensures easy cutting of 5-6 pcs  of rubber cords of 20mm diameters .

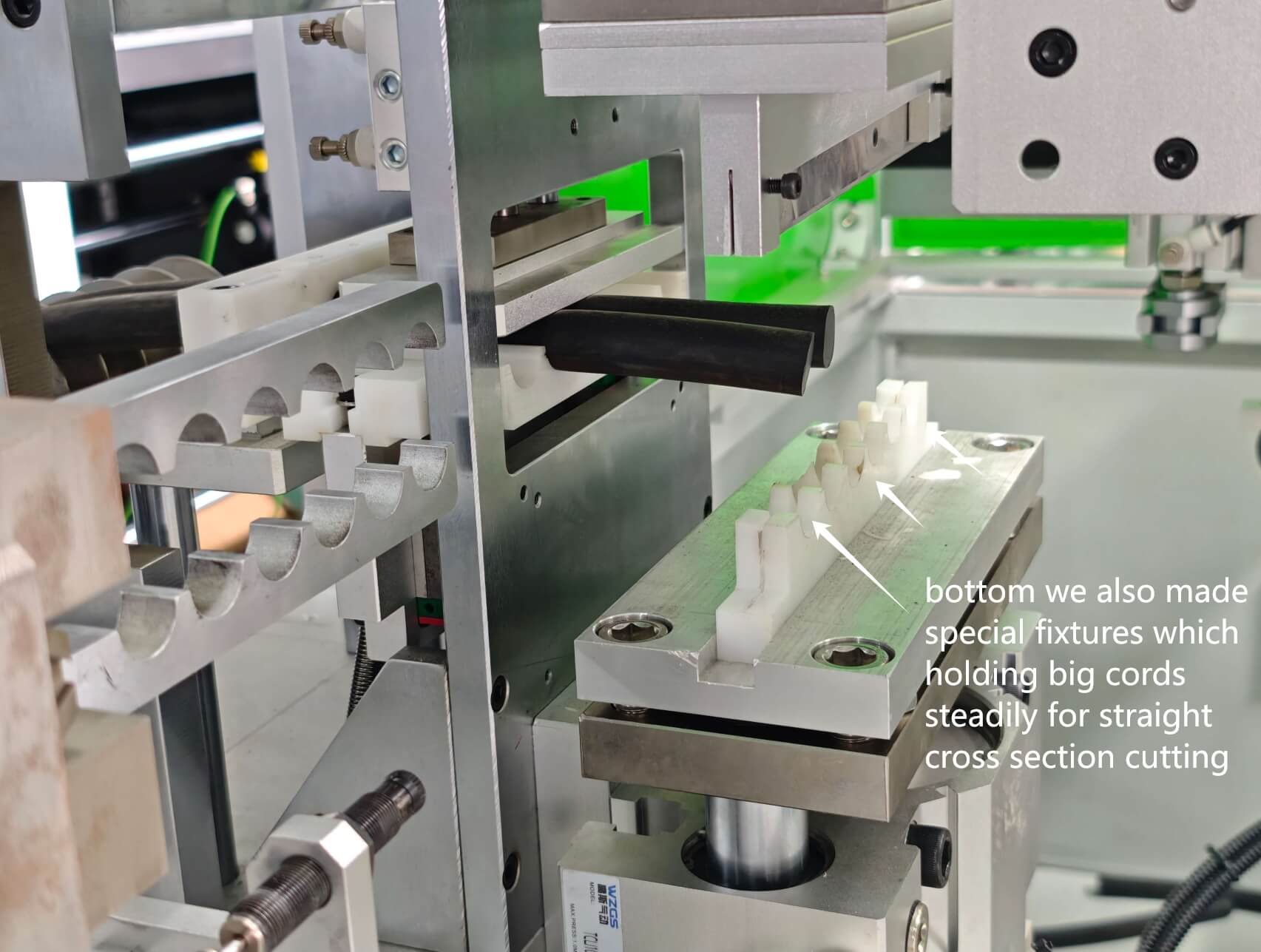

the bottom fixture support is also important for good and clean cut of rubber cords ,we applies with round fixture similar to sizes of rubber cords for good cutting support at the bottom .

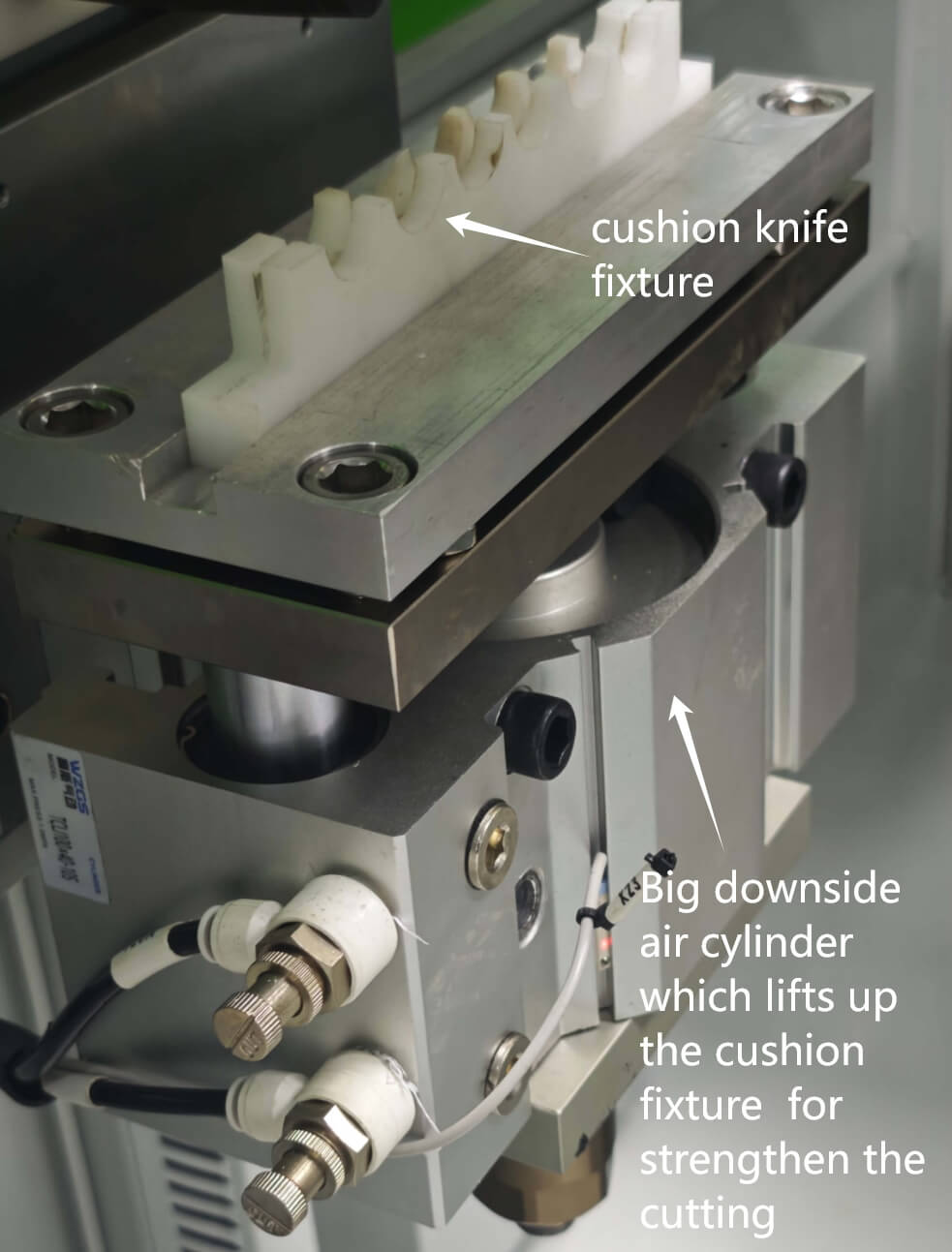

The downside air cylinder is also heavy force which lifts up the bottom fixture for good support and easy cutting of big rubber cords

2, Four Hot molds  , this Fully automated rubber cords O Ring gaskets joining machine  applies with four rotation hot molds which heat bond rubber cords at the same time with all four set molds working at the same time to heat bond rubber cords into O Rings which increase productivity .  the heat time and heating temperature can be set individually on each set mold with isolate control .

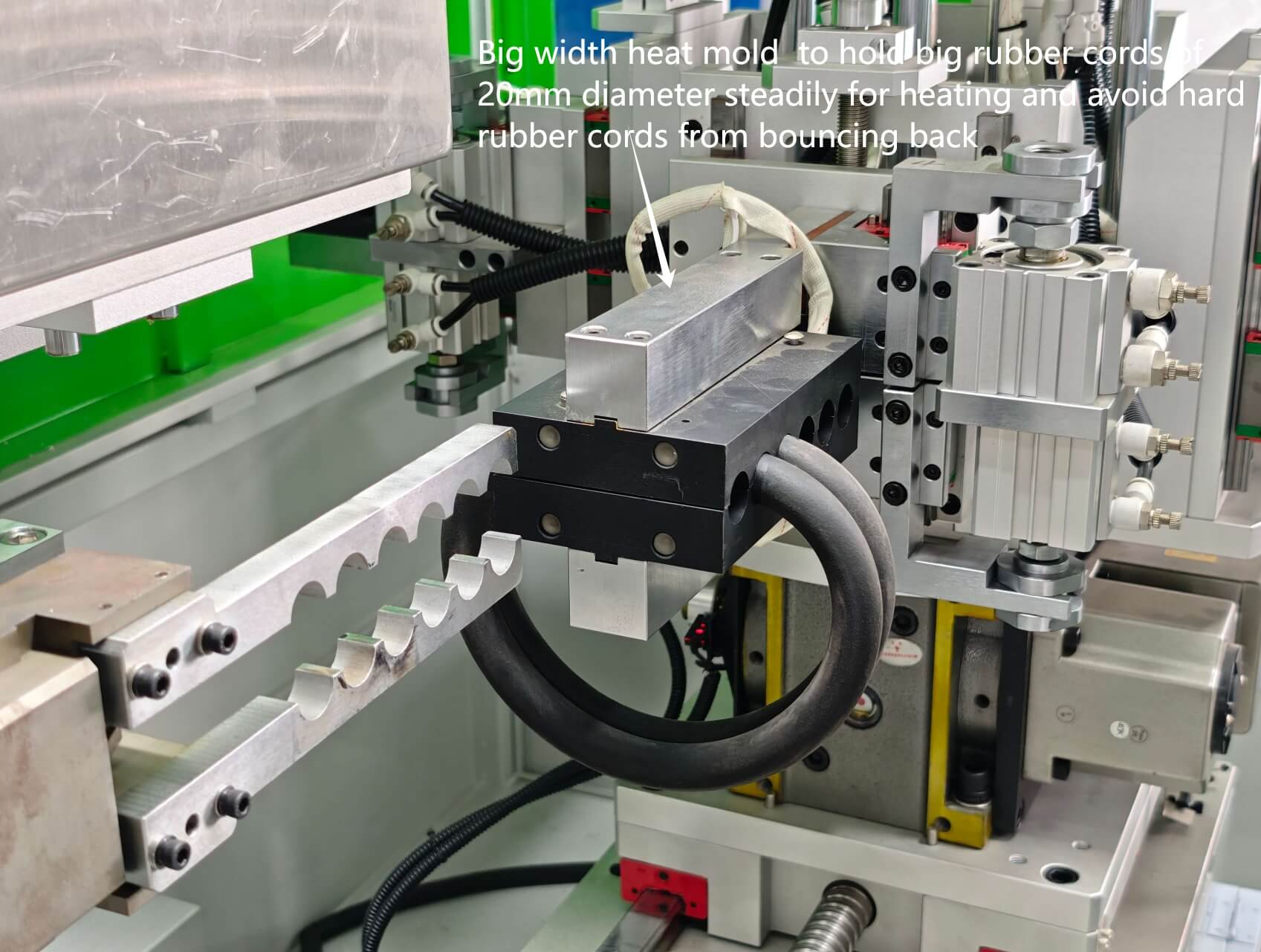

For bonding big and strong rubber cords, the heat mold is deisgned more wider for holding rubber cords steadily in hot mold for bonding to avoid  big rubber cods of 20mm diameters from bouncing back when bended into  O Rings .

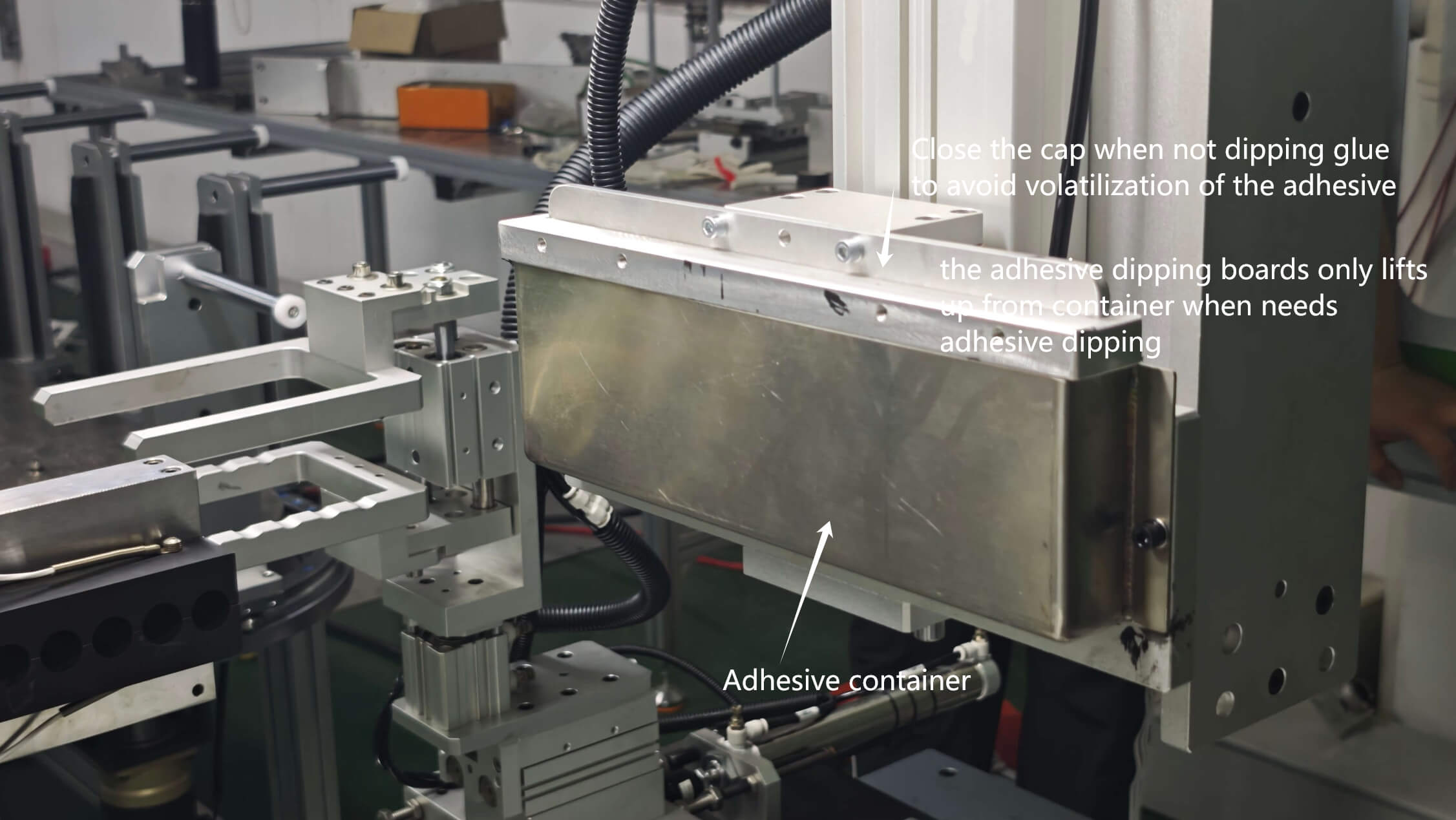

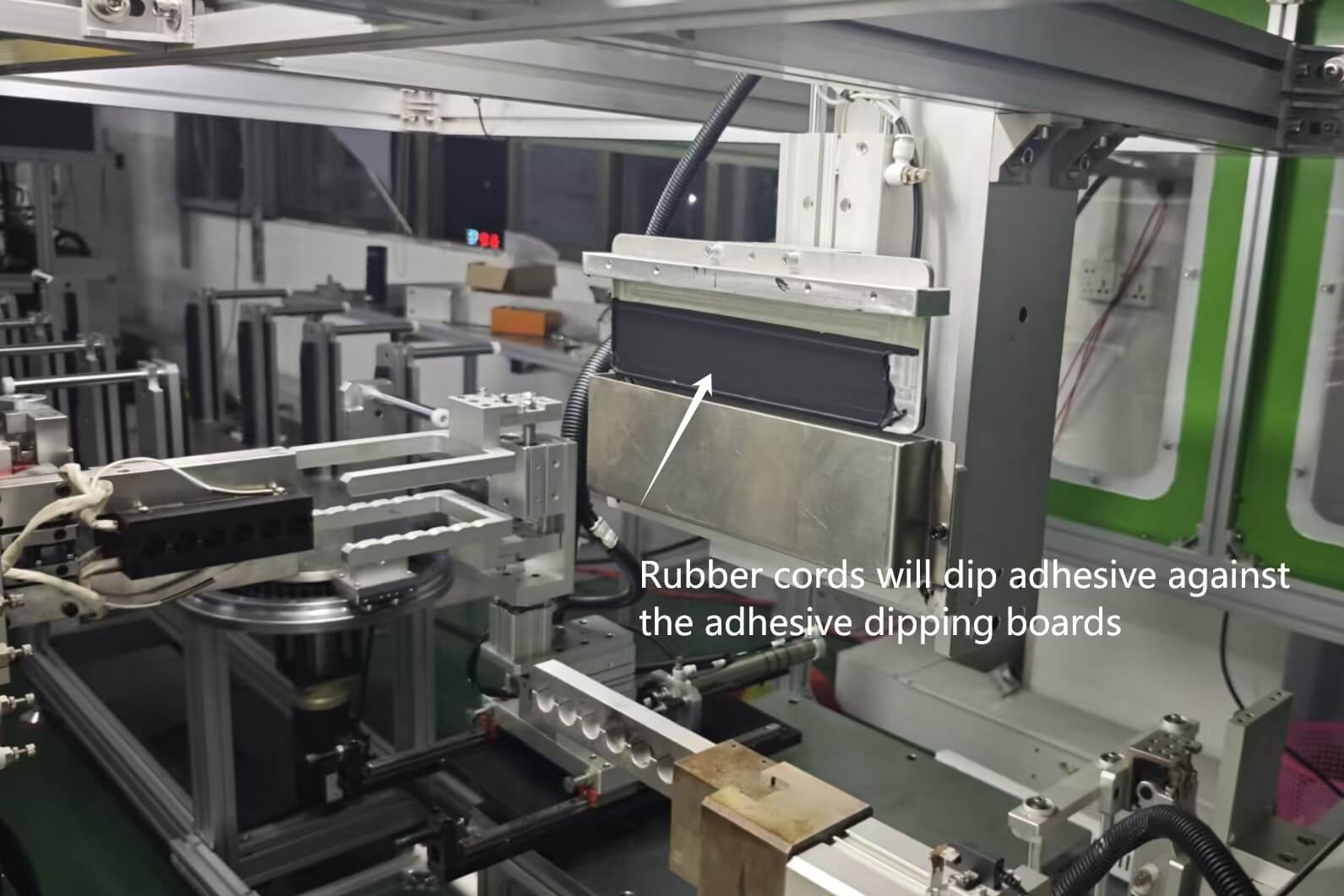

3, Adhesive container,  this Large rubber cord O Ring full automatic cutting and splicing machine  had applied with adhesive containers on both ends for epdm rubber gaskets to dip with adhesive against the adhesive dipping boards . the adhesive container cap keeps close when  rubber cords not dipping glue from it  so as to avoid fast volatilization of rubber adhesive .

4, Feeder shelf ,there is a feeder shelf placed behind this large rubber sealing cord fully automatic bonding machine  which allow 5-6 pcs rubber cords

to be processed at the same time .

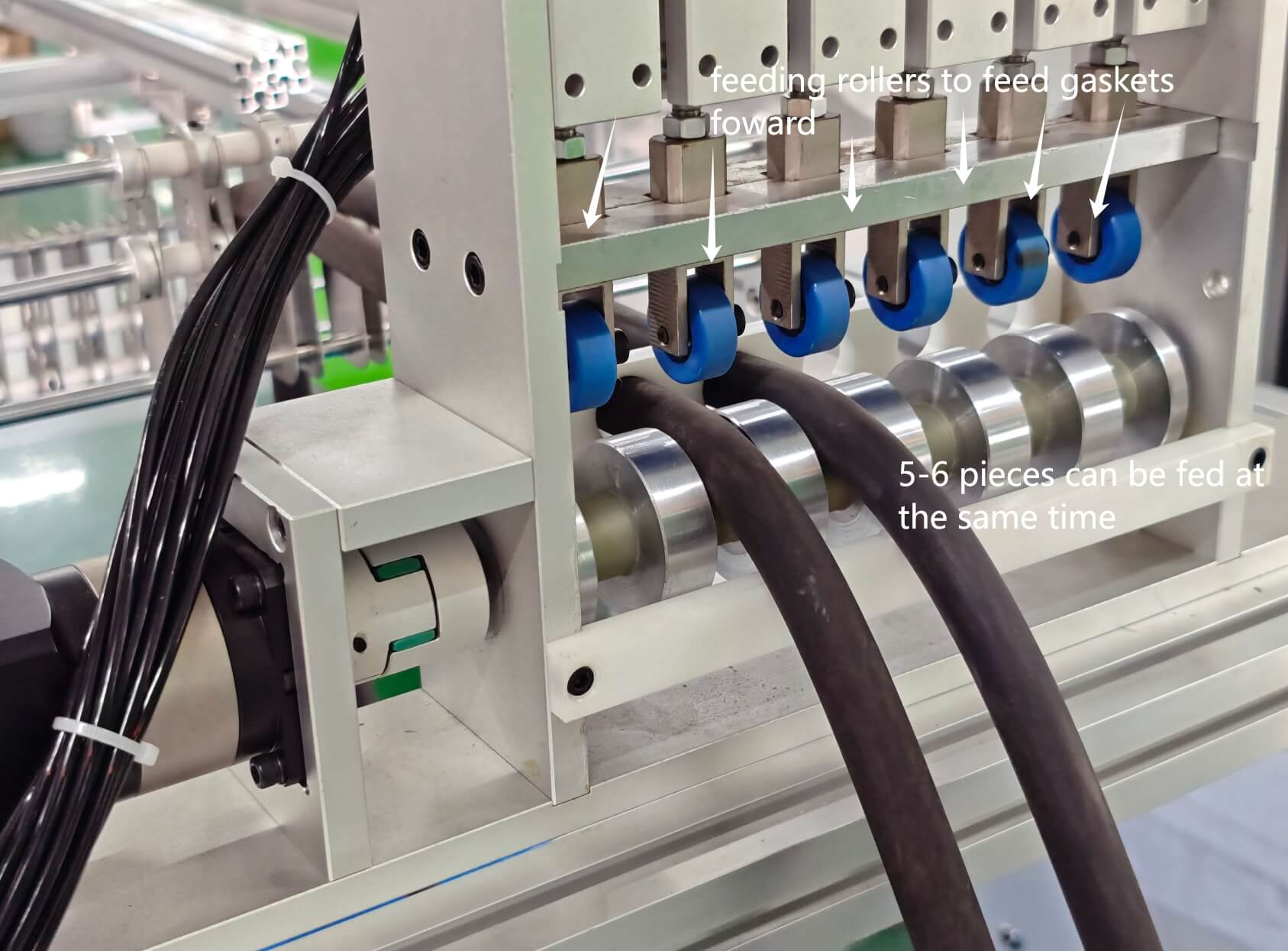

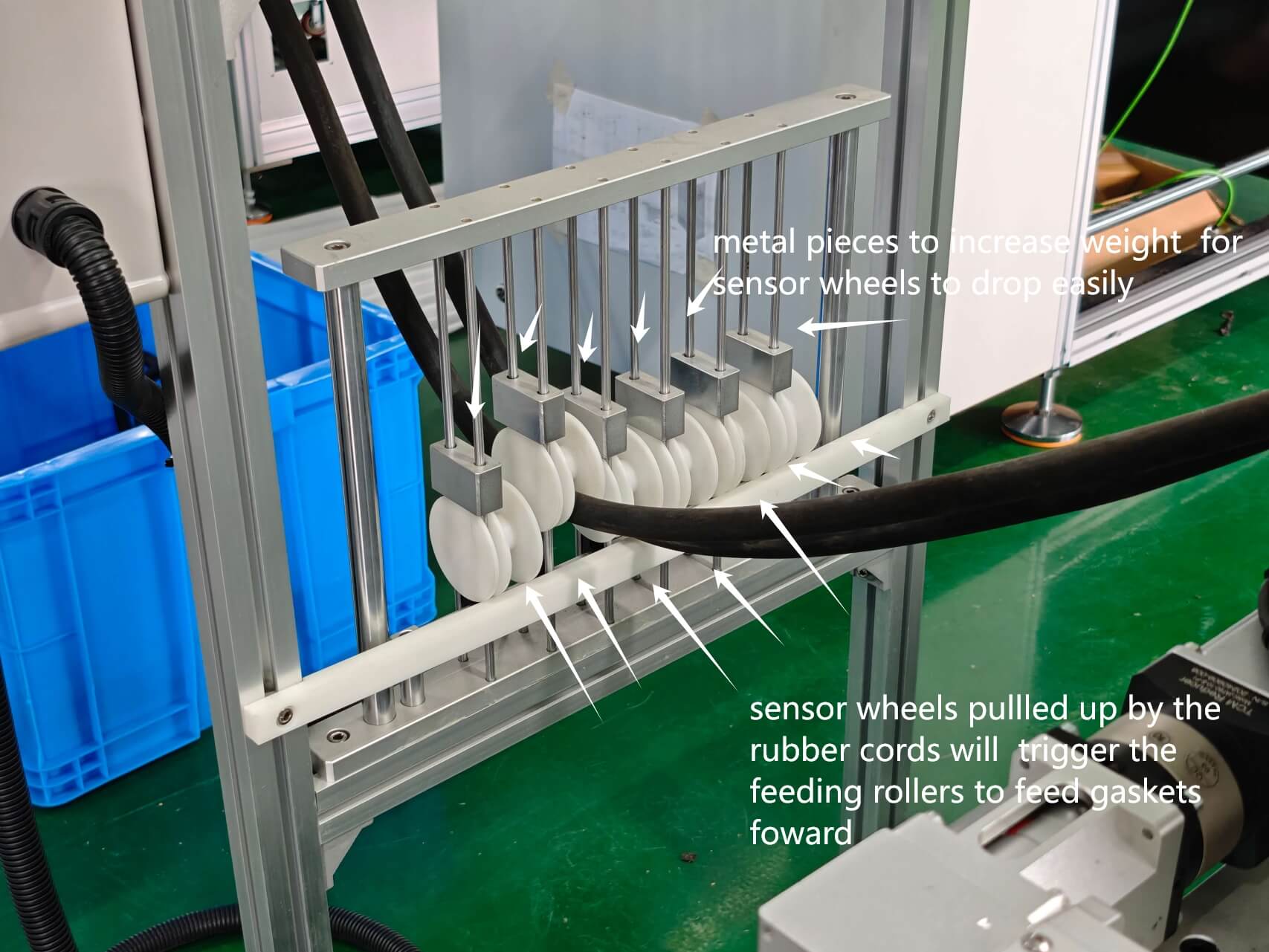

when the rubber cords are pulled up ,  the sensor wheel will leave off the sensor beneath it , the sensor detects the leave of sensor wheel ,it will order the feeding roller to feed rubber cords foward , this continuing process avoids tension during feeding process and maintains cutting length precision for big rubber gaskets .

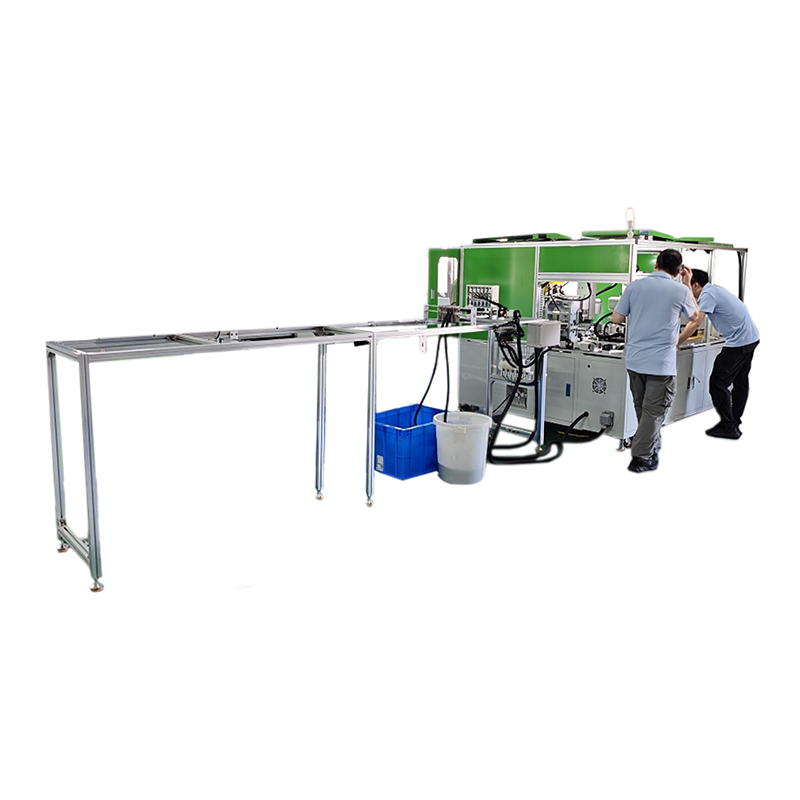

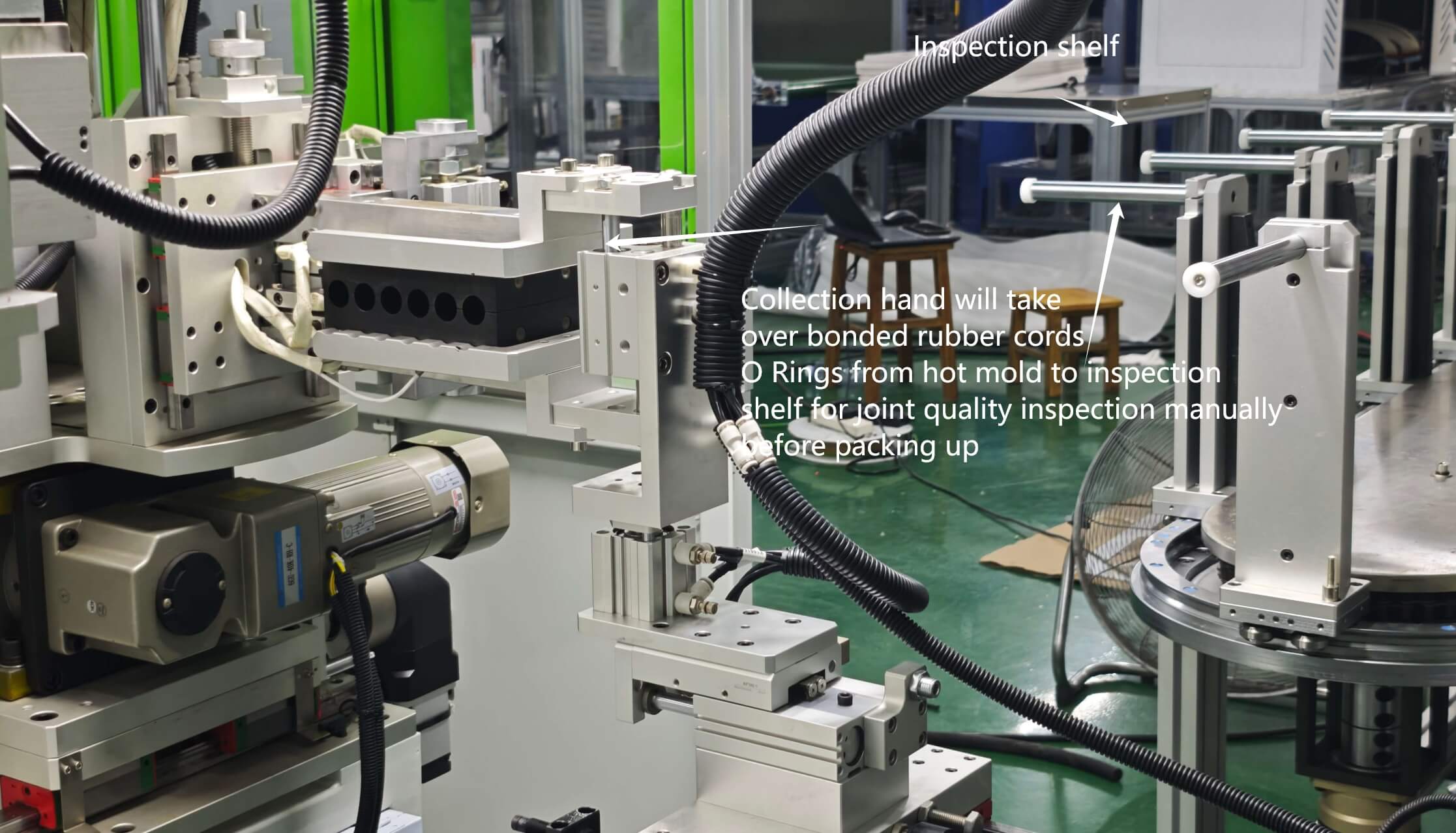

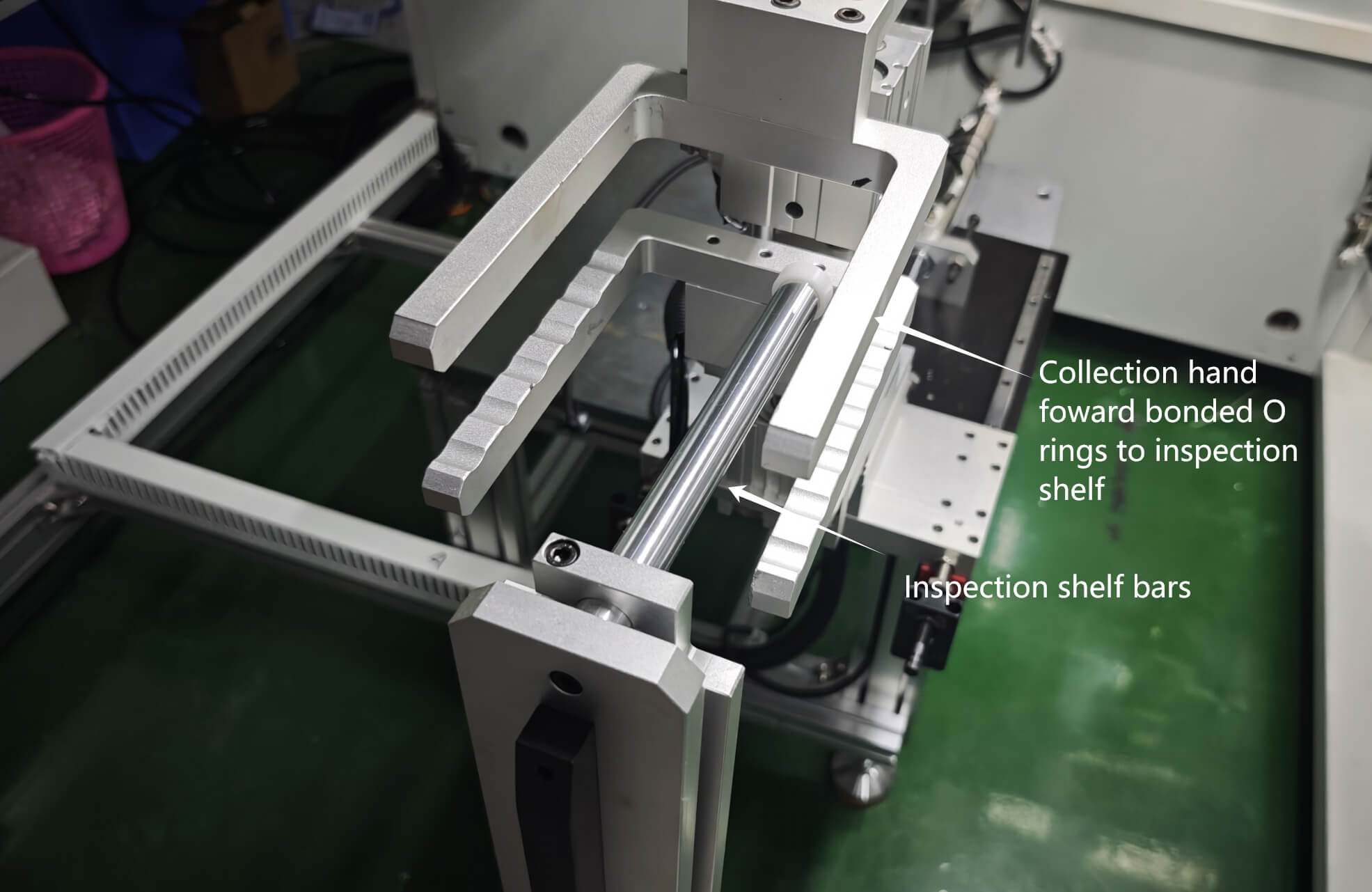

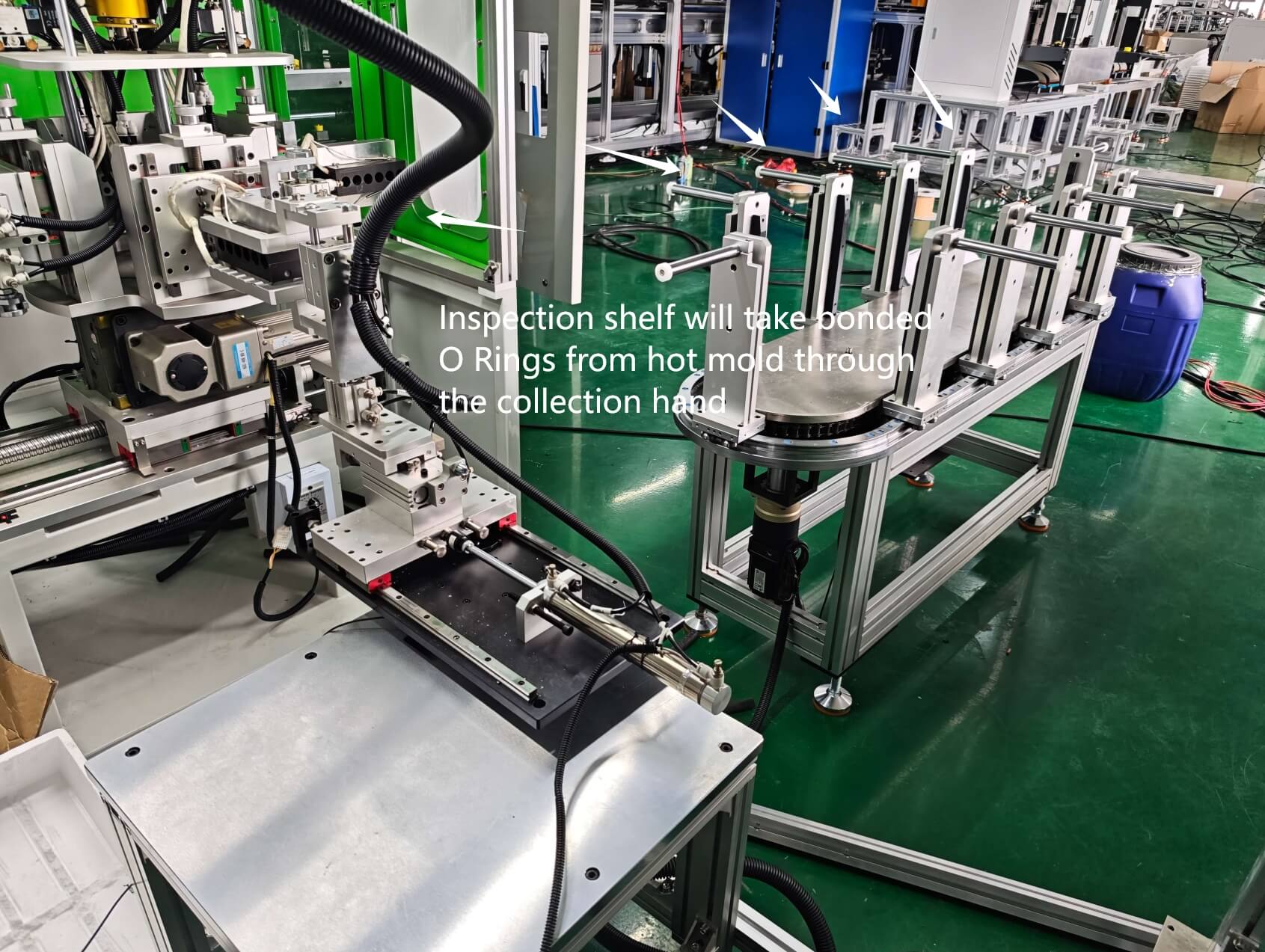

5, Joint quality inspection shelf  ,  the joint quality inspection shelf is placed behind the machine  which will take over bonded rubber O Rings from the collection hands  and hang on the inspection bars for manual inspection of joint quality  before packing up  .

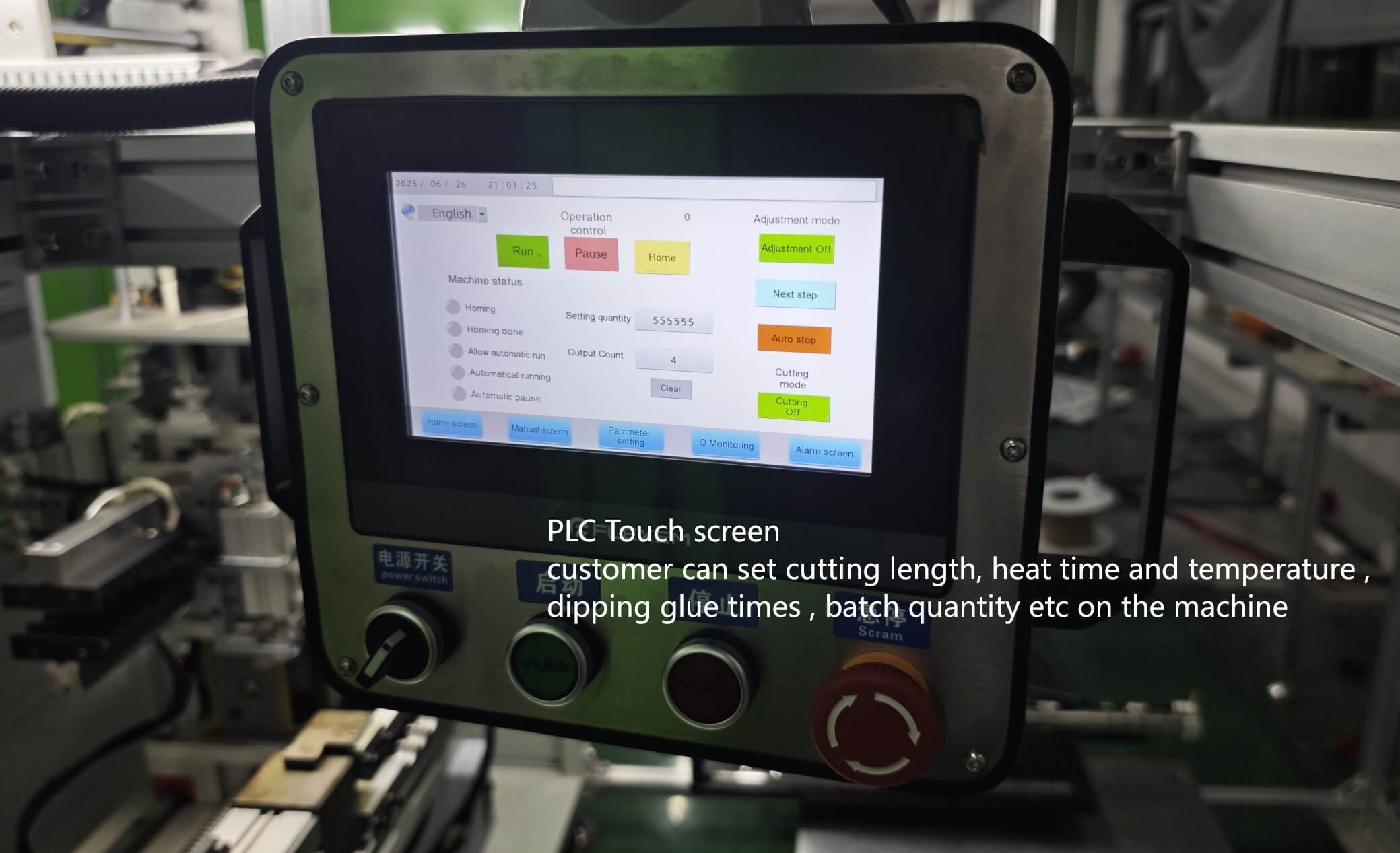

6, PLC touch screen  , The touch screen brand is FANYI ,  customer can set the cutting length , production quantity  and adhesive heating time and temperature , dipping glue times  and dipping glue interval time , for fast volatilized rubber adhesive ,we  can set dipping glue interval time for adhesive to get dry for a few second and dip adhesive again .

7,Middle supporter , this big Rubber cords drainage gaskets automatic cutting and welding machine  had been equipped with middle supporter which applies with  middle support to support the weight of big rubber gaskets passing through it ,  it avoids heavy rubber cords from weighing down and consequently maintains cutting length precision

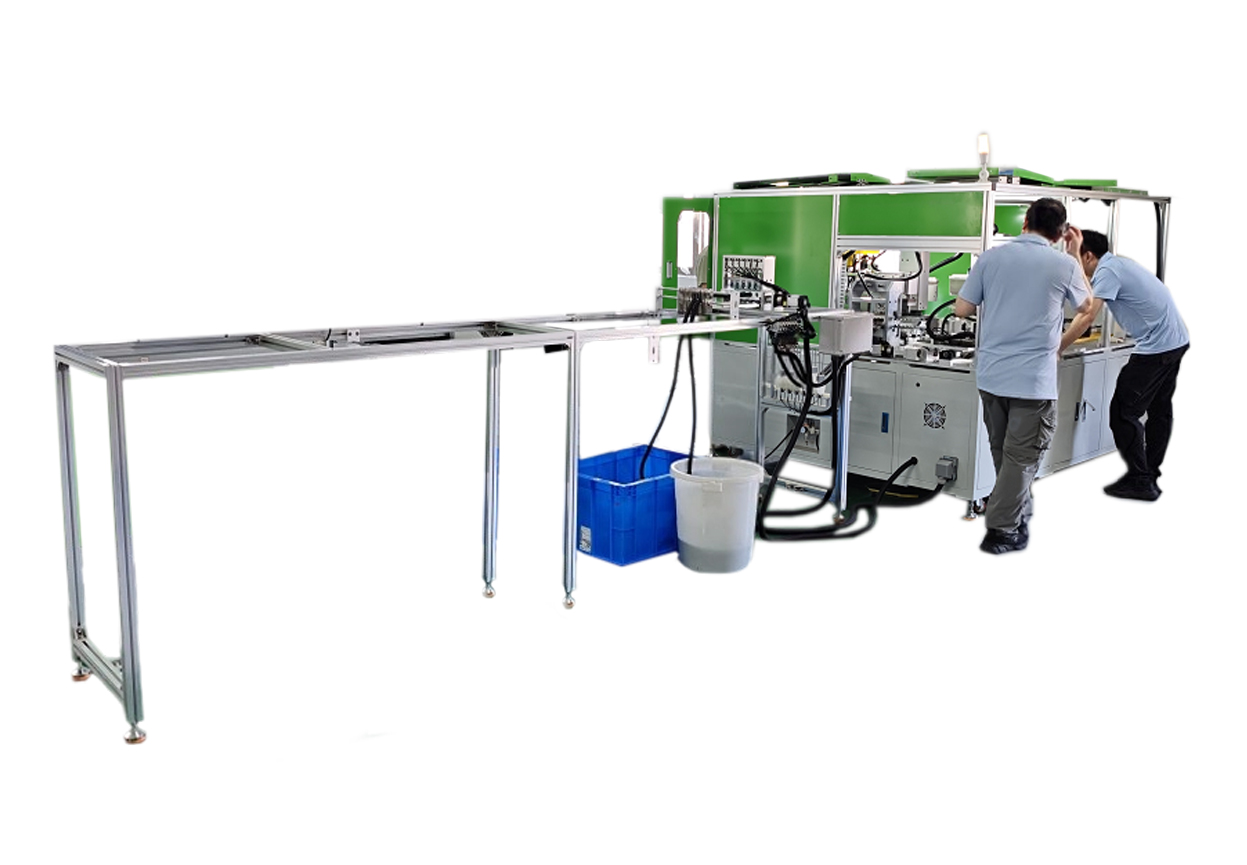

Front View

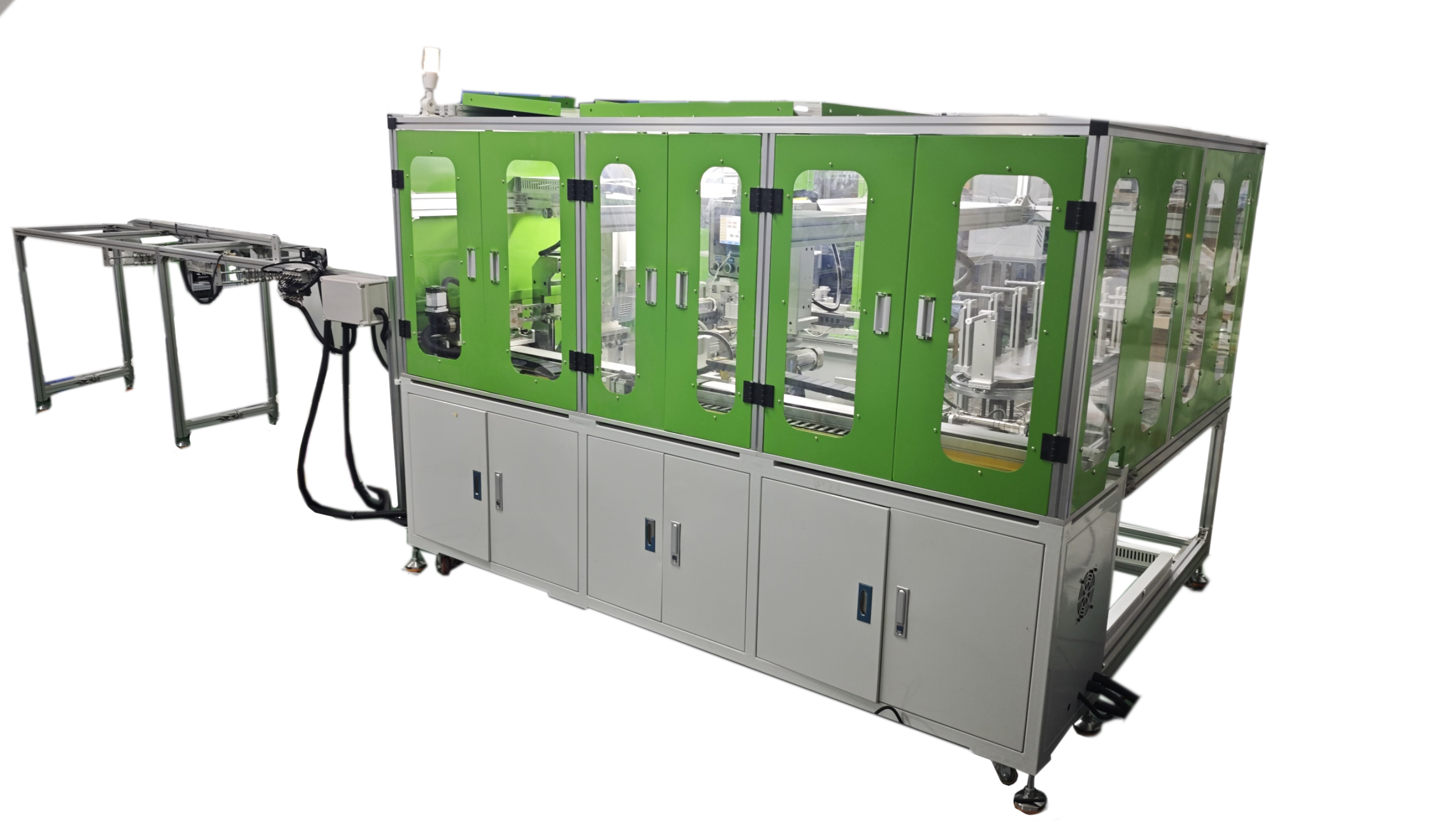

Side View

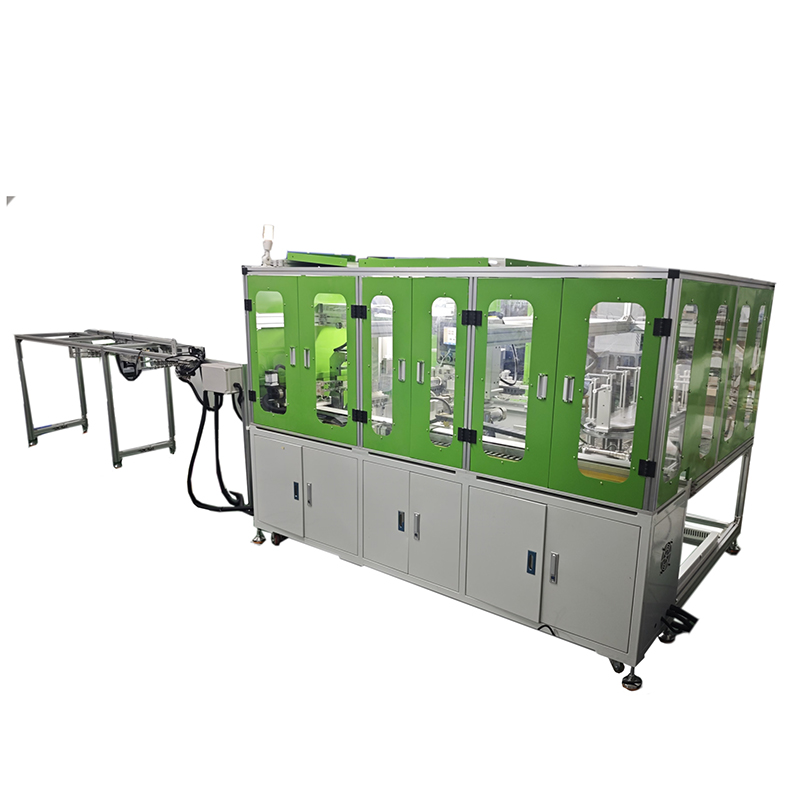

Back View

【Warranty 】

 As  a big epdm rubber cords fully automatic cutting and bonding machine  (with joint quality shelf) device supplier , all the spare parts of the  ES-060-1 machine will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping ,G.W after packing wooden case is 1T, Wooden case dimension is (L2850+W2150+H2150MM)
