Automatic Silicone rubber O-ring cutting and splicing machine ES-060 (No.4th upgraded version)

Automatic Silicone rubber O-ring cutting and splicing machine ES-060 (No.4th upgraded version)

（Maximum 2.0 meter cut length type  ）

The Automatic Silicone rubber O-ring cutting and splicing machine ES-060 (No.4th upgraded version)    is engineered to streamline the production of silicone gasket O rings. With a complete automation system, this advanced machine handles cutting, gluing, and bonding of silicone profiles into O-rings—delivering high precision, safety, and consistency. The latest generation of this machine has undergone several key upgrades to enhance performance, safety, usability, and maintenance.

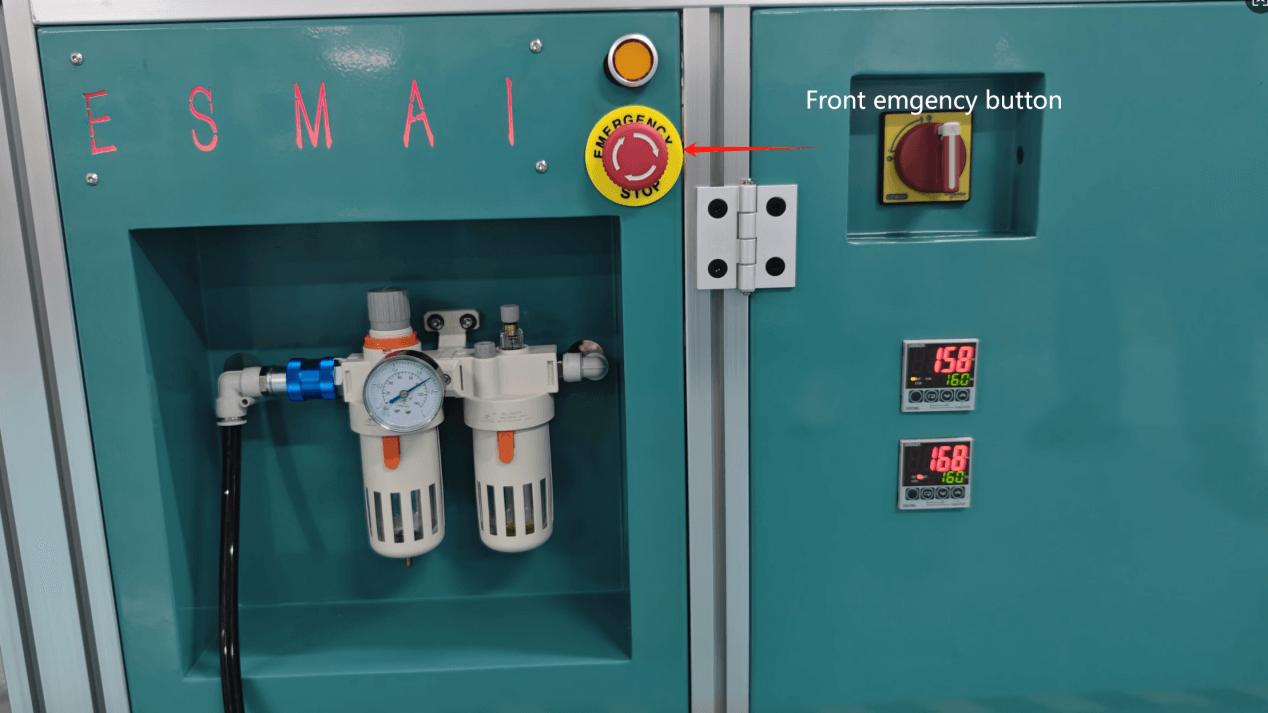

The upgraded ES-060 model is now equipped with a full transparent polycarbonate (PC) window, offering an unobstructed view into the machine's working area. This improvement enables operators to visually monitor the internal operations in real time. In the event of a malfunction, operators can respond immediately by pressing emgerncy button from behind and front .

For improved operator safety, the  Silicone rubber O Ring full automatic joining equipment  now features a fully enclosed safety door with integrated safety sensors.  The touchscreen control panel is placed outside the machine, eliminating the need to reach into the work area during operation for safety protection  and Safety sensors trigger an automatic shutdown if the door is accidentally opened with advanced safety protection levels

The adhesive application system has been redesigned for easier maintenance , Simplified removal and cleaning of the glue brush assembly ,easy to clean the adhesive with direct taking off of the glue brush .

The cutting unit now includes a strong back support structure for the cutting knife. This prevents deformation or bending of the backing plate, resulting in straight, precise cutting cross-sections and Improved bonding quality for O-ring joints.

To create a quieter production environment: , A sound-dampening module is integrated into the feeding system. The machine operates with minimal noise, even during full-speed production.

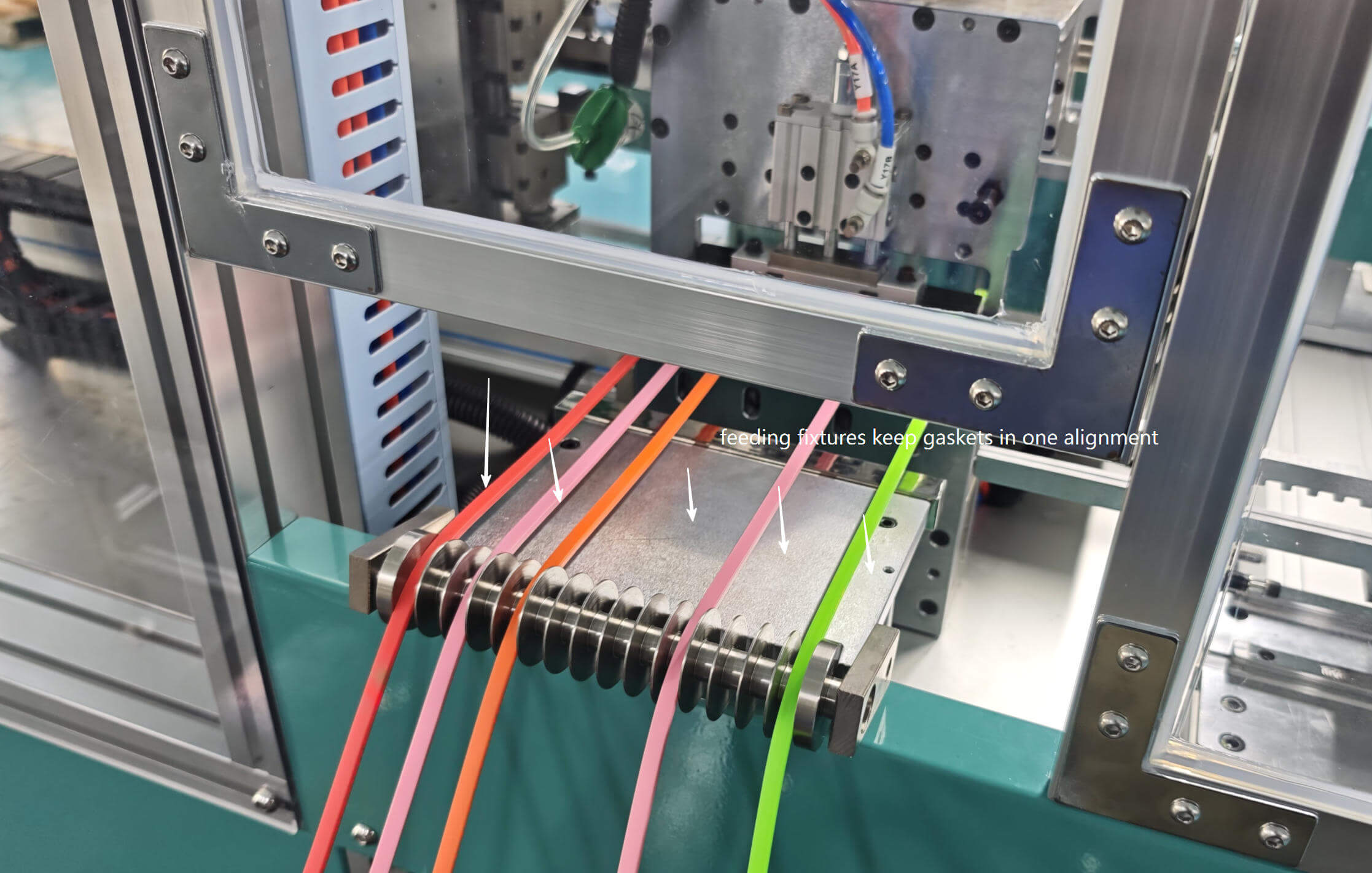

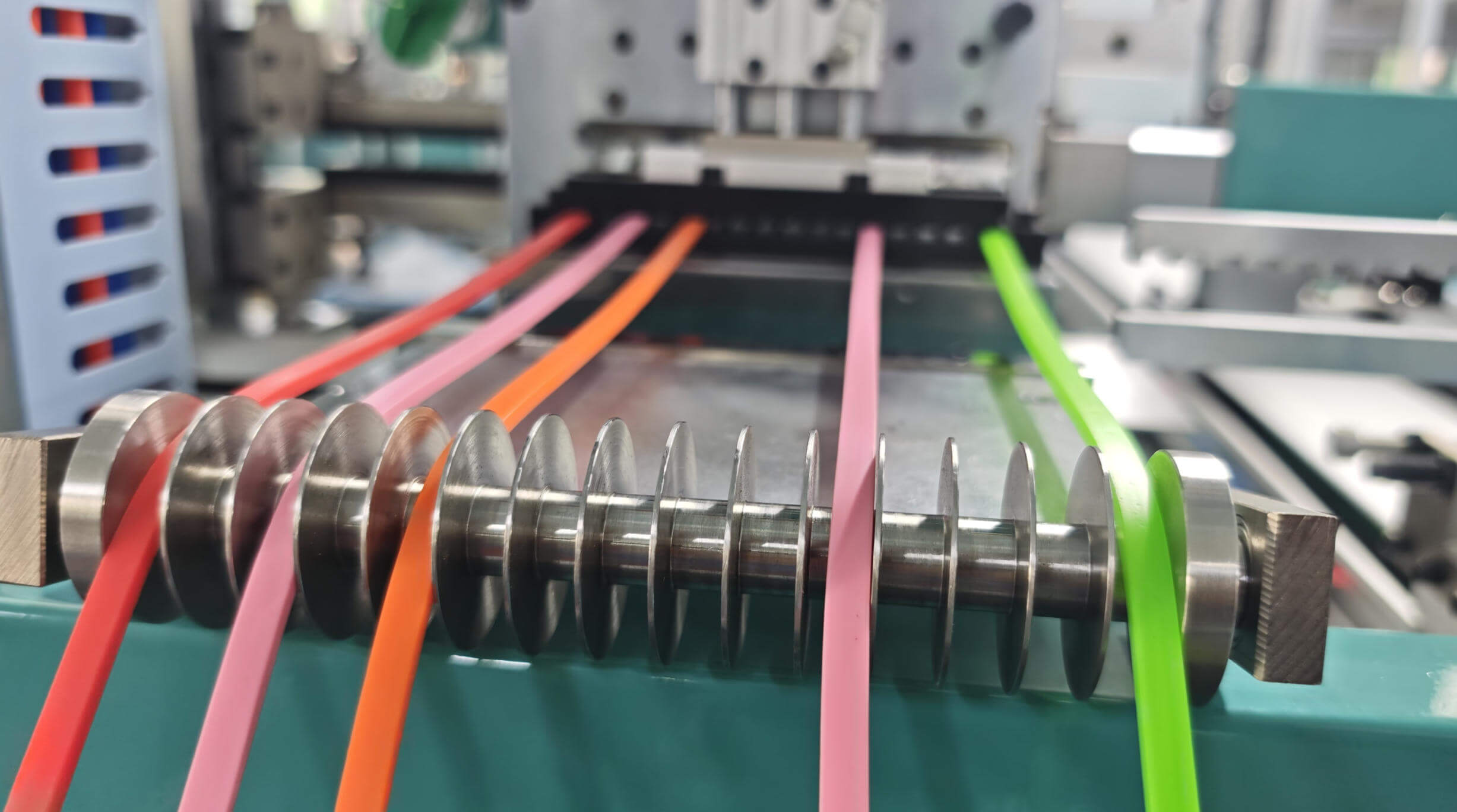

15 pcs of silicone tube or gaskets can be processed on the machine which ensures high productivity of 20000-36000pcs per day(based on the cutting length and gaskets size,10hour a day)

Operators can now configure batch and interval settings for packing: and set a specific quantity of bonded O-rings per batch. Upon reaching the preset quantity, the machine pauses automatically for a user-defined "packaging time." This pause gives workers sufficient time to complete manual packing before the machine resumes.

Youtube video

Upgraded points 1

Upgraded points 2

Upgraded points 3

This Silicone rubber O ring fully automatic joining machine achieve accurate cuts every time with the auto length compensation system  , Up to 20 custom compensation formulas can be programmed based on different silicone materials , With one-click downloading, users can apply pre-set formulas that ensure the actual cutting length matches the set length precisely.

To reduce setup time  for ever processed certain type gaskets , the machine supports storage of up to 100 complete product recipes

• Each formula recipe includes settings like:

  • Cutting length

  • Heat curing time

  • Glue dipping parameters

  • Length compensation value

  • Left/right clip hand settings    Easily retrieve and apply past settings for consistent production without manual re-entry.

The bonded silicone O-rings produced by this Automatic Silicone rubber O-ring cutting and splicing machine ES-060  are good  joint and small cutting length tolerance and high productivity is achieved  and reduce working labour and with highest  german safety standard .

【Technical Data】

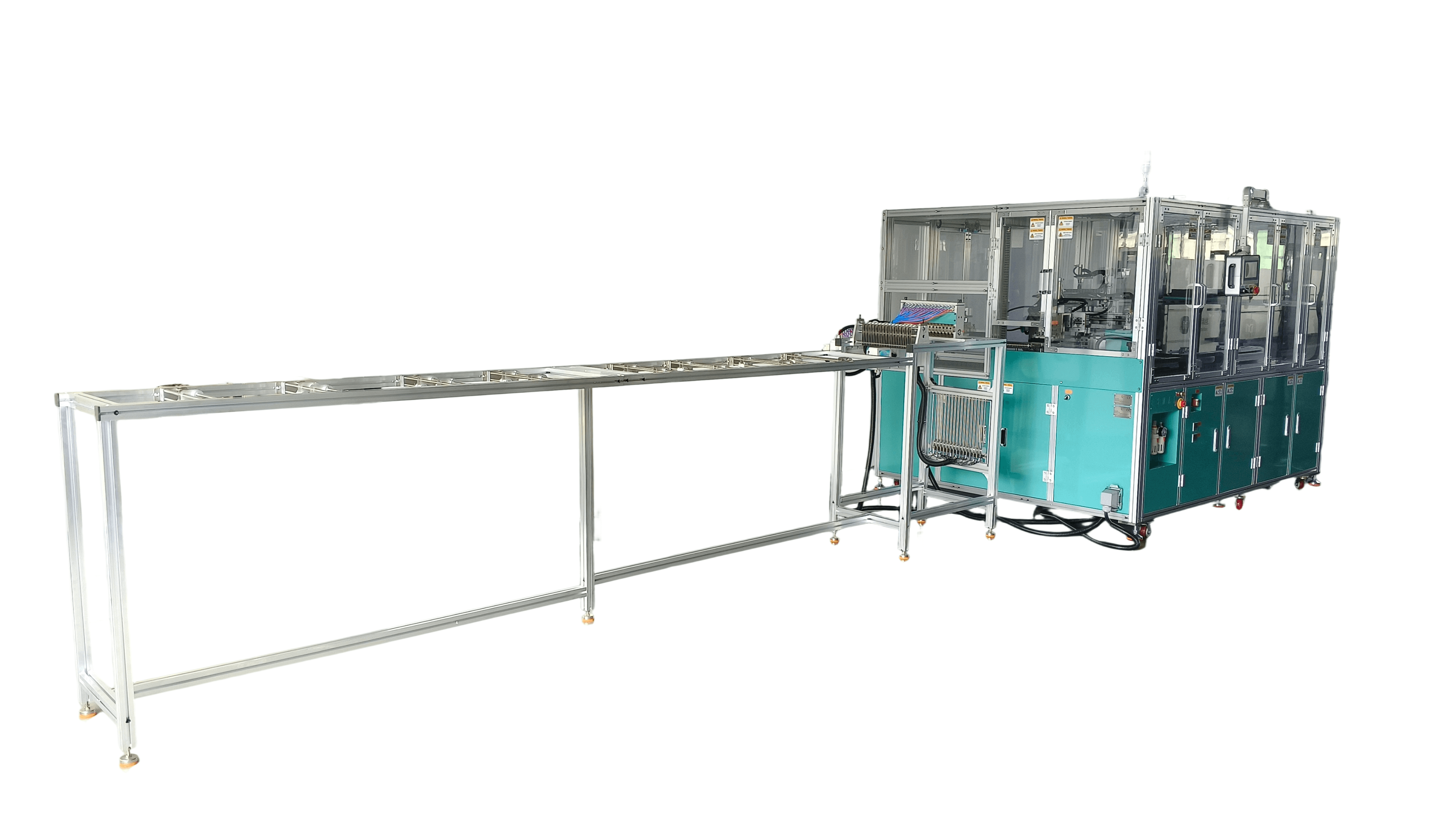

Product name : Automatic Silicone rubber O-ring cutting and splicing machine ES-060 (No.4th upgraded version)

Brand : ESMAI

Model No.: ES-060 (2.0 meter cut length type )

Feature : High safety standard & whole upgraded

 Voltage: 110V/220V

Power: 5KW

 Working efficiency : Process 10-15 pieces of gaskets at the same time(based gasket size)

Cutting length tolerance：within length500mm±1，within length1000mm±2

Processing gaskets diameter range :2-9mm (with enlarged feeder to work gaskets up to 12mm )

Suitable type gaskets profile : Round ,square and other shape silicone profiles by making  customised molds

Key spare parts :  PLC: Xinjie  , Drive: Hechuan , Panel: Fanyi ,Air cylinder :  Taiwan Airtac

Air source : 0.6-0.8MP

Control system :  Touchwin  PLC  touch screen

Cuttting length range : 230mm-2000mm

 Productivity: 22000-36000pcs per day(based on the cutting length and gaskets size,10hour a day).

Net Weight:  890kg

Dimension L*W*H:7000(8800)X1800X2000mm

【Product Advantage】

1 ,  Meeting german safety  standard  if open the safety door during machine production , the machine will stop working immediately to  protect workers safety  .transparent safety doors to see clearly what happens inside the machine & Outside Touch screen  for workers to operate the machine without reaching inside .

2,  Setting cutting length only for once for one type gaskets with length compensation auto calculation formula , 20 formulas can be stored for 20 type gaskets , one key retrieval ,easy to use .

3 ,100 product receipes  can be stored and downloaded ,more easy for workers to use the machine  , for same type gaskes ,all product parameters like cutting length ,bonding time , dipping glue times , dipping glue position , taking material position ,  machine speed can retrieved for use with one key download .

4, Batch quantity & Batch interval time can be set , customer can set like 100 or 200 pcs for packing up , the machine will stop for a while for customer to collect orings for packaging  , after packaging  batch interval time reached , the machine keeps working  .

【Product Details】

Upgading points 1

Full transparent PC window

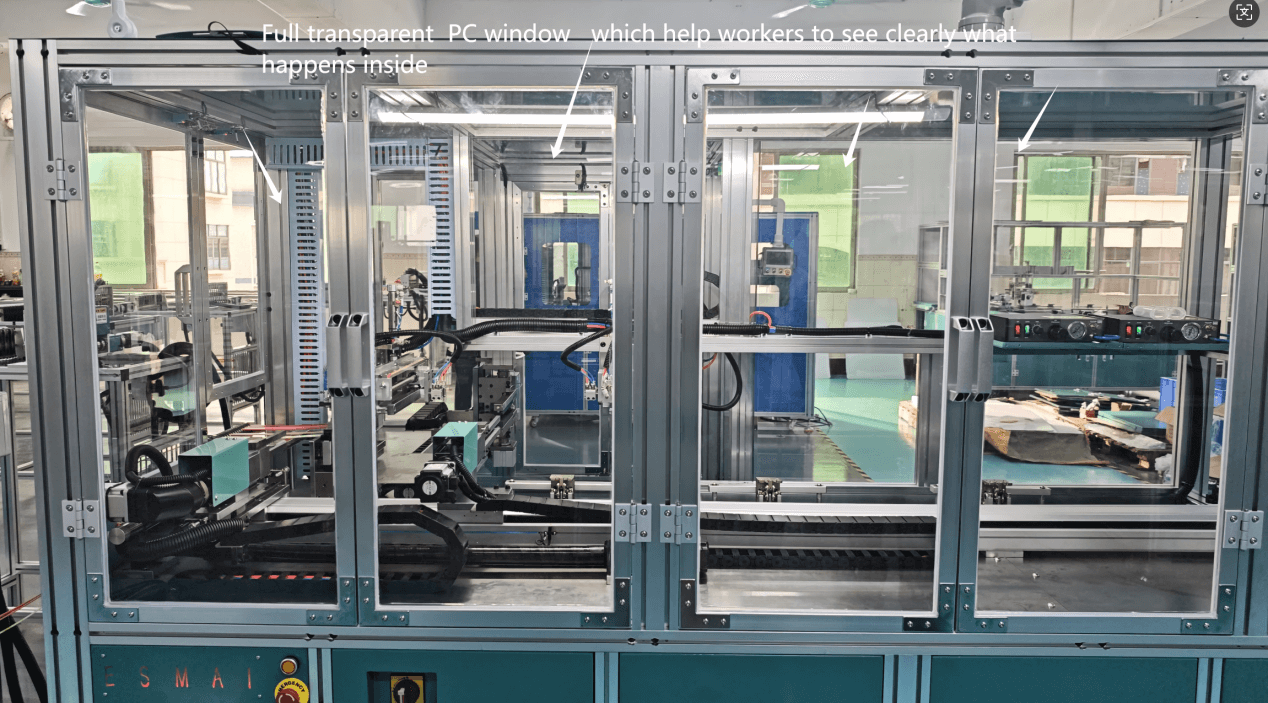

The upgraded ES-060 applies with full transparent PC window to allow workers to see clearly what happens inside without any blank spots ,if any malfunction.

We can save the situation in time by either pressing emergency button in front

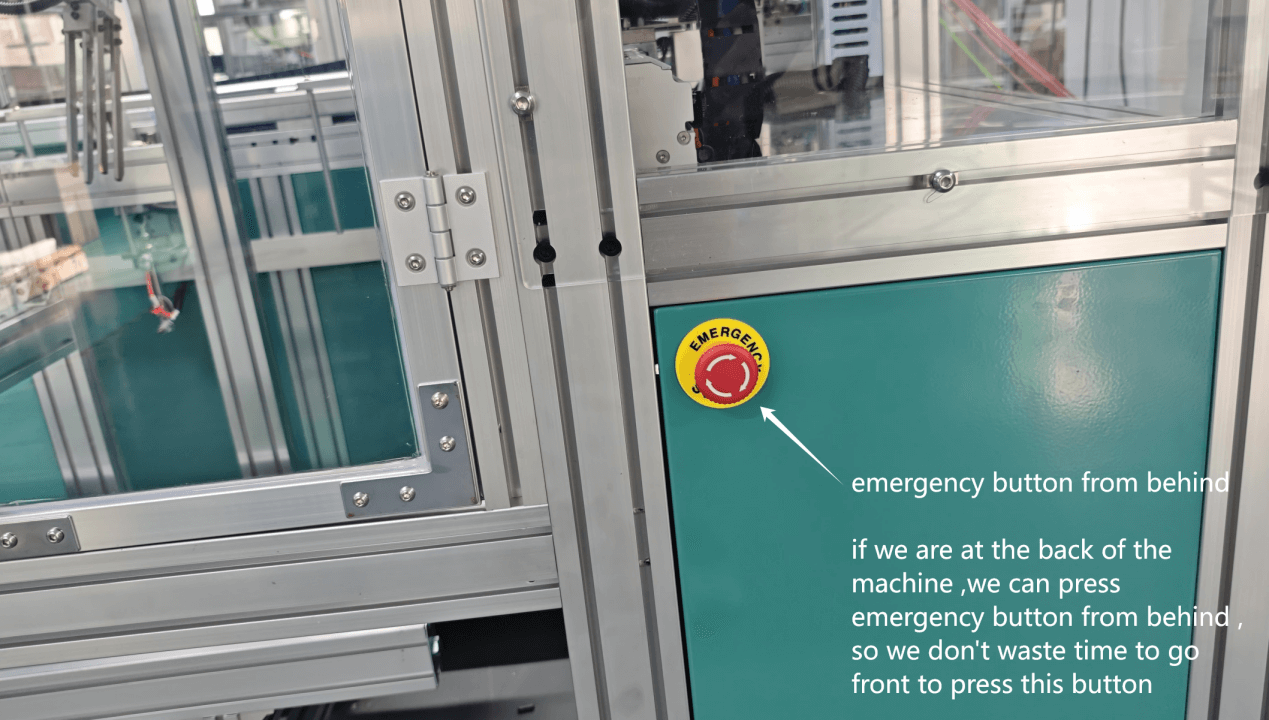

Or we can press emergency button from the back

Upgrading points 2

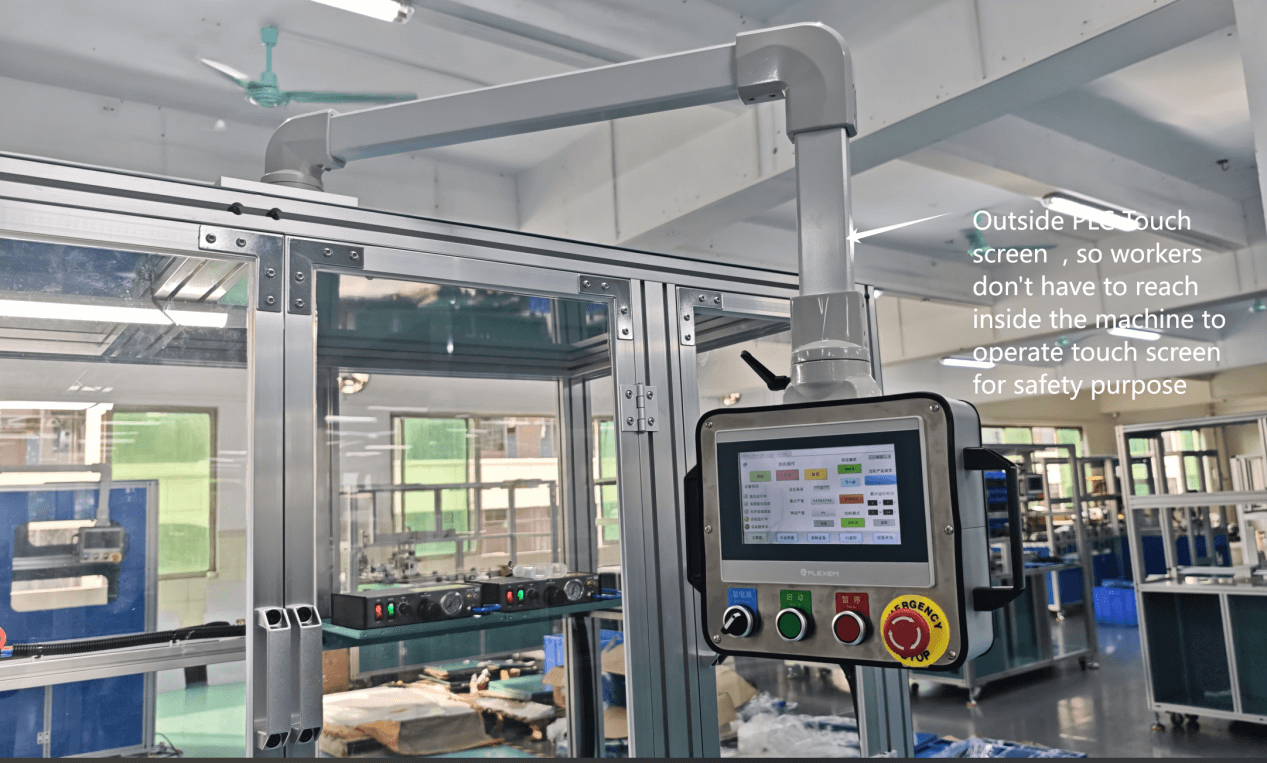

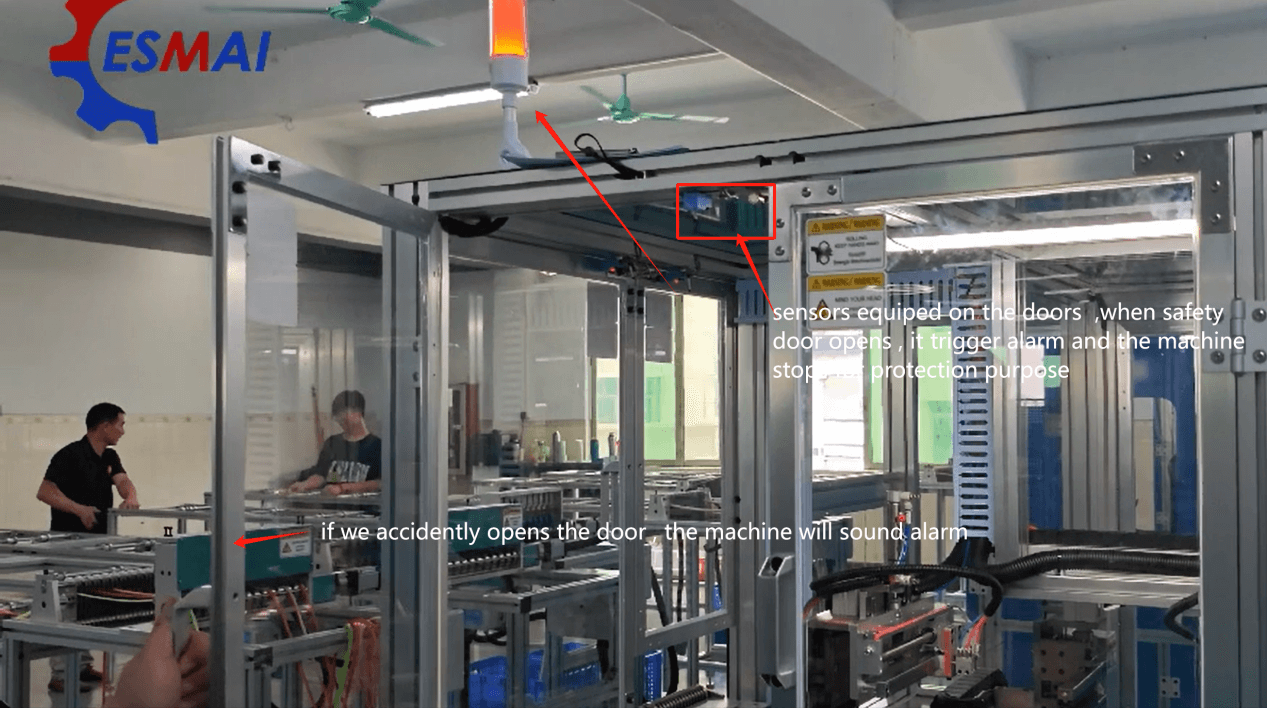

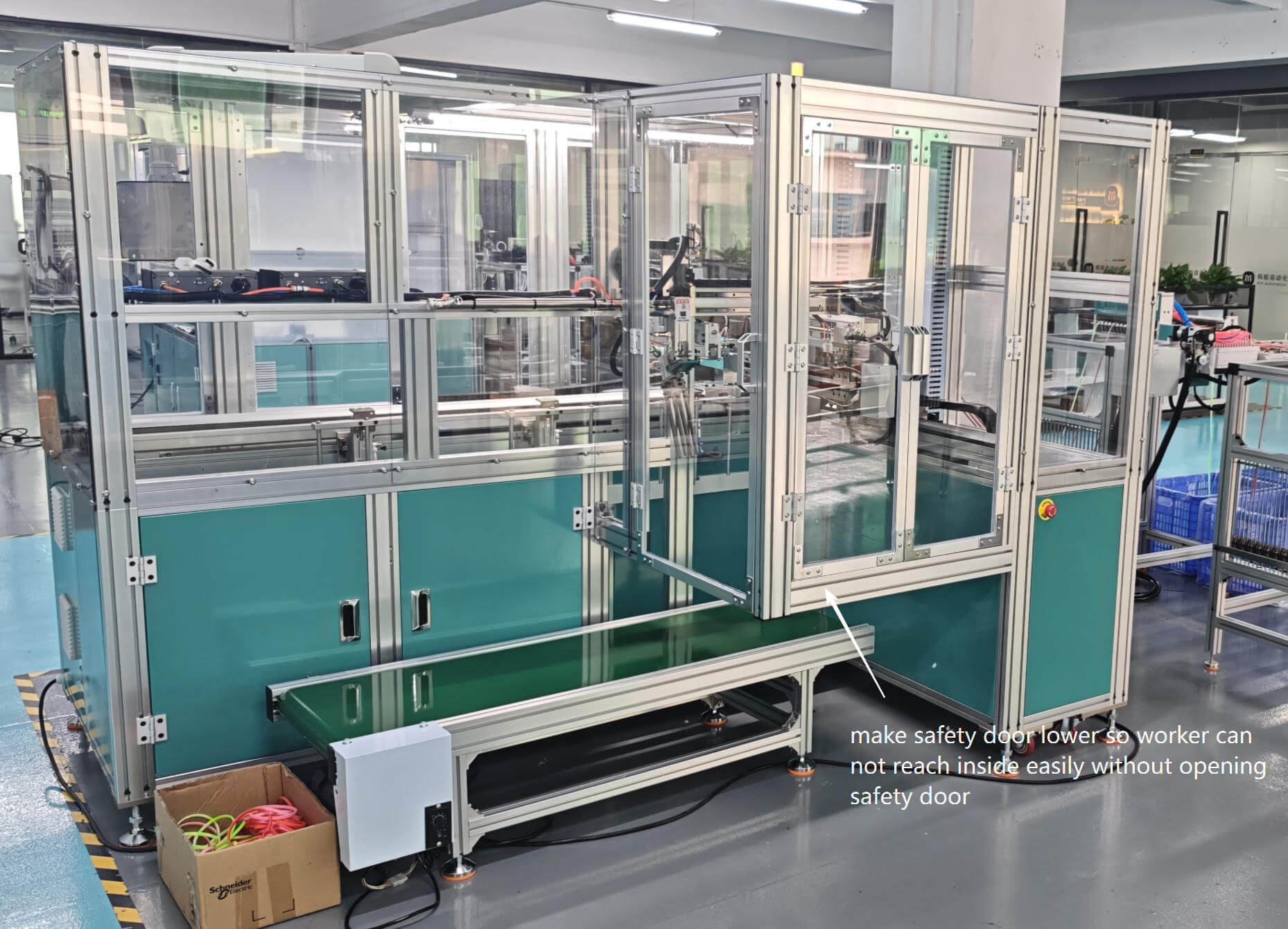

Fully enclosed safety door (For safety purpose)- touch screen placed outside the machine, the touch screen is placed outside the machine ,so workers don’t have to reach inside the machine for operating for safety concern .

The safety door had sensors , when safety door accidently opens by workers , the machine will stop itself immediately for safety protection

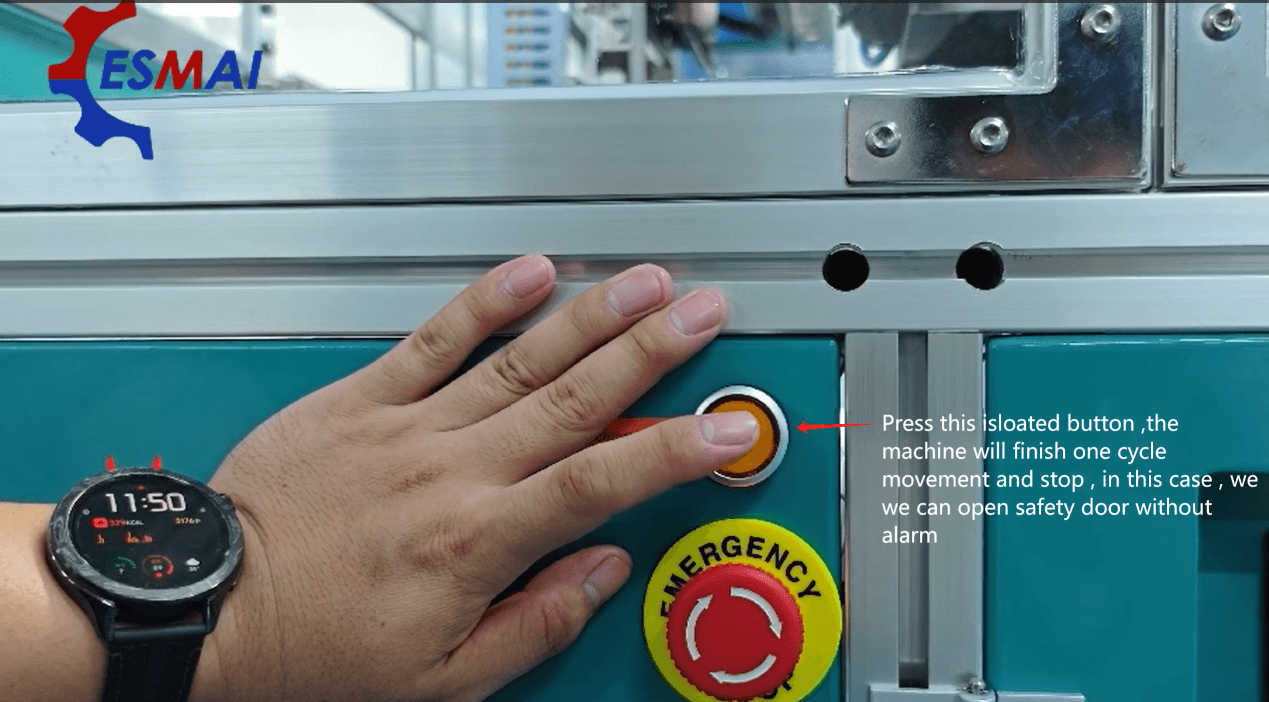

We had equipped an isloated button here , if workers want to manually adjust the machine ,he can press this isolated button , the machine will finish one cycle movement and stop itself . so workers can open the safey door and reach inside for manual adjustment of the machine .

Upgrading points 3

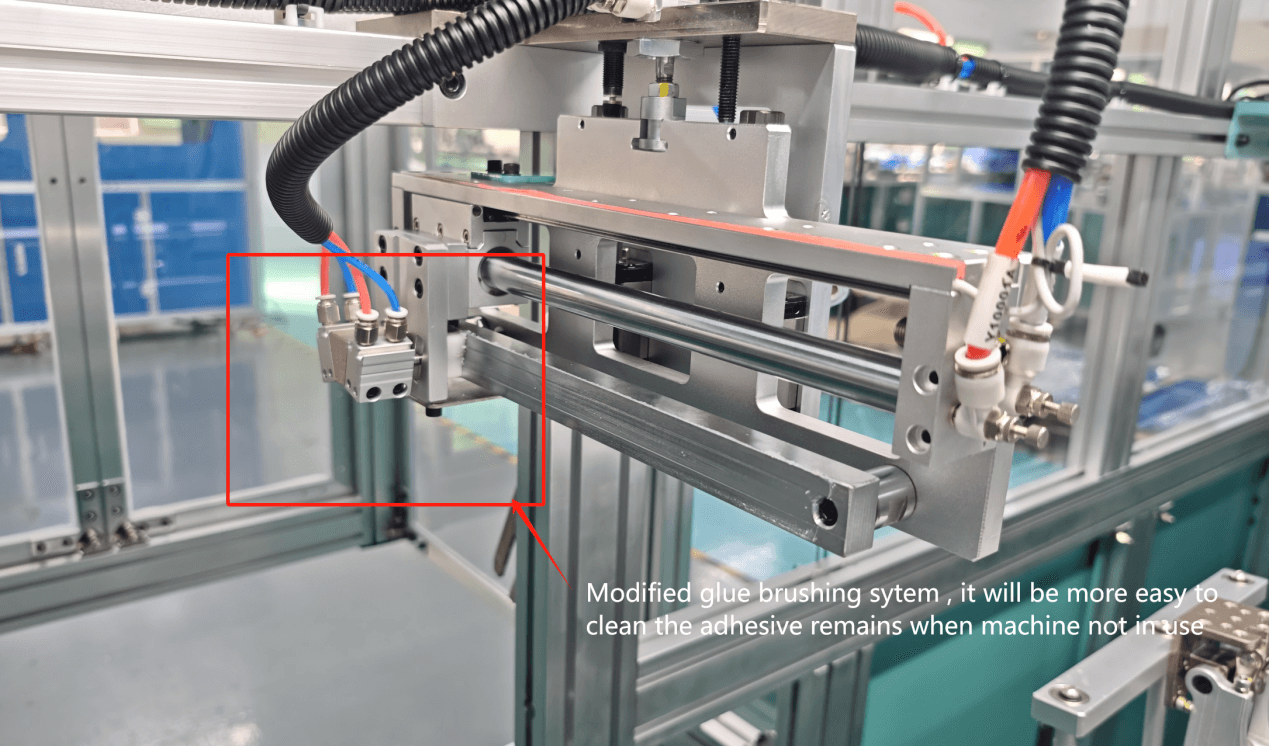

Modified glue brushing system

It is more easy to take off and clean the adhesive remains when mahchine not in use compared to the old machine .

Upgrading points 4

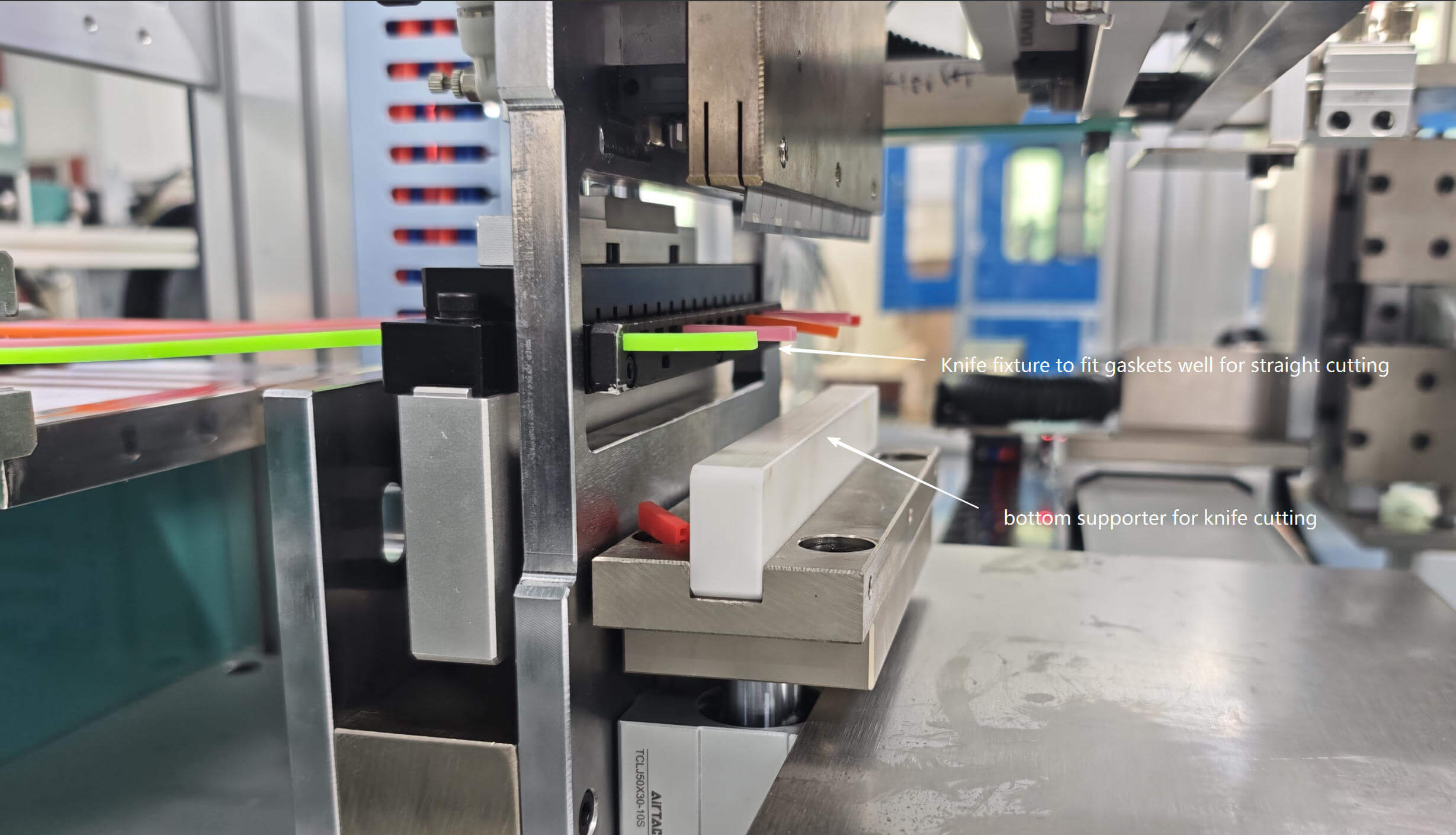

Strong back supporter for knife cutting

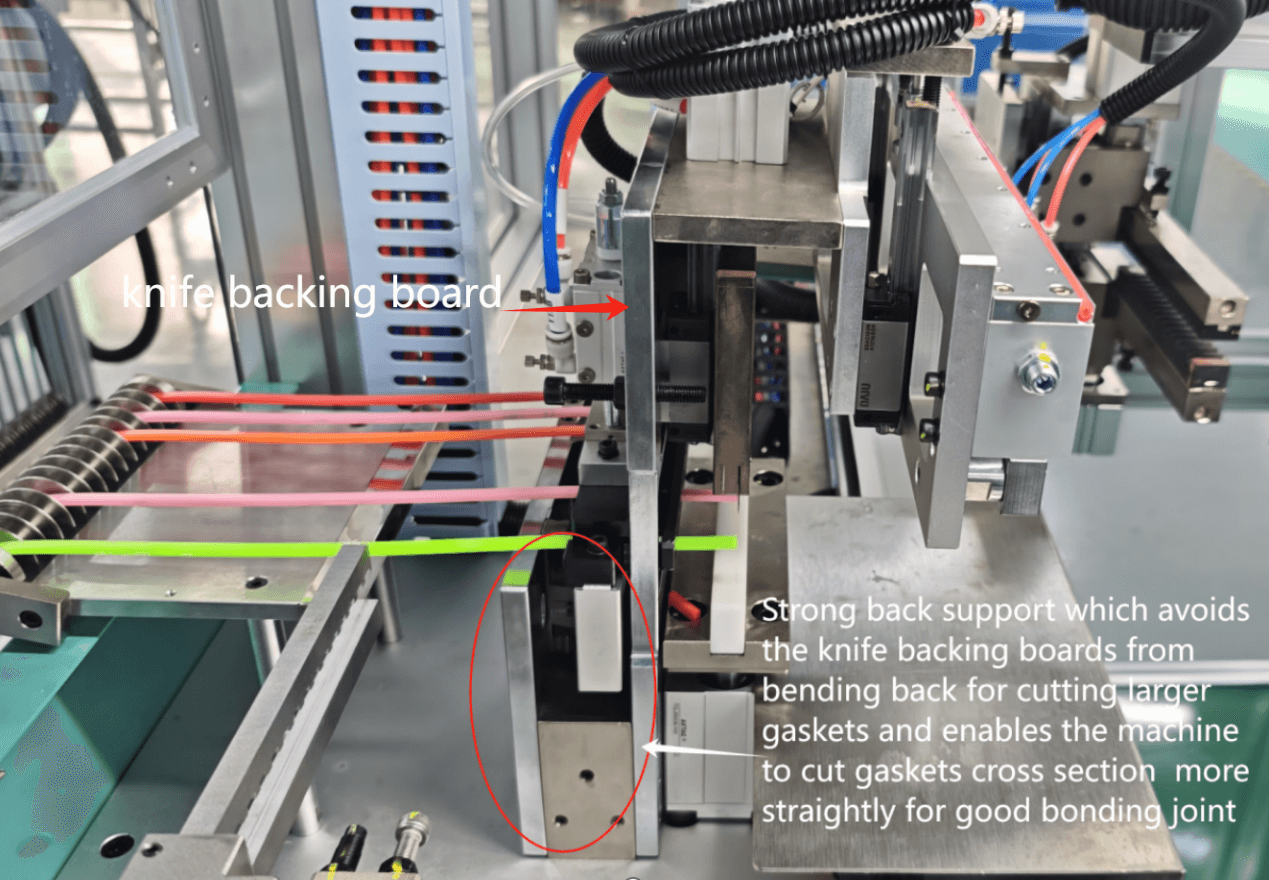

The knife cutting structure is more stable with strong back supporter which avoids the knife backing board from bending back during knife cutting and ensures straight cutting cross section and high quality joint of bonded O Rings.

Upgrading points 5

Soundless production of the machine

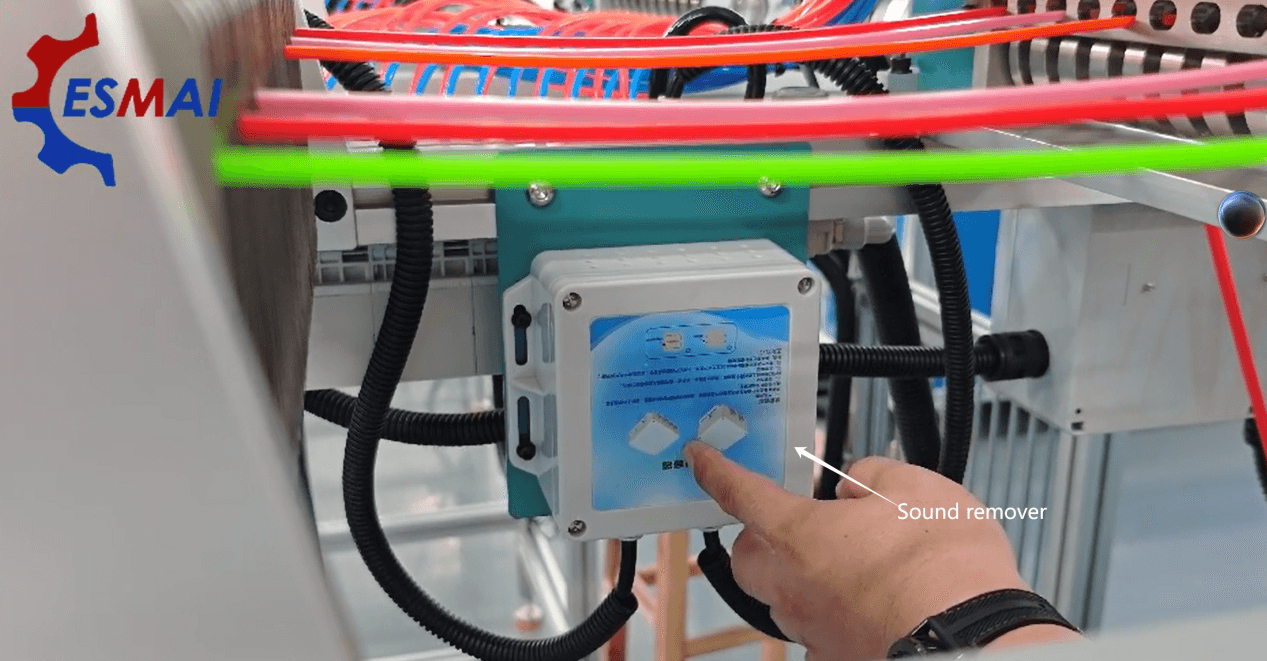

We had equiped with a sound remover on the feeding system , the whole machine will be soundless with little noise during production

Upgrading points 6

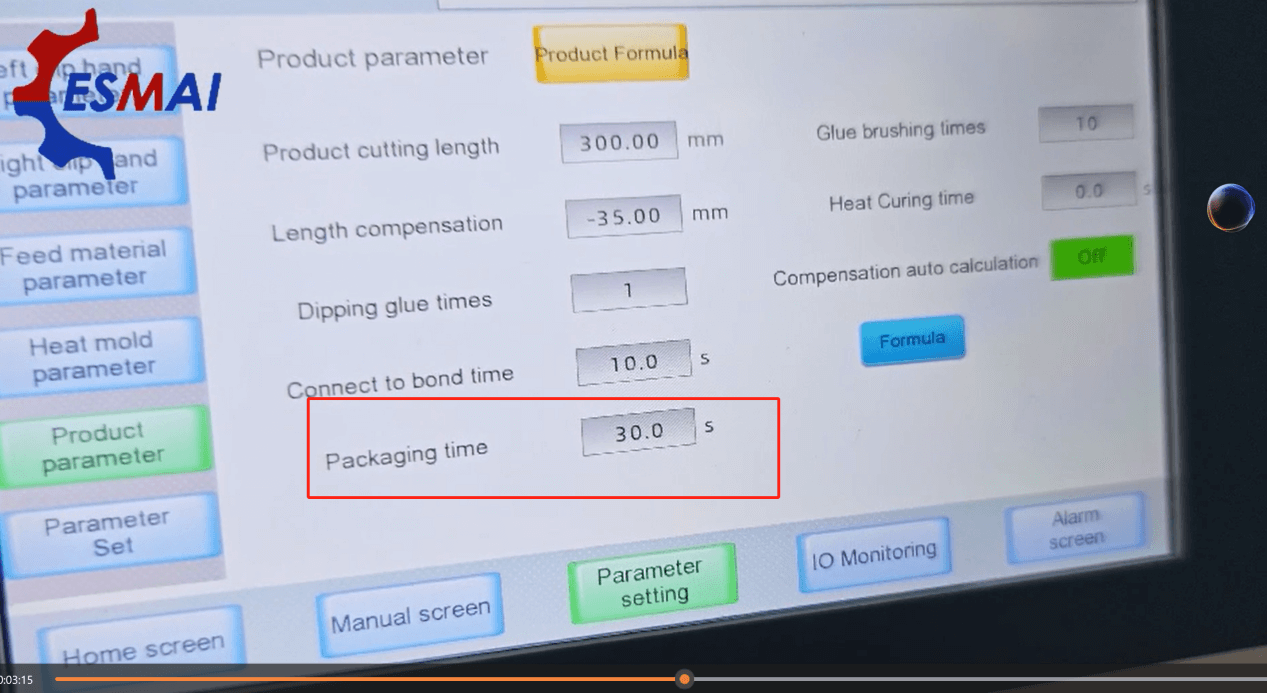

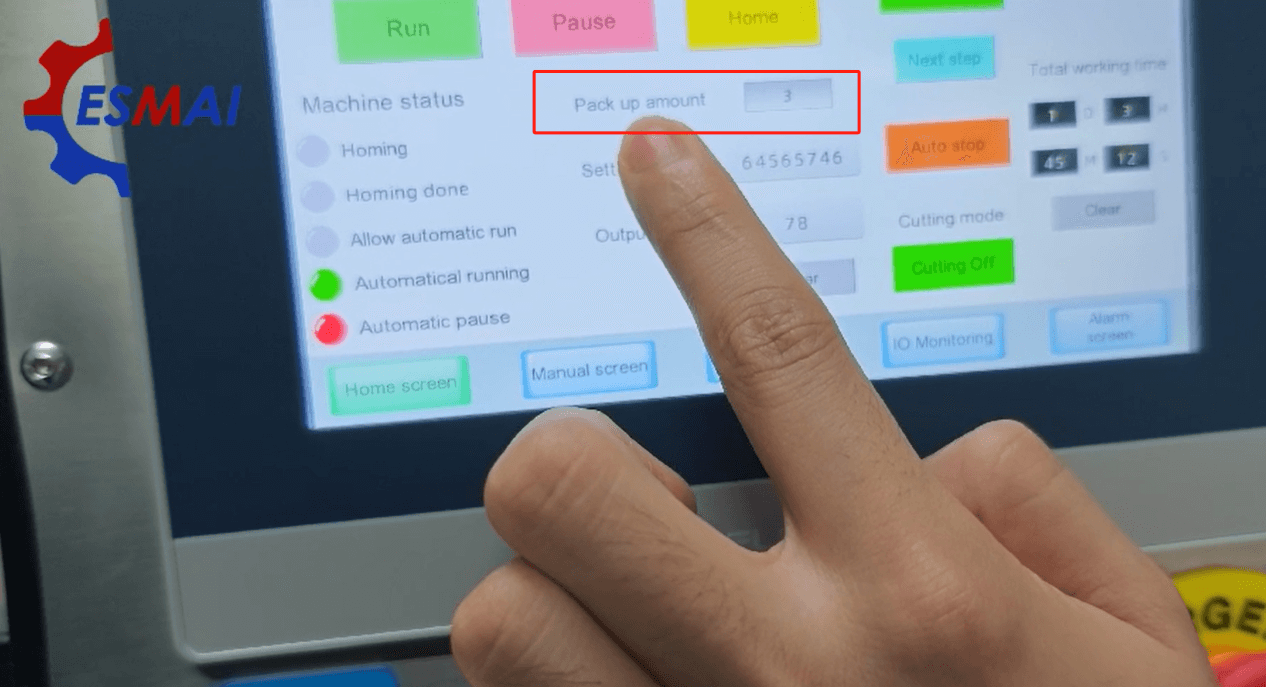

Pack up amount & pack up interval time all can be set on the machine , customer can set certain amount of bonded O Rings for packing up , when the machine reached that batch amount , it will stop for a period of time ,

in this period of time which we call it “packaging time ” can be set on the machine too for how long the machine stops for customers to do pack up .

Upgrading points 7

Auto calculation of cutting length compensation value (when you set certain length, the actual cutting length will be the same)

We can input 20 auto calculation of cutting length compesation value formulas created by ourselves based on the property of the gaskets material and download the formula for use with one key download . with this formula created , the actual cutting length will be same as the as the setting length .

Upgrading points 8

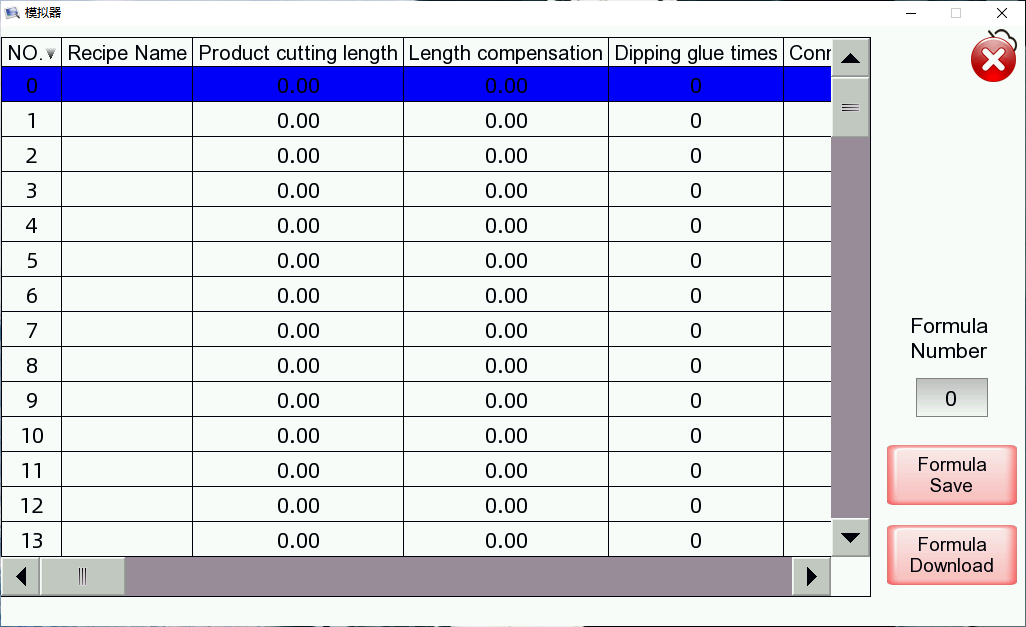

100 Product formulas  (the product formula is packing up all parameters for one certain type silicone rubber gaskets like cutting length ,heat curing times, length compensation ,dipping glue times ,left and right clip hand parmaters etc. with one key retrieval, so customers don’t have to set up all parameters again for going back to do production for previous type silicone gaskets )

Upgrading points 9

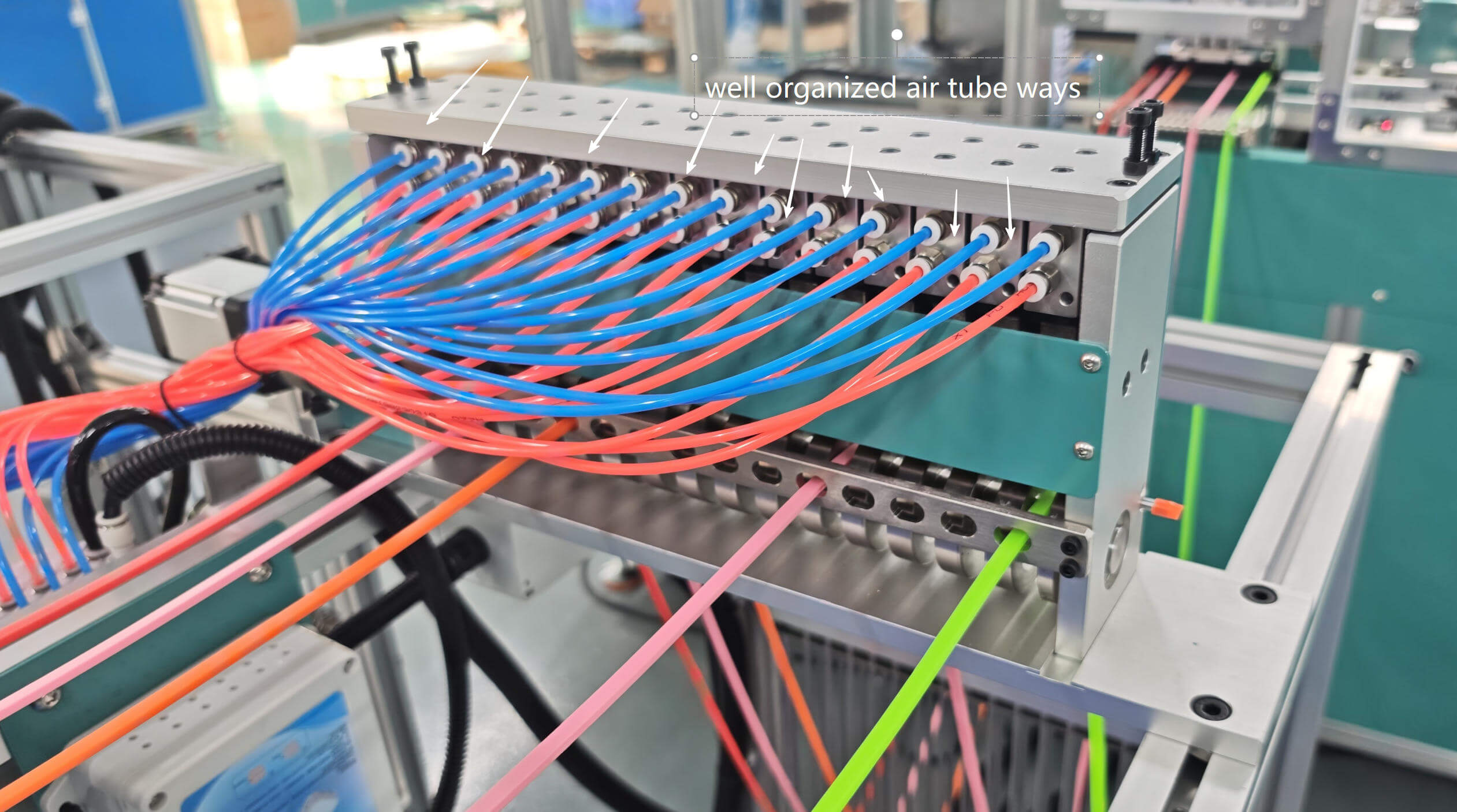

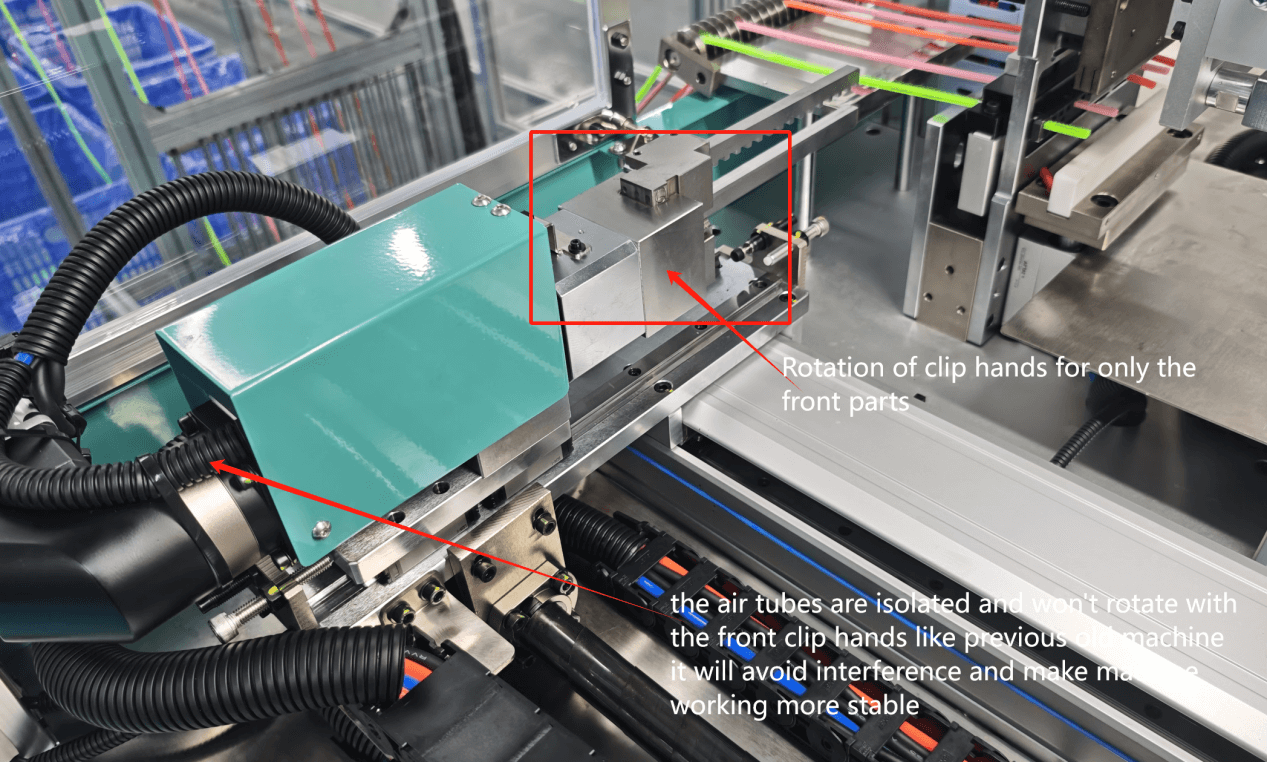

Clip hands rotate only for the front parts ,the air tubes are isolated and won’t rotate with the front clip hands like previous old machine , it will avoid interference and make the machine working more stable.

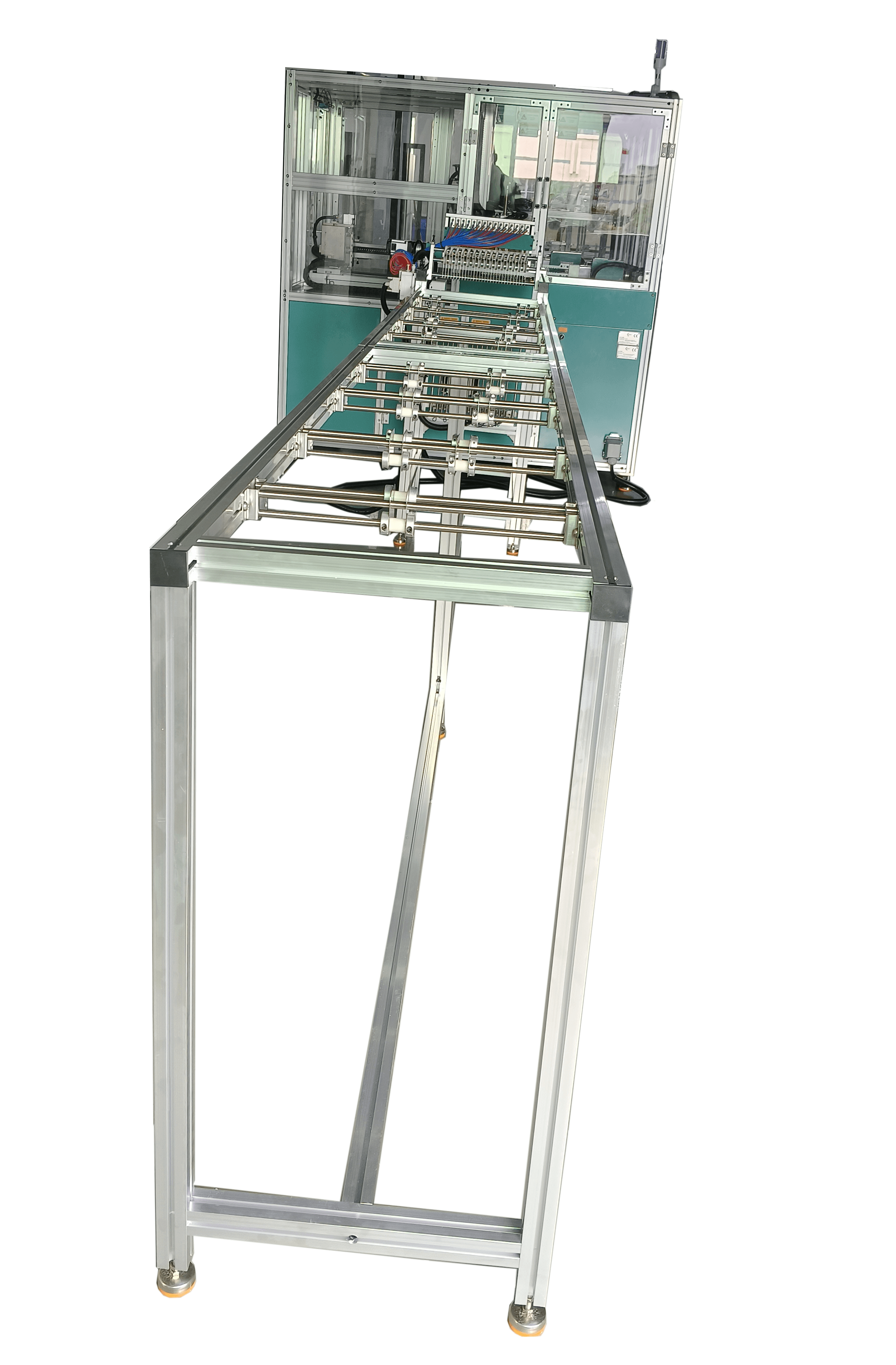

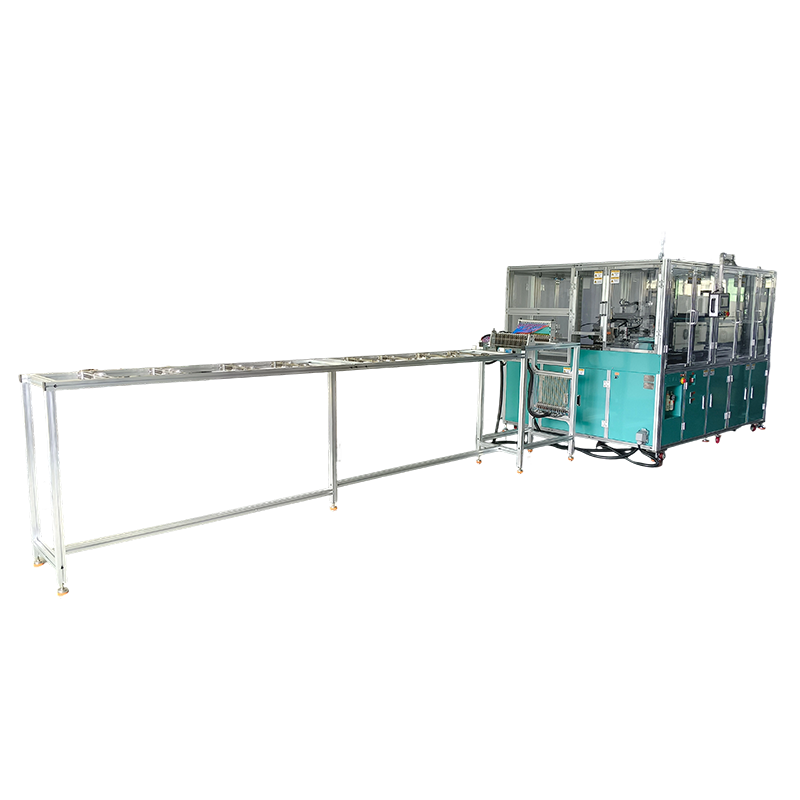

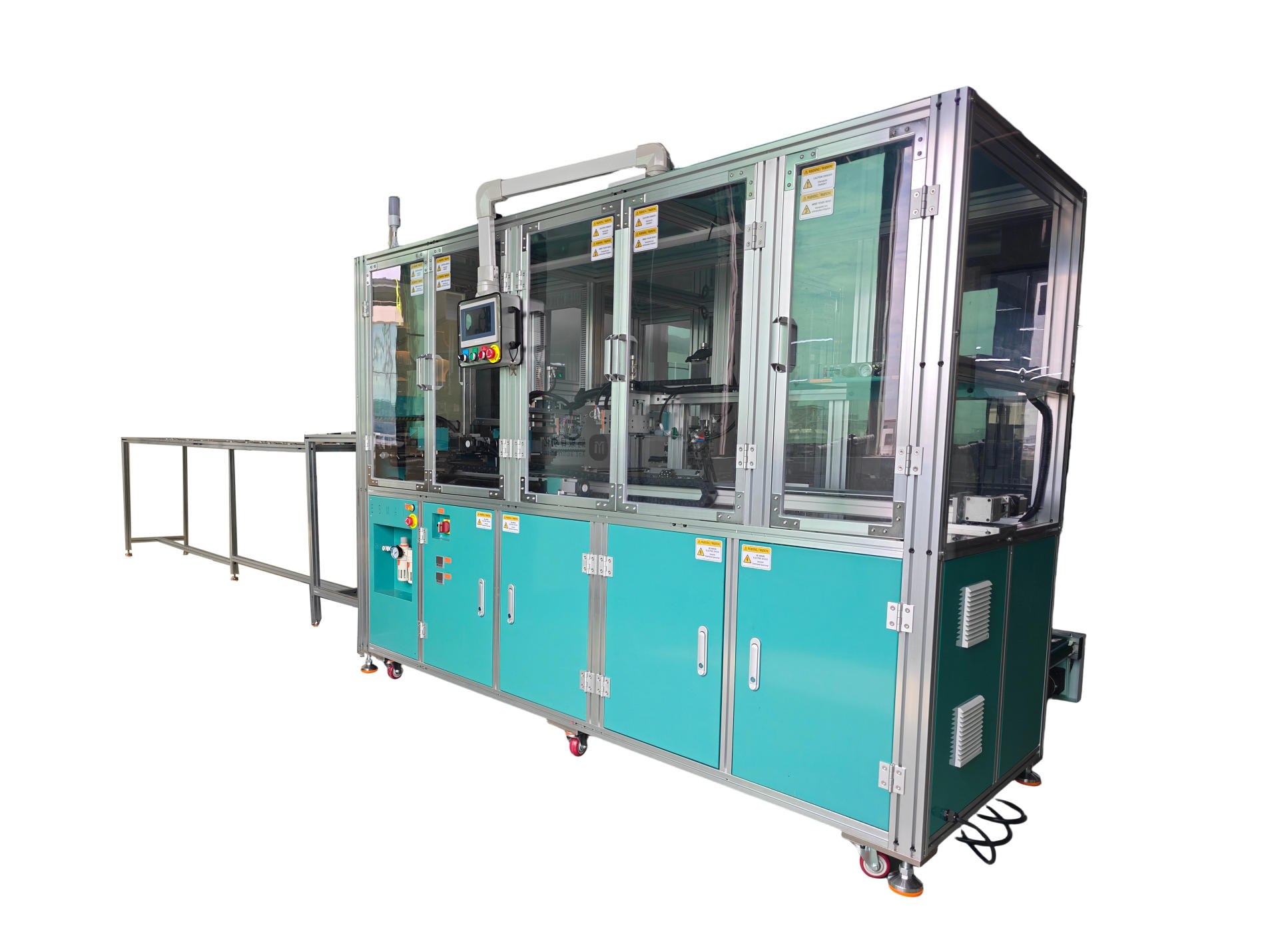

Front view

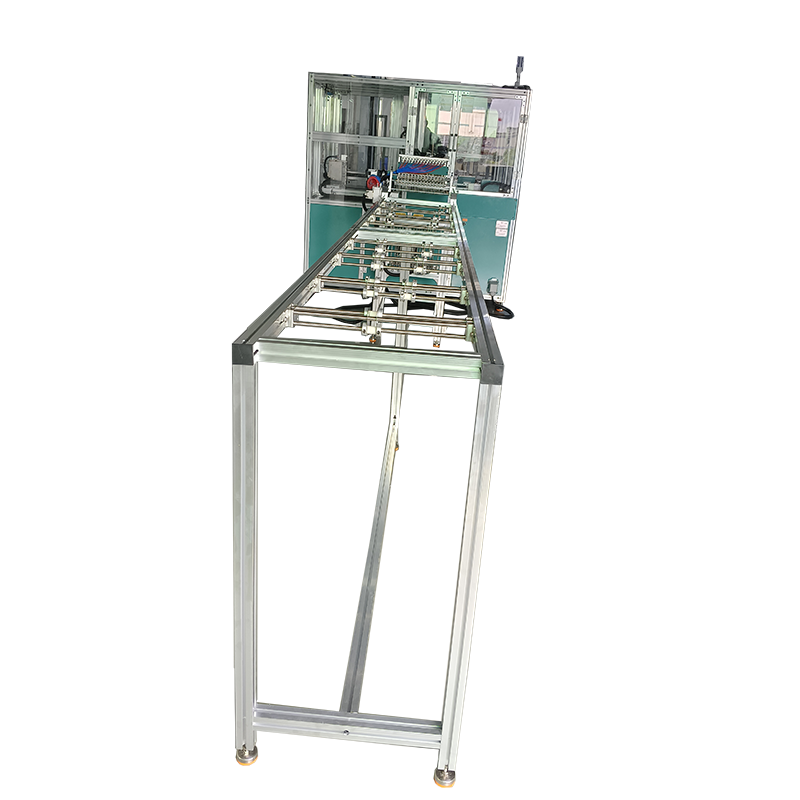

Side view

Side view

【Warranty 】

 As the Automatic Silicone rubber O-ring cutting and splicing machine ES-060 (No.4th upgraded version)  supplier , all the spare parts of the  ES-060 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping ,G.W after packing wooden case is 1T, Wooden case dimension is (L3050+W2150+H2150MM)
