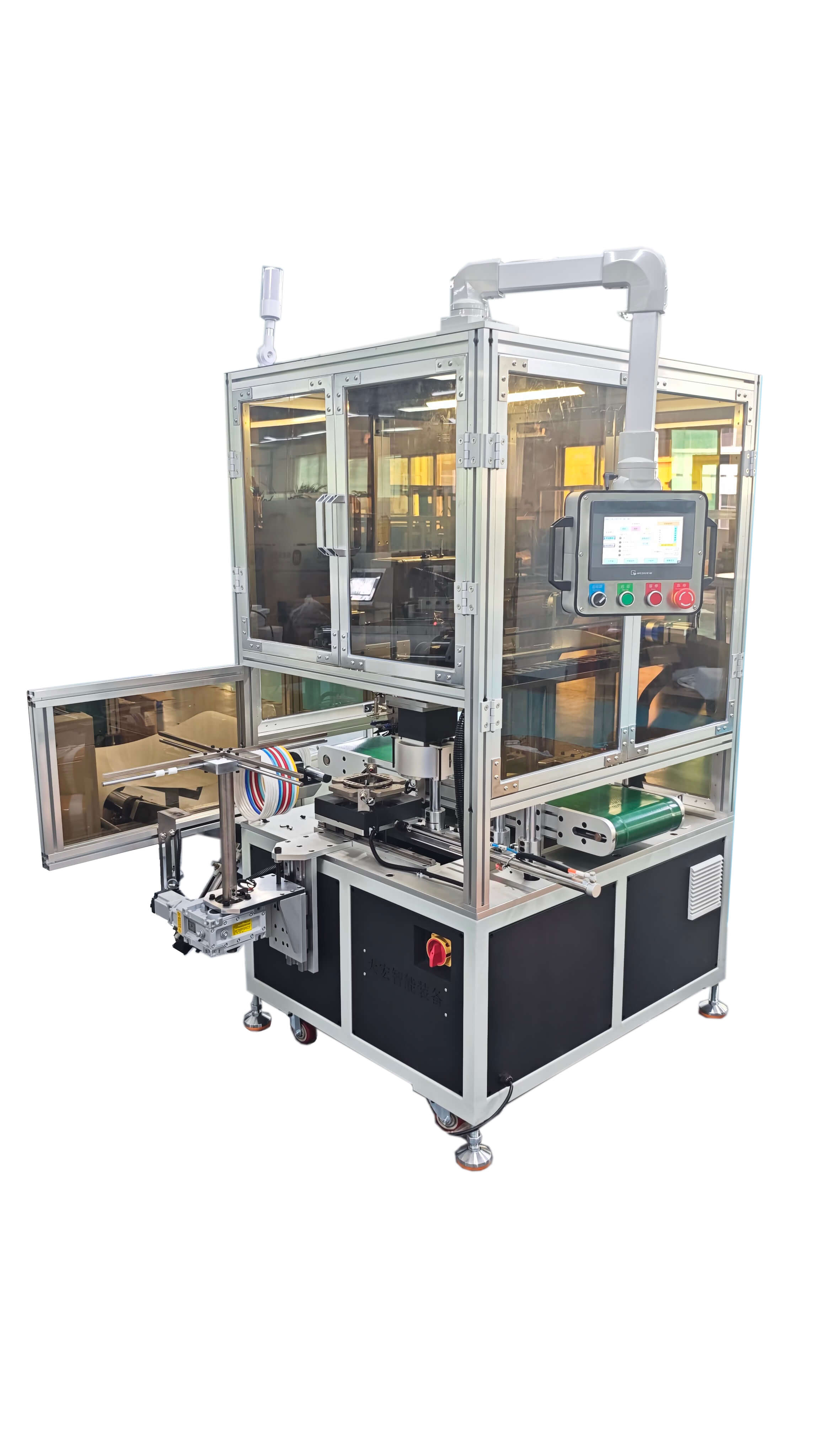

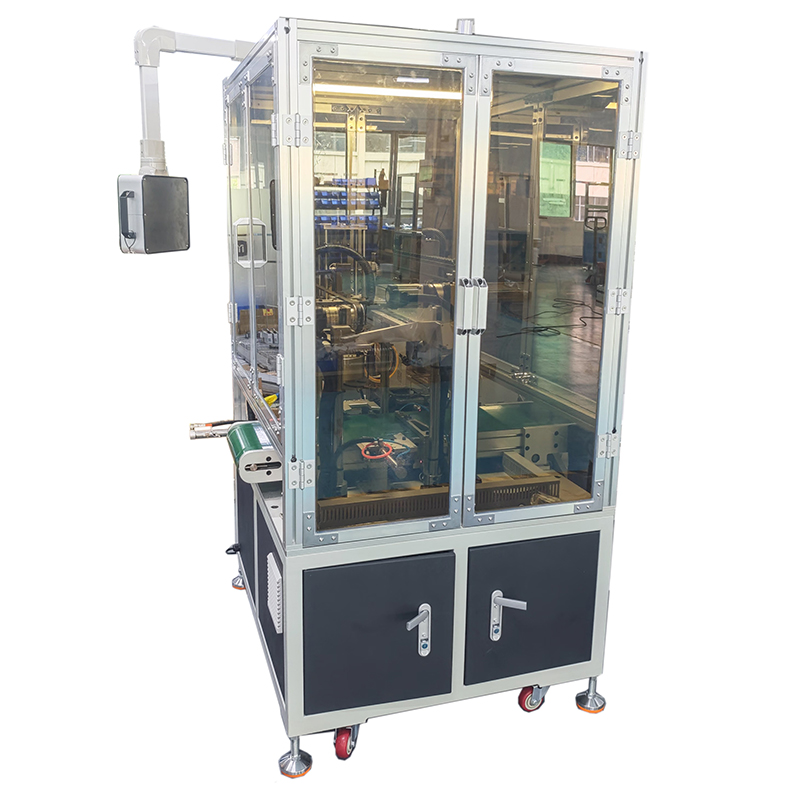

Silicone o ring lunch box lids assembly machine ES-138
The ESMAI ES-138 Silicone O-Ring and Lunch Box Lids Assembly Machine is designed for the efficient and accurate assembly of silicone gaskets with plastic lunch box lids. Equipped with both automatic feeding (directly from the plastic lid injection machine) and manual feeding (material pile mode), the machine offers flexibility to meet different production needs.
The machine can work behind the plastic injection machine or with plastic lids piles in advance and load up to 160 O-rings at a time, this automatic plastic lids silicone oring sealing machine achieves a productivity rate of 782 pieces per hour. It supports gasket perimeters ranging from 250–900mm (customizable), making it suitable for a wide variety of lunch box lid designs, including a standard size of 1000mm perimeter.
The food container oring gaskets assembly machine is built with customized fixtures, ensuring perfect compatibility with different lid sizes and profiles—whether round, square, or other customized silicone profiles. Key components include Xinjie PLC, Hechuan Drive, Fanyi Panel, and Taiwan Airtac air cylinders, ensuring durability and stable performance. Operating on 110V/220V with a power capacity of 4KW, the silicone gaskets plastic cap assembling machine requires an air source of 0.6–0.8MPa. Compact yet robust, it measures 1600×1000×2000mm and weighs 400kg.
Youtube video
The Silicone O ring Lunch box Lids assembly Machine offers clear advantages that make it an ideal solution for automated production. It delivers high efficiency, assembling each lunch box lid with a silicone O-ring in just 4.6 seconds, greatly enhancing productivity. The machine also ensures precision assembly, with gaskets fitting seamlessly into the lids without any dislocation, guaranteeing consistent and reliable quality. In addition, the system is equipped with customizable fixtures, which are specially designed based on customer-provided lid sizes or actual samples, ensuring perfect compatibility with a wide range of lunch box designs.
【Technical Data】
Product name : Silicone oring and lunch box lids assembly machine
Brand : ESMAI
Model No.: ES-138
Feature : Assemble silicone o ring gaskets with lunch box lids with automation
Feeding system : auto feeding(feeding from plastic lids injection machine )
&manual feeding (material ready pile mode )
Working efficiency : Process 10-15 pieces of gaskets at the same time(based gasket size)
Load o ring gaskets mechanism : 160pcs o rings to be loaded at the same time on average
Productivity: 782 PCS/Hour
Processing gaskets o ring perimeter : 250-900mm (can be customised )
Lunch box lids size : 1000mm perimeter
Fixture : customised fixture based on plastic box lids sizes
Suitable type gaskets profile : Round ,square and other shape silicone profiles by making customised molds
Key spare parts : PLC: Xinjie , Drive: Hechuan , Panel: Fanyi ,Air cylinder : Taiwan Airtac
Voltage: 110V/220V
Power: 4KW
Air source : 0.6-0.8MP
Control system : Touchwin PLC touch screen
Cuttting length range : 230mm-2000mm
Net Weight: 400kg
Dimension L*W*H:1600X1000X2000mm
【Product Advantage】
1, Fast assembly of silicone o ring gaskets with lunch box lids , the silcione o ring luch box lids assemble machine works fast to enable 4.6 S for assembling one pc luch box lids with silicone oring gaskets inside
2, Good assembled product without dislocation , The sillicone o ring plastic lids fitting machine enable the silicone o ring gaskets fits correctly into the lunch box lids without dislocation and ensures stable performance .
3, Customised fixture for assembling different sizes lunch box lids , when customer send their size of lunch box or actual sample ,we will make customised fixture which fits the lunch box lids sizes accordingly
【Product Details】

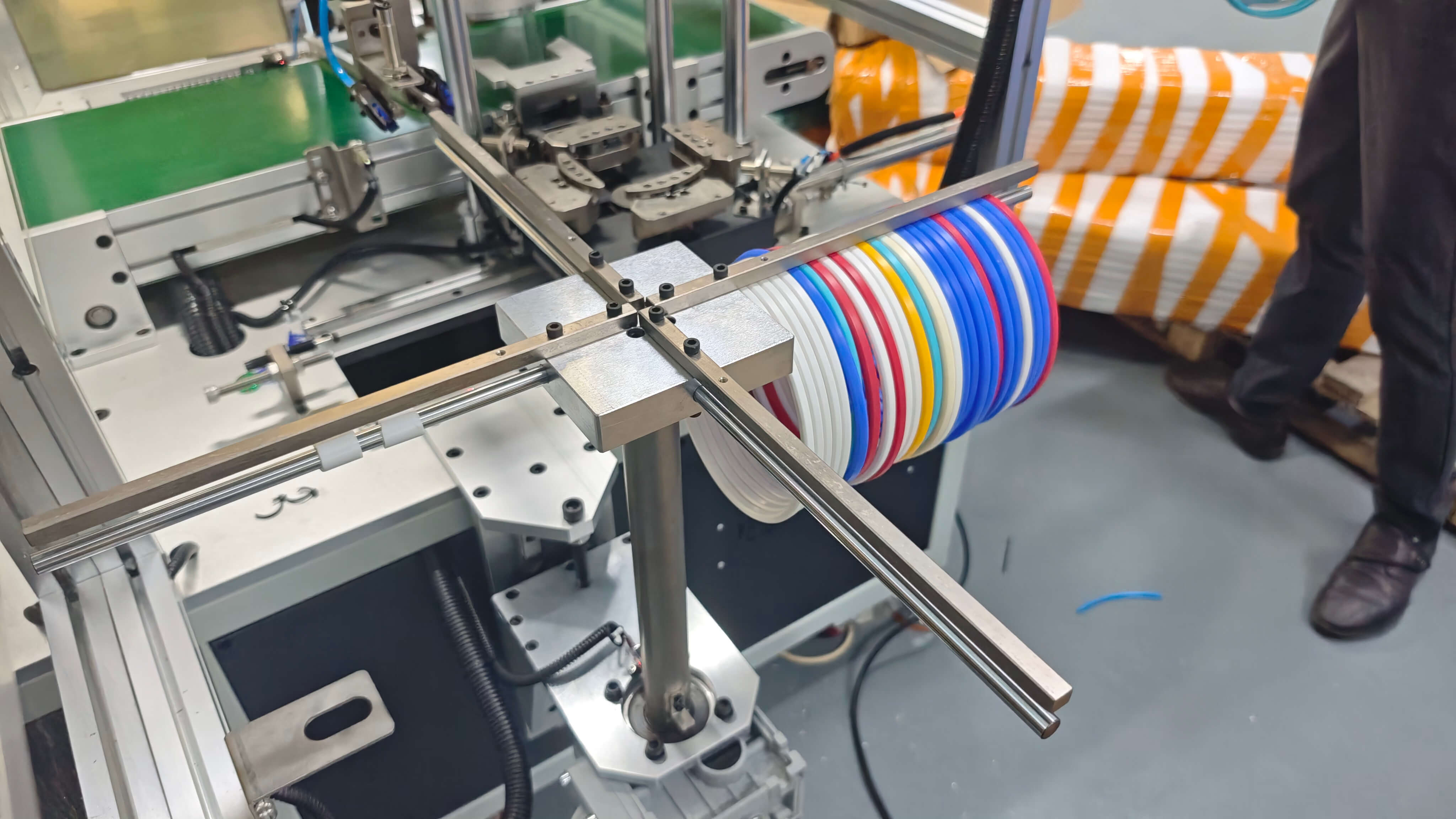

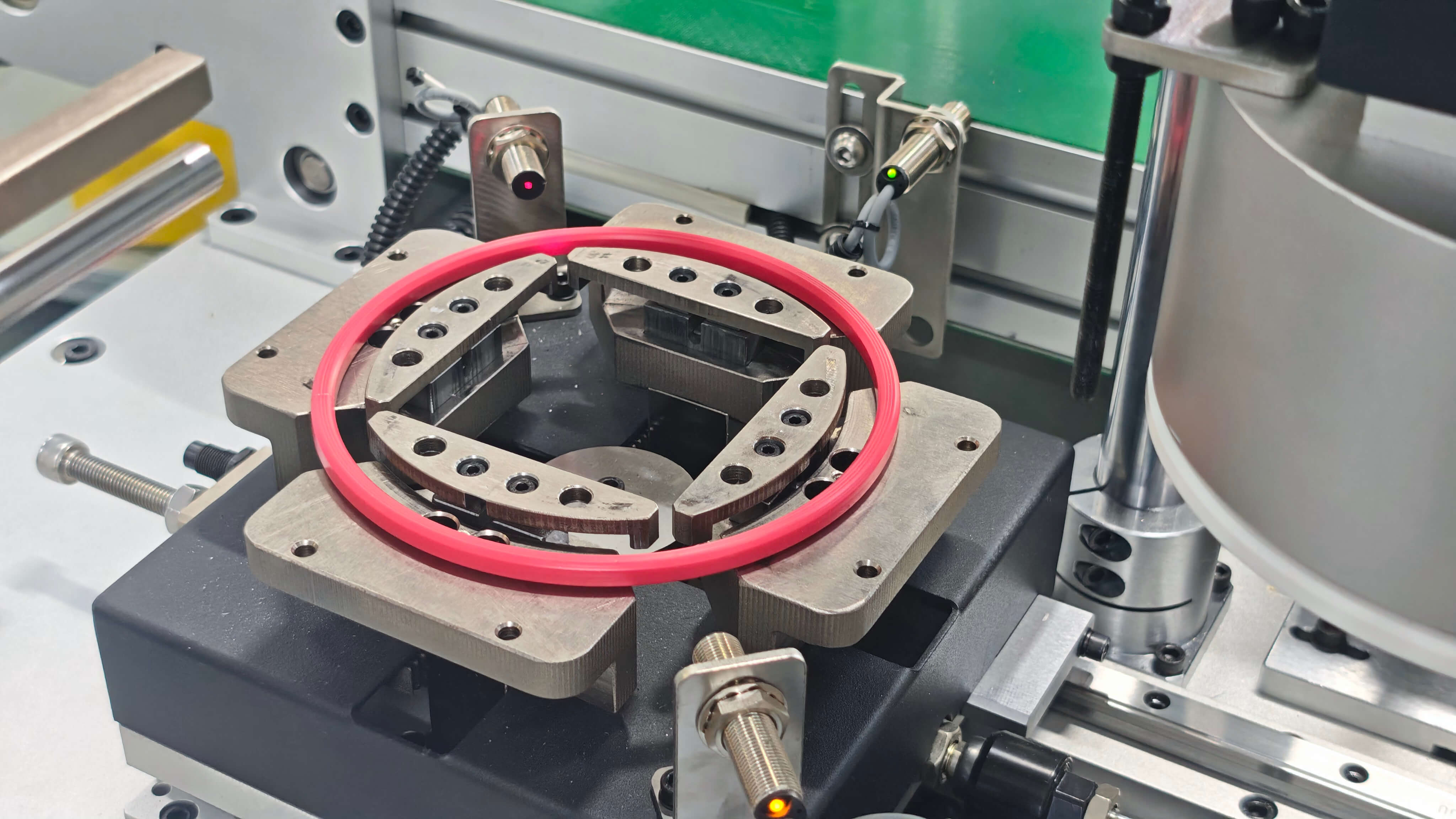

1,Siicone o ring gaskets loading fixture
the silicone o ring gaskets are loaded manually onto the four loading fixtures, each loading fixture can hold rough 40 pcs of silicone o ring gaskets , the loading fixtures can also be customised if needed .

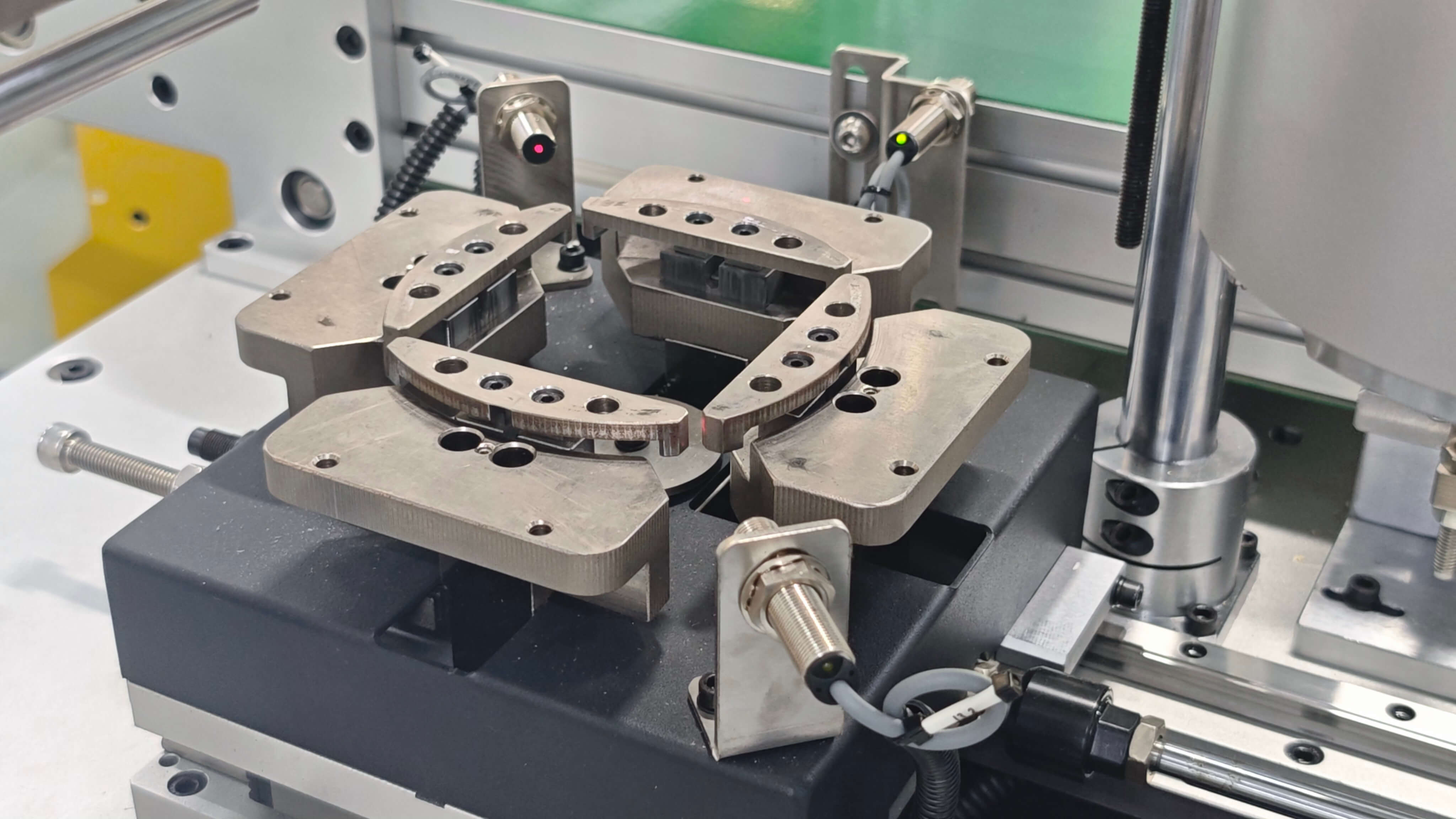

The clip hand will take the silicone o ring gaskets from the loading fixtures and drop it onto the silicone o ring extension fixture which it will extend to
full size of silicone o ring inside perimeter and get silicone o ring tightly for assembly purpose.
There are also sensors which can detect silicone o ring which dropped onto the silcone extension fixture and signal the silicone extension fixture to extend to full size which fits silicone o ring tightly

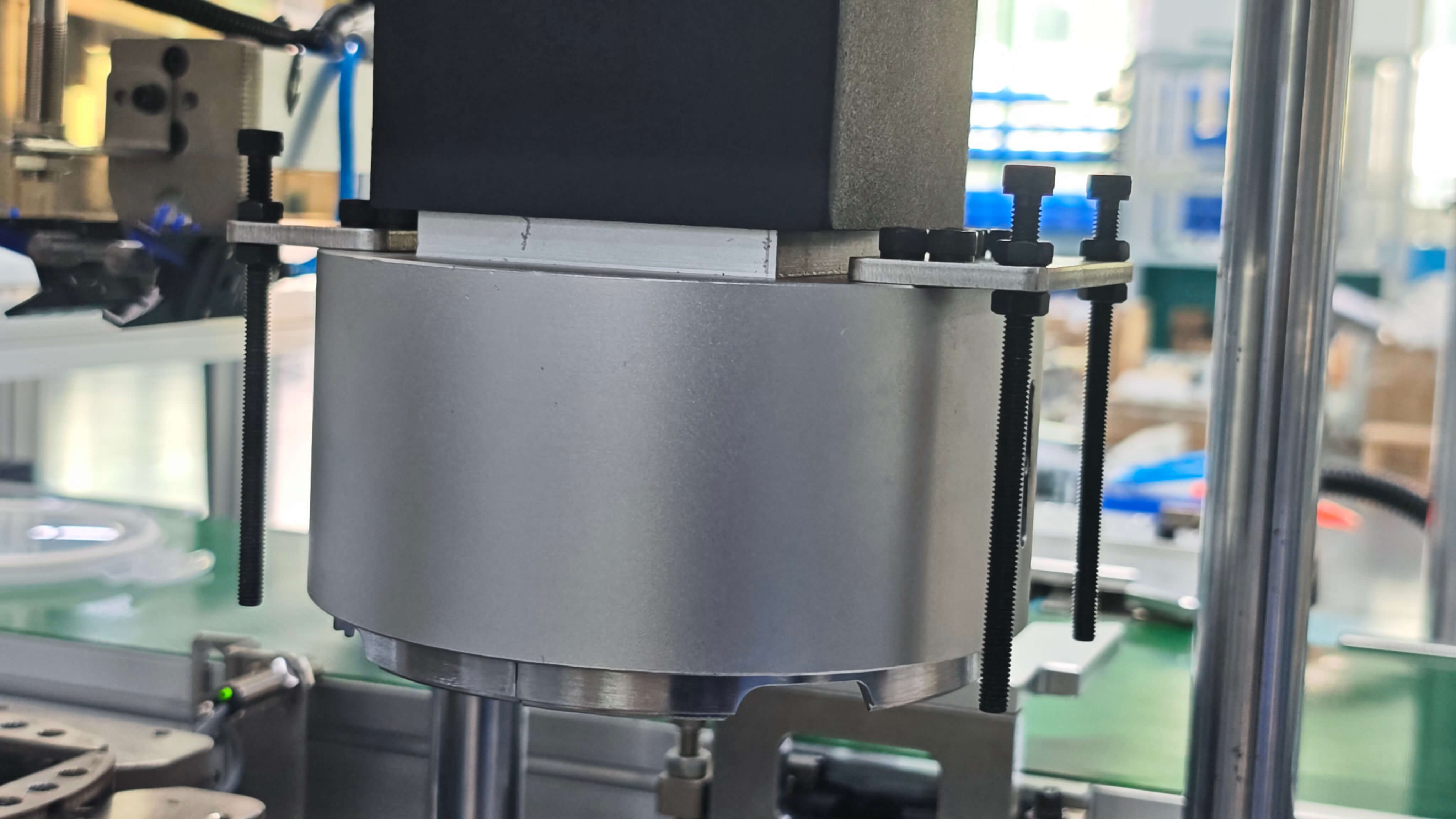

2, Assembly punching head
This silicone gaskets plastic cap assembling machine applies with big assembly punching head which it will take the silicone o ring gaskets from the silicone extension fixture first and then punch it into the plastic or lunch box lids.

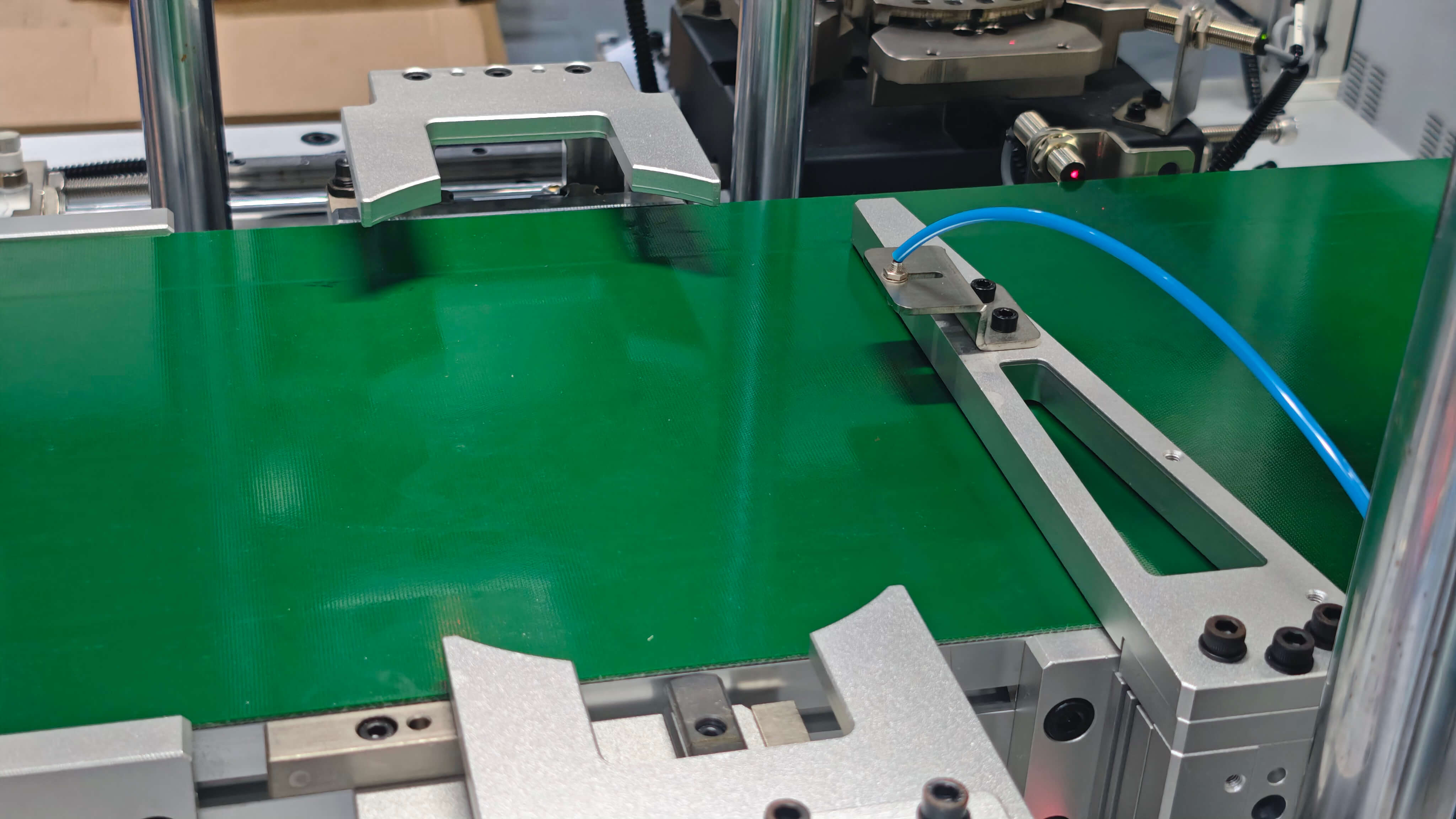

3,Holding fixtures
Here are two position holding fixture from both side of the convey belt bands which will come close each and hold the plastic lunch box lids when the luch box lids are conveyed to its location and hold position of luch box lids for punching assembly silicone o ring gaskes into lunch box lids .

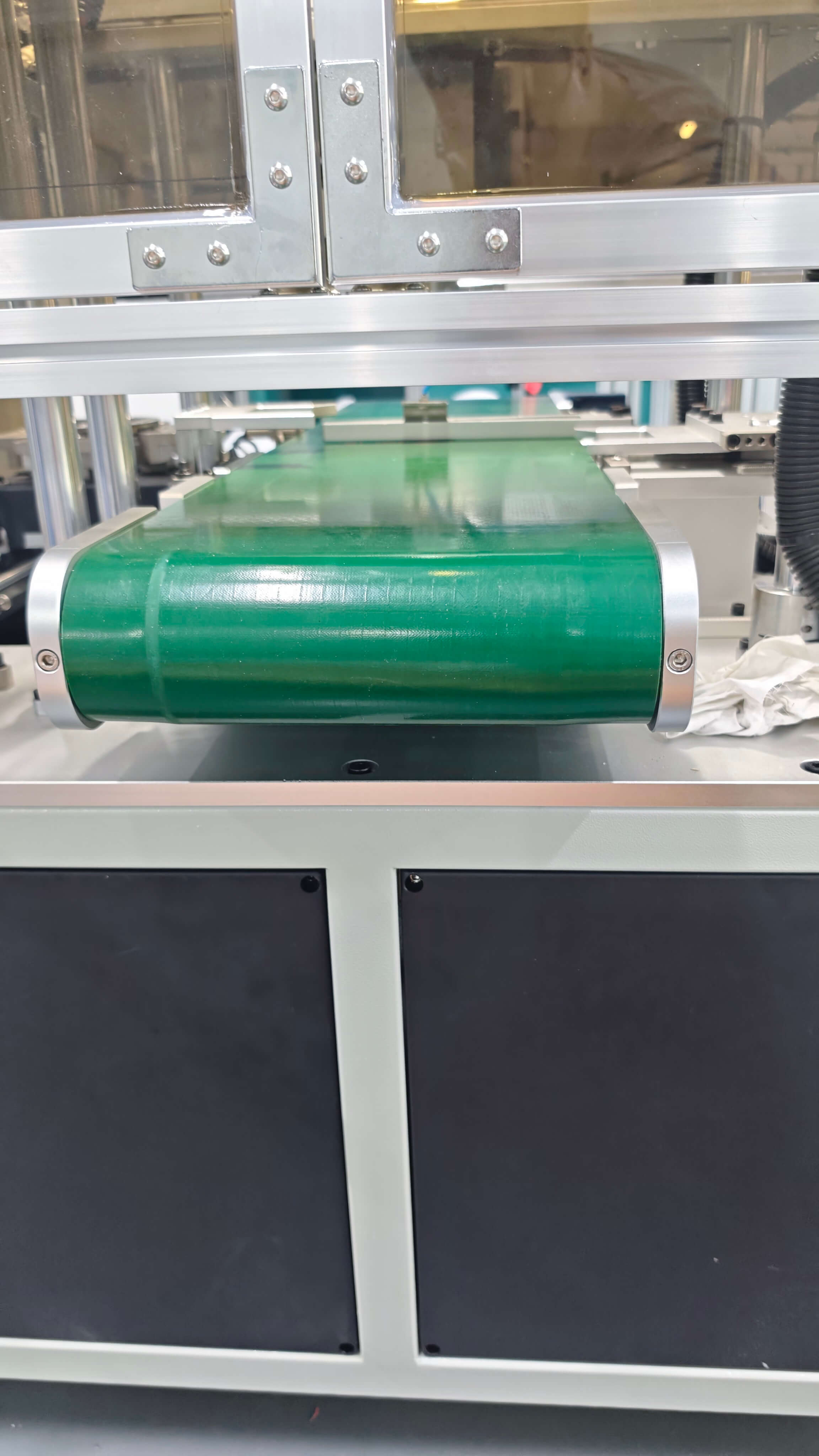

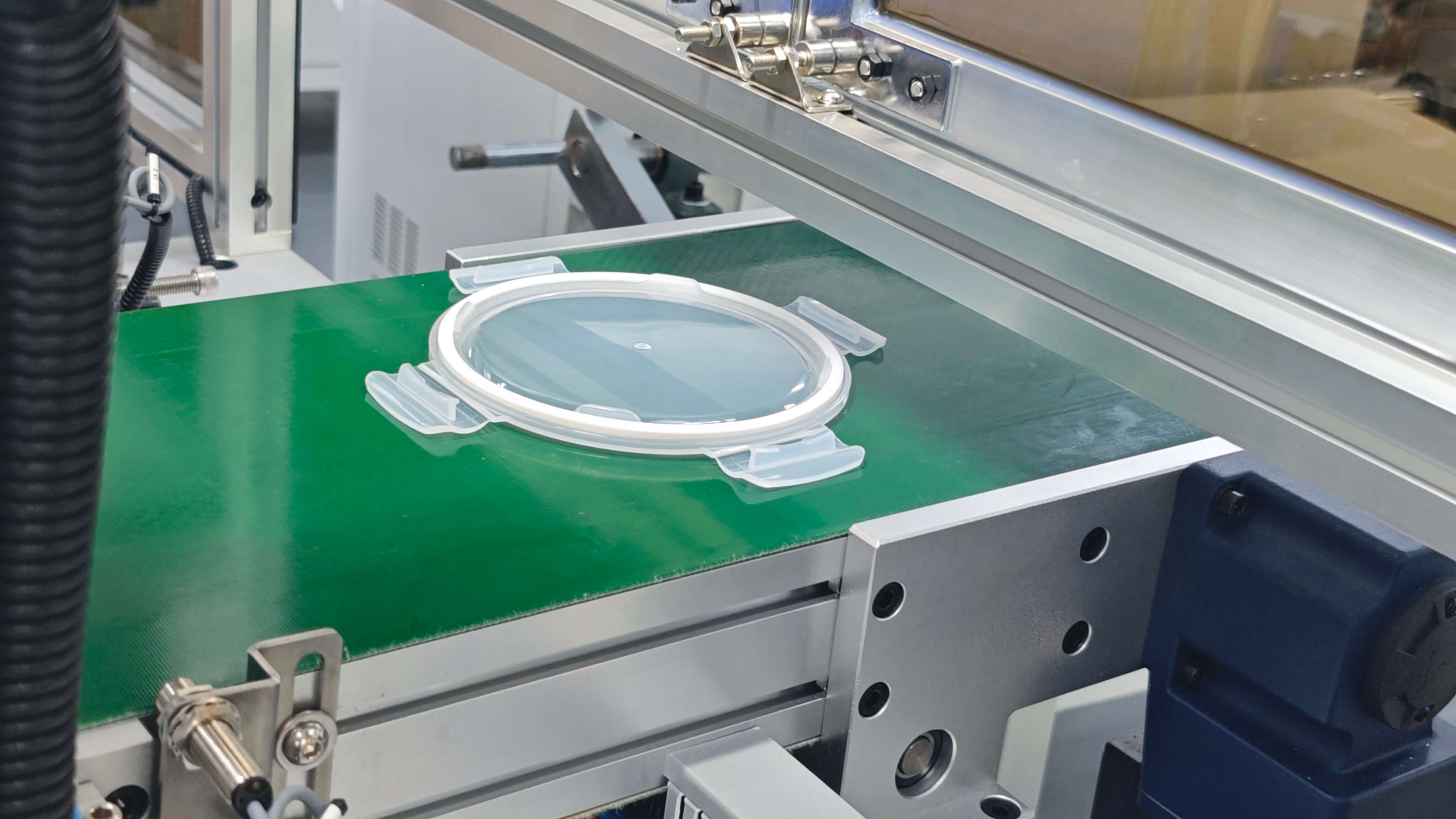

4,Convey belt for release finished product
The assembled lunch box lids with silicone o ring gaskets will be fowarded into collection baskets.

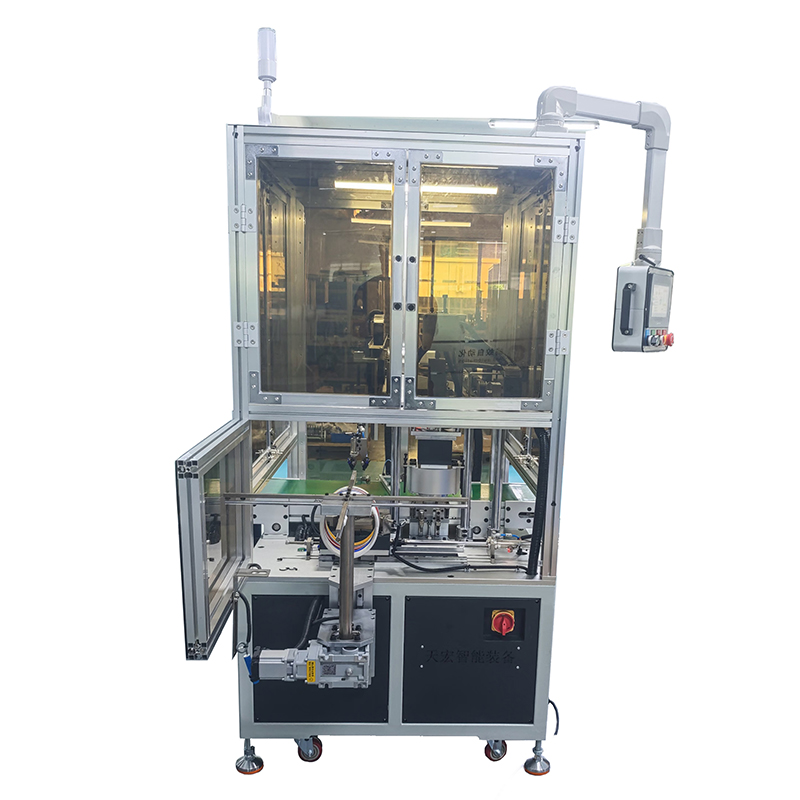

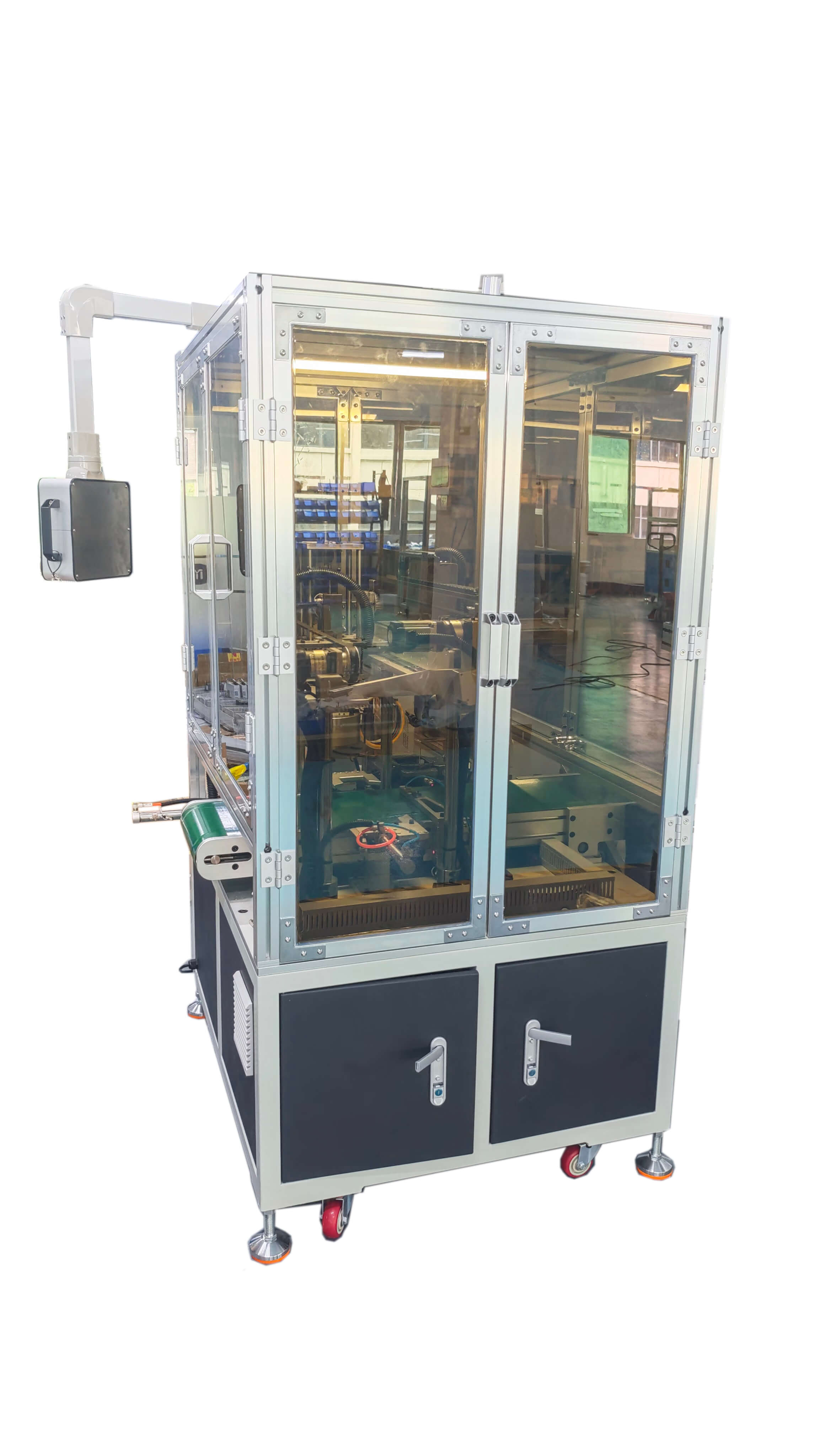

Front View

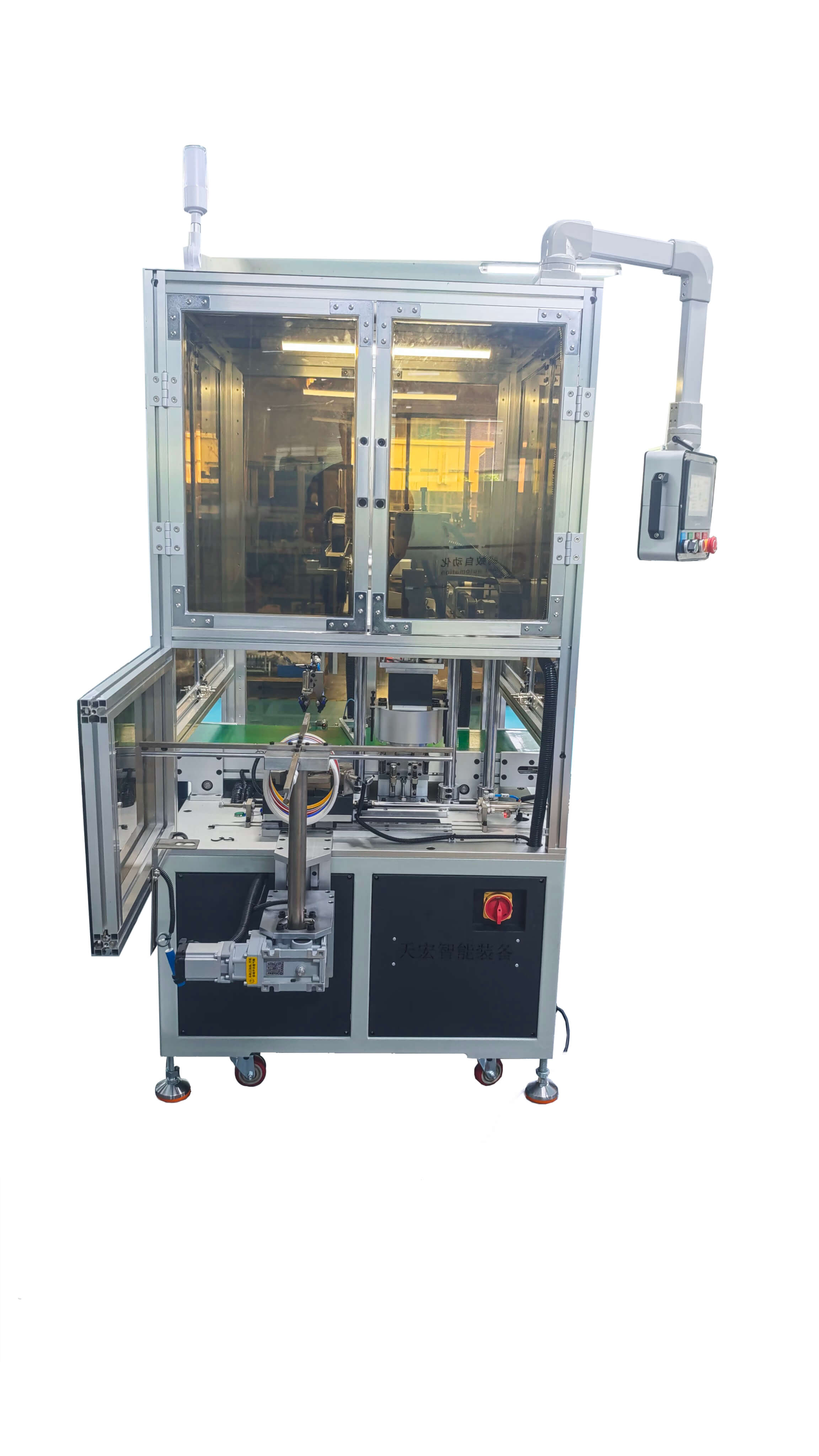

Side View
Side view
【Warranty 】
As a Silicone o ring lunch box lids assembly machine supplier , all the spare parts of the ES-138 machine will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice after on line diagnosis .
【Packing】
1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping ,G.W after packing wooden case is 1T, Wooden case dimension is (L2850+W2150+H2150MM)
