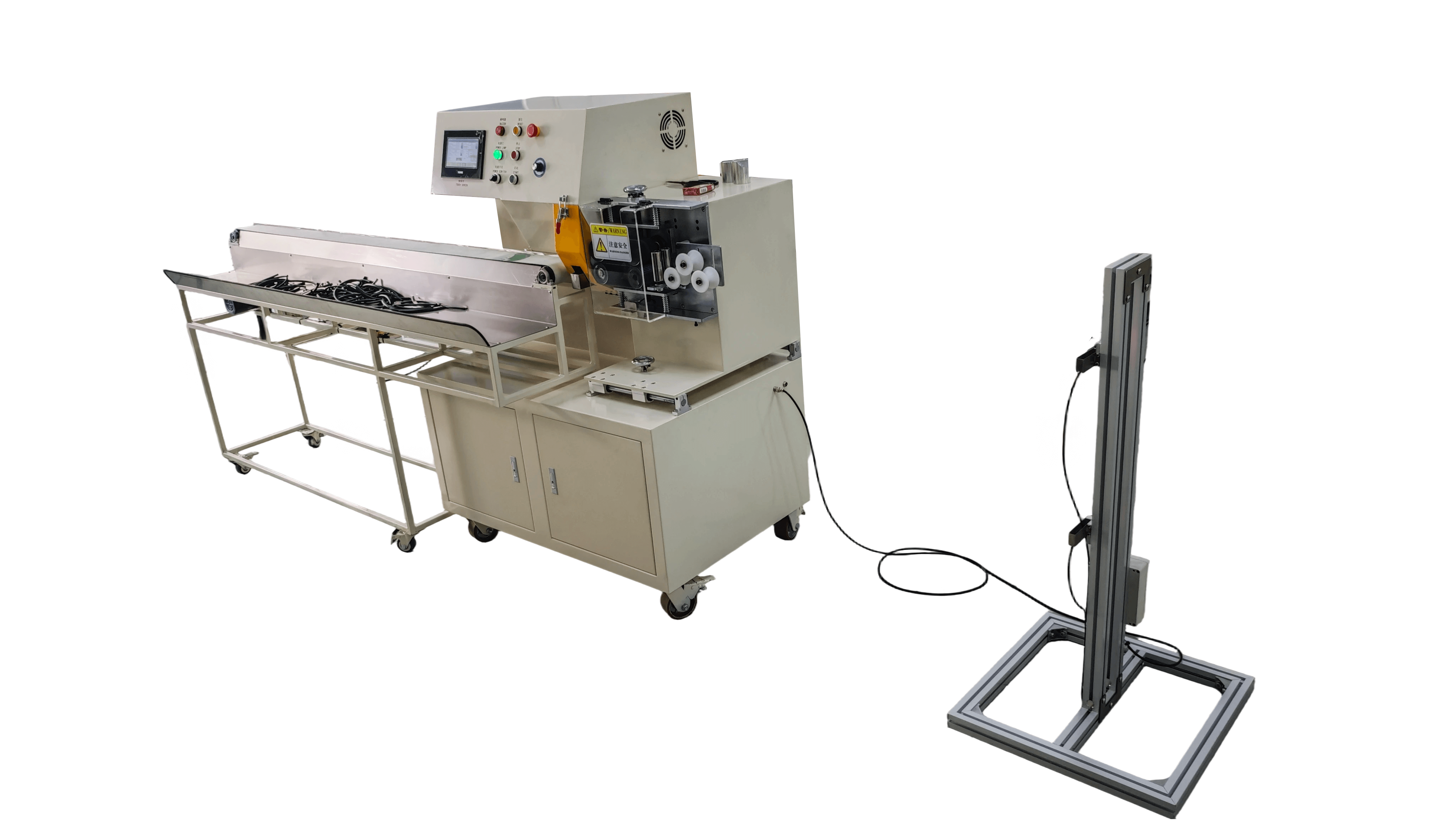

The fast silicone rubber tube profile precision cutting machine ​ ES-085-1  is designed for high-speed, high-accuracy cutting of silicone and rubber tubes, cords, and profiles directly behind an extruder. Equipped with a PLC touch-screen control system, a high-speed servo cutting motor, and a variable-frequency feeding motor, it delivers precise and consistent cutting performance across a wide range of materials, including silicone tubes, rubber tubes, foam strips, shaped profiles, and PVC pipes.

This high-precision tubing cutter machine automatically synchronizes its cutting speed with the extruder using a ground-sensor system, ensuring stable operation and smooth production flow. It offers a cutting range of 2–99999.9 mm, with ±1 mm length accuracy (based on a 1-meter tube) and can achieve outputs of up to 1000 pieces per minute for short-length products.

Youtube video  (also include safety feature for workers )

Engineered with a high safety standard, the ES-085-1fast silicone rubber tube profile precision cutting machine features multiple protection mechanisms that trigger alarms and automatic shutdown if any safety cover or access door is opened during operation. Its advanced cutting system ensures clean, straight, and burr-free cross-sections, giving manufacturers a reliable solution for diverse extrusion cutting needs.

The cut to length gaskets will be conveyed out by conveyor belt bands and be blown off to collection shelf for good collection.

With wide application capability and high speed precision  performance,, this fast silicone rubber tube profile precision cutting machine is ideal for efficiently processing silicone and rubber extrusion products of φ3–40 mm outer diameter and wall thickness above 1 mm ,the cutting length ranges  2-99999.9mm.

This fast Rubber profile cutting machine ensures productivity ,safety of workers and high quality product requirement with precise cutting length with minimum cutting length tolerance and straight cutting cross section which is ideal for large silicone extruded products manufacturers  of high production volumme and high quality requirement.

【Technical Data】

Product Name: Fast silicone rubber tube profile precision cutting machine

Model: ES-085-1

Function: High-speed, high-precision cutting of silicone/rubber tubes profiles; working behind the extruder machine to cut extruded silicone and rubber strips directly.

Features: Speed matched to the extruder; precisely cuts extruded silicone rubber tubes cords and profiles .

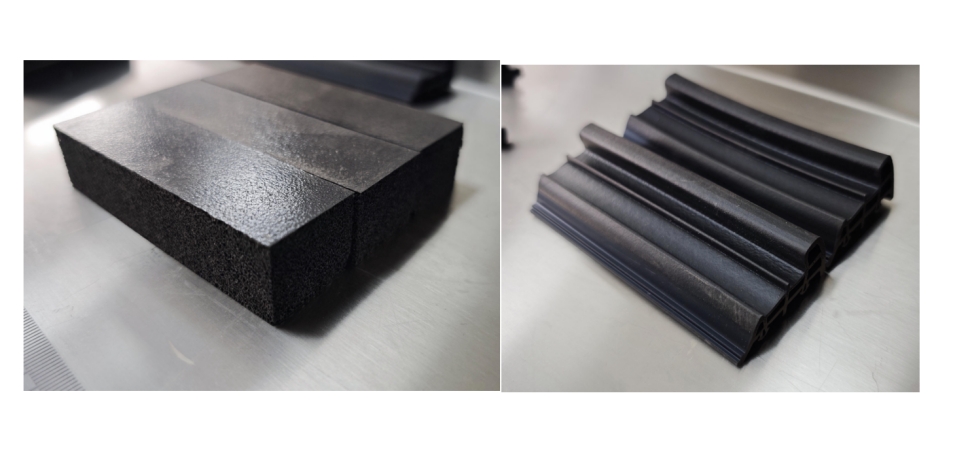

Applications: Suitable for various extruded strips such as silicone tubes, rubber tubes, solid tubes, silicone rubber shaped strips, silicone rubber foam strips, and PVC pipes, wide application .

Operating System: PLC touch screen and button control

Voltage: 220V ,50/60HZ

Machine Power: 3.6KW

Motor Type: High-speed servo motor for the cutting unit , variable frequency speed control motor for feeding.

Cut Material Outer Diametert: φ3~φ40mm

Tube Wall Thickness: Above 1mm

Cut Length range: 2-99999.9mm

Cut Length Accuracy: ±1mm (based on 1meter silicone tube)

Speed/Output: 1000 pieces/minute (based on 30mm unit length)

Machine Net Weight: 280kg

Machine Dimensions: Length*Width*Height 3500*700*1500 (mm) (all parts unfolded)

【Product Advantage】

1, High safety standard  with safety alarm and macine stops working when workers accidently opens safety cover for cutting knife and double transport belt bands and move away the feeding unit and open back door of machine box during machine operation etc.

2 ,Working directly behind extruder machine to cut off extruded gaskets tubes directly after extrusion  with ground  sensor device to match cutting machine speed with extruder machine speed

3, Precision cutting length of  cutting tolerance 1000mm+-1mm  and smooth and straight cutting cross section .

4,Wide application to all kinds and all sizes silicone and rubber  tubes profiles cords gaskets ,silicone and rubber sponge cords profiles ,platics tubes ,pvc tubes etc

【Product Details】

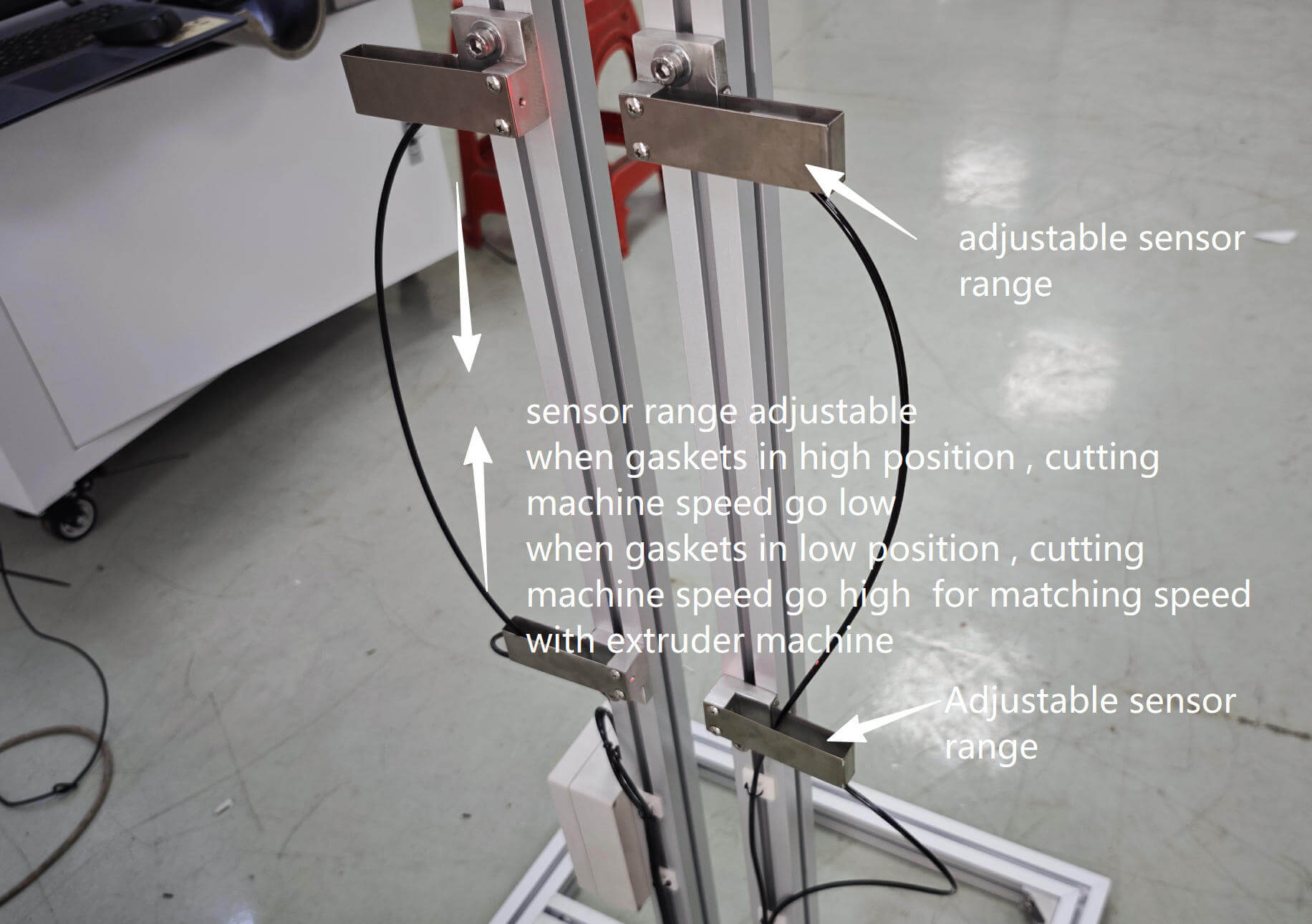

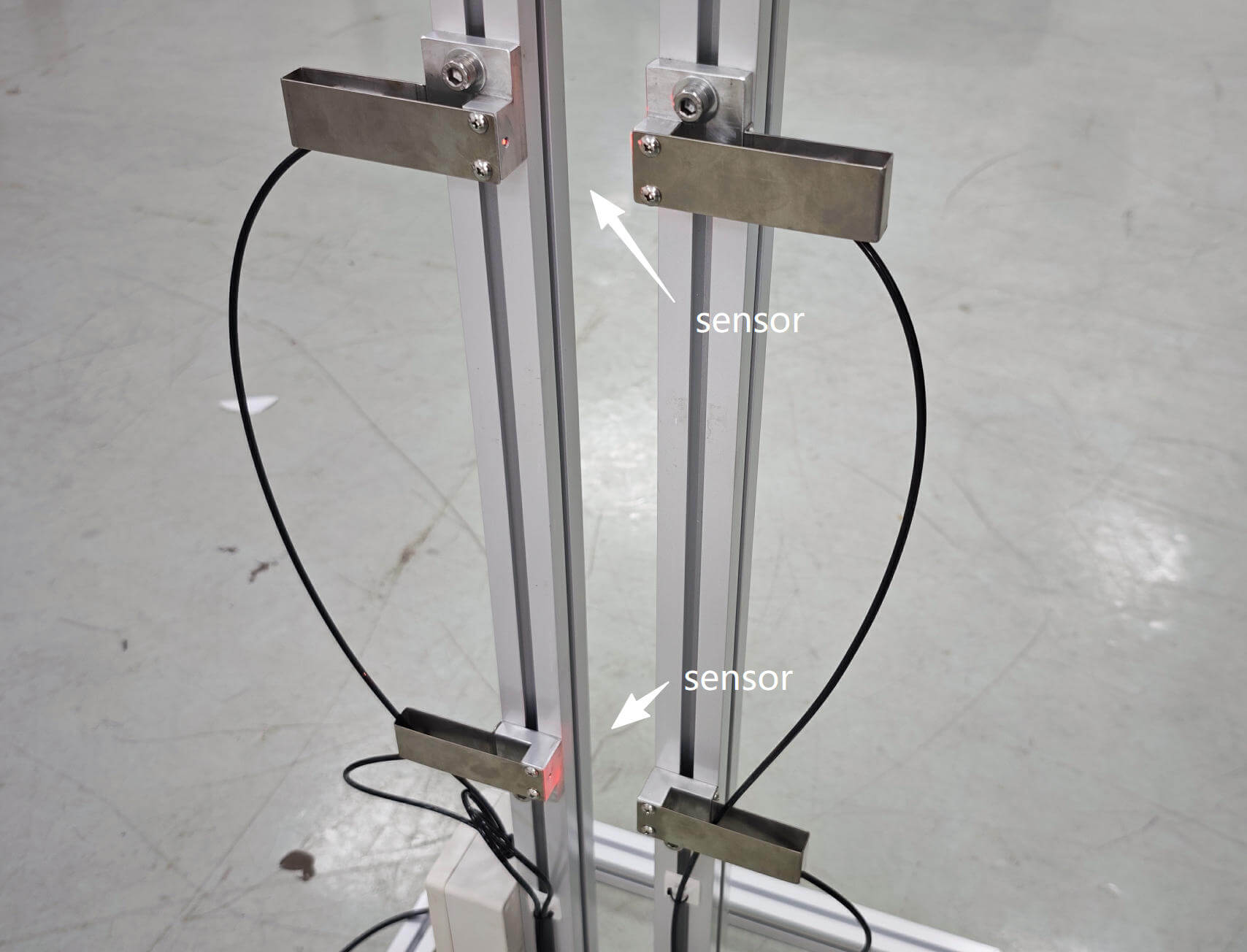

1, Ground sensor device ,  the ground sensor device of this Fast Rubber profile cutting machine enables the cutting machine speed matching  with extruder machine speed .   the sensor range is adjustable by changing upper and down sensor position , when the cutting material is high position of sensor , the cutting machine feeding speed will be lowered  when cutting material is low position of sensor range , the cutting machine speed will go higher to ensure smooth feeding process all the time and work in harmony with extruder machine .

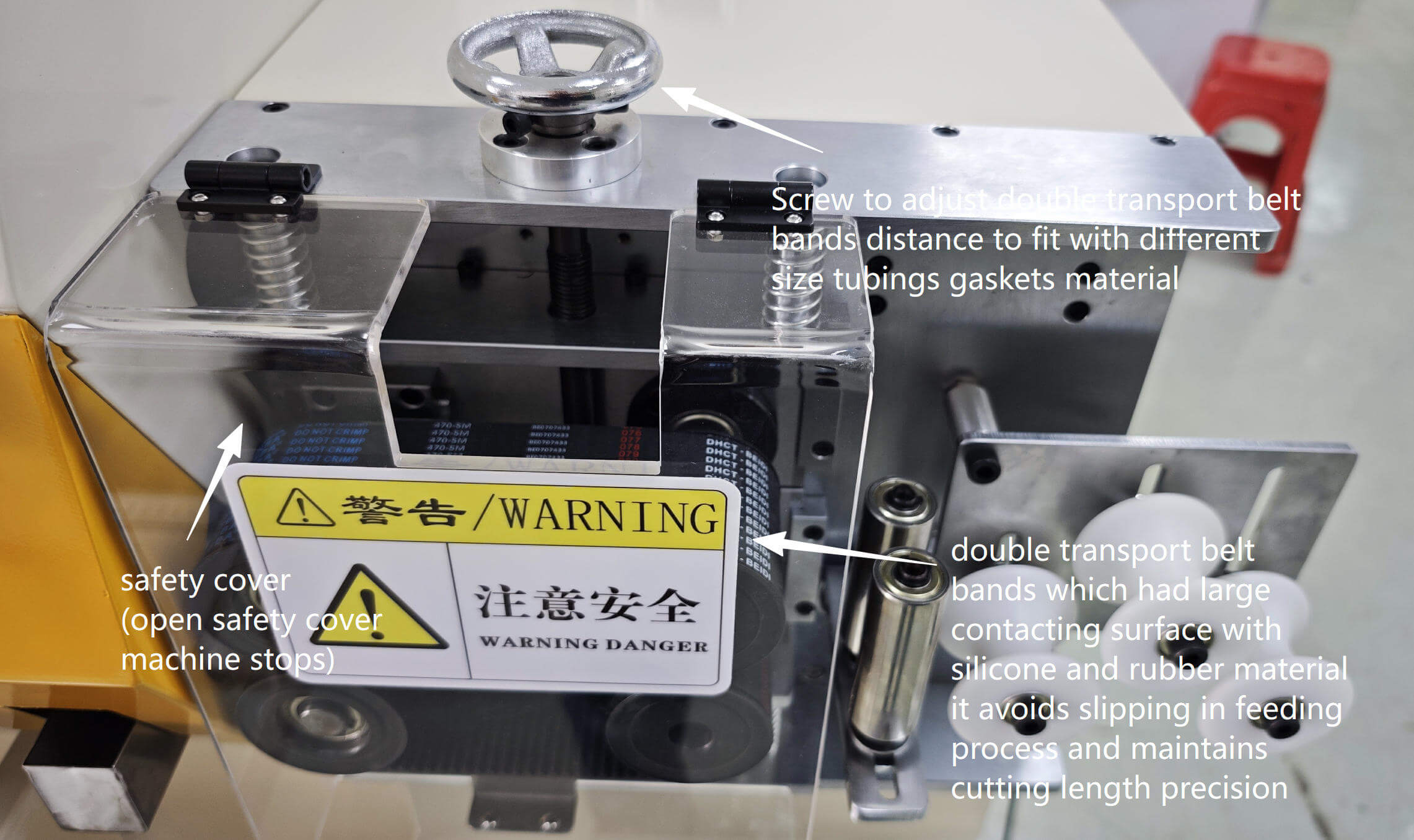

2,Feeding unit  , the feeding unit is made up double transport belt bands and driven by servo motor control , the double transport belt bands with large contacting surface with silicone or rubber tube profile material which avoids slipping and ensures cutting length precision and the double transport belt bands distance can be adjusted to hold tightly different size tubings ranges 3-40mm which is wide application to all sizes and all shapes of silicone and rubber ,foam rubber profiles  etc . and when the safety cover  opens accidently by workers , the machine would stop immediately for protection of workers  (Safety gurantee ).

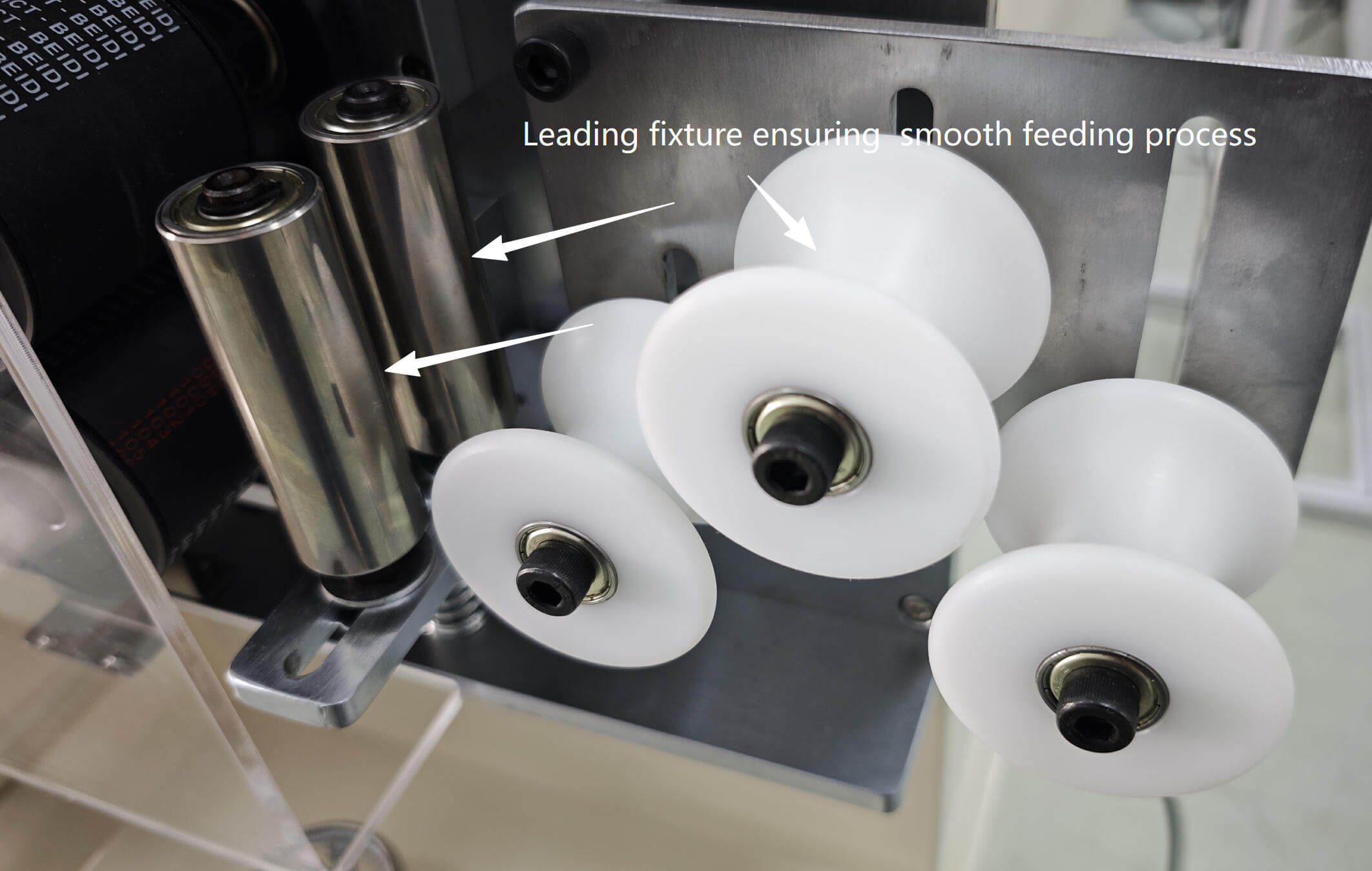

The leading fixture ensures smooth feeding of silicone and rubber tube profiles in one alighment .

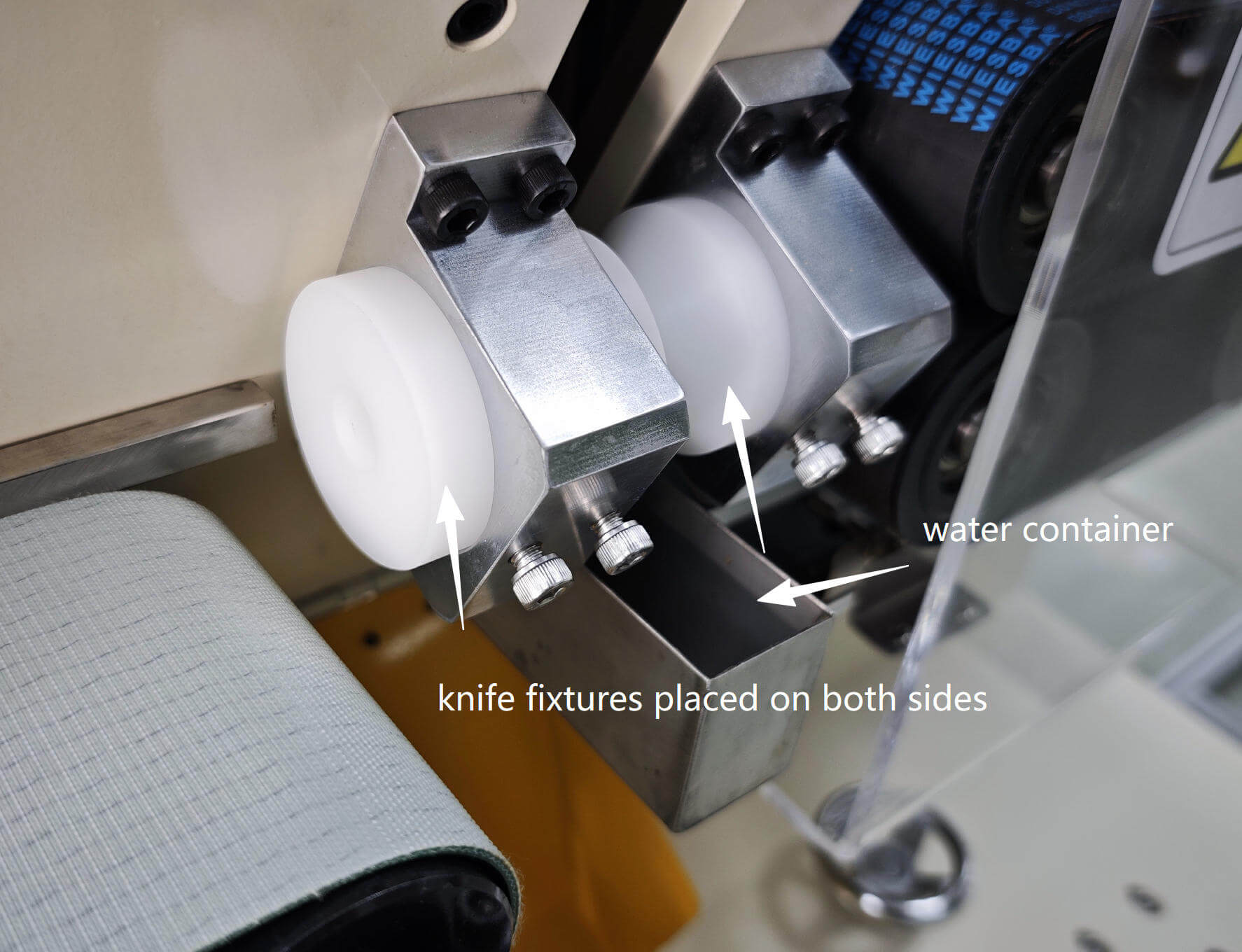

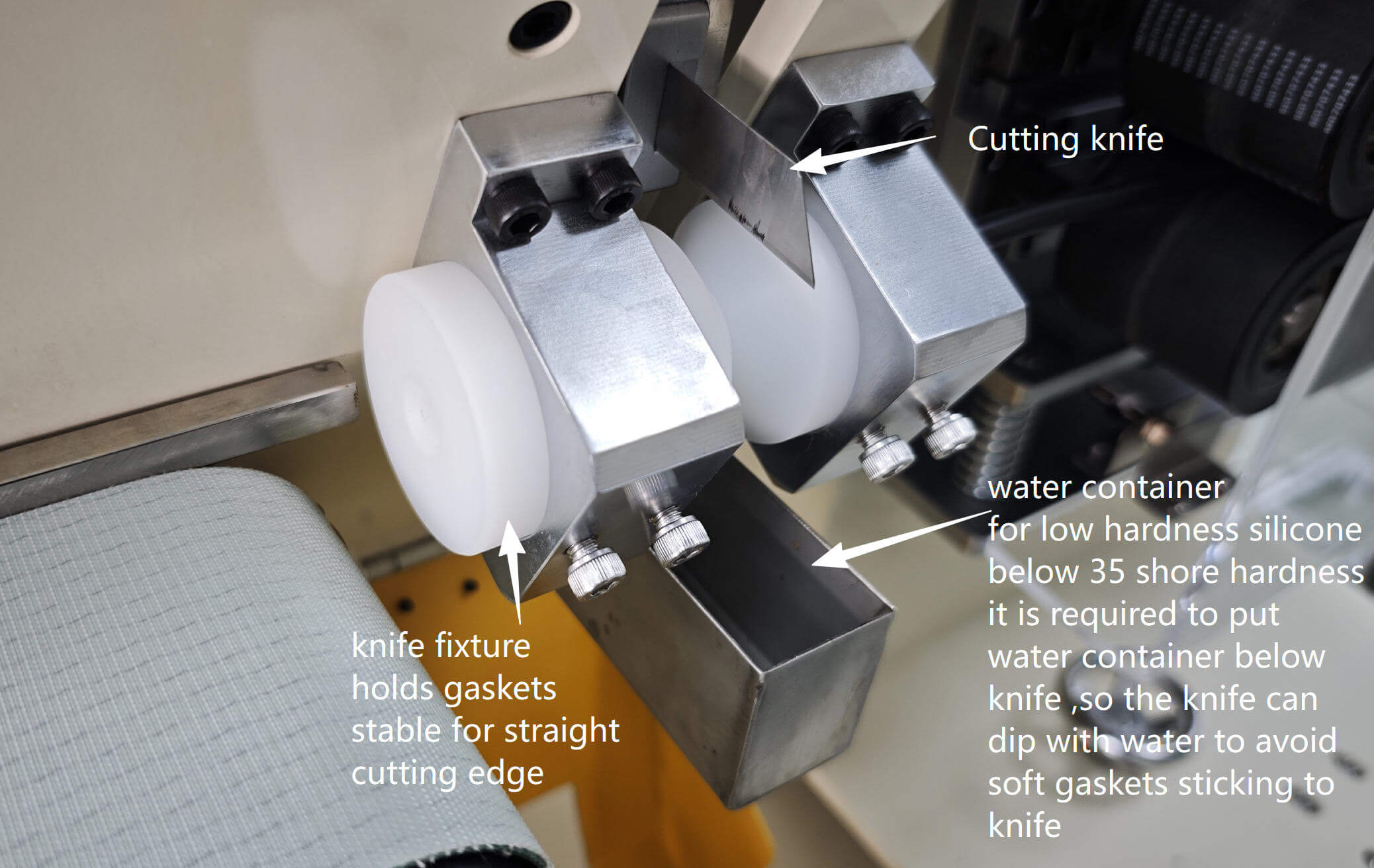

3,  Cutting system   , this High-precision tubing cutter machine  had equipped with knife fixture under the knife which holds rubber or silicone profile tubes stable for straight cutting cross section , there is also water container loaded down side the knife ,  the cutting knife will dip into the water container with water ,it will avoid sticking with some soft rubber or silicone material and ensures smooth and straight cutting edge of low shore hardness silicone or rubber extruded material  .

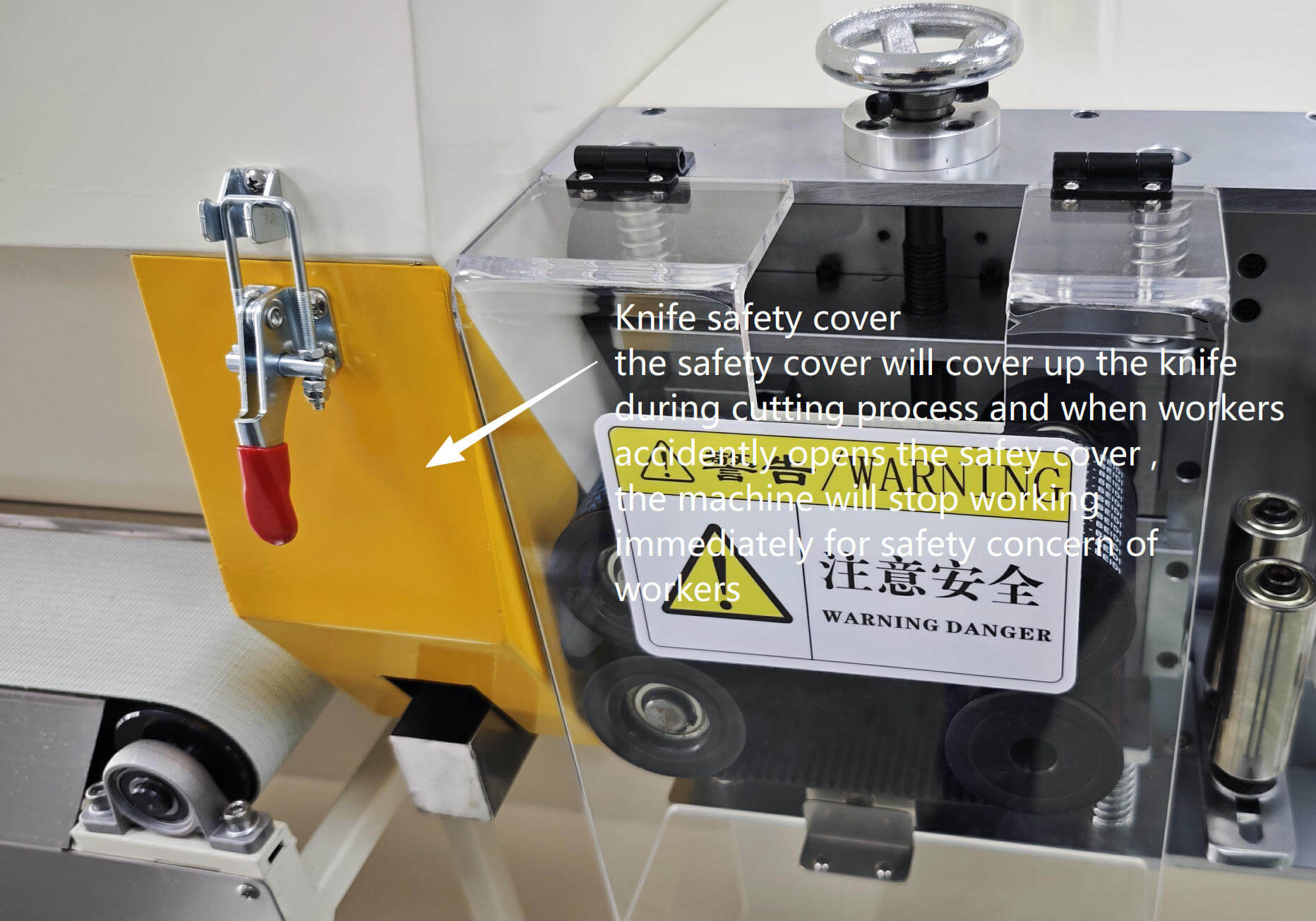

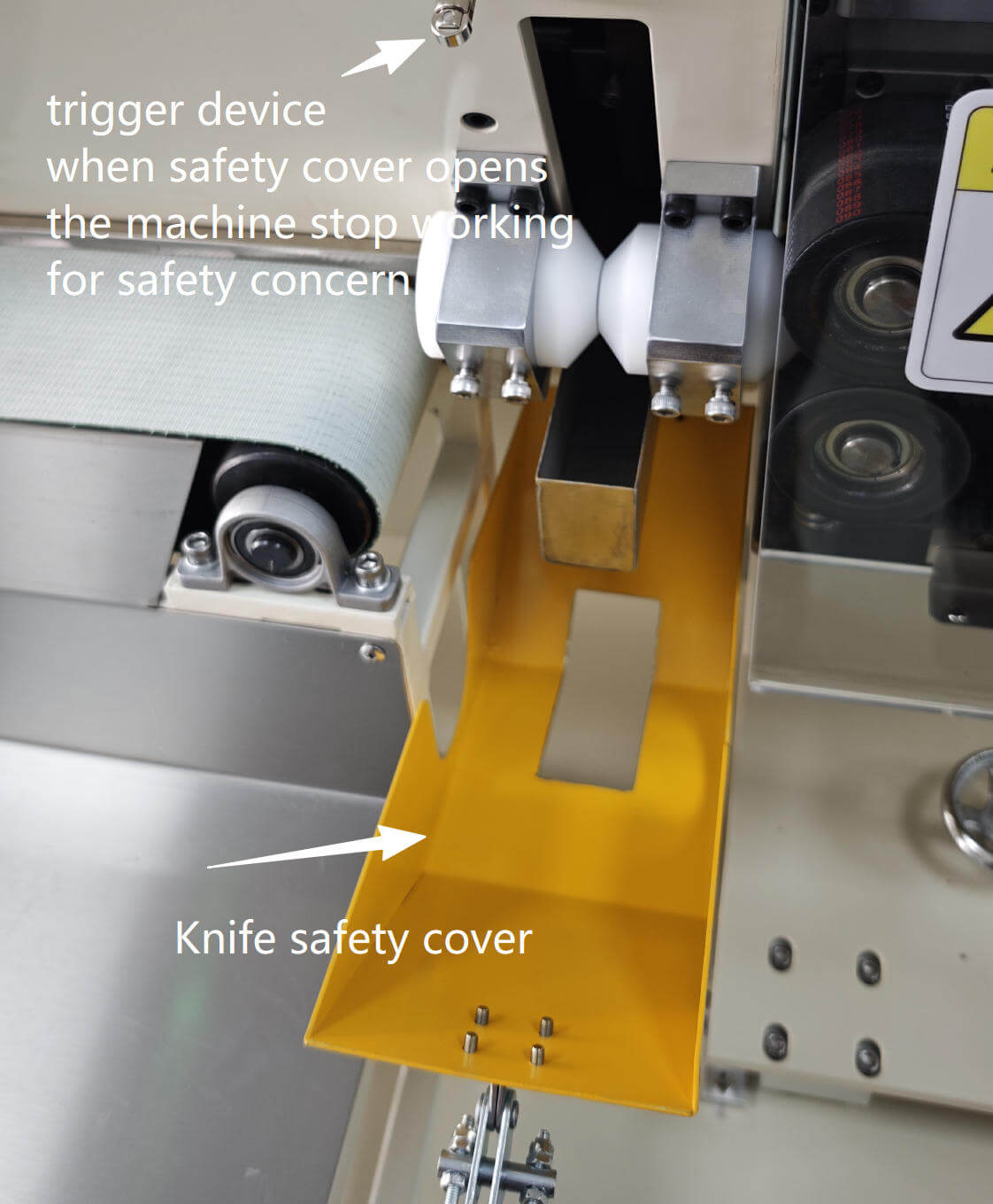

For safety concern , the cutting knife is fully covered up  with safety cover during operation and  when safety cover opens  accidently , it will trigger alarm and the machine will stop working imedidately

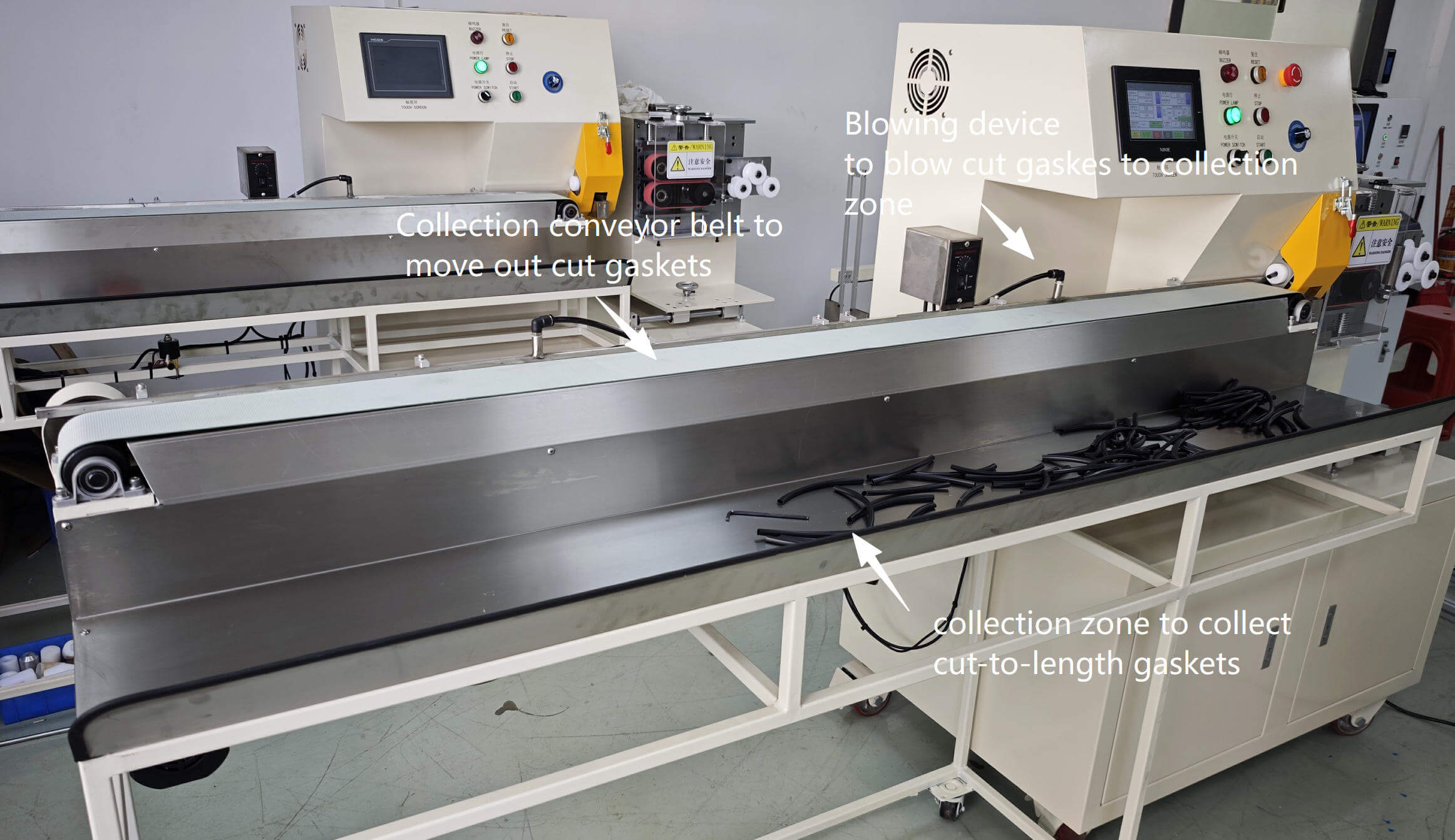

4, Collection shelf & blowing device  ,this automotive rubber profile tube cutter machine  had been equiped with collection conveyor belt to move out cut to length gaskets smoothly from cutting machine and  the blowing device will be blowing cut to length gaskes from the conveyor belt off to  collection shelf

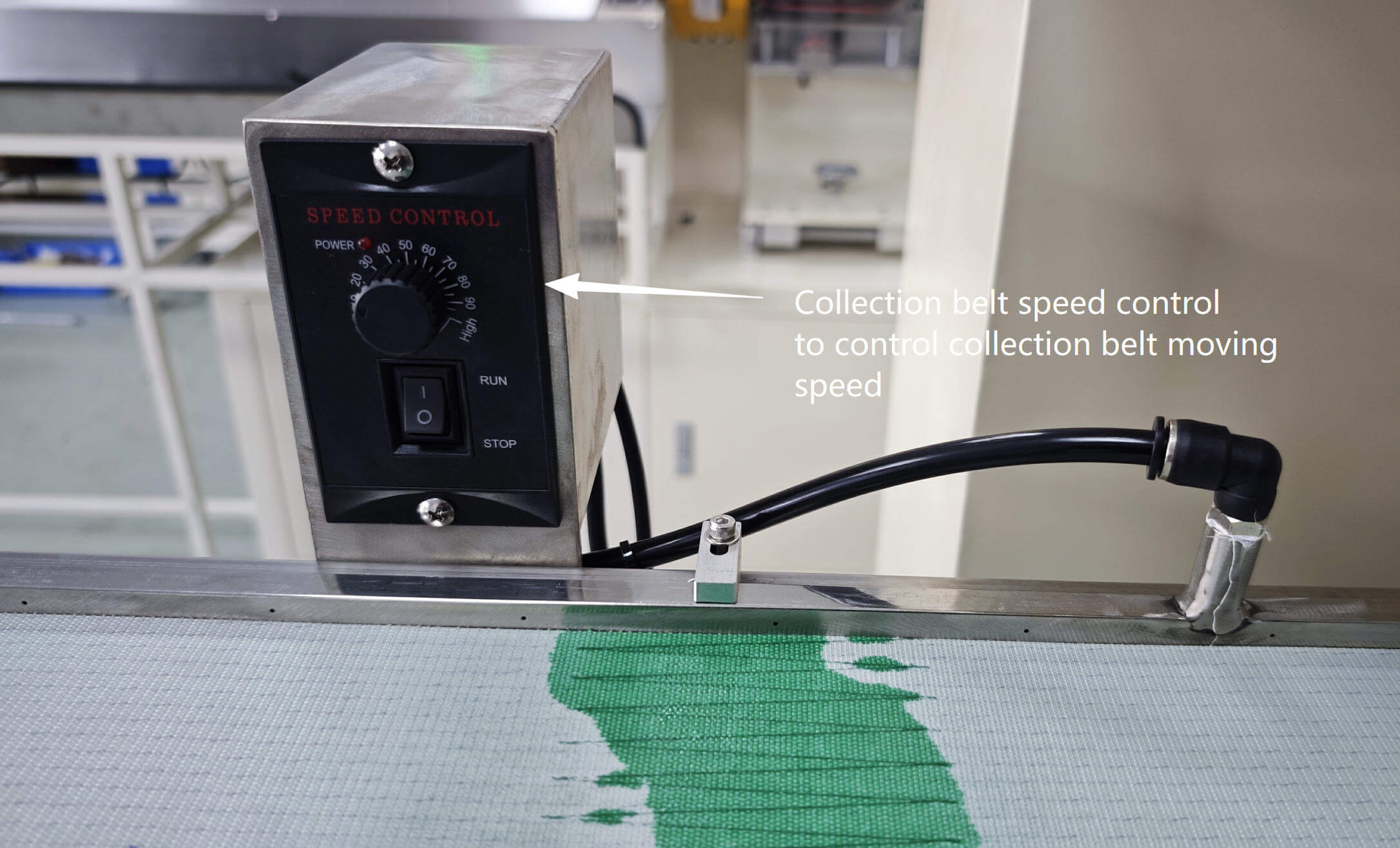

The collection belt moving speed is adjustable based on cutting machine speed  .

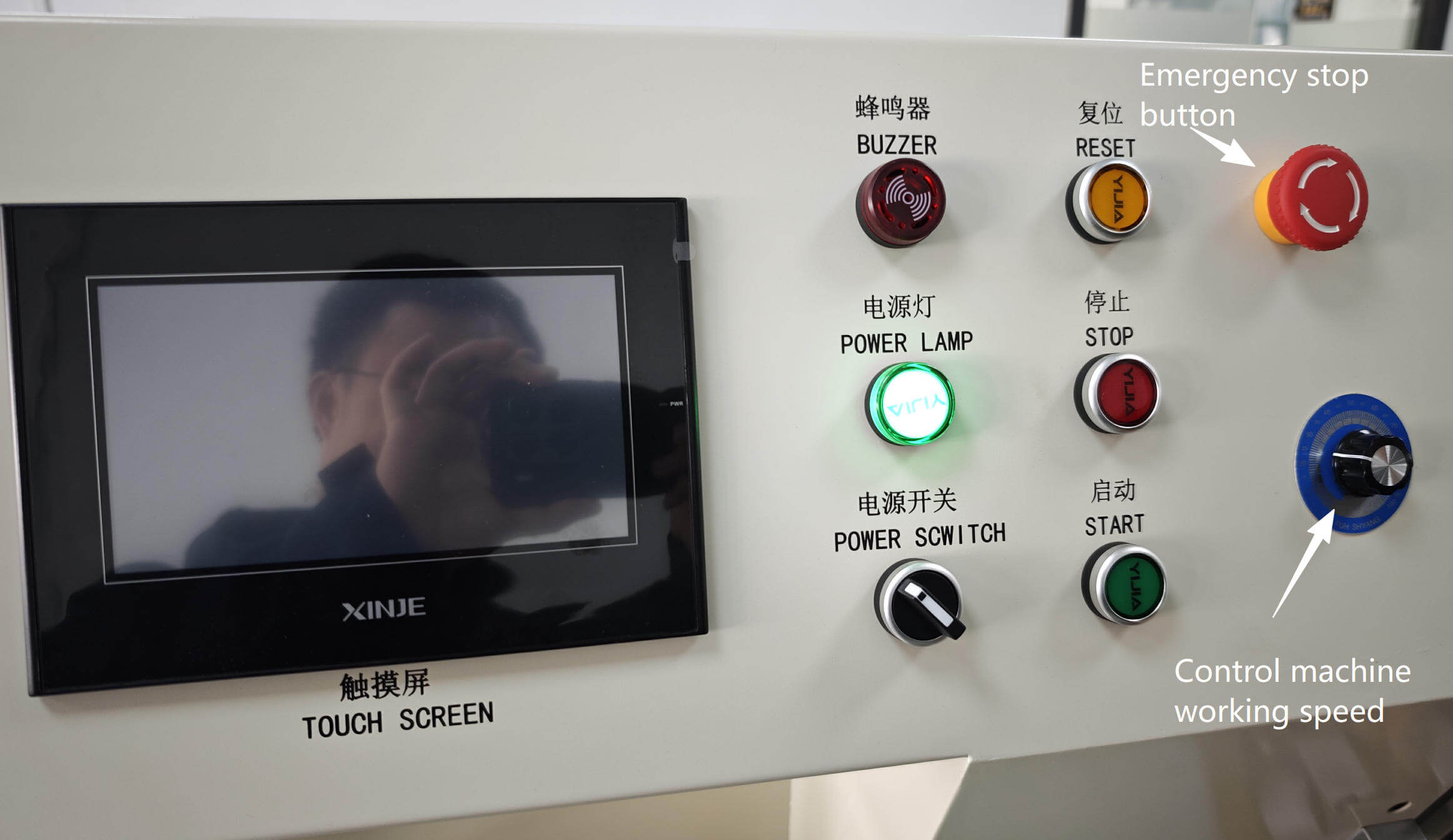

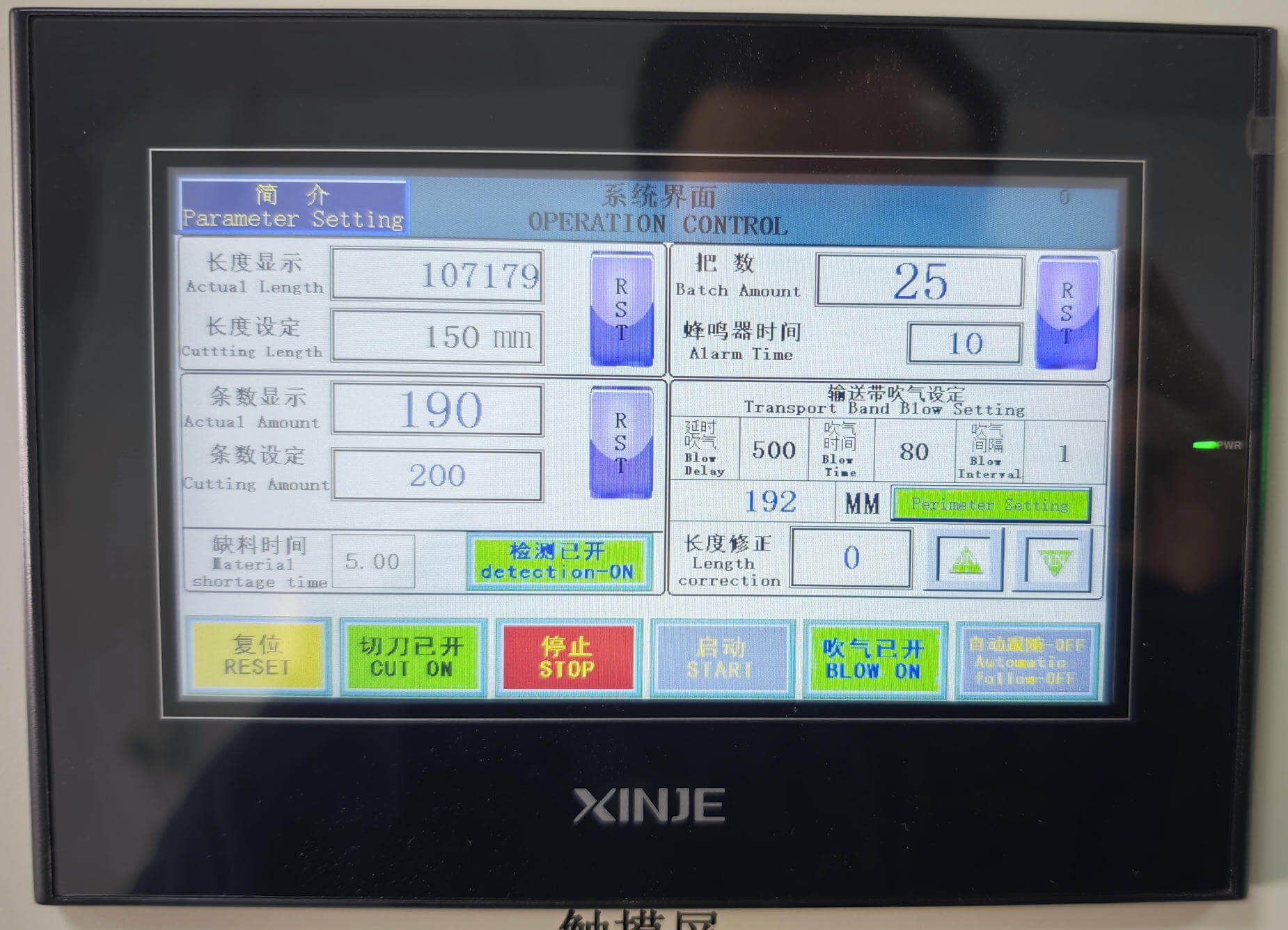

5 , PLC touch screen  ,this Foam rubber gaskets cutting machine applies  PLC touch screen control  which customer can easily set up the cutting length,  cutting quantity and cutting amount , batch amount and other settings

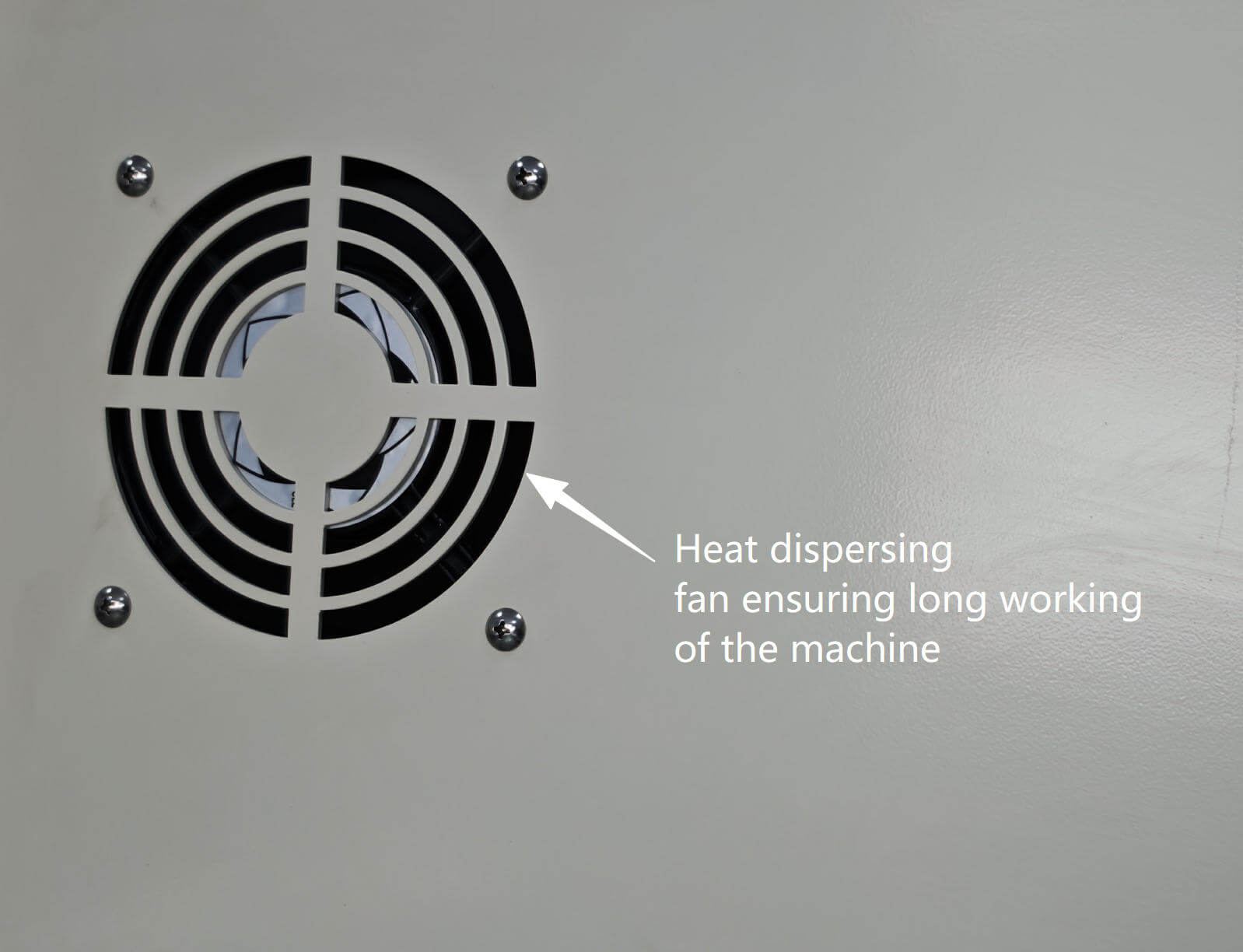

Heat dispersing fan ensures long working hours of the machine

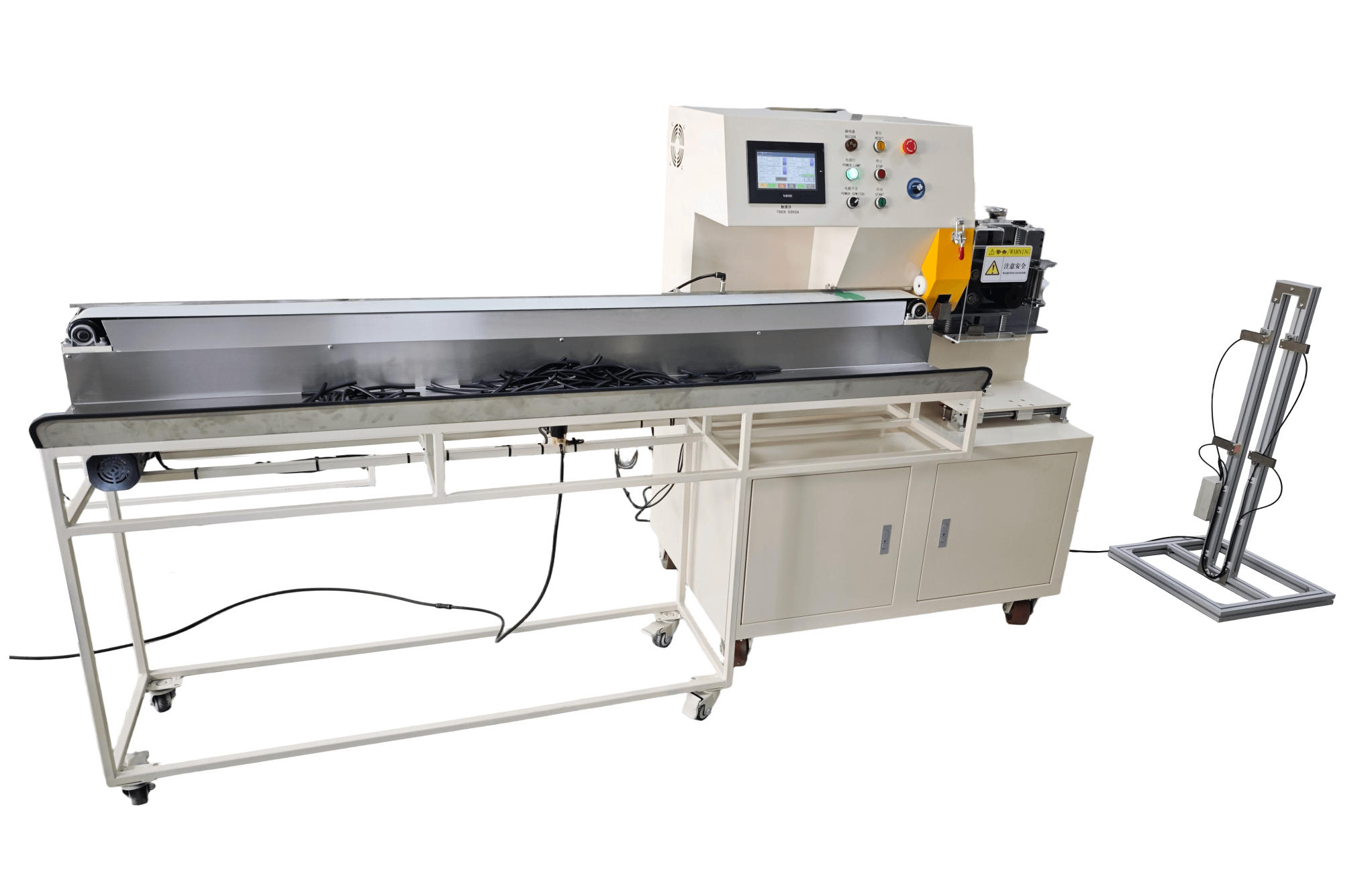

Front View

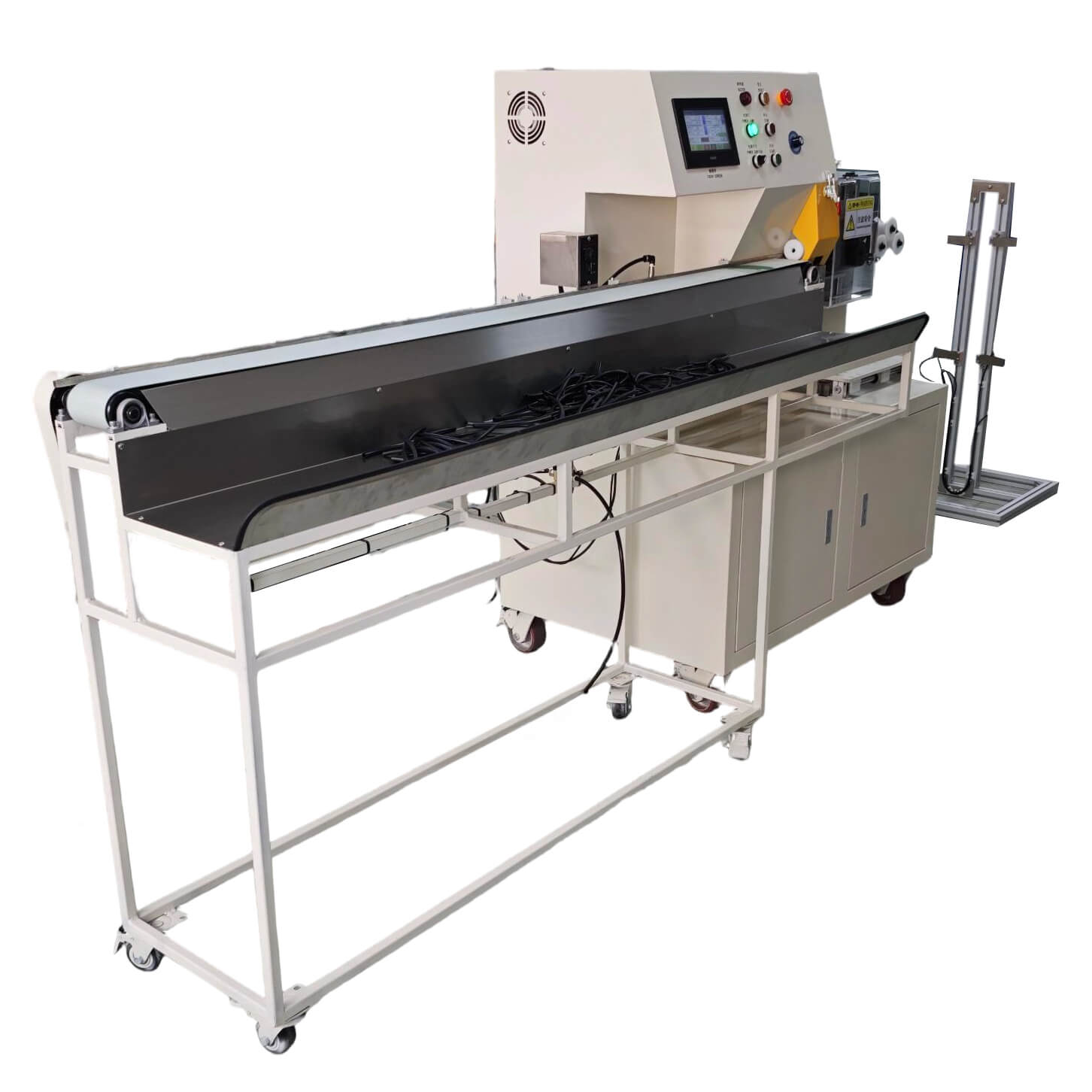

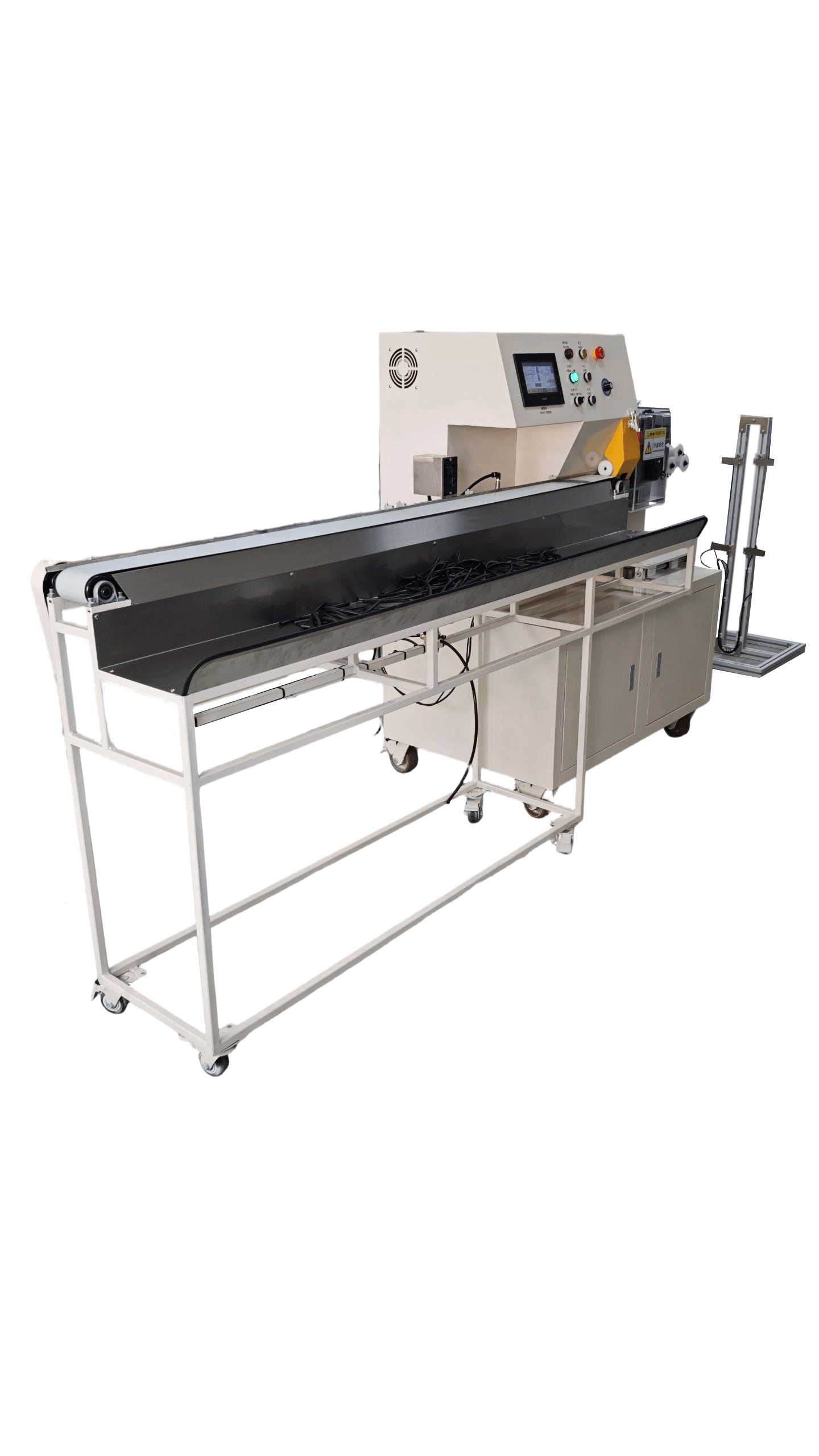

Side View

Side View

【Warranty 】

 As a fast silicone rubber tube profile precision cutting machine  supplier , all the spare parts of the machine  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
