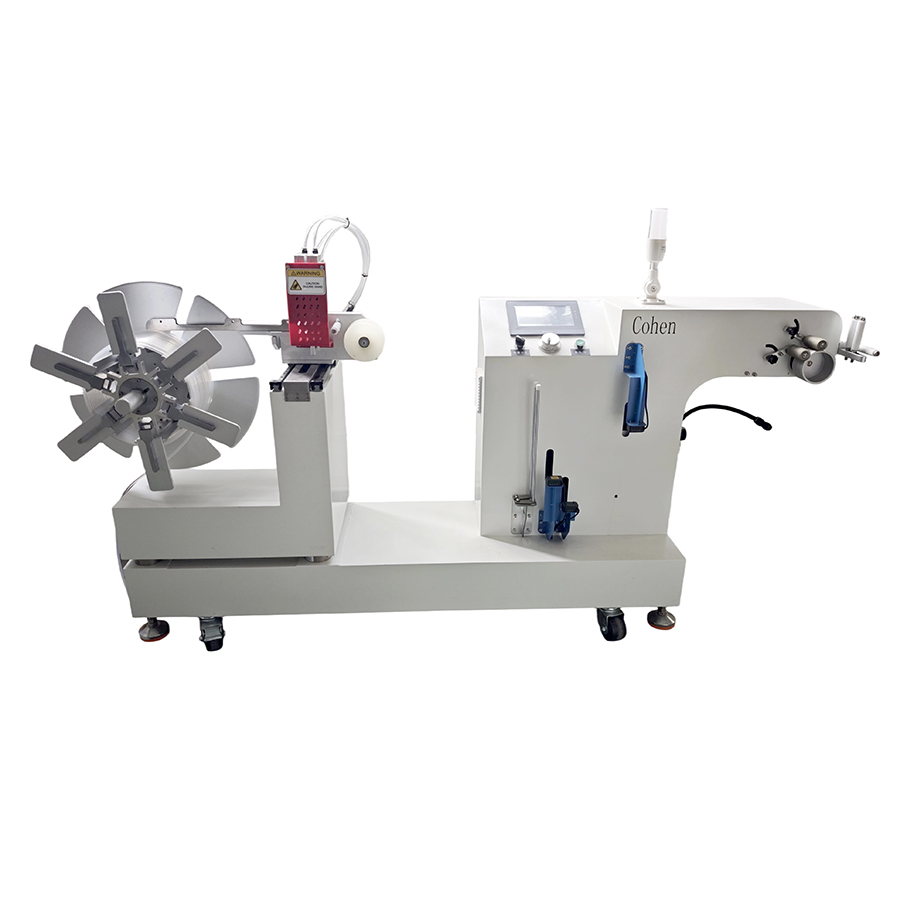

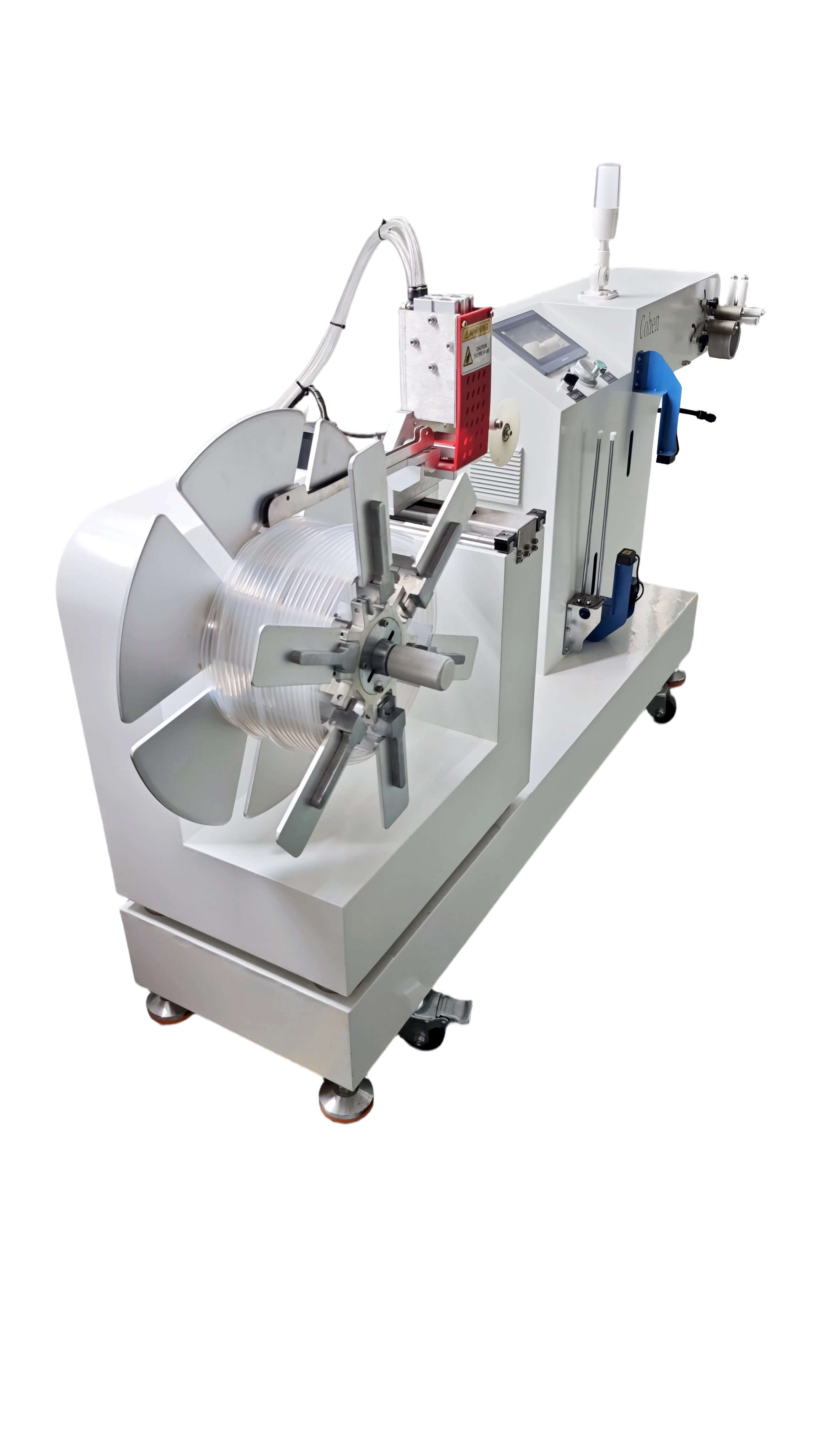

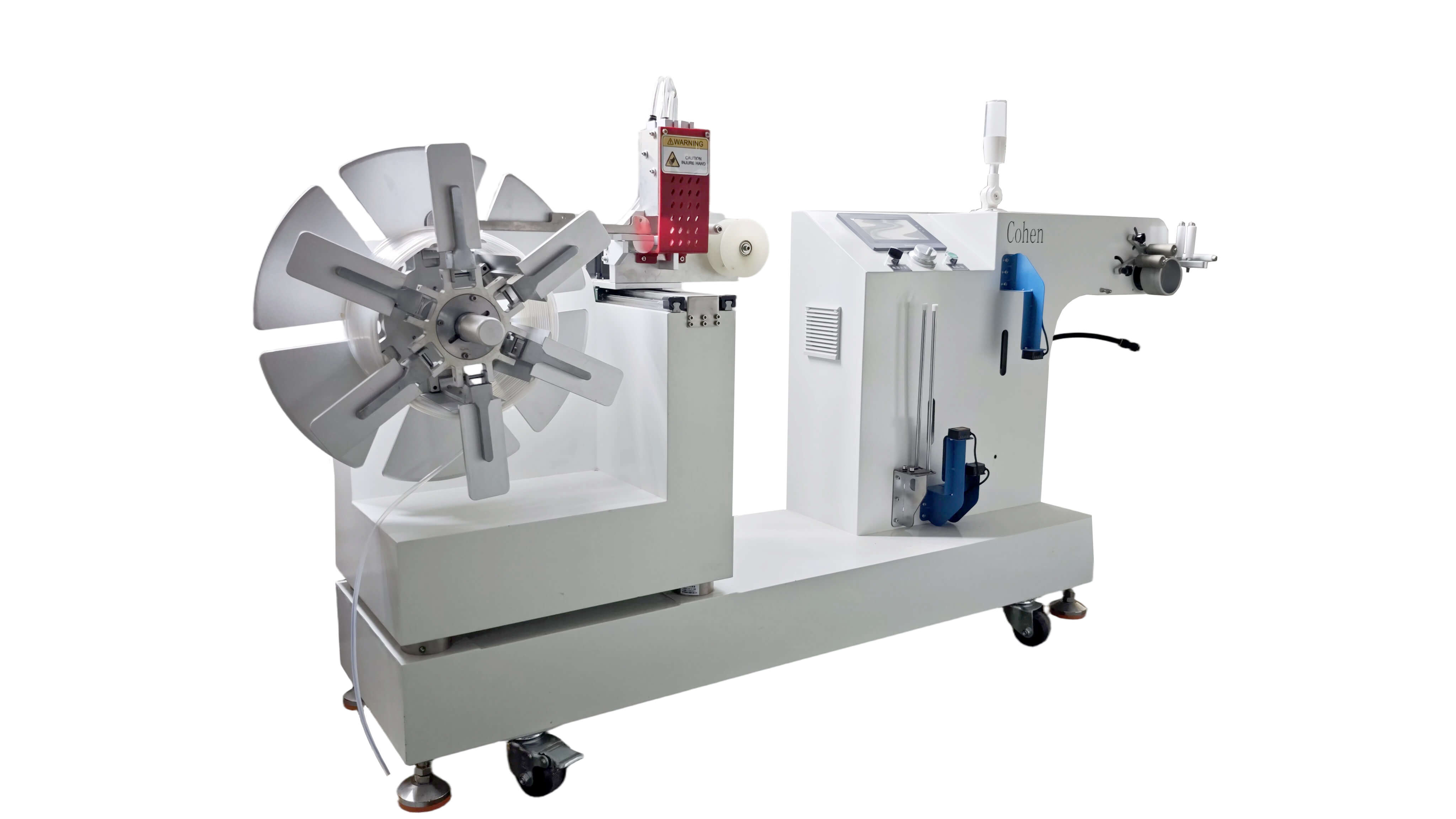

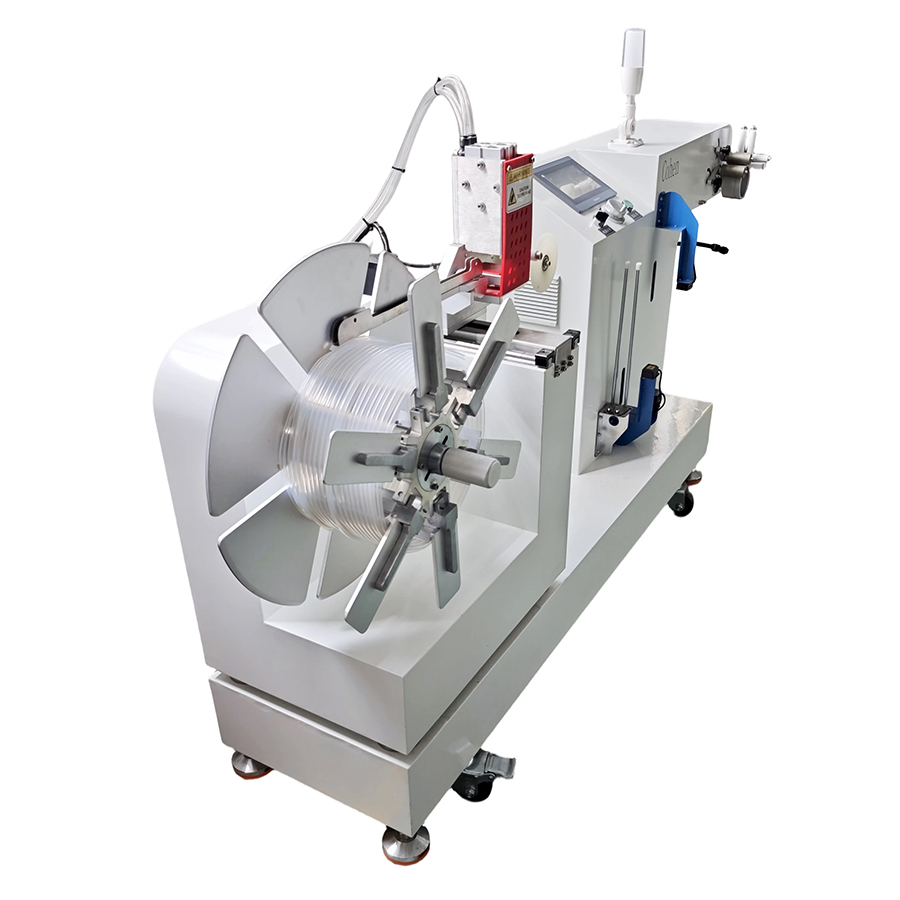

The  High-speed Silicone rube tube roll winding and ranking machine ​ ES-054-1 is an advanced automatic system designed for high-speed winding, cutting, and stacking of silicone, rubber, or PVC tubes into small rolls and cut to length . With integrated functions including pre-feeding, automatic winding, precise cutting, weighing, and length measurement, this machine ensures smooth, accurate, and organized production—ideal for winding tube into rolls directly from the extrusion machines .

With the advantage of  fast winding tube into small roll performance,  This automatic tubing coiling and stacking machine efficiently winds like 20-30–50 meter tube rolls at 30–80 rolls per hour,besides ,the ranking unit arranges rolls neatly layer by layer, ensuring consistent stacking and in good tube roll form .

Youtube video

Controlled via a PLC touchscreen interface for setting roll length, ranking width, speed, and weighing parameters, this Silicone extrusion winding machine will be easy to operate and use . normally customer simply set the

tube roll length and start the machine will be ok and the machine will do the rest .when material runs out , the machine will stop working .

The tube roll  length ranges 1–500 meters (based on 8mm tube diameter) and processing tube diameter  1–20mm ,we have two ranking width （tube roll heigth of 150-200mm as option

This High-speed silicone rubber tube winding machine can  pecisely cuts tubes to desired lengths (e.g., 20m, 30m, 50m) with prefeeding system and  Intelligent sensors continuously monitor tube height and tension  control  so as to ensures smooth feeding  and accurate roll length .   ,it also had been equipped with a support fixture under the knife for clean, straight cutting edge .

The best advantage of this High-speed Silicone rube tube roll winding and ranking machine is that it is specially designed for small silicone or rubber tube roll winding  and cut to precise length . the tube rolls are winded in good order and with high productivity . the extruded tubes from extrusion machine are cut and winded into small rolls by our high speed winding machine .

【Technical Data】

Product Name: High-speed Silicone rube tube roll winding and ranking machine

Model: ES-054-1(High speed type)

Functions: Pre-feeding + High-Speed automatic winding and stacking tube into rolls+ Cutting to Length +Weighing + Meter Counter

Advantages: High-speed automatic winding of silicone tube small rolls in good order of 20-50meters length rolls

Voltage: 110V/220V

Rewinding Motor Power: 750W

Rewinding Motor Type: Servo Motor, one set of 86 closed-loop stepper motors and one set of 57 open-loop stepper motors

Cutter: Pneumatic cutting.

Operating System: PLC Touch Screen

Roll Length: 1-500 meters (based on 8mm diameter tube)

Silicone Tube Outer Diameter Range: 1-20mm

Maximum Coiled Roll Diameter: 500mm

Tube Roll Inner Diameter Adjustable Range: 150-230mm

Ranking(stacking) Width: 150mm and 200mm (customizable)

Productivity: 30-60 rolls/hour, based on 50-meter rolls

Net Weight: 135kg

Dimensions: 1580mm x 650mm x 1300mm

【Product Advantage】

1, Specialized for winding small tubes rolls of 20, 30 or 50 meters length per rol ,  High speed winding silicone tubes profiles rolls and cut to length , high productivity

2, Wide application to  wind into rolls for all kinds diameters silicone or rubber , pvc tubes ,hose etc .

3,Wind tube roll in good order and easy to upload and discharge tube rolls from the machine .

【Product Details】

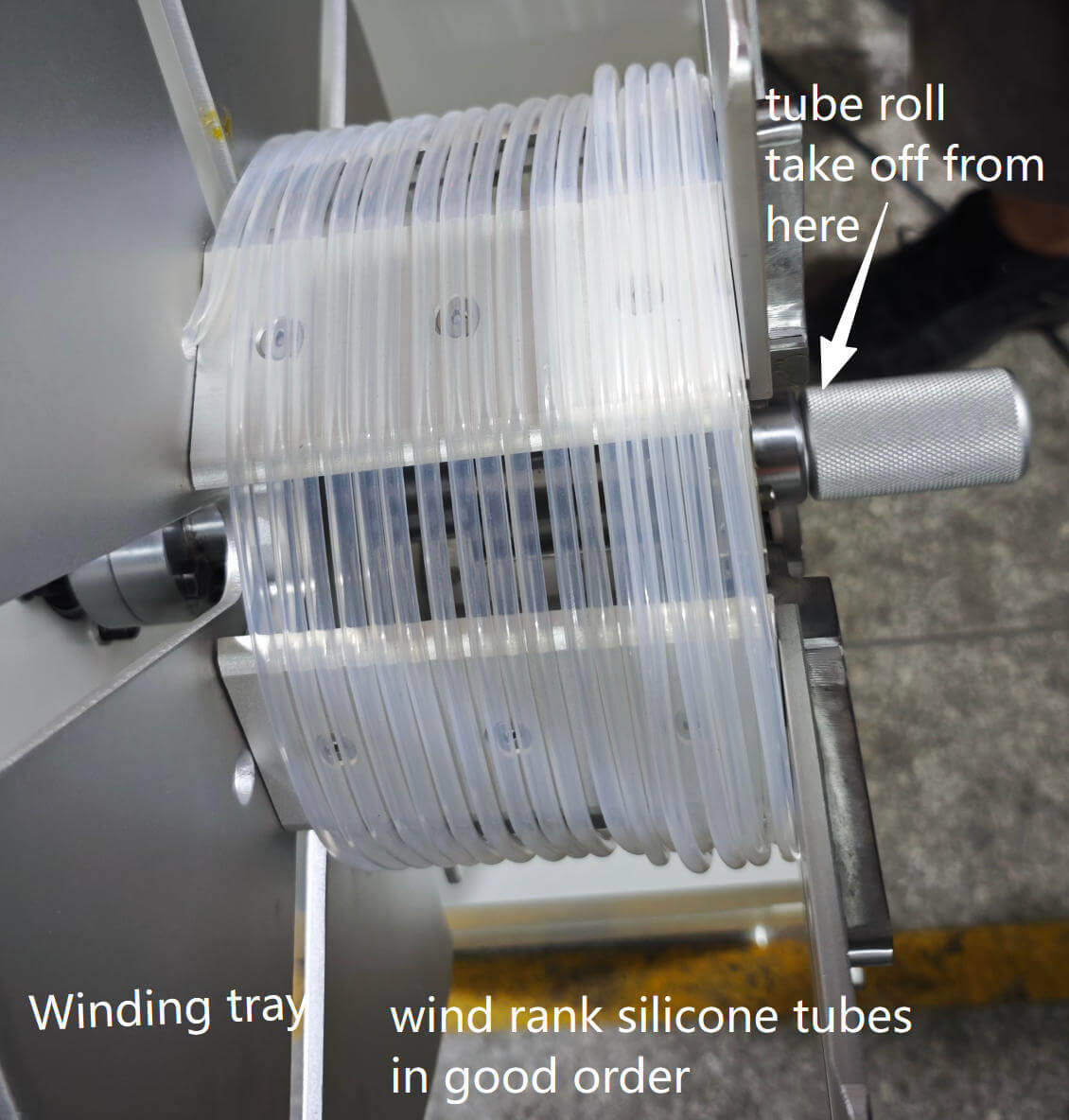

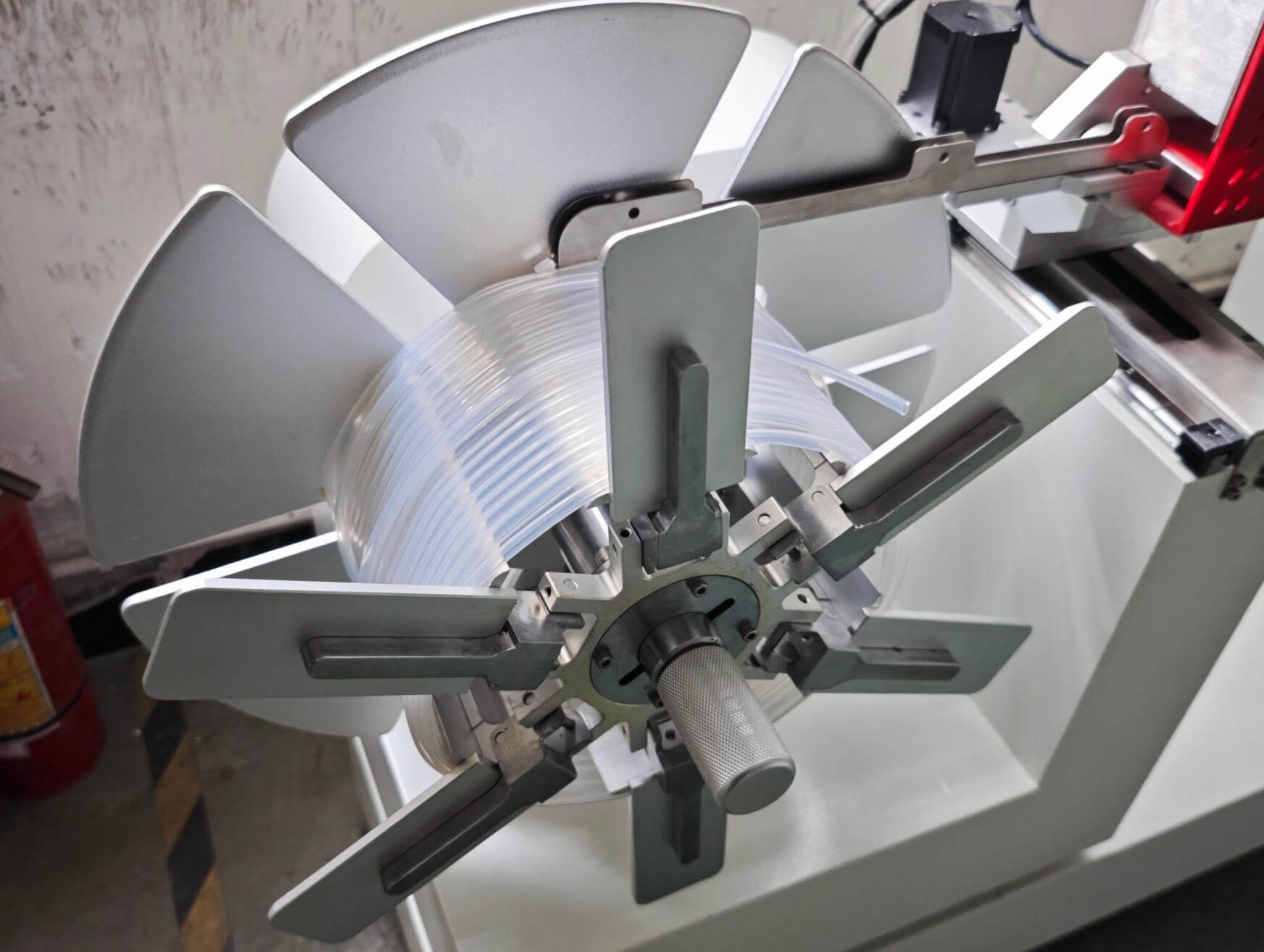

1, High speed winding  unit,  the winding tray winds silicone or rubber tubes profiles into small roll with high speed driven by high power servo motor  with stable performance . the winded tube rolls can be easily taken off from one side by shrinking the side boards will be ok from the center core.

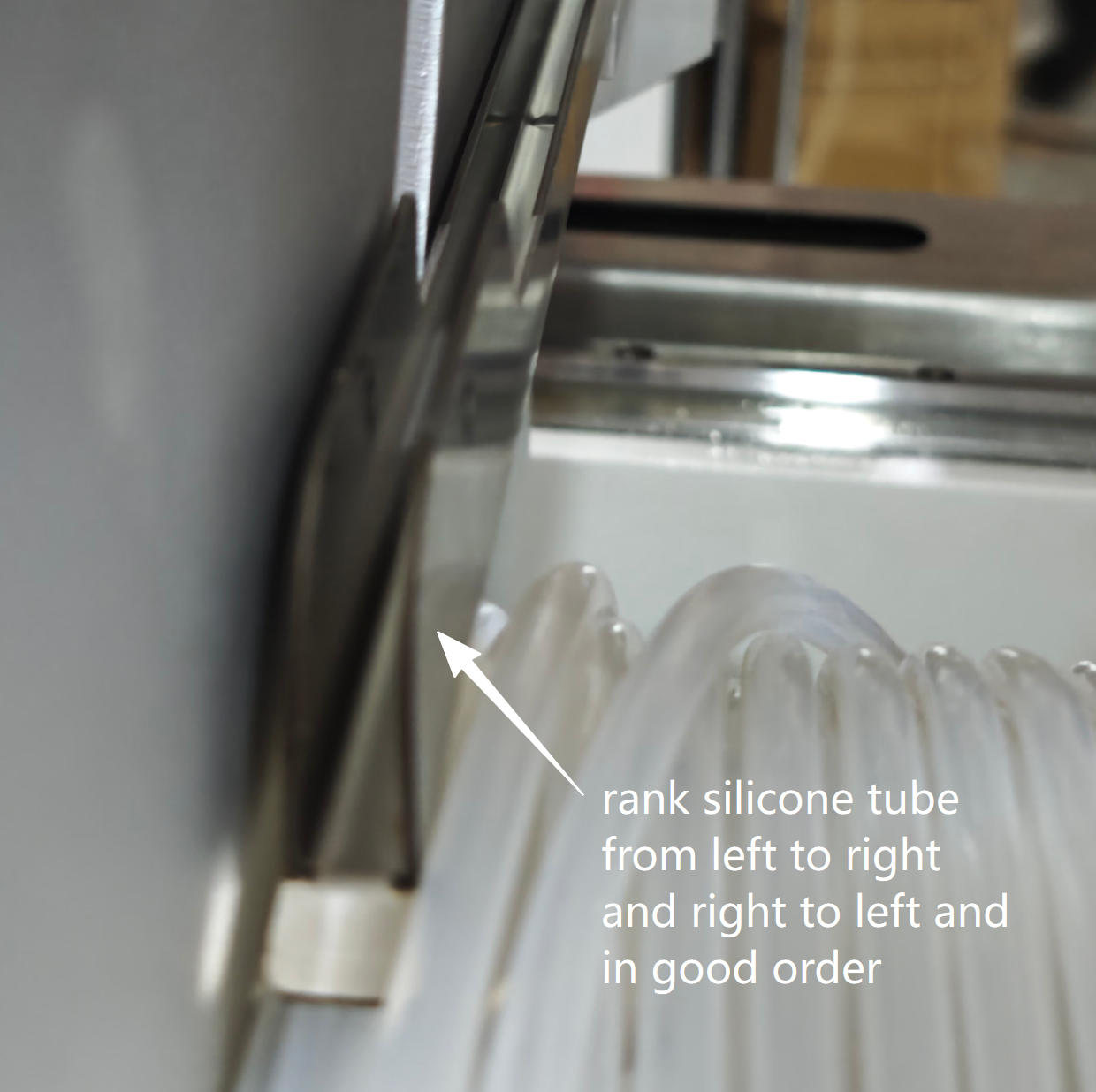

2,Ranking unit , this High-speed silicone rubber tube winding machine can rank silicone tubes from left to right and right to left and stack them up  layer by layer in good roll form which saves labor to wind the silicone /ruber tubes profiles manually . customer can set the ranking width on the machine to make different width (heigth) tube rolls .

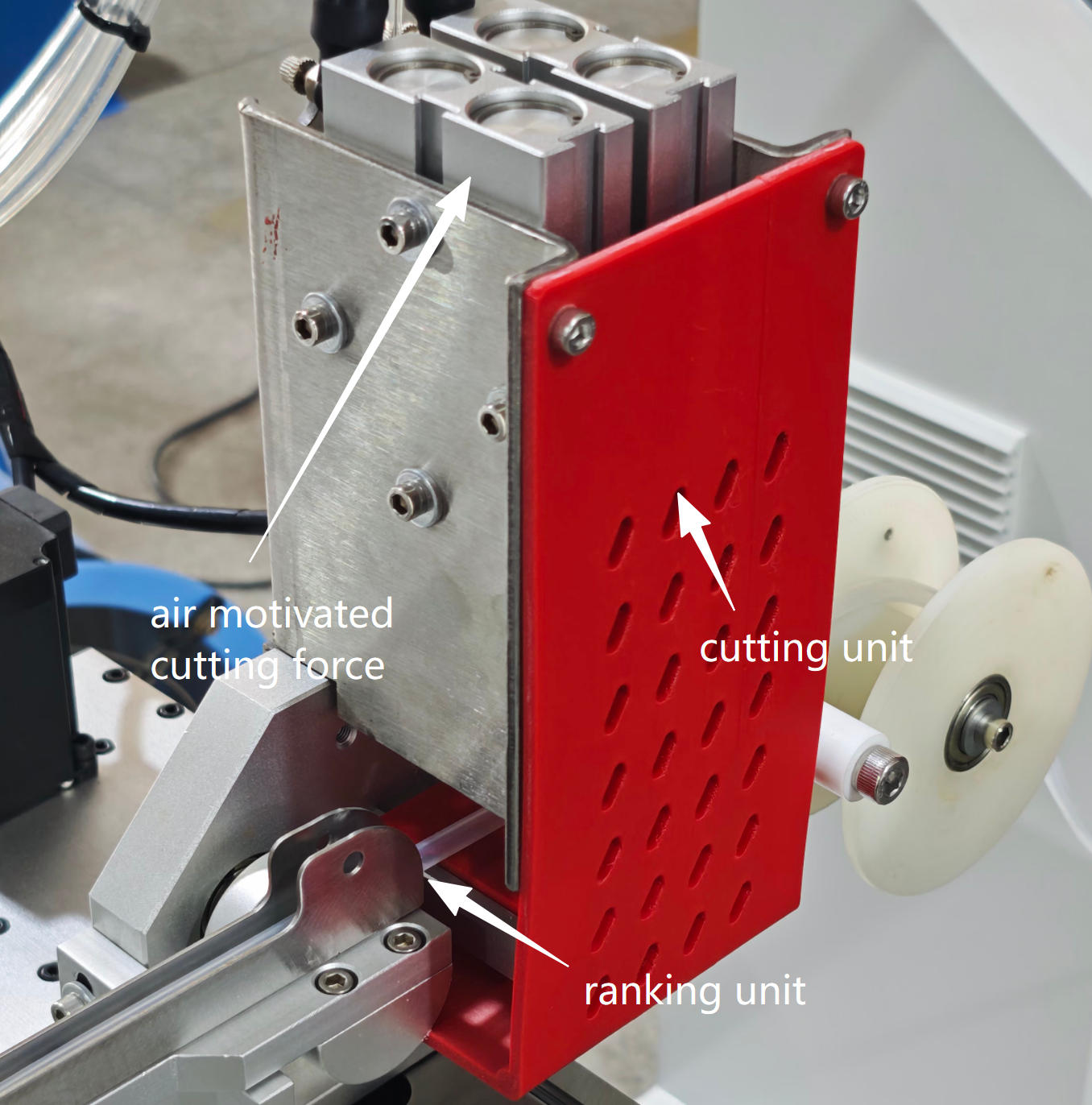

3,  Cutting system   , this Silicone extrusion winding machine cust silicone or rubber tube to precise length after winding tube into small rolls like 20 ,30 or 50meters   ,the cutting force is air motivated

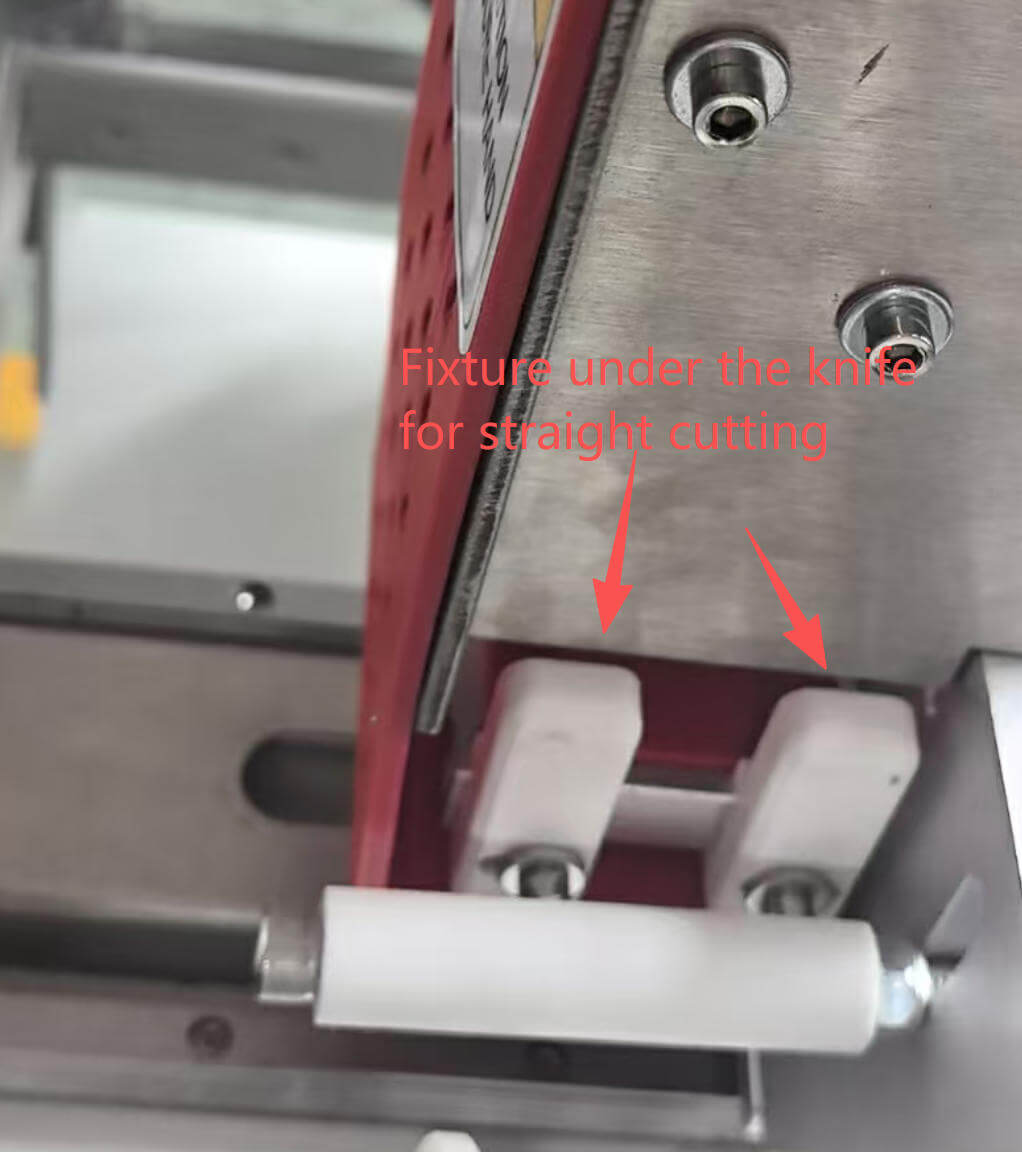

The fixture is also equipped under the knfie for supporting good and straight cutting edge of silicone and rubber tubes .

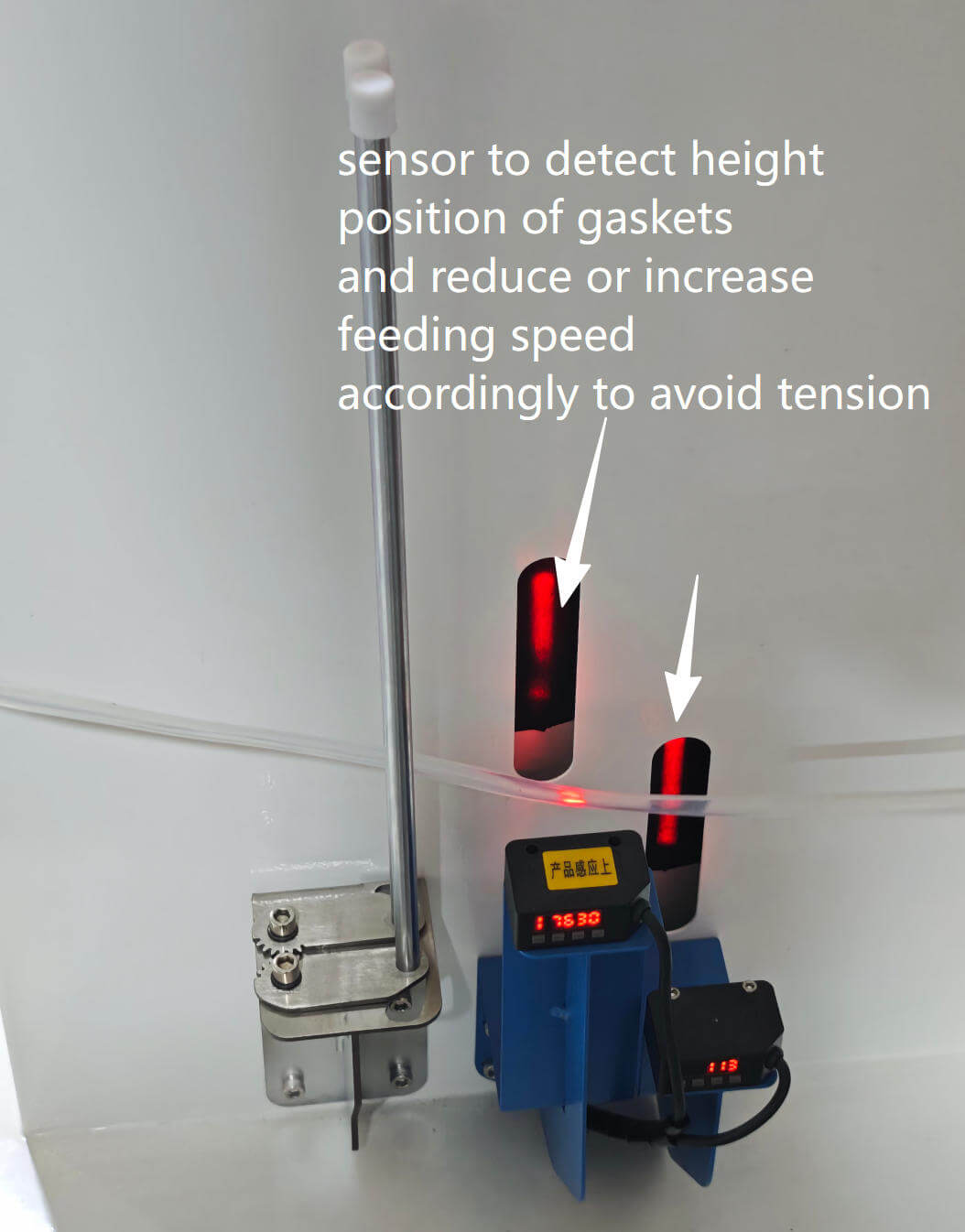

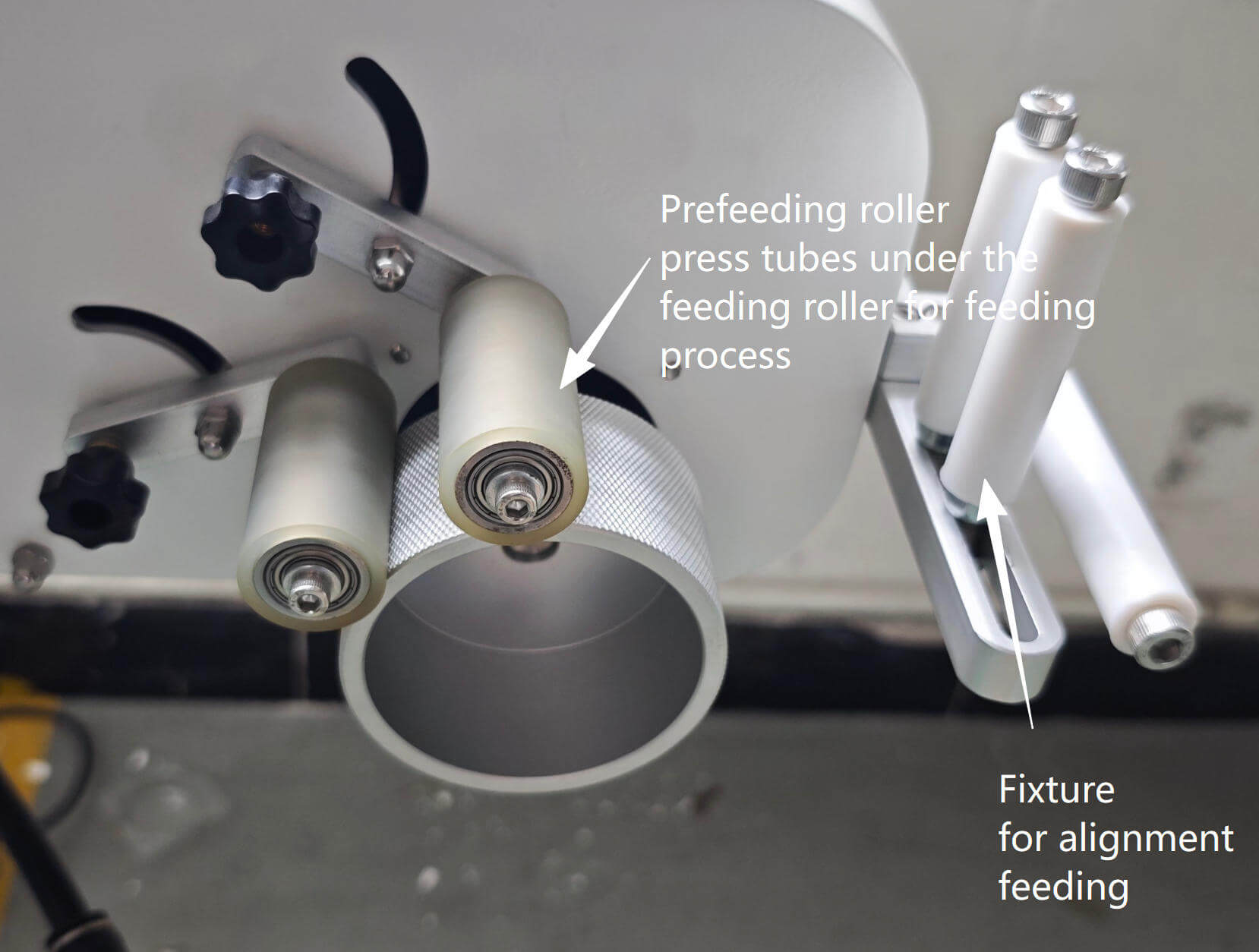

4, Prefeeding feeding parts   ,this High-speed Silicone tube winding and ranking machine can automatically receives extruded tubes directly from the extrusion machine and winds them into neatly arranged rolls with high precision and efficiency.Equipped with an auto feeding system and intelligent sensors, the machine continuously monitors the tube height during feeding, automatically adjusting the feeding speed to maintain zero tension throughout the process. This ensures smooth, distortion-free winding and precise roll lengths.

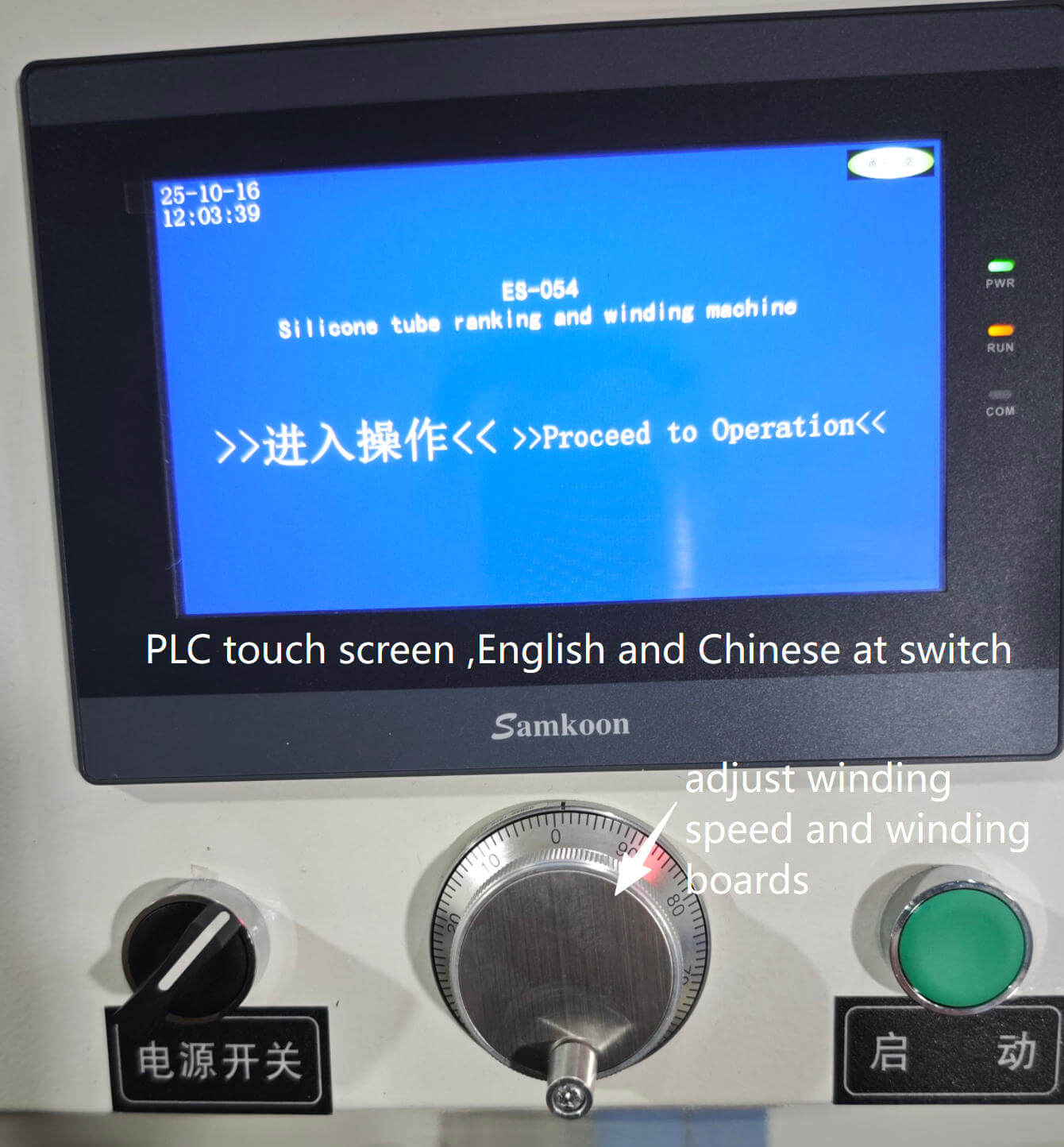

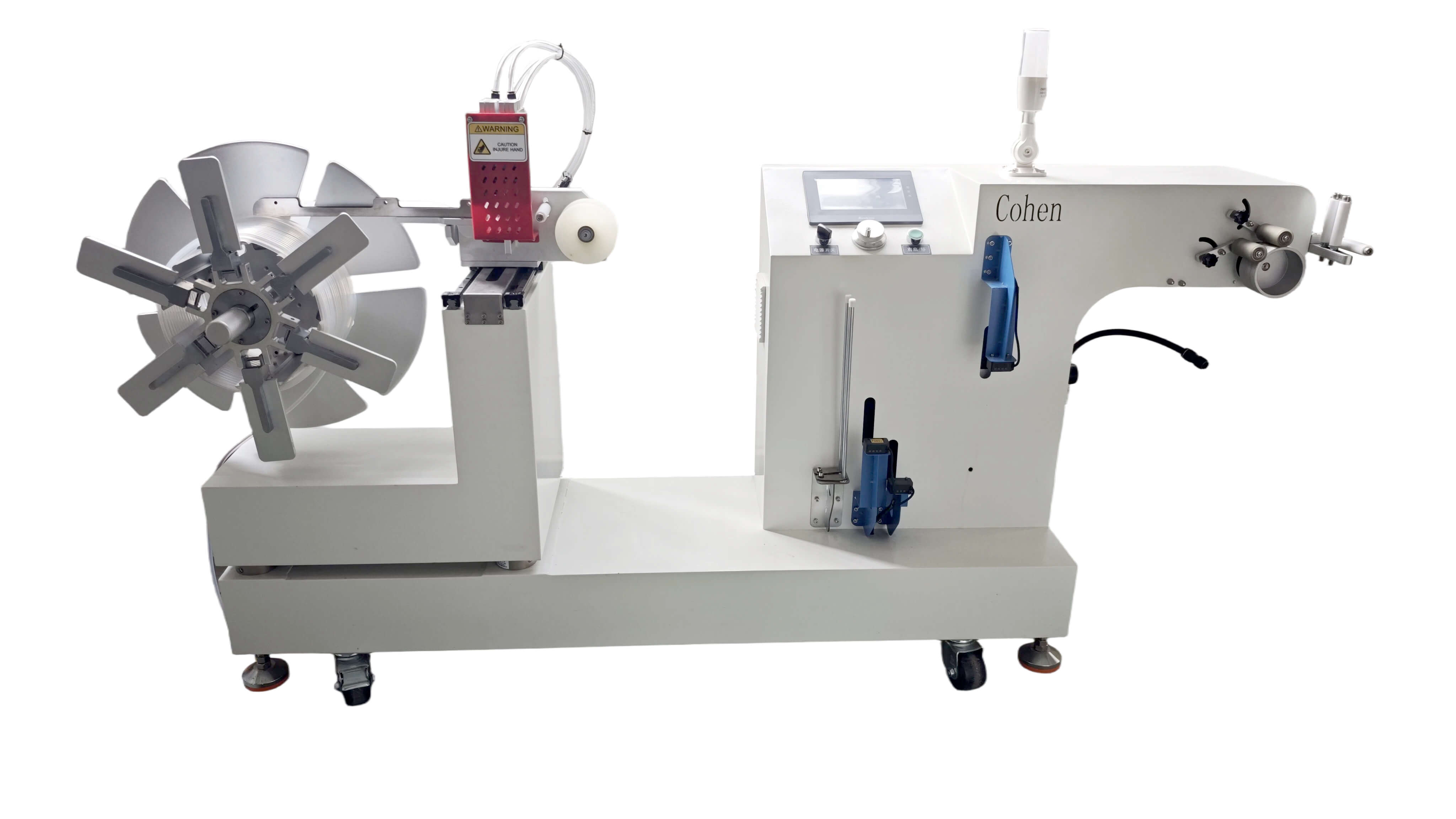

5 , PLC touch screen  ,this High-speed silicone hose coiler will be easy to use with PLC touch screen control , customer can set the tube roll winding length ranking width , weighing amount , winding speed etc. when material runs out the machine will sound alarm to remind workers to unload finished tube roll and load new ones

Front View

Side View

Side View

【Warranty 】

 As a High-speed Silicone rube tube roll winding and ranking machine  supplier , all the spare parts of the machine  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
