The upgraded No.4th generation fully automatic sponge rubber O-ring cutting and splicing machine  ES-060-1 is specially designed for automatic cuting and splicing extruded sponge and foam ,edpdm rubber gaskets into o rings

It integrates automatic feeding  sponge rubber , cutting gaskets to fixed cutting length , dipping gaskets ends with fast dry glue , bonding  gaskets  joint and discharge  bonded o rings  into collection baskets in one machine .

This foam rubber o ring gaskets fully automatic cutting and splicing machine is capable of processing 15 O-rings simultaneously with precise cutting length and good bonding joint  and  significantly increasing output while maintaining length precision and joint quality .

The machine complies with German safety standards, featuring a fully enclosed transparent PVC safety cover which makes workers can easily monitor what happens inside the machine  , when Opening the safety cover during operation, the fully automatic o ring bonding machine will  immediately stops working for concerning the worker safety .

Youtube video

The Sponge rubber O-ring fully automatic cutting and splicing machine (No.4th generation ) processes 15 pieces simultaneously for O-rings with diameters 1–9 mm.With an enlarged feeder, 8–10 pieces can be processed at once for larger diameters (9–15 mm).Maximum cutting lengths available: 1 m, 1.5 m, or 2 m; minimum length: 230 mm (customizable to 190 mm)  .for cutting length accuracy ,Sponge rubber: ±2 mm (500 mm) / ±3 mm (1000 mm) and for EPDM or non-sponge rubber: ±1 mm (500–1000 mm), The Daily production capacity: 20,000–36,000 pieces (based on 10-hour operation, depending on cutting length).

This sponge rubber o ring gaskets cutting and splicing machine ensures  automatic production of sponge rubber and EPDM gasket O-rings with consistent good quality  and high productivity which is ideal for sponge rubber o ring gaskets manufacturer of high volumme production and good quality requirement and in the long term saving labor cost to bond o rings manually .

【Technical Data】

Product name: Sponge rubber O-ring fully automatic cutting and splicing machine (No.4th generation )

Function: Integrates automatic feeding, length cutting, adhesive dipping, bonding, joint inspection, and defective product removal in one machine

Bonding method:  two clip hand holds two gaskets ends with instant glue applied and cured to form good bond of bonded sponge rubber gaskets

Formula selection: Store  up to  100  parameter recipes & the length compensation value is calculated by the length compensation auto calculation formula

Safety standard  ：German safety standard with full enclosed transparetnt  window .

Heater  light  ：Heater light to reduce curing time of the instant glue

Alarm system: lack of material alarm, Material shortage alarm with yellow flashing light to alert workers to load new material

Machine safety cover: fully enclosed safety cover with PVC transparent window & open the safety cover, the machine raise alarm.

Machine power: 5KW

Machine power: 220V/110V

Machine capacity: 15 pieces can be processed at a time (gaskets diameter 1-9mm,  for bigger diameter 9-15mm,

 it needs apply with enlarged feeder which 8-10 pieces can be processed at the same time)

Air pressure: 0.6-0.8mp

Control system: PLC touch screen (Touchwin)

Maximum cutting length: 1m, 1.5m and 2m according to the machine model

Minimum cutting length: 230mm (can customized to 190mm)

Processing diameter: 1-9mmOD (10mm or more, for bigger diameter 12mm or above, with enlarged feeder)

Cutting length accuracy: 500mm±2, 1000mm±3 for sponge rubber  ,500mm±1, 1000mm±1 for non sponge rubber like epdm gaskets

Key spare parts: servo motor (Hechuan, domestic first-class brand), cylinder (AIRTAC), PLC (TouchWin) . Line rail (domestic famous brand）

other electrical components (Omron, domestic first-class brand)

Machine capacity: 20000-36000 pieces/day (calculated based on 10 hours per day ,affected by cutting length )

Machine net weight: 680KG

Machine size: L 2350mm*W1950mm*H1950mm

Feeder size: L4000mm*W800mm*H1500mm

【Product Advantage】

1,  Upgraded No. 4th generation , the Sponge rubber O-ring fully automatic cutting and splicing machine (No.4th generation ) with full upgrading in full aspects .

2,  High german safety standard  ,  This automatic epdm O-ring cutting & bonding machine applies with high german safety standard ,when workers opens the safety door during machine running  ,the machine will stop working immediately for protection of worker safety .

3,  More high productivity with glue cured faster by adding  heater light on top of  the joint for speeding up glue curing and form strong and good bonded o rings and reduce defective o rings at the same .

4, More convenient to use the machine with 100 product parameters to be stored ,when customer goes back to do previous product ,they can retrieve the product parameter with one key retrieval  and don't have to set up all parmaters all over again like glue curing time , dipping glue times , glue flow down time , cutting length , machine speed etc all over again . it is one package parameter and can instantly retrieve  from the 100 product parameter storage which make the machine very easy to use and keep production quality consistence

【Product Details】

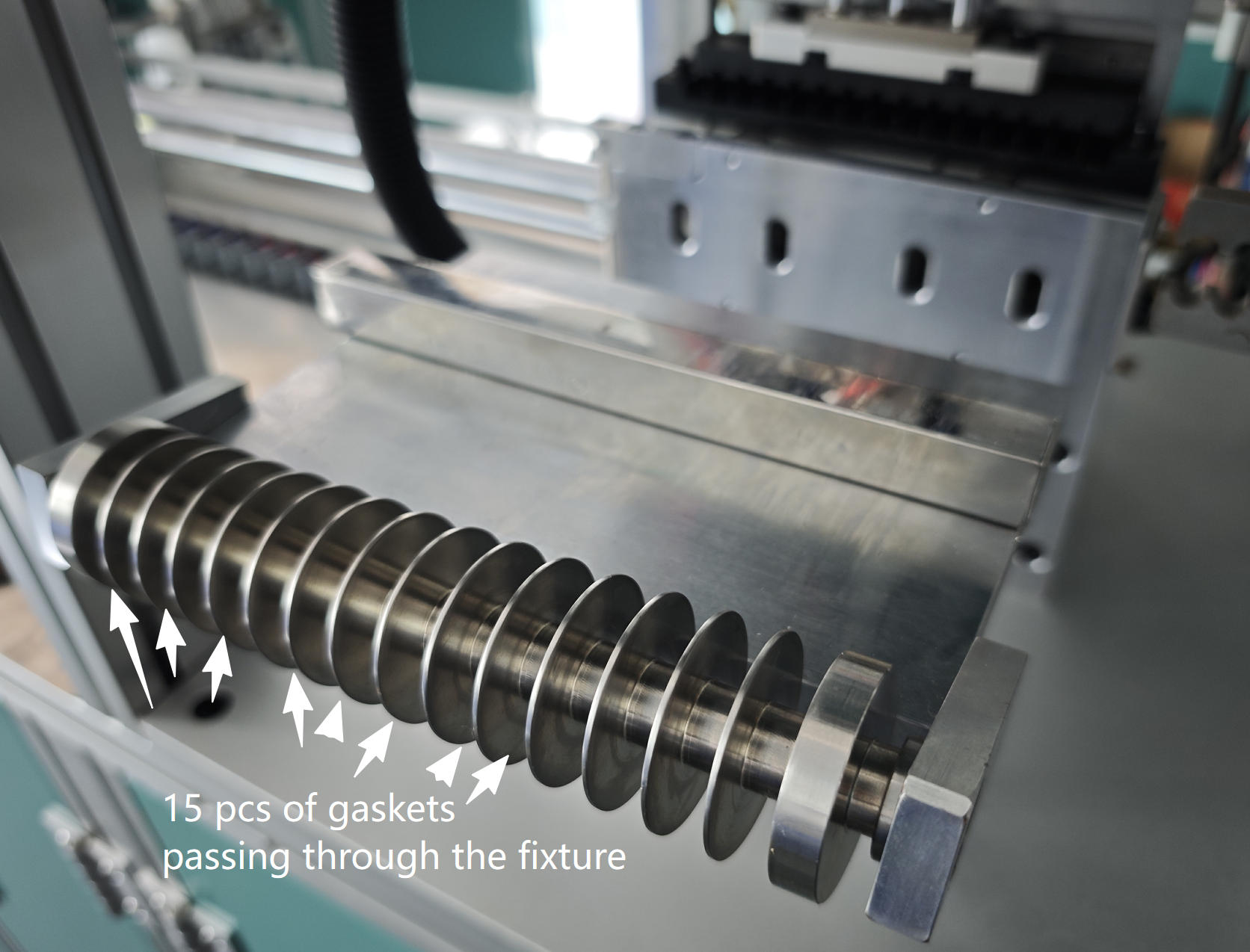

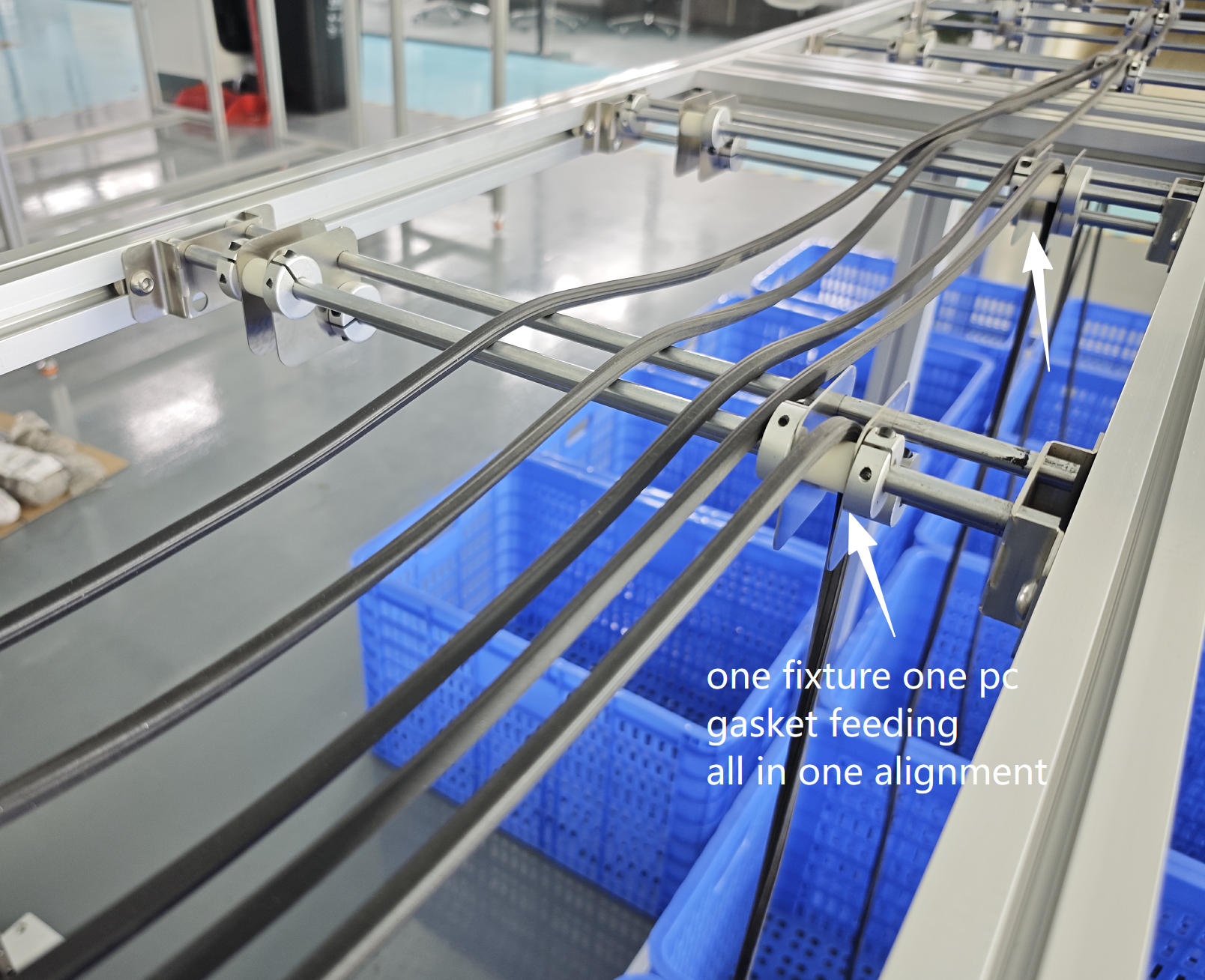

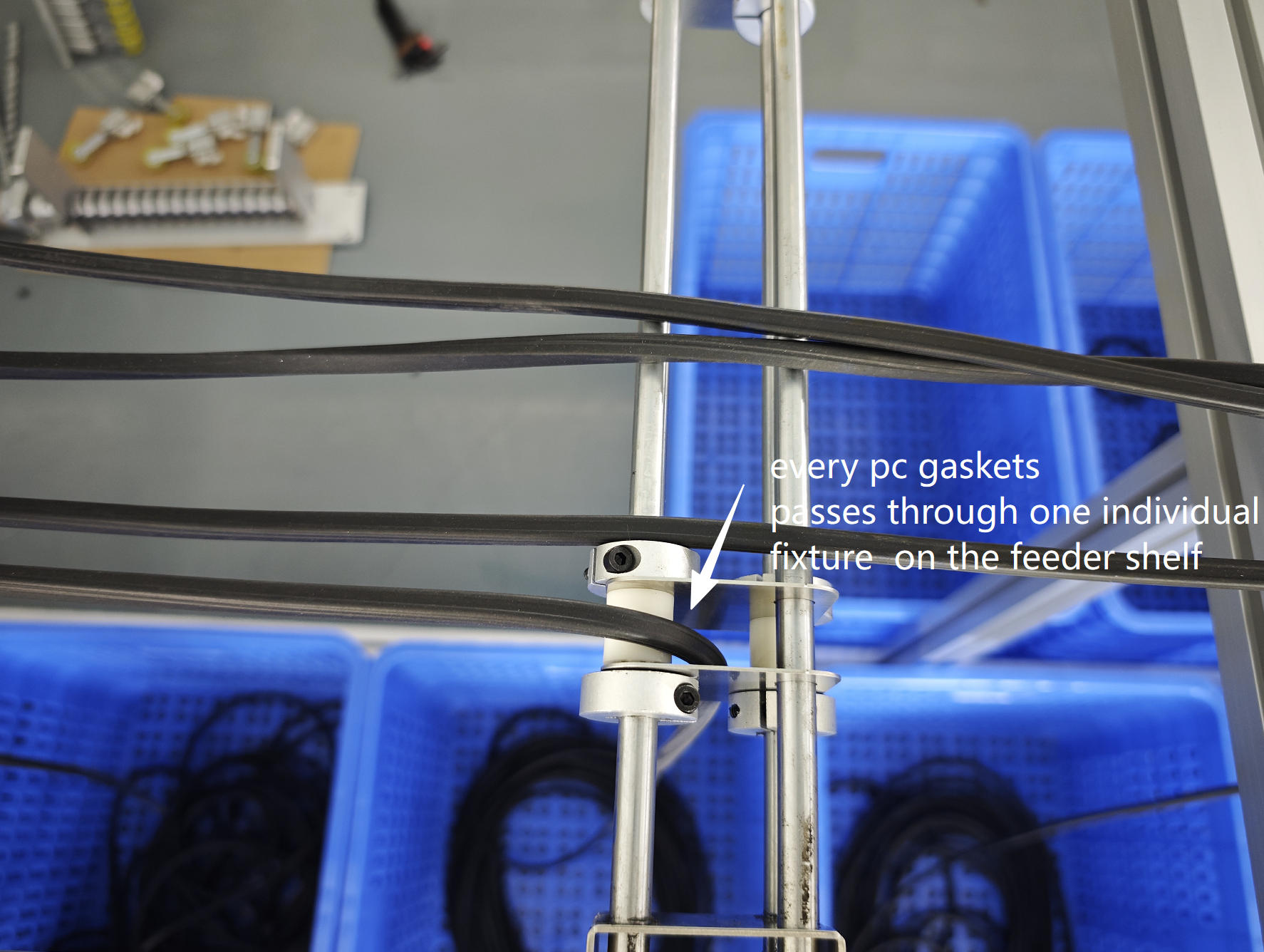

 1,Feeding sytem allowing 15 pcs sponge rubber gaskets to be fed and processed at the same time  .the sponge or edpm rubber  cords gaskets are loaded individually on the fixture of the feeder , one fixture for one pc gaskets  in one alignment ,so  they do not cross each other in feeding process

It ensures smooth feeding in the feeding  process .

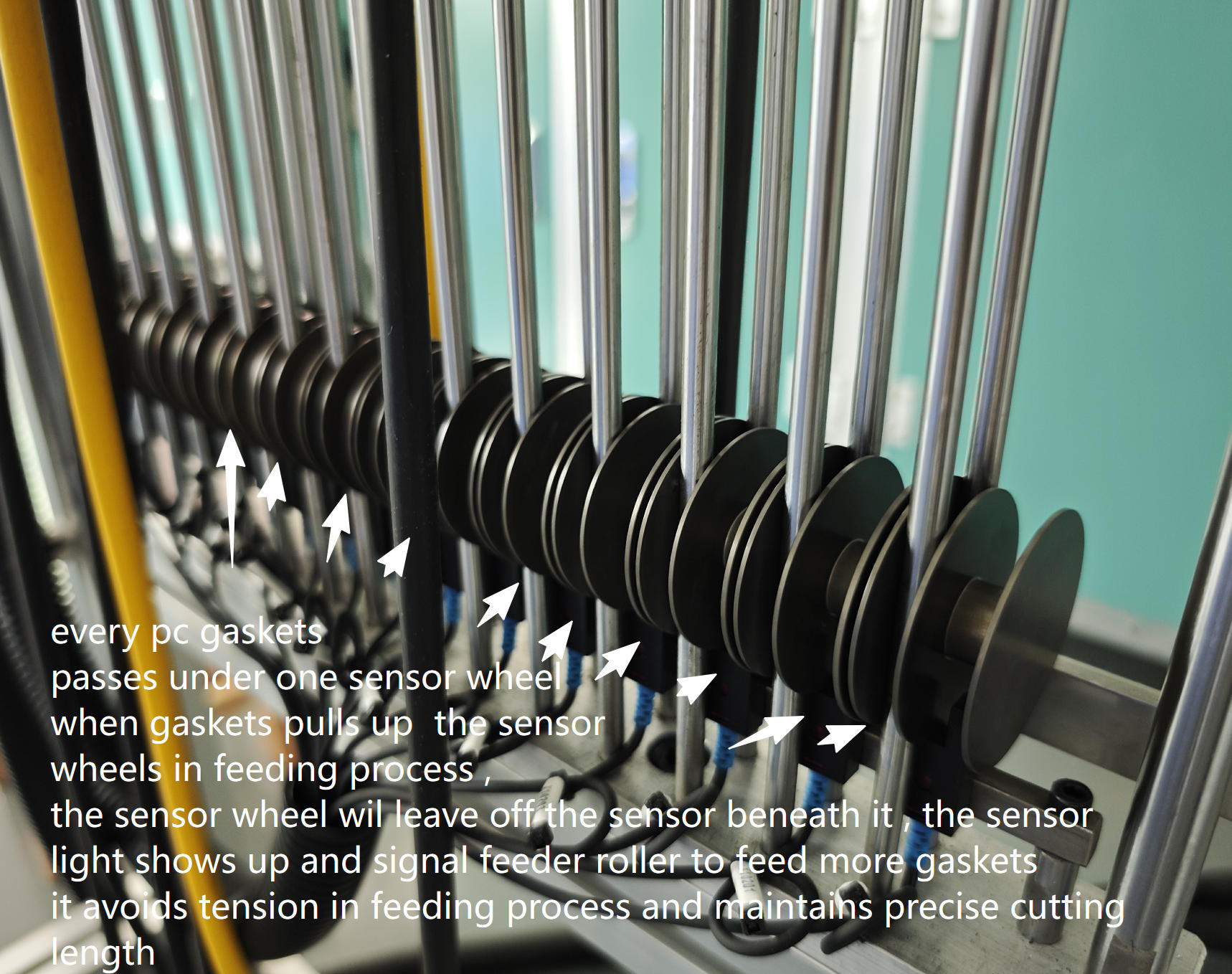

Every pcs gaskets passes under one sensor wheel , when gaskets pulls up the sensor wheels in feeding process , the sensor wheel will leave off the sensor beneath it , the sensor light shows up and signal feed roller to feed more

gaskets , it avoids tension in feeding process and maintains precise cutting length .

2, Strong supported cutting unit ensuring 15 pcs gaskets to be cut in straight cross section finish

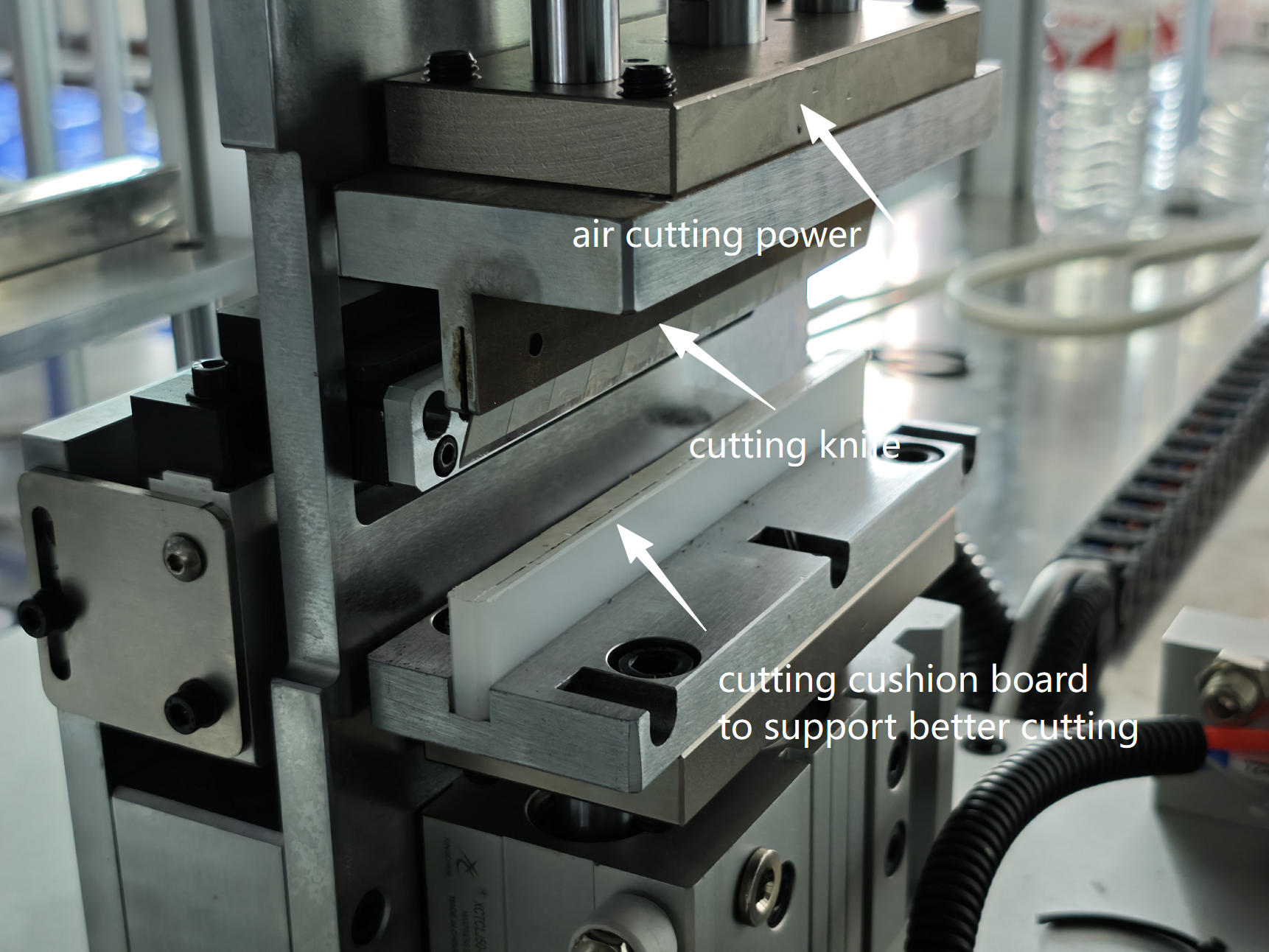

 This Foam rubber o ring gaskets fully automatic cutting and splicing machine  applies with  strong backed supportive board  so that the knife would cut straightly down  without bending back and ensures straight and clean cutting edge .  the rails inside the knife had been upgraded to ensure longer life span .

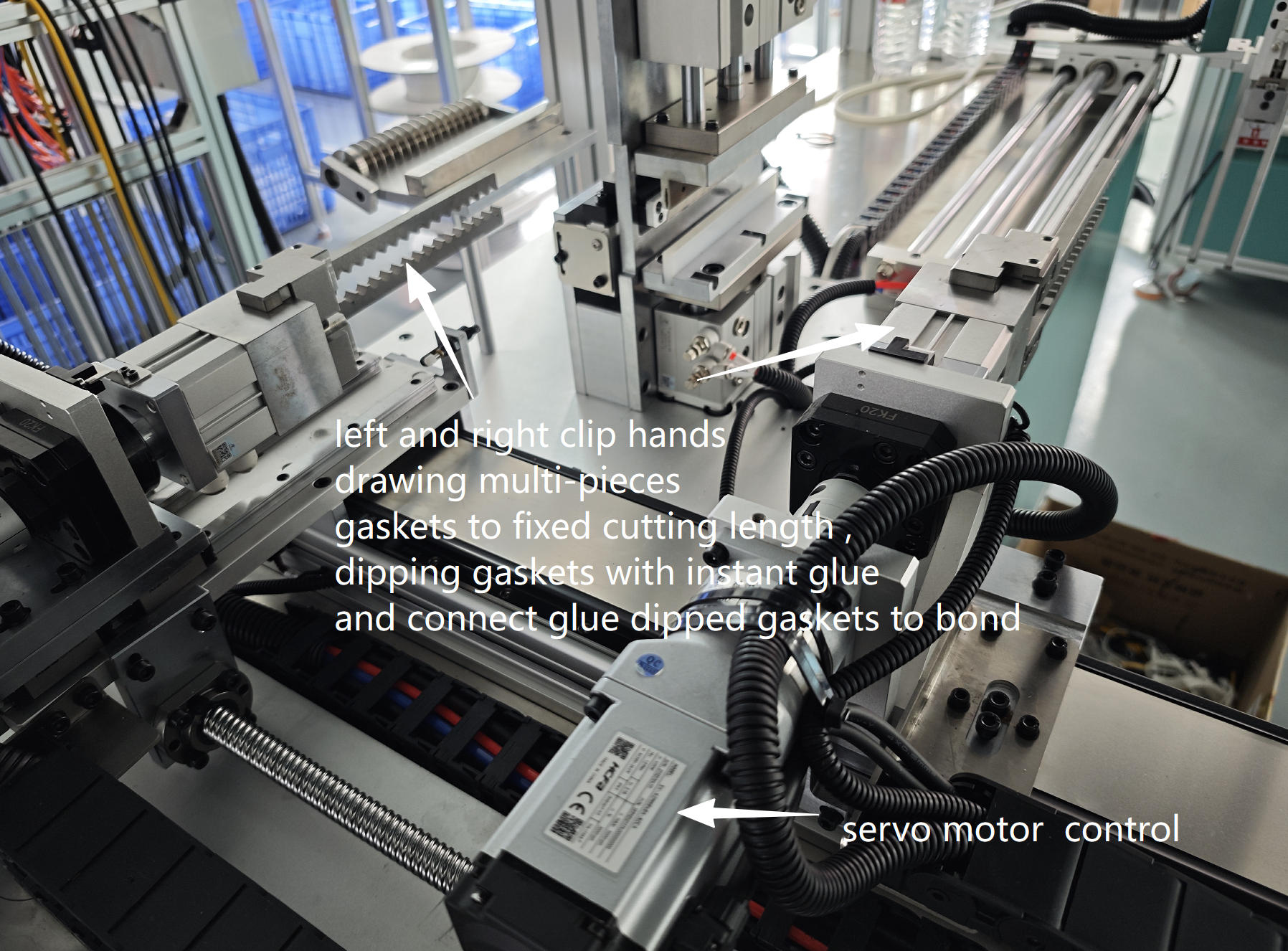

3,Left and right clip hands ,  the right clip will draw 15pcs sponge rubber cords to fixed cutting length and knife cut gaskets to length , the right clip hand dips gaskets against the glue dipping boards with instant glue  and the left and right clip hand will connect glue-dipped gaskets ends to form a good after glue gets cured fastly

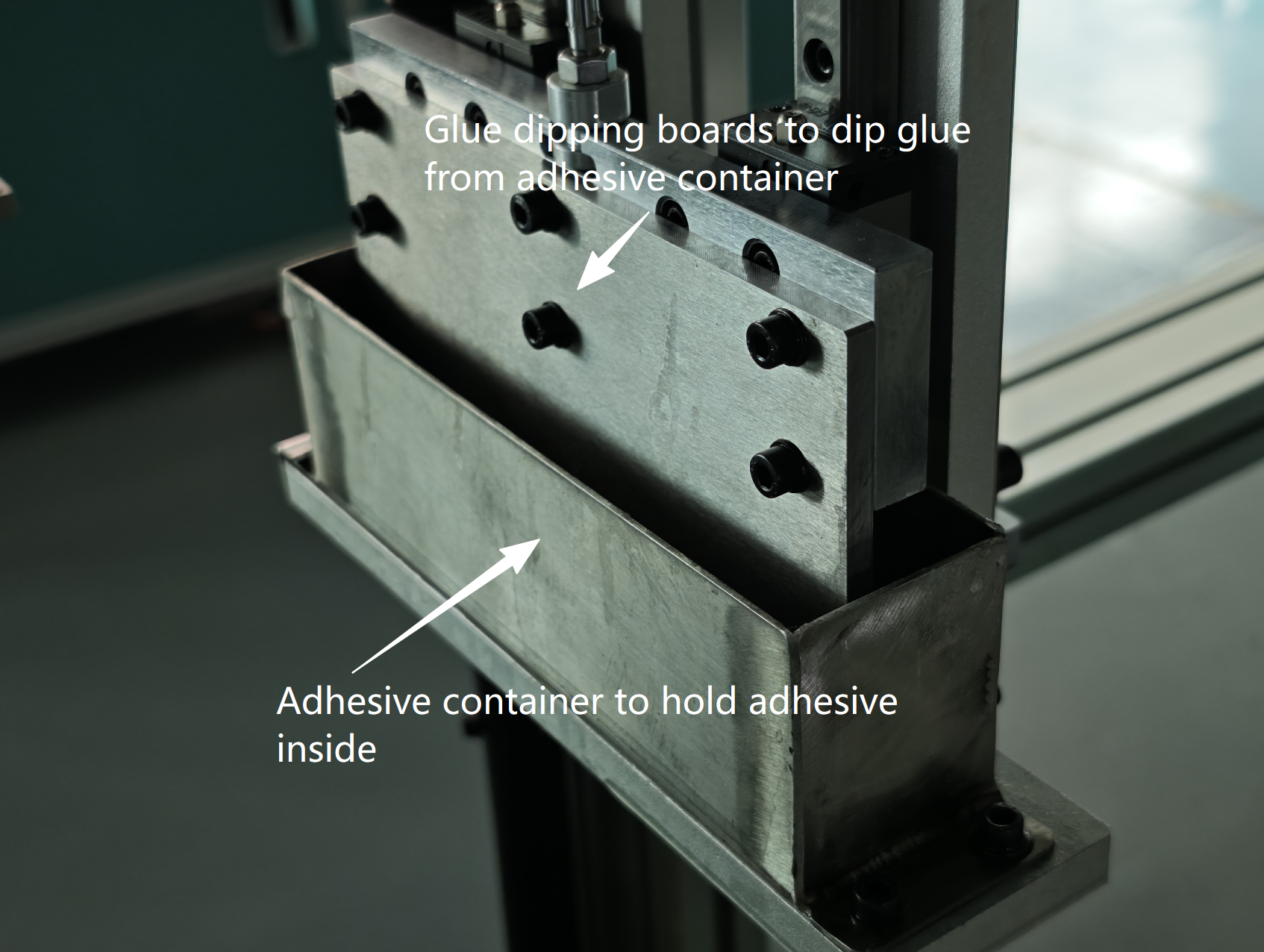

4,Glue dipping unit ensuring even distribution of glue on the gaskets ends without adhesive residue on the joint

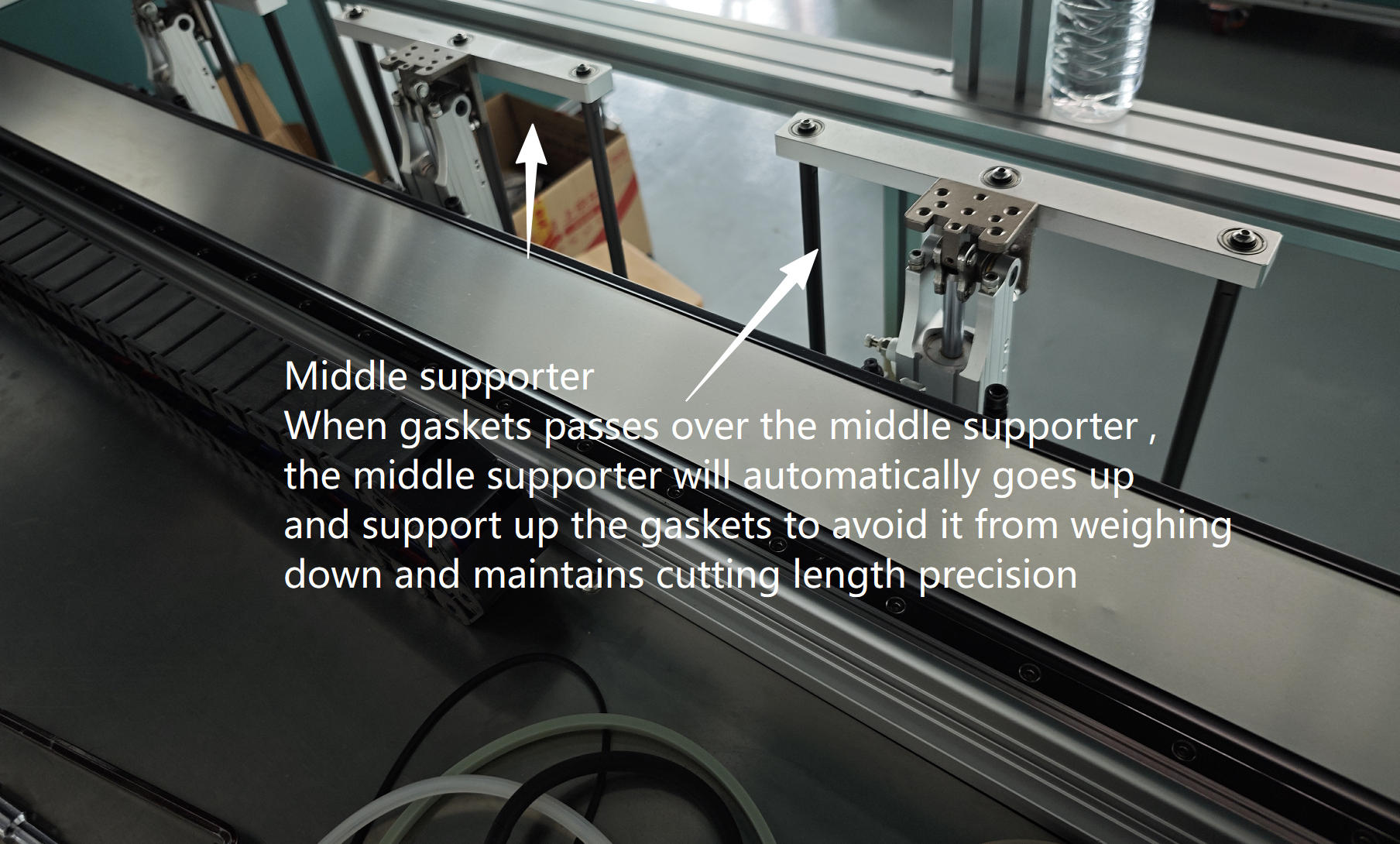

5,Middle suppprter .  when gsakes passes over the middler supporter , the middle suporter will automatically goes up and support up the gaskets to avoid it from weighing down and maintains cutting length length precision .

6,  Isolated button for easy control of the machine ,  An isolated control button is provided for manual machine adjustment. When this button is pressed, the machine completes one full operating cycle and then automatically stops. This allows operators to safely open the safety door and access the internal components for manual adjustments.

7,Noise reduction mechanism

A noise suppressor is installed on the feeding system, allowing the machine to run quietly with very low noise levels.

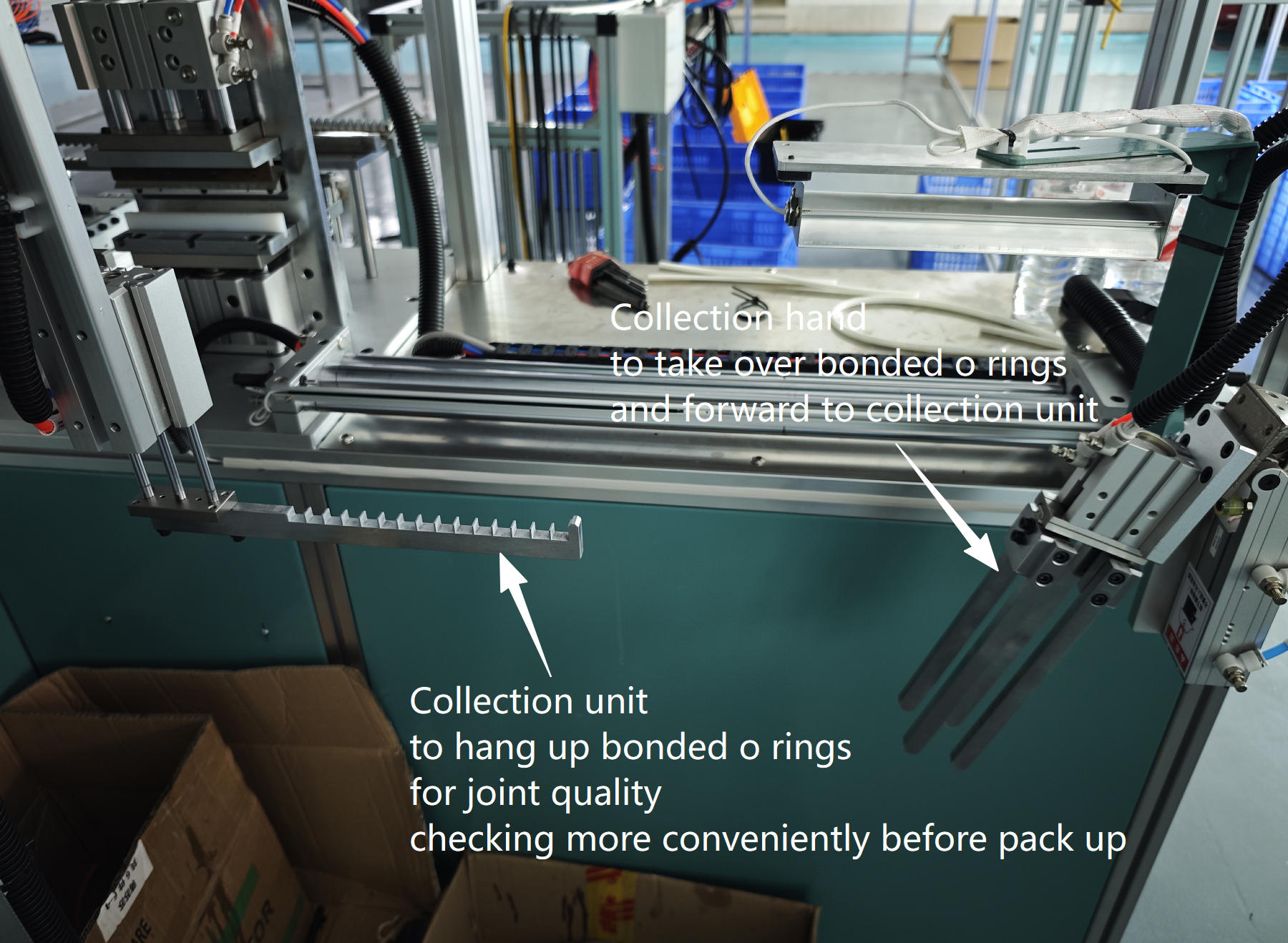

8,Collection unit  to save labour to collect bonded o rings , the collection hand will take over bonded o rings from the two clip hands and foward to collection bar for workers to further check joint quality on the joint again before dropping to collection baskets

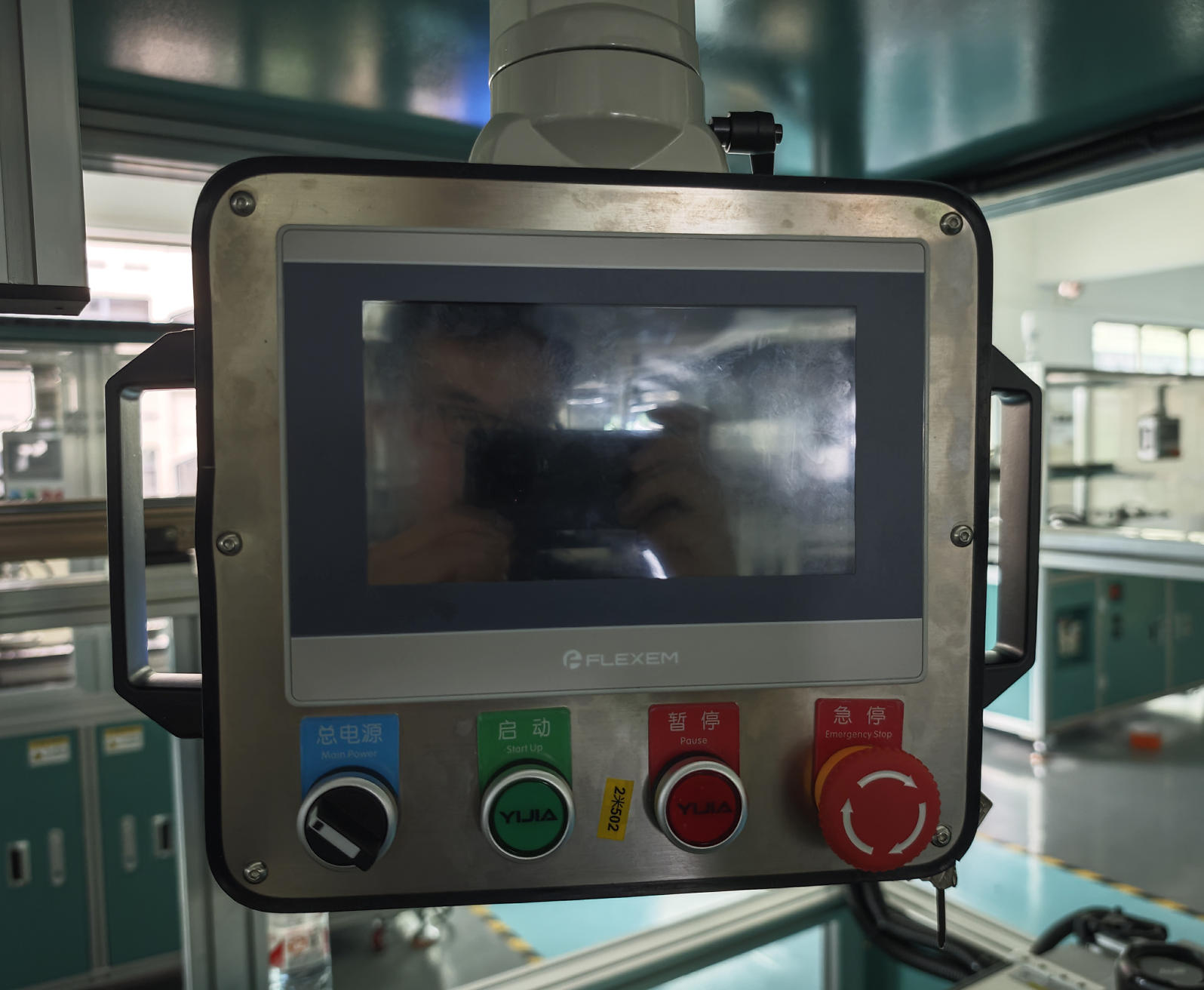

9,PLC Touch screen , this  automatic epdm O-ring cutting & bonding machine applieds with PLC touch screen  which will be easy to operate ,customer can set cutting quantity , different cutting length , glue bonding time

and dipping glue times , glue flowing down time(control glue adhesive residue)  etc for making perfect bonded o rings .

10. Upgraded soft ware programm

100 product formulas

The system supports up to 100 product formulas. Each formula stores all key production parameters for a specific type of silicone rubber gasket — including cutting length, heat-curing time, length compensation, glue dipping time, and left/right clip hand settings. With one-click retrieval, operators can instantly recall previous production setups without manually re-entering parameters

Auto calculation of cutting length compensation value (when you set certain length, the actual cutting length will be the same)

We can input 20 auto calculation of cutting length compesation value formulas created by ourselves based on the property of the gaskets material and download the formula for use with one key download . with this formula created , the actual cutting length will be same as the as the setting length .

Pack up amount and pack up time setting

Both the pack-up quantity and pack-up interval time can be set directly on the machine. Users can specify the desired number of bonded O-rings per batch. Once the machine reaches that preset quantity, it automatically pauses for a defined duration—referred to as the “packaging time.” This pause duration can also be adjusted on the machine to allow operators sufficient time for manual packing.

11 , Safety measures applied for concening worker safety to use the machine

Full transparent PC window

The upgraded ES-060 applies with full transparent PC window to allow workers to see clearly what happens inside without any blank spots ,if any malfunction.

We can save the situation in time by either pressing emergency button in front

Or we can press emergency button from the back

Fully enclosed safety door (For safety purpose)- touch screen placed outside the machine, the touch screen is placed outside the machine ,so workers don’t have to  reach inside the machine for operating for safety concern .

The safety door had sensors , when safety door accidently opens by workers , the machine will stop itself immediately for safety protection

Front View

Side View

Side view

【Warranty 】

 As a sponge rubber O-ring fully automatic cutting and splicing machine  supplier , all the spare parts of the  ES-060-1  machine will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping ,G.W after packing wooden case is 1T, Wooden case dimension is (L2850+W2150+H2150MM)
