Silicone and rubber gaskets separation and collection machine ES-A001

Silicone and rubber gaskets separation and collection machine  ES-A001

This is a professional silicone rubber extrusion gaskets separation and collection machine ES-A001 which is designed to efficiently separate and collect extruded silicone rubber gaskets for post-processing convenience by the fully automatic silicone and rubber o ring fully automatic cutting and bonding machine . It is a specialized silicone rubber gasket handling equipment focusing on gasket separation and collection of multi extruded gaskets from one silicone or rubber extruder machine .

Youtube video

The machine’s core function is to separate and collect 6 pieces of silicone rubber gaskets into baskets simultaneously. As a professional silicone rubber gasket separationequipment, its working efficiency ranges from 1000 to 2000 meters per hour, and the speed is adjustable according to the extruder’s speed, ensuring flexible adaptation todifferent production needs of silicone rubber gasket processing.

It is equipped with high-quality main components: Hechuan servo motor, Xinjie PLC touch screen, guaranteeing stable and reliable operation of the silicone rubber extrusion gaskets separation and collection machine. The machine is compatible with silicone rubber gaskets of 2mm to 15mm in diameter, with an XY axis maximum setting range of 600*430mm and a maximum layer height setting range of 350mm, meeting diverse size requirements of silicone rubber gasket production.

In terms of specifications, it uses 220V voltage and 2KW power, with a net weight of 350-400KG (estimated) and overall dimensions of 2850*1300*1300mm.

Key advantages include adjustable collection speed: after the extruder extrudes multiple silicone rubber gaskets into one basket, the silicone rubber gasket separation machine separates and collects them into 6 baskets. The collected silicone rubber gaskets are neat and untangled, facilitating subsequent processing by fully automatic silicone rubber O-ring cutting and bonding machines. Additionally, the collection range and layer number can be freely set for silicone rubber gasket processing.

The silicone rubber extrusion gaskets separation and collection machine also has user-friendly designs: 6 feeding units move left and right (Y direction) and the bottom board moves back and forth (X direction) to ensure orderly layer-by-layer collection of silicone rubber gaskets. It is equipped with a protective cover for transport chains to ensureworker safety and a gasket holder for smoother feeding of silicone rubber gaskets. The PLC touch screen supports Chinese, English and a third customized language (e.g.,Turkish, Spanish) as per customer needs, allowing free setting of box stack layers and collection ranges for silicone rubber gasket separation and collection which is idealsolution and labour saving for workers to separate huge piles of  multi extruded  pieces gaskets from one extruder machine and collect in good order  order

【Technical Data】

Product Name: Silicone Rubber Extrusion Gaskets Separation And Collection Machine

Model: ES-A001

Function:  Separate and collect 6 pcs silicone and rubber gaskets into baskets simultaneously

Working Efficiency: 1000-2000 meters/hour, adjustable working speed

Main Components: Servo motor (Hechuan), PLC touch screen (Xinjie).

Maximum Separation Quantity: Separating and collecting 6 pcs gaskets into baskets simultaneously

Gaskets Diameter: 2mm - 15mm

Voltage: 220V

Machine Power: 2KW

Maximum XY Axis Setting Range: 600*430mm

Maximum Layer Height Setting Range: 350mm

Machine Net Weight: 350-400KG (estimated)

Machine

Dimensions: 2850*1300*1300mm

【Product Advantage 】

1. Simultaneous separate of 6 pieces extruded gaskets ; collection range and number of collection layers can be freely set by this Rubber o-ring gasket sorting collection machine

2. Adjustable collection speed: After the extruder extrudes multiple sealing gaskets into one basket, the gaskets separation and collection machine can collects the extruded sealing gaskets into 6 baskets.

3,The collected gaskets are collected in good form which is good for post processing by the  fully automatic silicone and rubber o ring full automatic cutting and bonding machine

【Product Details】

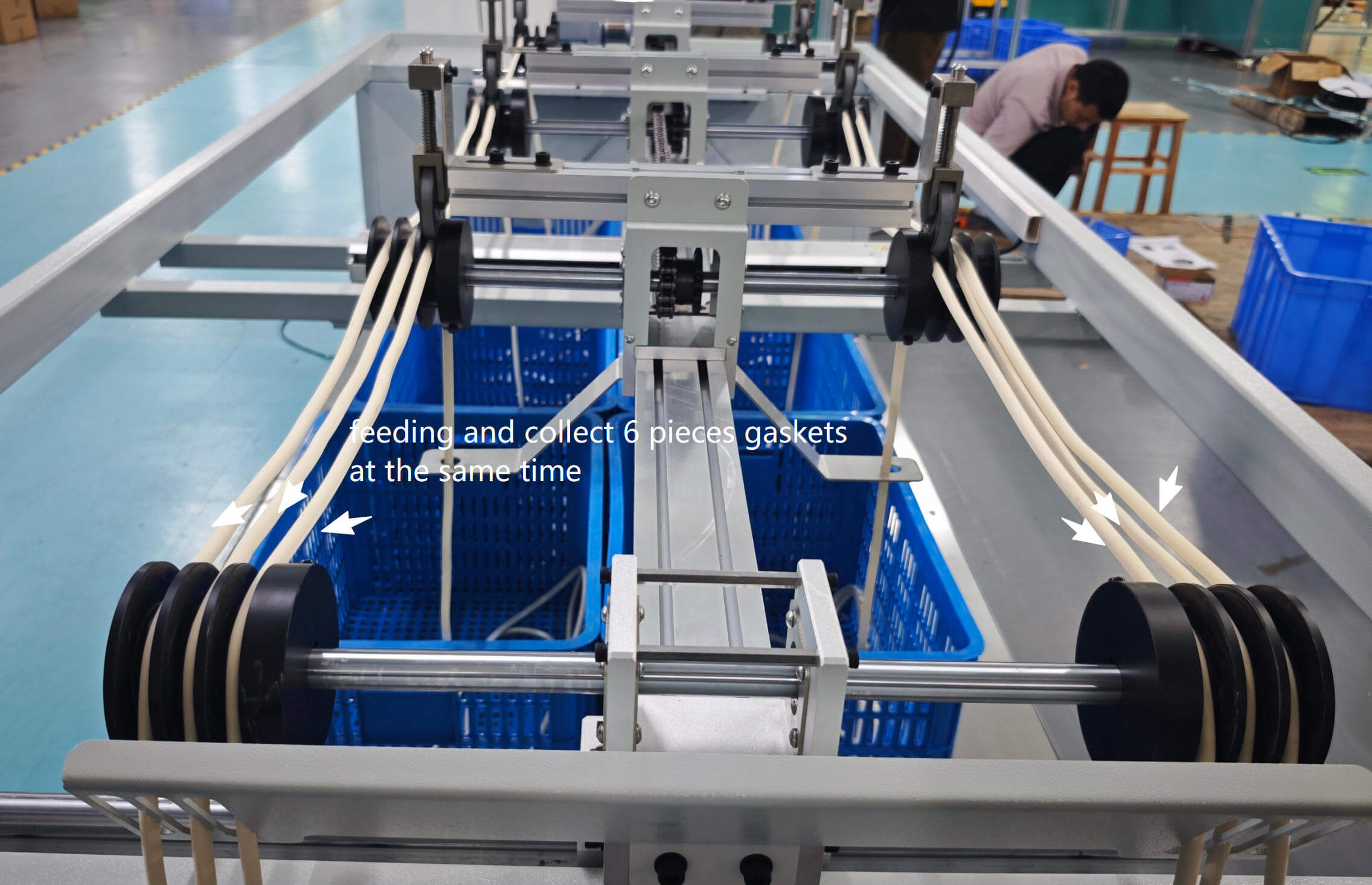

1,  This Auto separation machine for silicone seals gaskets  can feed and collect 6 pieces gaskets into the baskets at the same time

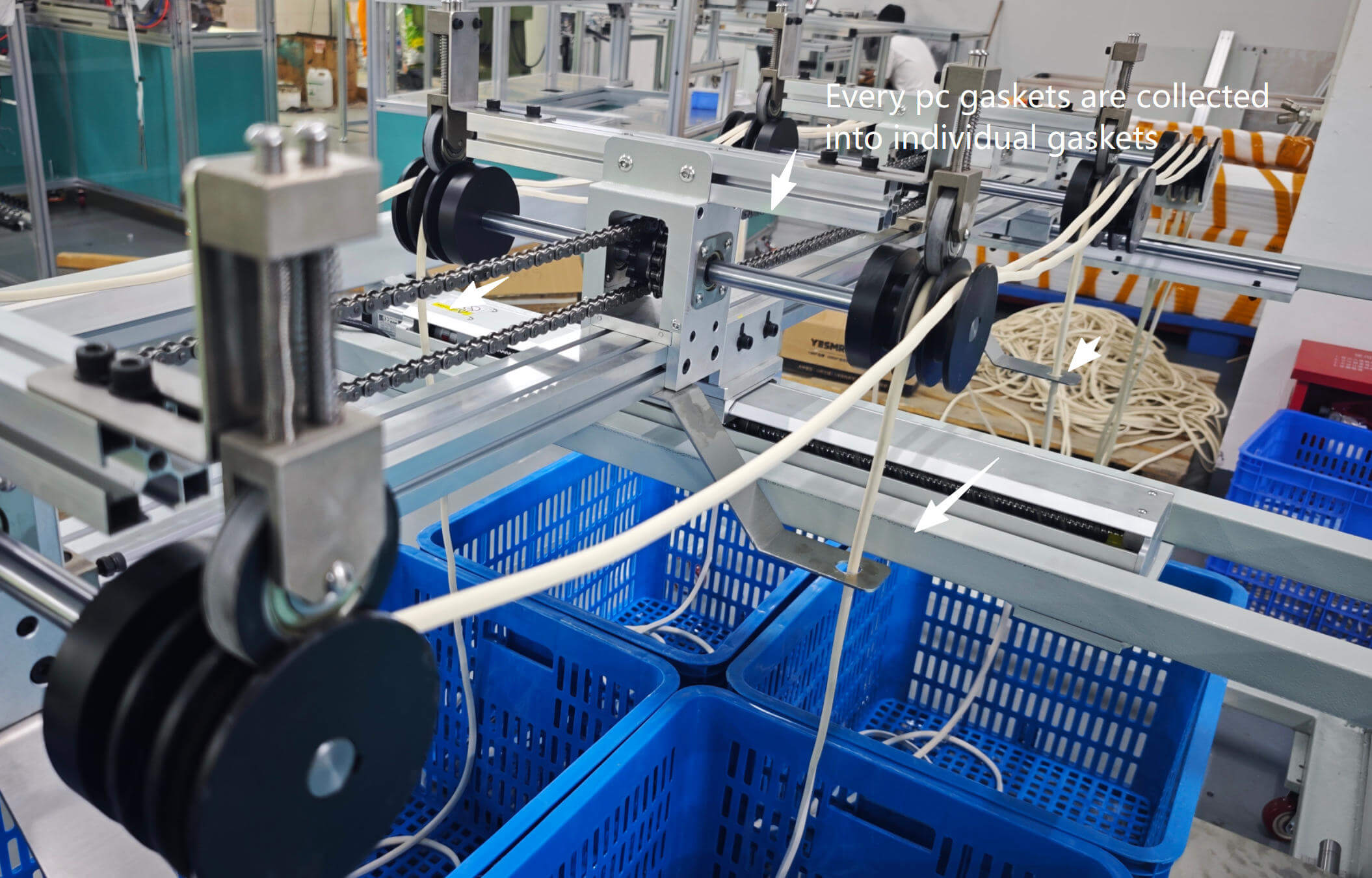

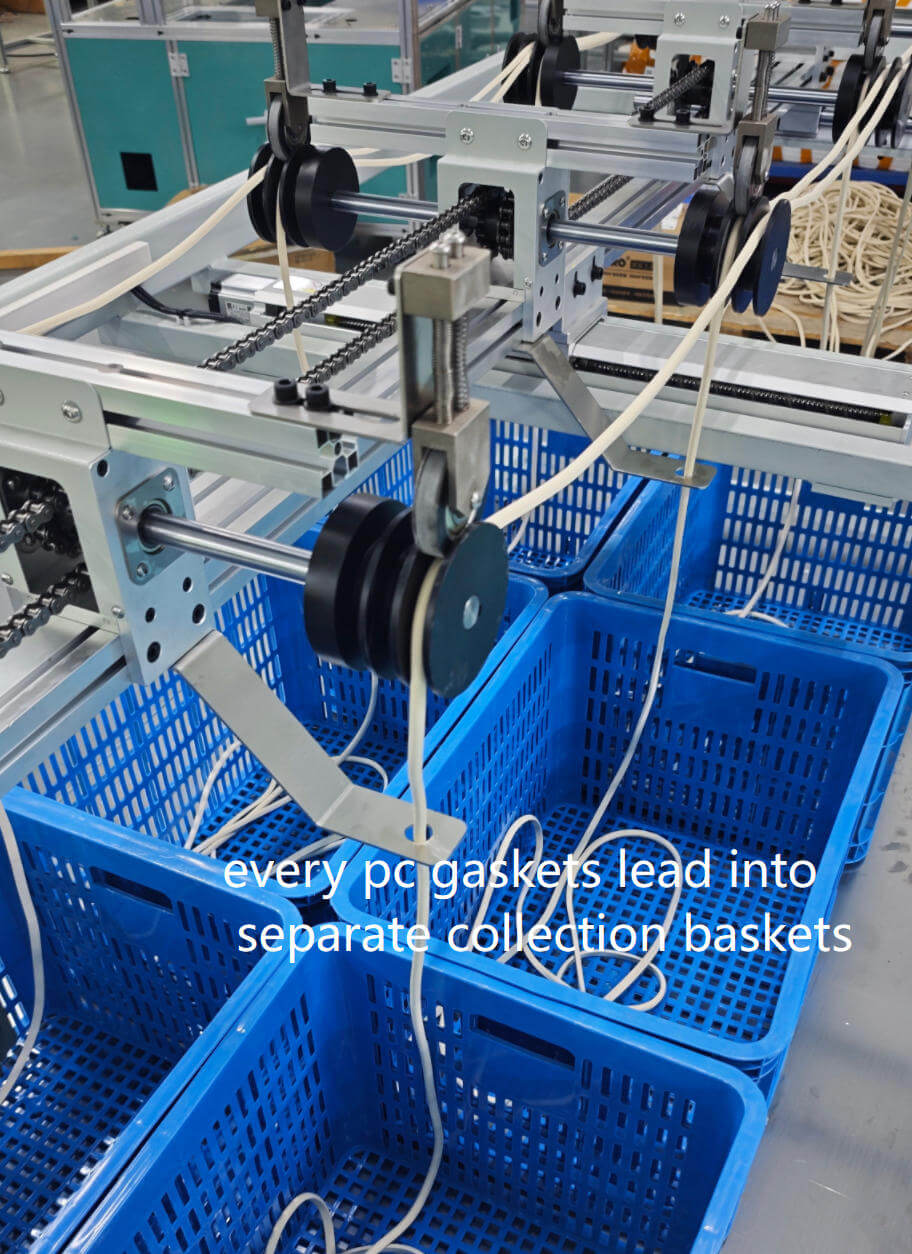

2, Every pc gaskets are led into separate collection baskets

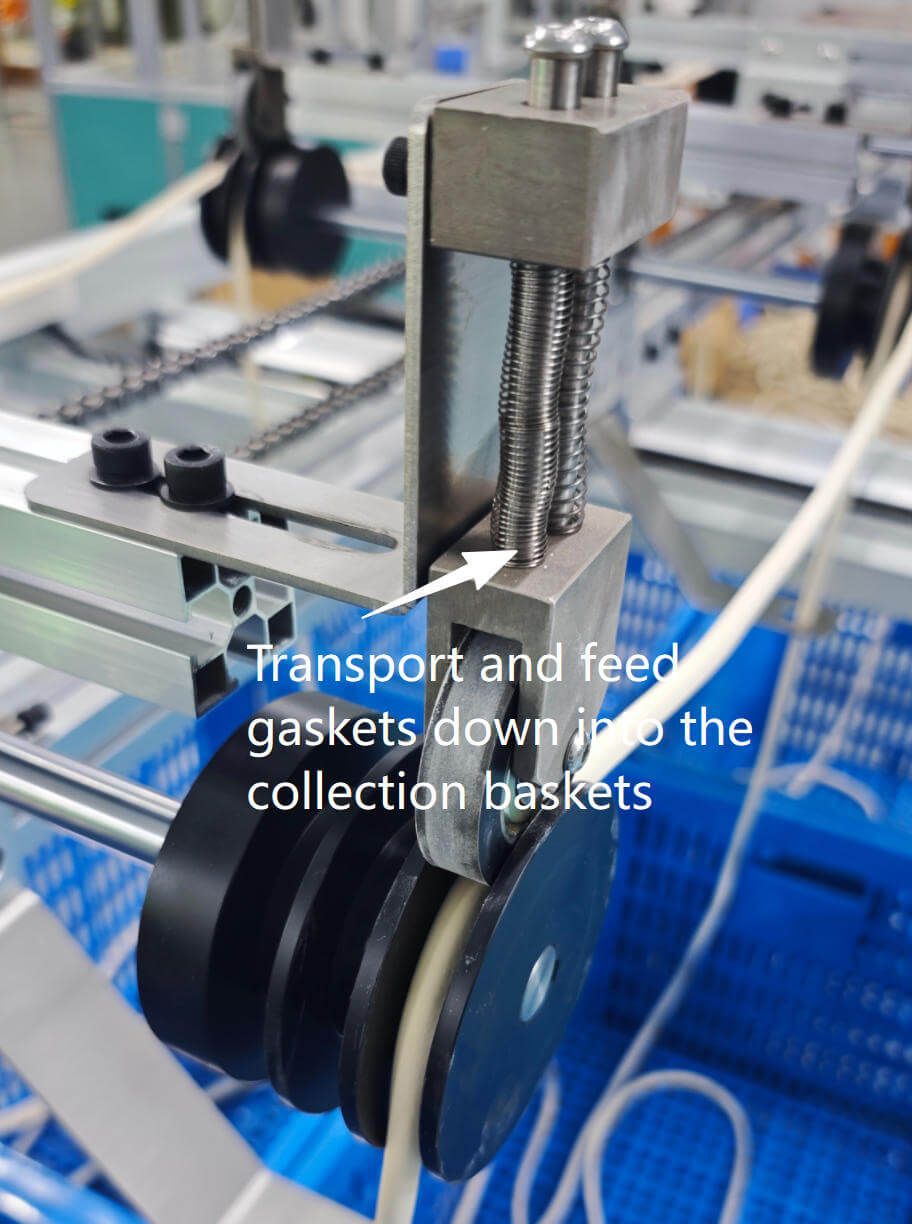

3,Six feeding units of the Silicone rubber gasket separating and collecting machine which  feeds 6 pcs gaskets and move left and right for gaskets to be collected in good order

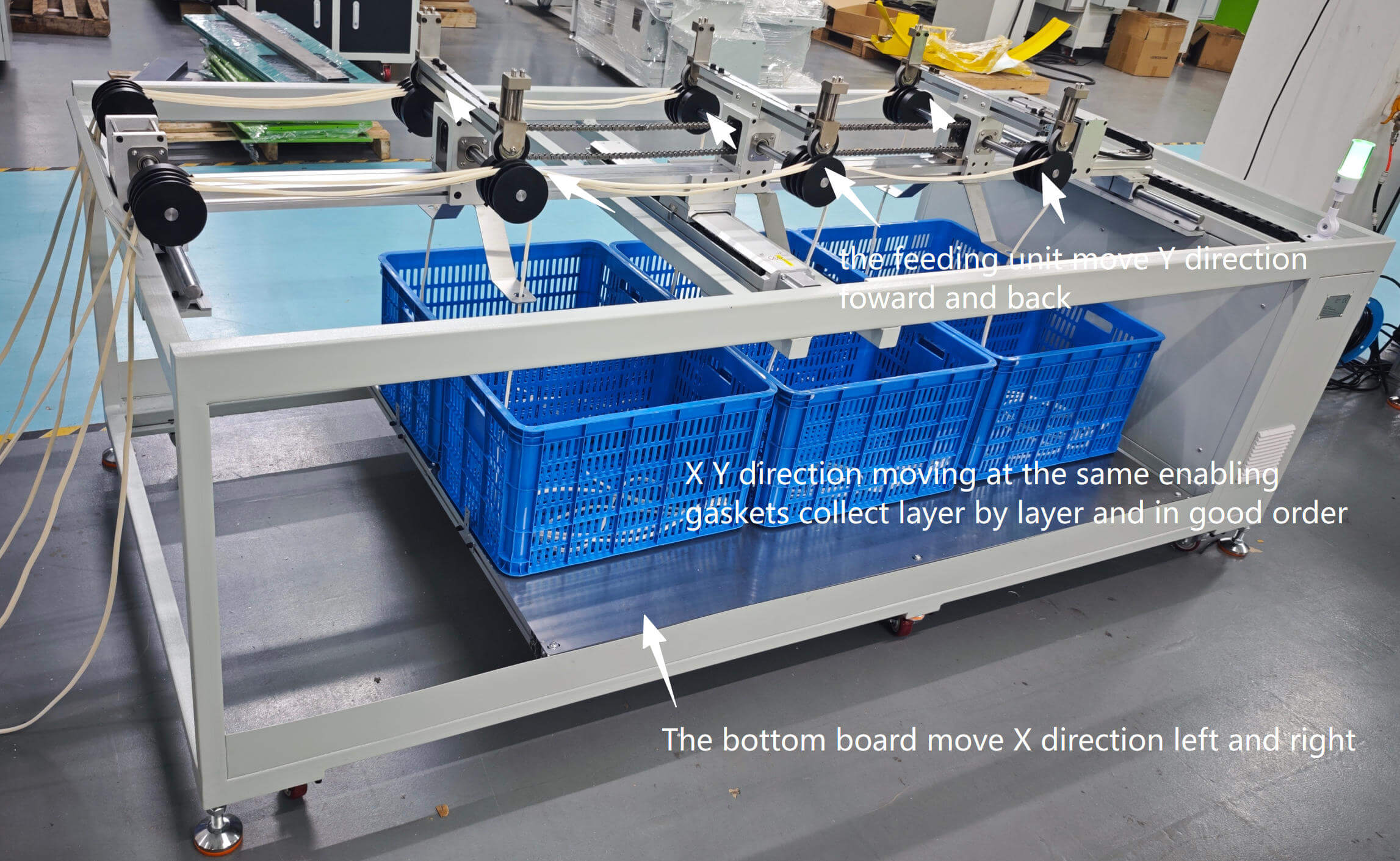

 The feeding units move Y direction foward and back , the bottom board move X direction left and right  , XY direction moving at the same time enabling gaskets to be collected layer by layer and in good order .

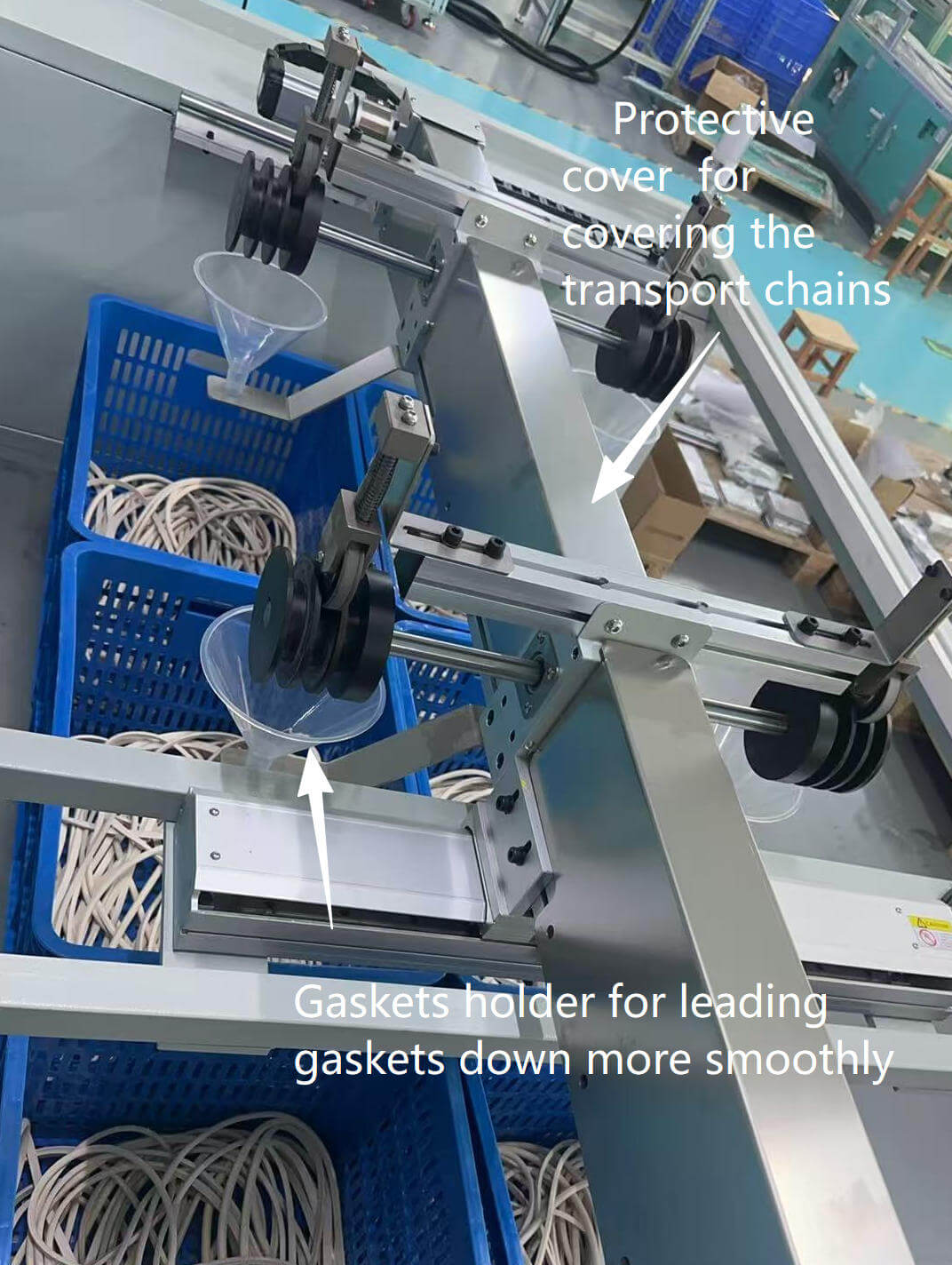

4, Proective cover for covering the transport chains for safety of workers , gaskets holder for leading gaskets down more smoothly

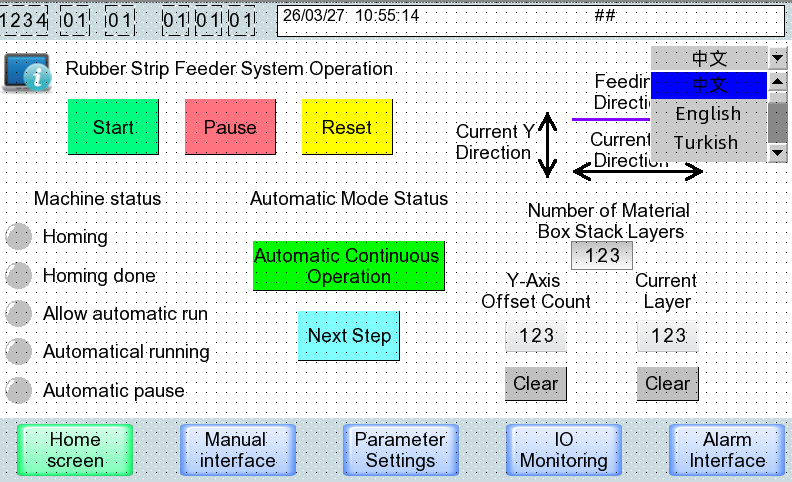

5, PLC touch screen , the Rubber gasket separation collection equipment  uses Chinese , English and a third customised language like turkish , spanish , polish etc based on customer requirement , customer can set the box stack layers and ranges of collection freely .

【Product View 】

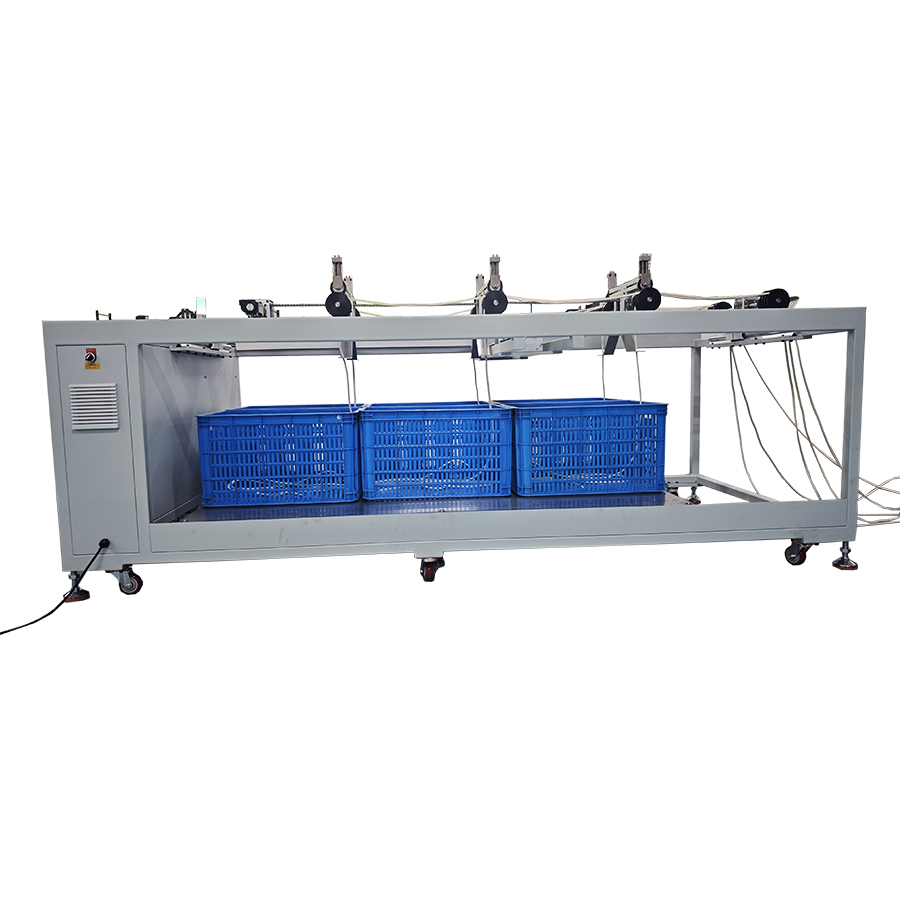

Front view

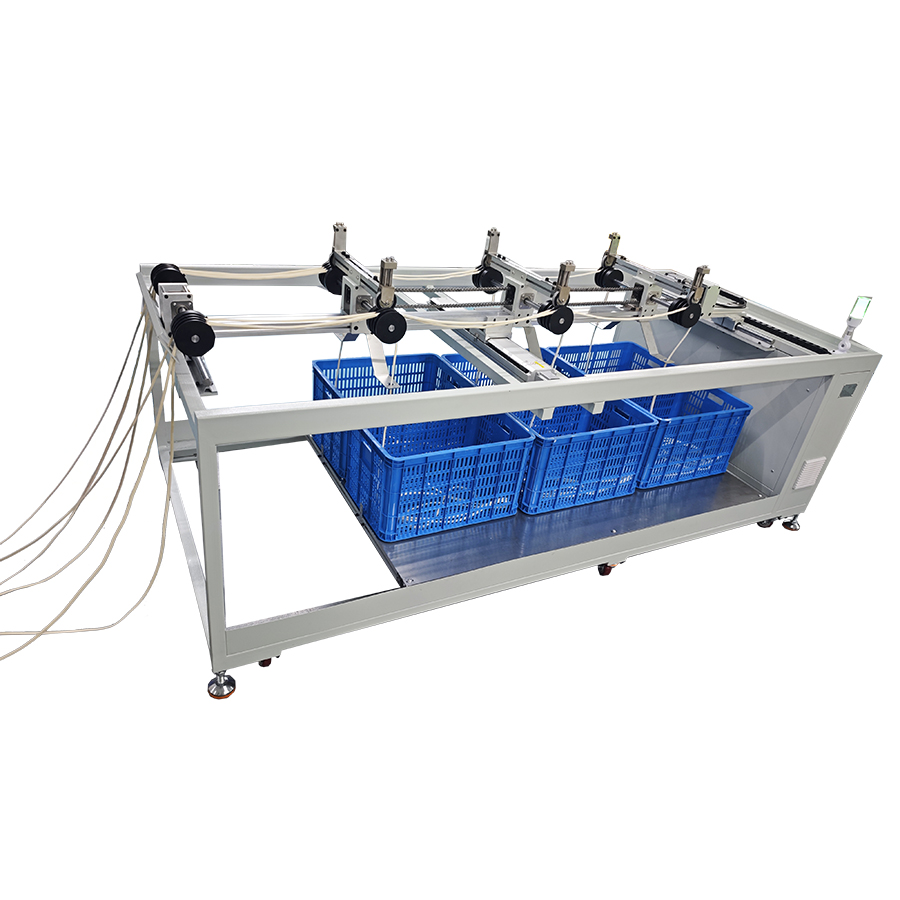

Side view

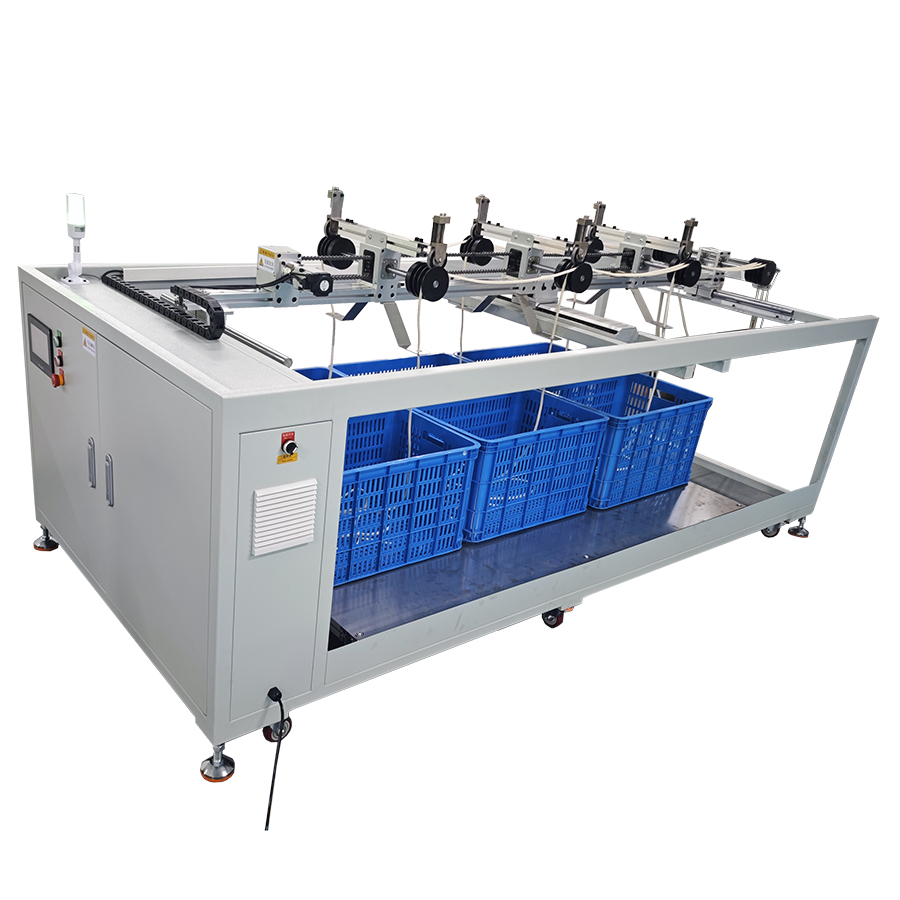

Side view

Back view

【Warranty 】

 As a Silicone and rubber gaskets separation and collection machine    ES-A001 supplier , all the spare parts of the  ES-A001 machine will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping.
