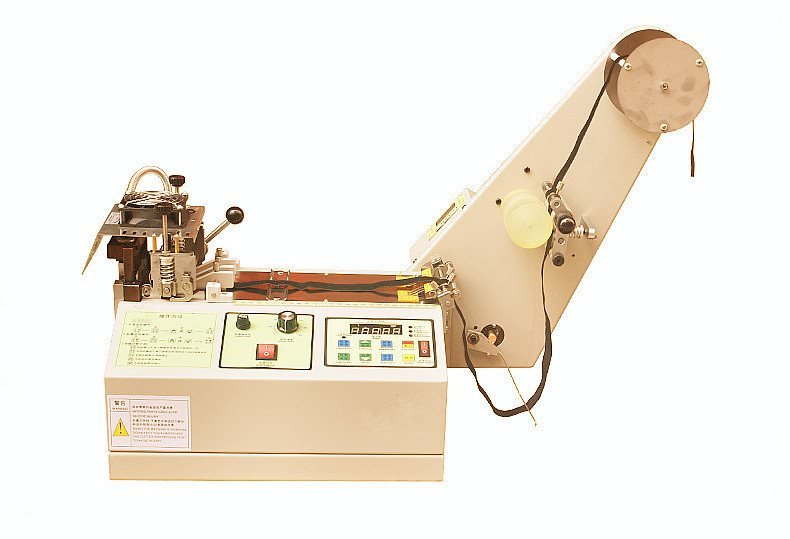

Elastic tape cutting machine of precise cut length ES-015

The elastic tape cutting machine of precise cutting length  ES-015

【Product Description】

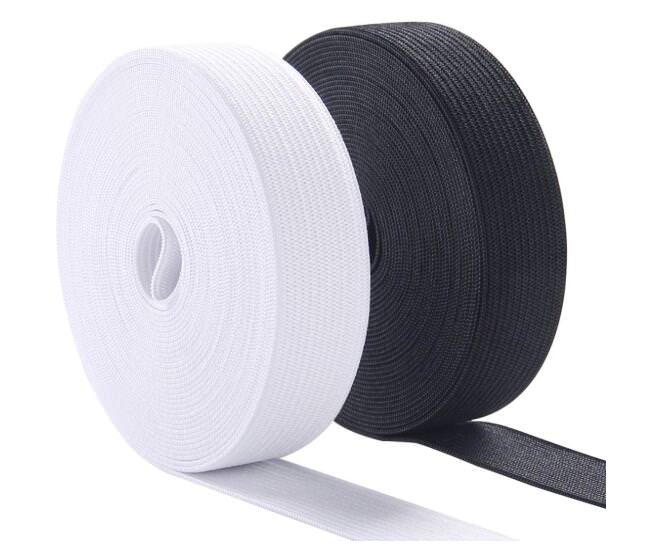

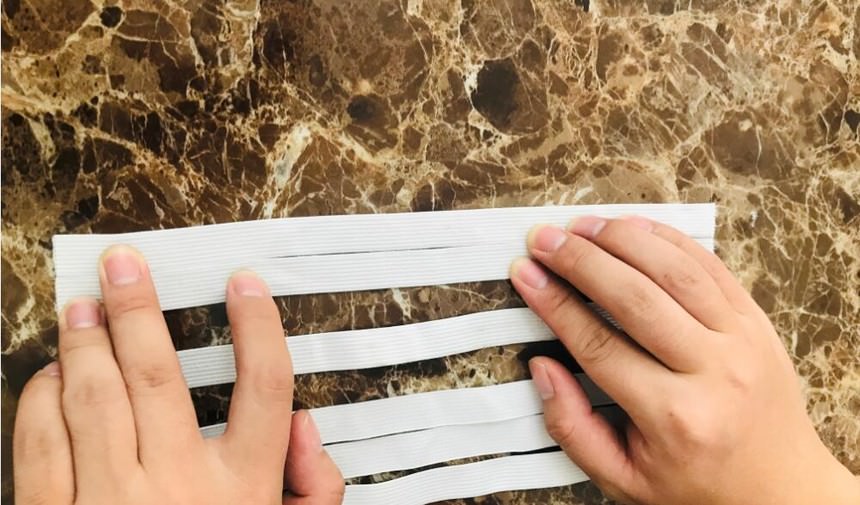

The  elastic tape cutting machine of precise cutting length ES-015 is made for cutting woven elastic ,knitted elastic , braided elastics,  into precise lengths with the help of a feeder (material sending motor)  from the back which gurantees no back pulling  force of the elastic bands which would cause cutting length tolerance. Meanwhile , with the hot knife cutting , the elastic tape cutting edges are heated to the melting point and get cooled shortly , this result in no fraying  edges . Customers can get a precise length cutted elastic tapes  with perfect smooth cutting edge treatment .  it is also suitable to cut webbings and other narrow fabrics as well .

The maximum hot cutting temperature of the elastic tape cutter can reach 350 ℃  , which gurantees high heat sealing efficiency  .

Meanwhile , the elastic automatic cutting machine is care free which it will stop working when running out of cutting material.  the cutting speed of the elastic tape exact length cutter is 110 pieces/minute based on cutting elastic cutting length 50 mm . the cutting speed can be adjusted as well . high productivity of elastic cutting is ensured from this machine .

【Technical Data】

Brand : ESMAI                                                                                        Knife Type : Hot Knife with heating device

Model No.: ES-015                                                                                 Voltage: 110V/220V

Usage: Cutting Elastic band precisely                                                    Power:0.45KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)        Weight: 23/28kg

Size (L*W*H): 560*415*410(mm)                                                           Cutting width:1-90mm

Cutting Length: 1-99999mm                                                                 Blade Maximum heating temperature: 350 ℃

【Product Advantage】

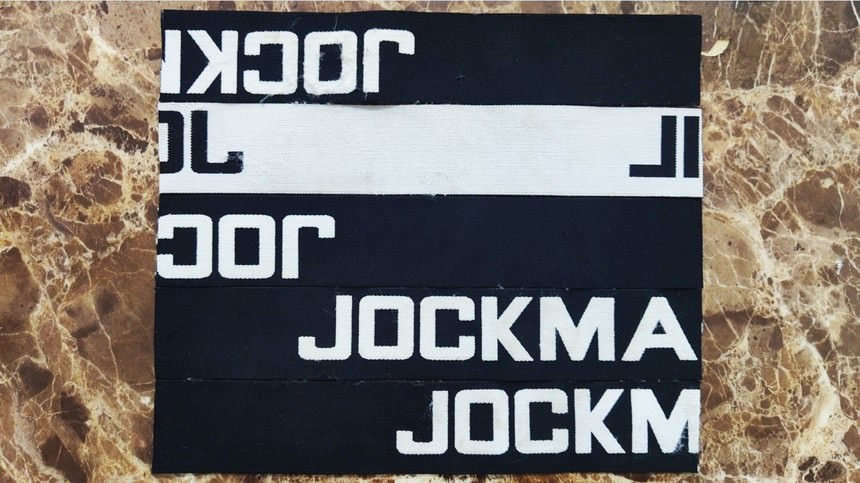

1, Precise Length  Cutting of elastic tapes   ,the feeder from behind can sense any tight pulling from front

and release more cutting more material accordingly ,when the elastics is consistently kept in a loose satatus ,

the transport of elastic bands will be precise and result in precision cutting length

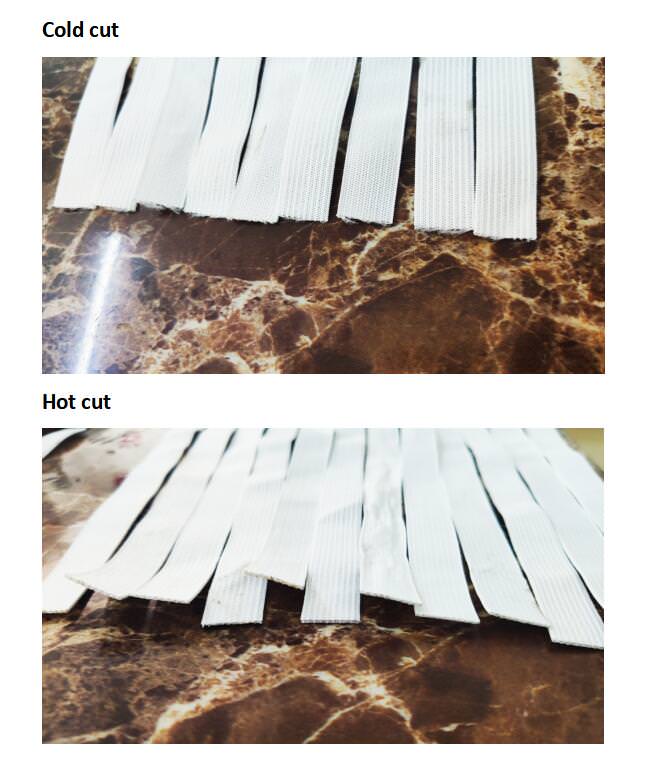

2, Hot knife cutting  which ensures no fraying  edges  ,the knife can reach 350 degrees at maximum ,

comparison as below photo.

3, Full automation Cutting ,Labour saving  , customer can set their  cutting length ,total cutting amount and the machine will do the rest and proceed to automatic cutting process .

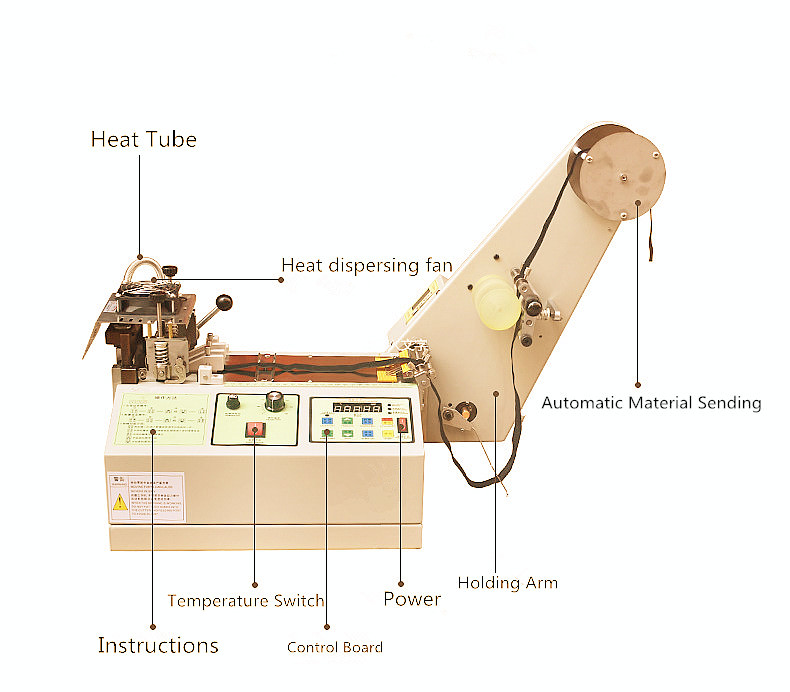

【Product Details】

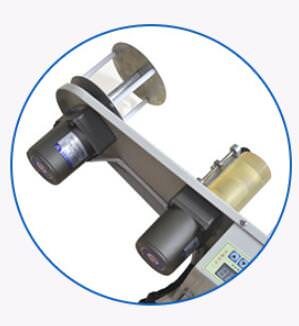

1,The feeder , the automatic material sending device

equipped to gurantee no pulling back of the elastic braided bands which result in precise length cutting .

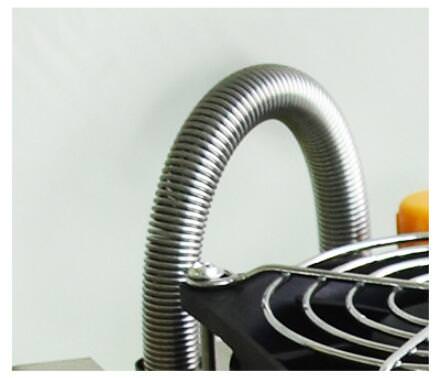

                                                                                                  2, Heat tube ensures fast heating and durable in use

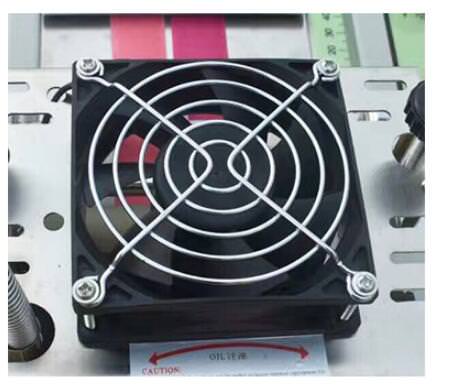

3, Heat dispersing fan

Multi heat dispersing fan which disperse heat quickly ,

maintaining long hour working of the machine and long life span

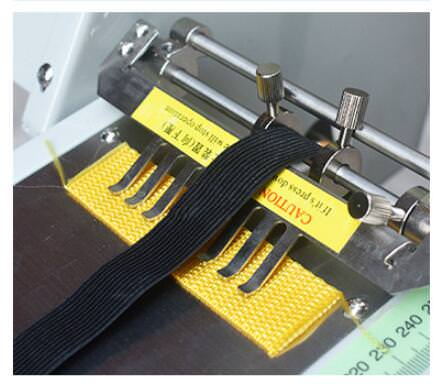

                                                                                                                  Directing clips

                                                                                                                 Avoid the cutting material from swinging and maker sure the stable transportation

                                                                                                                 of cutting material.  assisting the good quality cut of your material , labour saving

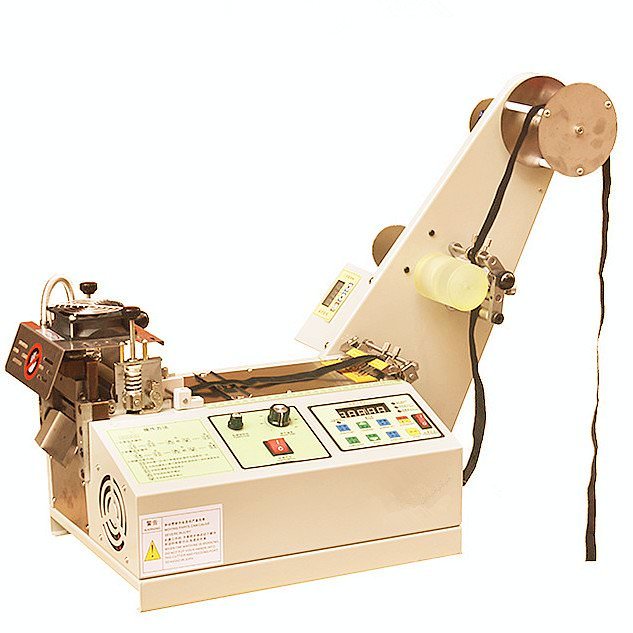

Front View

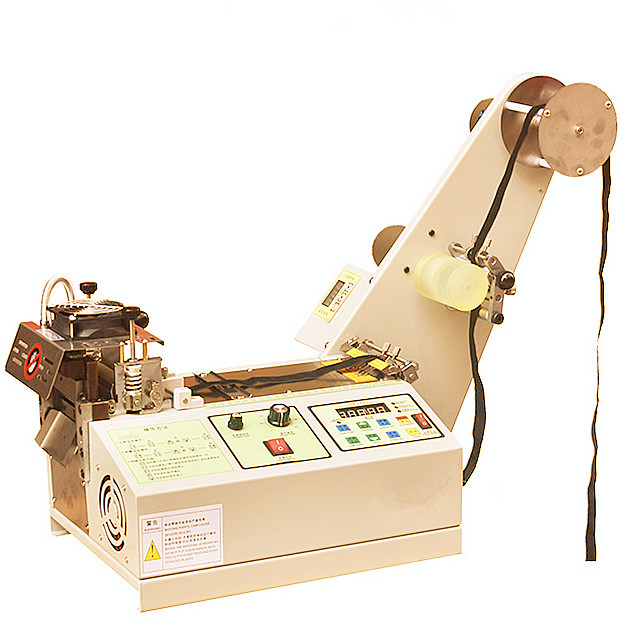

Side View

【Warranty】

All  the spare parts of the elastic tape cutting machine of precise cutting length ES- 015  except  the knife will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton, foam paddings inside the carton to ensure safe delivery of this elastic preicse length cutting machine overseas
