Webbing hole punch cutter machine ES-018

The Webbing hole punch cutter machine ES-018

【Product Description】

The webbing hole punch cutter machine ES-018 is made for automatically  punch the round holes and cut the narrow fabric material like webbings ,ribbons ,elastic tapes  and other kinds of fabric tapes  , The webbing hole punch cutting machine can self release the waste punched webbing material or other narrow fabric material out of the machine which save labor to clear it.

The hot cutting function of the webbing cutting machine with hole puncher features with no fraying edges  and seal the cutting edge and punched edge nicely . the maximum hot cutting temperature of the automatic webbing hole punch cutter reaches 350 ℃， the heat sealing efficiency will be high .

The Hole punching and cutting are done automatically at the same time  in the webbing cutter machine with hole puncher

Meanwhile , the punch mold can be customised to to punch precisely different OD mm of the holes with customised punching mold

The machine setting will be easy to operate ,it applies with touch screens where customer can set the cutting length ranges 1-99999mm  and total cutting amounts , hole punching amounts , customer can set up to 40 amount holes on the machine and the distance between every two holes and distance between holes and webbing cutting edges can all be set clearly on the machine .

The ribbon hole punch cutter had been equiped with multi fans in it which guarantees long working hours and prolong the life span of the machine .  the  webbing hole punch cutter machine will self stop working when running out of cutting material which made it requiring no baby sitting .

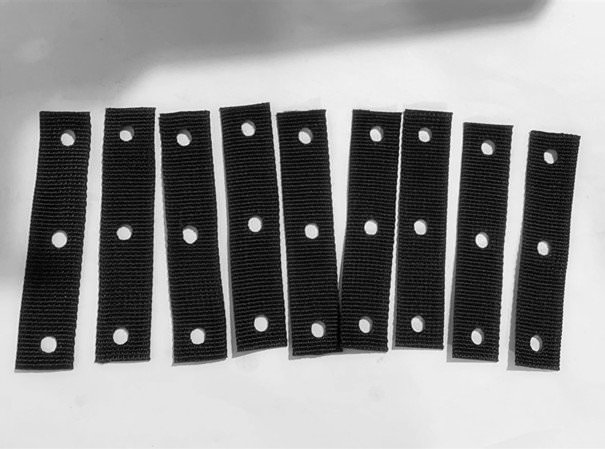

Sample webbing processed above photo

【Technical Data】

Brand : ESMAI                                                                                    Knife Type : Hot Knife with heating device

Model No.: ES-018                                                                            Voltage: 110V/220V

Usage: Hole punching  and cutting of  webbing                              Power:0.44KW

Punching hole amount : 1-40 holes to be punched                         Hole distance : Adjustable

Cutting Speed : 110 Times/Minute(based cutting length 50mm)    Weight: 28/32kg

Size (L*W*H): 560*415*410(mm)                                                       Cutting width:1-100mm

Cutting Length: 1-99999mm                                                             Knife &mold maximum heating temperature: 350 ℃

【Product Advantage】

1, Round Hole diameter sizes  can be customised on the punching mold ,every distance between the holes and hole distance

from webbing cutting edge  can be set on the machine and up to 40 amounts holes can be set on the machine

2, Nice cutting edge with Hot knife and hot punching mold to heat seal the cutting edge and punching hole edge .

3, Self release waste punched webbing by this machine .

4, Full automation in hole punching and cutting of webbing material .

【Product Details】

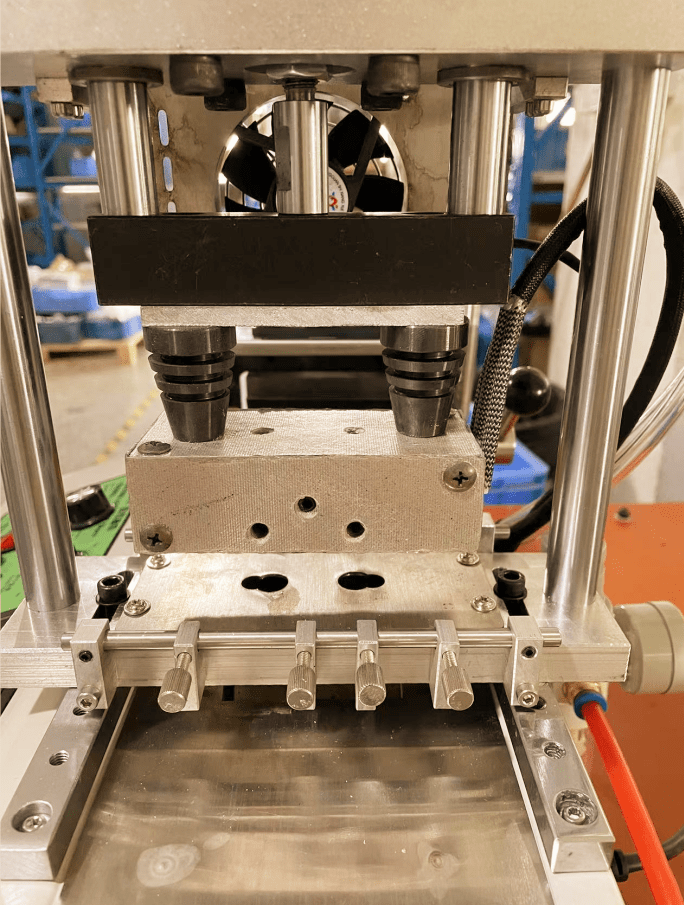

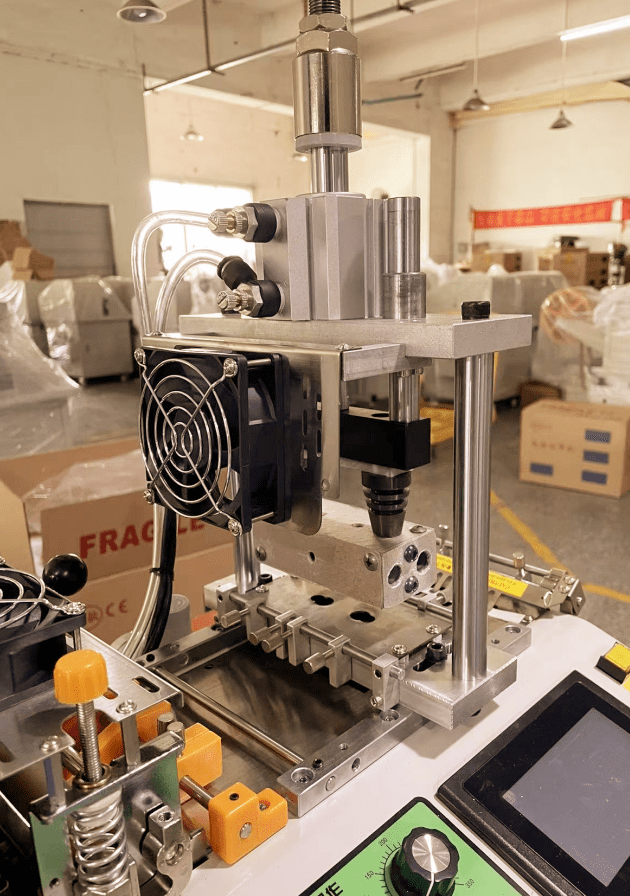

1, Customised hole punching mold

The hole punching mold is to be customised based on the

diameters of holes that customer want to punch on the their cutting material

 2, Cutting material fixtures

The metal fixtures can adjust the position of the webbing to determine the hole punching location on the webbing

and also can separate between the webbings and  ensures more than two webbings to processed at the same time .

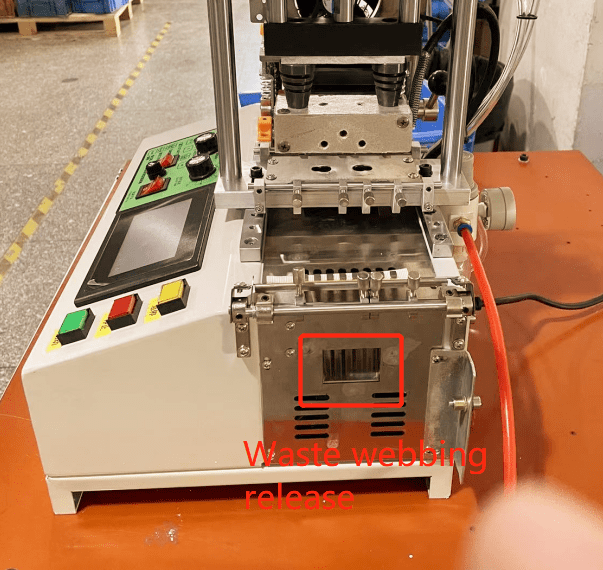

3, Waster webbing material clearance

The wasted punched webbing material will self release from the outlets which saves human labor to

clear waste material themselves

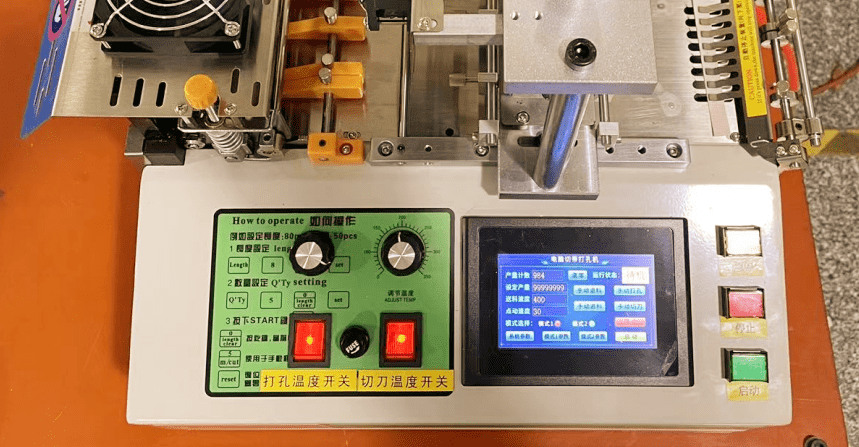

4, English &Chinese touch screen

The touch screen can switch between english and chinese language , the cutting length , webbing hole amounts

and hole distances can all be set clearly on the touch screen ,easy to operate

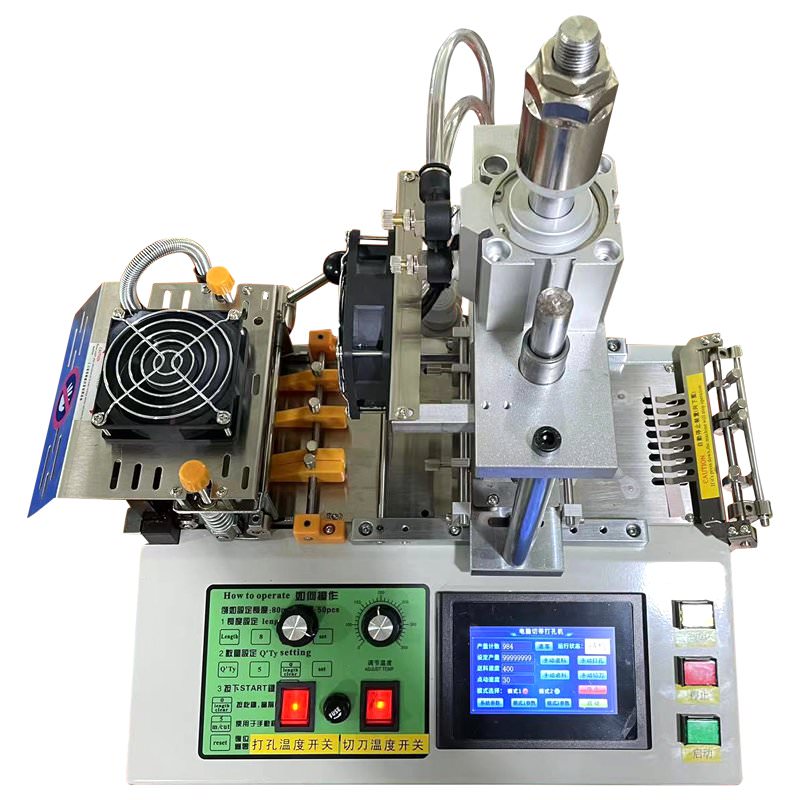

Front view

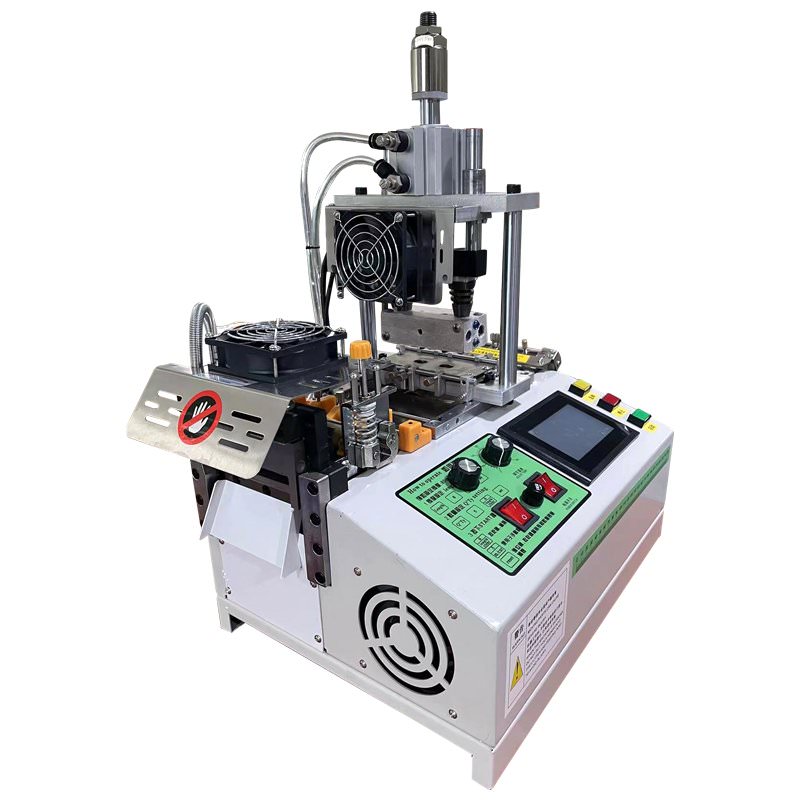

Side view

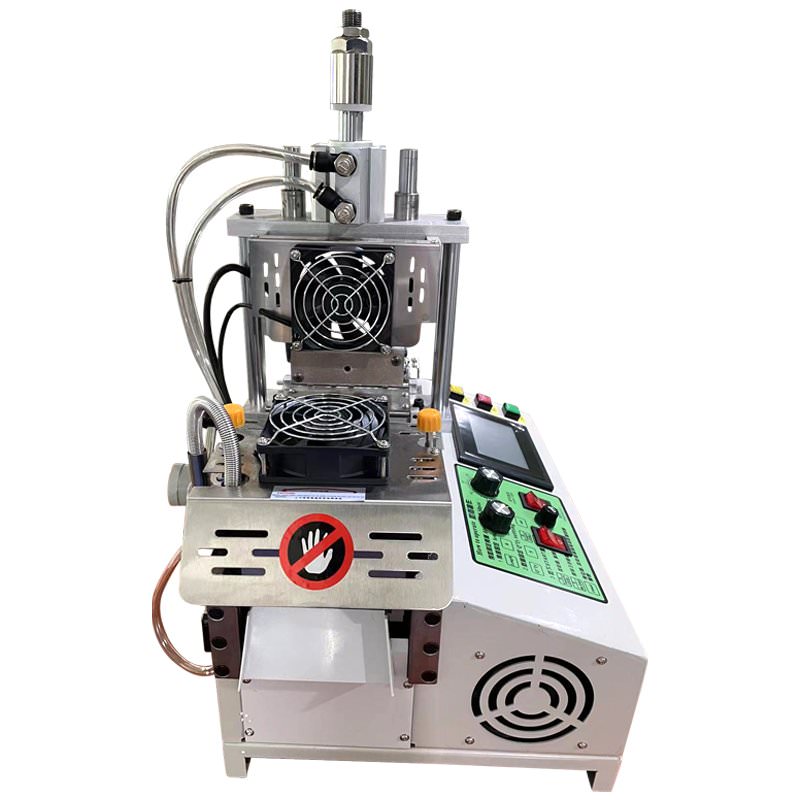

Side view

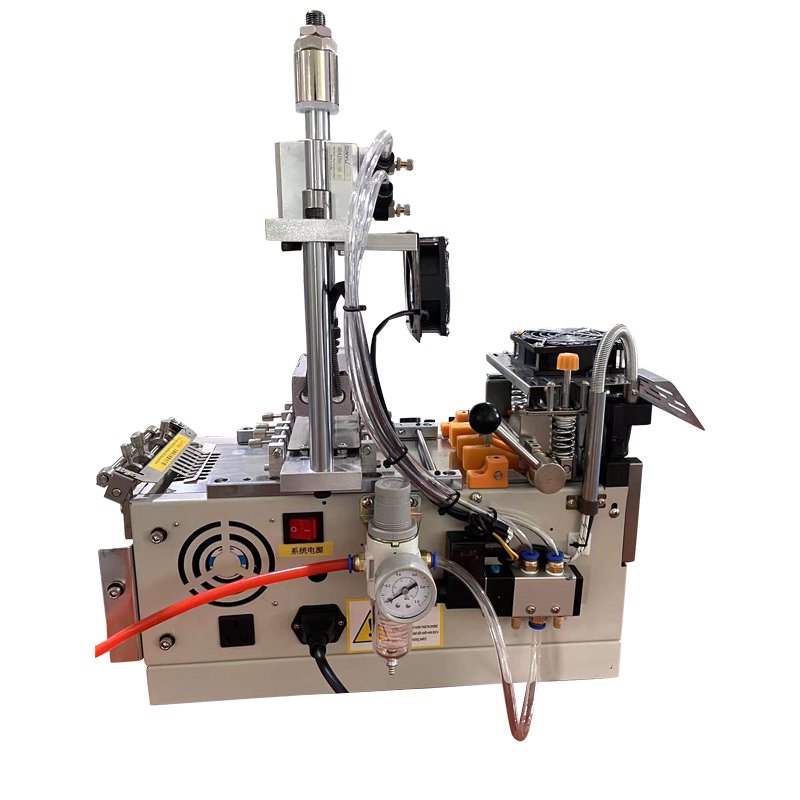

Back View

【Warranty】

All  the spare parts of the webbing hole punch cutter machine ES-018  except the knife and punching mold will have one year of free maintainance

 by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton ,foam paddings will wrapped around the machine to protect it against rough handling .
