Multi angle webbing hot cutting machine ES-014

The multi angle webbing hot cutting machine ES-014

【Product Description】

The  multi angle webbing hot cutting machine ES-014 is designed for cutting  all kinds of nylon  , cotton , PP , PE webbings and other kinds of narrow fabric into multi angle edge shapes  under the help of the cutting knife which is able to switch into different angle when doing the cutting .

Customer can set choose different angle pattern shapes   and also determine the angle degrees on the multi angle tape cutting machine , the mutli bevel angle cut webbing cutter will follow the setting and cut out the exact the shape for you .

Meanwhile , the webbing strap angle cutter can also do hot cutting as well ,  The knife also supply heat  up to 430 degrees celcus during the cutting process which would melt the cutting edges and get it cooled shortly , this result in no fraying edges which is a headache to  webbing manufacturers ,a nice cutting edge is ensured .

The automatic bevel angle cutting machine  needs no baby sitting , once customer set the angle shape and cutting length , total cutting amount , the machine will work on itself to automatically do the cutting and when cutting material runs out , the machine will stop working which make it  care free .

【Technical Data】

Brand : ESMAI                                                                                   Knife Type : Hot and cold cut knife

Model No.: ES-014                                                                            Voltage: 110V/220V

Type: Full Automatic Cutting Machine                                              Power:0.44KW

Cutting Speed : 110 Times/Minute(based cutting length 50mm)     Weight: 25/30kg

Size (L*W*H): 560*415*410(mm)                                                        Cutting width:1-50mm

Cutting Length: 1-99999mm                                                                Blade Maximum heating temperature: 350 ℃

【Product Advantage】

1,Angle Cutting which can cut the webbings into different angle shapes  , angle degree can be set precisely too .

2, Hot Knife cutting  which ensures no fraying  edges  on the webbing material , the knife can be heated up to 450 degrees for high heat sealing efficency.

3, Durable Knife blades with long term life span.

【Product Details】

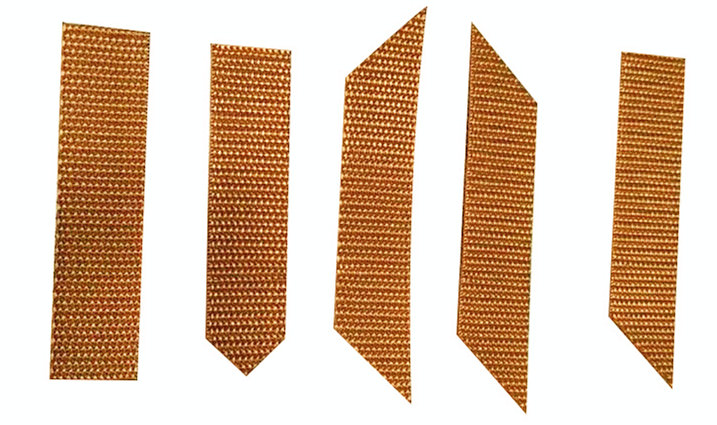

1,Automation Angle Switch Cutting

Which is able to cut 5  pattern angel shapes of narrow fabrics ,including one edge straight , one edge with angle ,

both edge with same angle or reverse angle, one edge with double 45 degree angle etc.

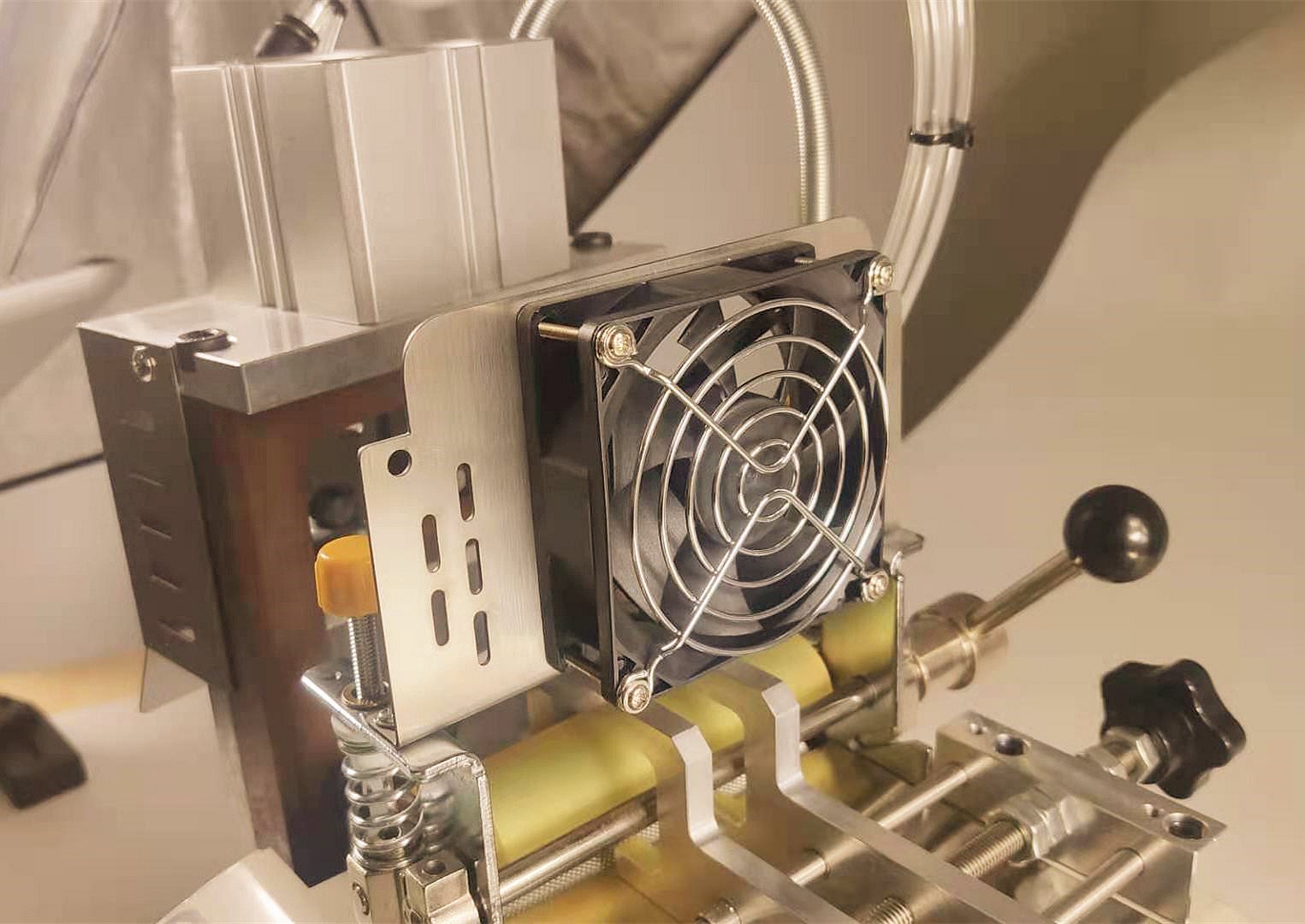

2, Heat dispersing fan

Multi heat dispersing fan which disperse heat quickly ,

maintaining long hour working of the machine and long life span

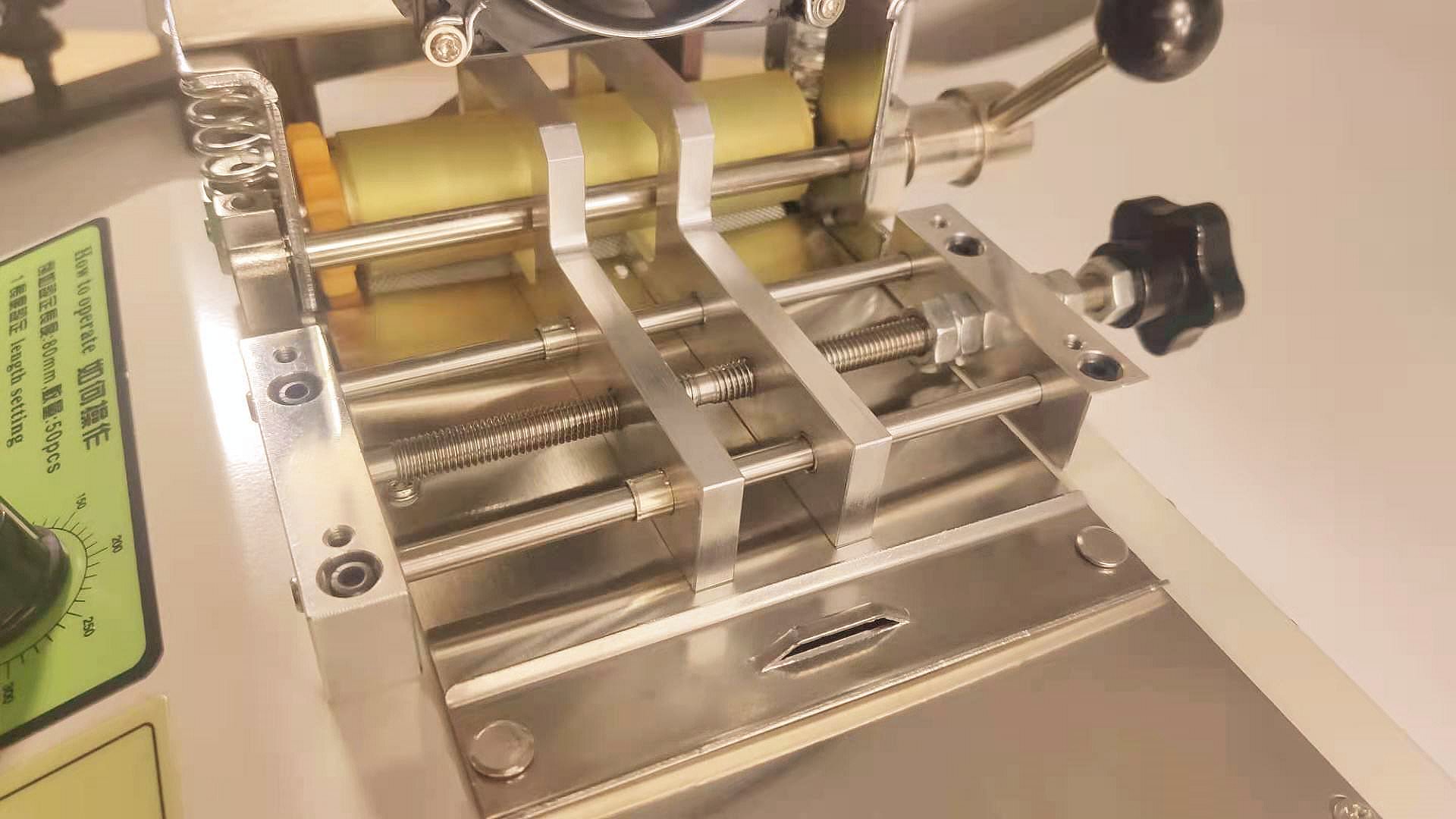

3,Adjustable fixtures

The fixures can be adjusted its distance to hold different sizes of cutting material ,

the fixture device will lead the cutting material straight for a good quality cut ,

it avoids swaying during material transporting process

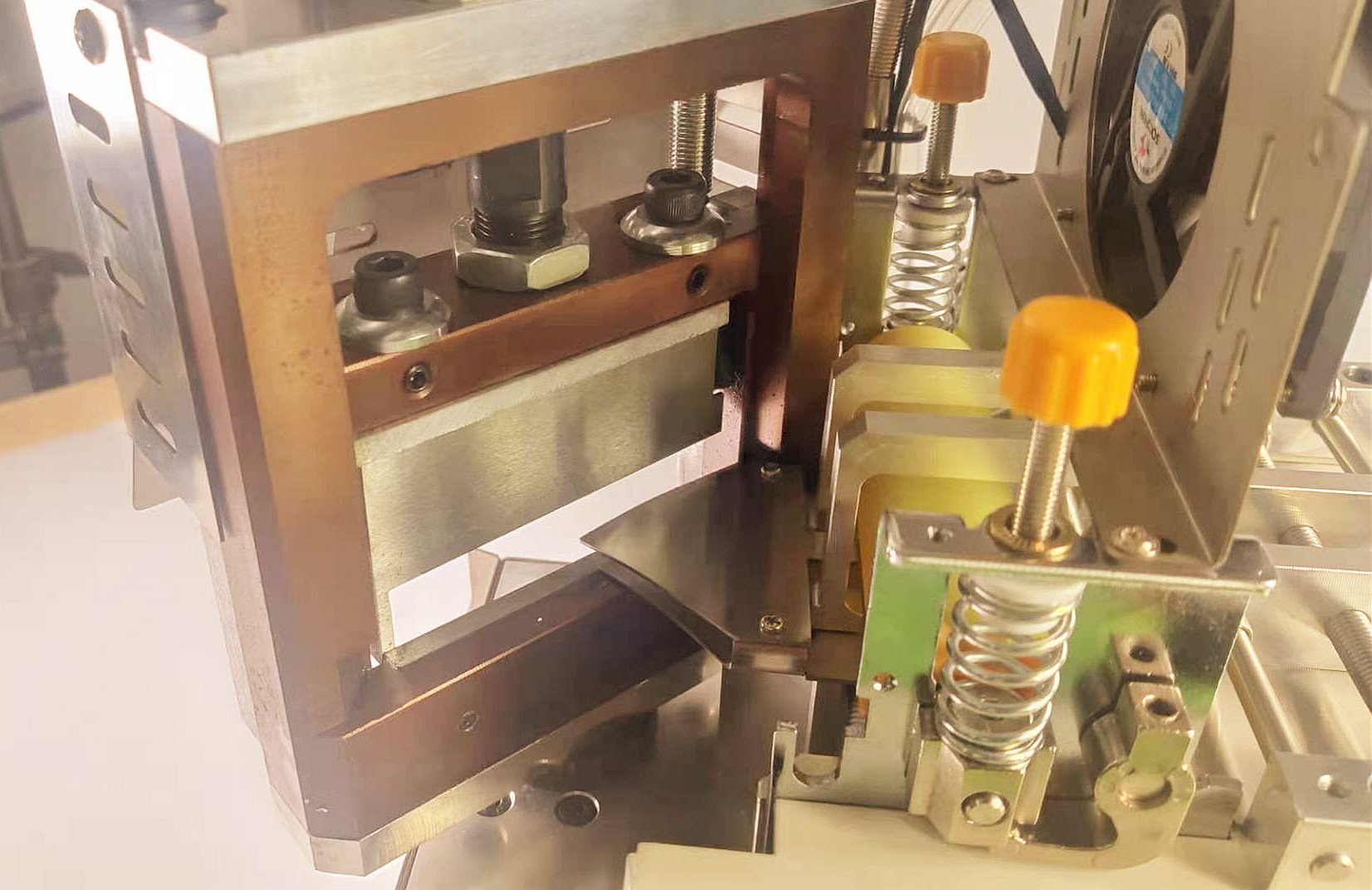

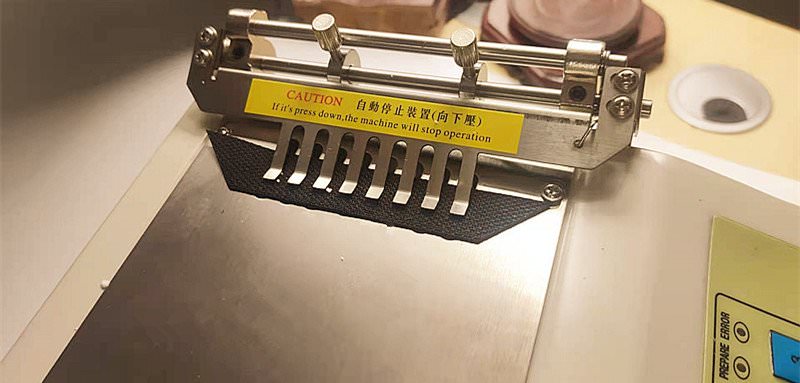

  4, Directing clips

  The clip will keep the steady transportation of the cutting material and once cutting material runs out ,

the clip will fall down into the machine surface and signal to the machine to stop cutting .

Assisting the good quality of cut of your material , labour saving

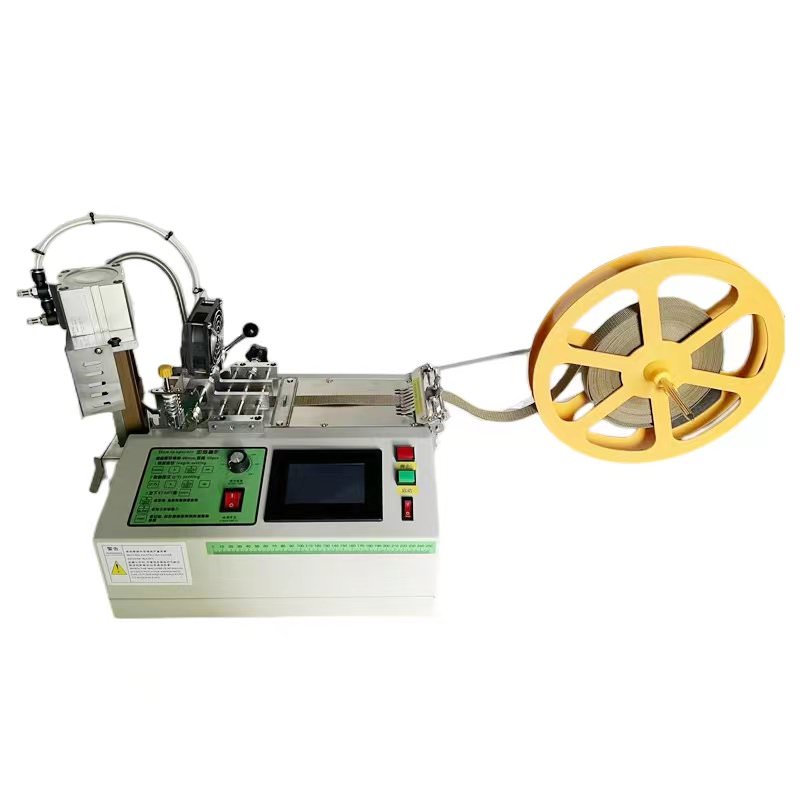

Front View

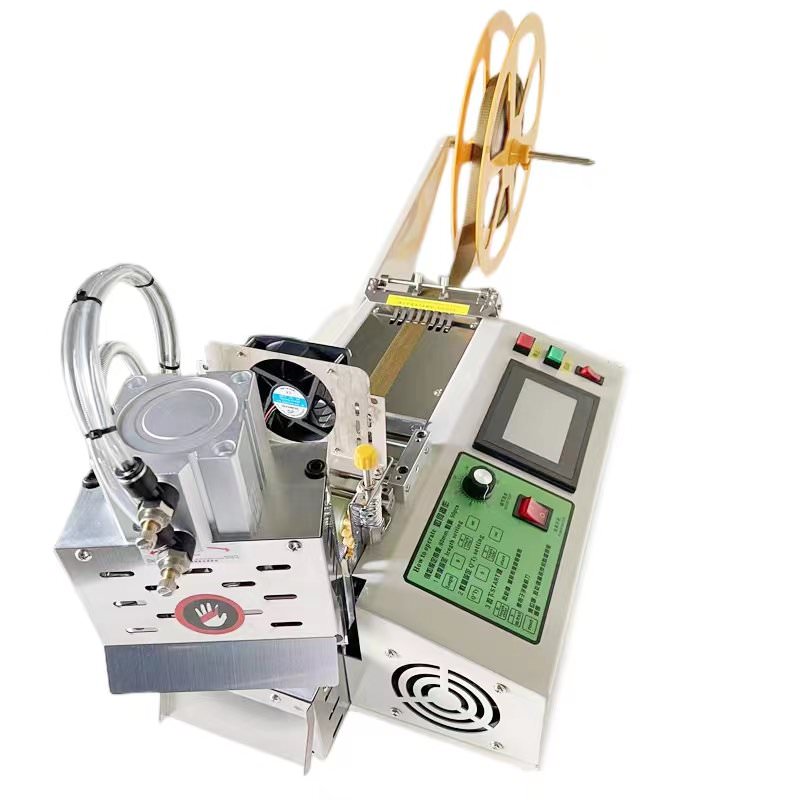

Side View

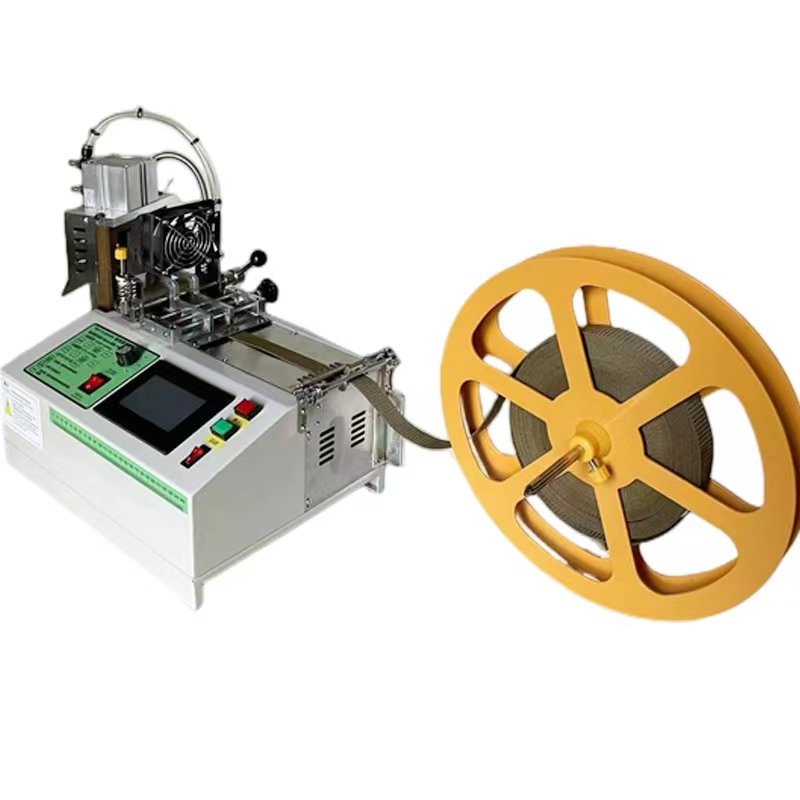

Side View

Back view

【Warranty】

All  the spare parts of multi angle webbing hot cutting machine ES-014 except the knife will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Carton ,foam padding inside the carton to protect the machine against rough handling in overseas shipping .
