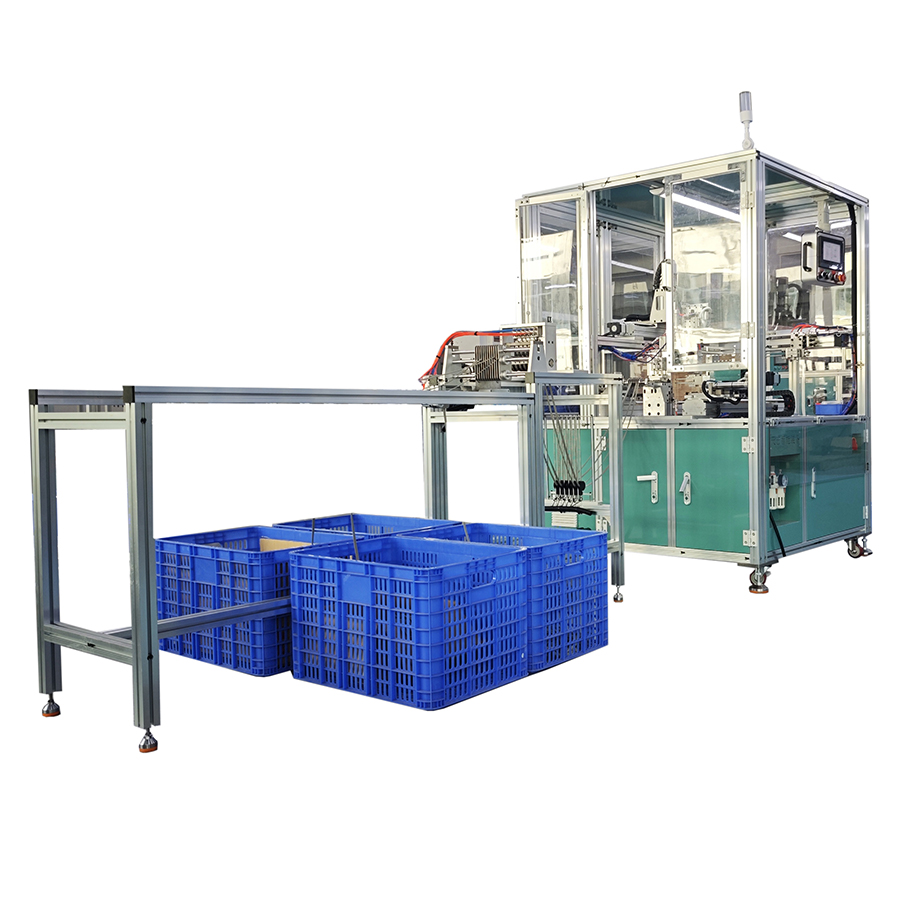

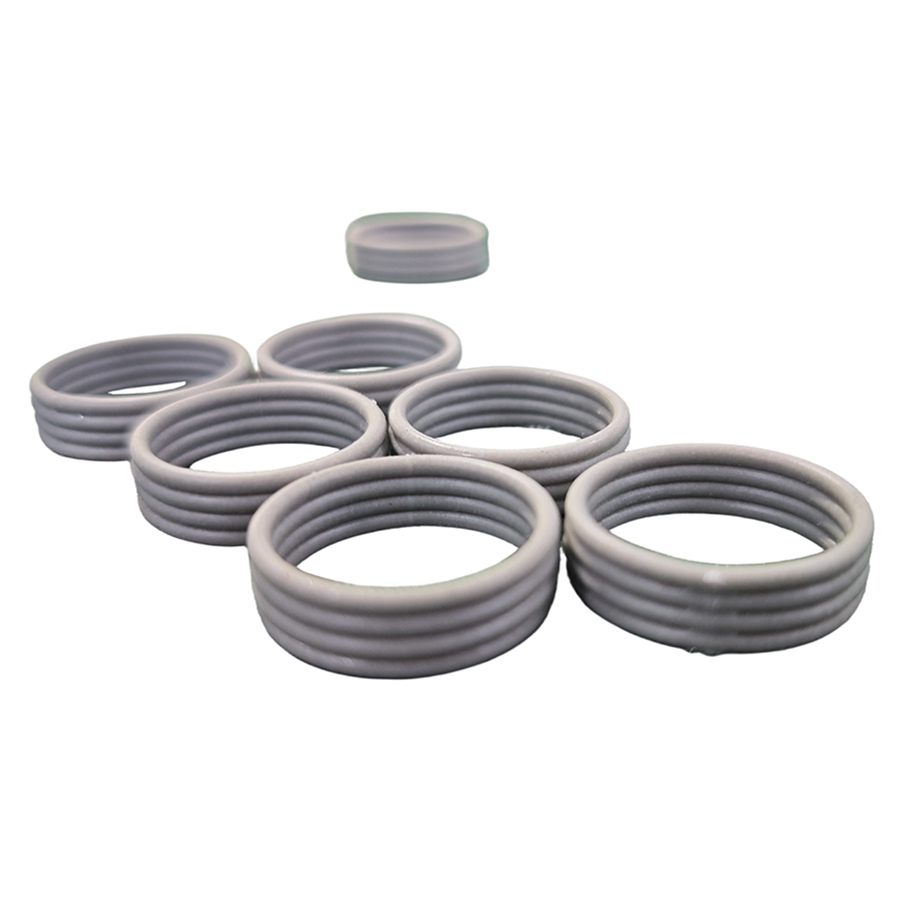

Small size silicone foam o ring gaskets fully automatic cutting and joining machine ES-060-5

 Small size silicone foam o ring gaskets fully automatic cutting and joining machineES-060-5(67-300mm length)

The ES-060-5 Small Size Silicone Foam O-Ring Gaskets Fully Automatic Cutting and Joining Machine is an advanced production solution designed for efficient and precise manufacturing of small-diameter silicone O-ring gaskets. The machine integrates automatic feeding, accurate length drawing and cutting, adhesive dipping, hot-mold bonding, and automatic discharge into a fully automated workflow. With servo motor drive and PLC control, it ensures stable operation, strong bonding quality, and high product consistency while significantly reducing labor and production costs.

The  productivity output reaches 900–1200 pcs gaskets per hour ( productivity will be 4 -6 times higher for co extruded silicone gaskets) by processing 5 to 6 pieces at once  , it replaces labour of 3-6 six workers  .the mimimum cuting length can reach 67mm and  smallest cross section diameter to be processed is 1mm which is of high precision  and stable performance

Youtube video

co extruded silicone foam rubber gaskets

small silicone string o rings bonding

General introduction of the small size silicone  o ring fully automatic cutting and bonding machine

The ES-060-5 features a user-friendly touch-screen interface with full Chinese and English language display, customizable for different countries. It supports parameter recording, real-time display, and alarm functions for easy operation and maintenance. The fully automatic system handles feeding, length drawing, cutting, adhesive dipping on both ends, hot-mold joining, and finished O-ring discharge. Operators only need to load the silicone material, making operation simple and highly efficient.

Compared with traditional compression-molded silicone O-rings, the ES-060-5 cutting and joining machine offers significant advantages. It can produce very small O-rings with a minimum cutting length of 67 mm and gasket diameters as small as 1 mm, which are difficult and costly to achieve with compression molding. The machine is widely applicable to silicone sponge gaskets, foam silicone gaskets, silicone tubes, co-extruded silicone profiles, and solid silicone gaskets that come that compression mold is hard to achieve.

High-speed multi-piece processing delivers 900–1200 units per hour, while the cutting and bonding process generates minimal material waste and eliminates secondary trimming. Tooling costs are very low, and strong, uniform bonding ensures smooth joints, excellent sealing performance, and high dimensional accuracy.

The  Small size silicone foam o ring gaskets fully automatic cutting and joining machine ES-060-5 is an ideal solution for manufacturers seeking high efficiency, low tooling cost, flexible production, and superior quality in small-size silicone O-ring gasket manufacturing. It is especially suitable for customized orders, frequent size changes, and small-to-medium batch production where compression molding is less economical.

【Technical Data】

Product Name: Small size silicone foam o ring gaskets fully automatic cutting and joining machine

Model Number: ES-060-5

Cutting length range :  67-500mm cutting length

Silicone gasskets cross section diameter : 1mm -8mm
User-Friendly Operation: Touch screen interface with full Chinese &English language display, language can be customised based on different countries, parameter recording, display, and alarms. (Mold change required for different gaskets sizes.)
Labor Efficiency: One machine can replace the output of 3 to 6 workers.
Easy Mechanical Adjustment:  It doesn’t require changing molds for cutting different length of same diameter sizes gaskets
Machine Power: 4KW
Motor Type: Servo motor

Voltage :220/110V
Control System: Xinje PLC
Automation Features: Automatic feeding silicone gaskets ,automatic drawing gaskets to length and cut off ,dipping both ends silicone gaskets with silicnoe adhesive ,joining  dipped glue gaskets in hot mold for bonding and automatic discharge  finished bonded O-Ring gaskets . (Operator only needs to load up the gaskets and the machine will do the rest.)
Machine feature: 5 -6 Pieces  can be processed at one time
One Cycle Time: 15 to 20 seconds  every cycle (depending on product length and glue curing time);

Productivity :Ranges from 900 to 1200 units per hour (product length affects output).(4-6 times higher for co extruded silicone gaskets)

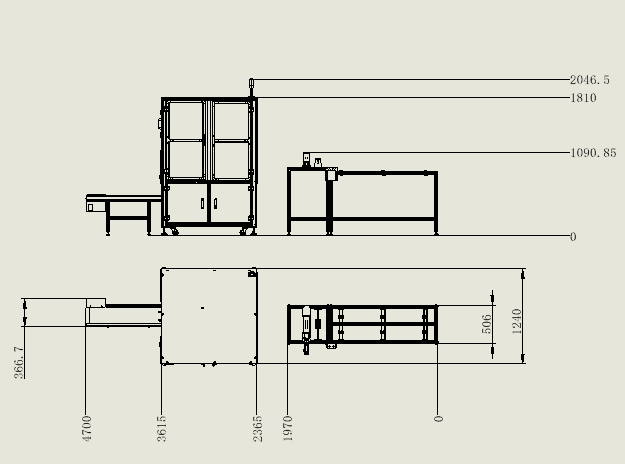

Machine Dimensions:  L*W*H=2365mm *1240mm *2046mm
FEEDER  Dimensions: L*W*H= 1970mm *506mm * 1090mm

Convey belt Dimension :L*W*H=1500mm *366.7mm * 470mm

【Product Advantage 】

Compared with compression-molded silicone O-rings, the automatic cutting and bonding machine has superior advantage:

• Ability to produce very small O-rings (minimum 67 mm perimeter) and minimum gaskets diameter size reaching 1mm

• Wide application to all kinds of co extruded silicone sponge gaskets  , silicone tubes and silicone profiles , foam silicone gaskets .

• High output: 900–1200 pcs/hour with multi-piece processing , 4-6 times higher productivity for co extruded silicone gaskets

• Very low mold cost and fast changeover, no mold change for different lengths

• Minimal material waste, no trimming required.

• Strong bonding, good joint quality, and high dimensional accuracy

【Product Details】

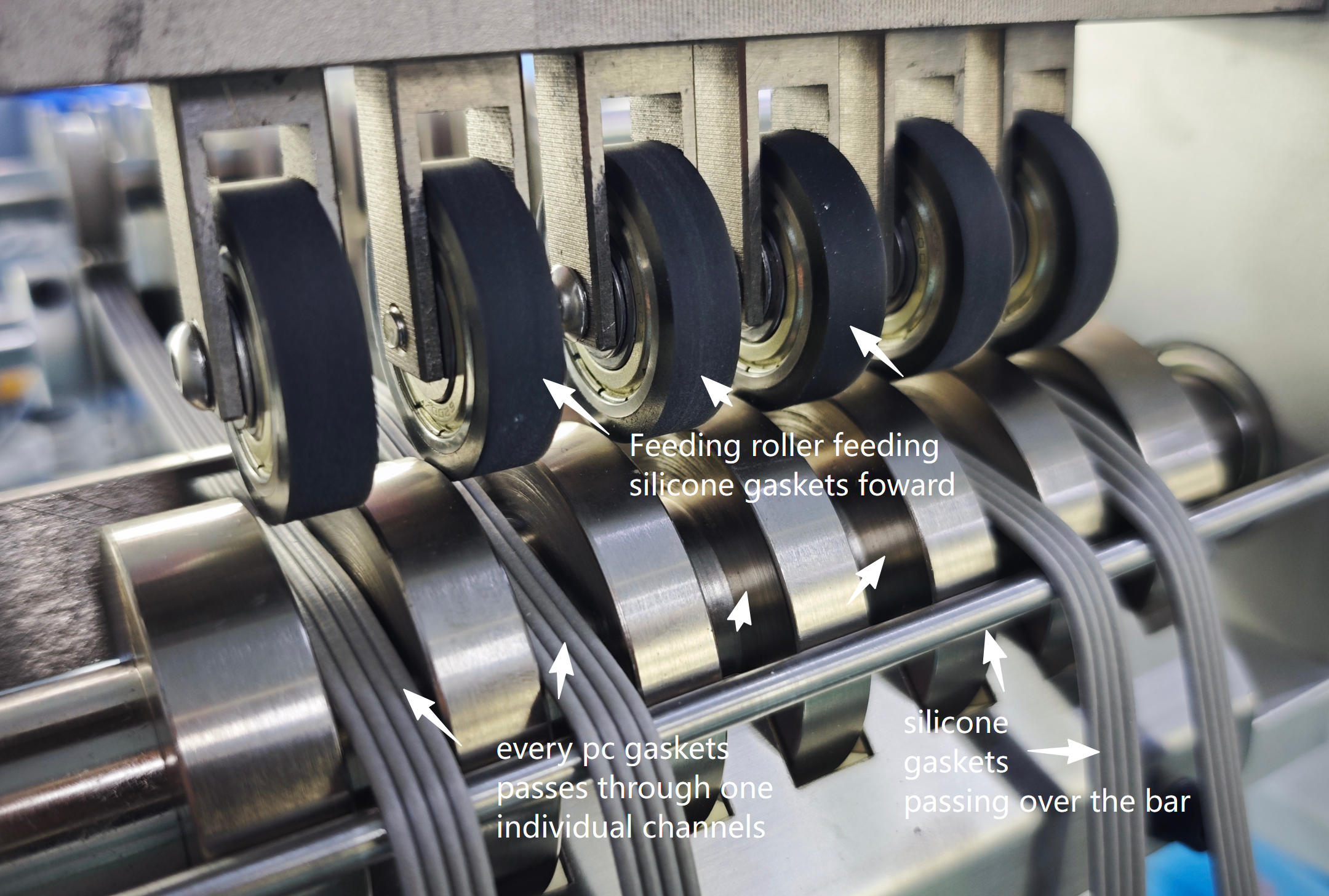

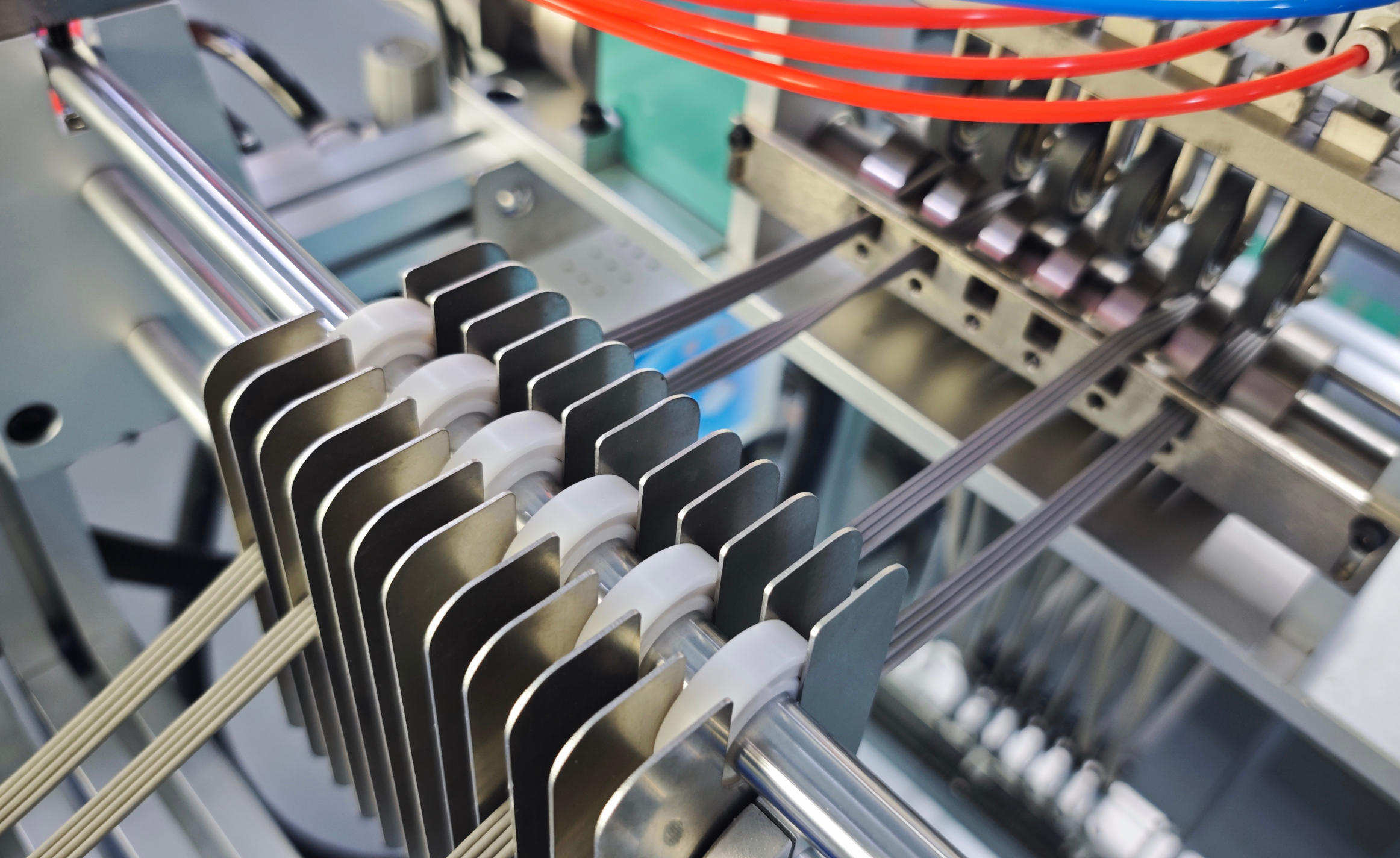

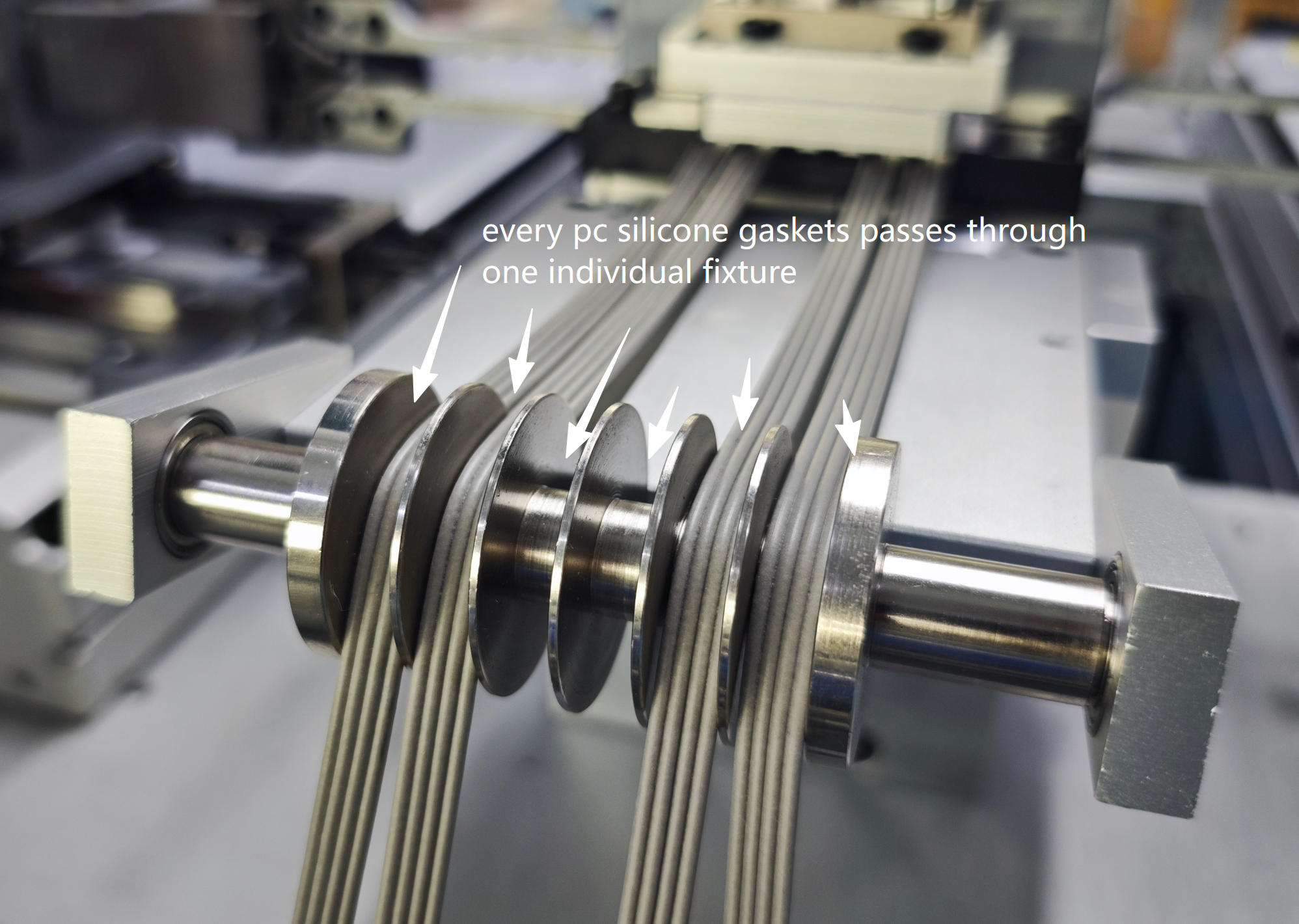

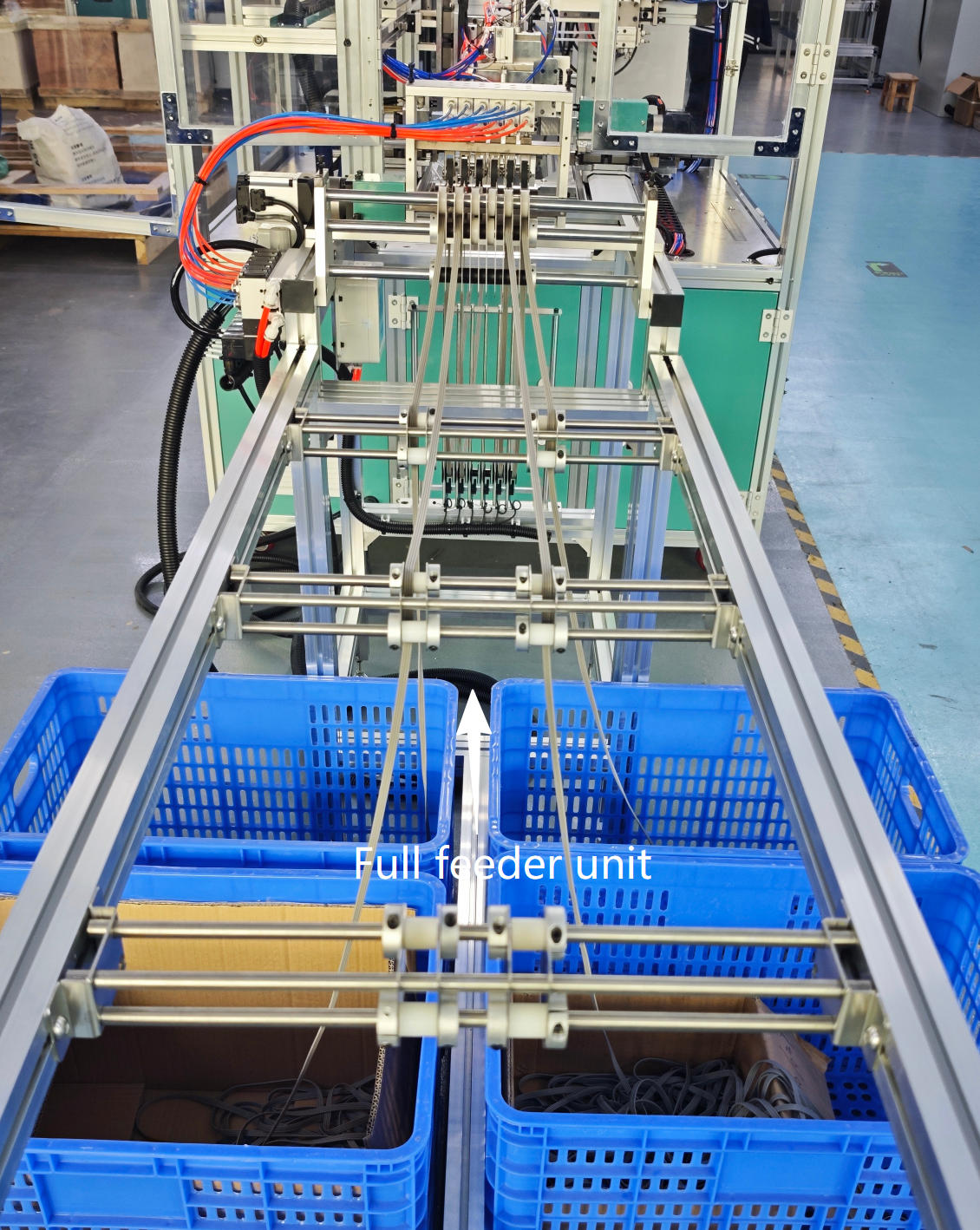

1, 5-6 pcs of  silicone gaskets can be fed at the same time,    Every pc silicone gaskets passes through one individual  fixtures  , they are fed in one alignment and do not cross each other  ensuring smooth feeding process .

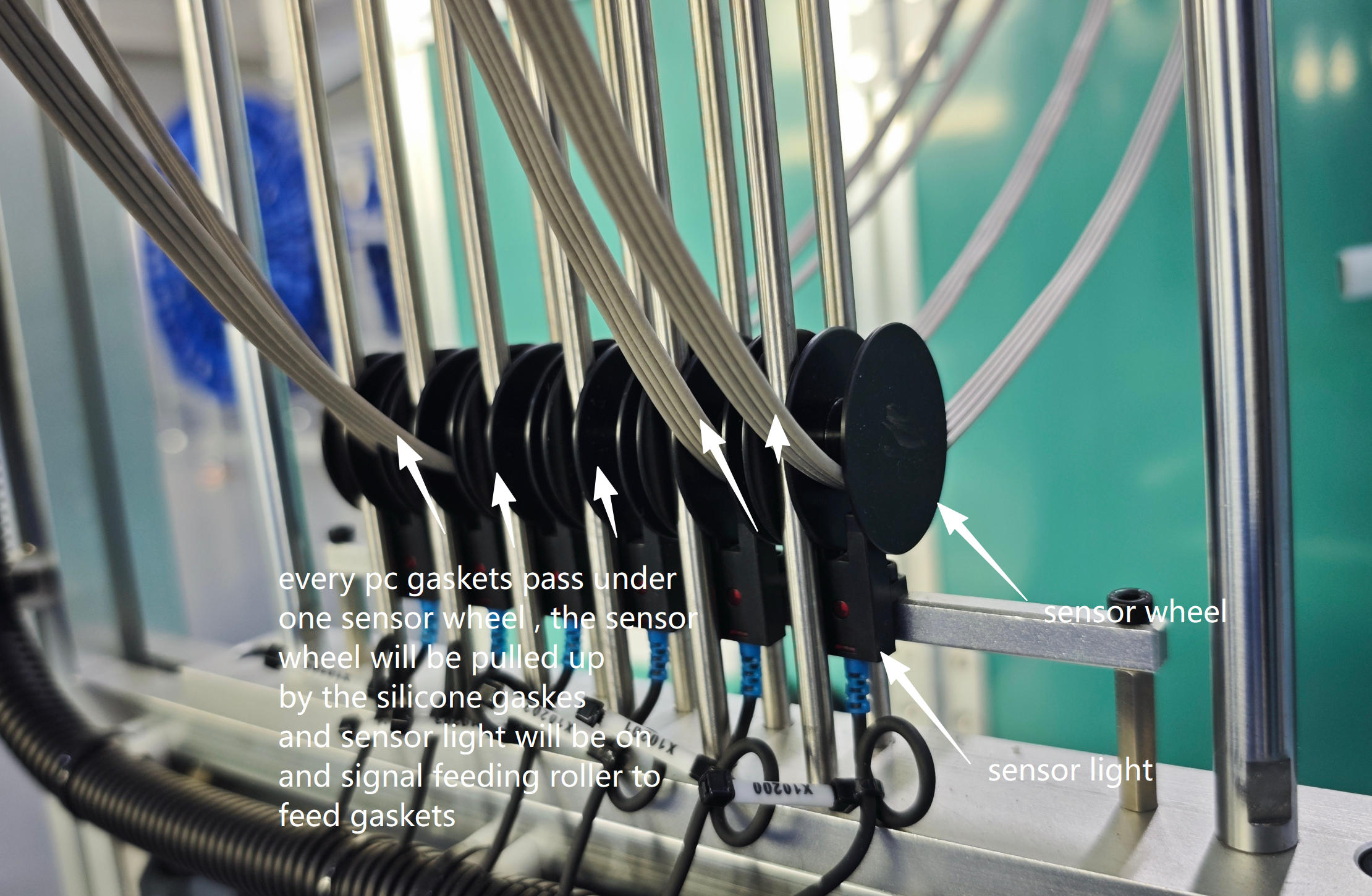

Every pc gaskets passing under one sensor , once the sensor wheels are lifted up by the pulling silicone gaskets , the sensor light will be on and signal the feeding roller to feed silicone gaskets foward .

 2,Straight cutting cross section of silicone gaskets allowing  good joint quality

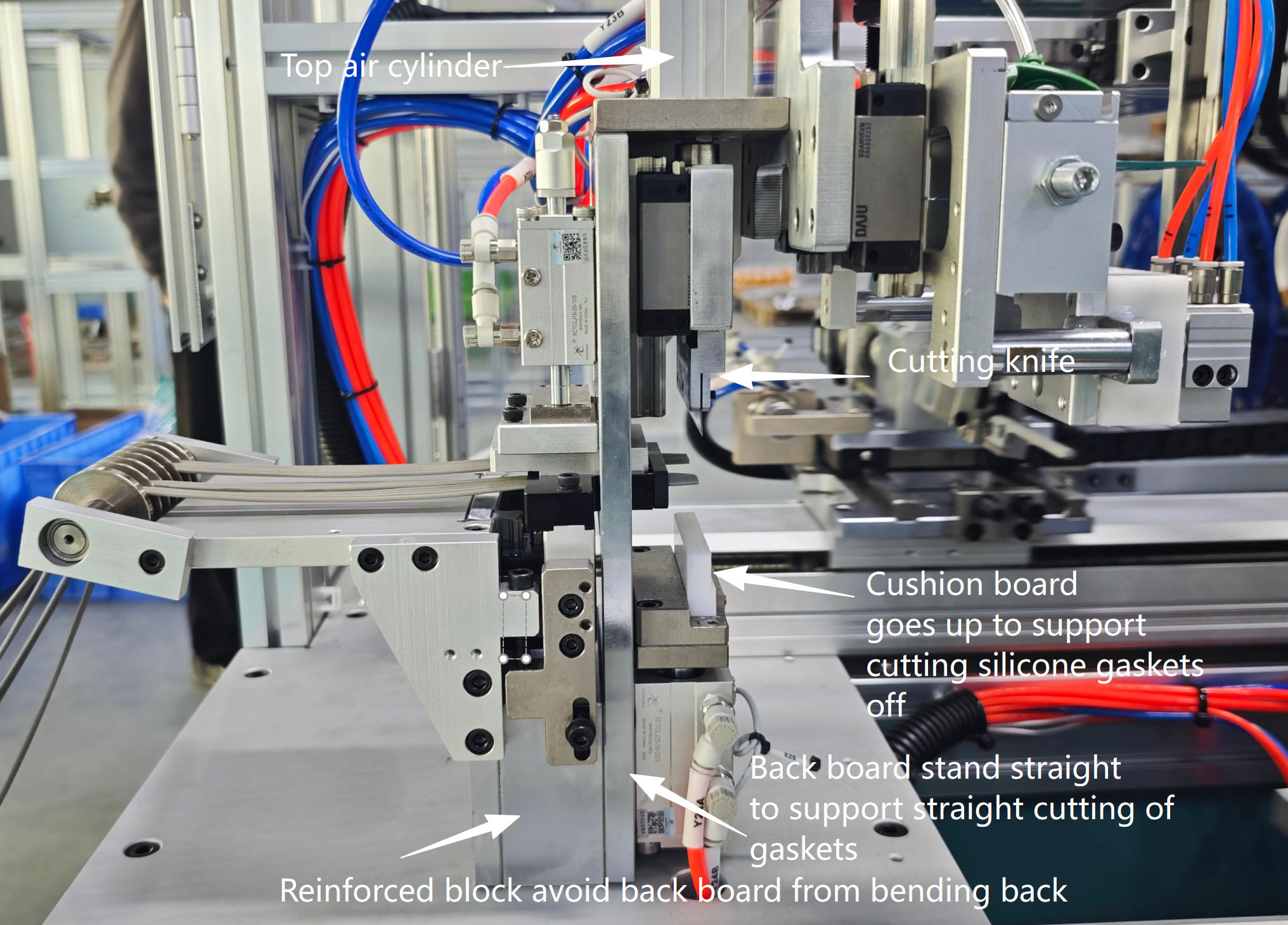

This small co extruded Silicone sponge O-ring production machine applies with  reinforced Cutting knife  struture , the cutting knife struture  are reinforces structure allowing stable and straight cutting cross section of silicone extrudes to length .

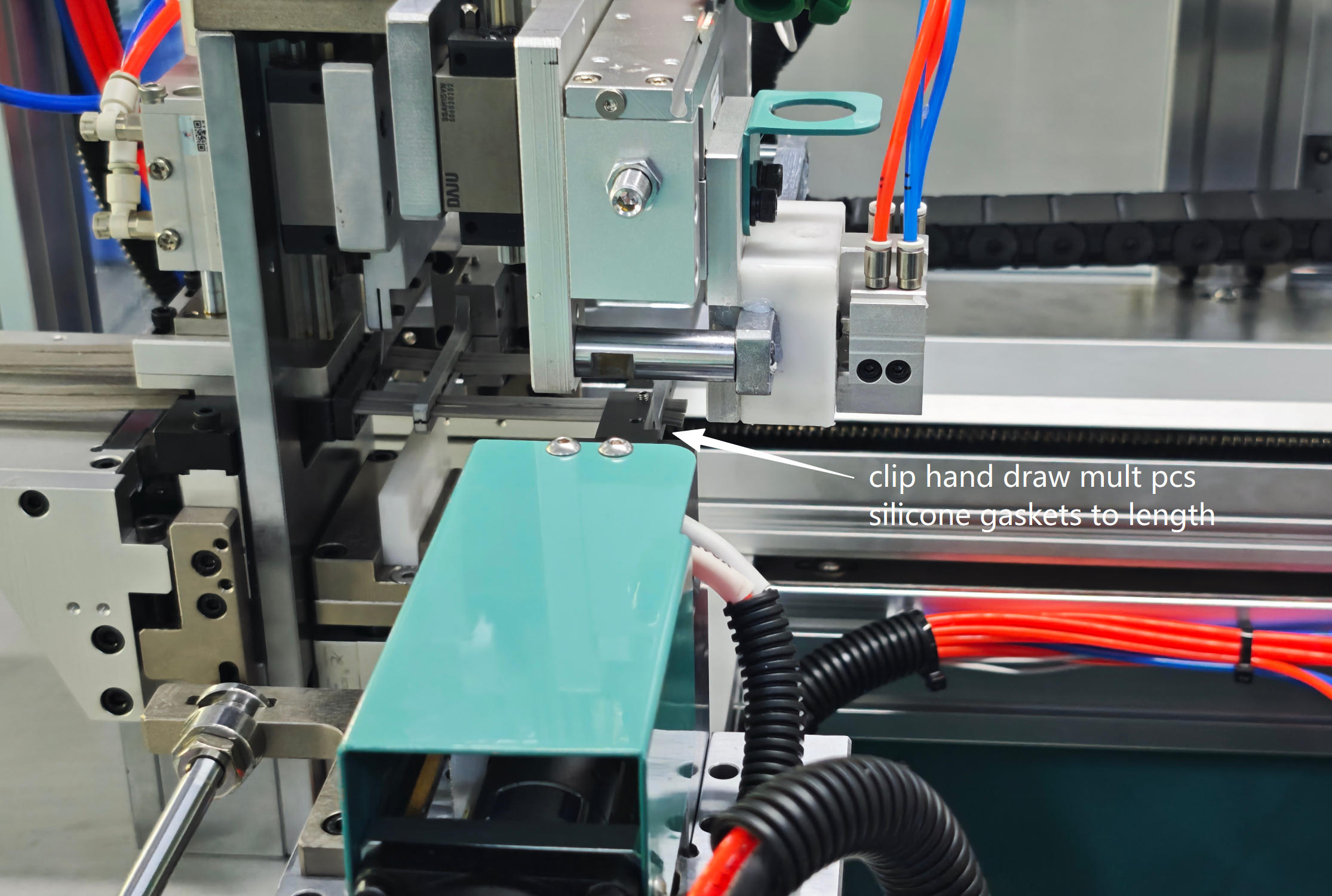

3, Drawing multi pcs silicone gaskets to length and auto dipping both ends silicone gaskets with silicone adhesive  ,dipping glue times can be set on the machine based on different product

the clip hands molds and knife fixture molds are made  specifically based on different sizes silicone gaskets

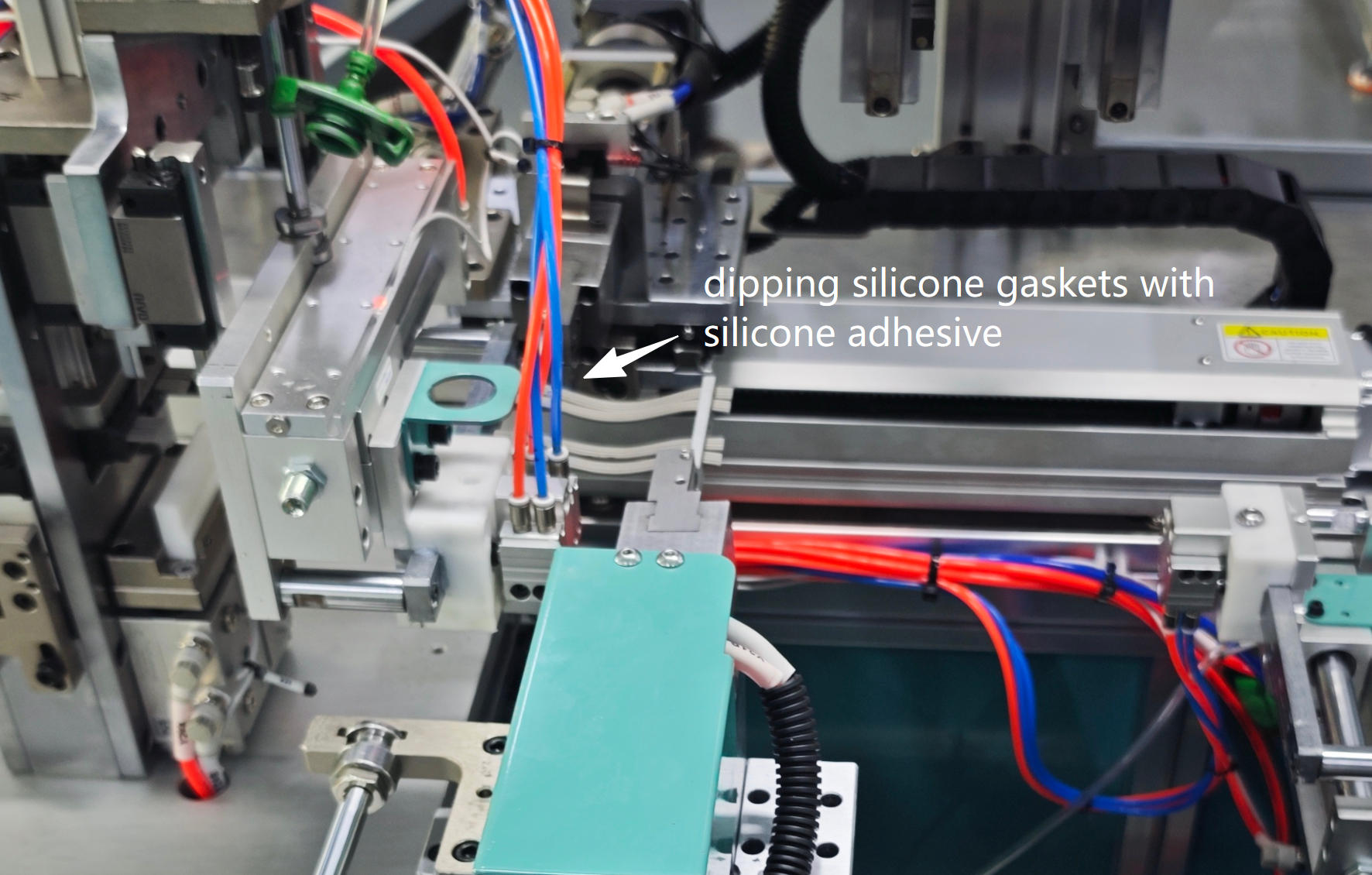

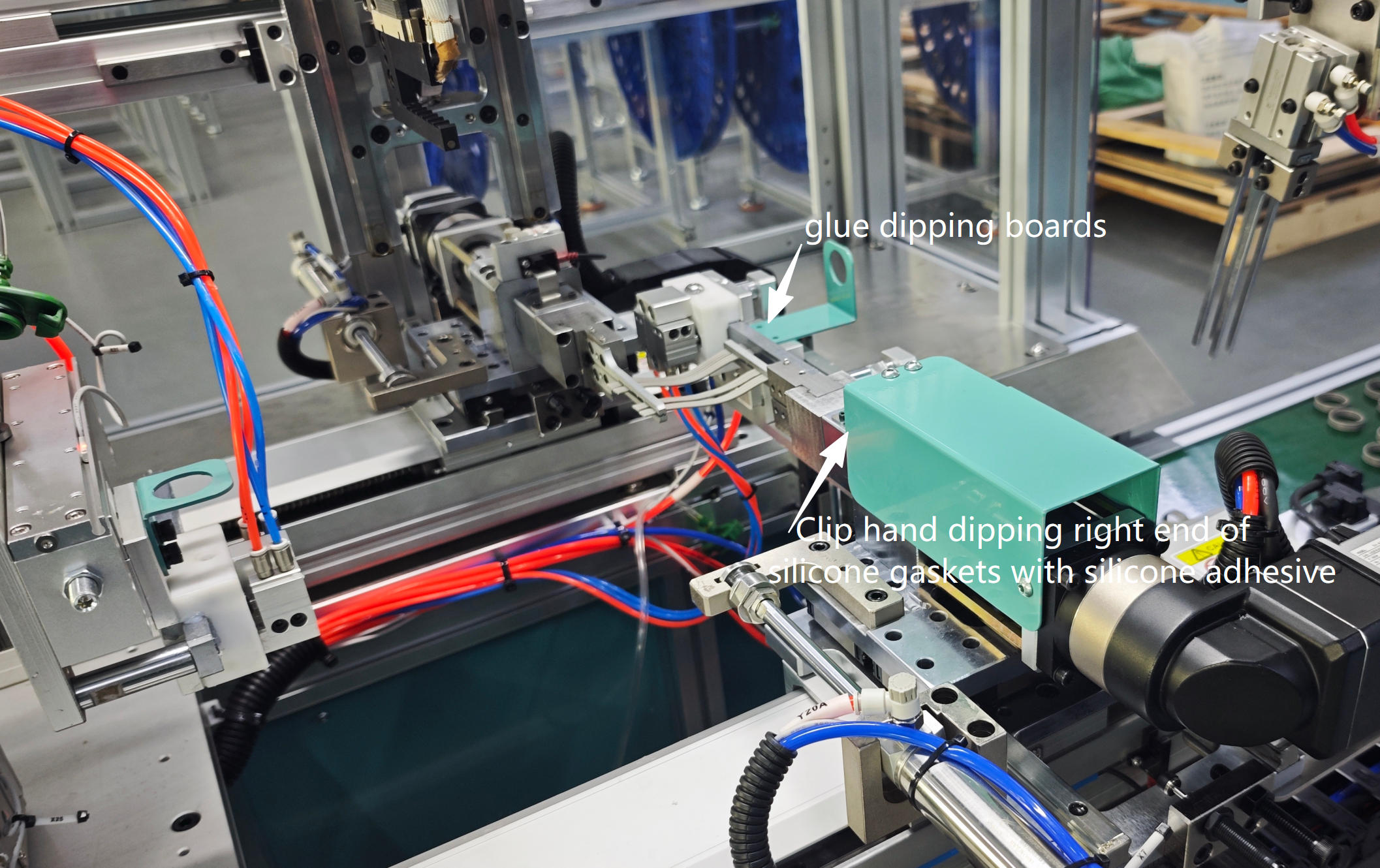

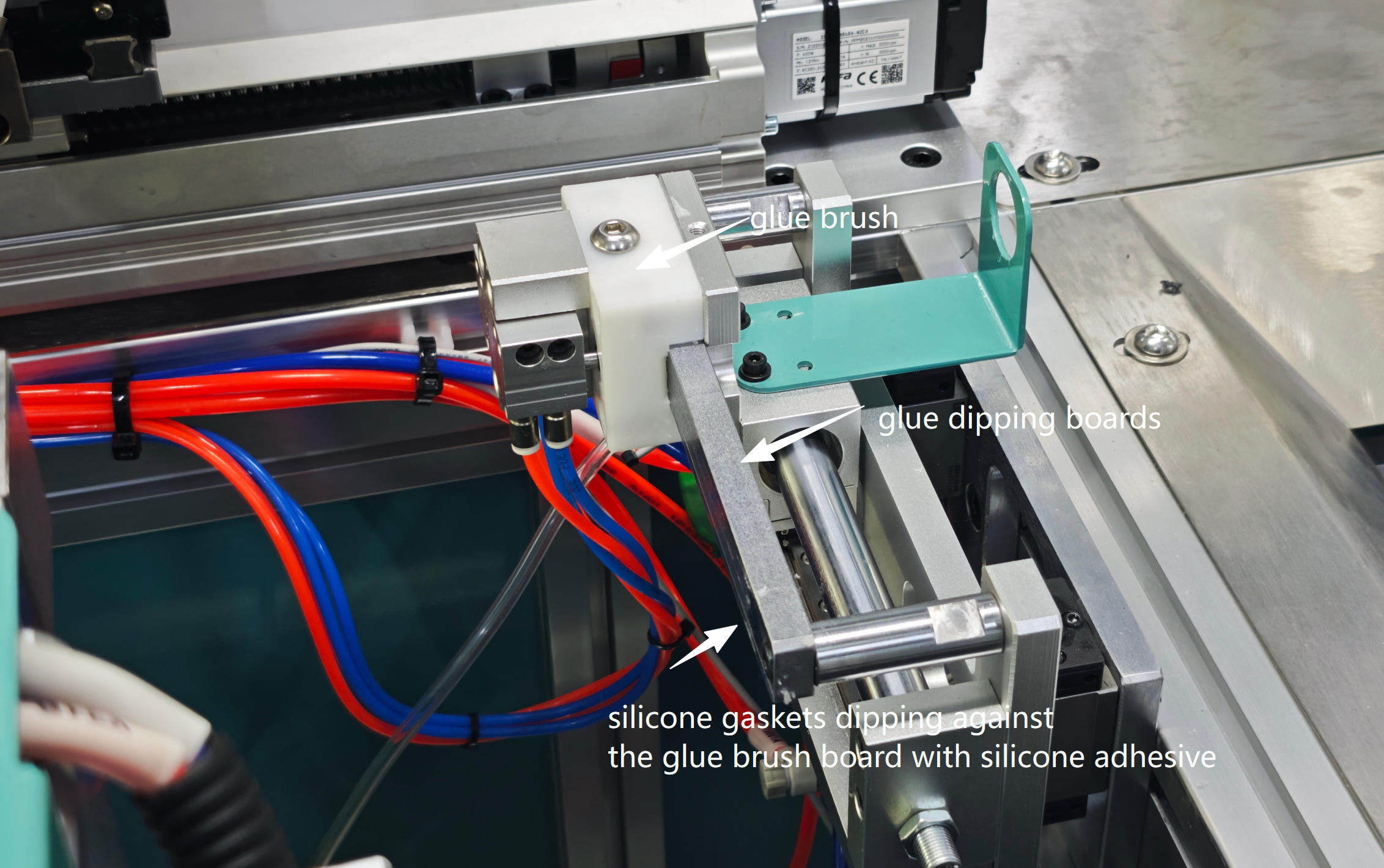

The glue brush board will be brushed with silicone adhesive  and the silicone gaskets ends will dip silicone adhesive from it ,after every dipping glue , the glue brush will brush back and forth for once ensuring there are always silicone adhesive on the dipping boards for consumption by the silicone gaskets for joining into o rings .

after  left ends dipped with glue , the right end of silicone gaskets will also dip with glue ensuring right amount of glue applied on the joint for good  bonding

dipping glue on right end of silicone gaskets

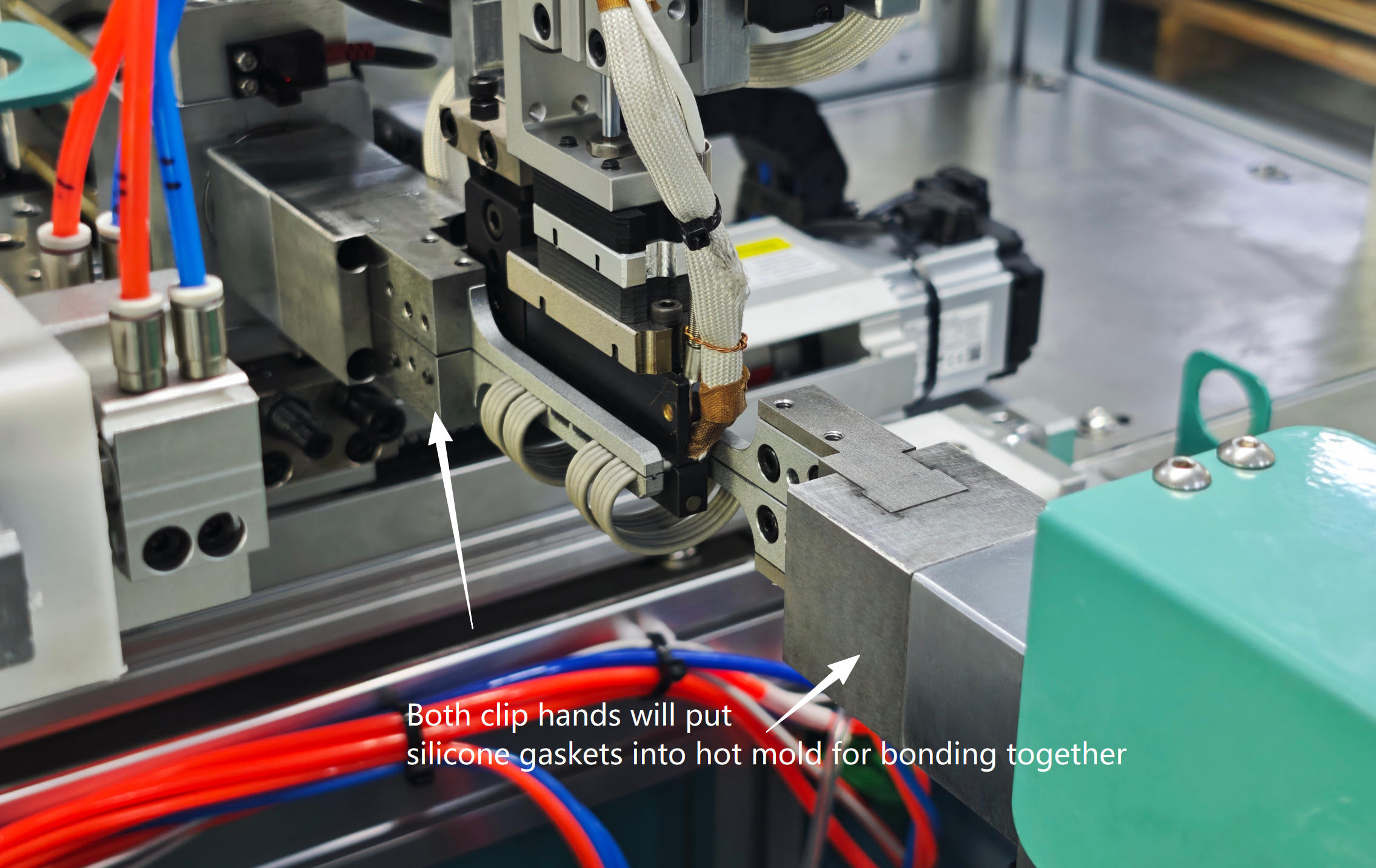

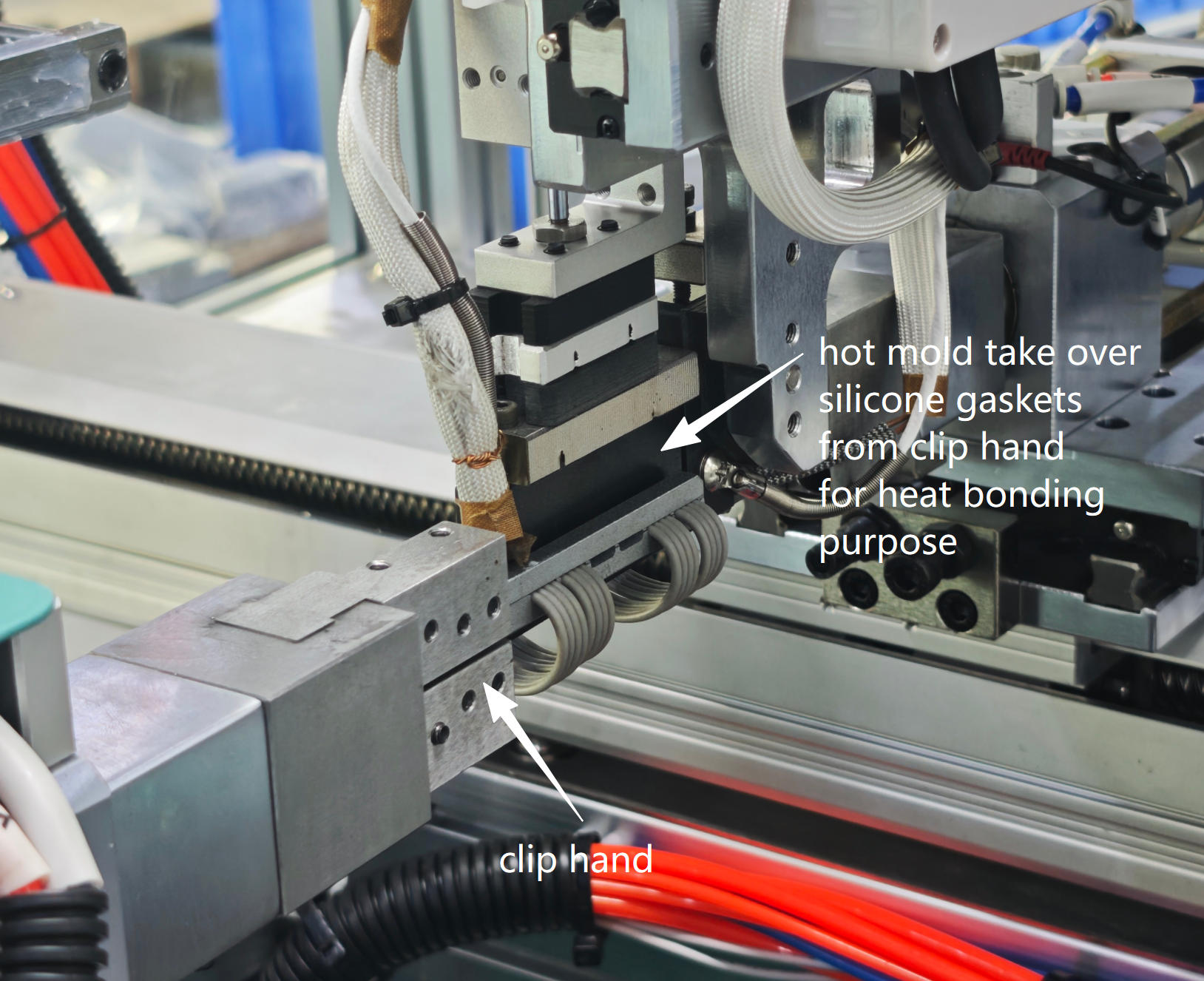

4,Auto bonding silicone gaskets in the hot mold , after glue dipping , the clip hands of the  small size silicone tube O-Ring gaskets automatic cutting and joining machine will place the silicone co extruded gaskets into the hot mold for heating curing the silicone adhesive and form good bond of silicone gaskets in 5-8 seconds with around 150 degrees for sponge silicone gaskets .

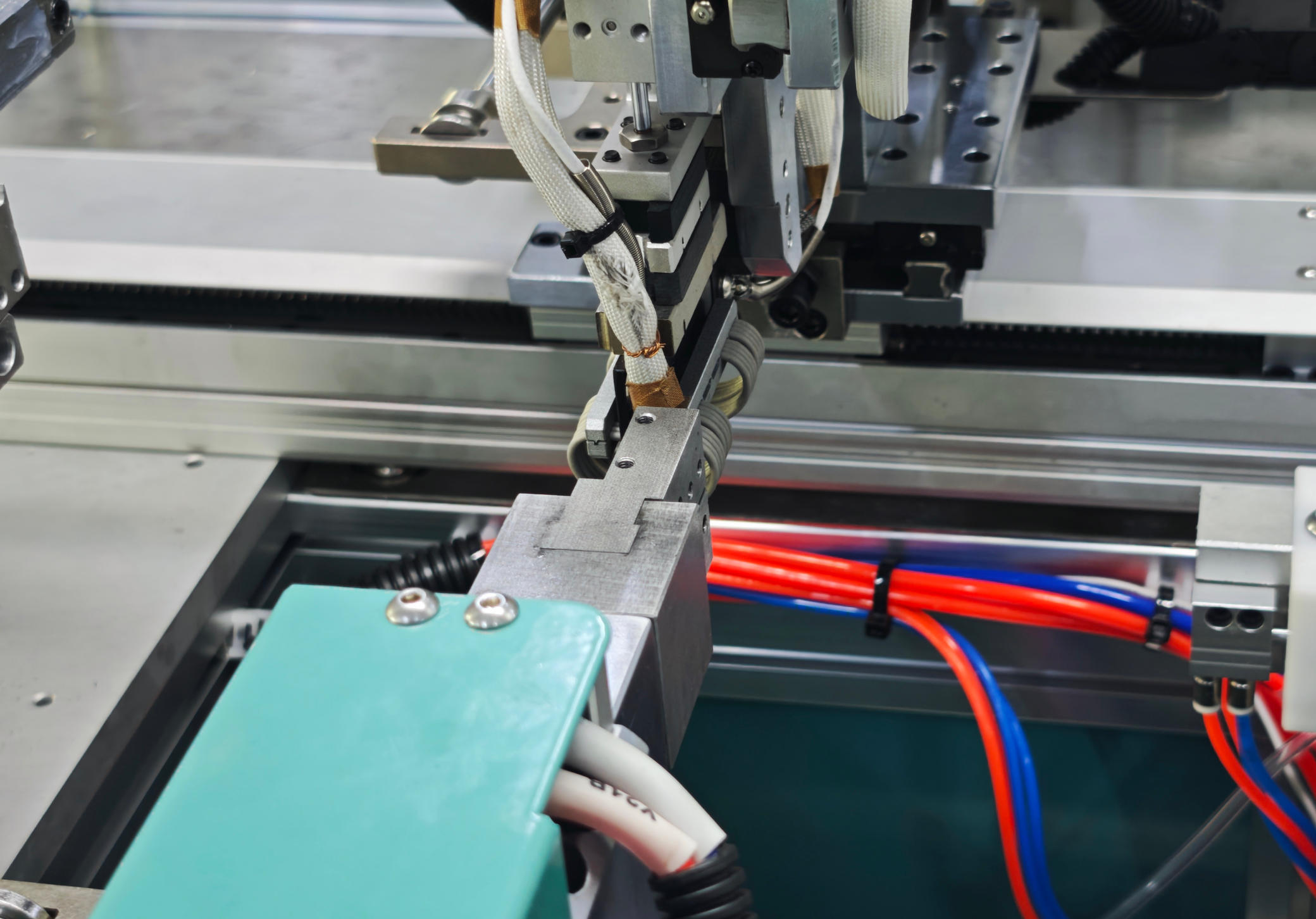

Heat curing silicone adhesive in the hot mold .

The hot mold cavity are made based on specifical silicone gaskets cross section sizes  ,the top air cylinder will close down the hot mold with pressure for efficient heating silicone gaskets bonding

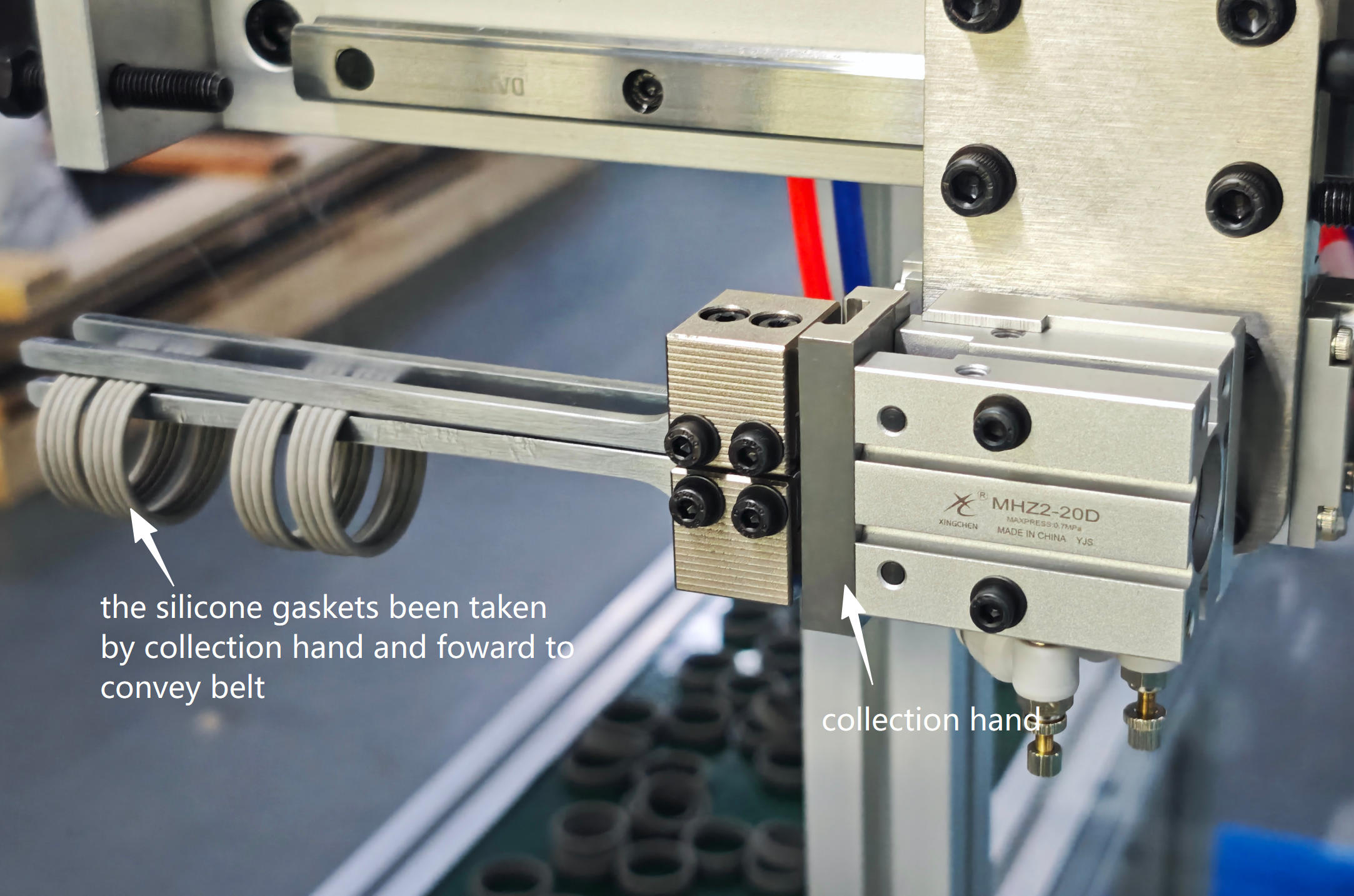

The collection hand will take over finished bonded o rings and forward to convey belt

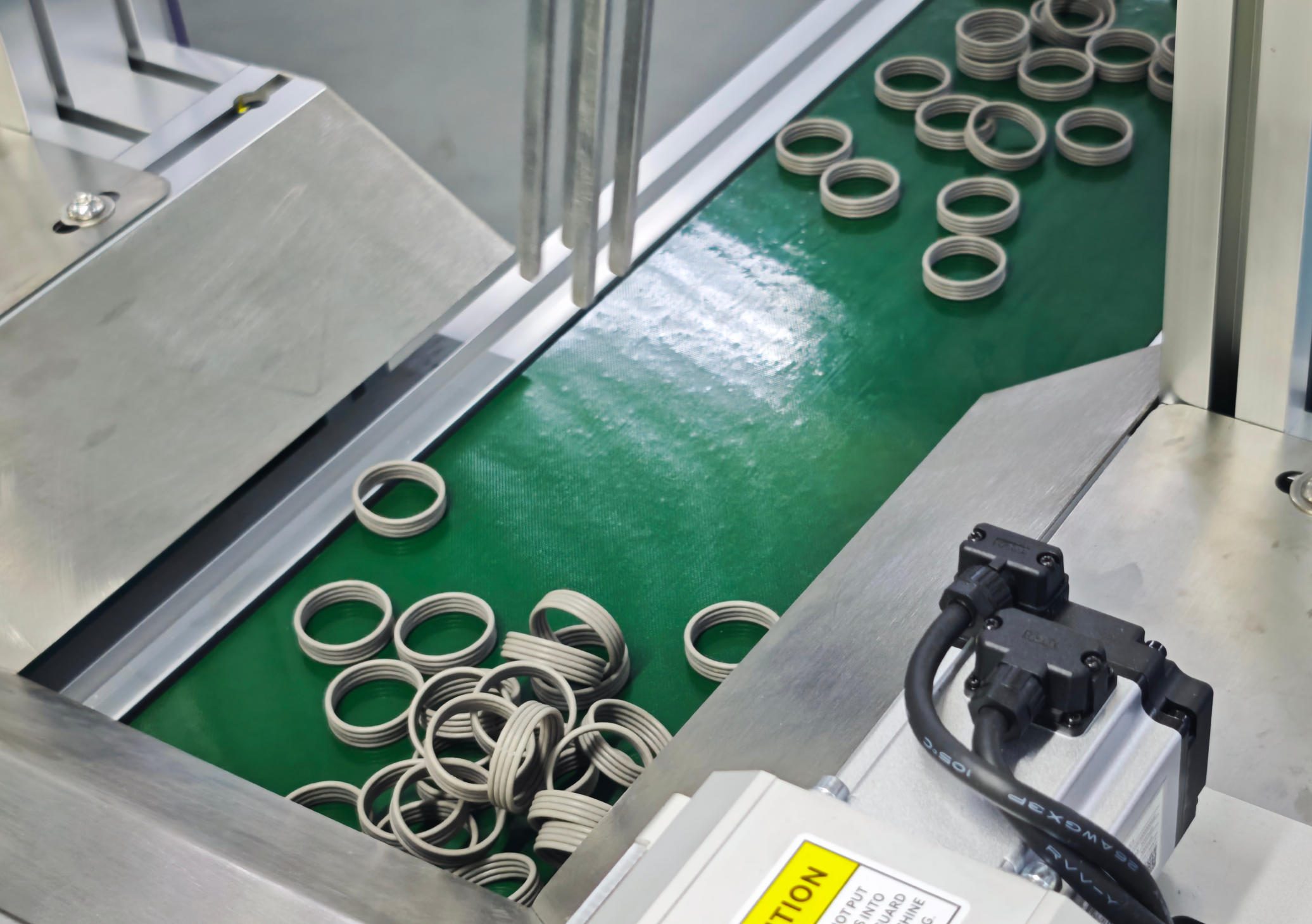

The collection hand drop bonded o rings into convey belts  for collection .

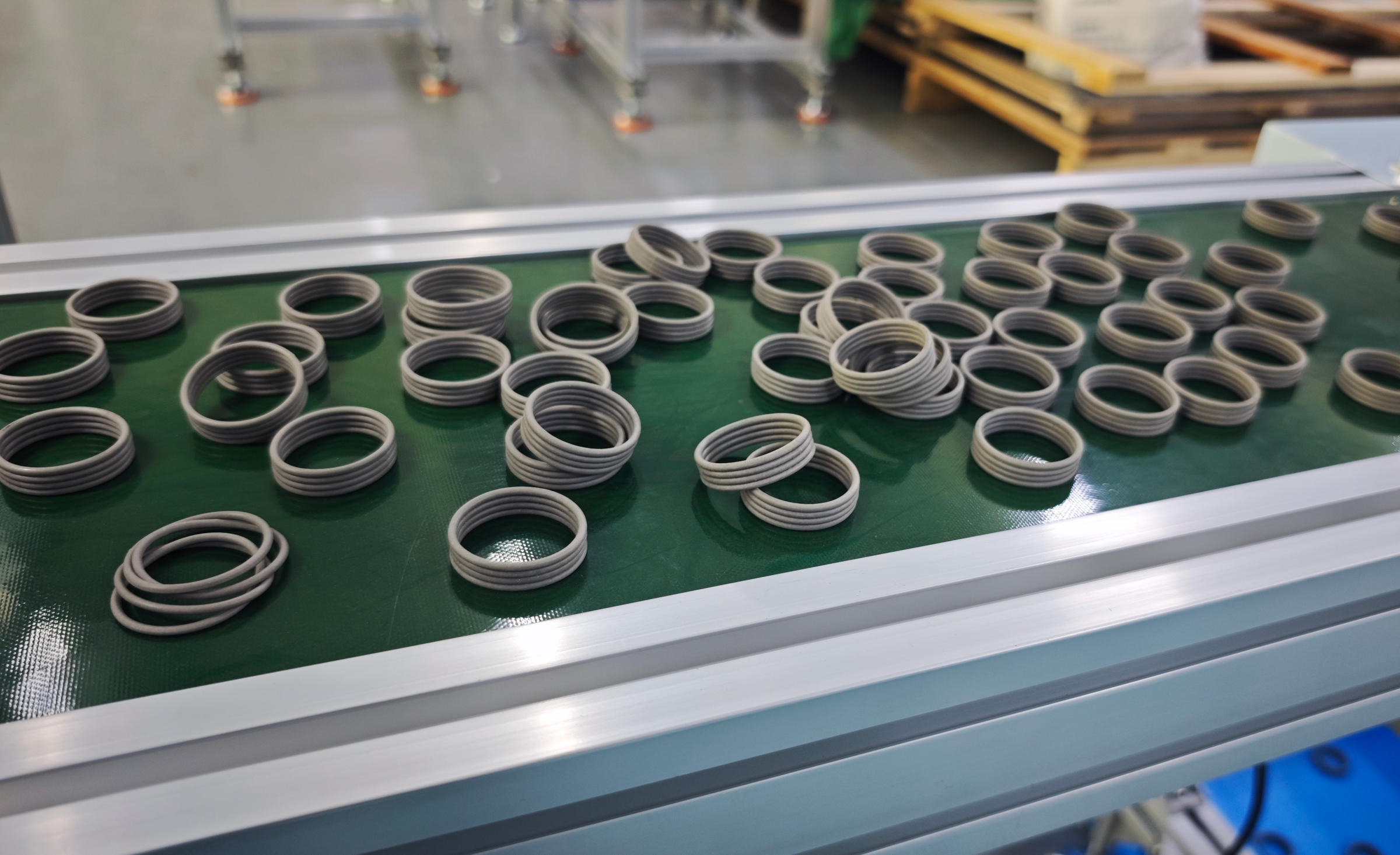

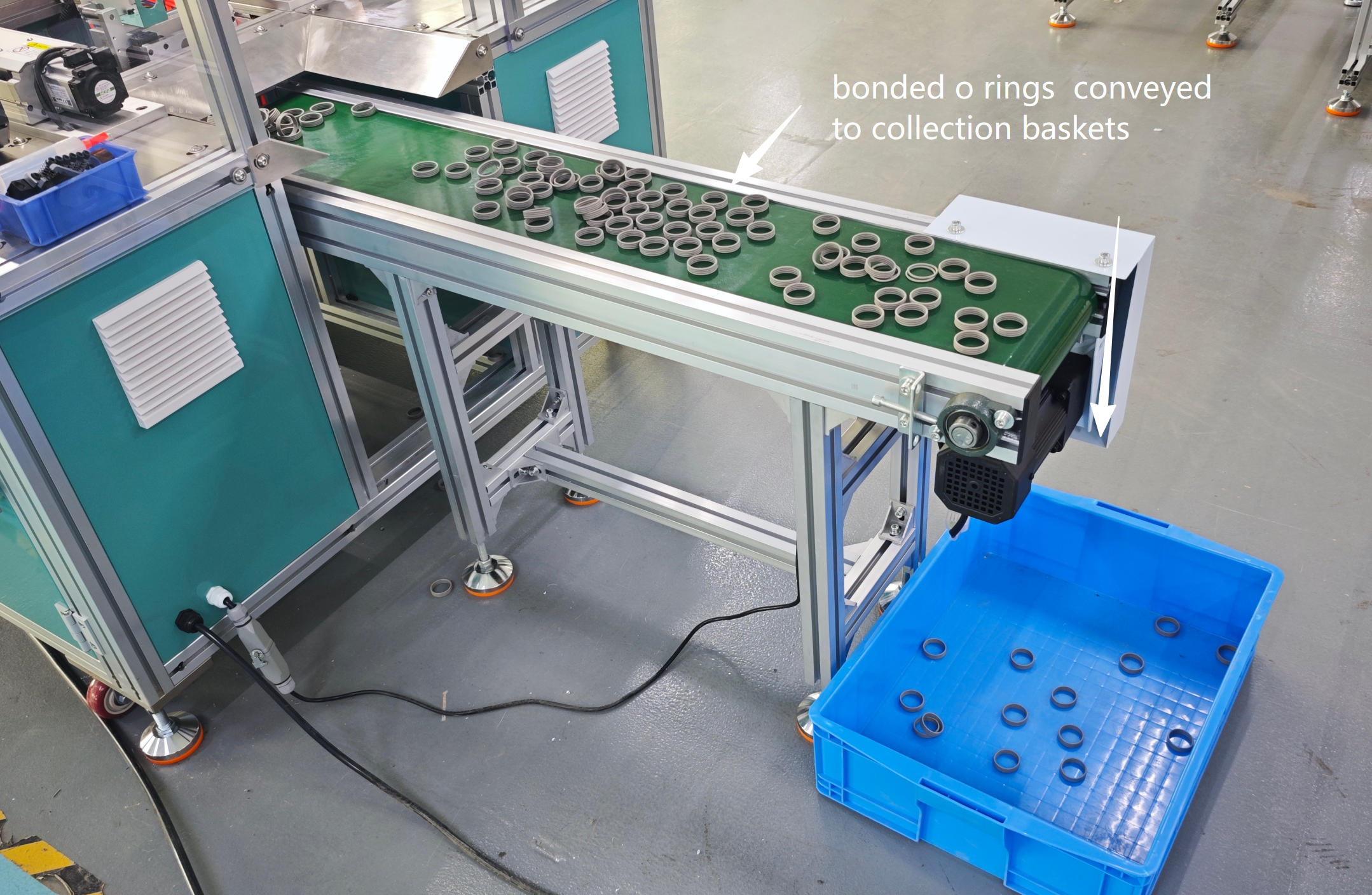

5, Auto Collection of bonded O-Ring gaskets , the convel belt are placed behind the machine , it will collection bonded o rings dropped by the collection and convey the bonded o rings to collection baskets, so workers don't have to manually pick up bonded o rings

Auto discharge bonded o rings from the fully automatic silicone o ring fully automatic cutting and splicing machine , stringent good quality  bonded o rings , precision cutting length with small cuttin length tolerance , high productivity and labour saving .

6 , Customised PLC touch screen language

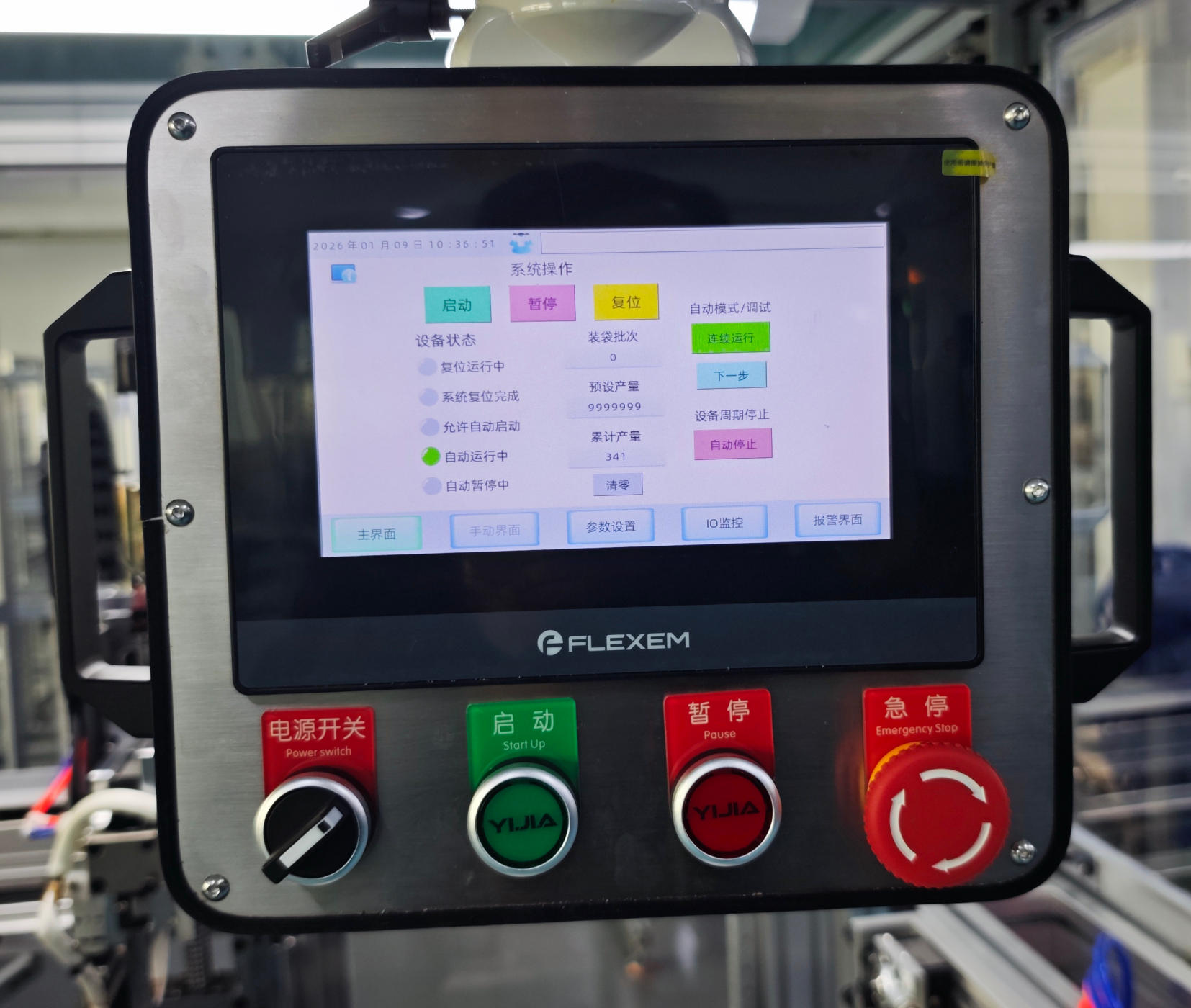

This multi-extruded silicone foam rubber O-ring manufacturing machine features an easy-to-use PLC touch screen control system, making operation simple and efficient. Operators can quickly set key production parameters such as cutting length, glue dipping times, heating temperature, heating time, machine speed, and total output quantity with just a few touches.

The machine comes with Chinese and English languages as standard, and additional languages—including Spanish, Italian, Turkish, Polish, and more—can be customized to match the customer’s local requirements. This ensures smooth operation for users worldwide.

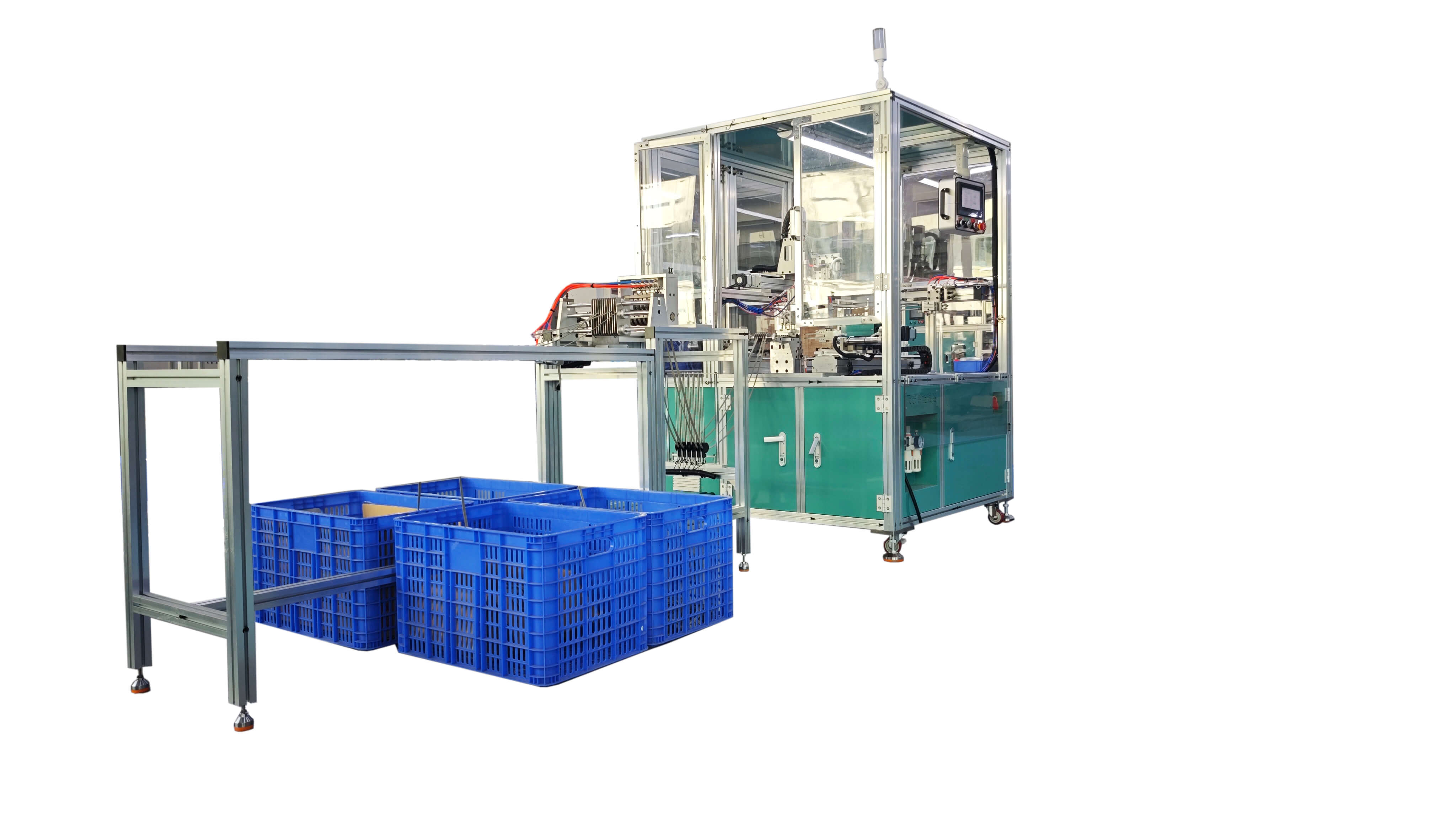

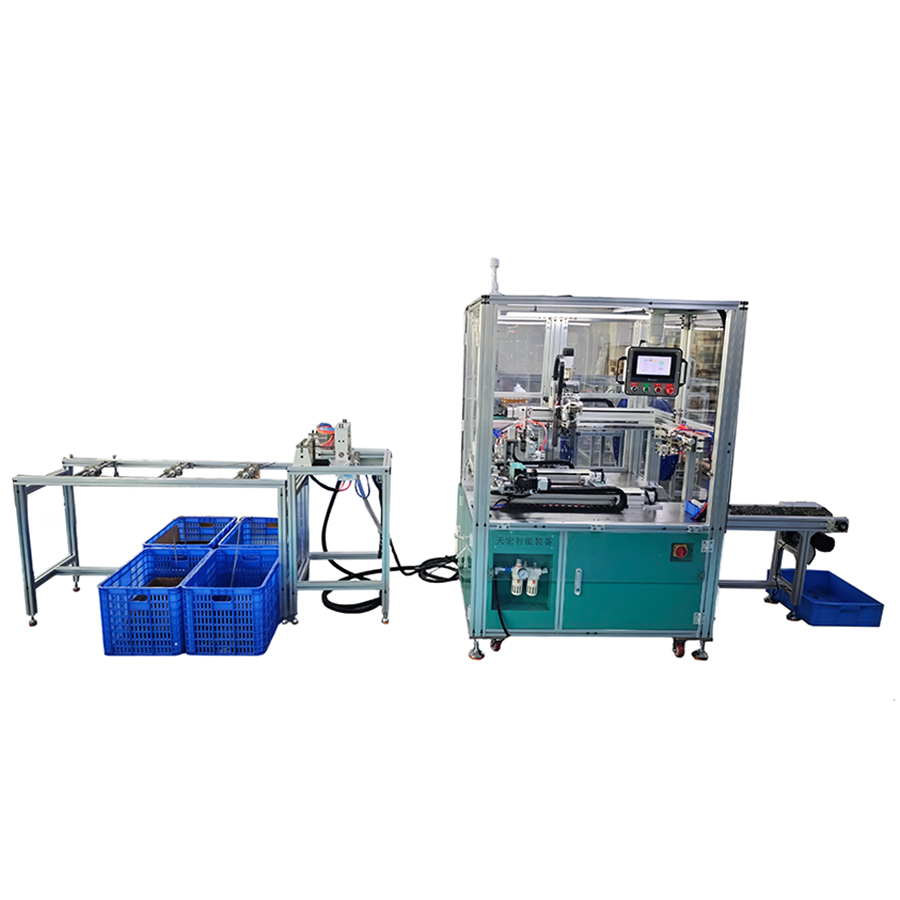

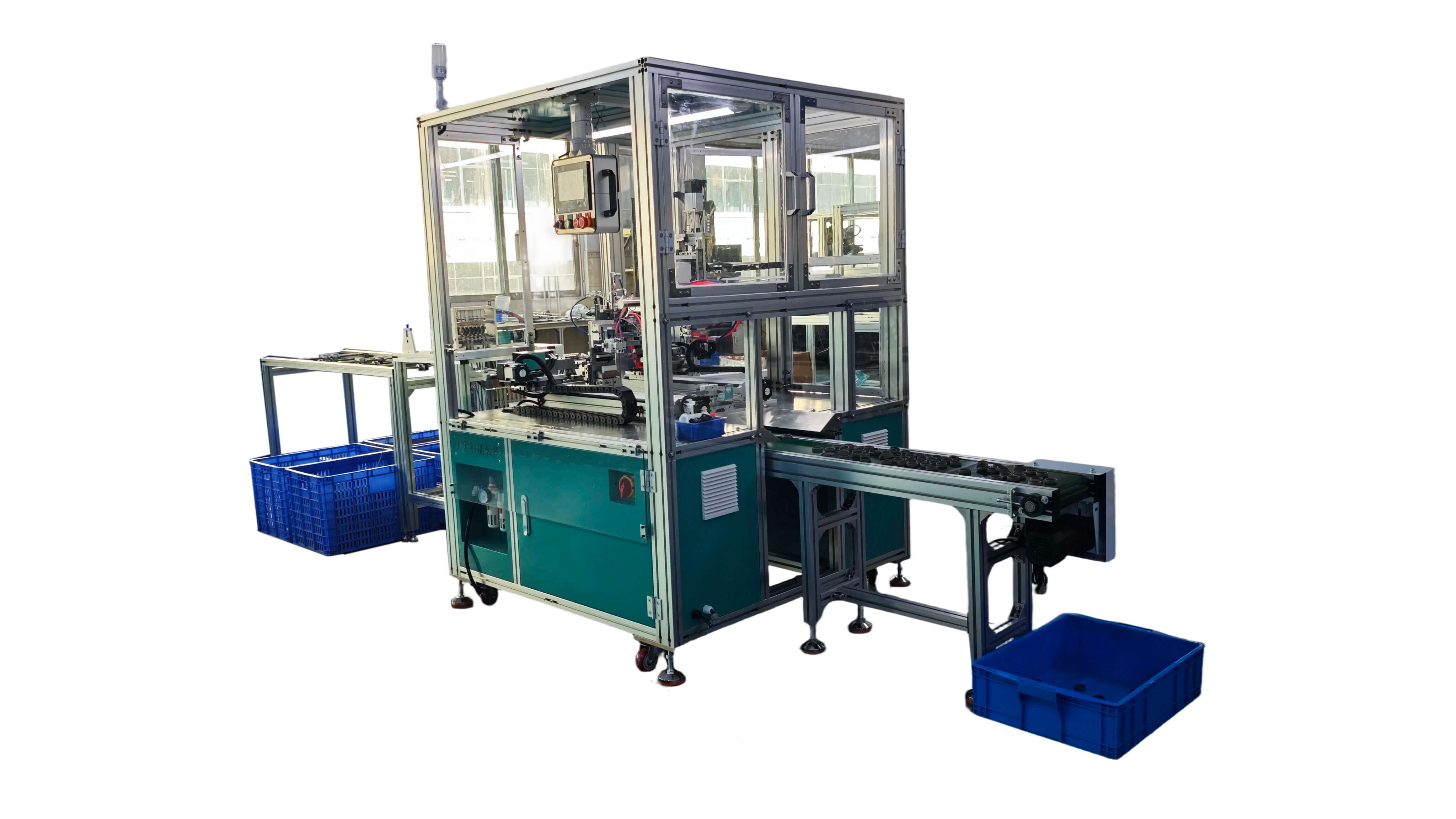

Front View

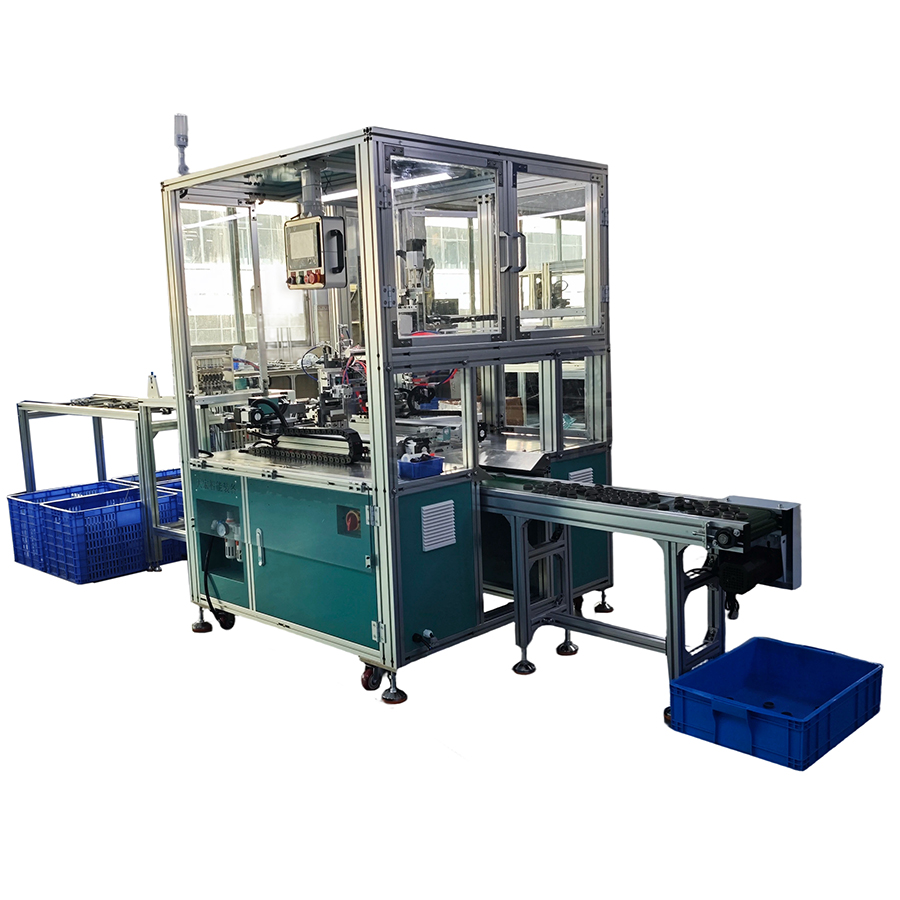

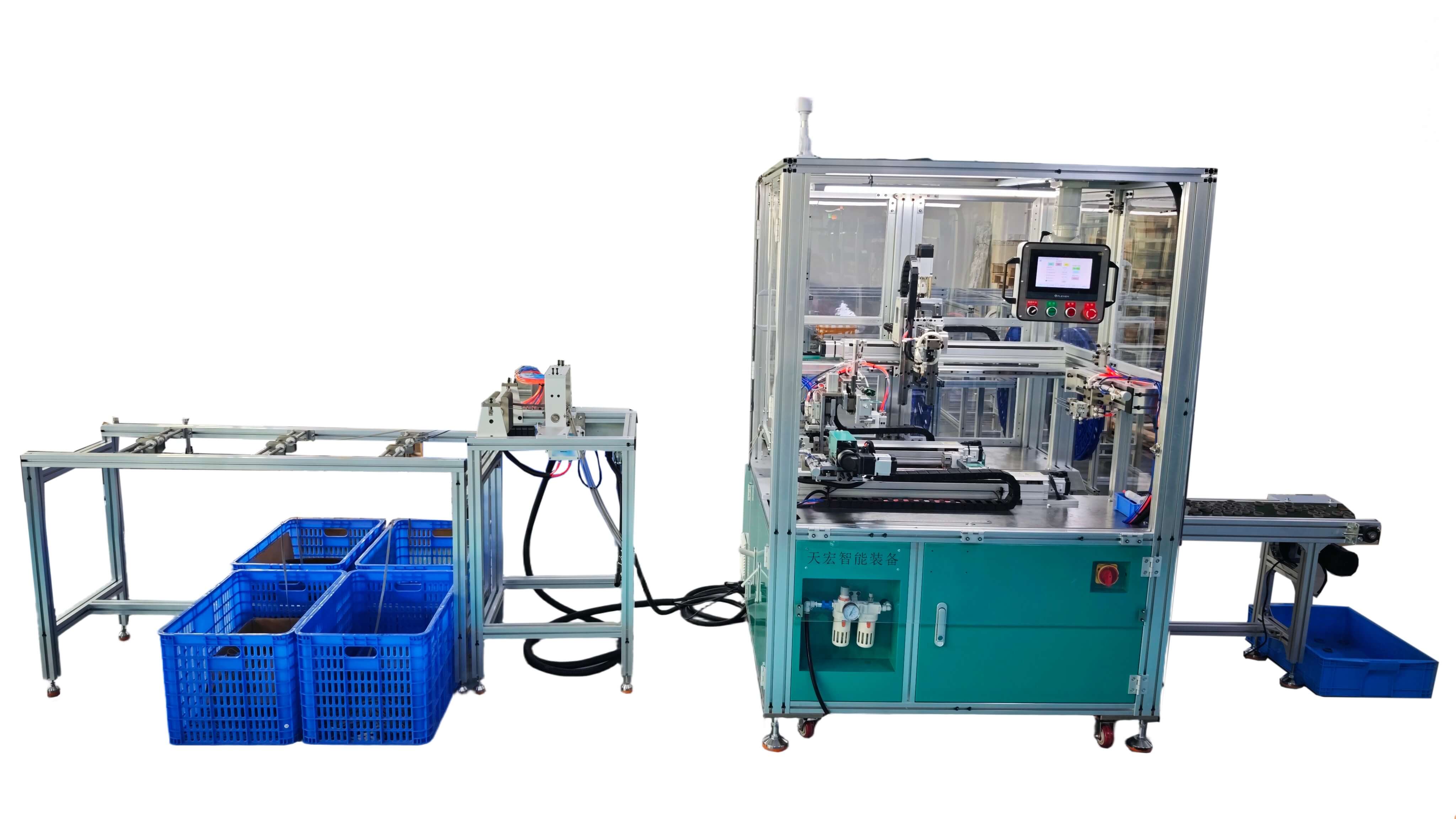

Side View

Side View

【Warranty 】

 As a small size silicone foam o ring gaskets fully automatic cutting and joining machine  ES-060-5 (67-300mm length)supplier , all the spare parts of the  ES-060-1 machine will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping.
