HTV silicone automatic mixing machine

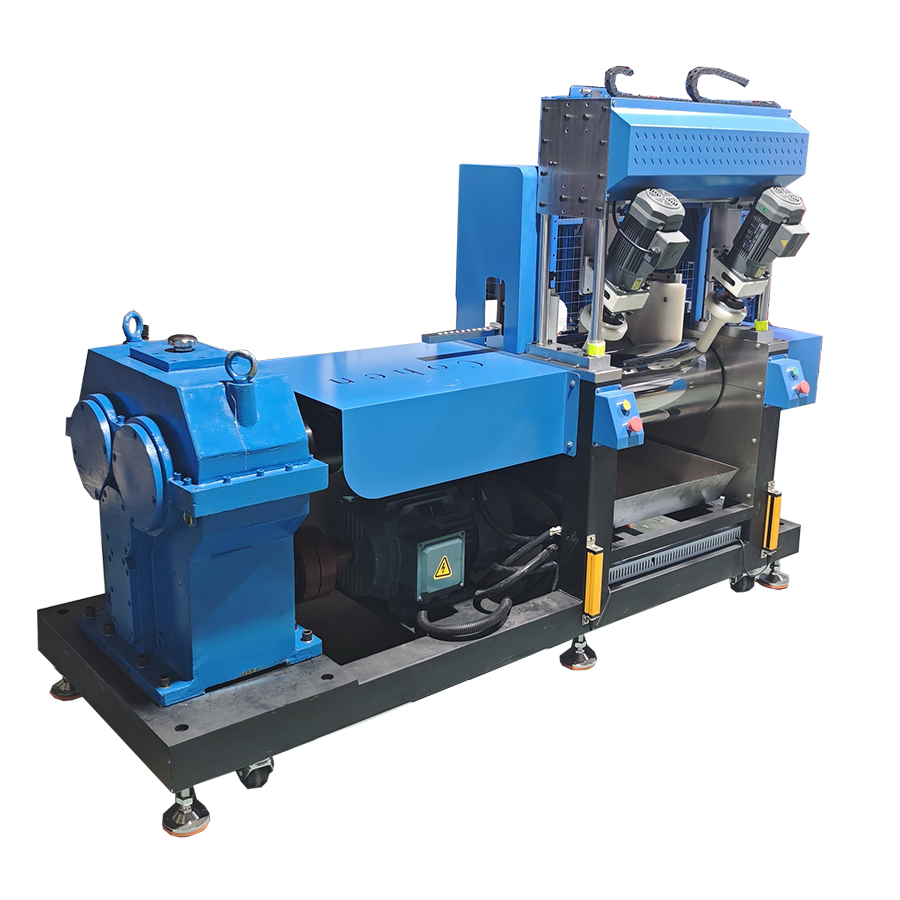

HTV silicone automatic mixing machine  ES-059-2

The HTV Silicone Mixing Machine ES-059-2 is a high-efficiency automatic mixing systemdesigned for uniform and consistent blending of HTV (High-Temperature Vulcanized)silicone. Equipped with dual automatic mixing hands and precision-engineered mixingrollers, this machine eliminates the need for manual mixing, significantly improving productivity and ensuring material consistency for further extrusion or molding processes.

Mixing htv silicone video

This mixing roller is made of  45# steel, tempered, heat-treated, ground, and chrome-plated of high quality , the front roller linear speed is 22r/min,  , the roller diameter is 230mm and roller length is 620mm ,  the feeding capacity is 10-30kg and the machine mixing speed is adjustable . the machine power is 7.5KW  Equipped with two mixing hands, the HTV silicone mixing machine automatically mixes HTV silicone and spares  manual labor  for mixing and ensuring consistent quality.

The built-in safety light curtain provides reliable operator protection. If a worker’s hand enters the mixing area, the machine automatically stops operation to prevent accidents.

This  HTV Silicone Mixing Machine combines automation, safety, and performance in one compact design. It is ideal for manufacturers seeking to improve mixing consistency, reduce manual handling, and increase productivity in silicone processing lines.

【Technical Data】

Product name : HTV silicone automatic mixing machine

Model No.:ES-059-2

Function : Automatic mixing htv silicone with mixing hands

Roller diameter: 230mm

Roller length: 620mm

Front roller linear speed: 22r/min

Roller material :45# steel, tempered, heat-treated, ground, and chrome-plated.

Roller speed ratio: 1:1.15

Feeding capacity: 10-30kg

Main motor power: 7.5kW

Safety protection :Safety light curtain

Bearing type: Dual front sliding bearings

Gearbox: Dual-shaft, hardened gear surface precision gearbox

Maximum roller pitch: 0-25mm

Power supply: AC 380V 30A

Machine weight: ~1500kg

Machine dimensions: 2200*1050*1660mm

【Product Advantage】

1, Automatic mixing htv silicone with two mixing hands  and save manual mixing  by workers

2, Safety protection with safety ligth barrier equipped  in case worker's hands reach into working area ,the machine stops immediately. 3

it can also count meters

3,Good mixed htv silicone for further extrusion processing  and high productivity .

【Product Details】

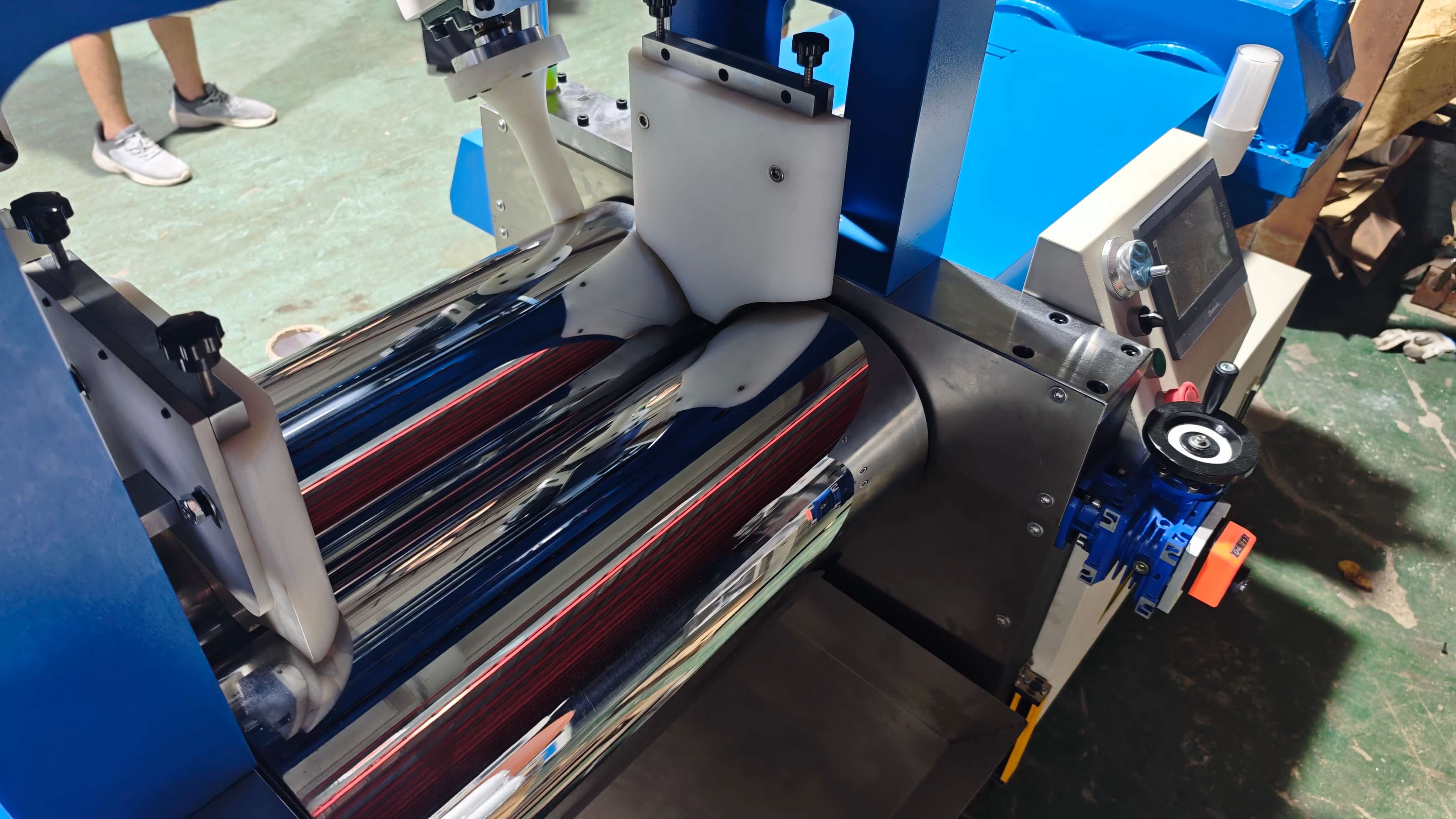

1, High quality mixing roller,  the mixing  roller is made of 45# steel, tempered, heat-treated, ground, and chrome-plated. material turning and movement control by  Ruineng inverters

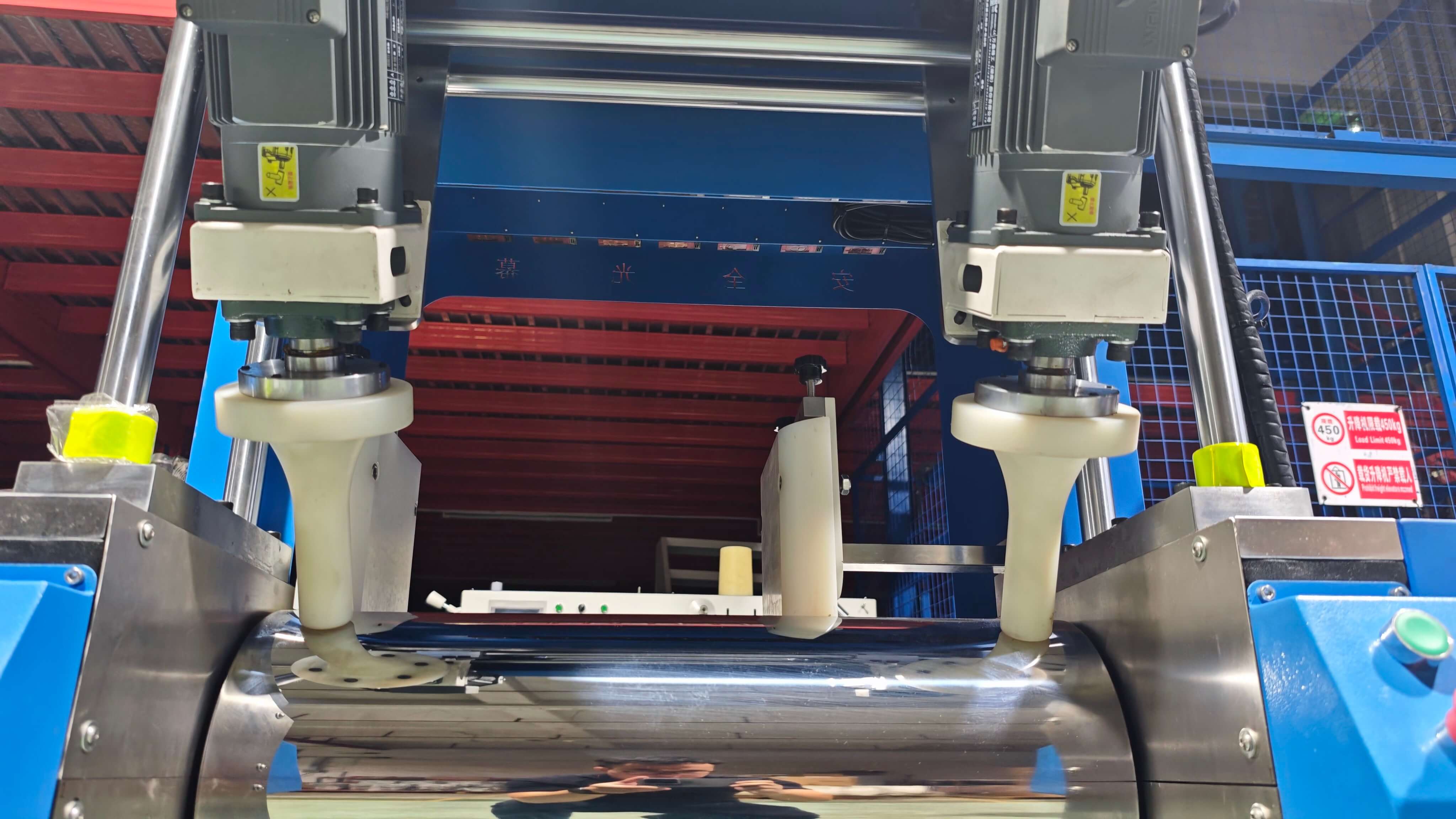

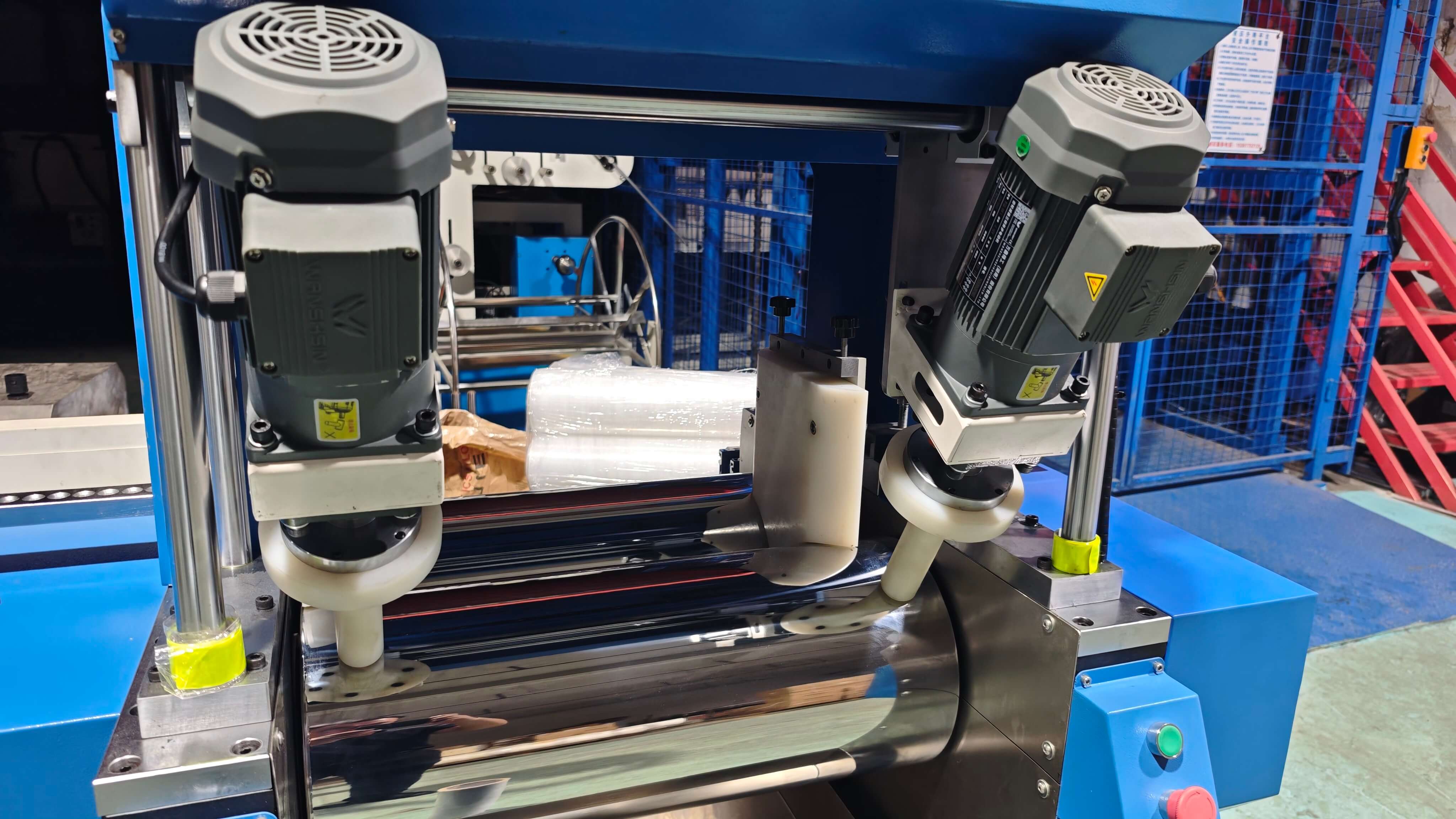

2,Automatic mixing hands , this automatic htv silicone mixing machine applies with two automatic mixing hands which can move from left to right

and rotate itself for assisting complete mixture of htv silicones without doing it manually .

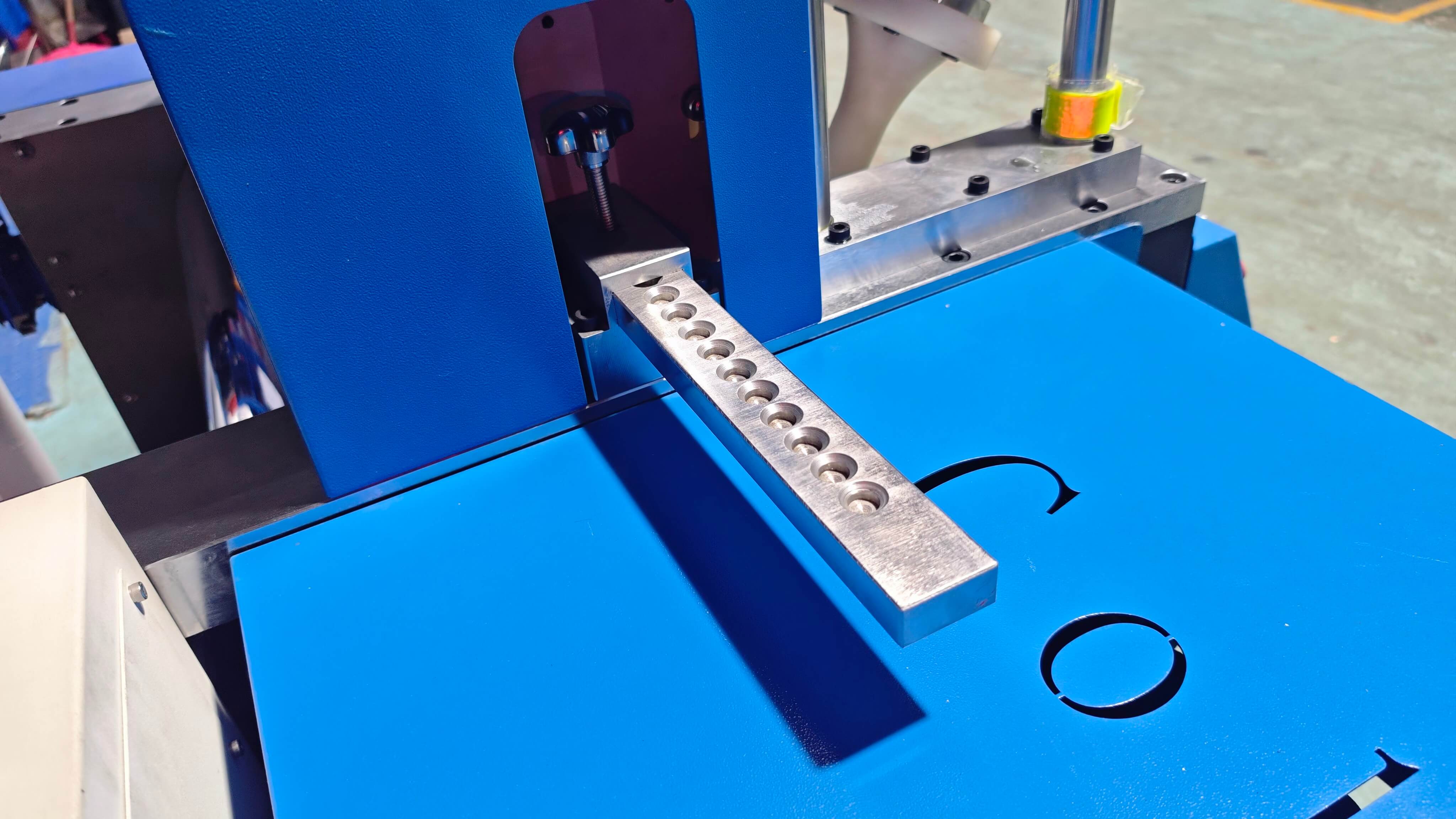

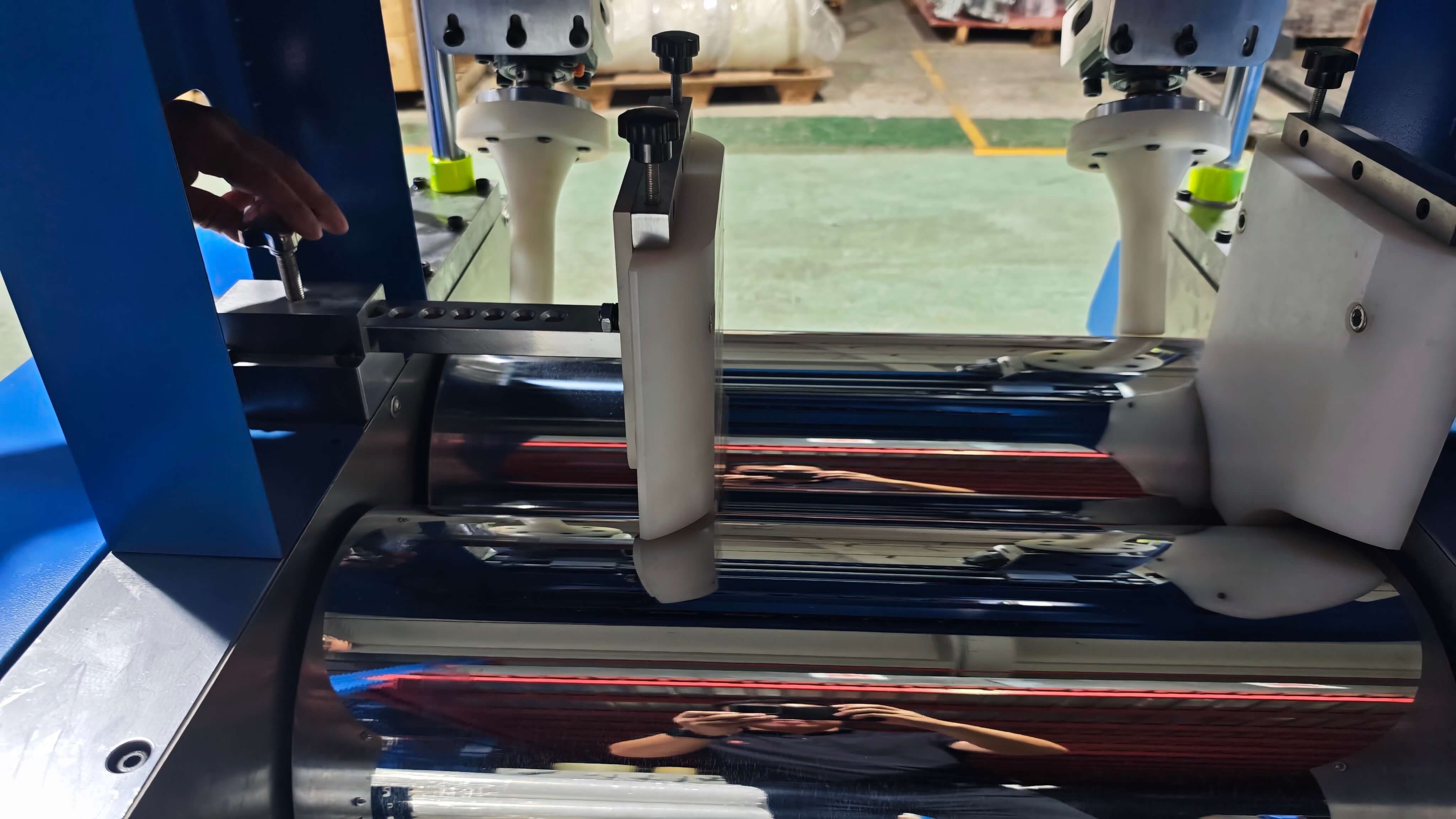

3,  Fixture  , the fixture from both sides is to control the opening distance  of holder board  where we can put the htv silicone into the mixing machine ,normally the

feeding input is about 10-30kg . if we want to increase the feeding input , we can increase the opening of holder boards .

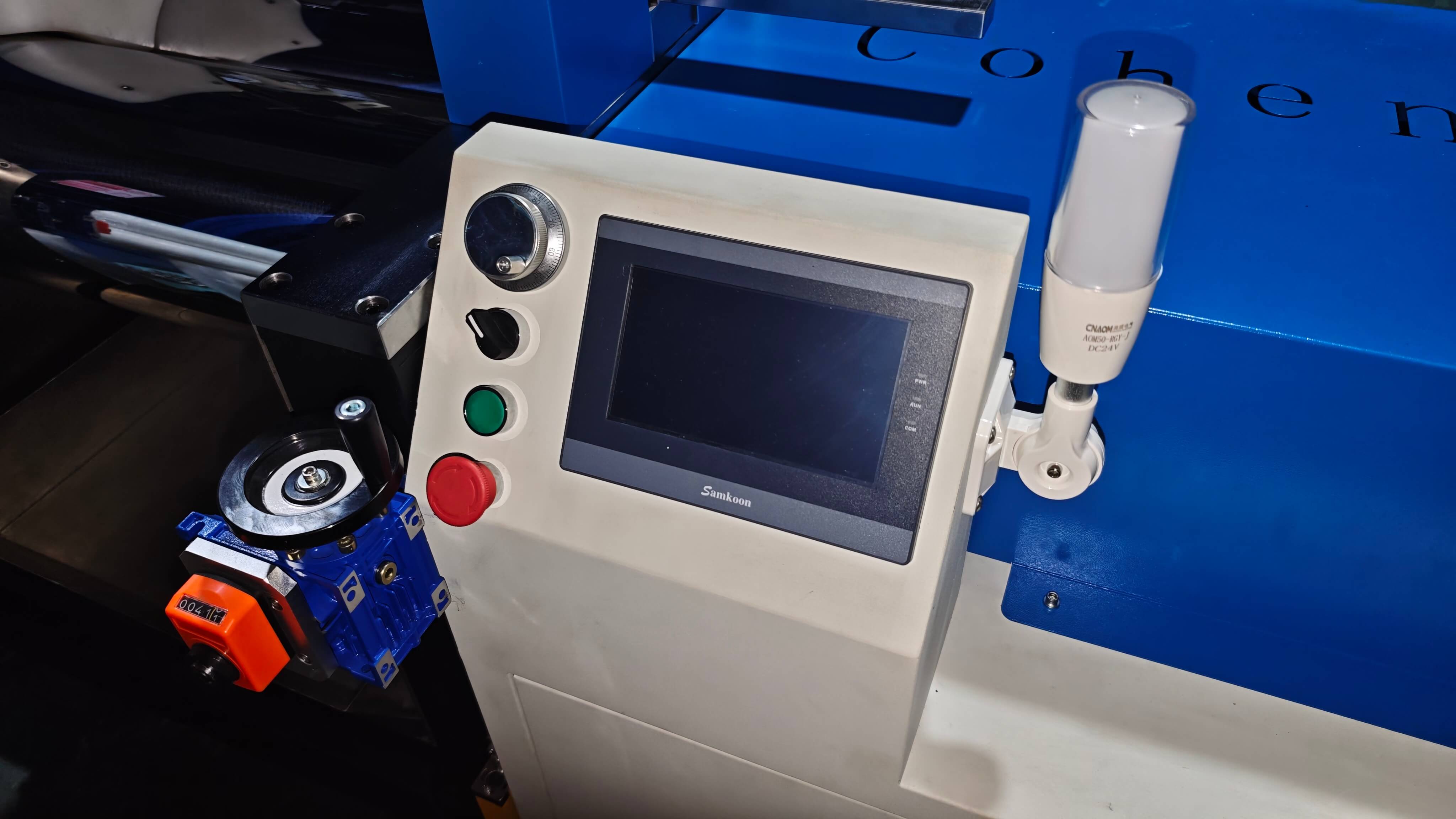

4, PLC touch screen control  ,this HTV silicone automatic mixing machine  applies with PLC touch screen which will be easy to operate

 both Chinese & English and customized language are avaible . customer can set the mixing speed and mixing time based on production need .

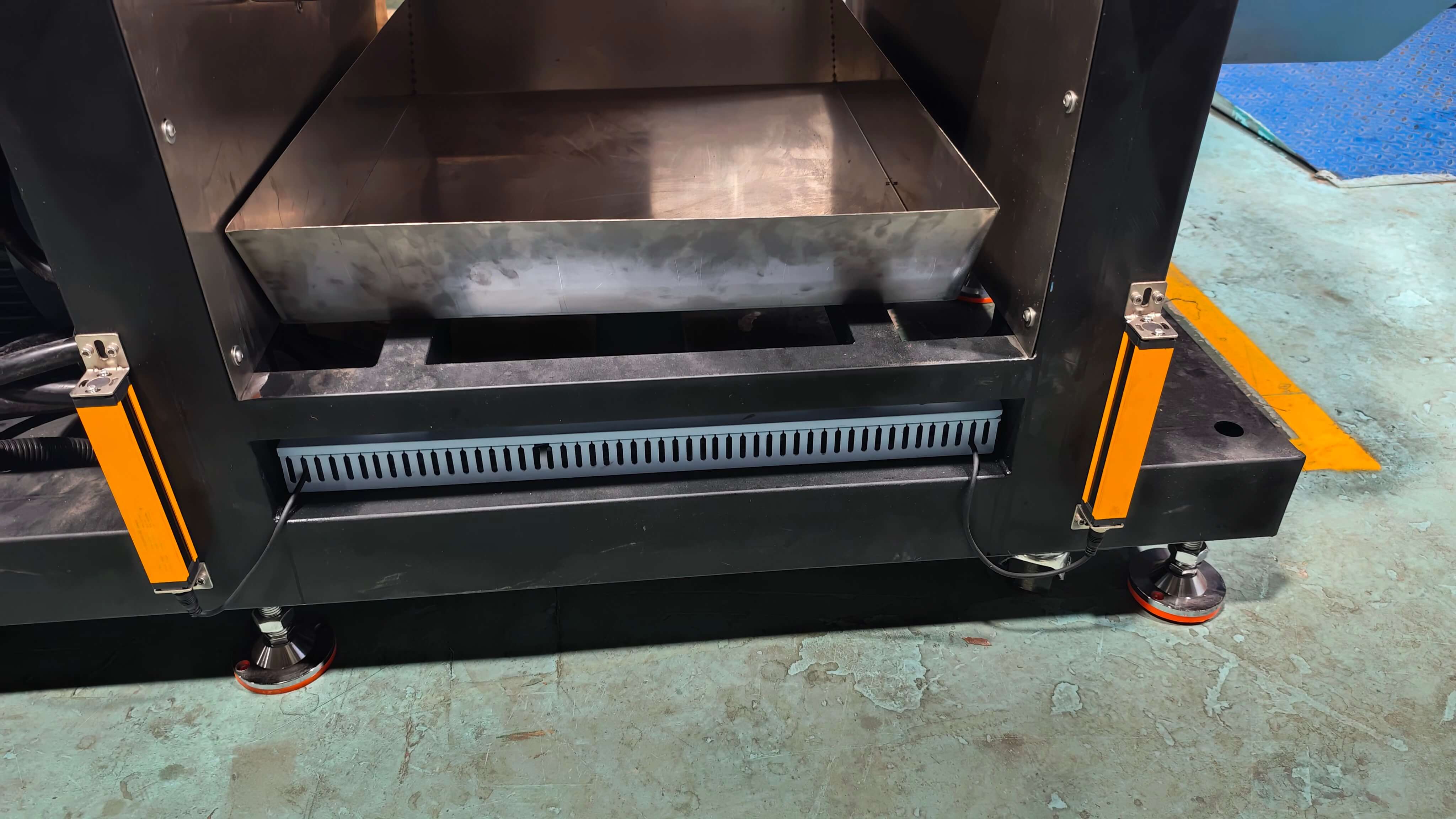

5 , Collection device   ,the finished mixing  htv silicone material will be collected in the collection box.

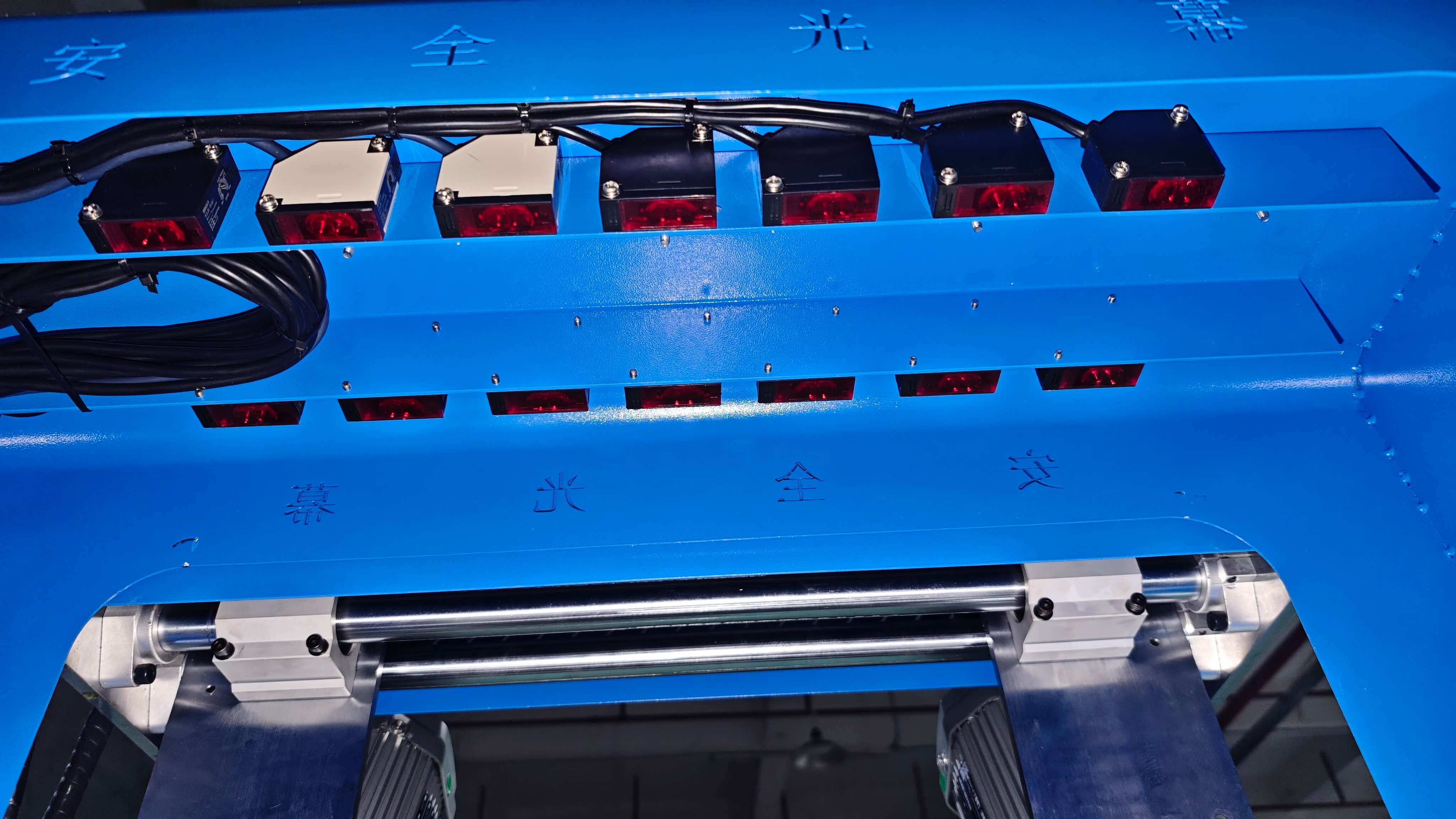

6, Safety light barrier ,  there is a safety light barrier on the top  , when worker's hands reach into the area , the machine would stop working immediately ,  also safety light barriers on both sides (close to the stop) for enclosed safety protection  and there are also emergency stop buttons on the 4 corners of the platform ,if any emergency happens ,we can stop the machine immediately .

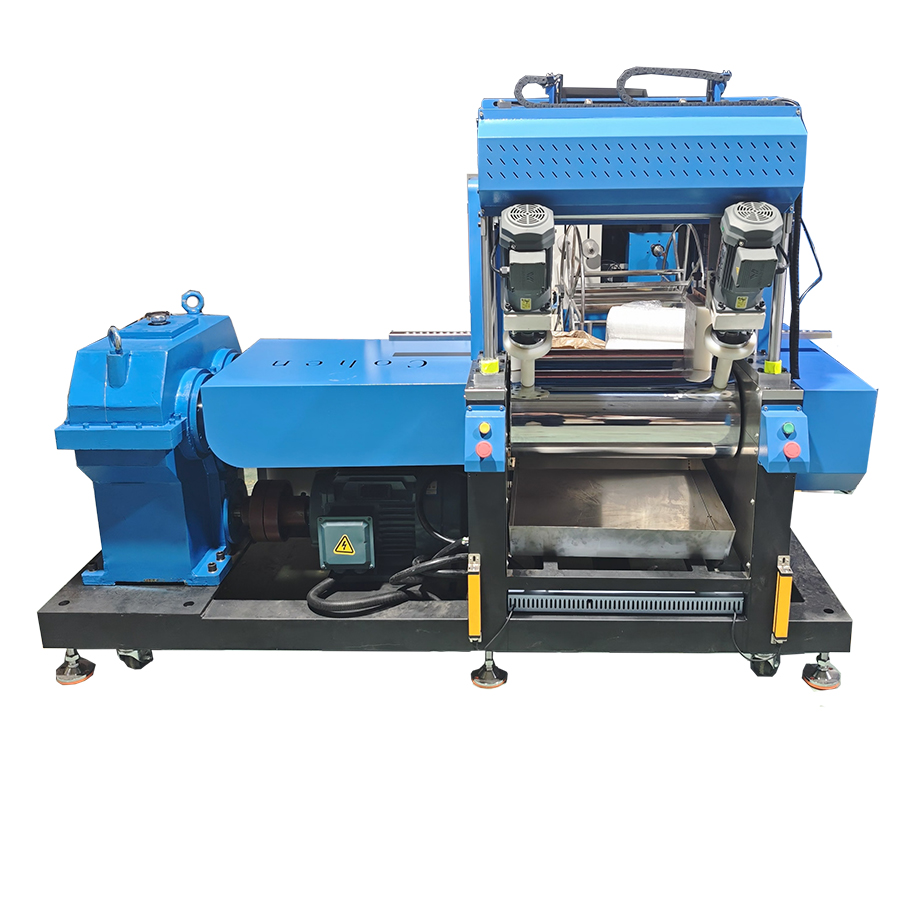

Front View

Side View

Side View

【Warranty 】

 As a HTV silicone automatic mixing machine supplier , all the spare parts of the machine  will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
