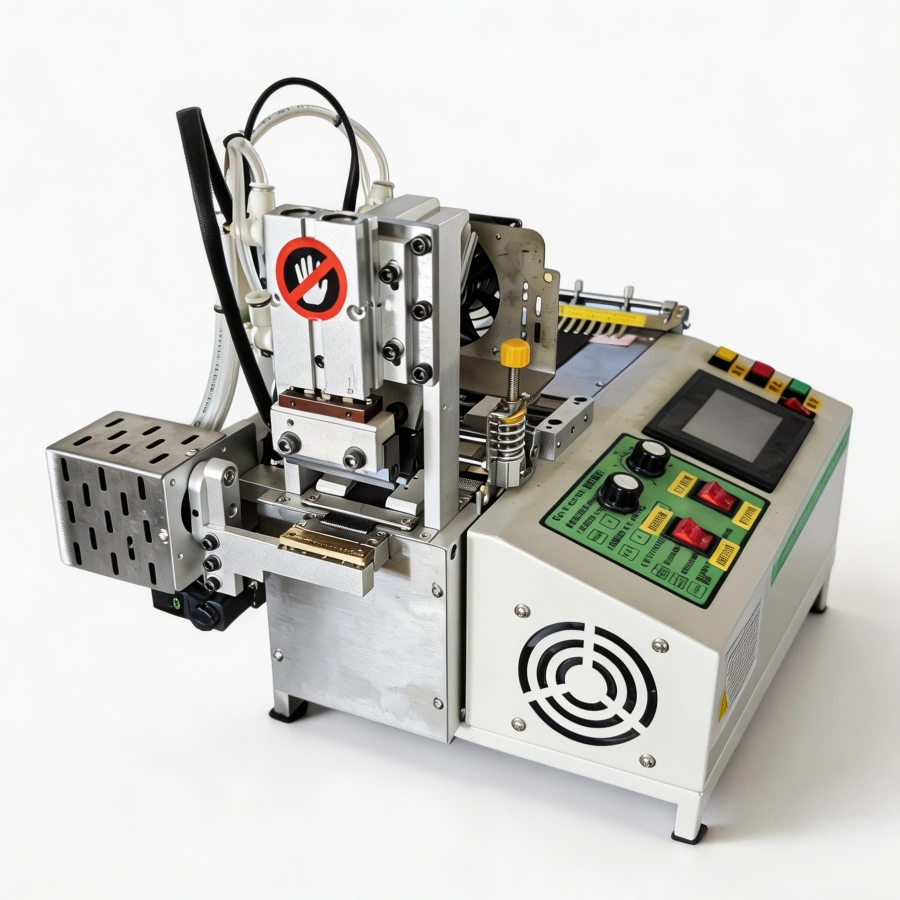

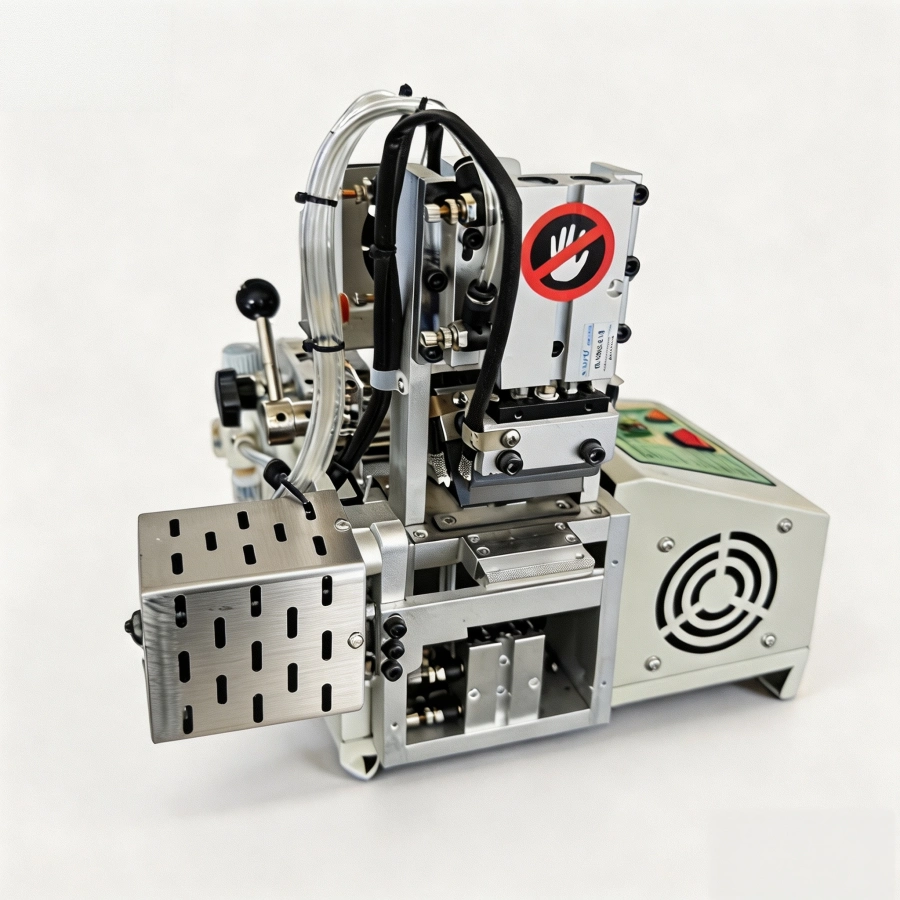

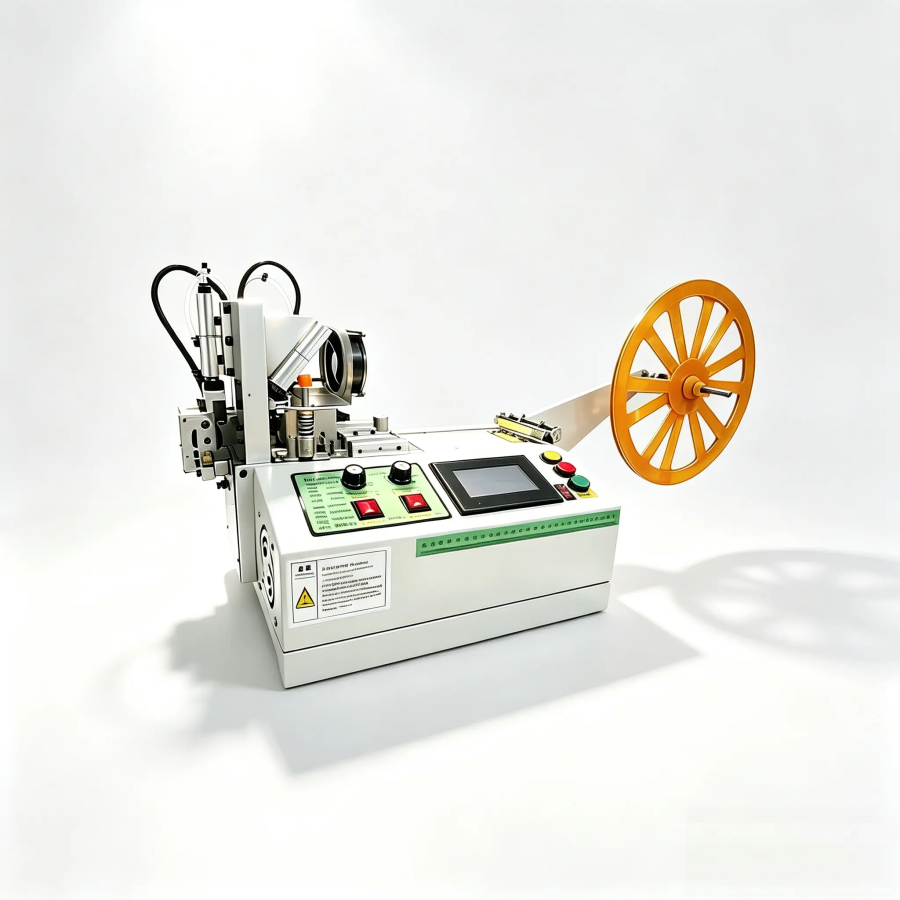

Webbing Ends Folding and Cutting Machine ES-014-3

Automatic Webbing Cutting, End Folding and Edge Sealing Machine

The Webbing Ends Folding and Cutting Machine ES-014-3 is a multifunctional automatic machine designed for efficient webbing cutting, end folding and edge sealing. It combines these three operations into one integrated process, helping reduce manual handling while improving production efficiency and consistency.



The machine uses a hot-cutting blade to cut webbing to a preset length while providing an effective heat-sealing effect on the cut edge. The webbing end can then be folded and heat sealed to form a smooth and finished edge.

With a convenient touch screen control system, operators can set the cutting length, folding length, heating temperature, machine speed, production quantity and other operating parameters. The adjustable fixture also allows the machine to accommodate different webbing widths within its specified working range.

Designed for manufacturers requiring efficient and repeatable webbing processing, the ES-014-3 provides an integrated solution for webbing cutting, end folding and edge sealing.



Key Features of the Webbing Ends Folding and Cutting Machine

1. Cutting, End Folding and Edge Sealing in One Machine

The machine integrates:

1. Webbing cutting
2. Webbing end folding
3. Webbing edge sealing

into one production process.

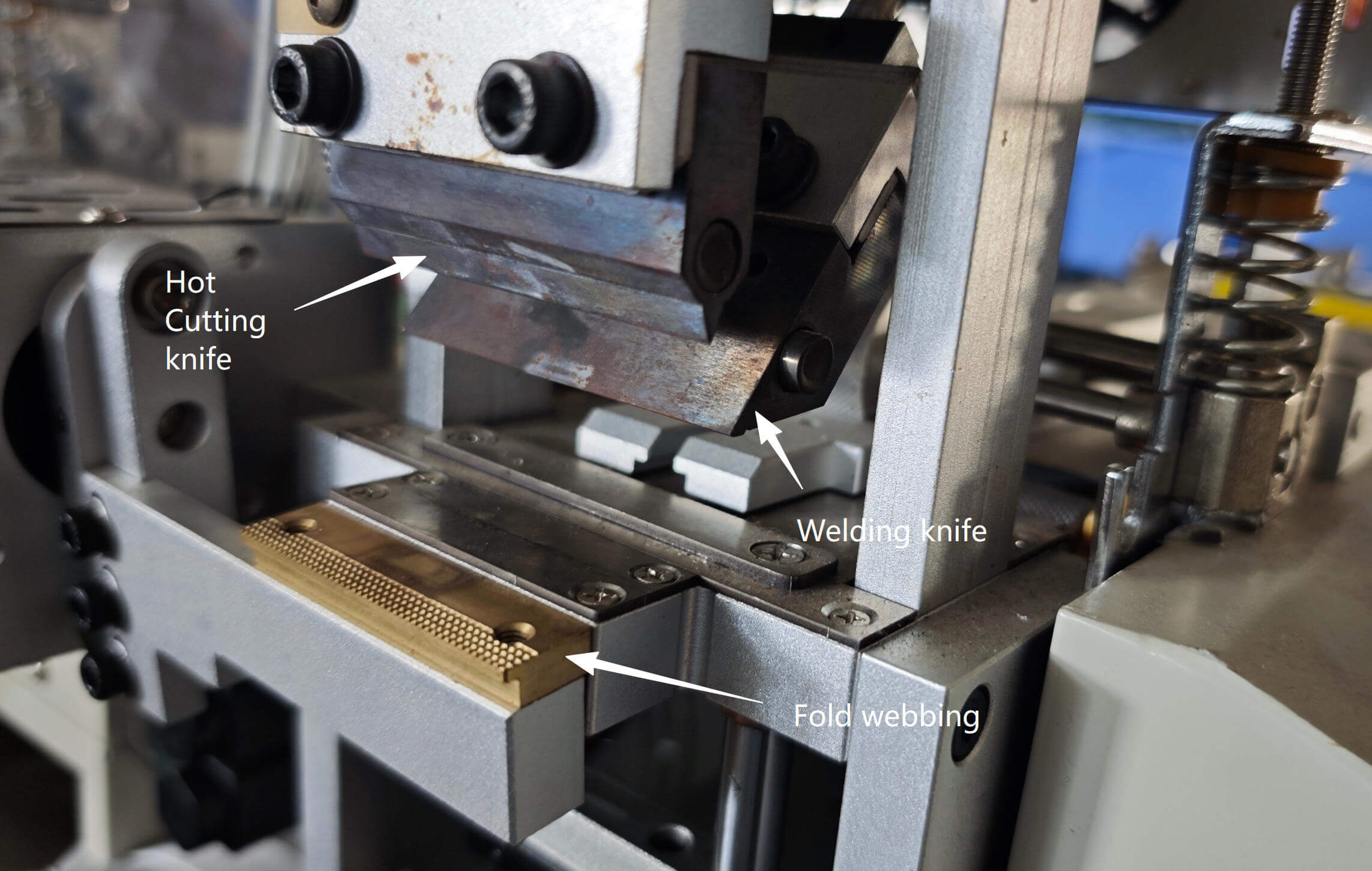

The folding unit folds the webbing end and heat seals it together to create a smooth and finished edge. This integrated design helps reduce separate manual operations and makes the production process more efficient.

2. Hot Cutting and Effective Edge Sealing

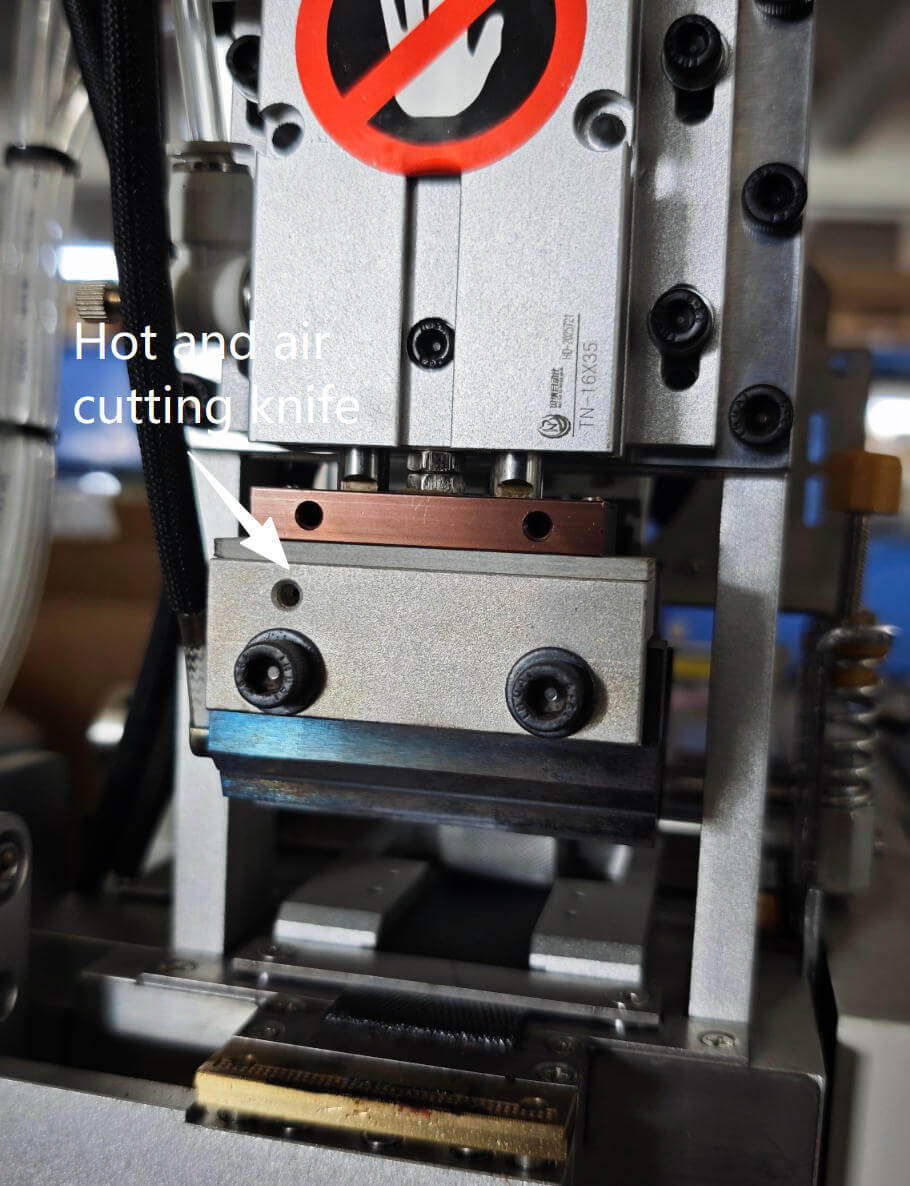

The machine is equipped with a single hot-cutting blade. The blade can reach a maximum heating temperature of 350°C, providing effective hot cutting and heat sealing of webbing edges.

This hot-cutting system helps create a cleaner finished edge after cutting and is suitable for processing different webbing thicknesses within the machine’s applicable range.



3. Efficient Production Speed

The specified cutting speed is approximately 35 cycles per minute, while the product information indicates an average working speed of approximately 35–40 pieces per minute.

The actual production output can vary depending on webbing material, dimensions, cutting length and machine settings.

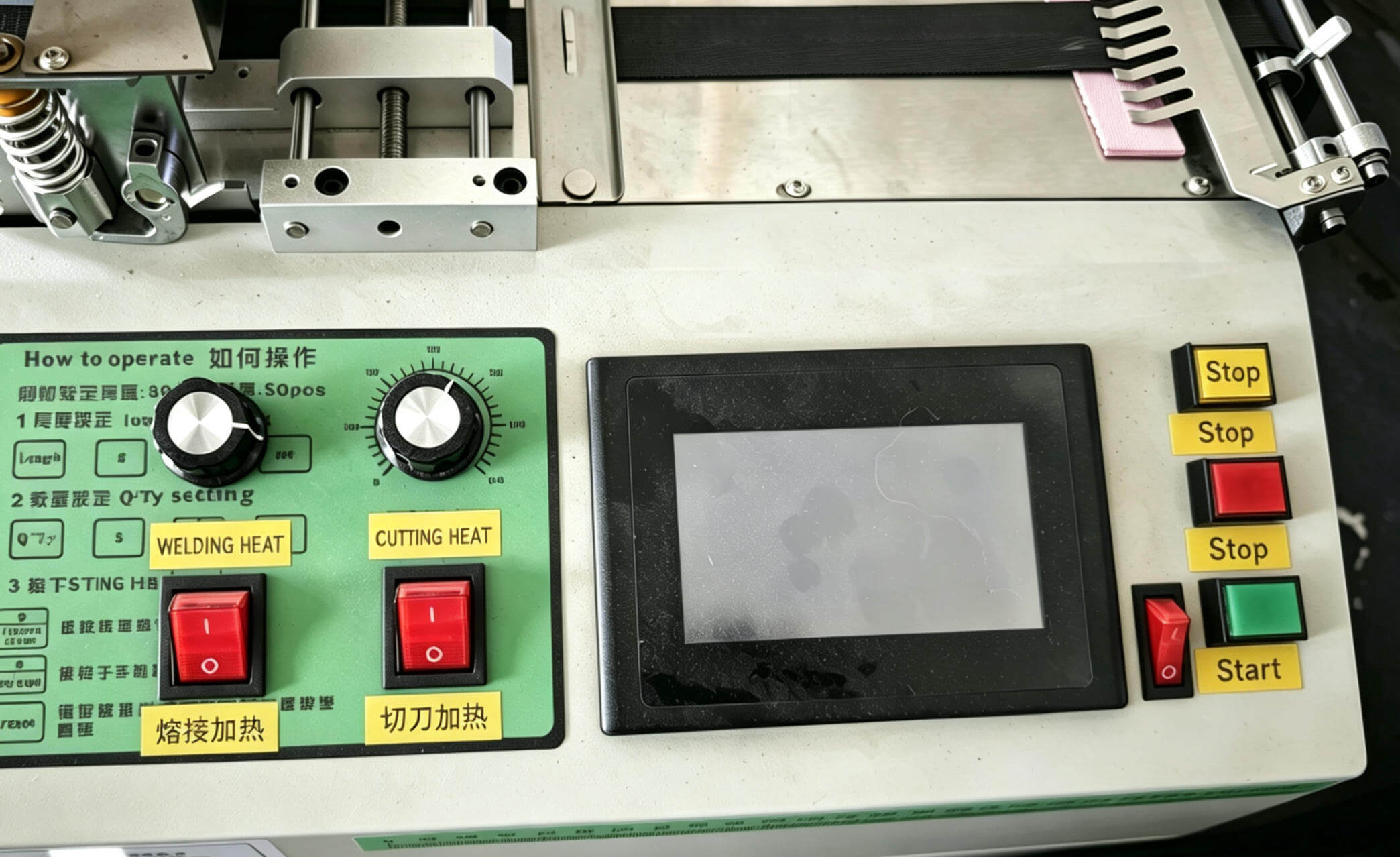

4. Easy Operation with Touch Screen Control

The Webbing Cutting and Folding Machine features a touch screen control system that allows operators to adjust key production parameters.

Settings include:

1. Cutting length
2. Folding length
3. Heating temperature
4. Machine speed
5. Production quantity
6. Folding cycles

The cutting length can be programmed from 1 to 99,999 mm, while the folded end length can be adjusted from 3 to 15 mm.

5. Adjustable for Different Webbing Widths

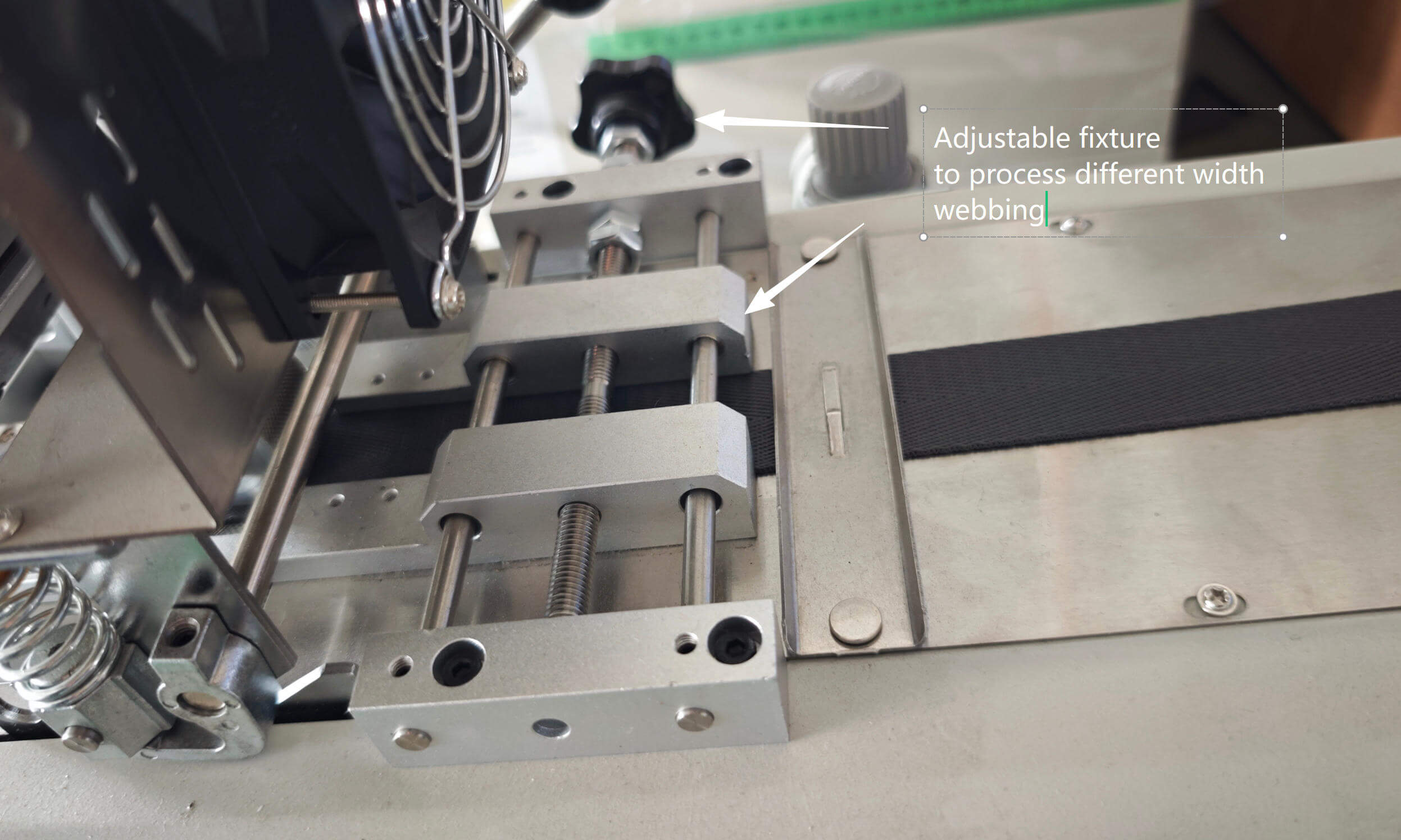

The webbing holding fixture can be adjusted to accommodate different webbing widths.

The specified cutting width range is 1–45 mm, making the machine suitable for processing different webbing specifications within this range.



6. Material-Out Detection and Automatic Stop

The machine is equipped with a material-lacking detection function.

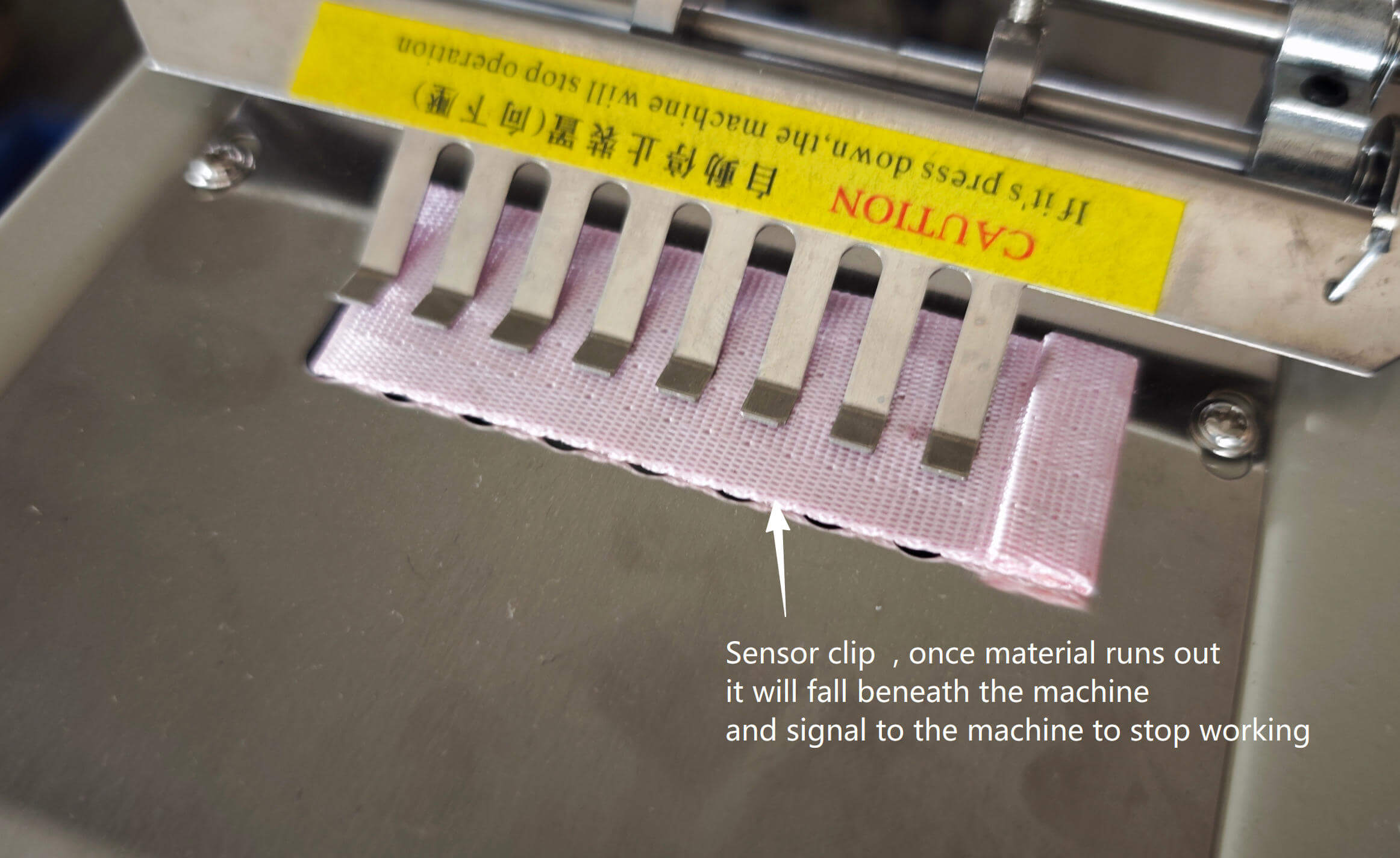

When the webbing material runs out, the sensor clip falls beneath the machine surface and sends a signal to the machine. The machine then stops working, helping prevent unnecessary operation without material.



7. Stable Hot Cutting Performance

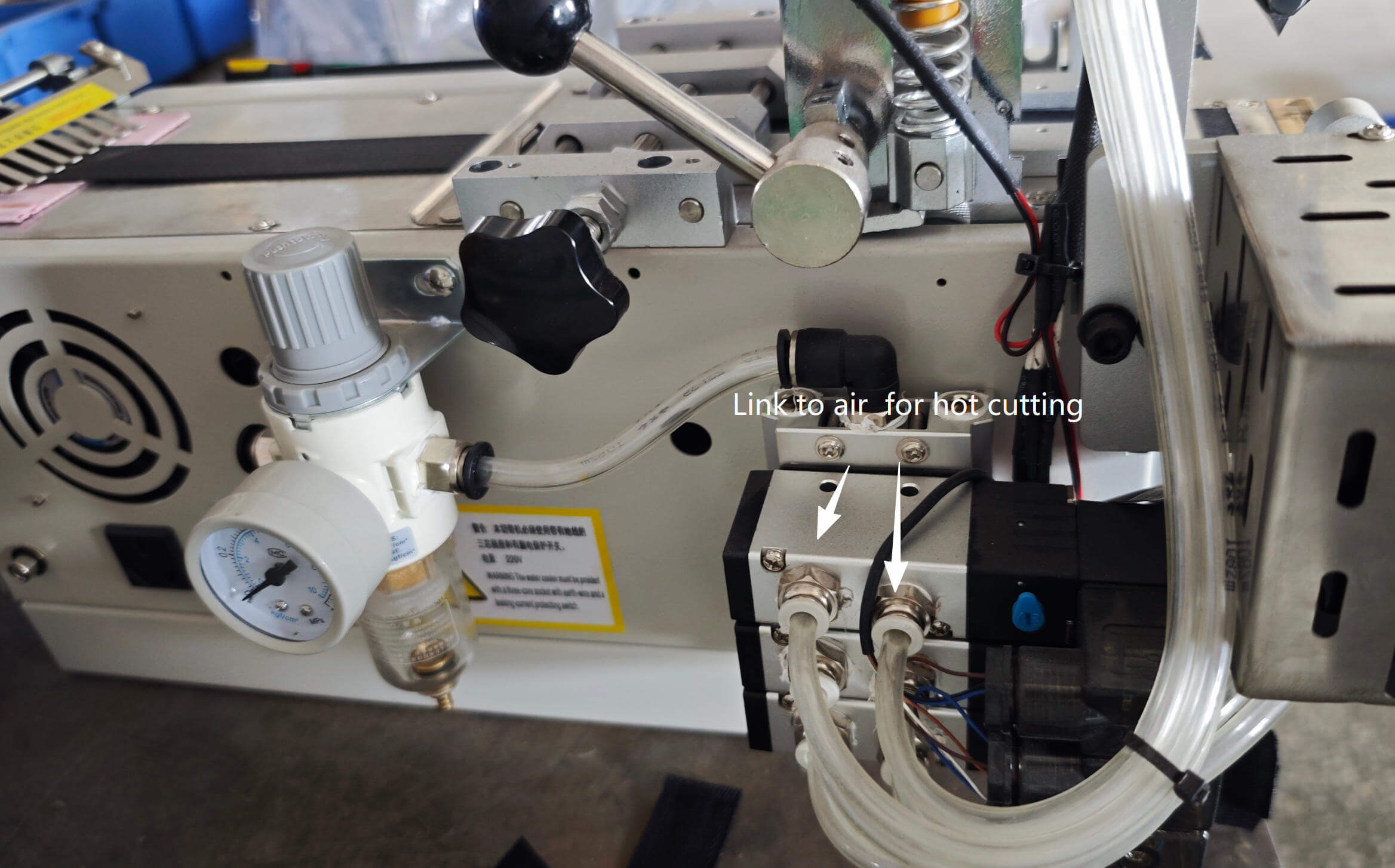

The machine works with an air-assisted hot-cutting system. The hot knife provides strong cutting performance and effective heat sealing for webbing edges.

This design helps maintain stable processing performance when working with different webbing thicknesses and supports consistent edge finishing.



Technical Specifications

The above specifications are based on the current ES-014-3 product information.



How Does the Webbing Ends Folding and Cutting Machine Work?

Step 1: Webbing Feeding

The webbing is positioned through the machine’s feeding and holding mechanism.

Step 2: Set the Cutting Parameters

The operator enters the required cutting length, folding length, heating temperature and machine speed through the touch screen.

Step 3: Hot Cutting

The heated cutting blade cuts the webbing according to the preset length. At the same time, the heat generated by the blade helps seal the cut webbing edge.

Step 4: Webbing End Folding

The folding unit folds the end of the cut webbing according to the preset folding parameters.

Step 5: Edge Sealing

The folded webbing end is heat sealed to create a smooth and finished edge.

The machine supports 1–2 selectable folding cycles, depending on the required processing setting.



Advantages of the Webbing Cutting and Folding Machine

1, Welding webbing ends and cutting webbing to length all in one machine which is labour saving





2, High productivity of average working speed of 35-40 pcs per minute



3, Wide application to different webbing and different thickness and width webbings





Why Choose Our Webbing End Folding Machine?

The ES-014-3 combines webbing cutting, end folding and edge sealing into a compact and easy-to-operate machine.

Its key advantages include:

1. Multifunctional webbing processing
2. Touch screen operation
3. Adjustable cutting length
4. Adjustable folding length
5. Adjustable webbing fixture
6. Hot cutting up to 350°C
7. Material-out detection
8. 1–2 selectable folding cycles
9. Compact machine dimensions

For customers searching for a Webbing End Folding Machine, Webbing Cutting Machine, or Webbing Cutting and Edge Sealing Machine, this integrated design provides a practical solution for automated webbing end processing.



Frequently Asked Questions

1. What is a Webbing Ends Folding and Cutting Machine?

A Webbing Ends Folding and Cutting Machine is a multifunctional machine designed to cut webbing to a preset length, fold the webbing ends and perform edge sealing in an integrated production process.

2. What functions does the machine combine?

The machine combines webbing cutting, webbing end folding and edge sealing in one machine.

3. What is the maximum cutting length?

The programmable cutting length ranges from 1 mm to 99,999 mm.

4. What is the maximum webbing width?

The specified cutting width range is 1–45 mm. The fixture can be adjusted to hold different webbing widths within the machine’s working range.

5. What is the maximum temperature of the hot cutting blade?

The maximum blade heating temperature is 350°C.

6. How fast can the machine process webbing?

The specified cutting speed is 35 cycles per minute. The product information also indicates an average working speed of approximately 35–40 pieces per minute, depending on production conditions.

7. Can the webbing folding length be adjusted?

Yes. The folded end length can be adjusted from 3–15 mm.

8. How many folding cycles are available?

The machine supports 1–2 selectable folding cycles.

9. Does the machine detect when the webbing runs out?

Yes. The machine has a material-lacking detection function. When the material runs out, the sensor triggers the machine to stop.

10. What information should I provide when asking about this machine?

For machine evaluation, customers should provide their webbing width, webbing thickness, required cutting length, folded end length and production requirements. These details can help determine whether the machine’s specified working range matches the application.



Request a Webbing Cutting and Folding Machine Solution

Looking for an efficient Webbing Ends Folding and Cutting Machine for your production line?

Send us your webbing specifications and processing requirements. Our team can evaluate your webbing material, webbing width&thickness, folding length and production conditions to help determine the appropriate machine configuration.
