2026-08-12 Author : admin
Manufacturing silicone cord O-rings requires accurate cutting, reliable joining, consistent production, and most importantly, a safe working environment for operators.

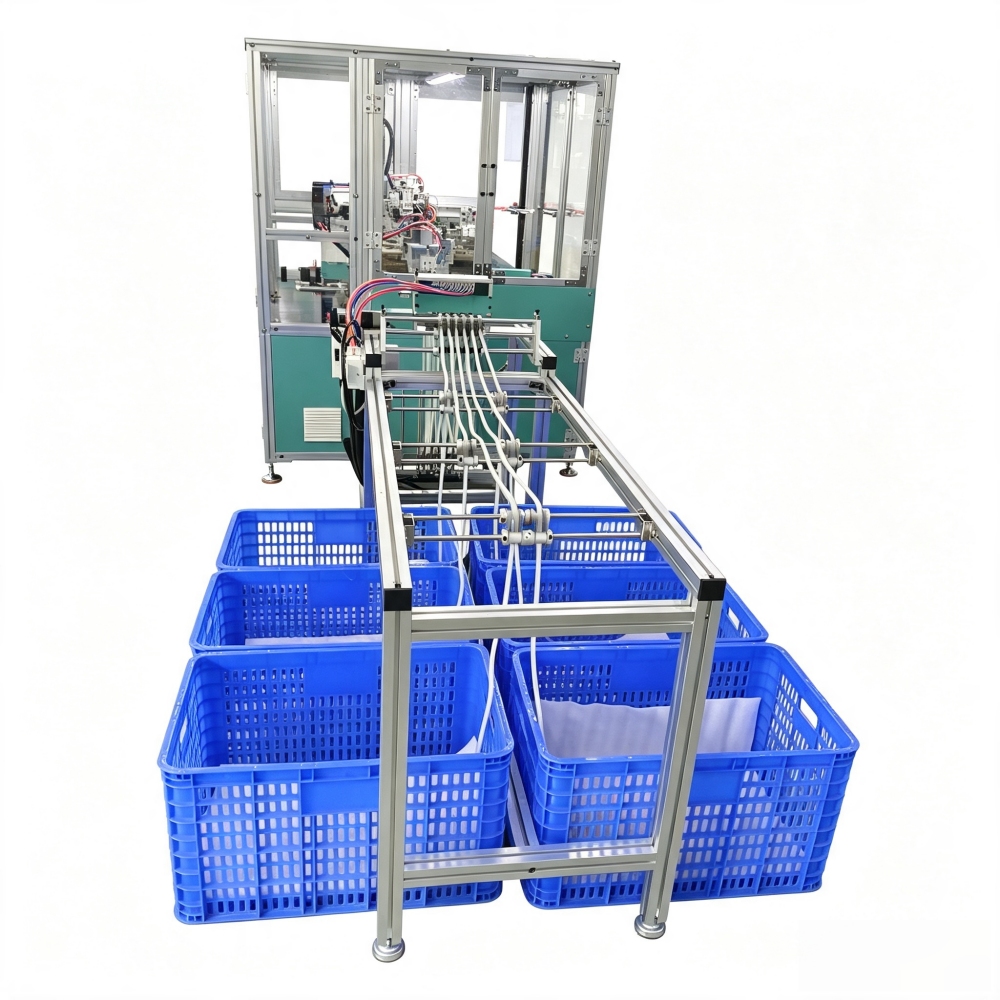

The ES-060-5 Silicone Cords O-Rings Full Automatic Cutting and Joining Machine is designed to automate the complete production process of silicone extruded O-ring gaskets, from material feeding and length cutting to silicone adhesive application, hot-mold joining, curing, and automatic finished-product discharge.
For manufacturers producing silicone O-rings for demanding applications, including applications involving medical-grade silicone materials, the machine provides an automated production solution with a strong focus on operator safety, production efficiency, and process consistency.
YOUTUBE WORKING VIDEO

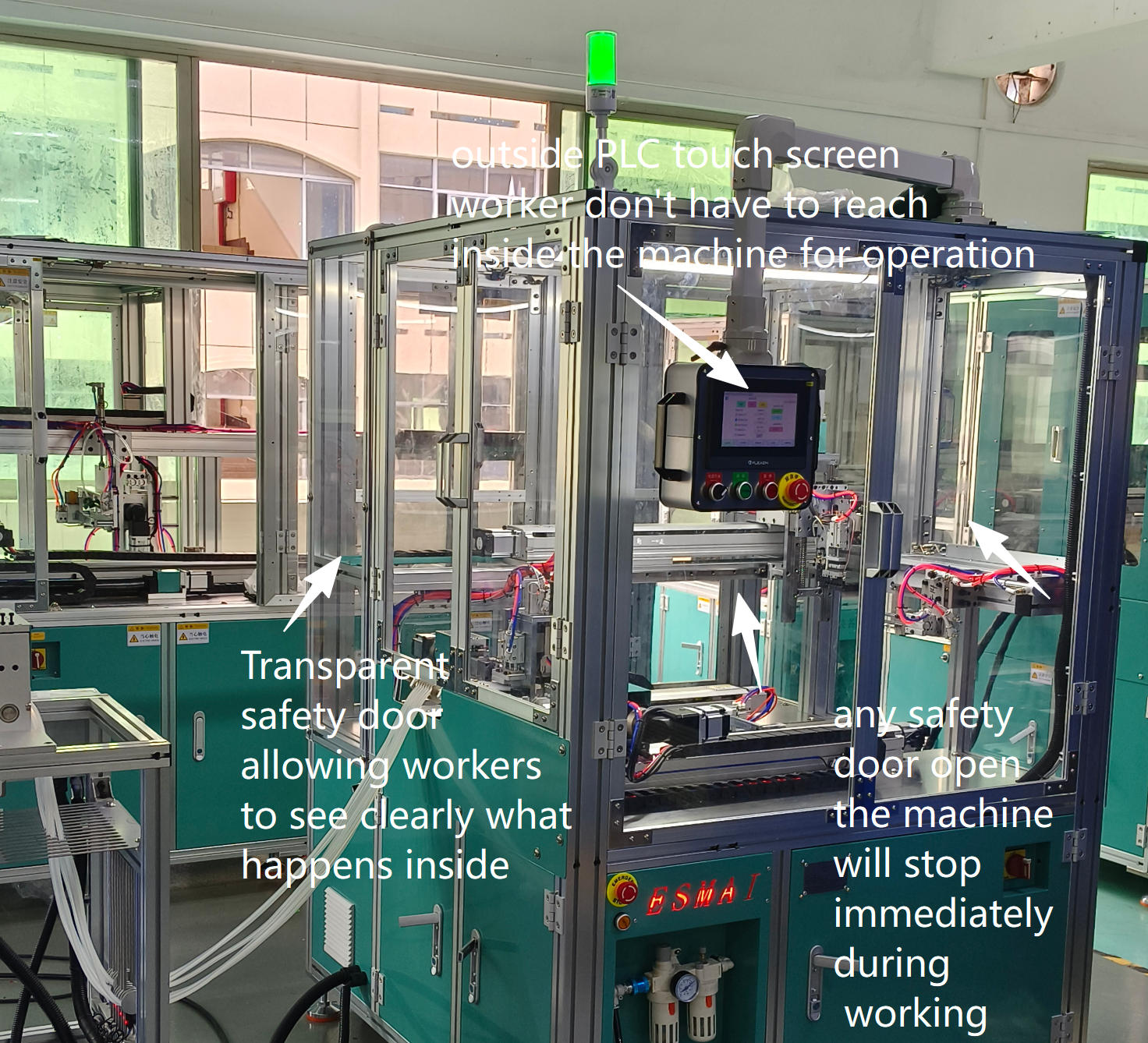

One of the most important features of the ES-060-5 is its fully enclosed safety-door system.
When the machine is operating, if any safety door is opened, the machine will immediately stop working. This safety protection system helps prevent operators from accessing the working area while the automatic production process is running.
Safety is one of the most important design considerations of the ES-060-5.

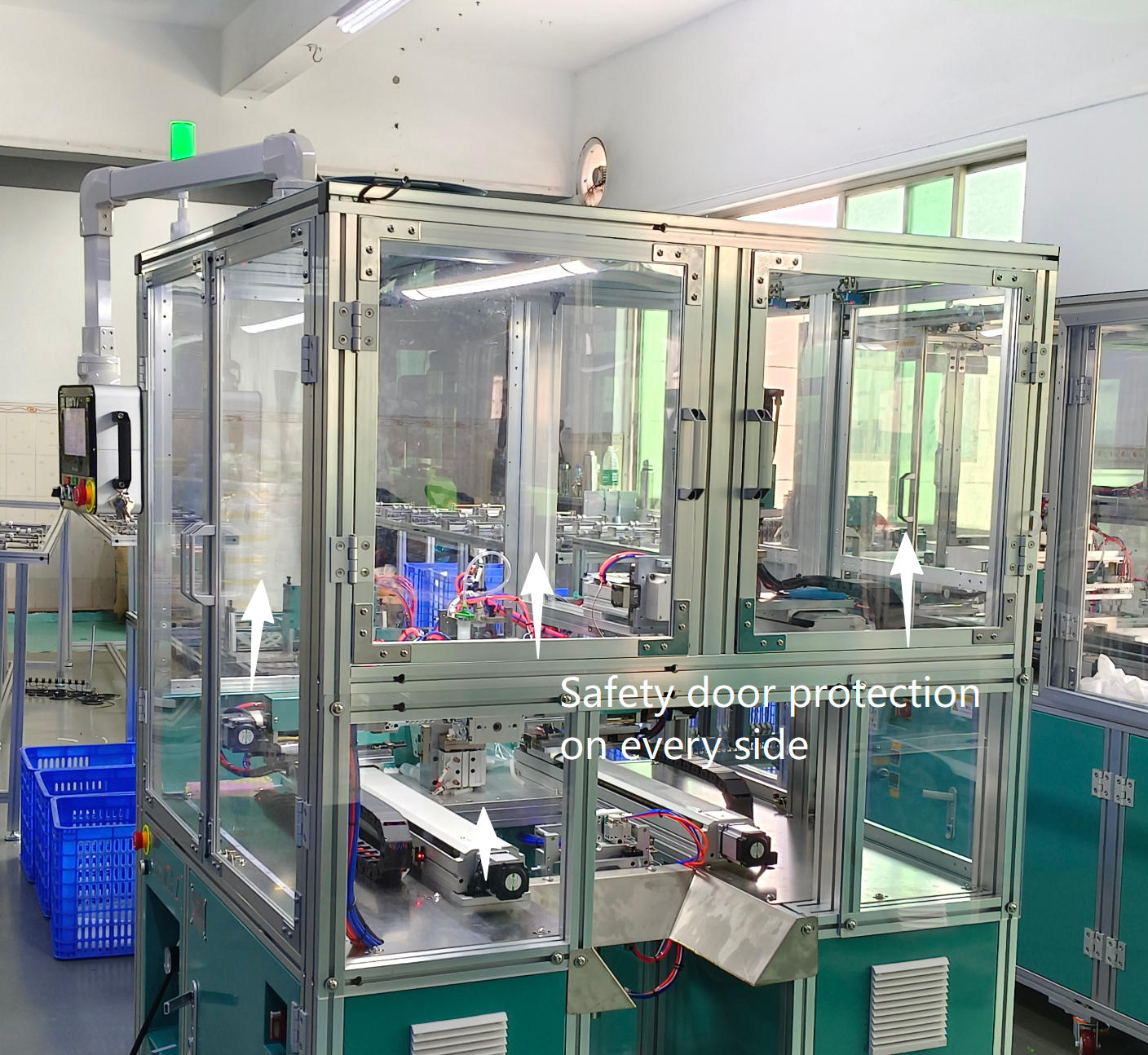

The machine is equipped with safety doors on every side, creating a fully enclosed working area around the automatic cutting, adhesive application, and hot-mold joining processes.
The safety system is designed around a simple operating principle:
When all safety doors are closed, the machine can operate automatically.
If an operator opens any one of the safety doors while the machine is running, the machine stops immediately.
This provides an additional layer of protection for operators and helps prevent accidental access to moving or heated components during automatic production.
For factories looking for a high safety standard silicone O-ring machine, this enclosed design is particularly important because the machine performs multiple automatic operations in sequence.
These include: Automatic silicone cord feeding , Automatic material length drawing , Automatic cutting , Silicone adhesive dispensing , Hot-mold joining silicone gaskets into o ring gaskets , Heat curing silicone adhesive and Automatic discharge finished bonded o rings
Instead of requiring an operator to manually perform each operation, the machine integrates these processes into one automated system.
When silicone cord O-rings are used in demanding applications, manufacturers need to pay attention not only to production output but also to process control and operator safety.
The Medical Grade Silicone O-Ring Cutting and Joining Machine concept is particularly relevant to manufacturers who work with medical-grade silicone materials and require an automated production process.
The ES-060-5 is designed to minimize manual intervention.

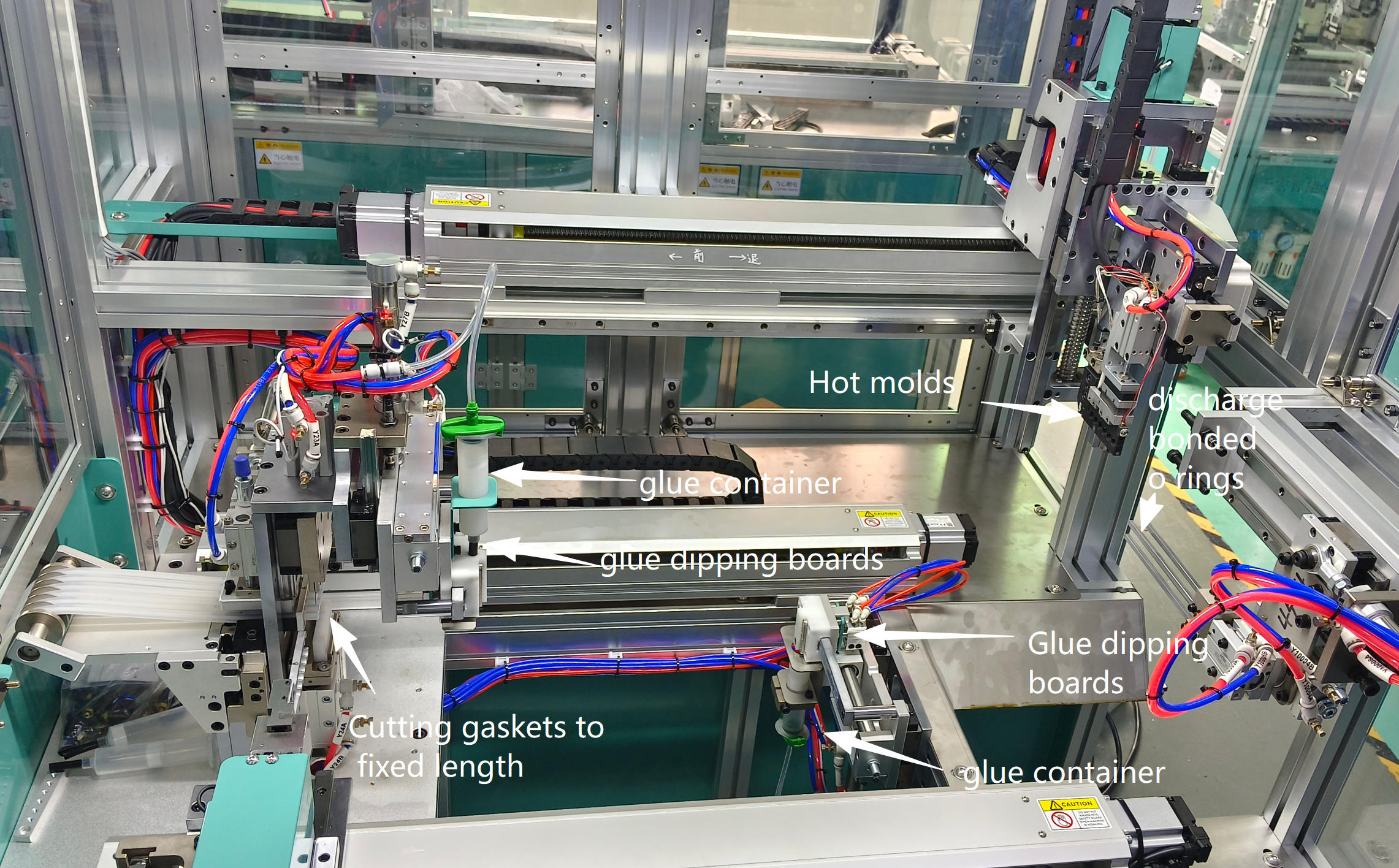

After the operator loads the silicone gasket material, the machine automatically performs the main production steps, including feeding, drawing the material to the preset length, cutting, applying silicone adhesive, joining the ends in a hot mold, and discharging the finished O-ring.
Important: The machine specification provided for this article does not state that the machine itself has medical-device certification or that every adhesive/material configuration is suitable for medical applications. Manufacturers should verify material, adhesive, cleanliness, validation, and regulatory requirements according to their specific medical-grade application.
The ES-060-5 can be described as an Automatic Silicone Cord O-Ring Cutting and Bonding Machine because it integrates cutting and joining into one automatic production process as following specifical steps

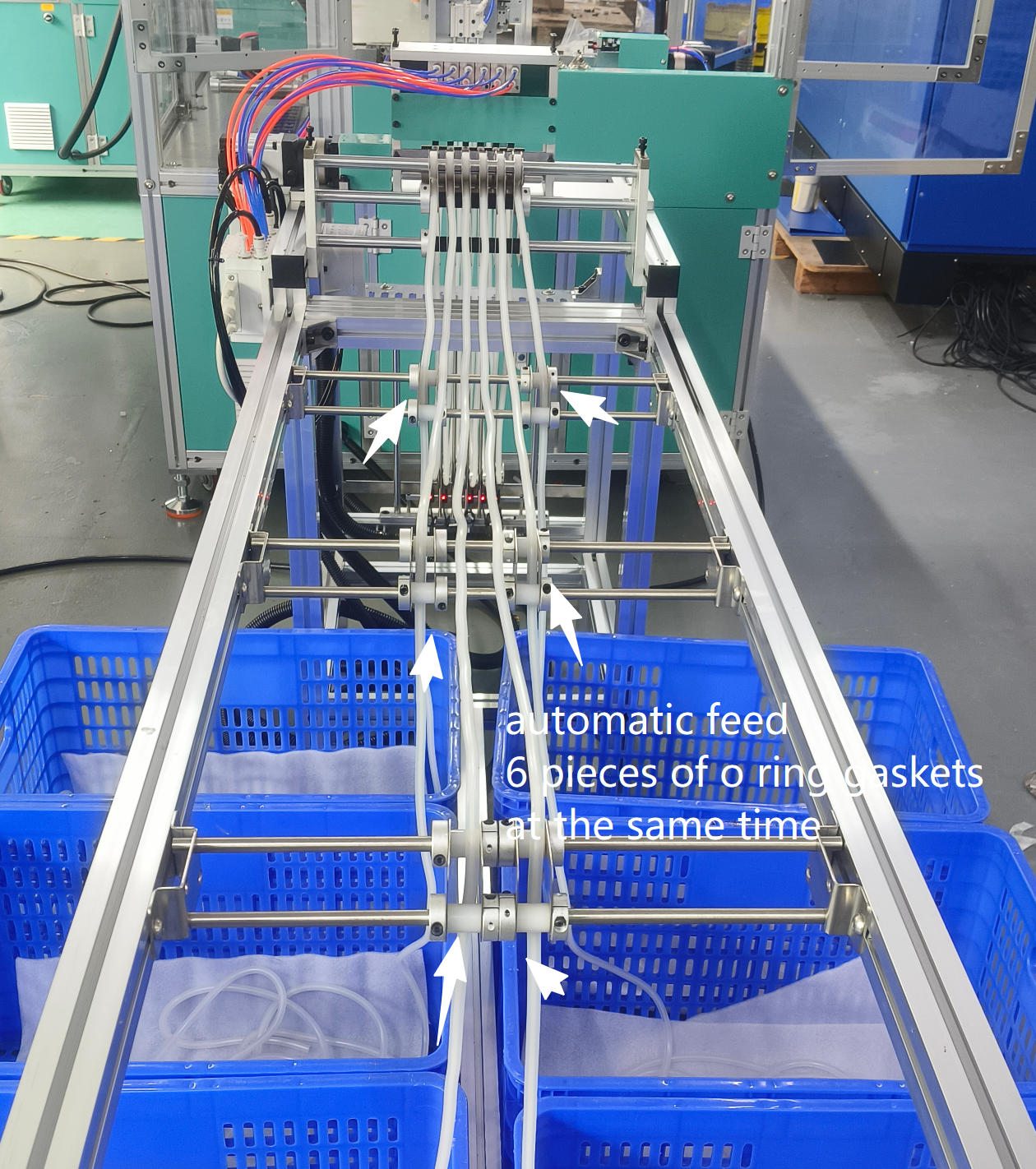

The feeding system is designed to automatically feed multiple silicone extruded gasket strips.

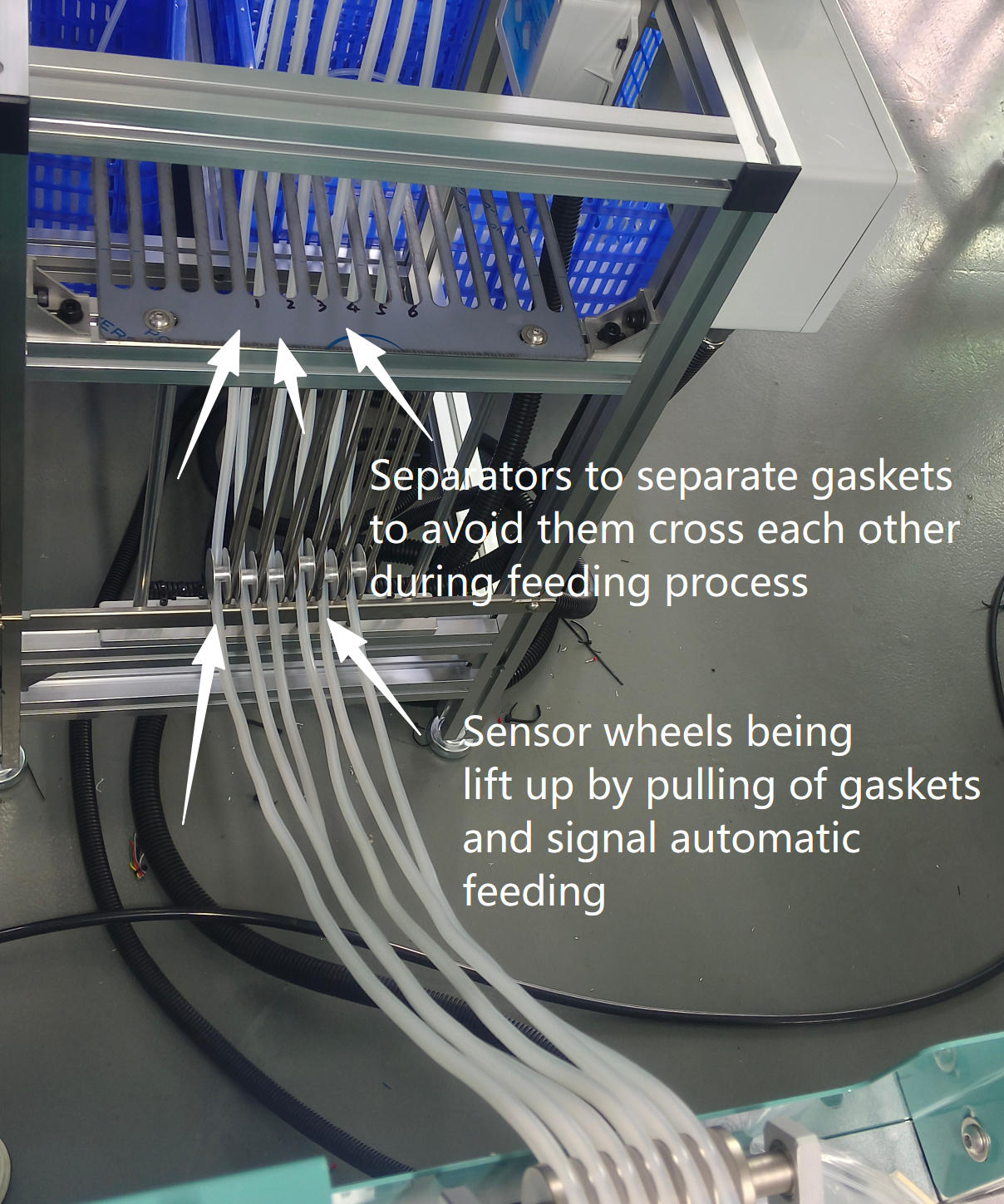

Each silicone gasket is fed through an individual fixture. Separators are also installed to keep the individual silicone cords separated during the feeding process.
This helps prevent the silicone cords from becoming tangled and supports a smoother automatic feeding process.
The operator therefore does not need to manually feed every silicone cord into the cutting system during normal production.
After feeding, the machine automatically draws the silicone cord to the required length and cuts it.
The specified cutting length range is 67–500 mm, while the machine's thin hot-mold design allows a practical minimum processing length of approximately 69 mm for small O-ring applications.
The machine supports silicone gasket cross-section diameters from 1 mm to 8 mm.
Another useful feature is that different cutting lengths of the same gasket diameter can be produced without changing the mold. This makes production changeovers more convenient when different O-ring lengths are required.

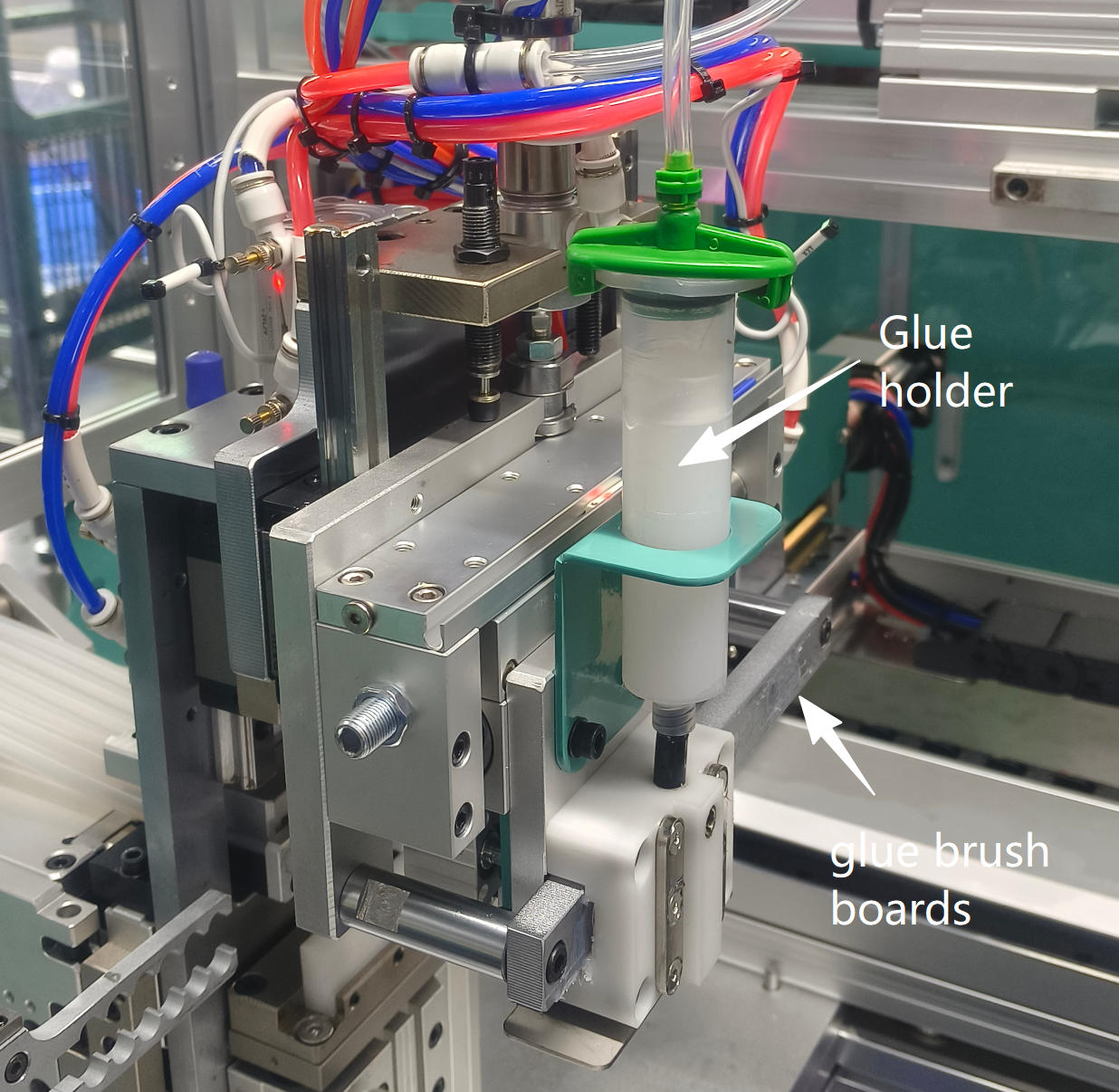

After cutting, the machine automatically applies silicone adhesive to both ends of the silicone gasket.
The adhesive container and brush system are designed to maintain adhesive availability during continuous production.
According to the machine specification, the glue container can support bonding at least 25,000 O-ring gaskets, depending on actual production conditions and adhesive consumption.
This automated adhesive application helps reduce manual handling and provides a consistent production procedure before the joining process.

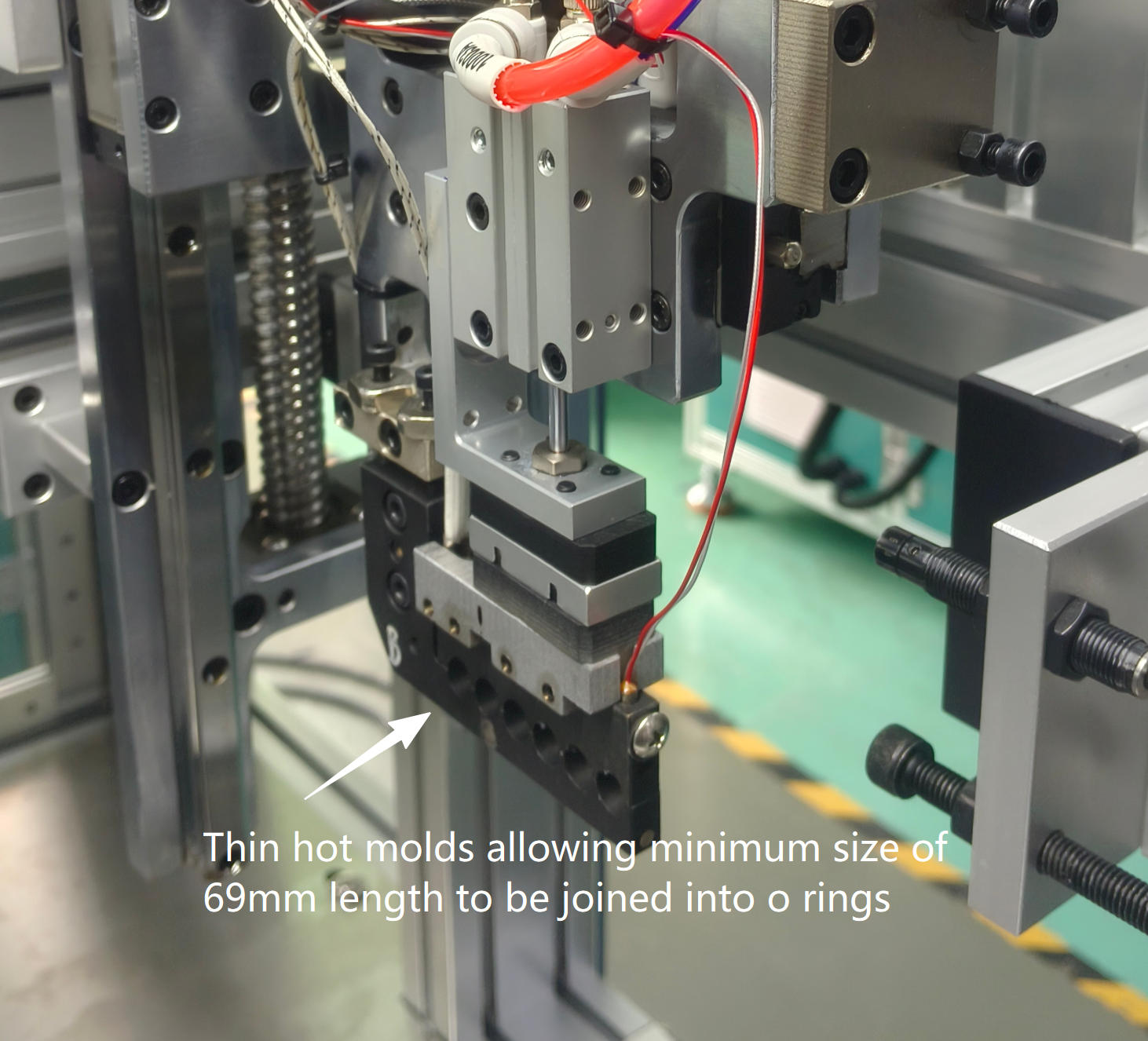

After adhesive application, the two ends of the silicone gasket are placed into the hot mold.
The hot mold provides heat to cure the silicone adhesive and join the two ends together, creating a continuous O-ring gasket.
The thin hot mold design also allows the machine to process small-size O-rings, with a minimum processing length of approximately 69 mm.
This integrated cutting-and-joining process makes the ES-060-5 suitable for manufacturers looking for a Fully Automatic Silicone O-Ring Making Machine rather than separate manual cutting and bonding operations.

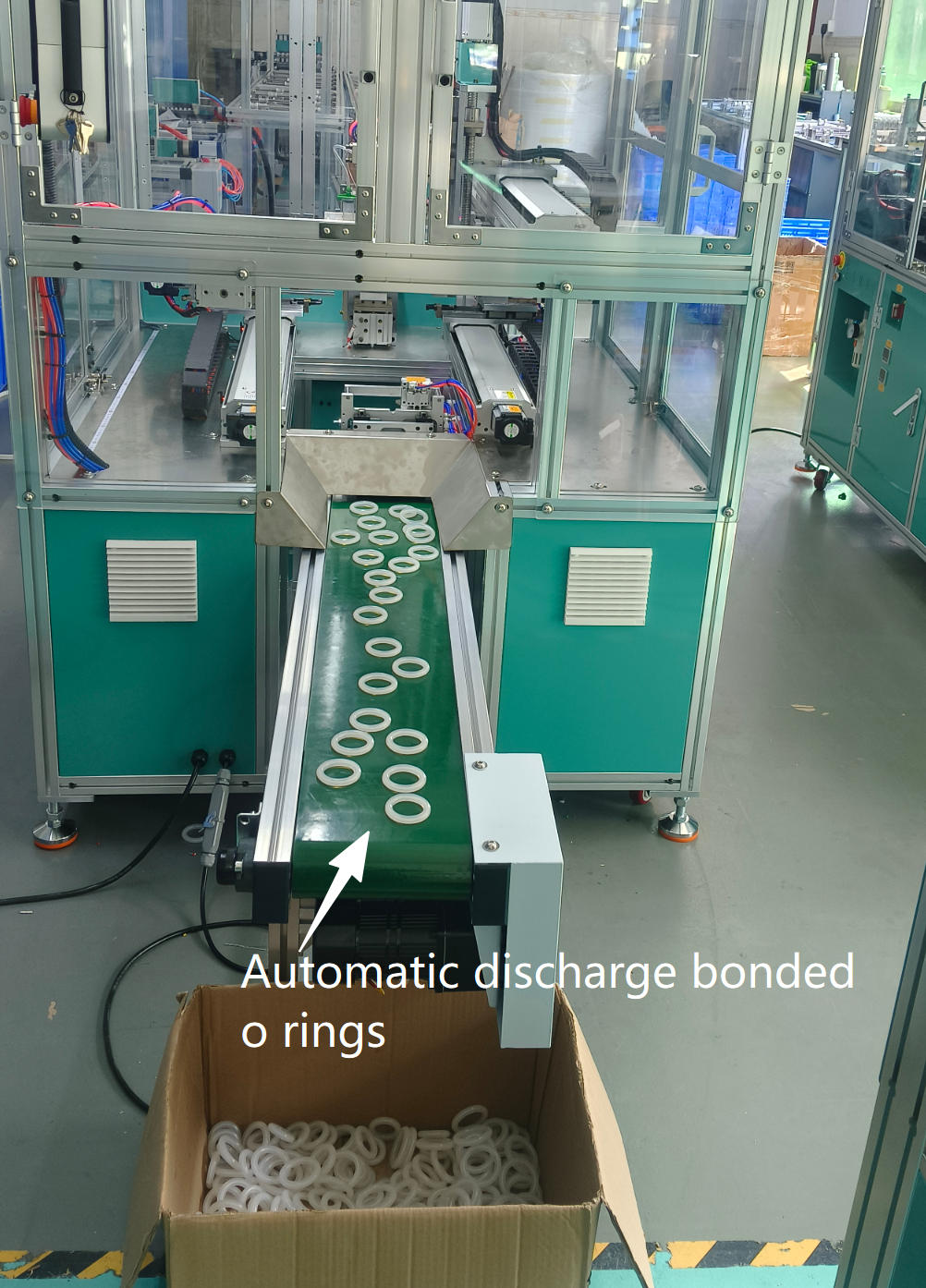

After the joining process is completed, the finished bonded O-ring is automatically discharged from the machine.
Automatic discharge reduces the need for operators to manually collect each finished O-ring and further supports continuous production.
This is particularly useful in high-volume production environments where manual collection can become a repetitive labor-intensive task.
In addition to safety, production efficiency is another major advantage of the ES-060-5.
The machine can process 5–6 silicone gasket pieces simultaneously.
The typical cycle time is approximately 15–20 seconds per cycle, depending on the O-ring length and adhesive curing time.
Production capacity can reach approximately 900–1,200 pieces per hour, depending on the product length and production conditions.
The machine specification also indicates that one machine can replace the output of approximately 3–6 workers, helping manufacturers reduce manual labor requirements.
For manufacturers searching for a Fully Automatic Silicone O-Ring Making Machine, this combination of automatic processing and labor savings can be an important consideration.
The ES-060-5 is particularly suitable for small-size silicone O-ring production.
The machine supports: Silicone gasket cross-section: 1–8 mm and Cutting length: 67–500 mm , Practical minimum processing length: approximately 69 mm ,5–6 pieces processed simultaneously Approximately 900–1,200 pieces/hour production capacity depending on the cutting length .
For automated production equipment, safety should not be considered an optional feature.
The ES-060-5 incorporates safety protection directly into the machine structure.
Safety doors are installed around the machine to enclose the main working area.
If any safety door is opened while the machine is operating, the machine immediately stops.
The operator mainly needs to load the silicone gasket material, while the machine performs the remaining production operations automatically.
The enclosed design helps keep operators away from the machine's automatic cutting, adhesive application, and hot-mold joining areas while the equipment is running.
This combination makes the ES-060-5 a suitable choice for manufacturers who place strong emphasis on machine safety and automated production.
The ES-060-5 features a touchscreen interface with Chinese and English language displays.
The control interface supports parameter setting like different cutting length ,heat curing time , production quantity and working parts position setting , machine speed setting , parameter recording, display functions, and machine alarms. The language can also be customized according to different country requirements.
The machine uses a servo motor and Xinje PLC control system.
This provides operators with a centralized interface for controlling and monitoring the automatic O-ring production process.
|
Specification |
ES-060-5 |
|
Machine Name |
Small Size Silicone Foam O-Ring Gaskets Fully Automatic Cutting and Joining Machine |
|
Model |
ES-060-5 |
|
Cutting Length |
67–500 mm |
|
Practical Minimum Processing Length |
Approx. 69 mm |
|
Silicone Gasket Cross-Section |
1–8 mm |
|
Simultaneous Processing |
5–6 pieces |
|
Cycle Time |
Approx. 15–20 seconds/cycle |
|
Production Capacity |
Approx. 900–1,200 pcs/hour |
|
Machine Power |
4 kW |
|
Motor |
Servo Motor |
|
Voltage |
220V / 110V |
|
PLC |
Xinje PLC |
|
Main Machine Size |
2365 × 1240 × 2046 mm |
|
Feeder Size |
1970 × 506 × 1090 mm |
|
Safety System |
Fully enclosed safety doors with automatic stop protection |
Technical specifications are based on the supplied ES-060-5 machine information. Actual production capacity depends on product length, gasket specifications, and adhesive curing time.
Safety doors are installed on every side of the machine. If any safety door is opened during operation, the machine immediately stops.
Feeding, cutting, adhesive application, joining, curing, and finished O-ring discharge are integrated into one machine.
The machine can process small O-rings with a practical minimum processing length of approximately 69 mm.
Production capacity can reach approximately 900–1,200 pieces per hour, depending on the product.
One machine can replace the output of approximately 3–6 workers.
Different cutting lengths of the same gasket diameter can be produced without changing the mold.
For manufacturers producing large quantities of silicone cord O-rings, using separate manual cutting and joining processes can require significant operator involvement.
A fully automatic system can combine multiple production steps into one continuous workflow.
The ES-060-5 provides:
Automatic Feeding → Automatic Cutting → Adhesive Application → Hot-Mold Joining → Curing → Automatic Discharge
At the same time, the machine's enclosed safety-door system provides an additional level of operator protection:
Safety Door Closed → Automatic Production
Any Safety Door Opened → Immediate Machine Stop
This combination of full automation, production efficiency, and high safety protection is one of the main advantages of the ES-060-5.
The Silicone Cords O-Rings Full Automatic Cutting and Joining Machine ES-060-5 is designed to automate the complete silicone O-ring cutting and joining process.
It combines automatic feeding, cutting, silicone adhesive application, hot-mold joining, curing, and finished-product discharge in one machine.
More importantly, the machine places strong emphasis on operator safety.
With safety doors installed around the machine, opening any safety door while the machine is operating will immediately stop the machine. This fully enclosed safety design helps protect operators from accessing the working area during automatic production.
For manufacturers looking for a Medical Grade Silicone O-Ring Cutting and Joining Machine, an Automatic Silicone Cord O-Ring Cutting and Bonding Machine, or a Fully Automatic Silicone O-Ring Making Machine, the ES-060-5 provides an automated solution focused on safety, efficiency, labor reduction, and consistent production.
If your application involves medical-grade silicone materials, the specific silicone material, adhesive, production environment, validation process, and applicable regulatory requirements should be evaluated separately according to your end-use requirements.
If you are looking for a high safety standard automatic silicone O-ring cutting and joining machine, contact us with your silicone cord diameter, O-ring inner diameter, required cutting length, and expected production volume.
We can recommend the appropriate machine configuration and joining mold according to your specific O-ring requirements.
