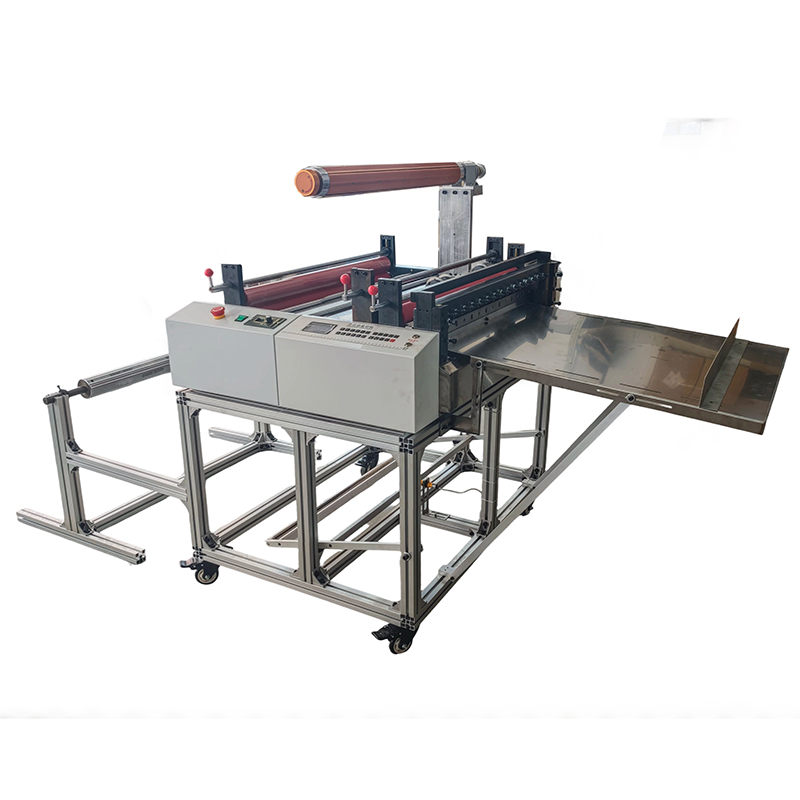

Silicone paper with double side tape roll to sheet laiminating slitting cutting machine   ES-C600

Silicone paper with double side tape roll to sheet laiminating slitting cutting machine   ES-C600

The ES-C600 Silicone Paper with Double-Sided Tape Roll-to-Sheet Laminating, Slitting and Cutting Machine is a high-efficiency, fully automatic converting solution designed for precise lamination and cutting processes. It is capable of laminating silicone paper or similar materials with double-sided adhesive tape, then slitting them into various widths and cutting into uniform sheets in a single operation.

Built for performance and reliability, this Silicone Paper with Double-Sided Tape Roll-to-Sheet Laminating  Slitting and Cutting Machine   features a durable iron frame, SKD-11 precision cutting blades with durable cuting shelf life , and a high-power stepper conveyor motor that ensure smooth, accurate material feeding process . The AC geared motor and high-precision AC cutting motor provide stable power for consistent results. The machine supports cutting materials up to 2mm thick  it can load up to  maximum  material roll diameter of 1000mm with material roll core diameter of 76mm and material cutting width  maximum up to 750mm.

Youtube video

With a load  roll material capacity of 100kg and adjustable operating speeds of 40, 60, and 90 rpm based on production requirement , the ES-C600 delivers both flexibility and productivity. Its polyurethane made  feed rollers provide reliable grip and material protection during processing. Operating at 220V, 50/60Hz, the machine consumes 1000W of power and  machine layout in  customer workshop with overall dimensions of 121 × 144 × 106 cm and machine net weight  of 310 kg.

The best advantage of this  Silicone paper with double side tape roll to sheet laiminating slitting cutting machine is that it combines prefeeding and  lamination of  silicone paper with double side tapes , slitting laminated material into different width and cut to sheet size all in one machine which ensures good lamination and cutting quality  ,high productivity and labor saving .

【Technical Data】

Product Name: Roll to sheet laminating and slitting cutting machine

Model: ES-C600

Function: Laminate silicone paper or other material (with double-sided tape), slitting to different widths and cutting into sheets

Blade Material: SKD-11

Conveyor Motor: High-power stepper motor

Cut Material Thickness: 2mm

Core Diameter: 76mm

Maximum Roll Outer Diameter: 1000mm

Cut Motor: AC geared motor

Maximum Cutting Width: 750mm

Load Material Capacity: 100KG

Machine Speed: 40/60/90 rpm

Machine Power: 1000W

Feed Roller Material: Polyurethane

Cut Blade Motor: High-precision AC motor

Machine Frame Material: Iron

Operating Voltage: 220V, 50/60HZ

Machine Net Weight: 310 kg

Machine Dimensions: Length * Width * Height = 121 * 144 * 106 cm

【Product Advantage】

1,Full automation  with  feeding roll  material , laminate silicone paper with double side tapes , slit into different width and cut to sheet size in one machine .

2, Good laminated between silicone paper with double side tapes without crease , slitting and cutting into good sheet sizes

3, High productivity and labor saving ,  when material runs out or batch quantity reached ,the machine will stop working and reminder workers to load with new material .

【Product Details】

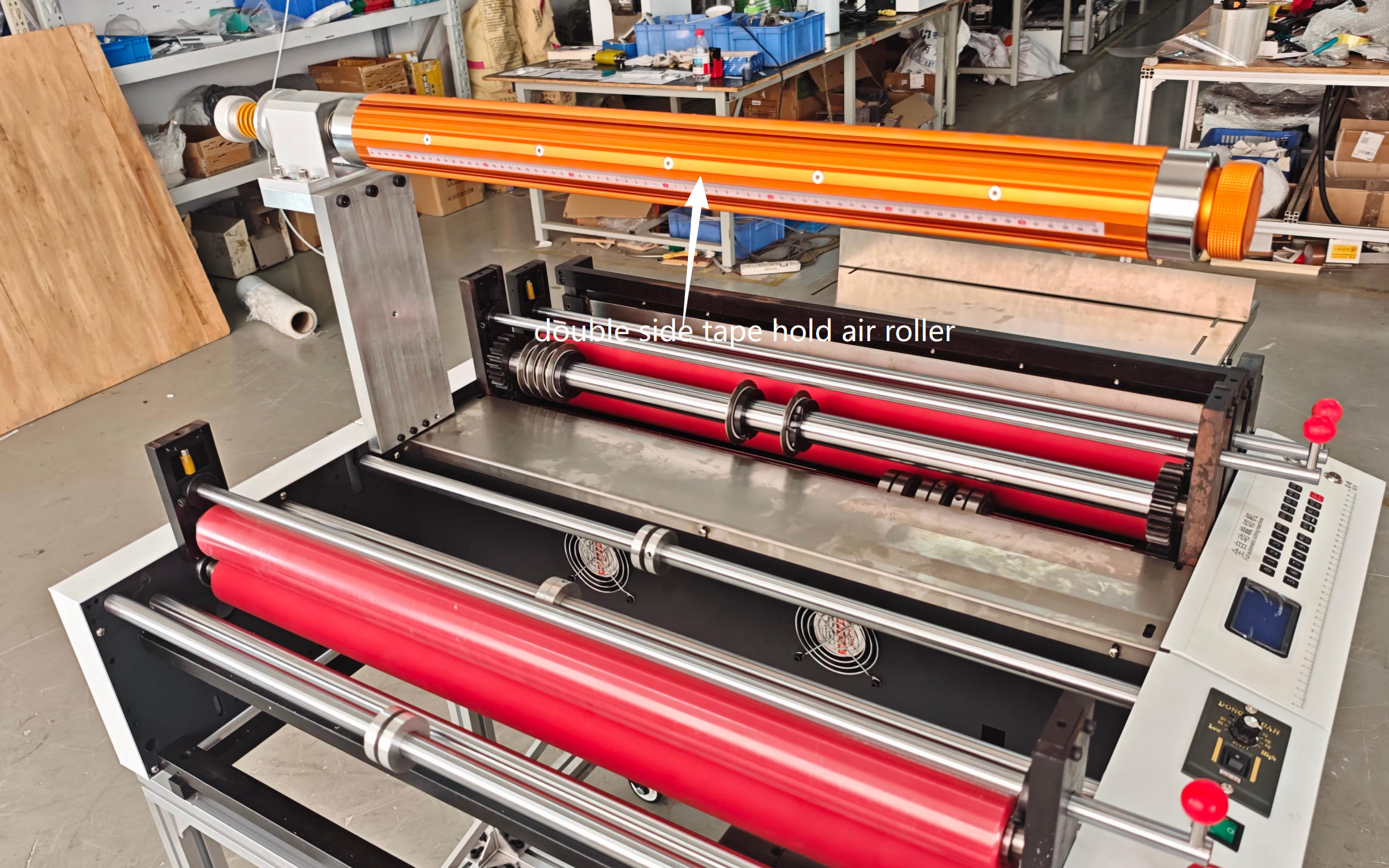

1,Double side tape holding air roller , this silicone paper with double side tape roll to sheet laiminating slitting cutting machine  applies with double side tape holding air roller on top of the machine , the double side tape holding air roller will hold the double side tapes for good lamination .

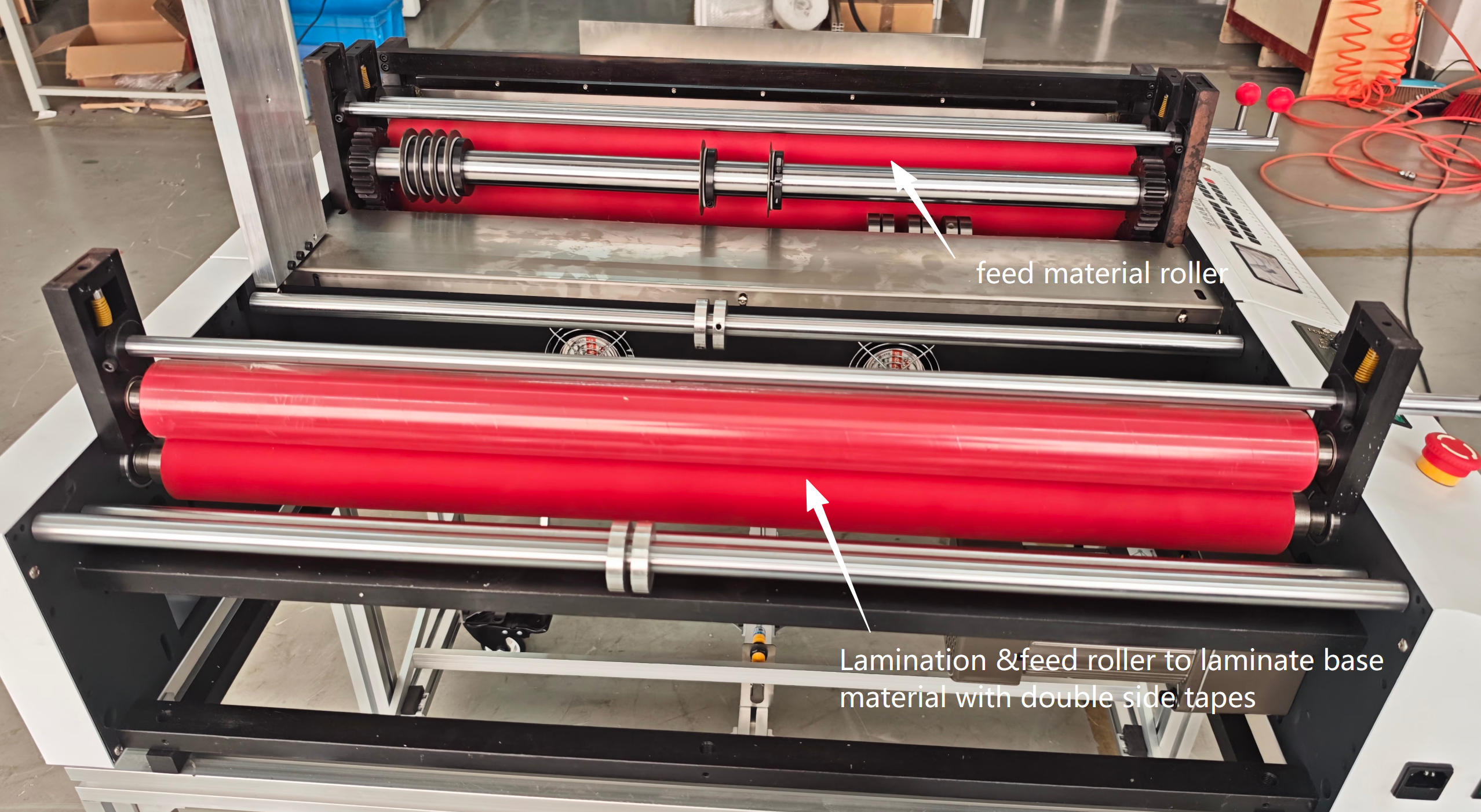

The feed material roller will feed cutting material foward for cutting to sheet purpose .  the lamination rollers  serves dual purpose of lamination and feeding based material with double side tapes , it will gurantee the good lamination quality .

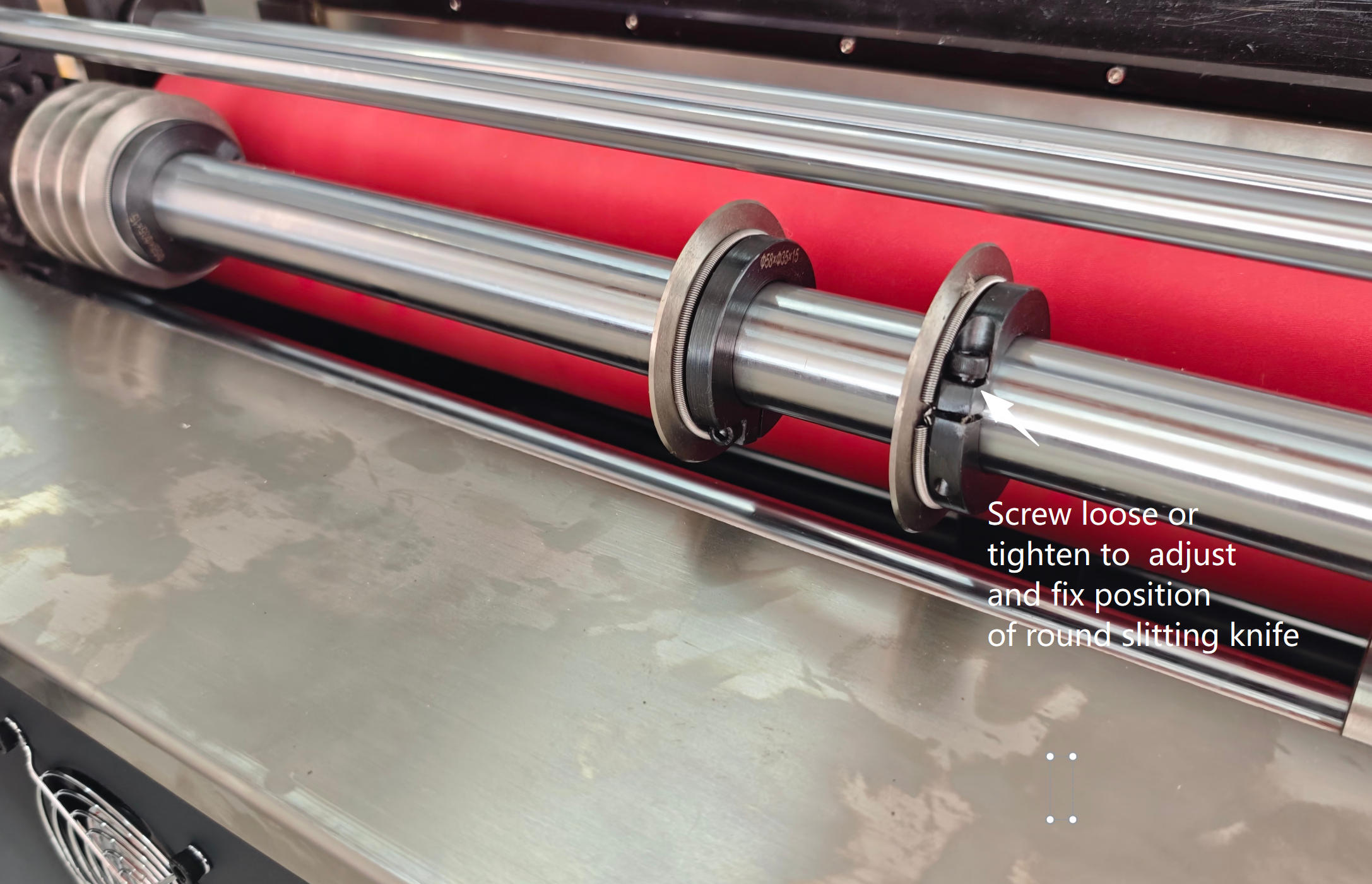

2,Slitting knives  ,this Roll to sheet laminating cutting machine  applies with multi slitting knives which can slit the base material into multi and different width . the slitting width is adjustable by changing slitting knives positions.

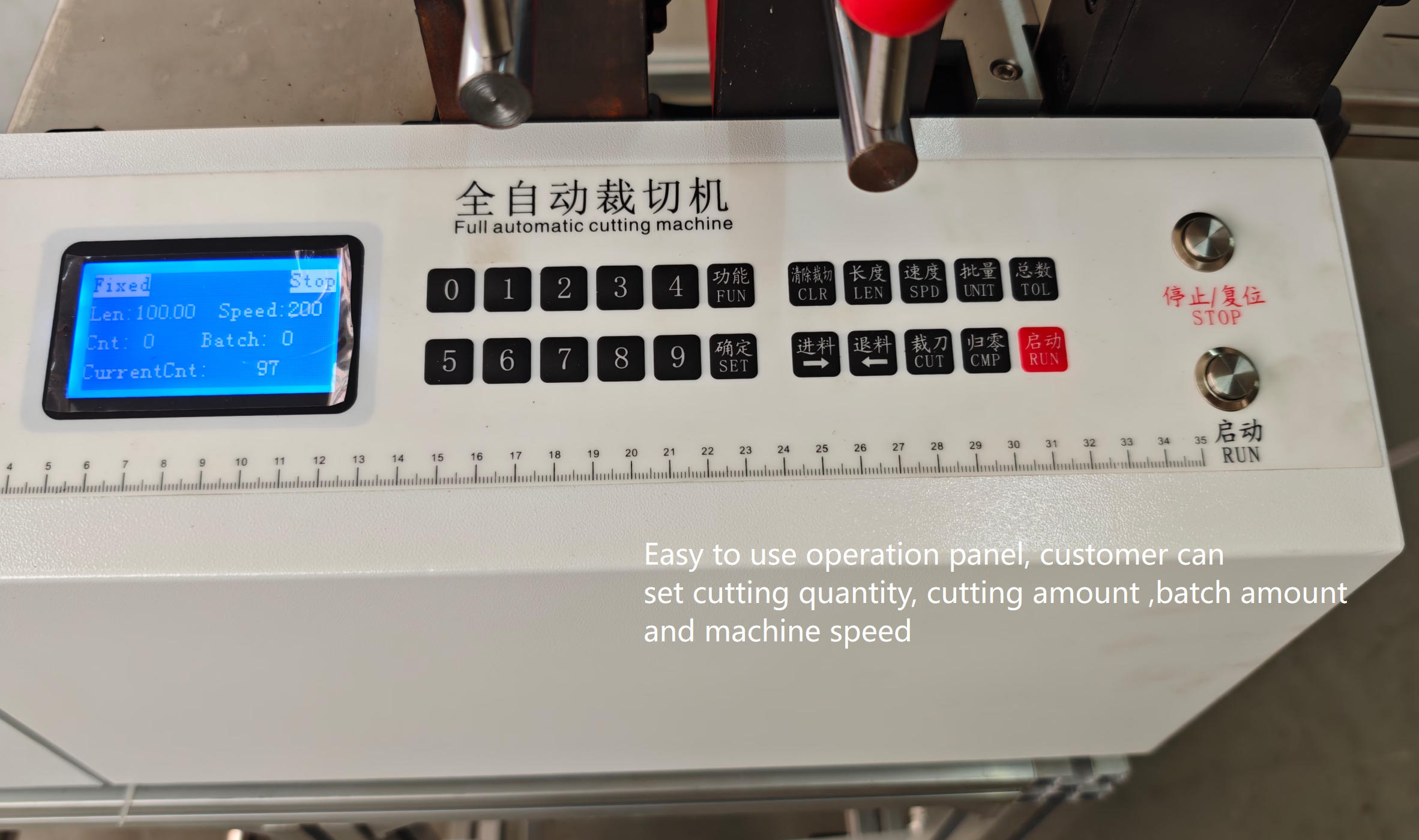

3, Easy to use operation panel  ,this roll to sheet laminating slitting cutting machine  will be easy to operate with easy -use- operation-panel  , customer can set different cutting length , cutting quantity ,batch quantity , machine speed is as adjustable based on production requirement .

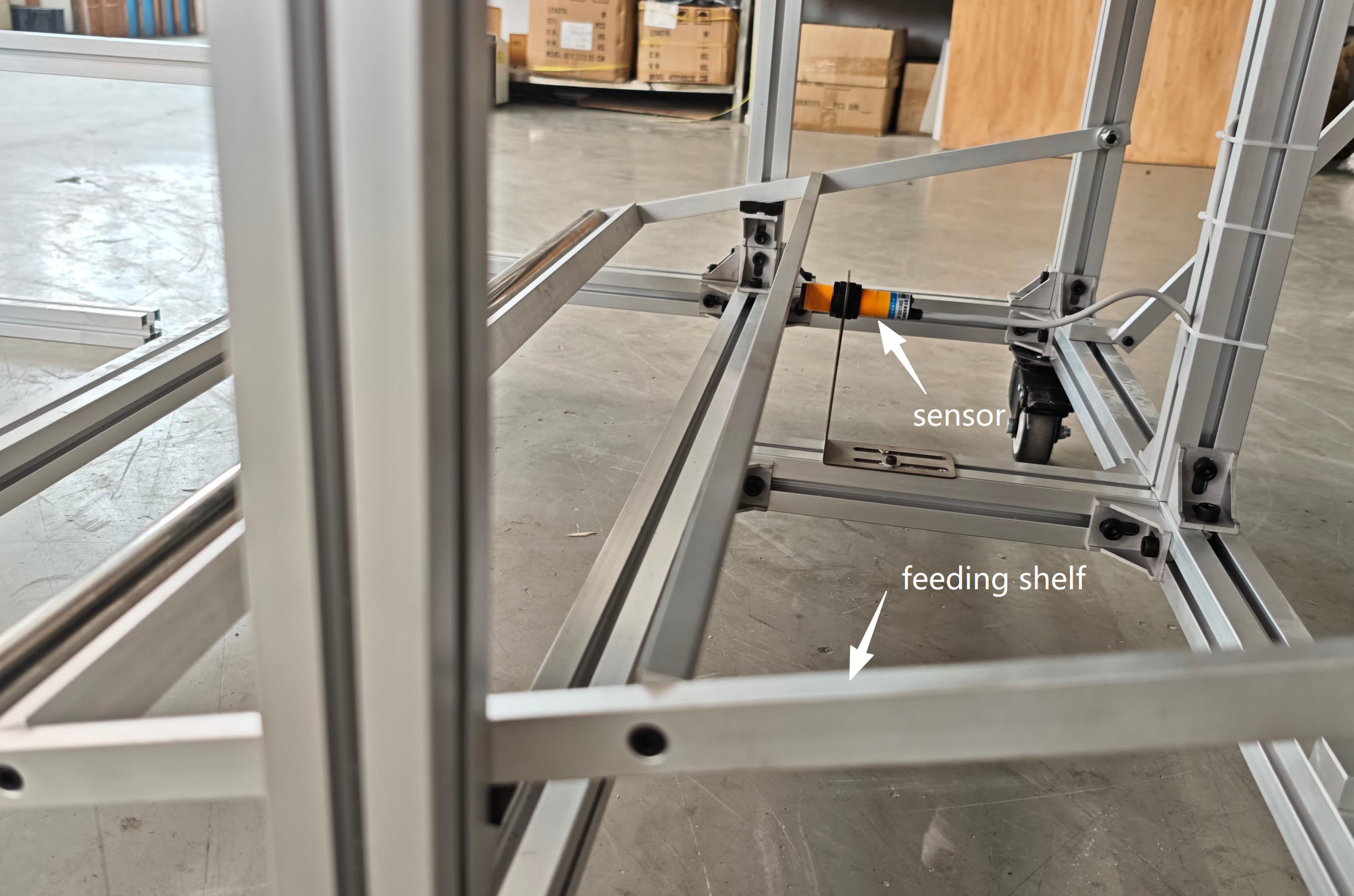

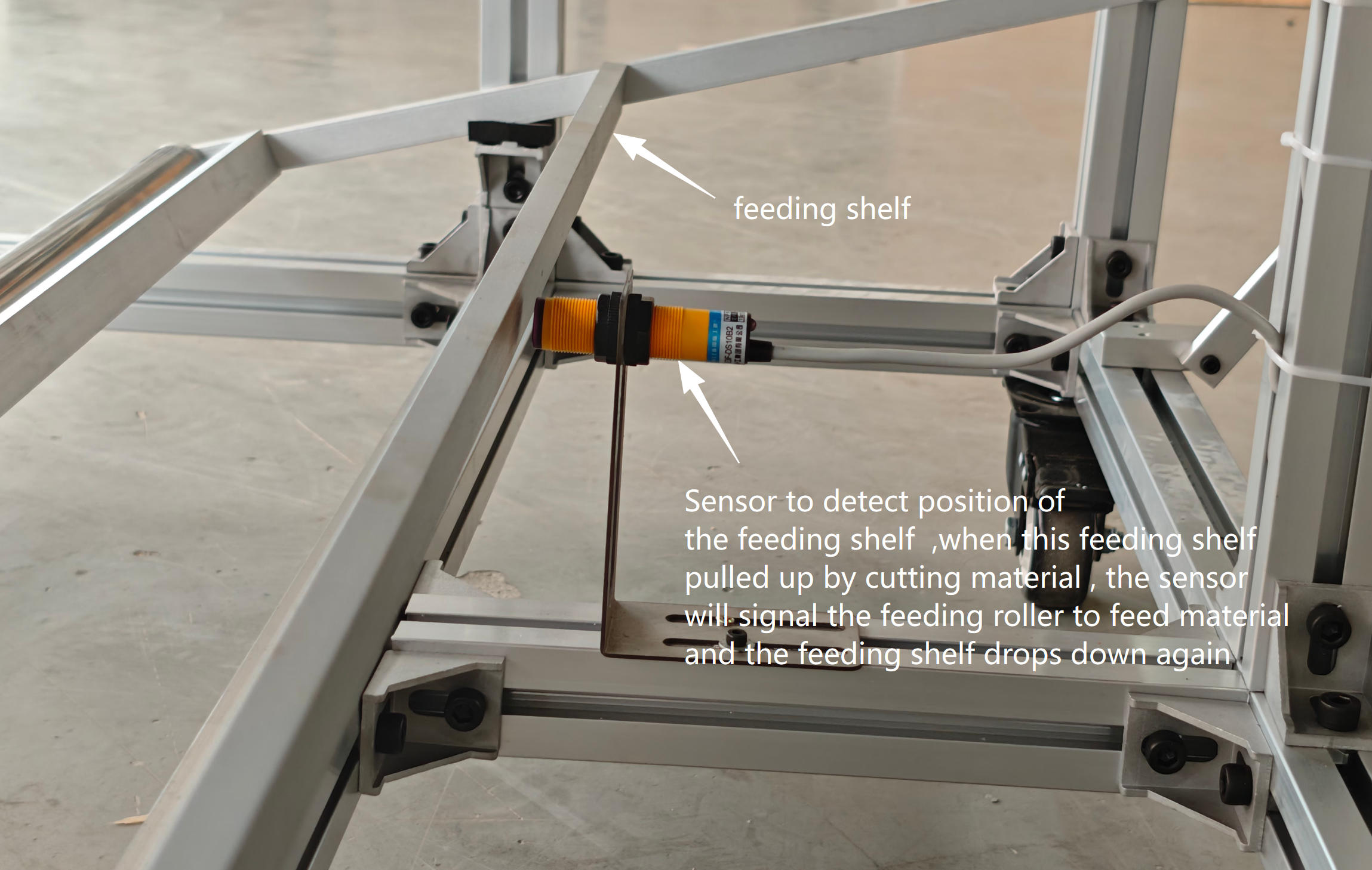

4, Feeding shelf &sensor , this paper roll to sheet laminating slitting cutting machine applies with feeding shelf and sensor , the sensor can detect position of the feeding shelf , when this feeding shelf  ispulled up by cutting material , the sensor will signal the feeding roller to feed material and the feeding shelf drop down again to ensure smooth feeding process without any tension  all the time and maintains cutting length precision and lamination quality .

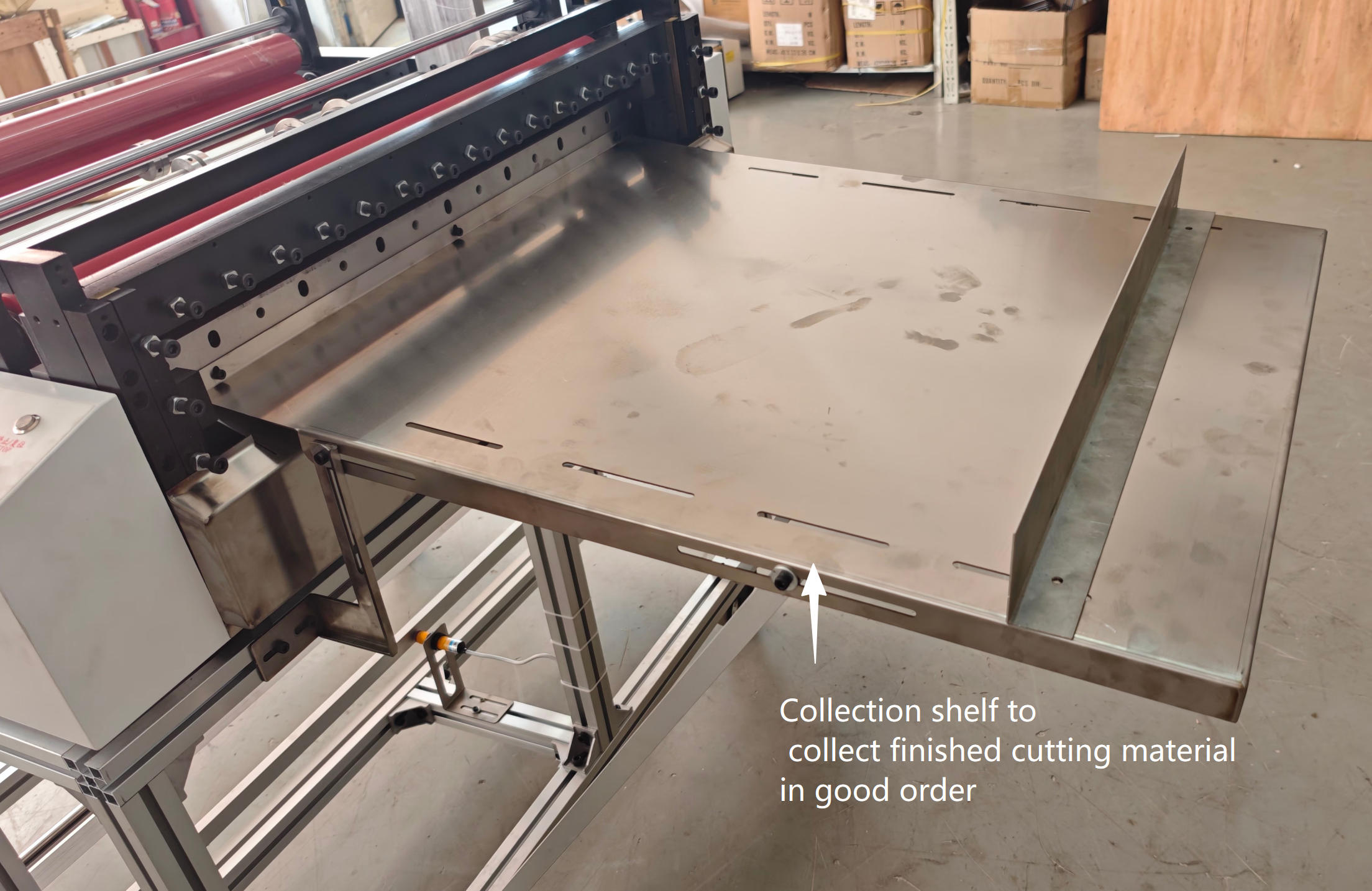

5, Collection shelf , the collection shelf will collect the finished cut material in good order which is convenient for workers to collect for good packing up purpose .

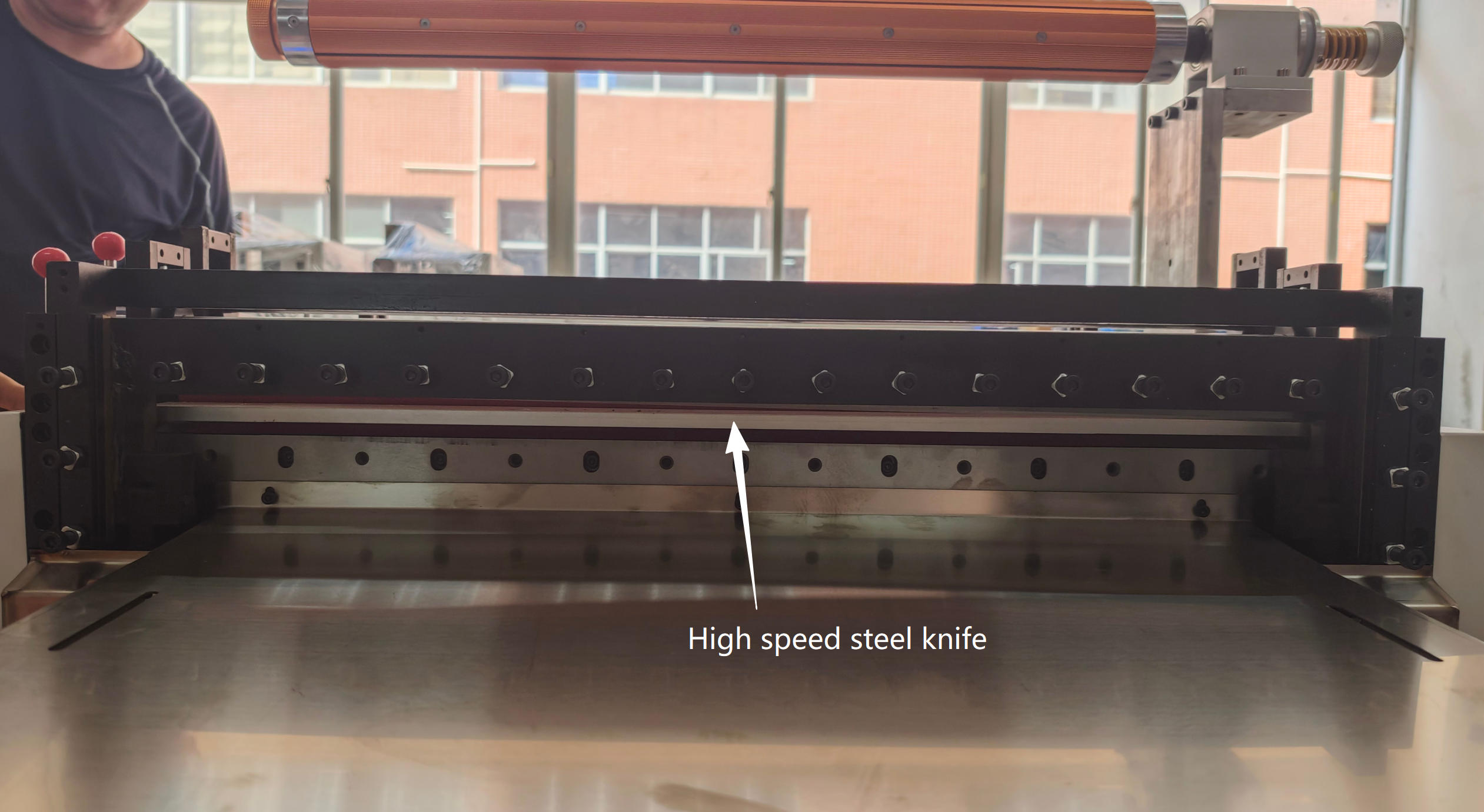

6,High speed steel knife  , this plastic film roll to sheet slitting and cutting machine  applies with high speed steel knife which is of long lasting cutting performance for excellent cutting quality for different roll to sheet material

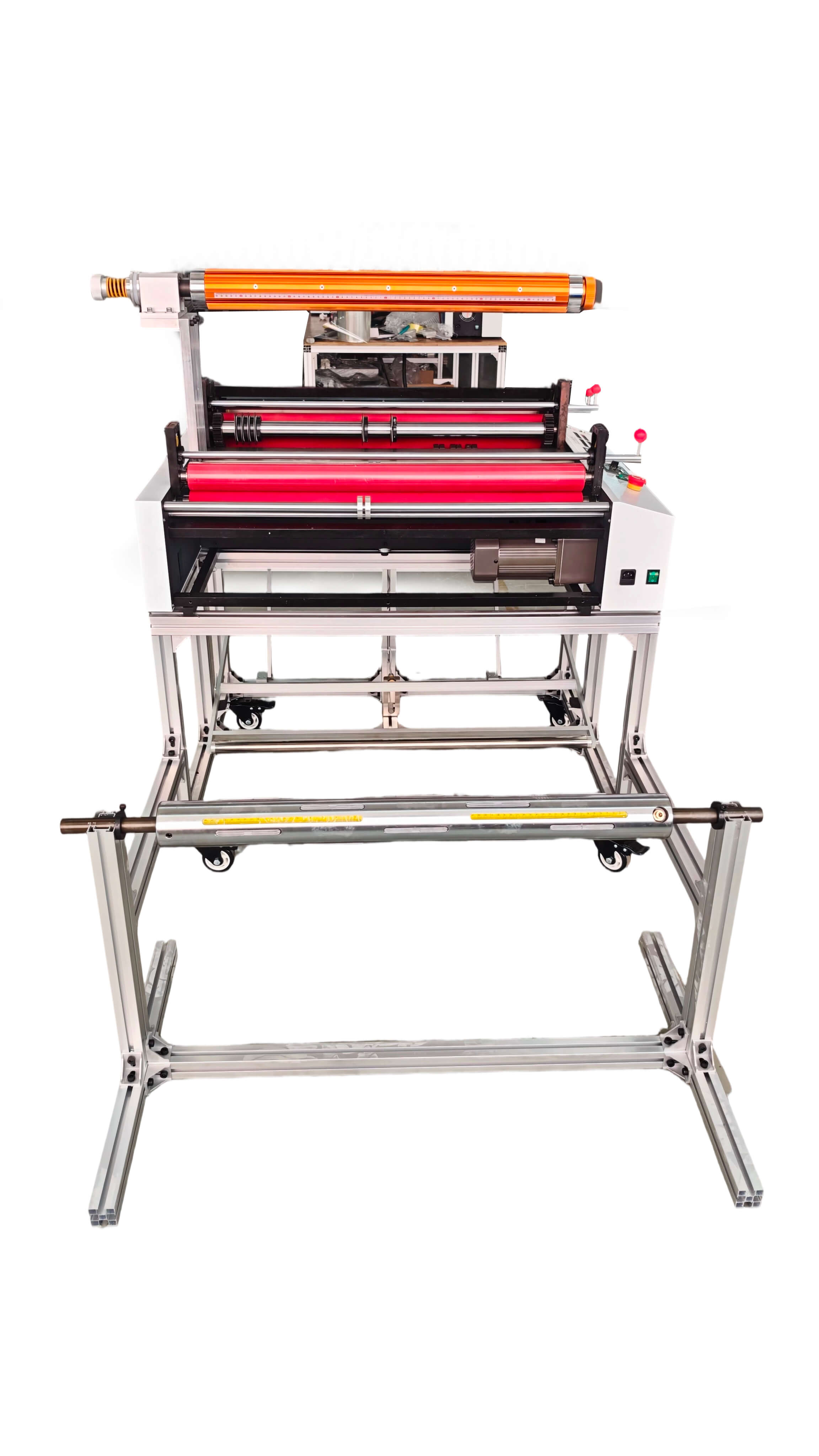

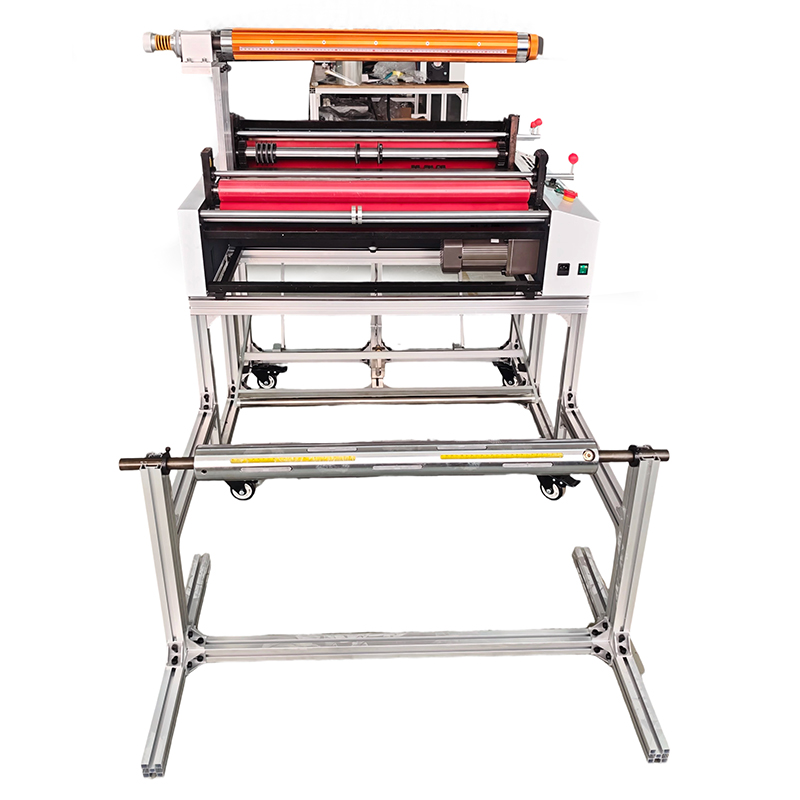

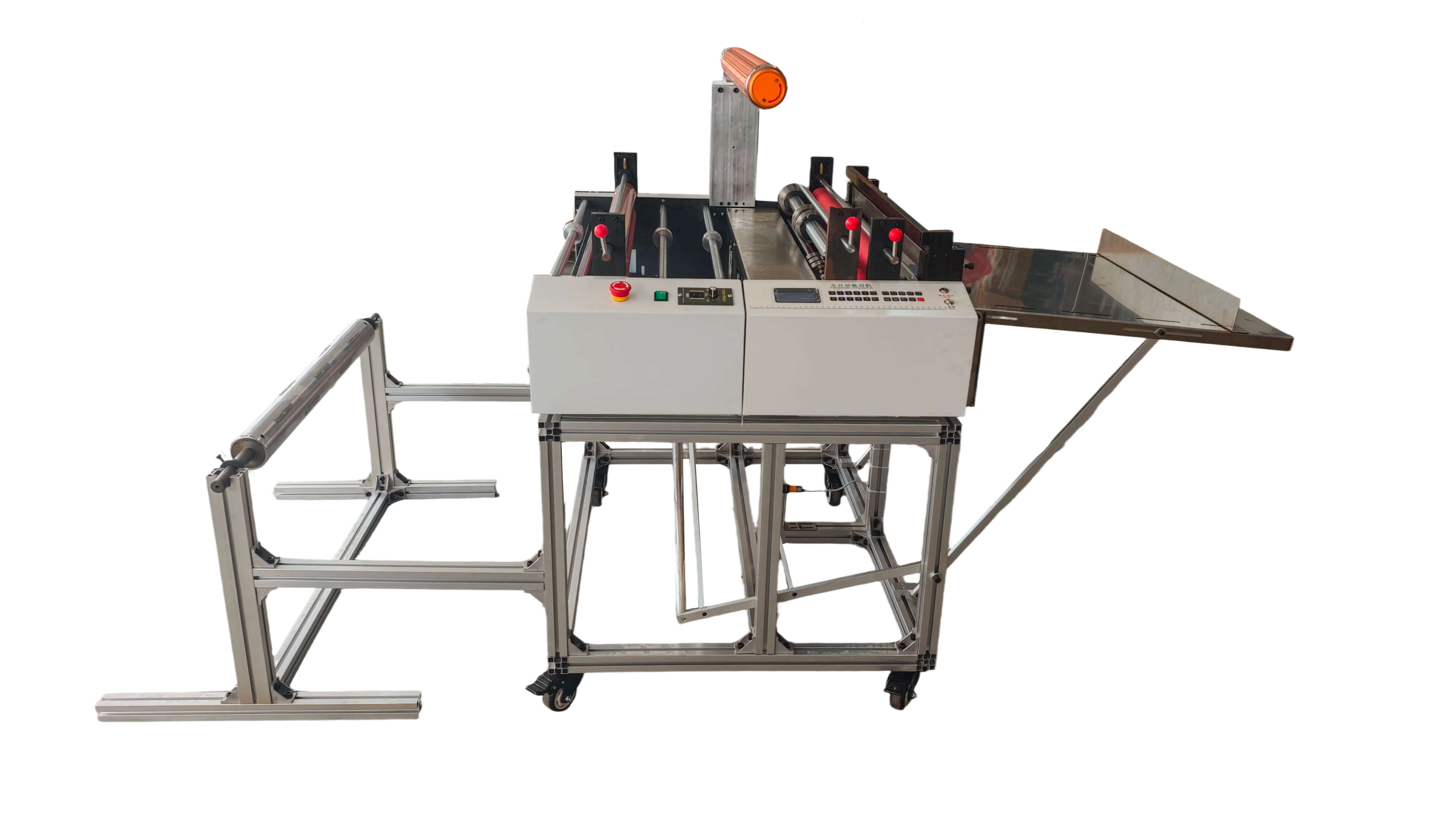

Front View

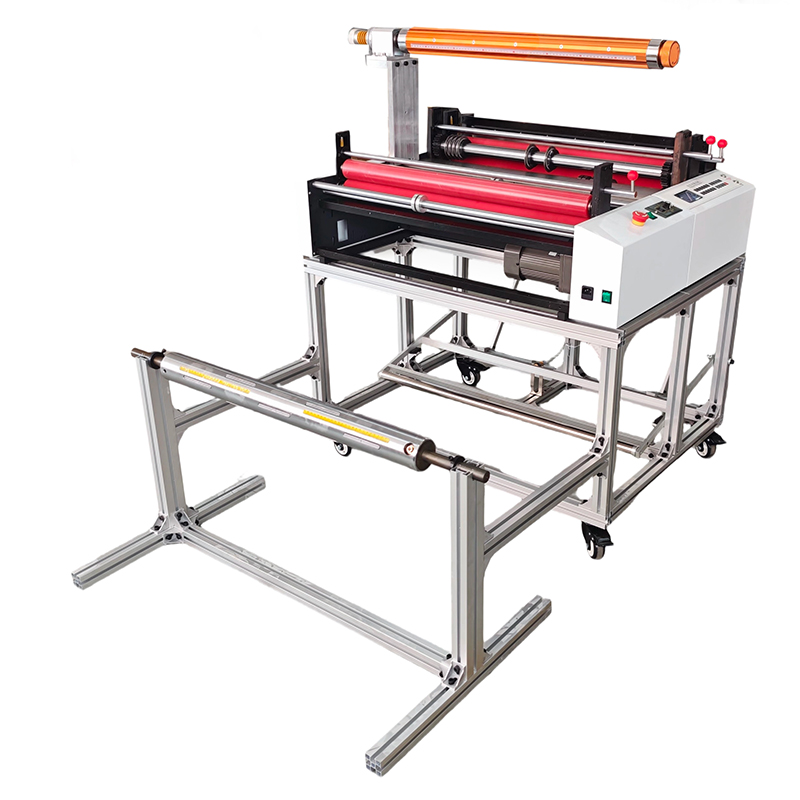

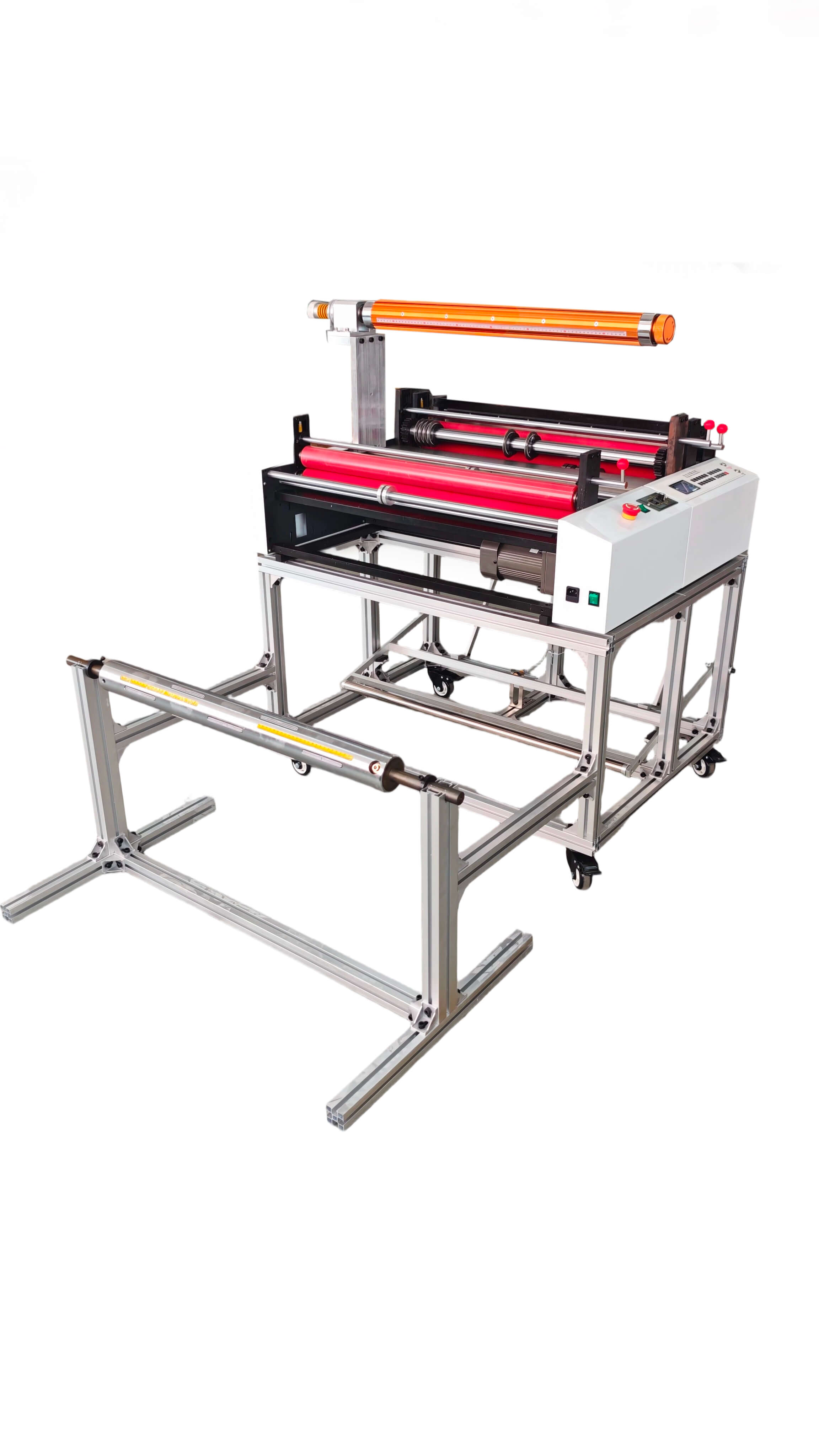

Side View

Back view

【Warranty 】

 As a silicone paper with double side tape roll to sheet laiminating slitting cutting machine  supplier , all the spare parts of the  ES-014-1 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/wooden case  ,foam paddings will be put inside wooden case for safe overseas shipping
