Self adhesive velcro rotary kiss &die cut&slitting lamination winding machine

Self adhesive velcro rotary kiss &die cut&slitting lamination winding machine  ES-072-1

The self adhesive velcro rotary kiss &die cut&slitting lamination winding machine ES-072-1 is a high-performance, multi-function production machine designed for manufacturing  kiss cut and fully die cut velcro dots  and other velcro shapes from self adhesive velcro material  featuring with high speed speed production and precision cut shape shapes . It integrates feeding, laminating, kiss cutting, die cutting, slitting, and rewinding functions into a single machine , making it an ideal solution for efficient and accurate Velcro dot and tape production.

The velcro rotary kiss cut laminating winding machine  can replace the bottom release paper with a release film through its lamination unit, then perform kiss cutting and slit a single Velcro roll into multiple widths, collecting each into separate rolls — all in one continuous process.  the machine uses a high-accuracy kiss cut mold for clean, consistent Velcro dots and  other shapes .

Youtube video

Fast Kiss cut velcro with high productivity

Changing from release paper to release film + kiss cut & slitting into different width and collection of separate rolls .

This  velcro kiss die cut machine  applies with Unwinding Mechanism of  4 sets with magnetic powder & mechanical lever and rewinding Mechanism: 4 sets with magnetic powder & mechanical lever , the processing material width  is  250 mm at maximum , the production speed ranges 0–25 m/min , the rotary kiss cut mold uses high quality  mold steel with long duration use.

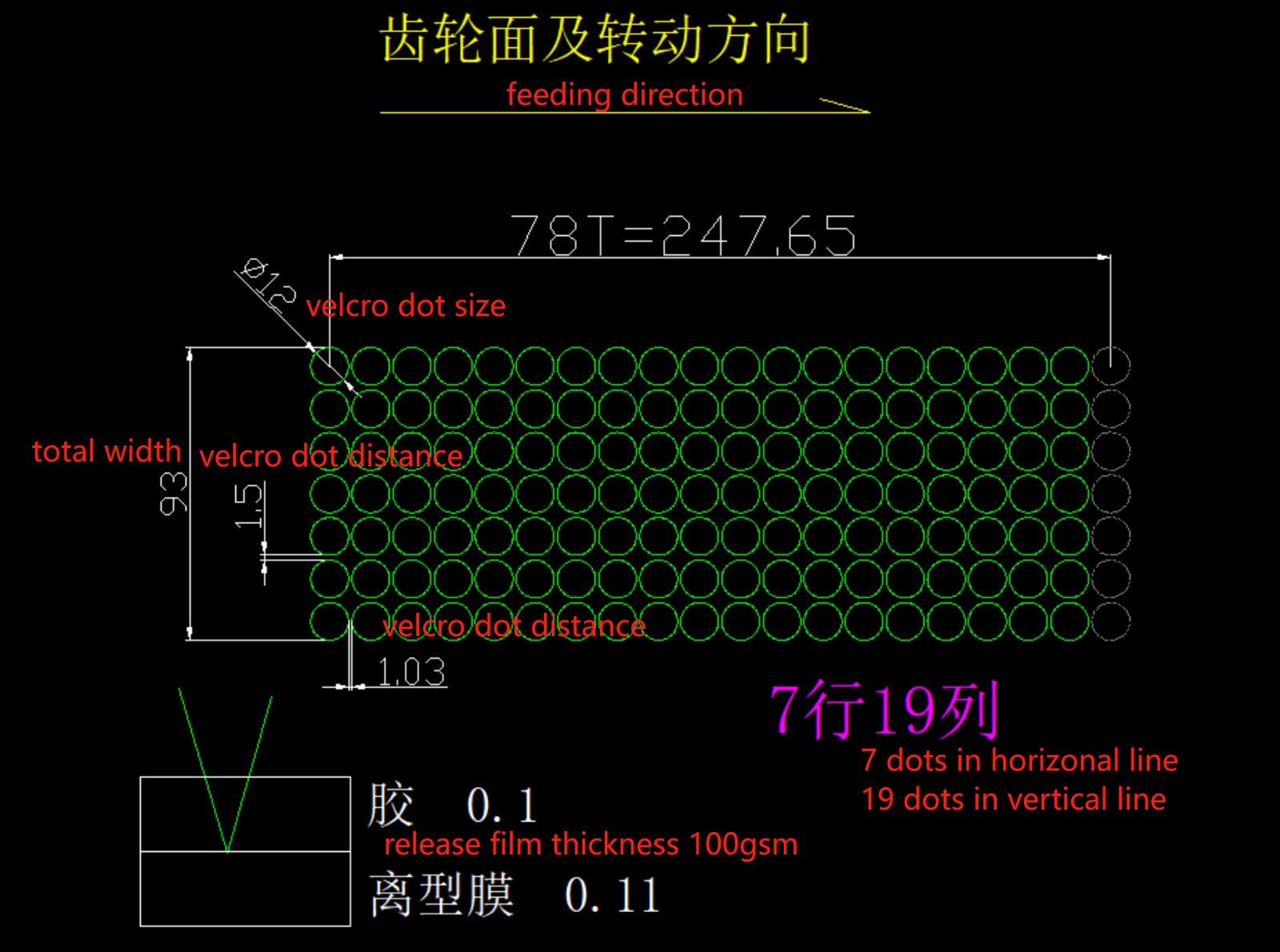

Every velcro dots size requires one set mod  , customer can tell us their velcro material width  and velcro dot sizes and velcro dots gap distances ,we will layout the  velcro dots sizes in principle of minimum wastage of velcro material and best productivity  for customer .

The best advantage of this self adhesive velcro rotary kiss &die cut&slitting lamination winding machine is that it  performs lamination, kiss cutting, slitting, and finished velcro roll separation and collection  in one machine and capable of producing rotary kiss cut and fully die cut Velcro dots at high speed, ensuring maximum output and productivity .

【Technical Data】

Product name : Self adhesive velcro rotary kiss &die cut&slitting lamination winding machine

Machine Model: ES-072-1

Function ：Feeding - Laminating (change&laminate release film&paper in one machine )- Rotary Kiss&Die Cut - Waste Discharge - Laminating - Rewinding

Laminating Unit: 2 sets

Rotary kiss &die cut mold: 1 set

Unwinding Mechanism: 4 sets, with magnetic powder, mechanical lever

Rewinding Mechanism: 4 sets, with magnetic powder, mechanical lever

Feed Width: ≤250mm

Rotary Kiss& Die-cutting/Slitting Width: ≤250mm

Laminating/ Kiss&Die-cutting/Slitting Speed: 0-25 m/min

Main Unit Power: 400W

Rewinding Motor: 120W Rewinding

Rewinding Core Diameter: 3 inches

Power Supply: 220V

Machine Weight: 360kg

Dimensions (L*W*H): 2700*1100*1700mm

【Product Advantage】

1,High productivity of  Rotary kiss cut &fully die cut velcro dots with a high speed cutting performance

2, Changing bottom release paper to release film with lamination ability  and doing kiss cut  and slit one velcro material into different width and collect into separate rolls  in one machine

3, High quality kiss cut velcro dots with precision made kiss cut mold .

【Product Details】

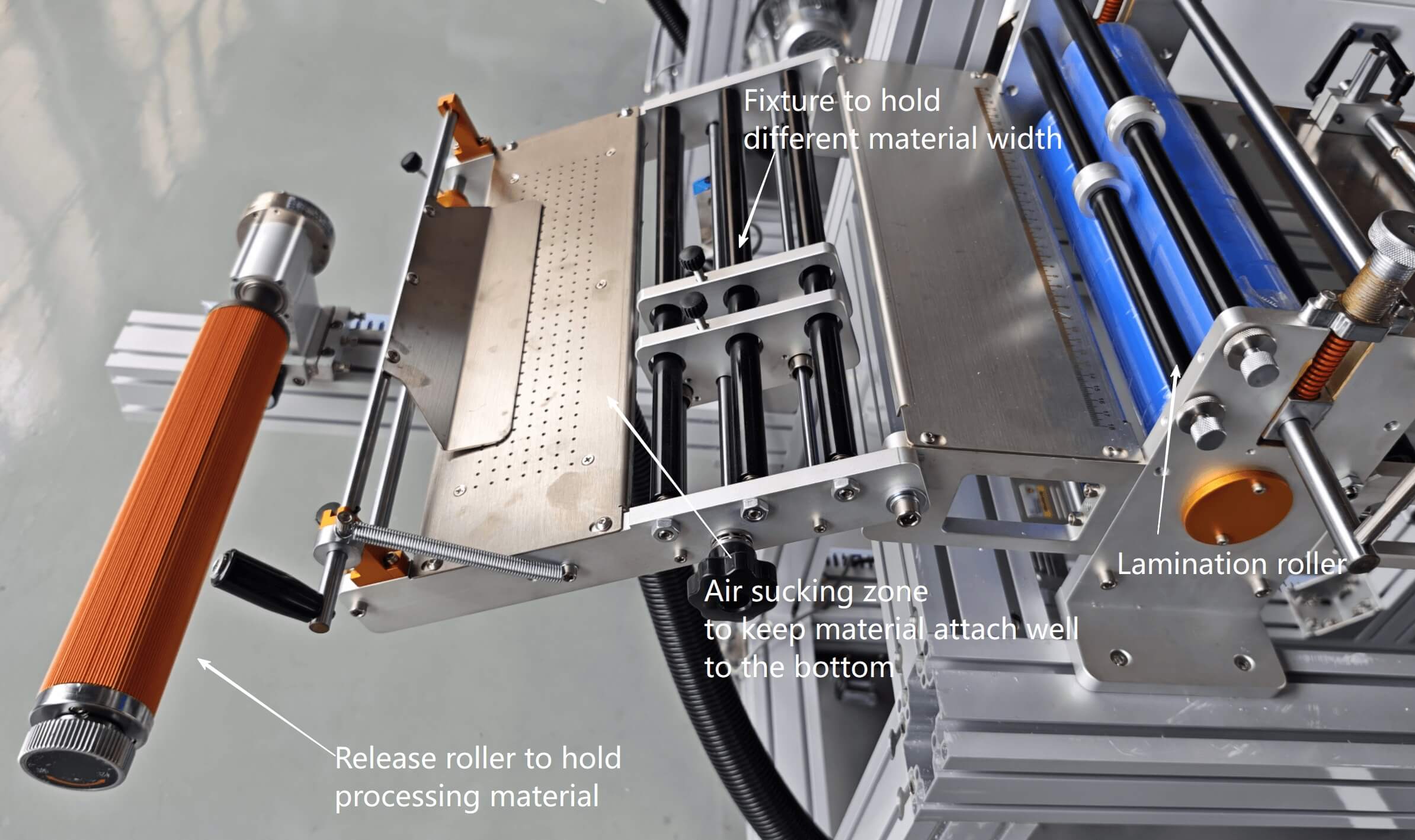

1,Release roller  , the self adhesive velcro rotary kiss die cut machine applies with air blooming rollers as release roller which the processing material can be placed here . there is also the air sucking zone which will suck and keep the processing velcro material attach to the sucking zone to keep material fed smoothly .

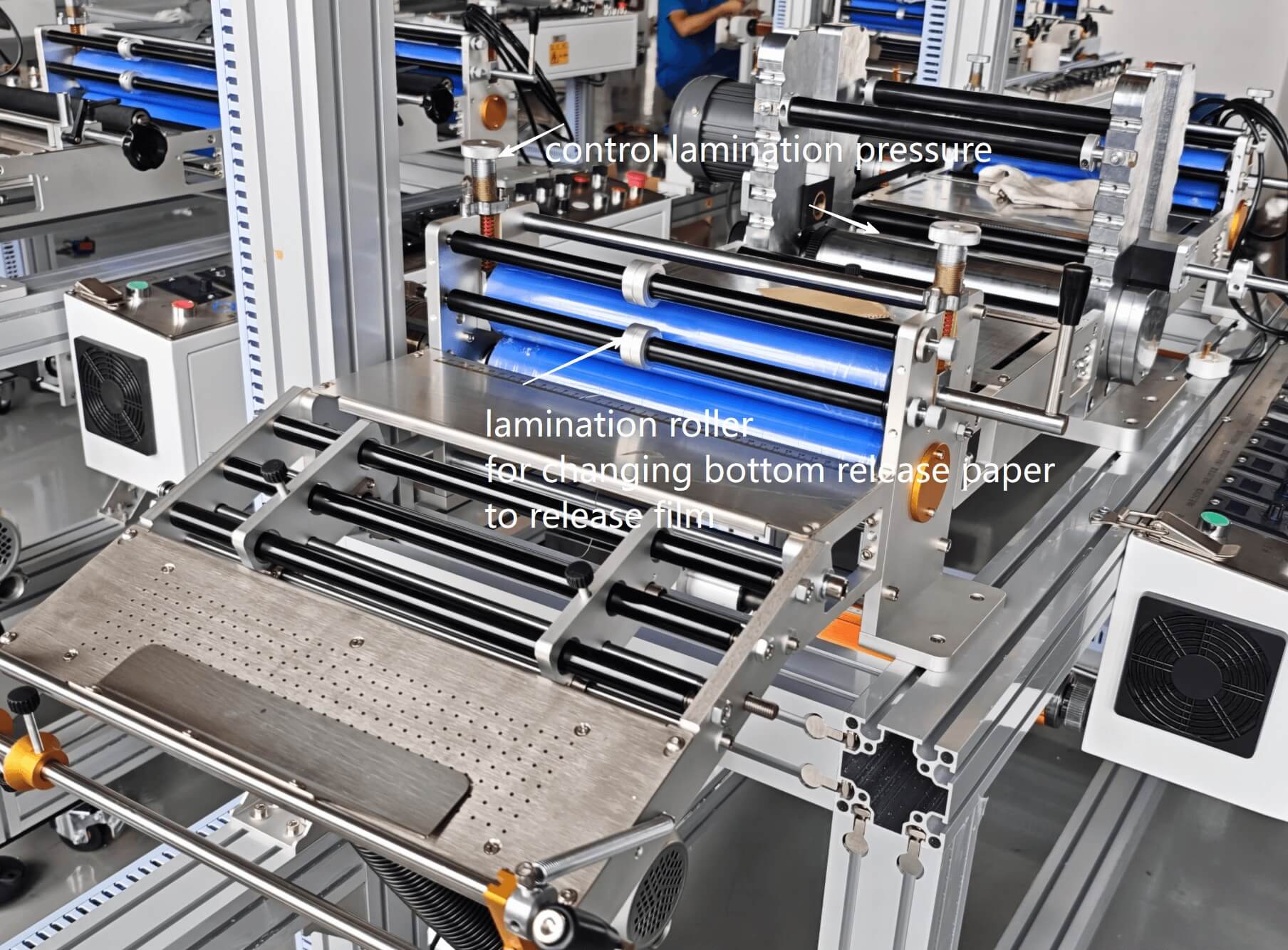

2,Lamination rollers , the lamination rollers are placed on both sides of the velcro rotary kiss cut machine which enables  the replacement of velcro release paper to release films .and also achieves kiss cut of velcro material at  the same time .

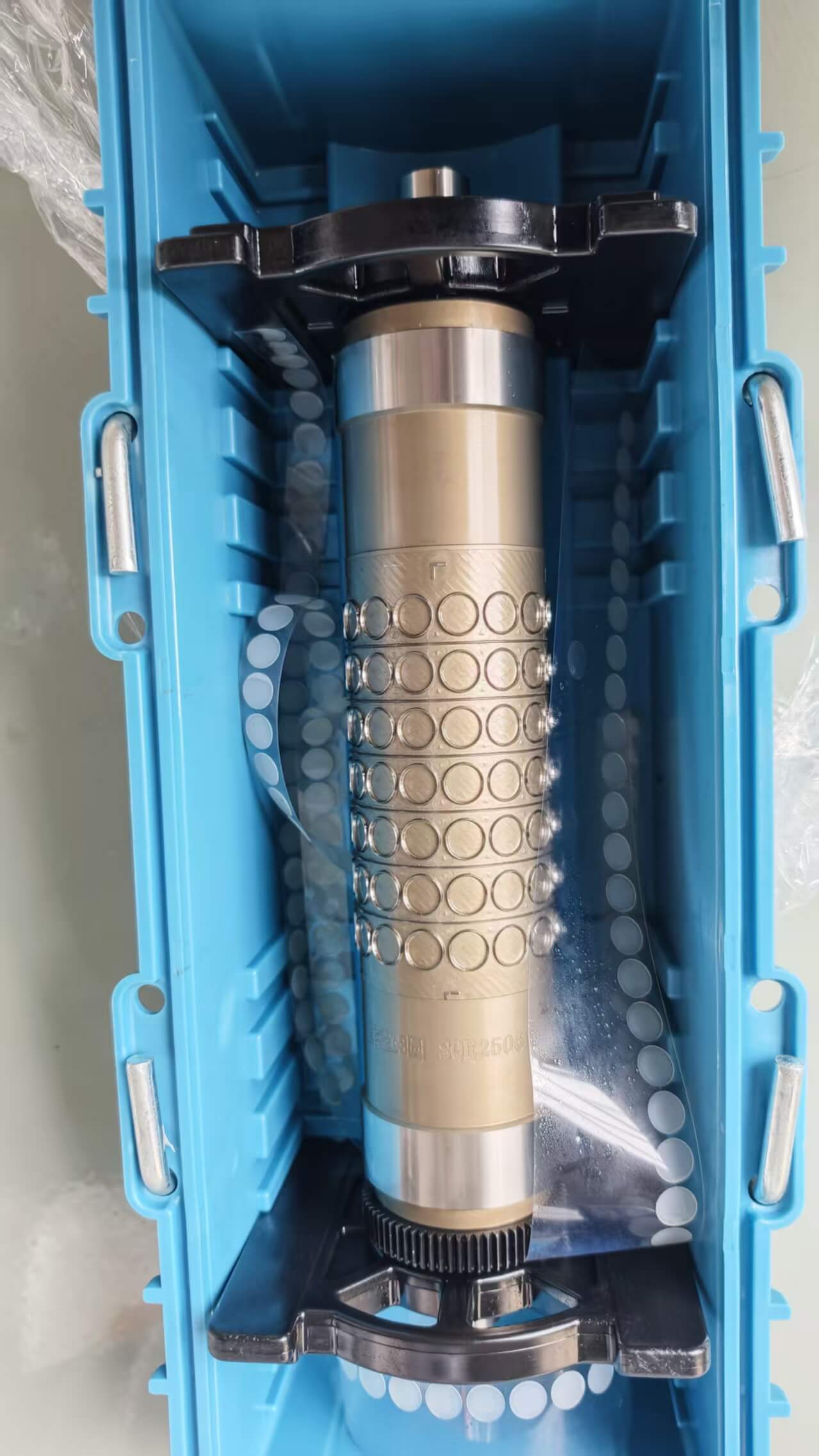

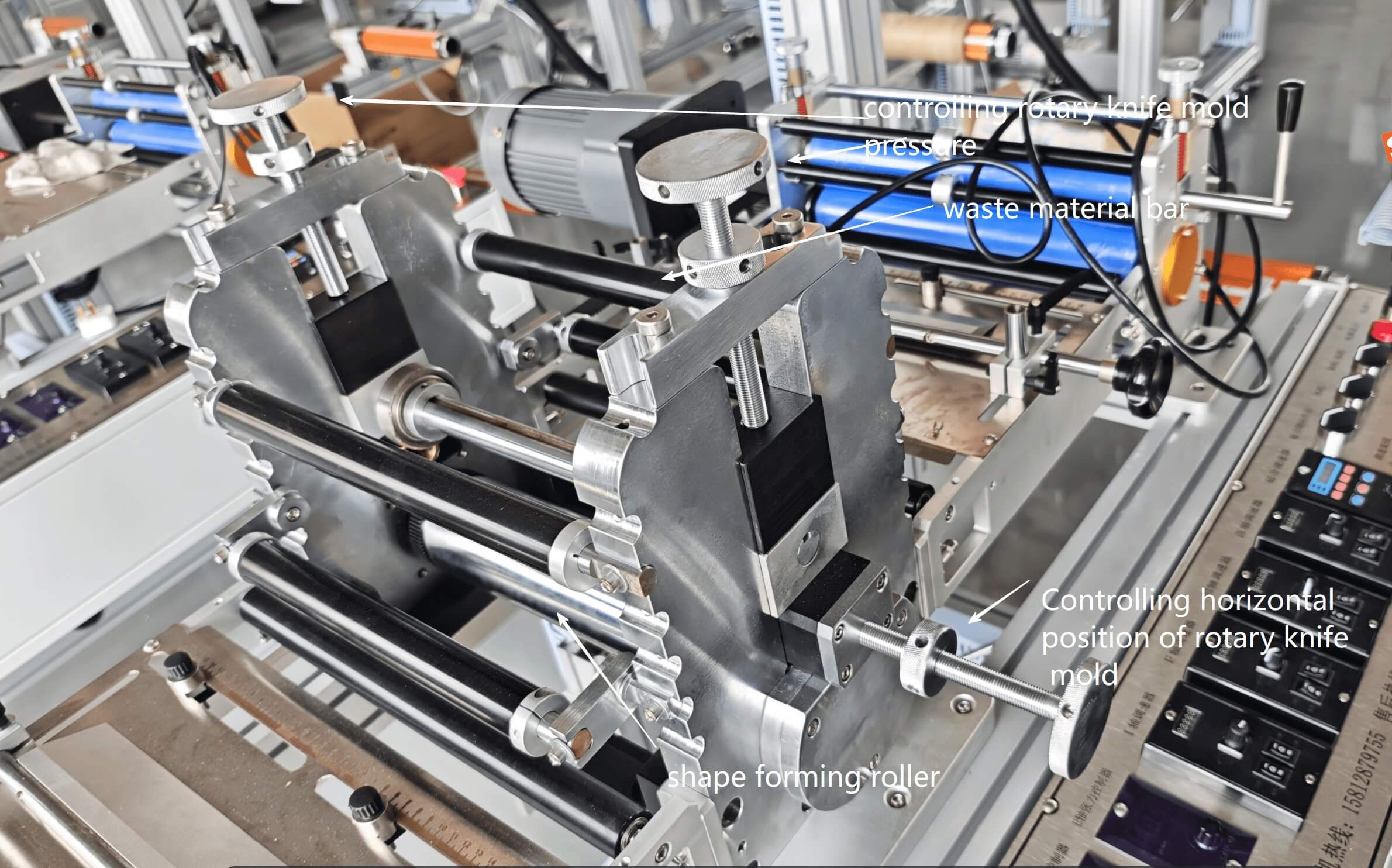

3, Rotary kiss cut knife mold . the kiss cut knife mold can also make fully die cut mold , it is made of mold steel ,every dot size mold should be made with one set kiss cut mold individuallly  and knowing the release film thickness is important for making precision kiss cut depth which cut through velcro material but not througth the release film .

the kiss cut mold can also have slitting lines between every kiss cut dot  to achieve both kiss cut velcro and slit into different width.

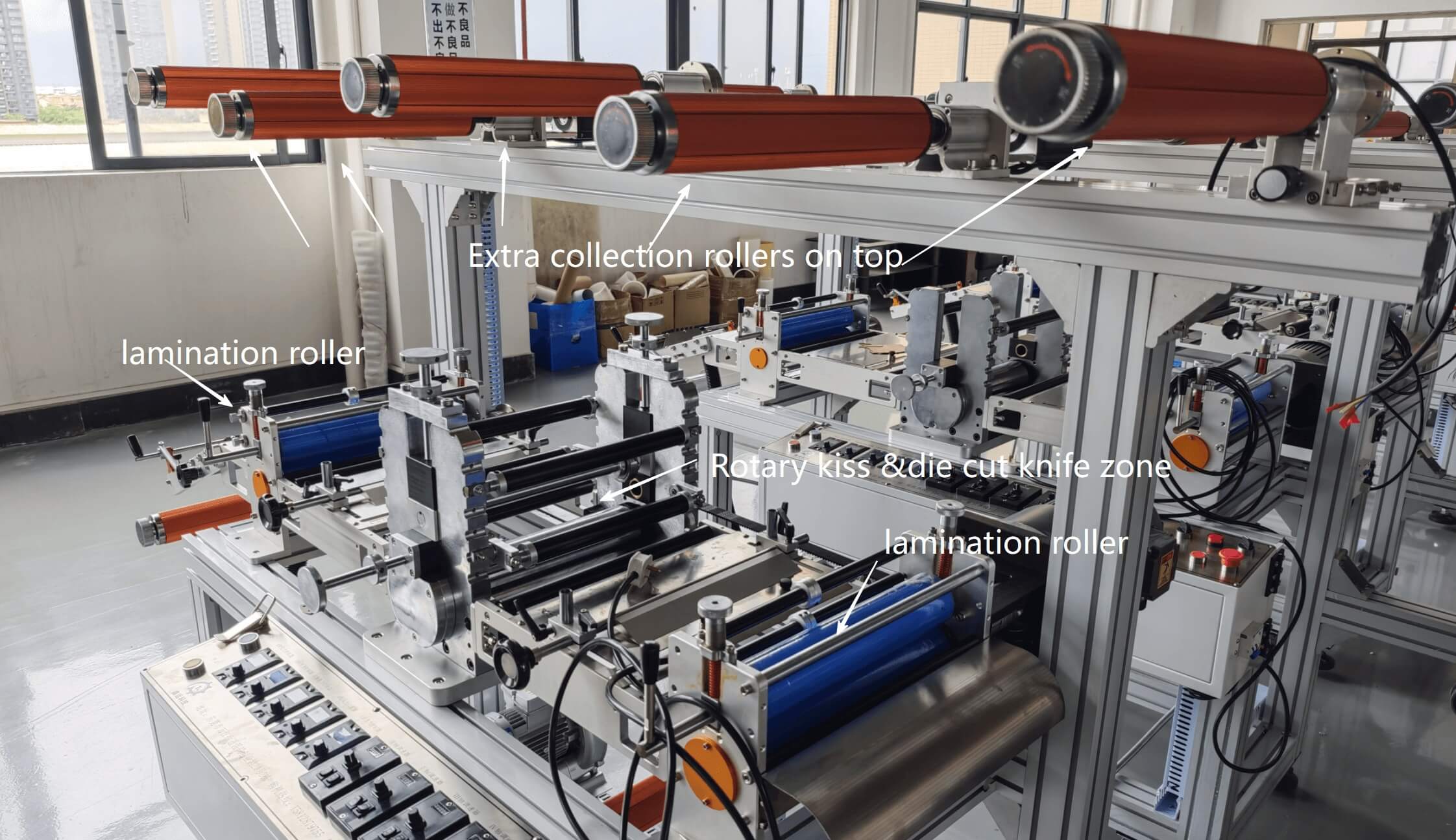

4, Collection rollers ,  There are five collection rollers on top of the  adhesive velcro rotary kiss cut laminating slitting machine  which can adjust their rotation direction clockwise or anti clockwise which is made for multi use

 for collection or releasing of different material at the same time .  the rolling foce can also be set .

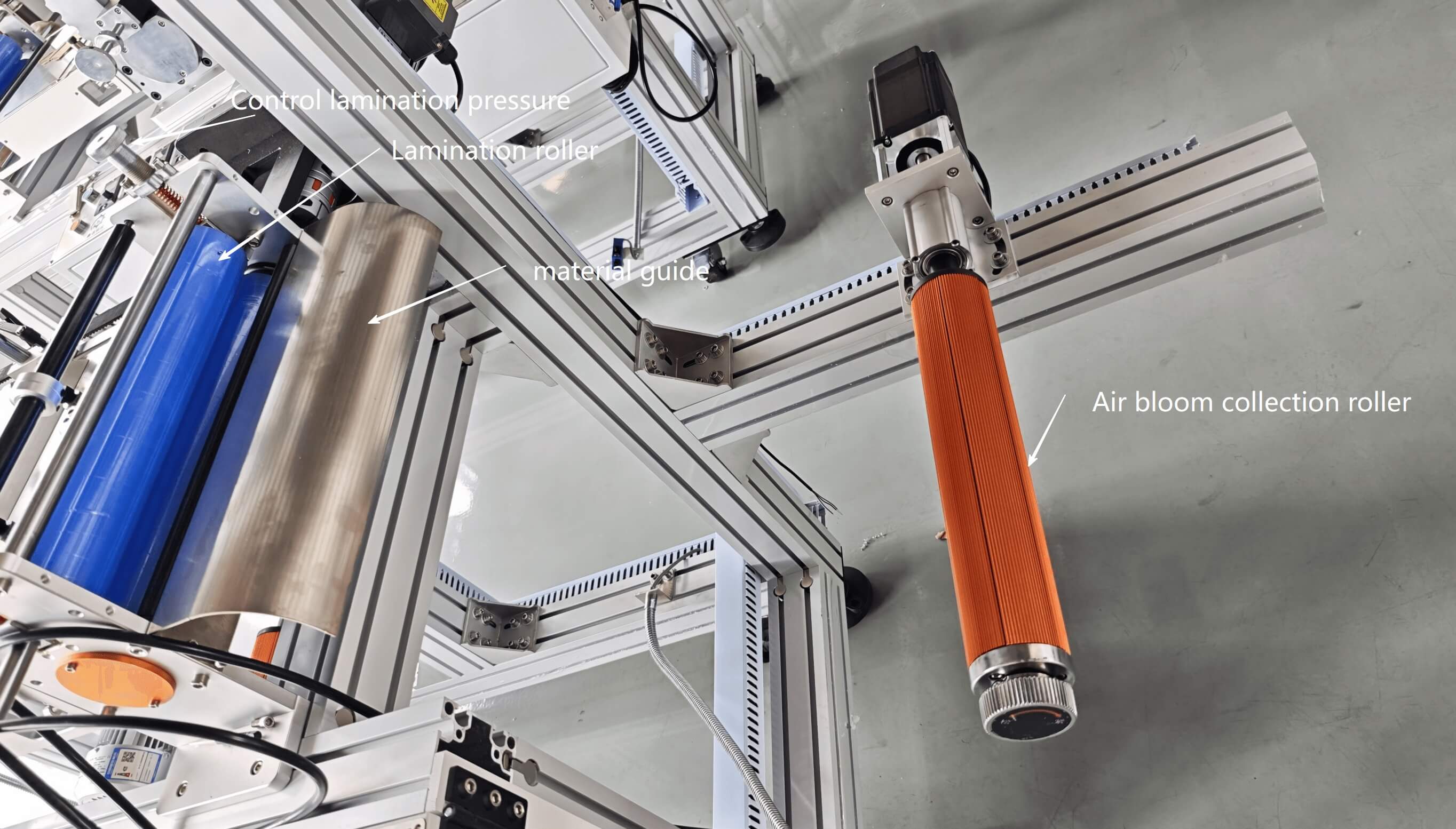

5,Collection rollers  ,the collection rollers will collect the kiss cut velcro or different slitted width velcro into rolls

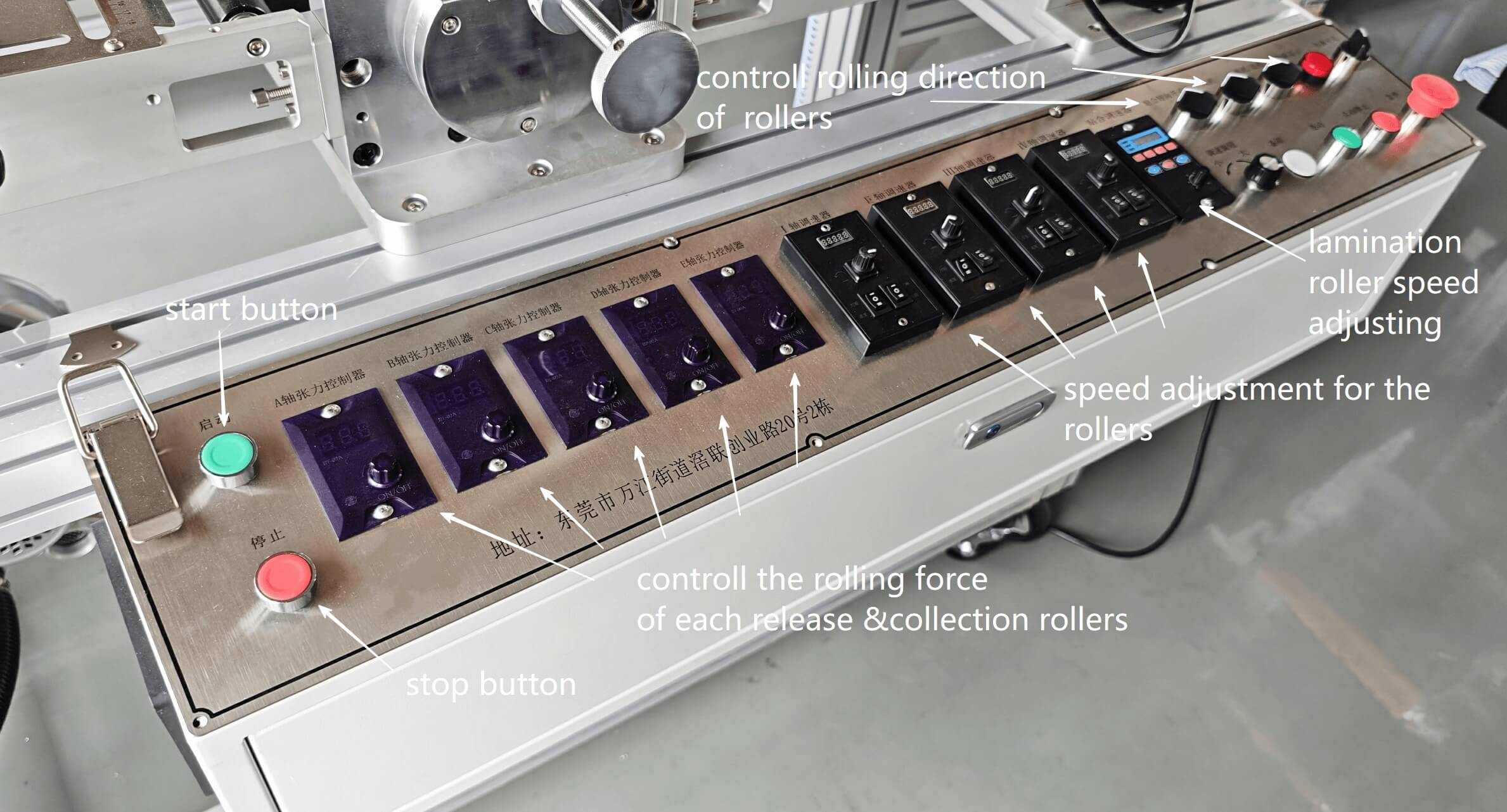

6, working tables , the working tables controls the operation of the machine ,we can control the machine speed , release&collection roller rolling direction and forces and also lamination speed etc . it will be easy to use the machine

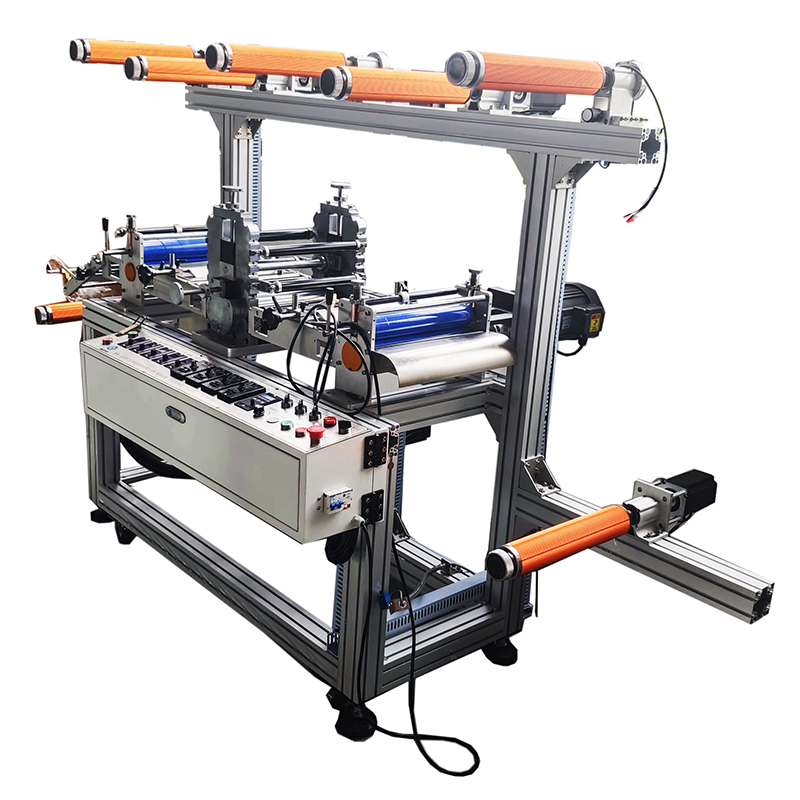

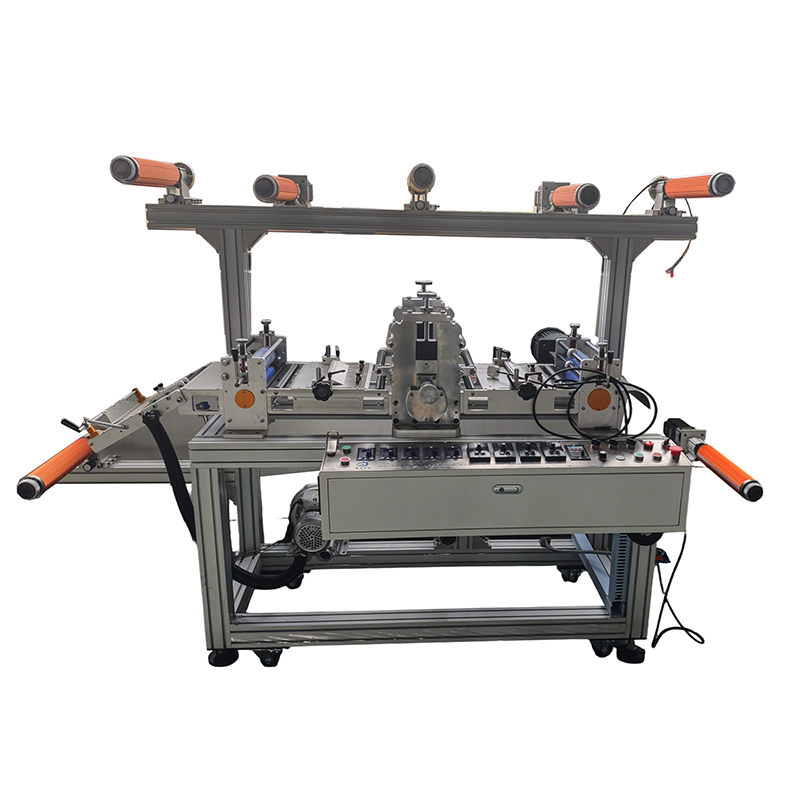

Front View

Side View

Side View

【Warranty 】

 As a self adhesive velcro rotary kiss &die cut&slitting lamination winding machine  supplier , all the spare parts of the machine  will have one year of free maintainance  by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
