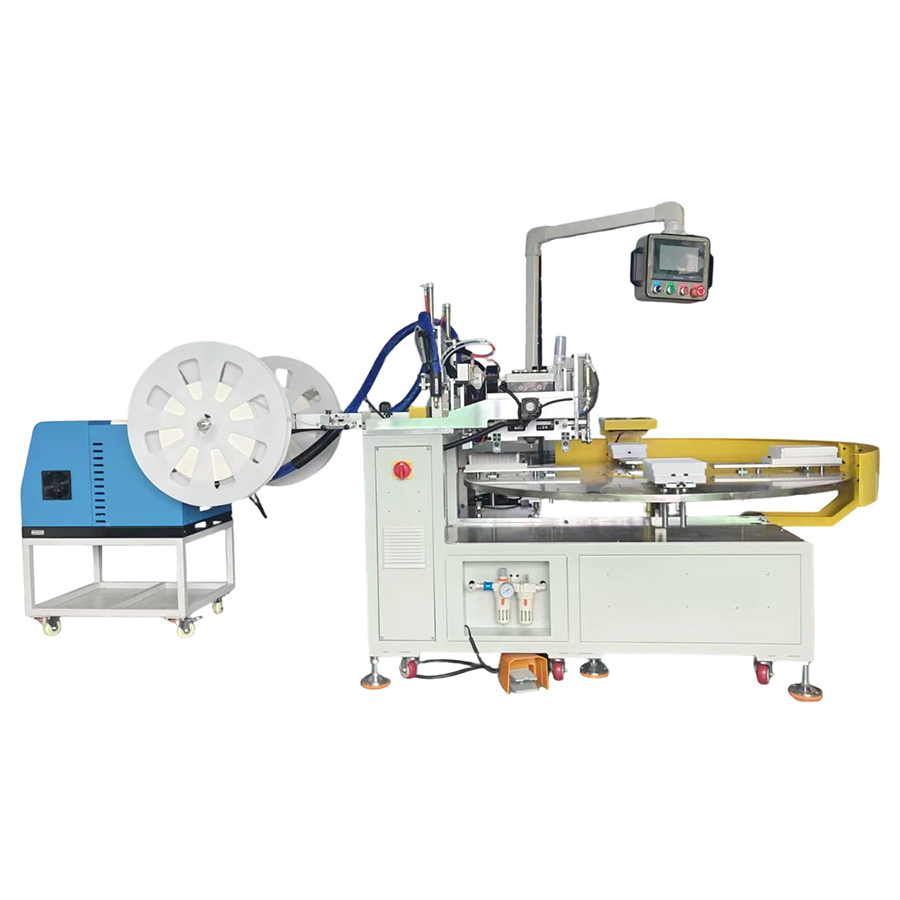

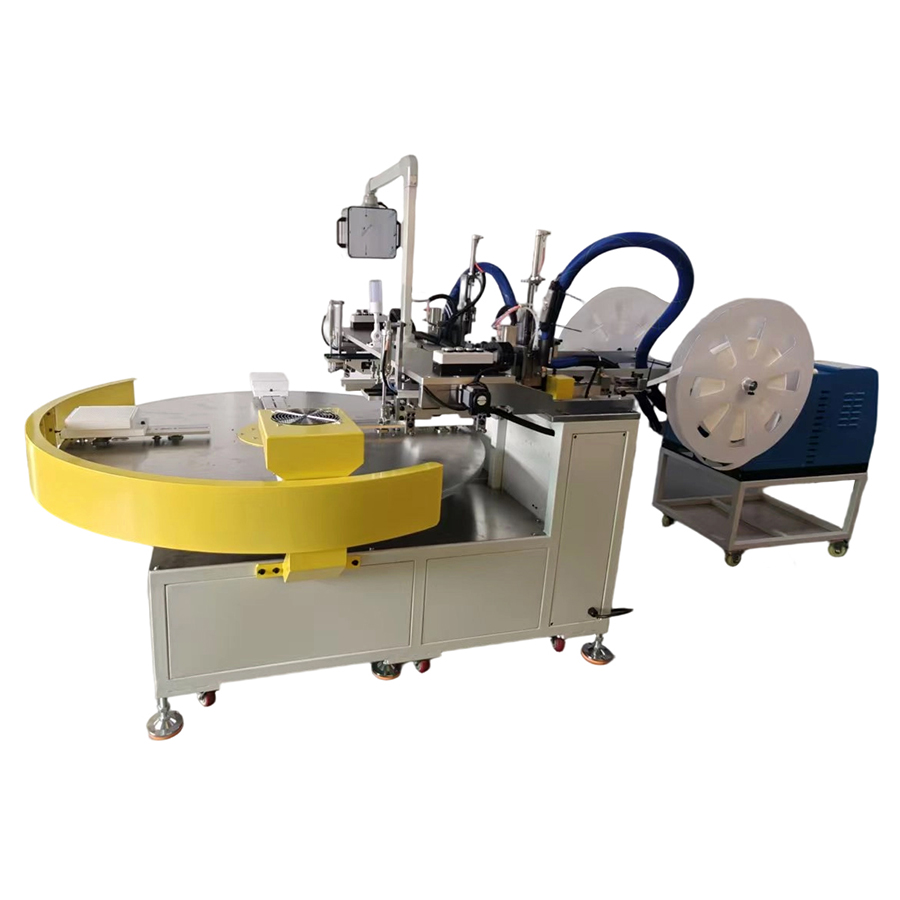

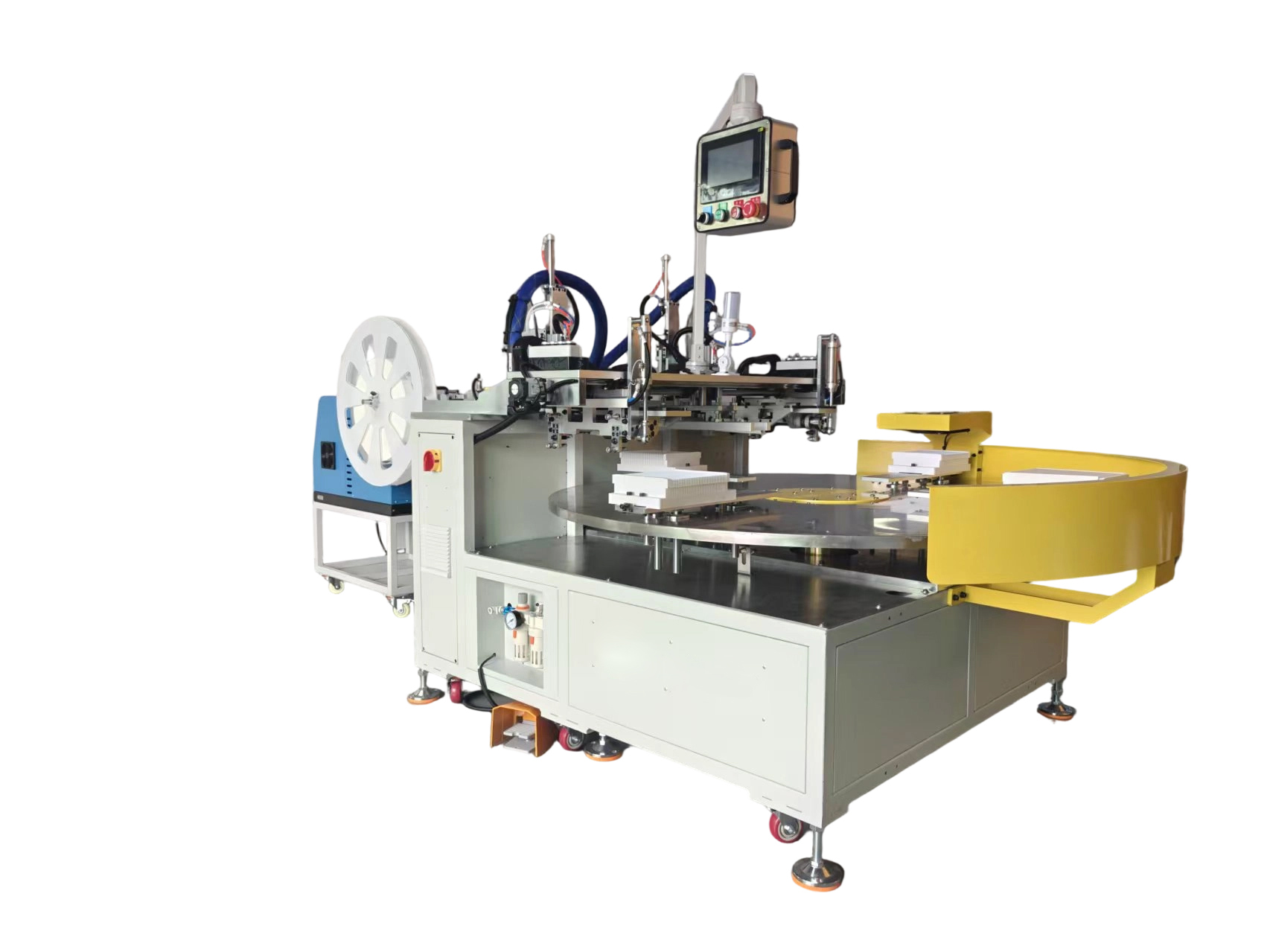

Car air conditioning filter double-side Edge bonding machine ES-061
The Car air conditioning filter double-side Edge bonding machine ES-061 is a fully automatic machine designed for efficient and precise edge bonding of car air conditioning filters. It integrates automatic feeding, cutting, gluing, double-sided edge sealing, and cooling into one streamlined process.
Featuring four workstations and a PLC-controlled system for accurate edge length control (±0.25mm), this machine eliminates the need for secondary trimming—saving material, labor, and handling costs.
It offers precise, clean edge bonding with no secondary trimming required
With an operating cycle of just 8–10 seconds per piece, the ES-061 delivers high-speed production and consistent quality. It supports filter sizes ranging from 150–400mm (L), 150–300mm (W), and 10–60mm (H) and handles materials such as non-woven fabric and carbon fiber reinforced fabric.
Youtube video
Built with a durable frame and precision components, the machine delivers long-term stability and reliability. It includes an integrated glue machine, hose, and glue gun, along with four custom aluminum alloy or 3D-printed fixtures designed to hold the folded filter securely during edge application.
The best advantage of this car air conditioning filter double-side Edge bonding machine is that it maintains high precision of bonding strip length tolerance ±0.25mm, and ensuring every filter meets strict dimensional requirements. The machine’s four synchronized workstations allow for longer cold-cutting times, resulting in cleaner edges and superior bonding quality.
【Technical Data】
Product Name: Car air conditioning filter double-side Edge bonding machine
Model: ES-061
Functions: Automatic feeding + automatic cutting + automatic gluing + automatic double-sided edge sealing + automatic gluing + baking and curing edge sealing
Applicable Product Range: Length: 150–400mm, Width: 150–300mm, Height: 10–60mm
Voltage: 220V
Air Pressure: Above 0.5 MPa
Power: 2.5KW
Compatible Product Dimensions: ① Length: 100-400mm; ② Width: 120-300mm; ③ Height: 10-60mm (Special fixture for filter paper height above 40mm)
Applicable Materials: Non-woven fabric, carbon fiber reinforced fabric
Operating Cycle: 8-10 seconds/pcs (Operator's material placement time affects operating cycle)
Efficiency: 8–15 seconds per machine
Molds: Used to fix the folding line distance
Number of Molds: 4 pcs
Number of Operators: 1 person Equipment Fixtures: ① Quantity: 4; ② Material: Aluminum alloy or 3D printed; ③ Aluminum alloy fixtures have some versatility,
depending on the product spacing and width. The equipment uses a top-based edge application method, with the filter paper folded upwards and placed in the fixture.
The equipment is equipped with a glue machine, glue hose, and glue gun.

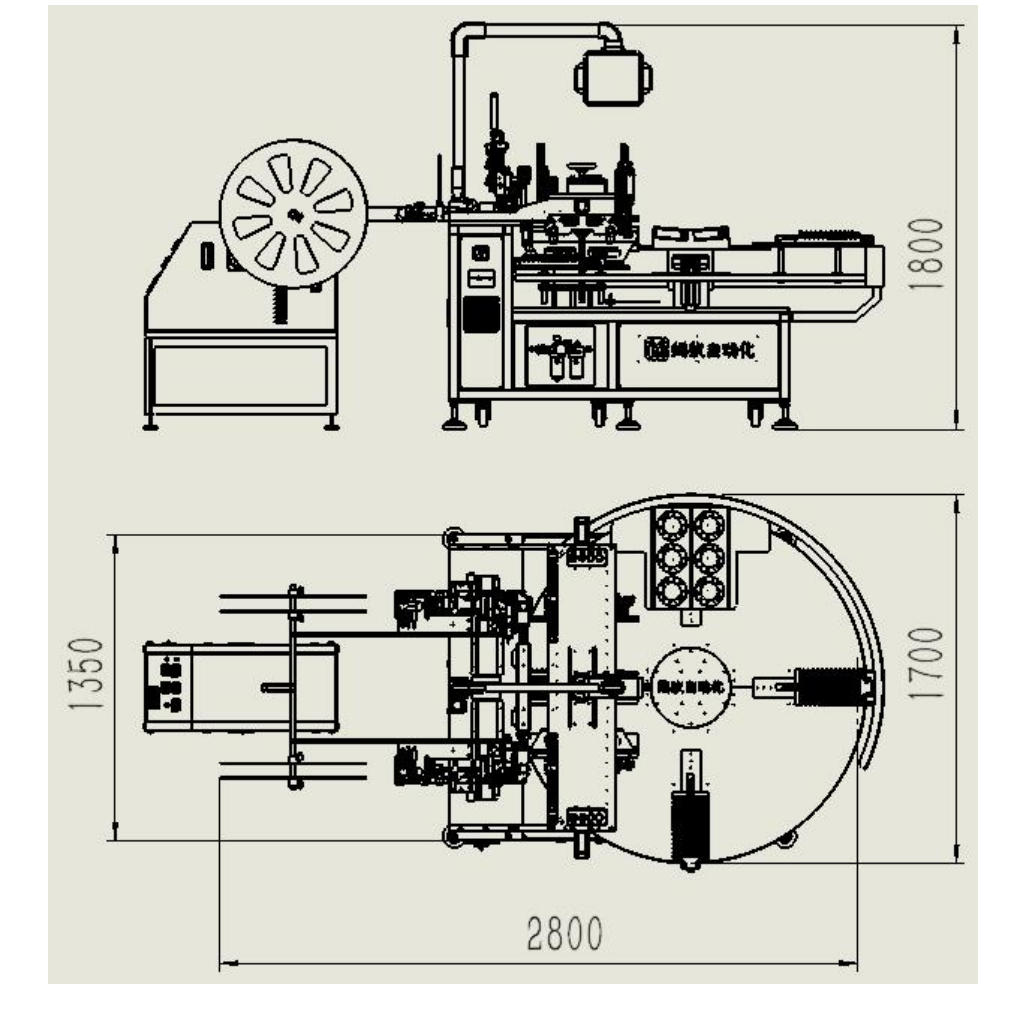

Equipment Dimensions (L x W x H): 2800 x 1700 x 1800 (mm)
Machine Weight: 950KG.
【Product Advantage】
Advantages of the Double-Sided Edge Bonding Machine:
1. No need for secondary edge trimming (saves material for 4 corners, 1 person's labor, 1 front corner bonding machine, and stacking and handling costs).
2. Controllable edge strip length (the length input on the PLC is the exact length, within ±0.25mm).
3. Four workstations, longer product cold-cutting time, and higher quality.
4. Stable equipment and high speed (one product every 8-10 seconds).
5. Automatic feeding + cutting + gluing + bonding of double-sided air conditioning filters + baking and curing in one integrated process.
【Product Details】

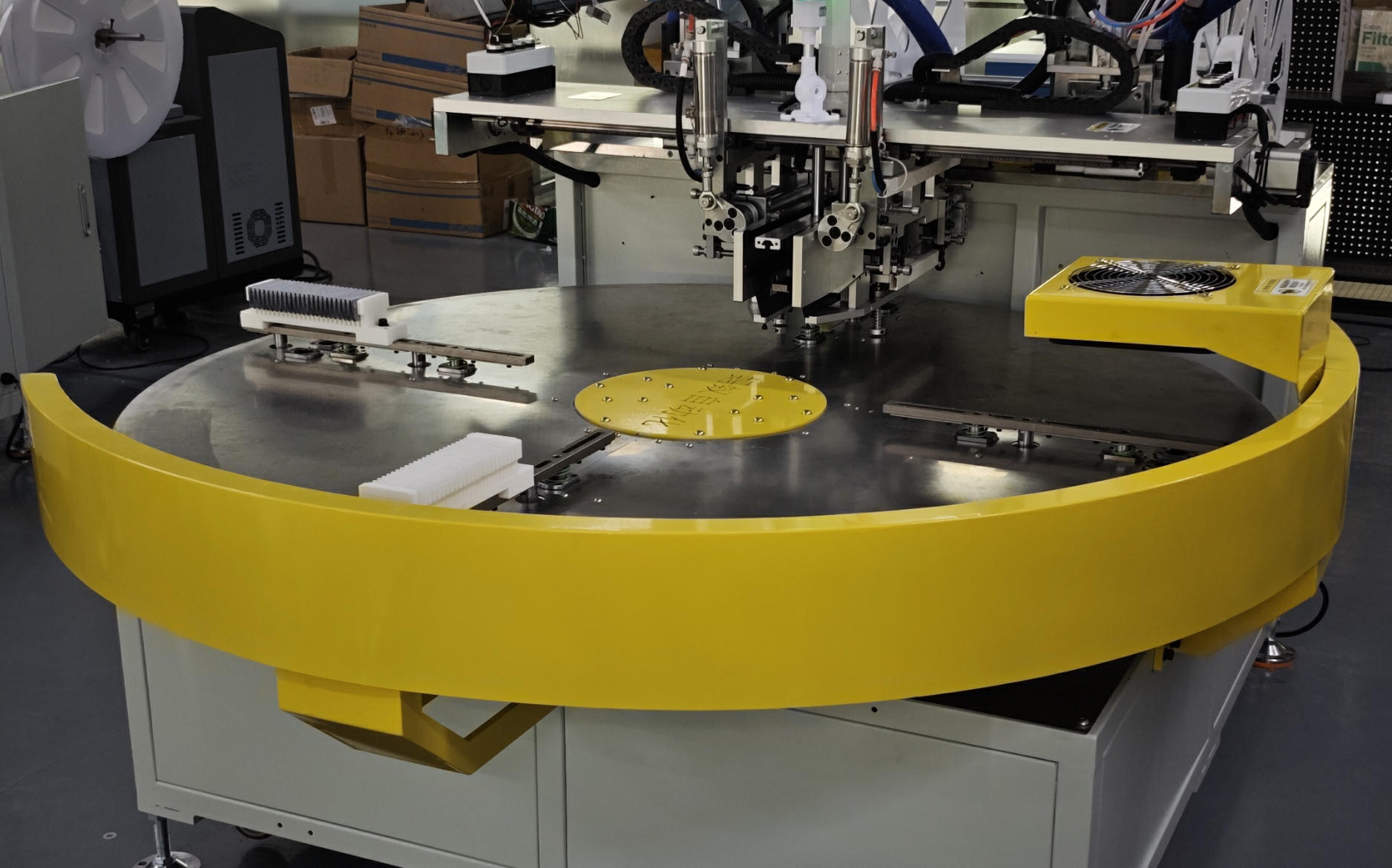

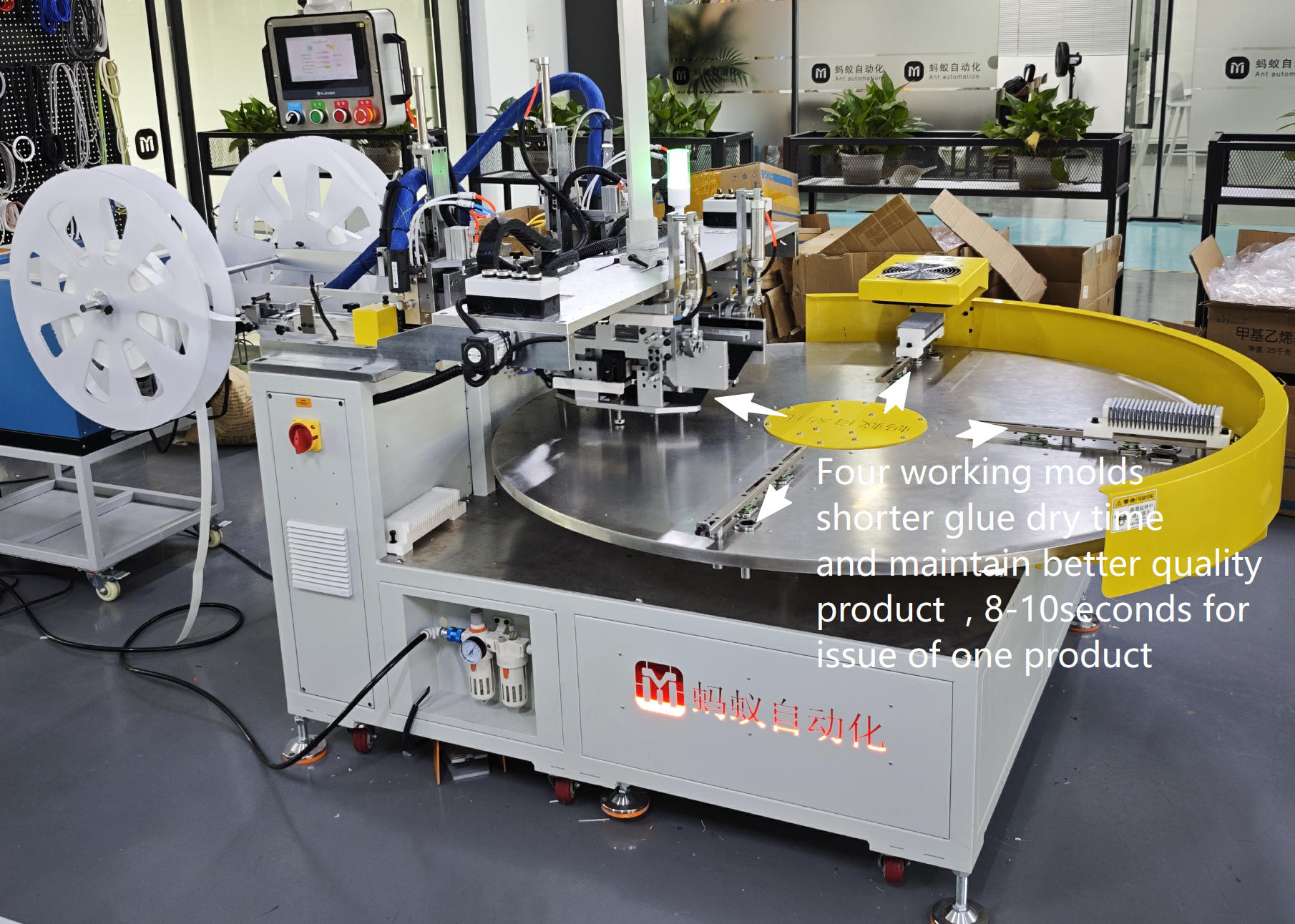

1,Four working molds .this cabin filter edge glue bonding machine applies with four working molds which ensures longer glue dry time and better quality product ,8-10 seconds for issue one product
four molds rotate to bonding after gluing the air filter double edge .

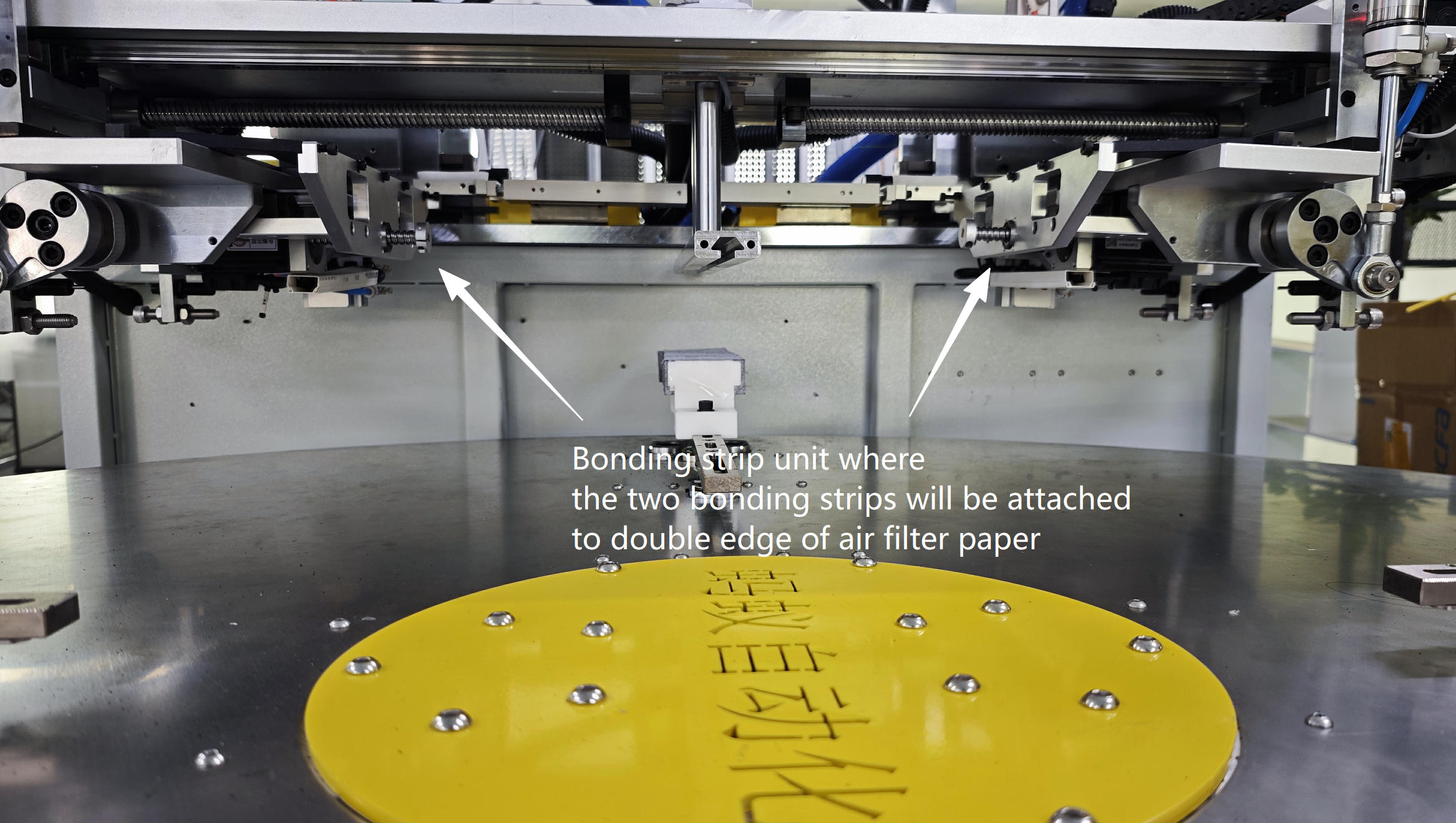

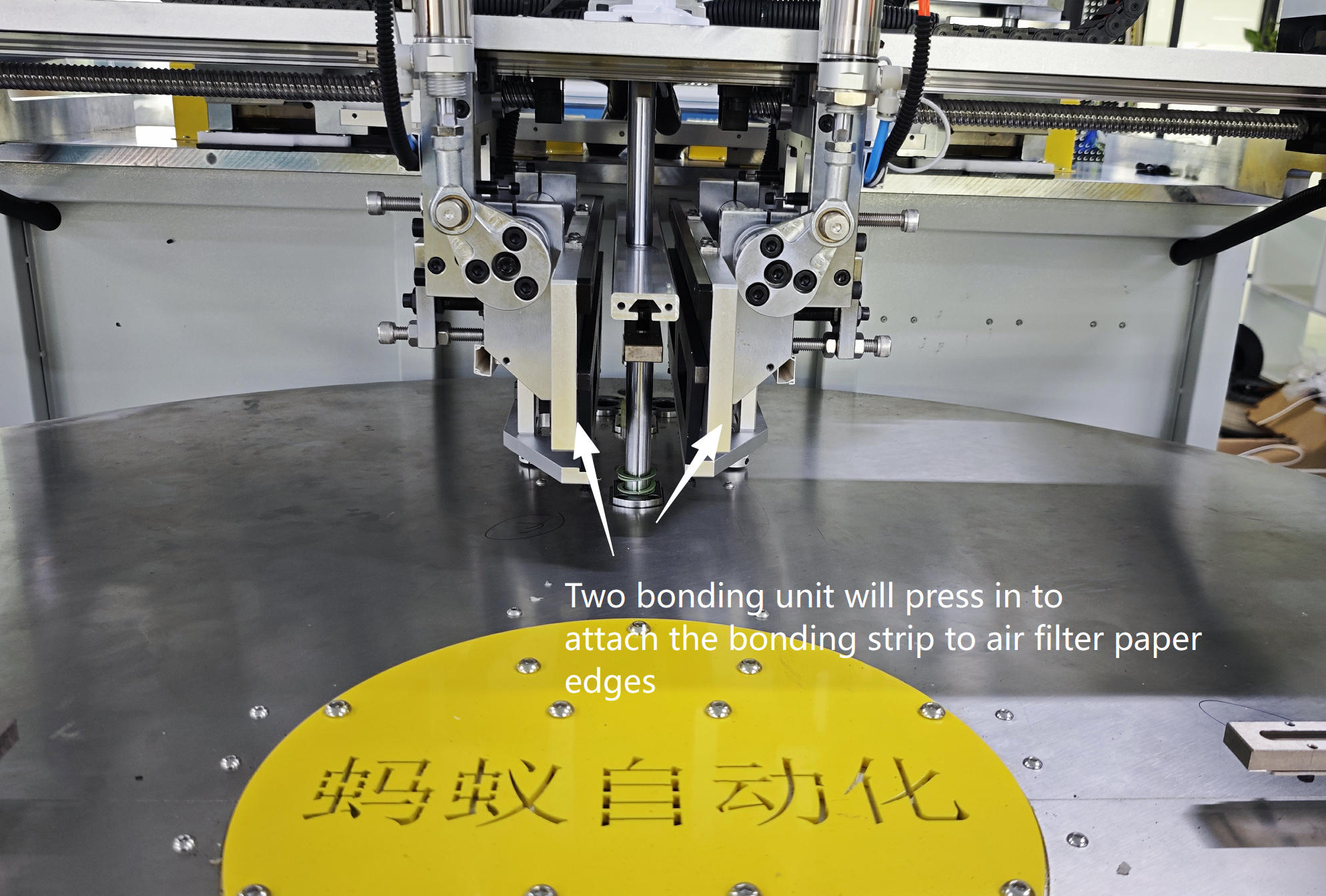

2, Bonding edge unit
The bonding strip will be held by the bonding unit and attach to both sides of air filter paper for gluing strip with air filter edges .
two bonding unit will press in to attach the bonding strip to air filter edges

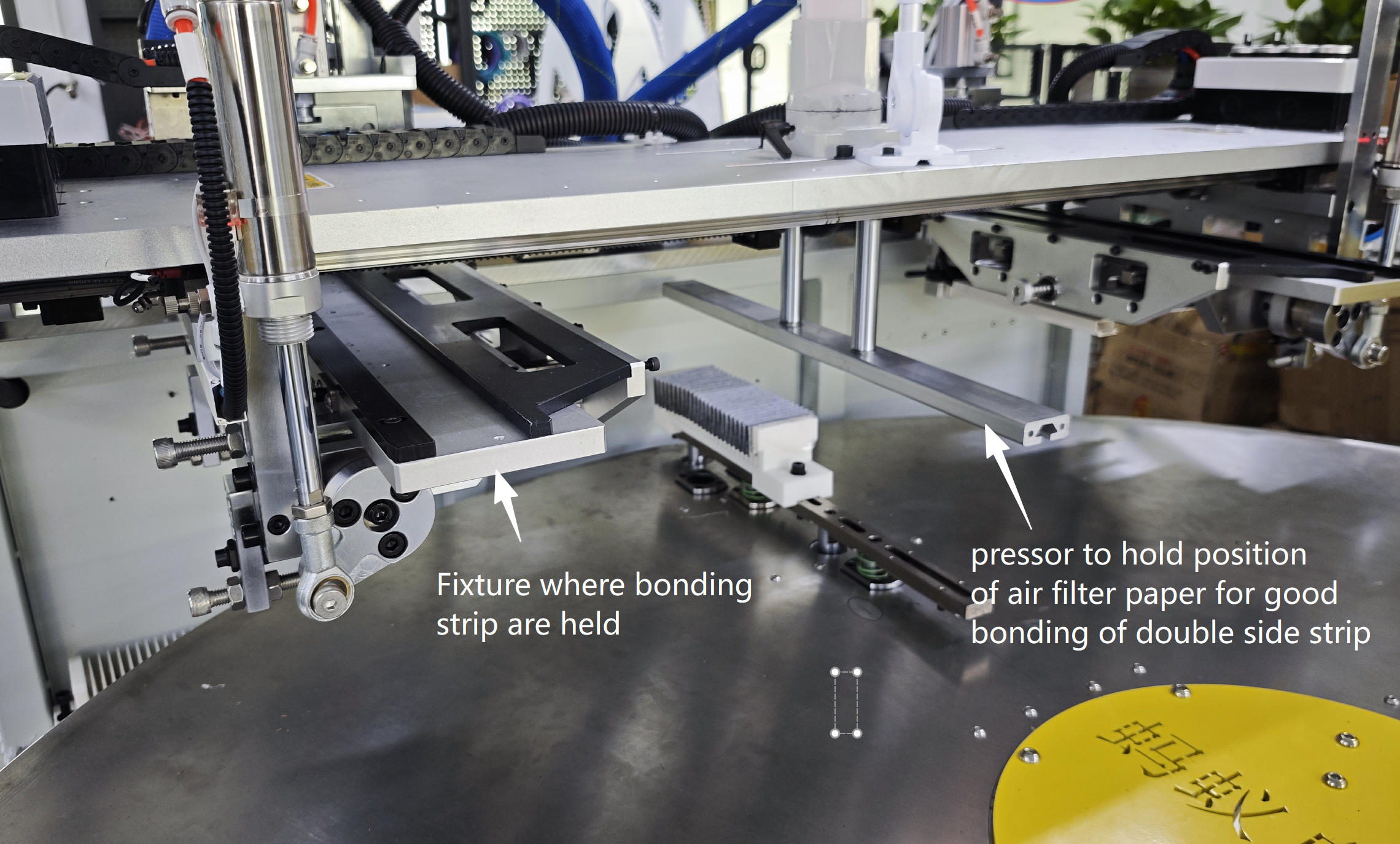

The pressor will press down to hold position of air filter paper for good bonding of strip with air filter edges .

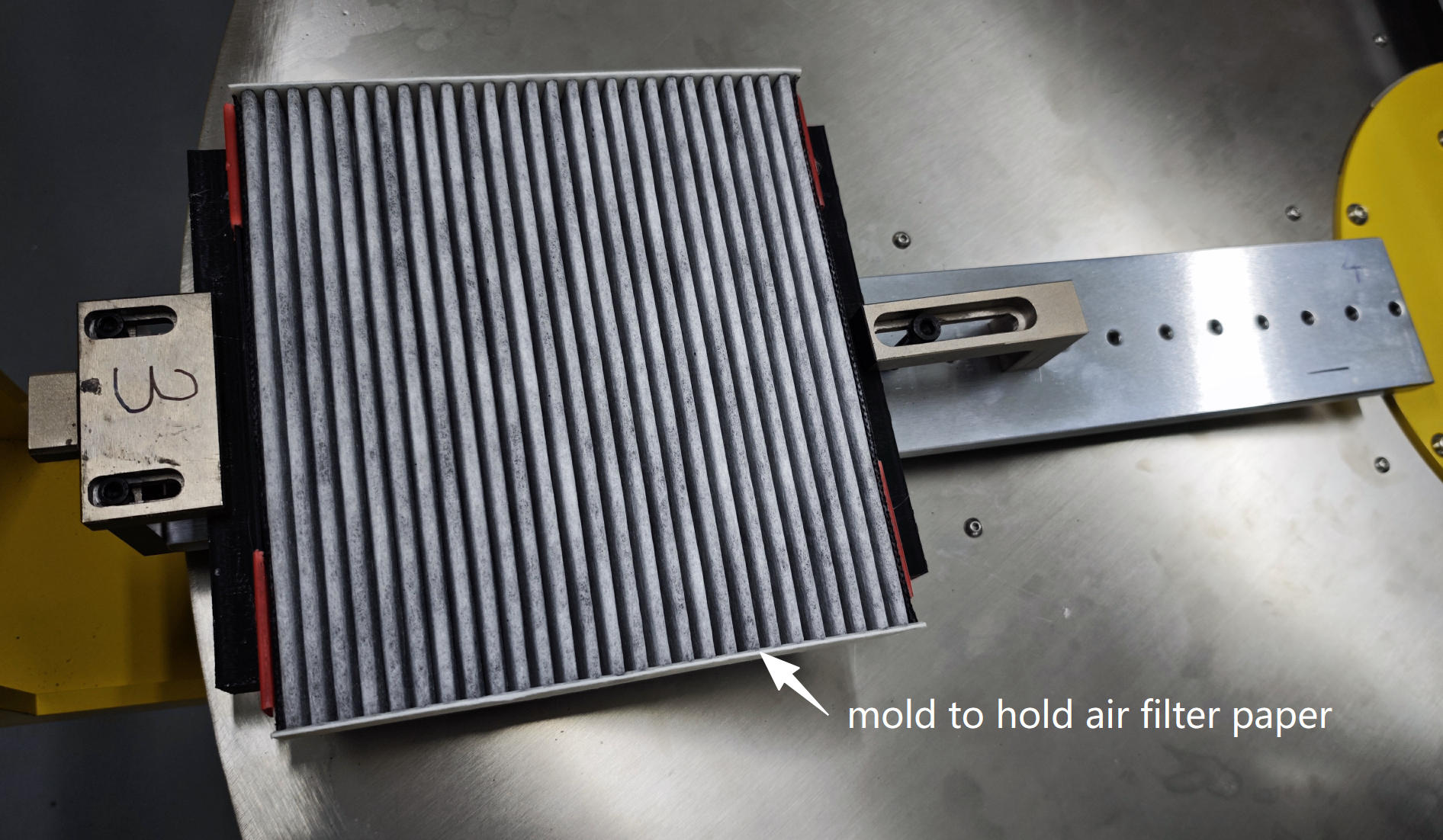

3, Mold to hold air filter paper and determine the air filter line distance ,customised mold available based on customer demand .

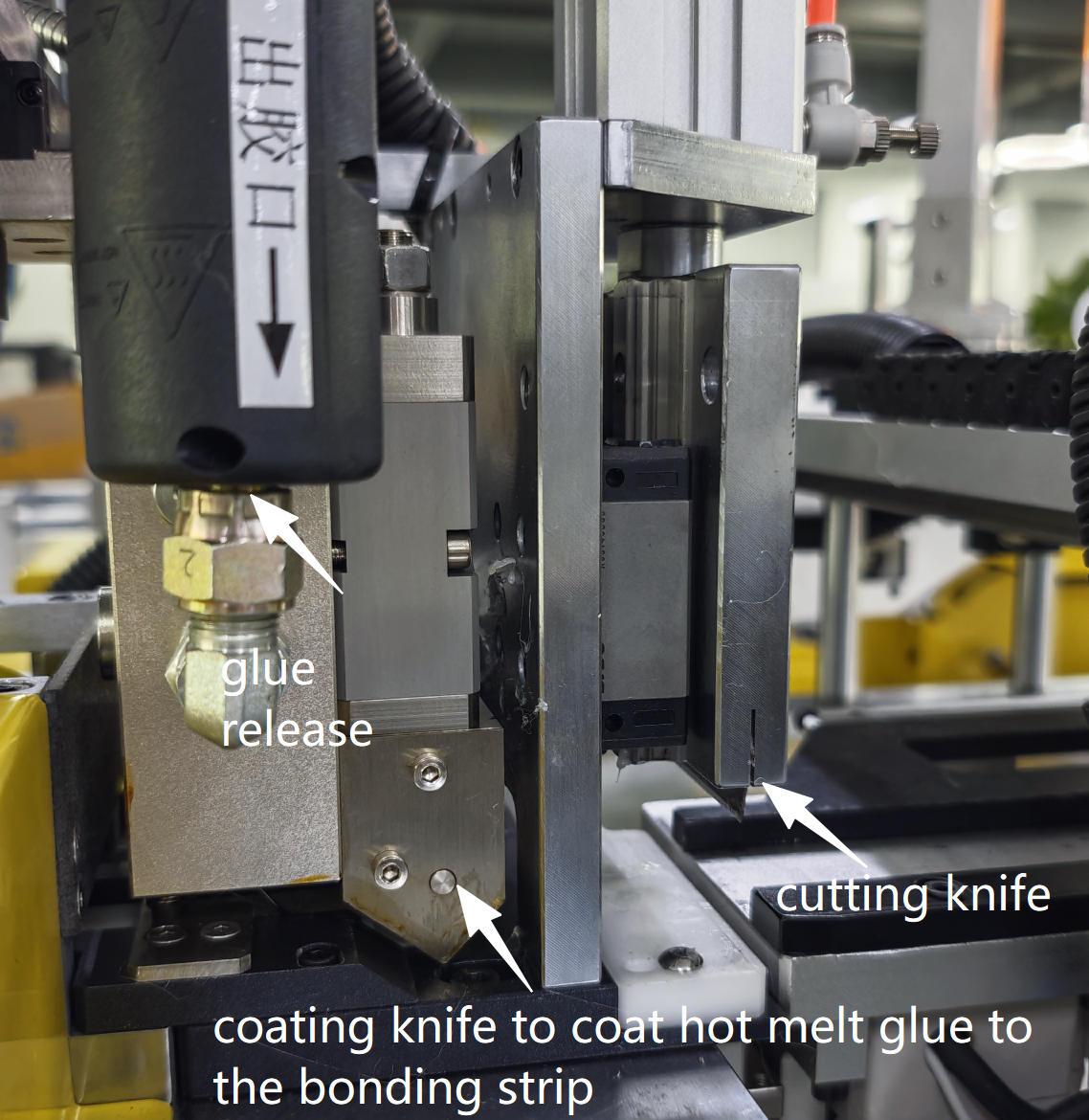

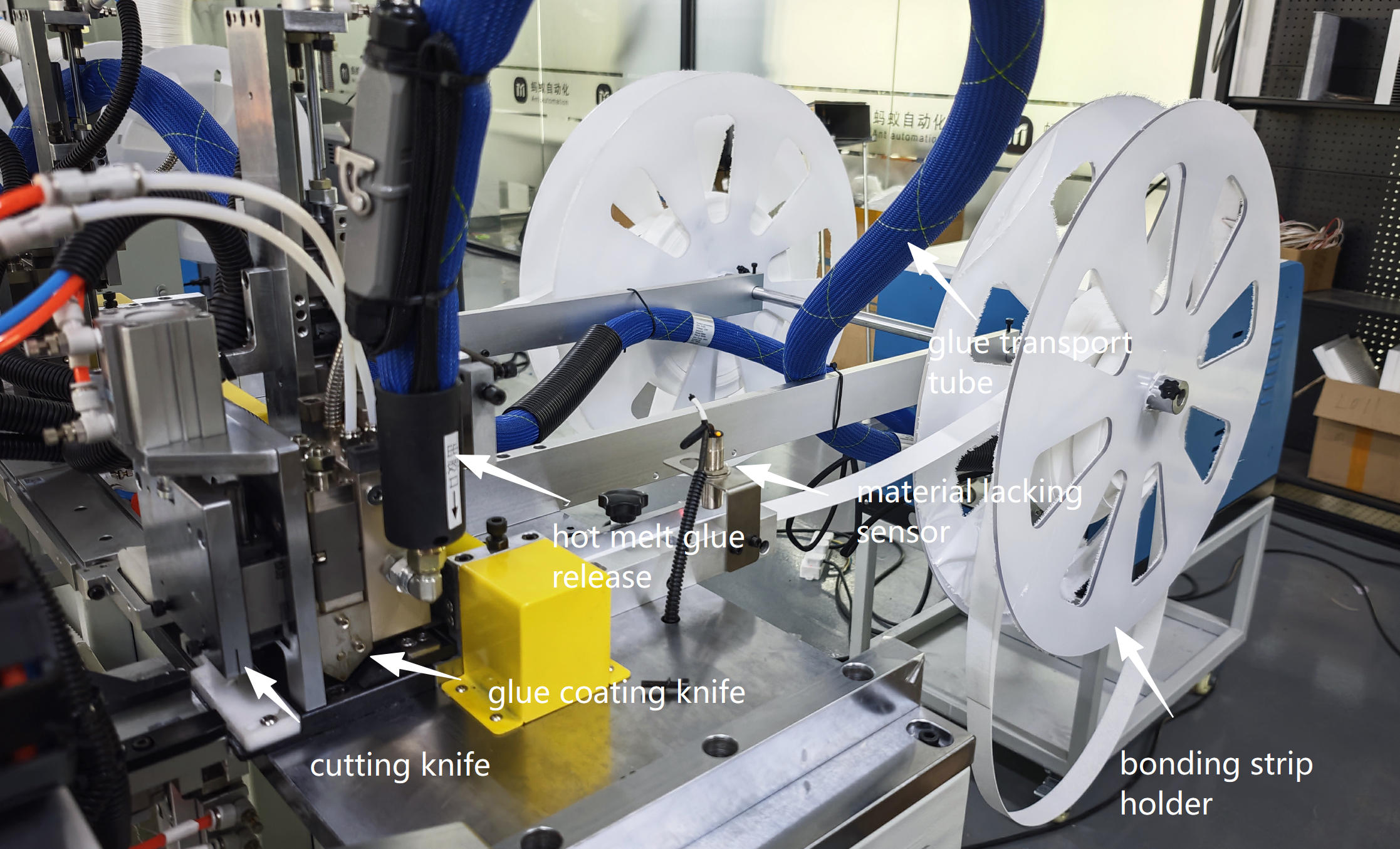

4, Cutting knife & glue coating knife
The cutting knife offers precise cutting length tolerance of +-0.25MM and coating knife will have precision control of glue release and coating even amount of hot melt glue on the bonding strips

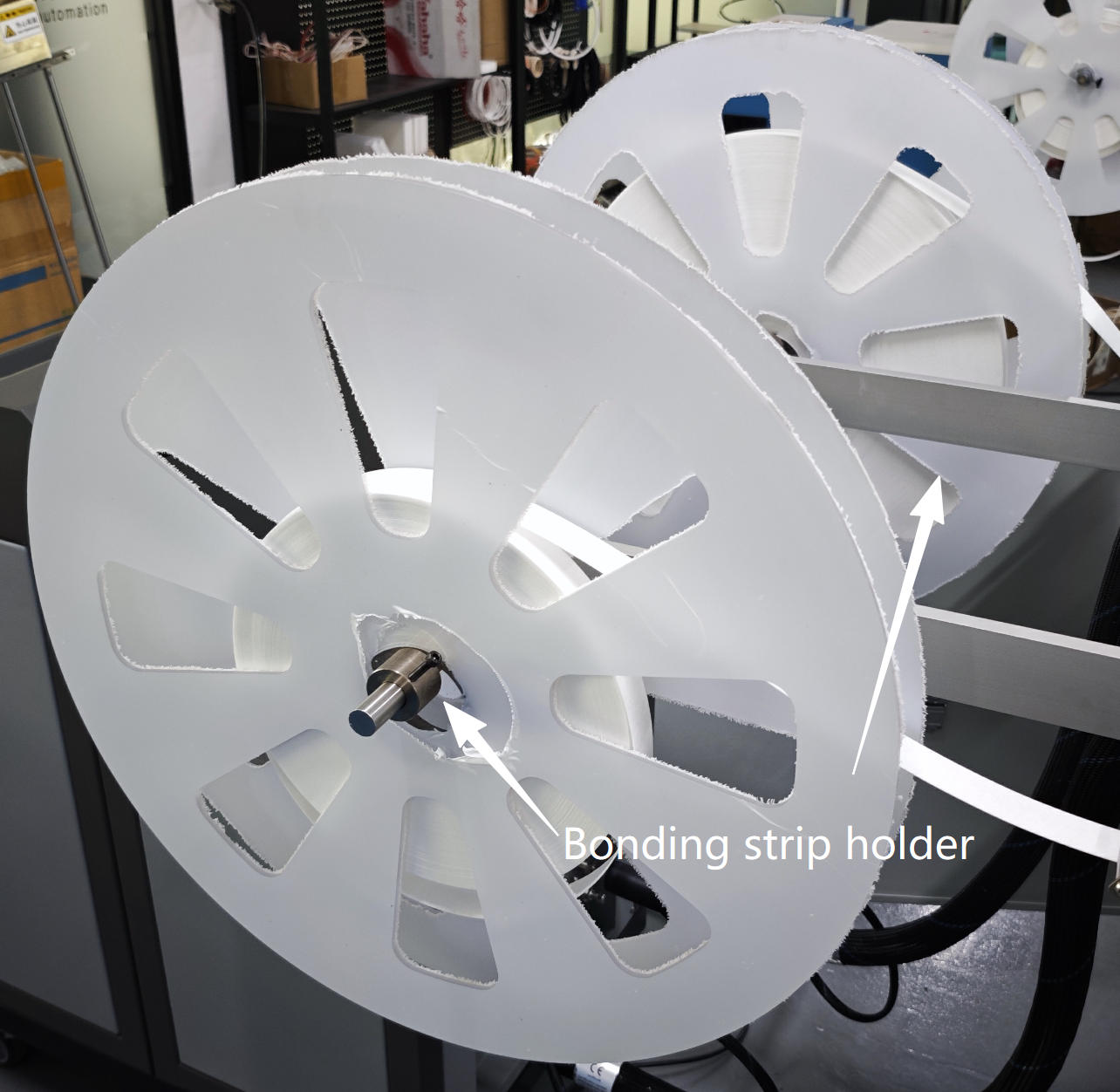

5, Feeding system ,Two bonding strips holder ensuring feeding two pcs bonding strips from both side and ensures smooth feeding process .

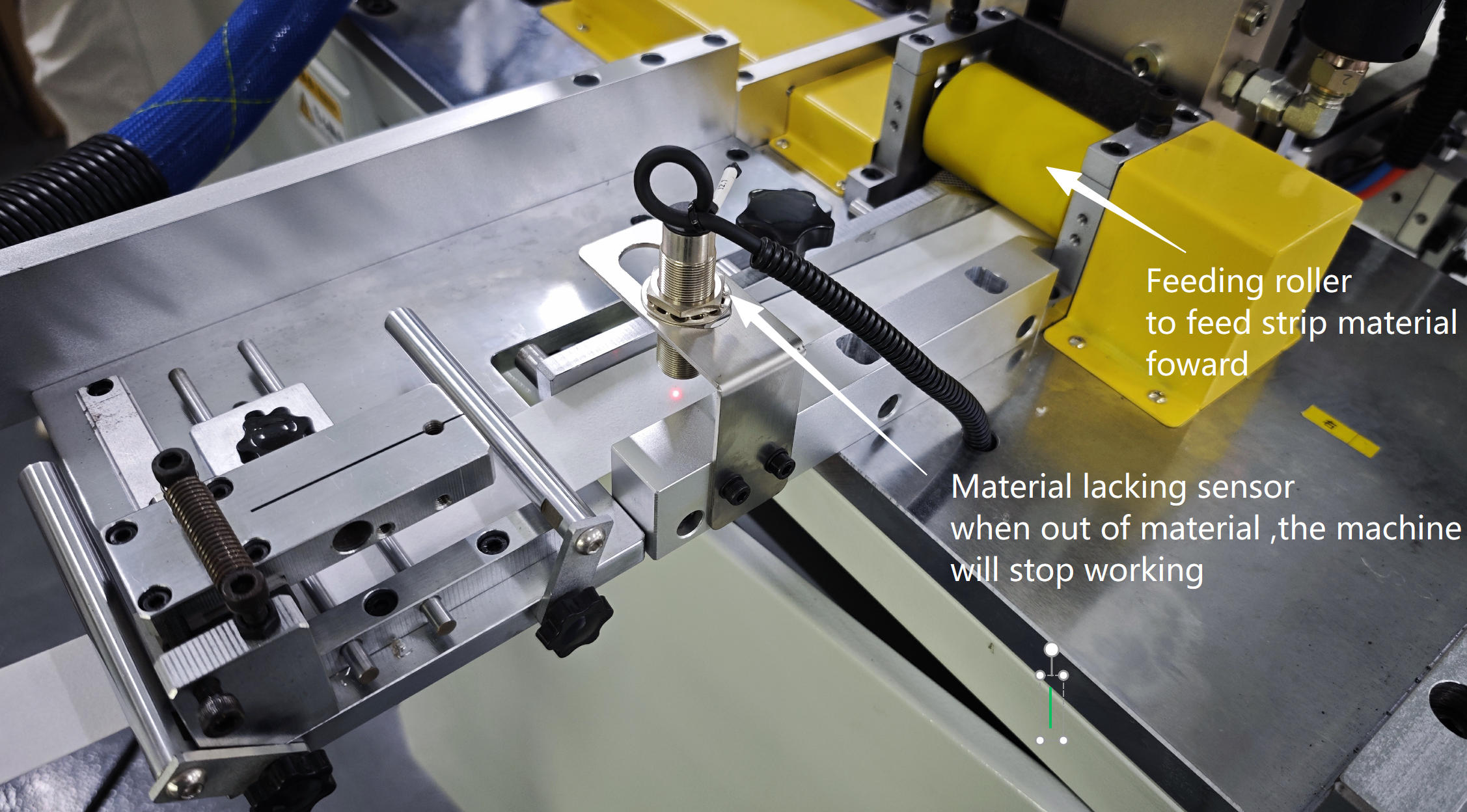

The material lacking sensor can sense material , if material runs out , the machine will stop working and signal alarms.
The feeding rollers will control precision feeding of bonding strip and cut to precise length and hot melt glue will be distributed evenly on the bonding strip .

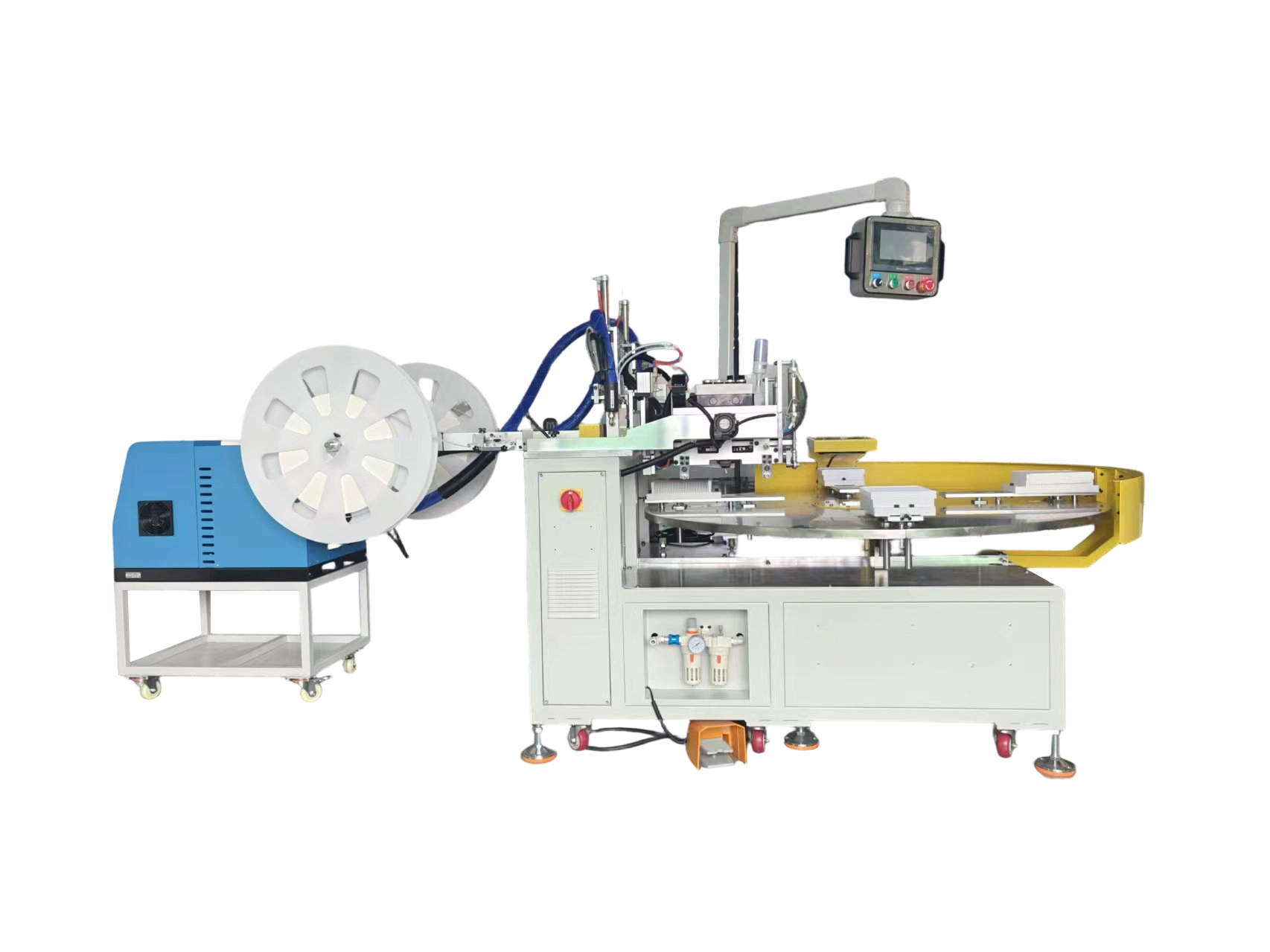

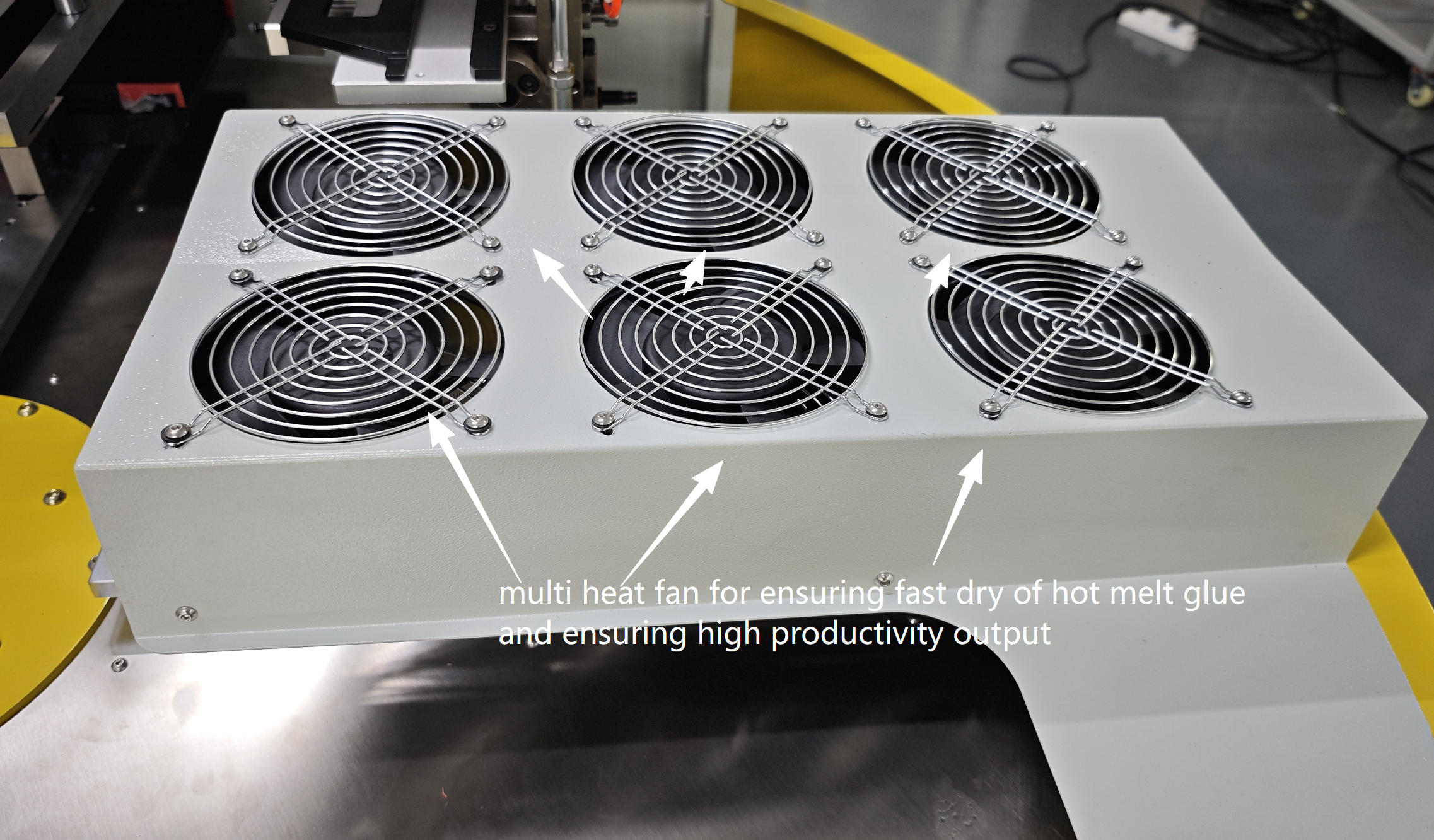

6,,Multi heat dispersing fans , the Auto air filter adhesive bonding machine applies with multi heat dispersing fans to cool the hot melt glue fast dry and ensures good of cabin air filter with more shorter one production cycle time .

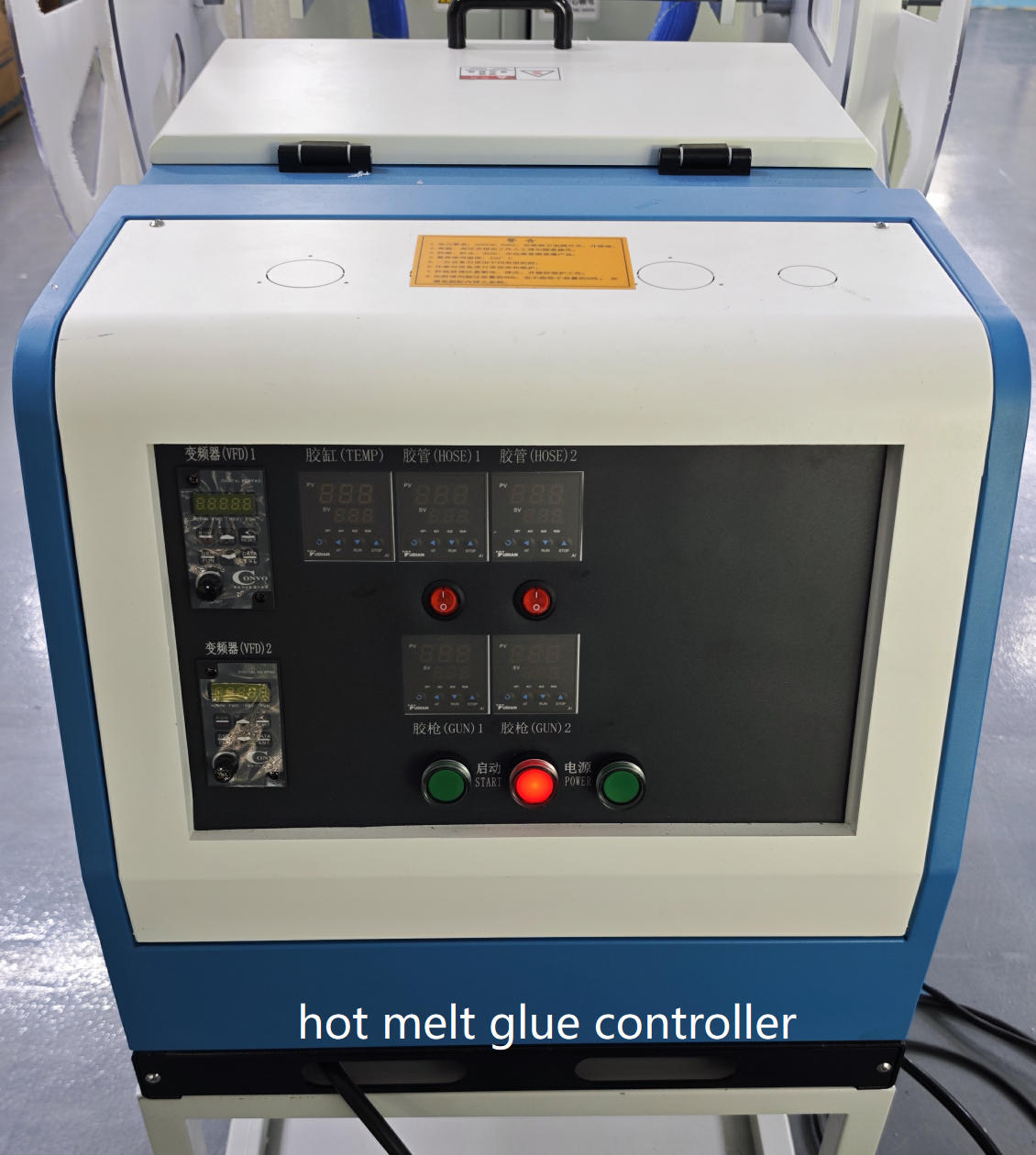

7,Hot melt glue controller ensuring stable output of hot melt glue

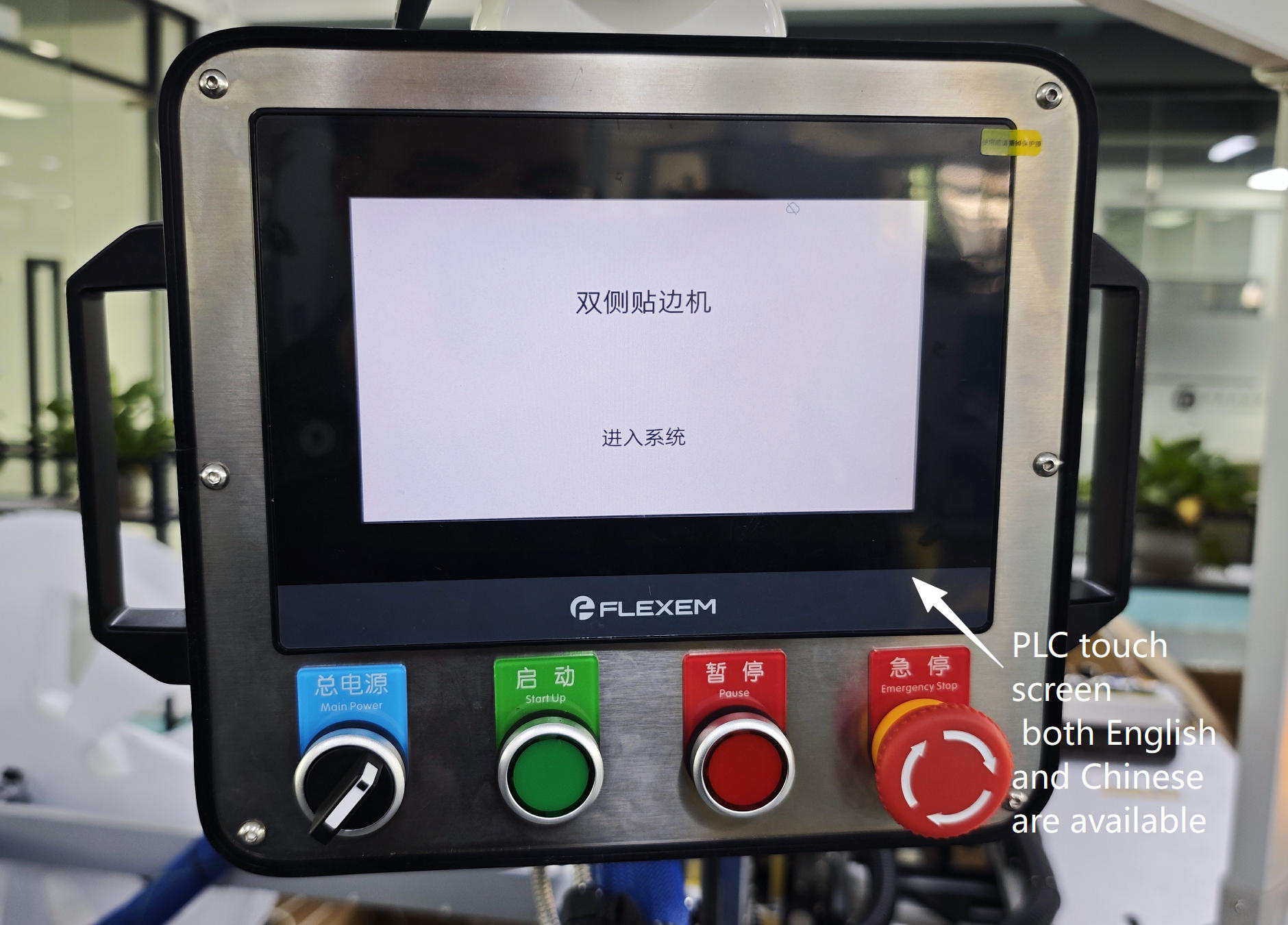

8,PLC touch screen . car cabin air filter gluing machine applies with PLC touch screen ,customer can set different cutting length of bonding strip, bonding unit holding time , product quantity , machine speed based on production requrement etc.
Front View
Side View
Side view
【Warranty 】
As a car air conditioning filter double-side Edge bonding machine supplier , all the spare parts of the ES-060-1 machine will have one year of free maintainance by changing the spare parts for free and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice after on line diagnosis .
【Packing】
1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping ,G.W after packing wooden case is 1T, Wooden case dimension is (L2850+W2150+H2150MM)
